QUICK START GUIDE
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3
Contents
1 Introduction 1
1.1 About VIRALERT 3 1
1.2 What’s in the box? 1
1.3 Optional Accessories 1
2 System Overview 3
3 System Setup 4
3.1 Measurement Location 4
3.2 System Connections 4
4 Start the Software 6
4.1 Network Adapter Settings 6
4.2 Starting the Software 9
Disclaimer 11

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
01
QUICK START GUIDE
1 INTRODUCTION
This Quick Start Guide gives you information on how to install and set up the
AMETEK Land VIRALERT 3 Human Body Temperature Screening System.
1.1 About VIRALERT 3
VIRALERT 3 screens people for elevated temperatures that could indicate fever. The
system is intended for use at the entrance to business premises, hospitals, airports,
schools, sporting and social gathering venues etc.

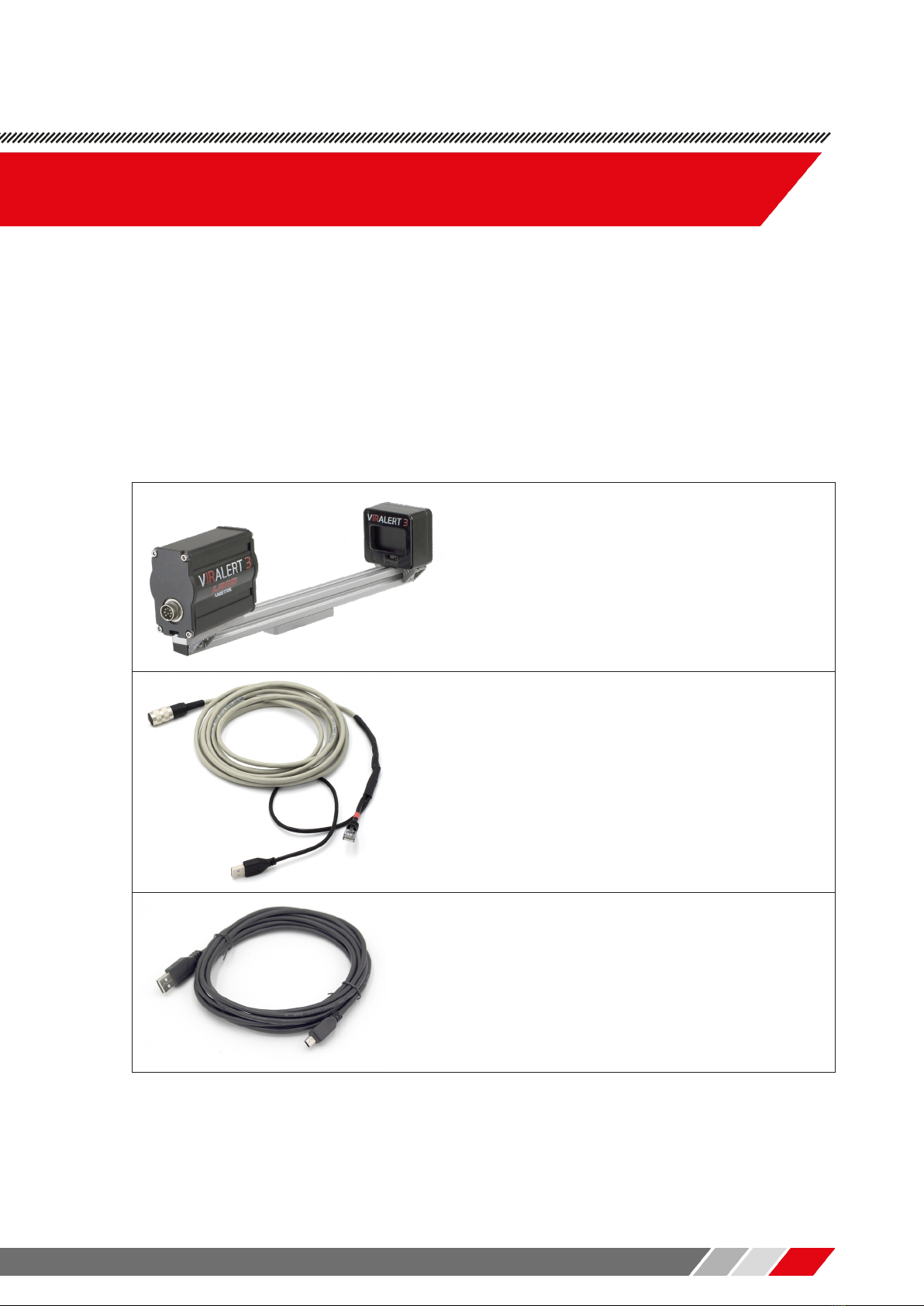

1.2 What’s in the box?
VIRALERT 3 Camera and Blackbody
Reference source
Pre-mounted on a bracket with tripod
xings
Camera to Laptop/PC power and
signal cable
With Ethernet and USB connections to
the Laptop/PC
Power cable for the Blackbody
Reference Source
International mains adaptors included

QUICK START GUIDE
02
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3

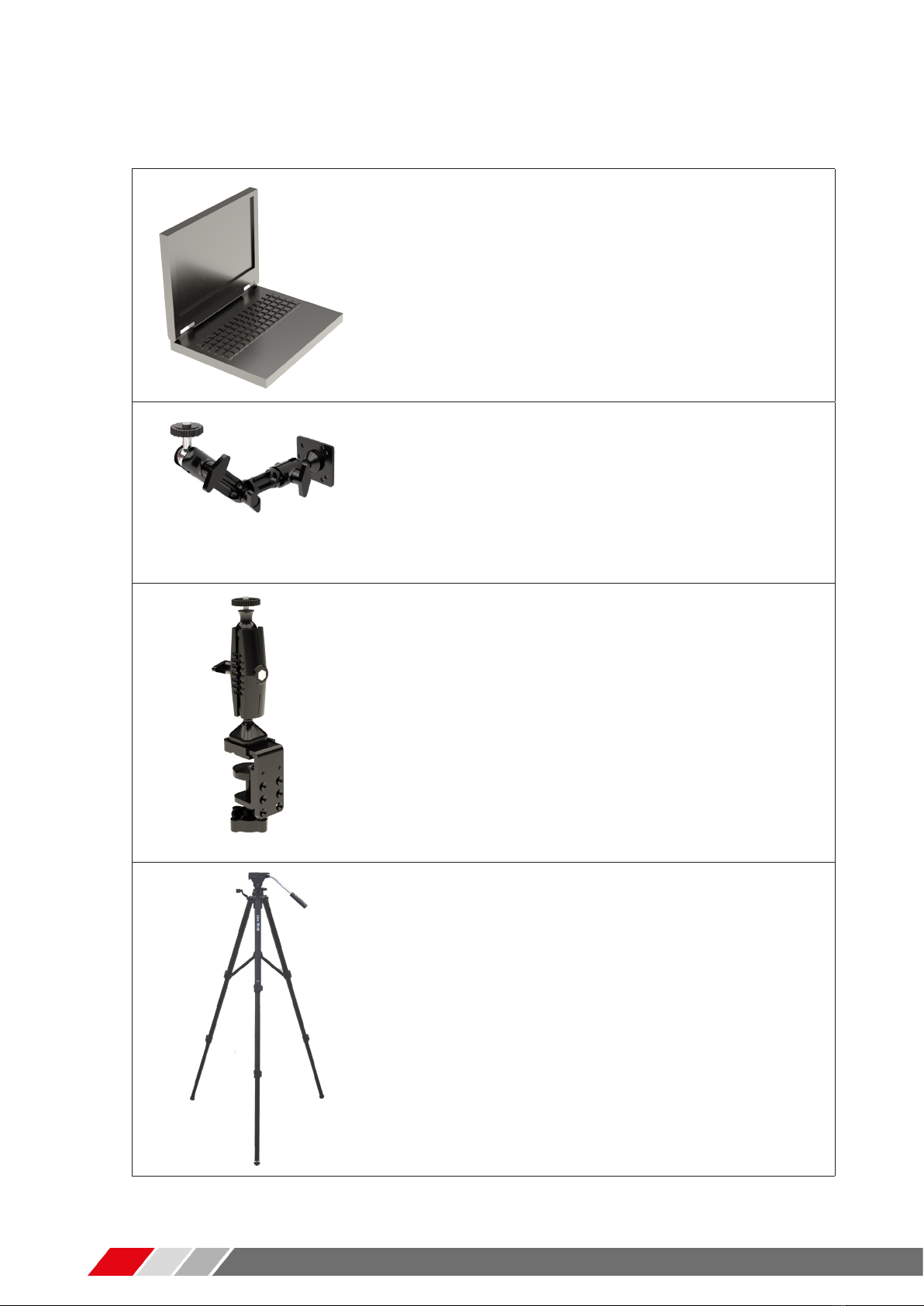

1.3 Optional Accessories
Laptop PC running VIRALERT 3 software
VIRALERT 3 software is available for download from
www.landviralert.com
Surface Mount Bracket
Part Nº 814266
An adjustable mounting bracket that can be screwed
to a wall, ceiling or any other at surface. Fixings
included
Clamp Mount Bracket
Part Nº 814267
A mounting bracket with a clamp to connect to a desk
or a table
Tripod
Part Nº 814268
A tripod for installation on a at surface

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
03
QUICK START GUIDE
Fig. 2-1 VIRALERT 3 Typical System Overview
VIRALERT 3 Camera and
Blackbody Reference Source
Laptop/PC running
VIRALERT 3 Software
Measurement
Subject
Camera Cable
Clamp Mount
Bracket
Reference Source
Power Cable
2 SYSTEM OVERVIEW

QUICK START GUIDE
04
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3
3 SYSTEM SETUP
3.1 Measurement Location
1) Choose a location near to the entrance of the area you want to protect.
2) There must be space to install the Camera and Blackbody Reference Source
so that the Measurement Subject can face the Camera from a distance of
1 m / 3 ft.
3) Avoid locations where there are possible heat sources e.g. electrical
equipment, radiators etc. in the eld of view of the camera.
4) Also avoid locations where the camera may pick up reections from windows,
mirrors etc.
5) During the temperature measurement process, the Subject will need to stand
still in front of the camera for approximately 2 seconds. Make sure there is
adequate provision for social distancing in your chosen measurement location.
6) The camera must have a clear, unobstructed view of the Subject’s face, ideally
with the camera at a height around eye level. If necessary, use one of the
mounting accessories available from AMETEK Land (see Section 1.3).
7) The Blackbody Reference Source requires a mains voltage supply. You will also
need to provide power to the Laptop/PC running the VIRALERT 3 software.
8) Once the system is installed and operating, use cable ties to secure the
cables to suitable structures. This minimises the risk of the cables becoming
dislodged and reduces the risk of tripping over the cables.
9) Posters which explain the screening process and provide instructions for your
sta and visitors on how to use the system are available for download from:
www.landviralert.com
3.2 System Connections
NOTE
If you have purchased a mounting accessory i.e. Surface Mount Bracket, Clamp
Mount Bracket, or Tripod from AMETEK Land, then each accessory will come supplied
with its own installation instructions.

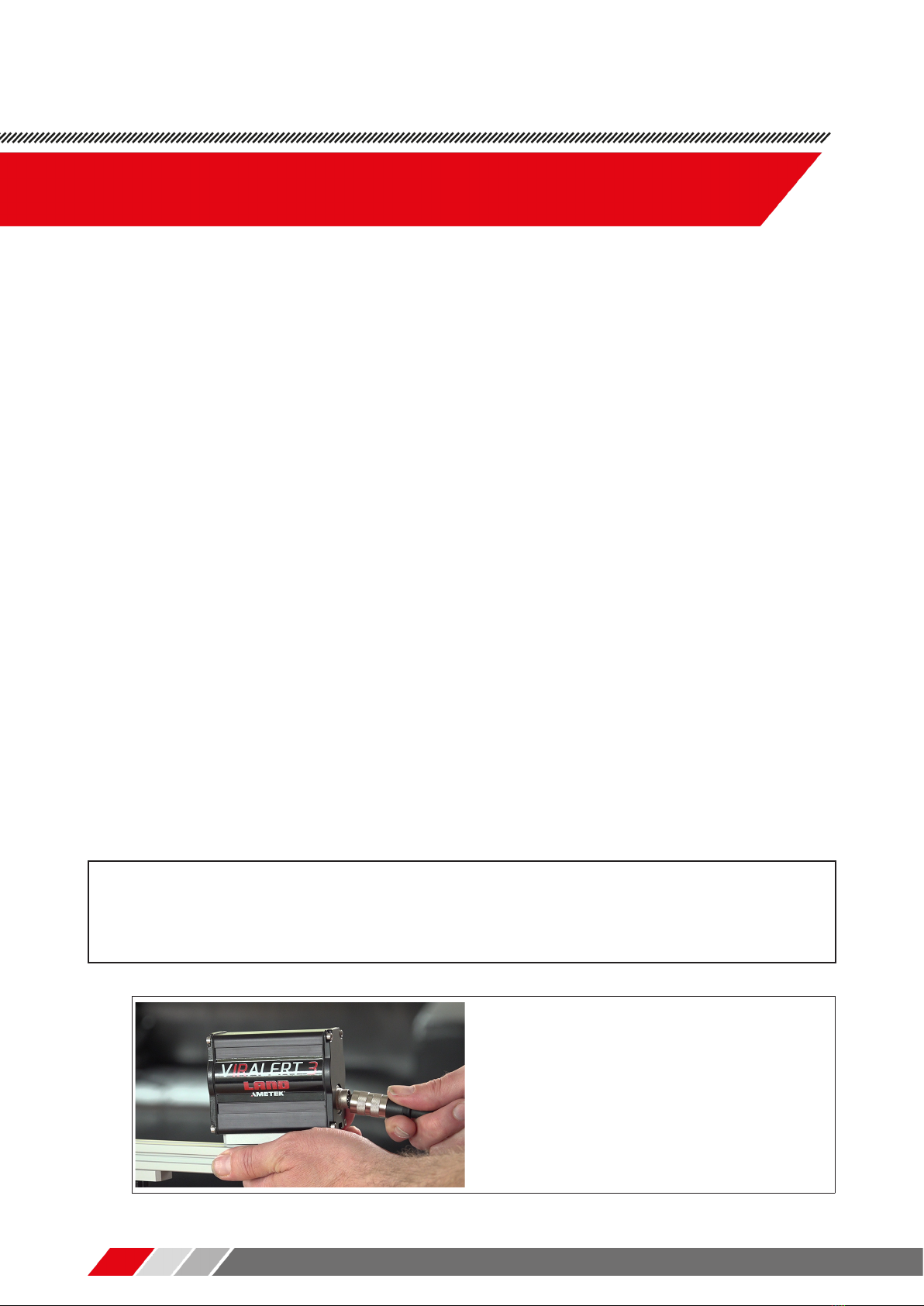

Camera Connection
Connect the cylindrical connector on the
power and signal cable to the Camera

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
05
QUICK START GUIDE

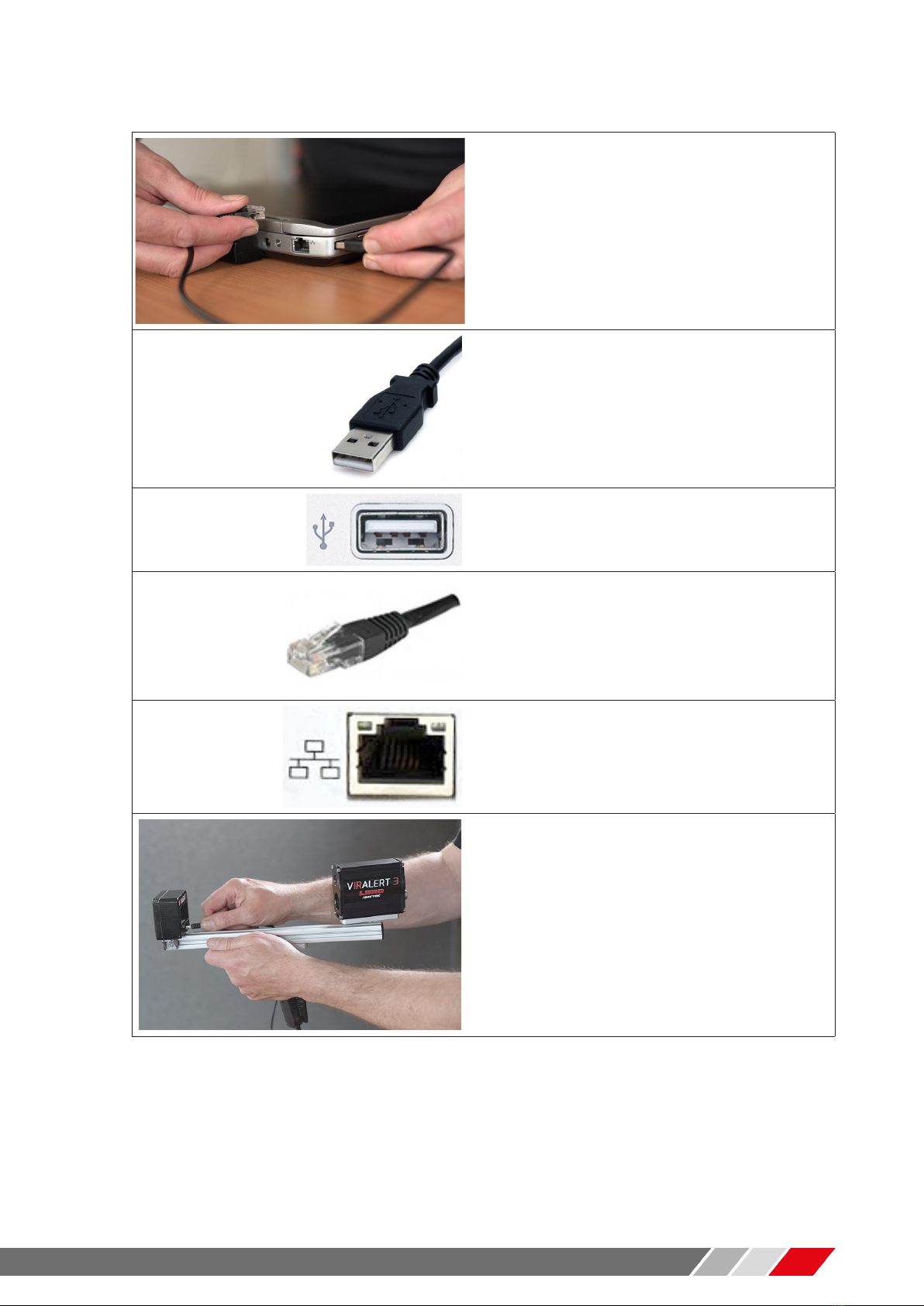

Laptop/PC Connections
Connect the Laptop/PC to the mains power
supply.
Connect the two connectors on the other
end of the power and signal cable to the
Laptop/PC.
The power (USB) connector on the cable
looks like this.
Connect it to a USB socket on the laptop
which looks like this.
The Network signal connector on the cable
looks like this.
Connect it to a Network socket on the
laptop which looks like this.
Blackbody Reference Source
Connection
Connect the smaller connector of the
source power cable to the USB port on the
Blackbody Reference Source.
Use the supplied mains adapter to connect
the cable to the mains supply.
System connections are now complete

QUICK START GUIDE
06
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3
4 START THE SOFTWARE
NOTE
If you purchased a Laptop/PC from AMETEK Land with your VIRALERT 3 system,
then the Network Adapter Settings will already be congured and the software
installed on the computer.

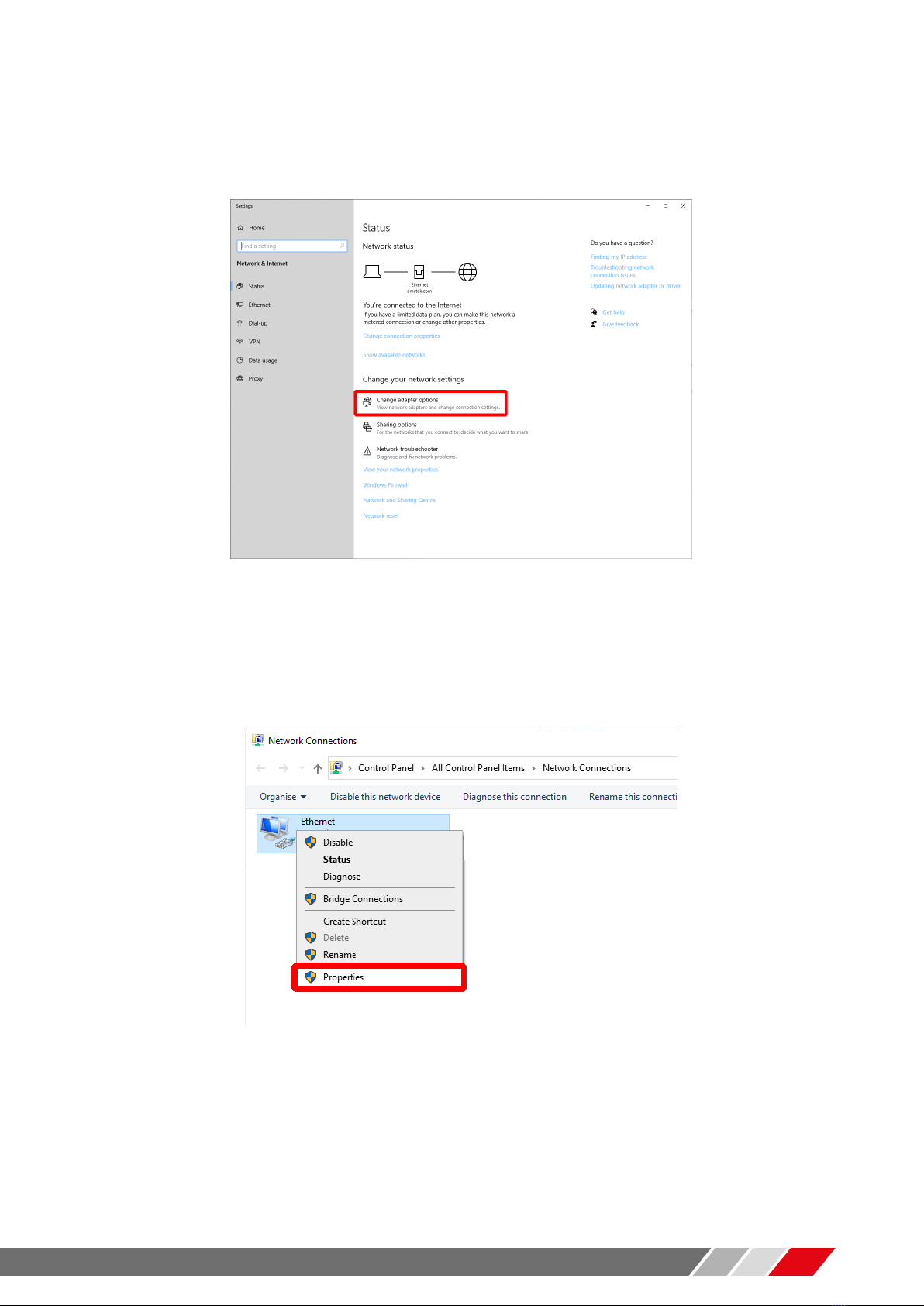

4.1 Network Adapter Settings
If you are using your own Laptop/PC, the correct Network Adapter Settings must be
specied so that your PC can communicate with the VIRALERT 3 Camera.
1) In the bottom left corner of your
computer screen, there is a box
which says:
Type here to search.
2) In this text box, type in Network status.
The Search results will be similar to the screen shown in Fig. 4-1 below.
Fig. 4-1 Network status search
3) Click on the Network Status link.

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
07
QUICK START GUIDE
The Status screen is displayed. See Fig. 4-2 below.
4) Click on the Change adapter options link.
Fig. 4-2 Status screen
The Network Connections screen is displayed. See Fig. 4-3 below.
5) Move your mouse cursor over the icon for your Network (Ethernet in the
example below).
6) Click the right-hand mouse button and select the Properties option.
Fig. 4-3 Network Connections screen
The Networking Properties screen is displayed. See Fig. 4-4 overleaf.

QUICK START GUIDE
08
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3
7) Click to highlight the Internet Protocol Version 4 (TCP/IPv4) option and
click the Properties button.
Fig. 4-4 Network status search
The Internet Protocol Version 4 (TCP/IPv4) Properties screen is displayed.
See Fig. 4-5 below.
Fig. 4-5 Internet Protocol Version 4 (TCP/IPv4) Properties screen
8) Click the small round button next to Use the following IP address to select
this option.
9) In the text boxes, enter the following values:
• IP address: 192.168.10.100
• Subnet mask: 255.255.0.0
10) Click on OK to save these settings.
11) Close the Networking Properties and Network Connections screens.
The Network Adapter Settings are now complete.

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
09
QUICK START GUIDE
4.2 Starting the Software
If you are using your own Laptop/PC, download and install the software from the
AMETEK Land website.
VIRALERT 3 software is available for download from www.landviralert.com.
1) On the Laptop/PC, click on the VIRALERT 3 icon
The software will start automatically in Measurement mode.
2) Wait for the LED on the front panel of the Blackbody Reference Source to turn
green, as shown in Figs. 4-1 and 4-2.
2) Position a Subject in front of the Camera. The subject must have:
• No glasses
• No hat or hood
• No mask
• No hair covering the forehead
Posters which explain the screening process and provide instructions for your
sta and visitors on how to use the system are available for download from:
www.landviralert.com
The software will automatically detect the presence of the subject and
measure their body temperature.
3) Follow the instructions displayed on the software screen.
Subjects with a normal body temperature are indicated by a green screen, as
shown in Fig. 4-1.
Fig. 4-1 VIRALERT 3 Software Normal Body Temperature display

QUICK START GUIDE
10
HUMAN BODY TEMPERATURE SCREENING SYSTEMVIRALERT 3
Subjects with a high body temperature are indicated by a red screen, as
shown in Fig. 4-2.
Fig. 4-2 VIRALERT 3 Software Elevated Body Temperature display
4) Access to the Settings menu, in which you can adjust the temperature alarm
value, is password protected. The password is 0000.
For more information on the Settings menu and other features of the
software, refer to the VIRALERT 3 Software User Guide.

HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 3
11
QUICK START GUIDE
Human skin temperature is aected by a wide number of environmental and
physiological factors. Elevated facial skin temperature may signify a raised
body core temperature; correspondingly, an elevated core temperature may
not be accompanied by a raised facial skin temperature. VIRALERT systems are
accurate scientic systems that must be operated strictly in accordance with
the manufacturer’s operating manual. VIRALERT systems are not intended, nor
designed, to diagnose or detect medical conditions including, but not limited to,
viruses or other illnesses. AMETEK Land thermal imaging products should only
be used to detect variations of surface temperature. If elevated skin temperature
is detected, the nding should be conrmed by other means, for example, an
approved medical thermometer. The absence of an elevated skin temperature
does not exclude a fever.
Images shown in this document are for illustrative purposes only.
DISCLAIMER

For a full list of international oces, please visit our website www.ametek-land.com
Copyright © 2020 LAND Instruments International.
Continuous product development may make it necessary to change these details without notice.
VIRALERT 3 System Quick Start Guide, Issue 1, 19 June 2020
Land Instruments International
Droneld, S18 1DJ,
England
Tel: [phone]
Email: [e-mail]
www.ametek-land.com
AMETEK Land - Americas
150 Freeport Road, Pittsburgh,
PA 15238, U.S.A.
Tel: [phone]
Email: [email protected]
www.ametek-land.com
AMETEK Land China Service
Part A1 & A4, 2nd Floor #1
No. 26 Fute 3rd Road East,
Pilot Free Trade Zone 200131
Shanghai, China
Tel: [phone] ext 122
Email: [e-mail]
www.ametek-land.com
AMETEK Land India Service
Divyasree N R Enclave,Block A,
4th Floor, Site No 1, EPIP Industrial Area
Whiteeld, Bangalore- 560066 Karnataka,
India
Tel: +91 - 80 67823240
Email: [email protected]
www.ametek-land.com
VIRALERT 3 HUMAN BODY TEMPERATURE SCREENING SYSTEM
