INSTRUCTIONS FOR USE
OKF921G, OKF621G
Before starting the appliance, please read this operating manual carefully.

3
Dear Customer,
You are now a user of the newest generation kitchen extractor hood of OKF921G or
OKF621G type.
This hood has been designed and manufactured specially with a view to satisfying your
expectations and it will certainly constitute a tting element of a modern kitchen. The modern
structural solutions and the newest technologies used in production of this hood guarantee
its high effectiveness and good appearance.
Please read these instructions carefully before installing the hood. They will make you avoid
mistakes during installation and operation of the hood.
We wish you a lot of satisfaction from choosing our kitchen extractor hood.

4
CONTENTS
Guidelines concerning safe use.......................................................................5
Installation................................................................................................................7
Maintenance..........................................................................................................10
Construction.........................................................................................................11
Cleaning and maintenance...................................................................................13
Technical data..................................................................................................14
Guarantee, after-sale service.............................................................................14

5
GUIDELINES CONCERNING SAFE USE
RECOMMENDATIONS::
1. Check if the voltage value provided on the rating plate corresponds to the local
electric supply parameters.
2. Uncoil and straighten the electric supply cable before the installation.
3. This equipment is not to be used by persons (to include children) with limited physical,
sensory, or mental capacities, unless they do so under supervision or in accordance
with the equipment use instructions given to them by persons who are responsible
for their safety.
Children must be prevented from playing with the ventilation hood.
CAUTION:
1. The kitchen ventilation hood, which serves the purpose of extracting kitchen va-
pors to the outside of a room (working in an exhaust mode) must be connected to
a proper ventilation channel (it must not be connected to chimney ducts, smoke,
and combustion gas ducts which are used).
2. The equipment must be mounted at the height of at least 650 m above the work
plate of the stove. The hood works the most effectively at the height of 650 mm to
750 mm.
3. Anopenamemustnotbeleftunderthekitchenventilationhood.
4. Dishes that are fried on fats should be constantly monitored as overheated fat can
easily be become ignited.
5. Thefatlterofthekitchenventilationhoodmustbereplacedevery2months.A
lterthatcontainstoomuchfatinammable.
6. The equipment should be unplugged from the power outlet before replacing the
lterorrepairingtheventilationhood.
7. Ifotherequipmentwithnon-electricpowersupply(suchasliquidfuelstoves,ow
heaters, or water heaters) is used in the same room in addition to the ventilation
hood, then proper ventilation (supply of air) of the room should be assured. Safe
usage is possible when, the maximum negative pressure in the room where the
ventilation hood and other equipment using air in the combustion process are
located, during the simultaneous operation of the ventilation hood and that equ-
ipment, does not exceed 0.004 milibars (this provision does not apply when the
kitchen ventilation hood is used to absorb scents).
8. When connecting the ventilation hood to a 230 V power supply network, it must be
connected to an electric outlet which is in good condition.
9. The ventilation hood should not be used as a support platform for persons present
in the kitchen.
10. The ventilation hood should be cleaned frequently, both on the outside and inside
(AT LEAST ONCE A MONTH), in accordance with the maintenance instructions
provided in this manual. Failure to observe the principles concerning cleaning of
theventilationhoodandchanginglterswillleadtoarehazard.
Themanufacturershallnotbeheldresponsibleforanypossibledamageorres
caused by the equipment due to the failure to observe the instructions provided in
this manual.

6
Electric supply requirements
It is necessary to check if the voltage value stated on the rating plate corresponds to the
electric supply parameters in the house and that the electric supply is marked as ~ (alter-
natingcurrent).Theventilationhoodisanelectricequipmentmadeinthe1stclassofre
protection and it must be connected to an outlet with working protection circuit.
Caution! If a supply cable becomes damage, it must be replaced by the staff of a
professional repair shop.
Our packaging are made of
environmentally friendly mate-
rials, which can be reused:
- The external packaging is made of card-
board/
foil
- The FCKW free shape of foamed polysty-
rene
(PS)
- Polyethylene (PE) foils and bags
ROZPAKOWANIE DISPOSING OF THE DEVICE
When disposing of the device,
do not bring it to regular munici-
pal waste containers. Instead,
bring it to electrical and electro-
nic waste recycling and reuse
center. A relevant label has been
put on the device, its instructions
manual, or on the package.
The device has been manufactured of re-
cyclable materials. By bringing old device to
recycling collection center, you show that you
care about nature.
Ask your local environmental care authority
for information on location of such facilities.
This piece of equipment is marked in accordance with the European Directive 2002/96/EC
on waste electrical and electronic equipment (WEEE).
WARNING: Before the ventilation hood is connected to the power supply network
and before its proper operation is checked, it is necessary to verify if the supply
cable has been installed properly and has NOT been crushed by the ventilation hood
during the assembly.

7
INSTALLATION
Installation of the ventilation hood in the exhaust mode
(extracting of used air to the outside)
1.Fixthewallsectionoftheventilationhoodtothewall,usingxingpinsandscrews
from the installation packet, at a height so that the suspended ventilation hood in on
the level of 650-750 mm over the top of the stove.
2.Removethefatlteroftheventilationhood(thenumberoflters
depends on the type of the hood) by unfastening the snap fastener.
3. The hood must be placed with its installation opening in the back
against the wall over the installed wall section so that the upper edge of

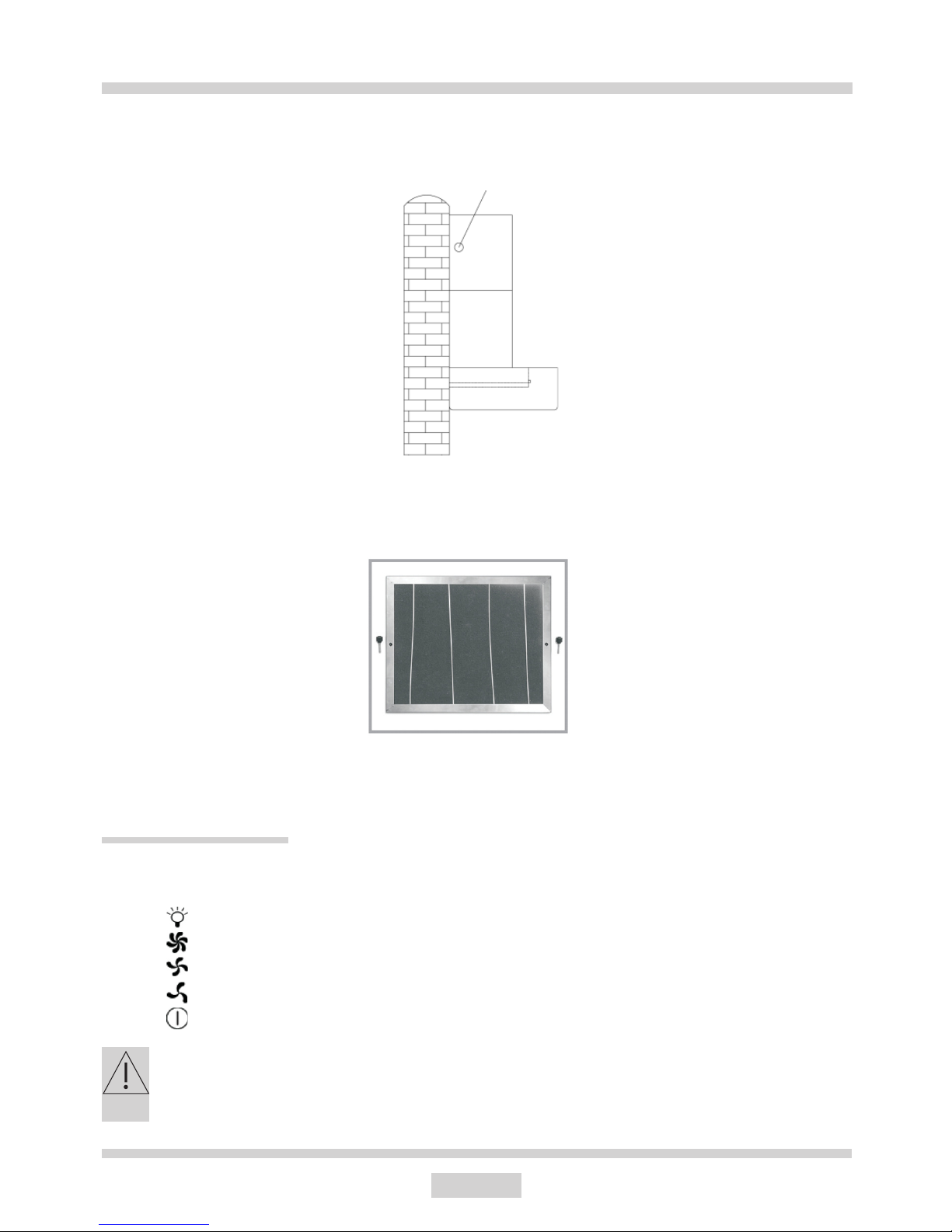

the opening slides into the wall section (see the drawing beside).
4. The ventilation hood should then be leveled using a hand level and, if necessary,
its position should be corrected by screwing in or out of the leveling screws located
on the body of the hood over the installation opening. After the ventilation hood is
leveled, a securing screw should be screwed in in the middle of the wall section.

8
INSTALLATION
5. Put the air outlet pipe into the connection port of the air outlet at the ventilation
hoodbodyandxitwith3smallscrews(thepipeandthescrewsaresupplied).The
other end of the pipe (marked HL) connect with the ventilation channel.
6. Install the grip of the upper chimney masking element in the axis of symmetry of
the ventilation hood (over the ventilation duct).

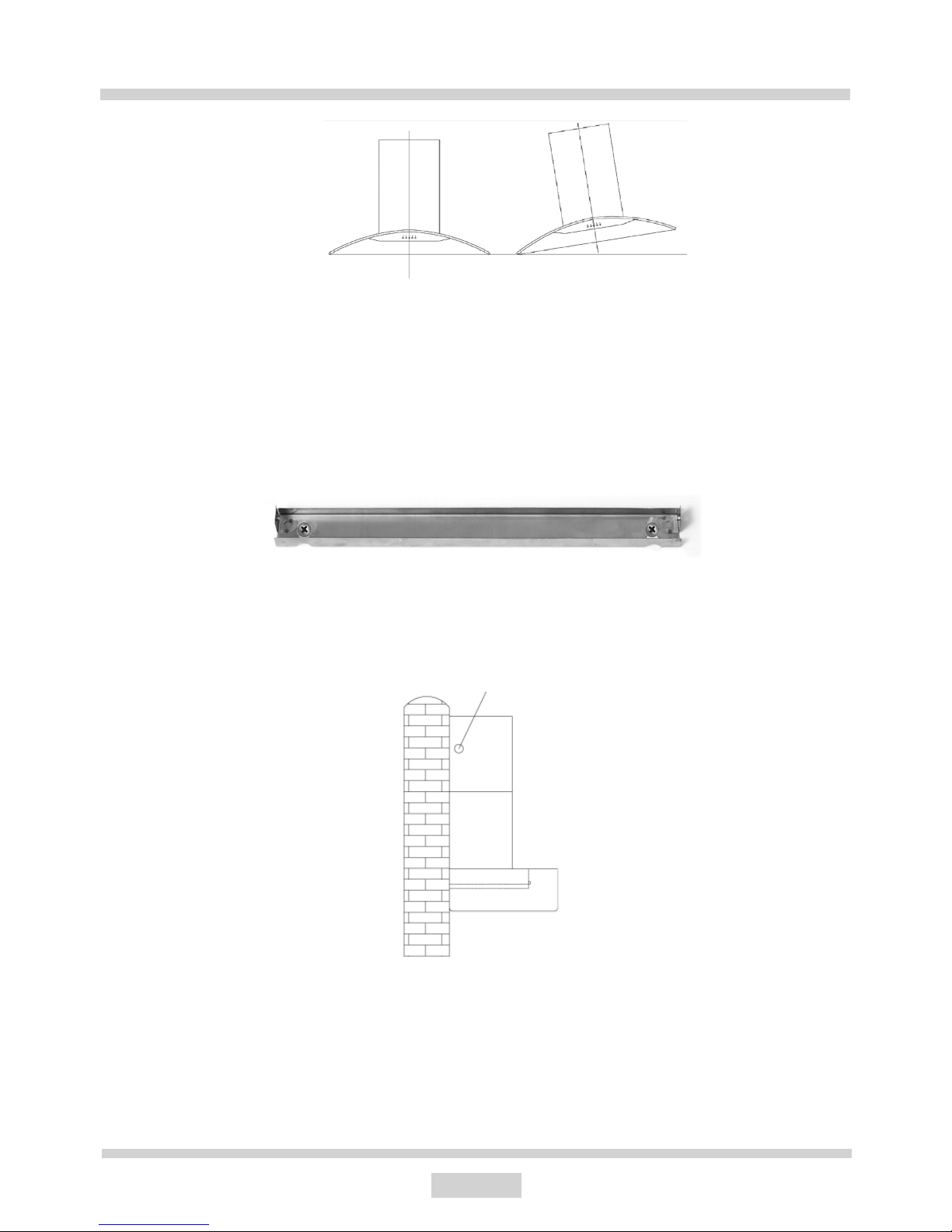

GOOD BAD
9.Re-installthefatlter(thenumberofltersdependsonthetypeofventilation
hood).
10. Connect the ventilation hood to the power supply network.
7.Takeofftheprotectivelmfromthechimneymaskingelements.
8.Setthelengthoftheuppermaskingelementasrequiredandxittothegripwith
two side screws (item A1 below).
A1

9
Setting the ventilation hood in the scent absorber mode
Inthismode,airlteredthroughtheactivecarbonlterreturnstotheroombythe
oblong openings of the cleaned air outlet located on the upper masking element.
If the ventilation hood is to be used in this mode, it is necessary to purchase and
installanactivecarbonlter.
INSTALLATION
1.Fixthewallsectionoftheventilationhoodtothewall,usingxingpinsandscrews
from the installation packet, at a height so that the suspended ventilation hood in on
the level of 650-750 mm over the top of the stove.
2.Removethefatlteroftheventilationhood(thenumberoflters
depends on the type of the hood) by unfastening the snap fastener.
3. The hood must be placed with its installation opening in the back
against the wall over the installed wall section so that the upper edge of
the opening slides into the wall section (see the drawing beside).
4. The ventilation hood should then be leveled using a hand level and, if necessary,
its position should be corrected by screwing in or out of the leveling screws located
on the body of the hood over the installation opening. After the ventilation hood is
leveled, a securing screw should be screwed in in the middle of the wall section.
5. At the required height, in the ventilation hood axis of symmetry, install the grip of
the chimney masking element along with the air guide.
GOOD BAD

10
MAINTENANCE
8.Fixthecarbonlter(whichmustbepurchasedseparately)totheinsideframeof
theventilationhoodbody(whichisaccessibleonlyaftertheairlter/-sis/areremo-
ved).Whenbuyinganairlter,informationonthetypeoftheventilationhoodmust
be provided to the seller. The information can be found on the rating plate.
The rating plate can be
found inside the hood.
6.Takeofftheprotectivelmfromthechimneymaskingelements.
7.Setthelengthoftheuppermaskingelementasrequiredandxittothegripwith
two side screws (item A1 below).
A1
9.Re-installthefatlter(thenumberofltersdependsonthetypeofventilation
hood).
10. Connect the ventilation hood to the power supply network.
Control panel
The operation of the ventilation hood is controlled by a combined switch that can
be found on the front of the ventilation hood body.
- the „ ” switch controls the light – turns the light on and off,
- the „ ” switch sets the motor in the third gear,
- the „ ” switch sets the motor in the second gear,
-the„”switchsentthemotorintherstgear,
- the „ ” switch turns of the motor of the ventilation hood.
Caution!
Never press two or more buttons at once.

11
CONSTRUCTION
Exhaust pipe
Air outlet openings
Upper masking element
Power supply cable
Lower masking
element
Casing (hood)
Lights
Fat lters (the number depends on the type of the ventilation hood)
Motor
Control panel
Ventilation hood glass screen
Electric cover
Fan speed
The lowest and the medium speeds are used in normal conditions and when the amount
of vapors is small. The highest speed should be used only when the amount of kitchen
vapors is high, e.g. when frying or grilling dishes.
Safe operation
The safety instructions provided in this manual must absolutely be observed!
Thefatlterandtheactivecarbonltershouldbechangedinaccordancewiththemanu-
facturer’s recommendation or more often in case of intensive use (more than four hours a
day).Whenthegasovenisbeingused,anamemustnotbeleftuncovered.Whentaking
potsoffofthegasburners,theminimumheightoftheameshouldbeset.Itisalways
necessarytocheckiftheameextendsbeyondthepotbecausethiscausesunnecessary
energy loss and a dangerous concentration of heat.
The ventilation hood should not be used for purposes other than those that it is designed
for.
Connecting the hood to power supply network and controlling its operation
After connecting the hood to the electric network (in accordance with the previously de-
nedrequirements),itisnecessarytocheckifthelightoftheventilationhoodworksandif
the motor works properly. After installing the hood, the electric outlet should be accessible
so that it is possible to unplug the ventilation hood.

12
Lighting
The lighting installation consists of 20 W halogen bulbs.
In order to change a broken bulb, one must:

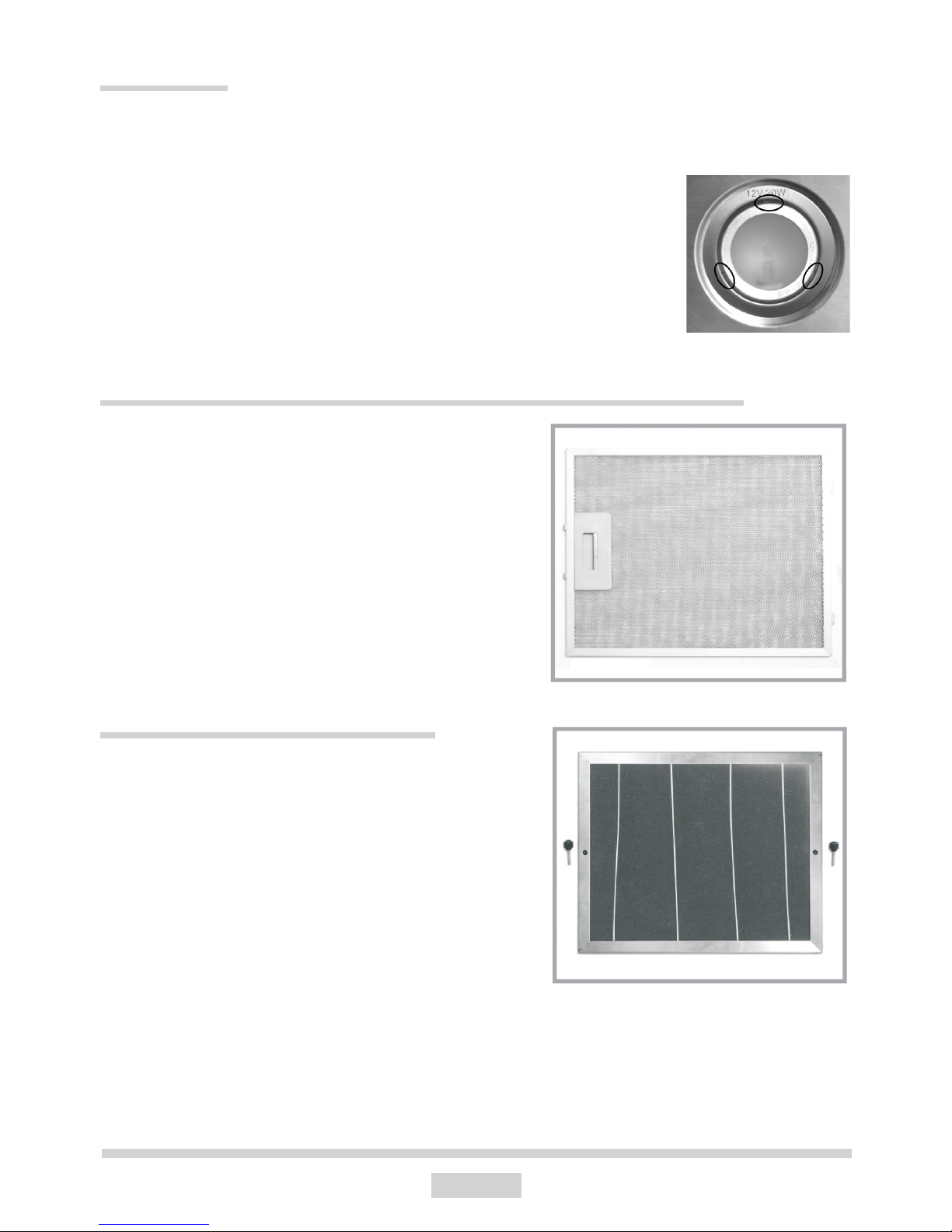

a) lever the ring holding the glass of the halogen lamp
(inthreepoints)usingaattoolorascrewdriverandtakethe
bulb out while holding the ring,
b) change the bulb, holding it with a cloth or a piece of paper,
c) reinstall the ring and the glass by doing things in the reverse order.
Note: Make sure that you do not touch the halogen bulb to be
installedwithyourbarengers!
Fat lter (quantity dependent on the type of the ventilation hood)
1. Cleaning.
Fatltersshouldbecleanedonceeverytwo
months when the hood works in normal
amounts, using a gentle detergent or liquid soap.
Notcleaningthelterincreasestheriskofare.
2. Disassembly.
Filters can be disassembled by:
a)releasingthesnapfastenerofthelterlock,
b)takingoutthemetalfatlter.
Active carbon lter (not supplied)
Anactivecarbonlterisusedonlywhenthe
ventilation hood cannot be used to exhaust air
from the room (there is no proper ventilation duct
in the room).
Alterlledwithactivecarboniscapable
of absorbing scents until it is saturated. It cannot
be washed or regenerated and must be replaced
once every 3 months.
Inordertochangethelter,onemust:
a)releasethesnapfastenersofthefatlter/-sandtakeoutthelter/-s,
b)unscrewthescrewsthatxtheactivecarbonltertotheinternalframe,
c)takeofftherodsholdingtheactivecarbonlter,takeoutthelterandputinanew
one,
d)xtheactivecarbonltertotheframeagain,
e)re-installthefatlter/-s.

13
CLEANING AND MAINTENANCE
Cleaning
Before any cleaning and maintenance operations are performed, the ventilation hood must
be disconnected from its electric supply by unplugging it from the power socket or by swit-
ching off the main supply switch. The ventilation hood must be cleaned frequently, both on
the outside and inside, using a cloth damp cloth with gentle cleaning substances. Using
caustic or abrasive substances is not permitted. The best way to clean the ventilation hood
is by using a cloth dampened with a water solution of neutral detergent. Do not use products
that contain abrasive substances.
DO NOT USE ALCOHOL!
Caution: Failure to observe the instructions for cleaning the ventilation hood and changing
theltersmayleadtoare.

TECHNICAL DATA
Type of ventilation hood OKF921G OKF621G
Electricsupplyvoltage AC230V~50Hz
Number of fan motors 1
Numberoffatlters21
Lighting power [W] 2 x 20
Fan speed gears 3
Width [cm] 90 60
Depth [cm] 48
Height [cm] 59,2-108,2 60,7-109,6
Outlet [Ø mm] 155
Output [m3/h] max 680
Power consumption [W] 190
Loudness [dBA] 52
Net weight [kg] 18 15
Operation modes Exhaust or scent absorption
Colur Inox
GUARANTEE, AFTER-SALE SERVICE
Guarantee
The guarantee terms are stipulated in the guarantee card.
The manufacturer shall not be held liable for any damage caused by improper handling of
the product.
Manufacturer’s declaration
The manufacturer hereby declares that the appliance fulls the requirements of the following European
directives:
lThe Low Voltage Directive 2006/95/EC,
l The Electromagnetic Compatibility Directive 2004/108/EC,
and therefore it has been marked with a and assigned a declaration of conformity, which is made
available to the market supervising authorities.

15

Amica Wronki S.A.
ul.Mickiewicza52
64-510 Wronki
IO 00317
