Amica AWSN 10DA User manual

Washing machine
Start up your washing machine only once you’ve read the Manual and the
abridged Instructions for Use!
Operating manual
IOAP-240
(11.2009./1)
AWSN 10DA
AWSN 12DA
AWCN 10DA
AWCN 12DA
AWCN 14DA
AWCN 12DAB

2 Pralka
TABLE OF CONTENTS
Disposing of the device
When disposing of the device, do not bring it to regular municipal waste con-
tainers. Instead, bring it to electrical and electronic waste recycling and reuse
center. A relevant label has been put on the device, its instructions manual, or
on the package.
The device has been manufactured of recyclable materials. By bringing old device to re-
cycling collection center, you show that you care about nature.
Ask your local environmental care authority for information on location of such facilities.
General information.............................................................................................................3
Safety instructions .............................................................................................................4
Installation............................................................................................................................6
Display of the washing machine........................................................................................8
Care labels symbols..........................................................................................................10
Maintenance and cleaning................................................................................................11
Practical washing hints.....................................................................................................12
Technical data....................................................................................................................18
Guarantee and service......................................................................................................18

Pralka 3
Certicate of compliance
Compliance with the following Directives: 73/23/EEC, 89/336/EEC, 92/75/EEC
The Manufacturer declares that its product complies with the general safety, hygienic and
environmental protection requirements pursuant to the European Community Directives and
that the specic documents applicable to the said product, especially the European Com-
munity Dec la ration of Conformity issued by the manufacturer may be viewed in ofces of the
competent authorities and may be obtained through the Manufacturer.
DEAR CUSTOMER
Washing gets simpler than ever from today. The automatic washing machine is an associa-
tion of an extremely easy operation and a perfect washing effect. After the use instructions
have been read, the operation of the appliance is no more problem.
Before the automatic washing machine could leave the manufacturer work, it was thoroughly
checked for safety and function at test beds before packing. Possible damp or water residues
in the appliance can be traces of this control.
Before the appliance is put into operation, please read the instructions of use attentively. If
you observe them, you will avoid various operating errors.
Keep these instructions of use ready to be consulted any time. Follow their advices thoroughly
in order to avoid possible accidents.
Caution!
The automatic washing machine is intended for the use in the household only and
serves for washing of textiles and clothes which are suited for the mechanical laun-
dering in the washing bath.
Before the plug of the automatic washing machine is plugged into the electrical mains
outlet, all transport protections must be removed and the machine is to be levelled
correctly.
The manufacturer reserves himself a right to introduce the changes which doesn’t
affect the appliance function.
How to use the appliance
lDo not operate the appliance until you have taken note of the contents of these instruc-
tions of use.
lNever use the appliance outdoors or in rooms where negative temperatures can appear.
Children and persons, which are not familiar with the contents of these instructions of use,
should not use the appliance.
Caution! A temperature below 0 degrees Celsius could damage the appliance! If the
appliance was stored or transported at negative temperatures, it should be used only
after an acclimatization period of 8 hours in a room with positive temperature.

4 Pralka
Do not use any solvent-containing washing agents as they may damage
some parts of the appliance or may release poisonous gases and create
ignition and explosion danger.
The window and door of your washing machine are hot during operation.
Do not allow children in the vicinity of the appliance. Use only those wash-
ing agents and bleaches that are appropriate for washing in automatic
washing machines.
Before you begin any transport activities pull out the mains plug. The
washing machine must be locked during transportation. Place both the
upper and bottom interlocks. See Installation.
Data plate specifying all the main technical data is located in the upper
part of the aback cover.
SAFETY INSTRUCTIONS
Burns
Washing agents
Transportation
Data plate
Loading the
wash
Do not admit unwanted objects into the appliance. Empty all the pockets,
do up all the buttons and fasten zippers. Put small and loose objects in
a cloth bag or pillow case as they may break and damage the drum and
the inside tank. Do not overload the machine.
Control panel Protect the control panel against spilled water.
Don’t take off any damp laundry on the appliance!

5 Pralka
Stability control
When the washing machine is installed and levelled, make sure that all four feet are resting
rmly on the oor by pressing down each corner and checking if the appliance stands still.
SAFETY INSTRUCTIONS
Withdrawal from operation
From safety reasons, a worn out washing machine must be made inoperable. In order to do
so, unplug it and cut off the power lead.
Dispose of the appliance in conformity with local regulations.
lNever allow children to remain unattended near the cooktop nor to play with the control
panel.
lUnless properly supervised by caretakers or upon thorough studies of the operating
manual, the appliance must not be operated by persons (including children) of limited
physical or psychical abilities, these of limited technical expertise, or unfamiliar with the
equipment.

Pralka 6

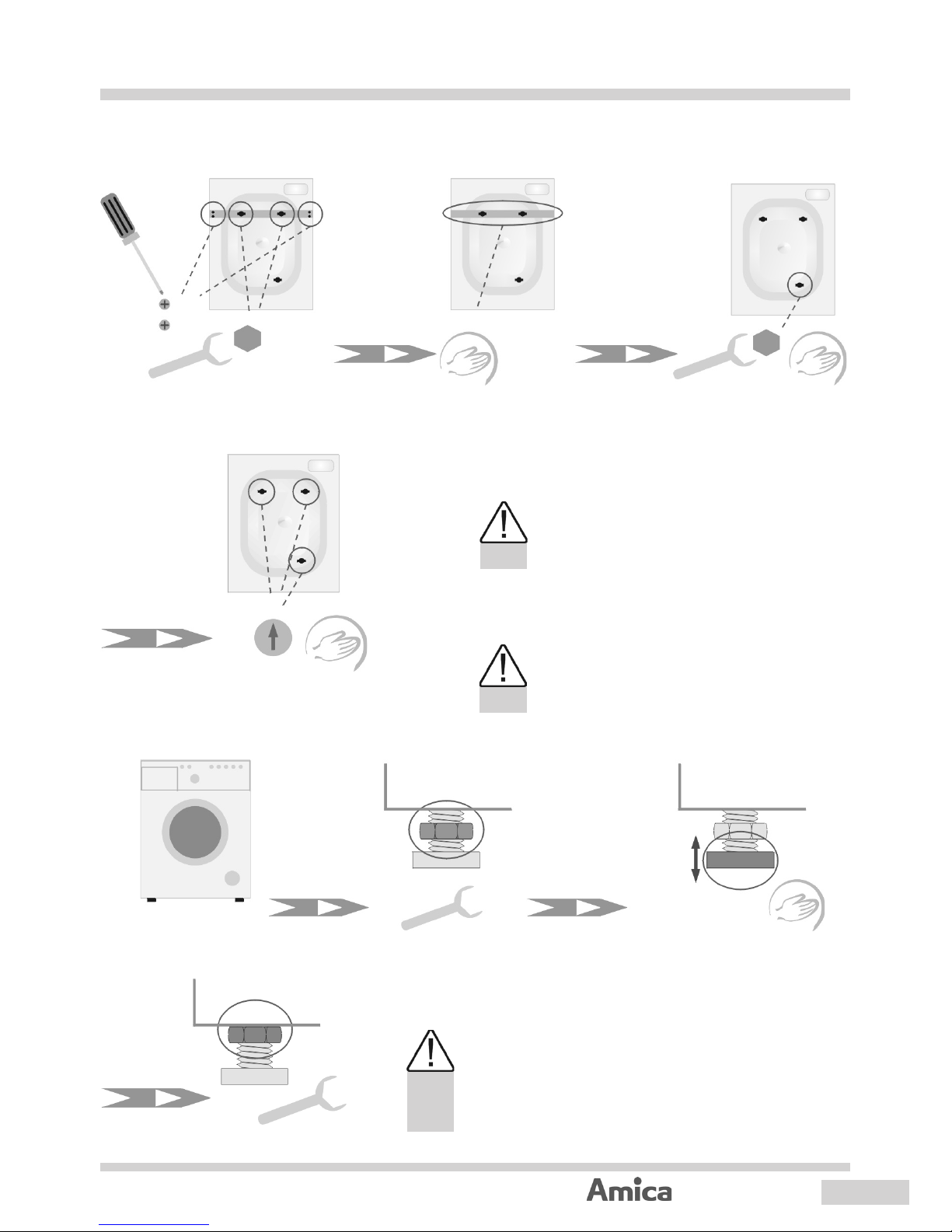

INSTALLATION OF THE WASHING MACHINE
I. Remove all the packing materials (keep them for future use!)
lRemove the transport guard toge-
ther with sleeves and bolts.
lUnscrew the bolt
lRemove the sleeve
and bolt.
lUnscrew the screws using a
screwdriver.
lUnscrew the bolts that x
the guard.
Before you start up the appliance
check that all the locking devices
are removed !
lPlug holes with stoppers.
Do not place washing machine on a
carpet!
II. Positioning and levelling
lPlace the washing machine on a
solid and level oor surface.
lSlacken the locknuts. lAdjust the feet to level
the machine.
lTighten the locknuts!
When the washing machine is installed and
levelled, make sure that all four feet are rest-
ing rmly on the oor by pressing down each
corner and checking if the appliance stands
still!

7 Pralka
The drain hose is located at the back of the wa-
shing machine. Secure the drain hose so that it
does not move during the operation of the wa-
shing machine!. Do not insert the drain hose into
the water pipe too deeply!
maks 100 cm
min 50 cm

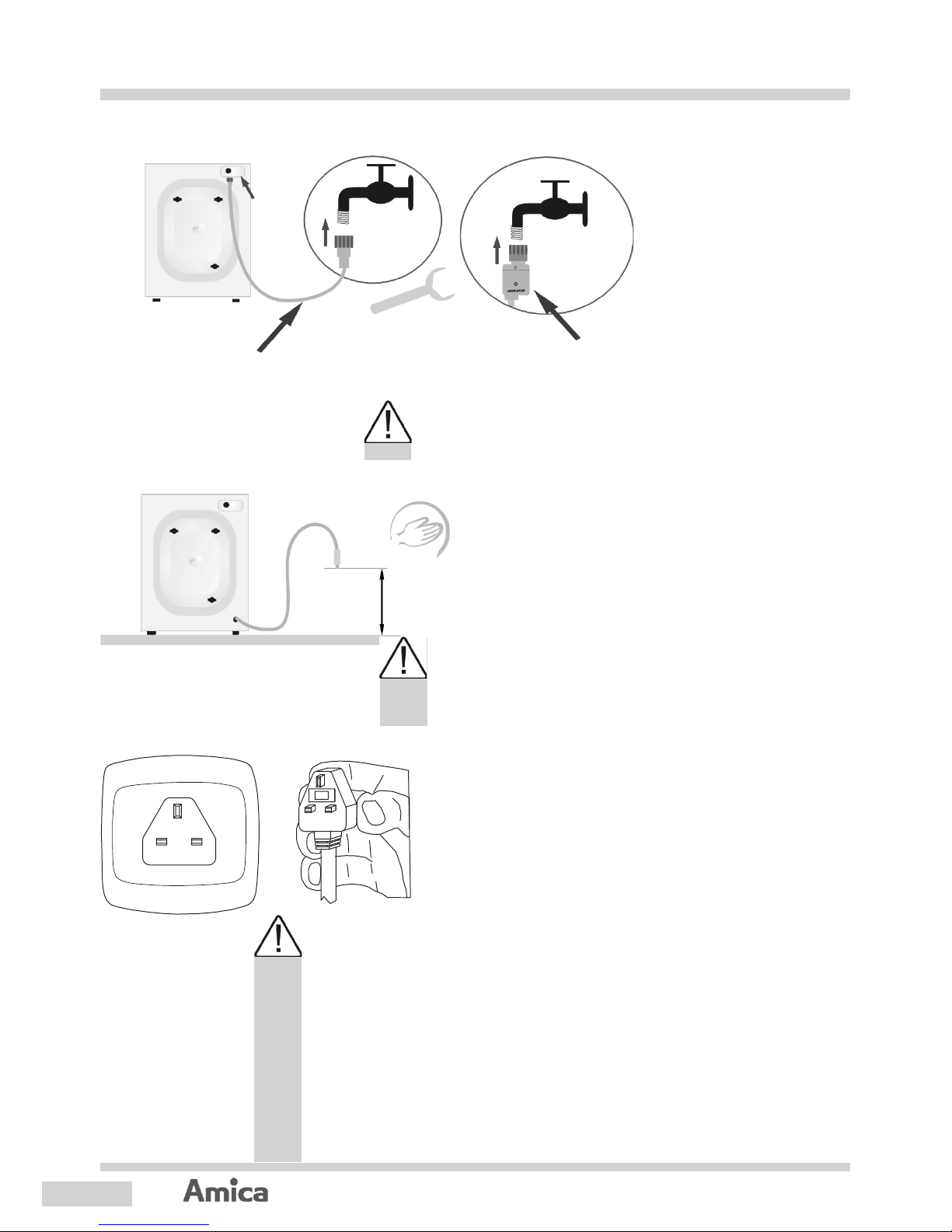

III. Water connection
IV. Water outlet
V. Mains supply connection
the inlet hose with seals is in the drum of
the washing machine
lConnection of the washing machine to the mains (plug-in soc-
ket in the electrical installation) should be at a conspicuous and
accessible place!
lConnect the washing machine only to the correctly installed
and earthed socket
lDo not use an extension cord
lBroken power leads, may be replaced only by authorised se-
rvicemen
lType of the power lead – H05VVF – 3G1.5
lCatalogue number of the power lead: 8017546
INSTALLATION OF THE WASHING MACHINE
Connection of the supply hose with Aqua
Stop
Water pressure min. 0.1 MPa (1 bar), max
0.8 MPa (8 bar)
Feed the cold water to the washing machine
exclusively
Use new complete hoses
supplied together with the
equipment. Do not apply
the already used hoses.

Pralka 8

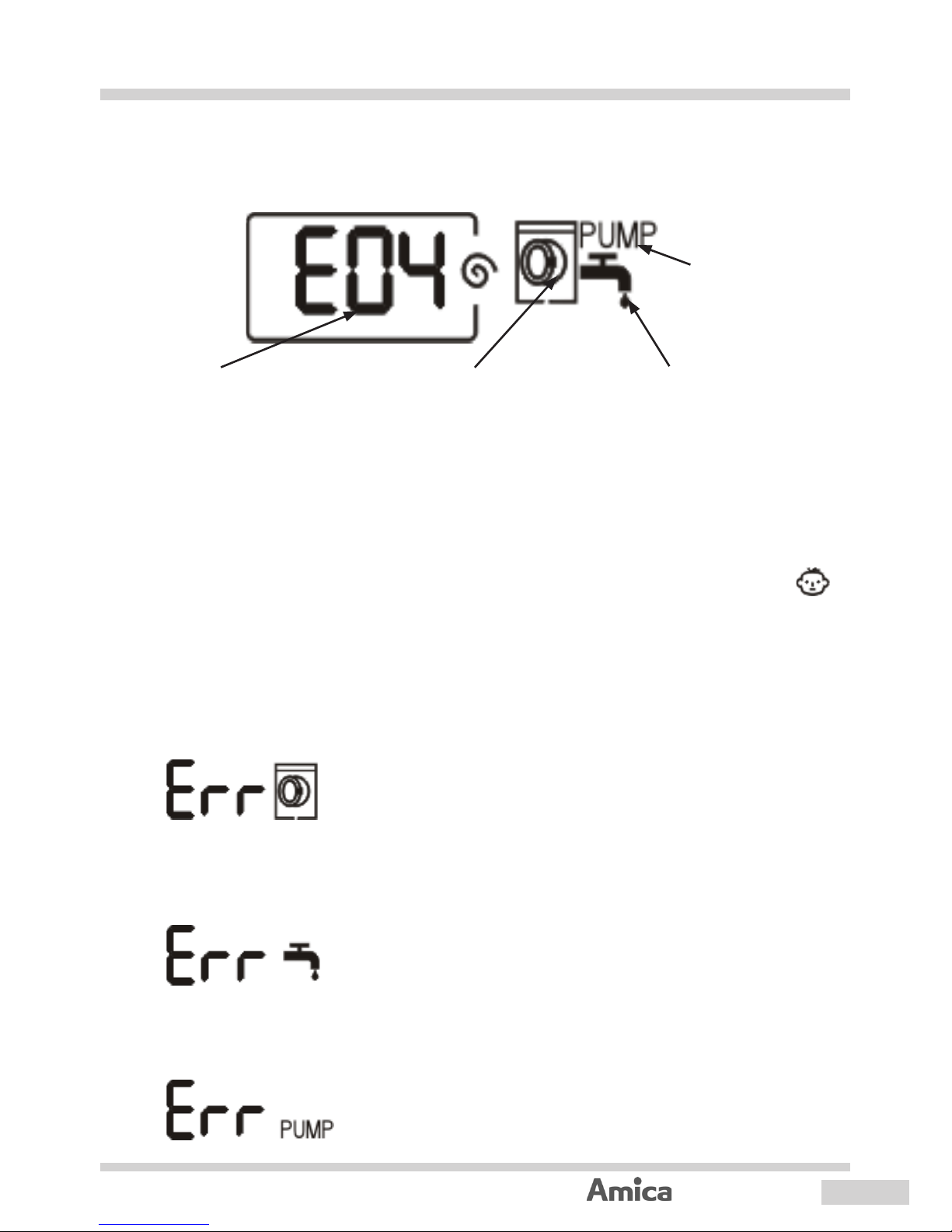

DISPLAY OF THE WASHING MACHINE ERROR CODES
I. The washing machine will not operate lInsert the power plug into the
mains socket properly
lCheck the fuses at home
II. The washing machine will not operate
lClose the door of the washing
machine
lCheck the water pressure in the
water supply system
lClean the mesh lter on the
water supplying hose
lTurn the tap on completely
lClean the lter
lClean the drain hose
KOD:
KOD:
Why has the CODE been displayed
lPower failure
III. Low pressure, no water in the washing machine
IV. Pump lter is clogged, interrupted washing.
lThe door of the washing machine is not closed!
KOD:
What should you do by yourself
In the case of occurrence of minor problems related to the improper operation of the washing
machine, it s equipped with a system, which helps to localise these problems and establish
their cause by means of “CODES” shown on the LCD display. The appearance of Exx or Err
with one of the three symbols signals the detection of an error
A displayed Exx or Err code ”Open door” symbol ”No water” symbol
”clogged pump” symbol
lPress two buttons marked for
approximately 0.5 s. Washing
machine will start once Standby is
pressed.
l”child lock” is on*

9 Pralka
V. The washing machine is overloaded
lClean the pump lter
lReduce the load
VI. Water under the washing machine
lScrew the pump lter
lCheck the drain hose and fasten
it, if necessary
lCheck the water supplying hose
VII. The washing machine moves lRemove the transport protec-
tions
lPosition the washing machine
horizontally, see page 5
lLock the feet (tighten the lock-
nuts)
DISPLAY OF THE WASHING MACHINE ERROR CODES
XI. Poor rinsing results lProperly dose the washing
agent, depending on the type of
dirt and water hardness (see the
recommendations on the packa-
ging for the washing agent)
lClean the pump lter
lProperly dose the washing
agent, depending on the type of
dirt and water hardness (see the
recommendations on the packa-
ging for the washing agent)
lSelect appropriate program
X. Poor nal washing results
lCheck the water hardness and
adjust the dose of the washing
agent
VIII. Poor nal spin results lClean the pump lter (see the
maintenance)
IX. Foam formation
KOD:

Pralka 10
ATTENTION!
The washing machine saves the latest CODE. To cancel the displayed CODE push
the pushbutton for approximately 2 seconds, (see programme cancelling).
In case the problem occurred the washing machine door remains blocked.
DISPLAY OF THE WASHING MACHINE ERROR CODES
Care label symbols
I. Washing
II. Dry cleaning
III. Spin dryer
IV. Ironing
boiling
temp. 950C
normal
temp. 600C
Do not
wasch!
delicate manual
all solvents
Do not
clean!
normal
Do not
dry!
1100C 1500C 2000C
Select a programme taking into account the care labels indi-
cations.
normal
temp. 400C
all but TRI Benzine only
low high
Do not
iron!

Pralka 11
MAINTENANCE AND CLEANING
I. . Pump lter Clean the lter periodically, after approx. 20
washing cycles.
Forgetting to clean the lter may cause dif
culties in draining water from the appliance!
lOpen the door lTake out the release
lRemove the plug from the
release
lDrain the residual water on
a tray
lUnscrew the lter
lWash the lter
and the lter pad
under running
water.
lReassemble the
lter in a reverse
order.
II. Detergent drawer
lExtract the drawer (pull hard
on it to overcome the limited
protrude).
lWash under running water (use
brush if necessary).
lInsert the drawer
Never use solvents or sharp, abrasive cleaning agents (for example cleaning pow-
ders) to clean the cover and plastic parts! Use only a mild liquid detergent applied
with a soft, damp cloth. Do not use sponges.

12 Pralka
PRACTICAL WASHING HINTS
I.Cancelling and
changing the programme
III. Door interlock
IV. Power failure
(programme memory)
In order to stop the programme, press the button to
turn the washing machine off and on.
If the wrong programme has been set by mistake, it is
possible to change it: Firstly, stop the currently selected
programme by turning the washing machine off and on,
and select a different programme.
Change in the position of the knob without prior cancelling
of the program does not cause changes in the currently
running programme.
The washing machine is equipped with an interlock, which
makes it impossible to open the door of the appliance
during washing.
In order to open the door during the washing programme,
turn on the PAUSE function and , you should wait appro-
ximately 2 minutes.
CAUTION! If high temperature is maintained in the wa-
shing machine drum, the appliance may lock the door
until the water temperature drops to 60°C.
CAUTION! Before opening the door of the washing
machine check whether there is water in the drum.
If the washing machine is switched off or if there is power
failure, the currently running washing programme will not
be cancelled. It will be remembered and continued once
the power supply appears.
II. PAUSE function This function allows the programme to be stopped for
a moment by the user at any time, with a possibility to
open the door of the washing machine. In order to turn
on the PAUSE function, press the START/PAUSE button
during the washing programme for about 0.5 second – a
pictogram will start to pulsate, and
another pictogram will appear.
In order to return to the washing programme, press the
START/PAUSE button again – the pictogram will stop
pulsating and the pictogram will disappear.
The PAUSE function causes the automatic correction of
the time anticipated to nish washing.

Pralka 13

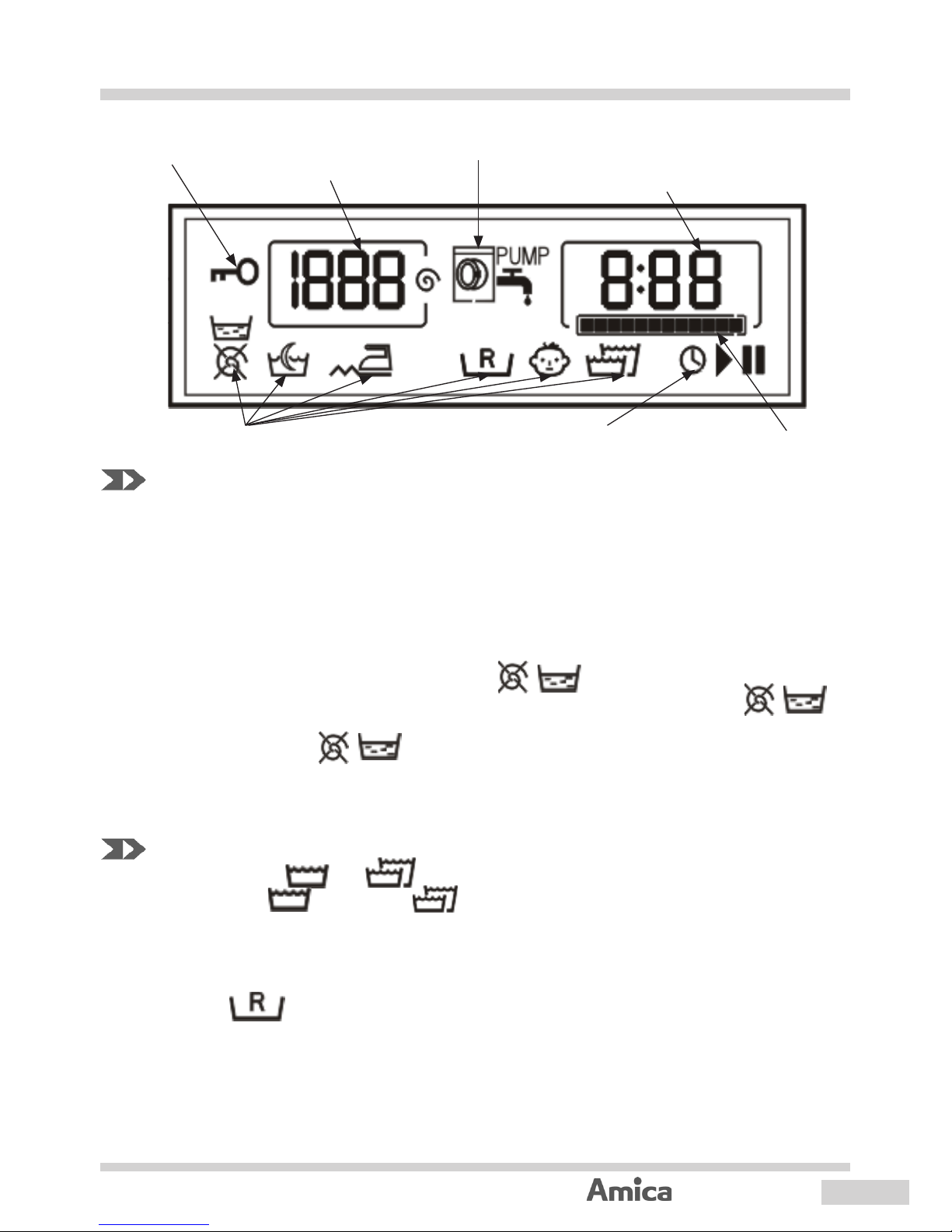

V. Control elements of the washing machine
Roughly estimated time until the end of a washing cycle
Time displayed on the clock is only a forecast and may be different from the real
washing time, depending on water temperature and pressure, load size and amount
of dosed washing powder. Time is automatically updated during washing; momentary
stoppages and leaps of time are permissible.
Spin rotations adjustment
Pushing the button “spin rotations” causes cyclic changes in the settings. The following
settings of rotations are possible:
l For cotton, cotton spinning, cotton rinsing programmes: 1400, 1300, 1200, 1100,
1000, 900, 800, 700, 600, 500, 400, 100
l For Everyday programme: 1000, 900, 800, 700, 600, 500, 400, 100
l For Synthetics, Super Short, Delicate, Wool, Delicate Rinsing, Delicate Spinning
600, 500, 400, 100
The more delicate is the fabric, the lower spin rotations should be set. The scope of
regulation of the Spin rotations is specied in the “Washing programmes table”.
PRACTICAL WASHING HINTS
l”Extra rinse” or
It adds one ( ) or more ( ) rinses to the selected washing programme.
This function is particularly useful in the case of water of high hardness. It improves
effectiveness of rinsing, but increases water consumption. This function is recom-
mended while washing clothes for allergy sufferers.
l„Eco”
It shortens the washing time by about 30% and reduces the general number of
rinsing cycles by one. This function is useful in the case of washing lightly soiled
clothes. Less washing agents are applied and power and water are saved. An
exemplary washing time with the activated “ECO” function:
l For EVERYDAY programme – 32 min.
l For MANUAL programme – 83 min.
Additional functions
Door interlock spin rotations re-
gulation section
Errors Time section (the rough time
necessary to nish or to start the
washing)
Additional functions Delayed washing
symbol
Washing program
progress level

Pralka 14
PRACTICAL WASHING HINTS
l“Easy iron”
After the last spin, the drum of the washing machine performs additional movements
for a few minutes, reducing the creases. The speed of spinning is automatically
reduced to 800 rotations.
l“Spin off ”
The washing machine does not spin after washing and rinsing. The function is ap-
plicable in the case of washing the fabrics, for which spinning is not recommended
by the manufacturer. Water will just be pumped out after washing.
l“Stop with water”
We recommend the use of the STOP WITH WATER option for silk, wool and other
delicate fabrics.
In the case of starting the STOP WITH WATER function or after nishing some
washing programmes, the water from the last spin remains in the washing machine
drum.
In order to take out the clothes from the washing machine
-start the PUMP OUT programme or
-start the DRY-SPIN programme
CAUTION! If any of these programmes is not started, the water will spill out of the
washing machine when opening the door.
l“Child lock”
The function is activated by pushing two buttons simultaneously. It causes all the
remaining buttons to be blocked. The washing machine may be turned off by means
of the button, but when the appliance is turned on again, it will still be locked.
The washing machine may be unlocked by the pressing the two buttons again.
l“Quiet wash”
The function is useful, if we want to avoid excessive noise during washing (e.g.
at late night hours). It is activated by pushing 2 buttons and causes the omission
of spins, except for the last one. After the last rinsing is completed, the appliance
leaves water in the drum and moves to the PAUSE state.
The user (e.g. next day in the morning), starts the last rinsing with the previously
set spin rotations using the START button.

Pralka 15
PRACTICAL WASHING HINTS
DELAYED WASH
This function enables pre-programming of the washing machine, so that the programme could
be started automatically at a later userdened time (from 0.5 to 24 hours). Within 0.5 to 3
hours, it is possible to set the delay time every 30 minutes. Within 3-24 hours it is possible
to set the delay time every hour. If the delayed wash is switched on at the time when 0:00
is ashing, push the START button once again until the time when instead of the ashing
zeroes the standard value 00:30 specifying the wash delay appears. Each time the button
is pushed, the delay is prolonged by 30 minutes or one hour. The maximal delay of the start
amounts to 24h. After 5 seconds from the last push of the button, the washing machine starts
counting the delay time.
CAUTION! If power failure occurs during the delay time count, the function will be automa-
tically cancelled and the washing machine will not be in operation. Switch it on manually or
set the delay time again!
SIGNALLING THE CHANGED POSITION OF THE PROGRAMME SELECTOR
If the present position of the knob is different than the recently remembered programme, the
“Pxx” symbol is indicated on the “time” display, where xx means the number of the remembered
programme. If the position of the knob and the number of the remembered programmed are
correct, the time left till the end of the wash is shown on the display.
ENDING THE WASHING PROGRAMME
After the washing programme is completed, the appliance signals this fact by the appearance
of the word “END” on the display.

16 Pralka
Washing agents
lObserve the recommendations of the manufacturer.
lPour the washing agent into the drawer chamber marked with
a symbol.
lPour the washing agent for pre-washing into the drawer chamber
marked with a symbol.
lObserve the recommendations of the manufacturer.
lPour the softener into the middle drawer chamber marked with
a symbol.
lDo not exceed the MAX level marked on the chamber of the con-
tainer. This softener will be collected for last rinse.
Starch
lObserve the recommendations of the manufacturer.
lStarch using the RINSE programme .
lPour the starch into the middle drawer chamber marked with
a symbol.
PRACTICAL WASHING HINTS
VI. Load Maximal drum capacity:
l5.0 kg for washing machines of AWSN type
l6.0 kg for washing machines of AWCN type
Load the clothes into the drum of the washing machine following the
recommendations stated below:
lcotton – full drum (do not force clothes into the drum, as it worsens
the quality of wash)
lsynthetics – max. 1/2 of the drum
lwool, silk, delicate fabrics – 1/3 of the drum
Caution! Do not overload the washing machine! Overloading the
washing machine may cause damage to the laundry!
VII. Even load
distribution control
The electronic control device includes a load distribution control sys-
tem. In the event that the system detects uneven distribution of load
in the drum, the washing machine will try to relocate it. Sometimes
the trials will not be sufcient for the proper location of the clothes (in
the case of frotte dressing gowns washed with other types of clothes,
ball-shaped sheets which closes several objects inside it). The system
may react in the following way:
lit may accept the uneven distribution of clothes but will decrease
the spin speed
lit may not allow spinning as the clothes are distributed unevenly.)
In both cases, after the wash is over, open the door of the washing
machine, place the laundry manually, close the door and select the
spin programme again.
VIII. Washing
agents and
conditioners
Liquid washing agents
lInsert a partition into the wash chamber marked with
a symbol.

Pralka 17
PRACTICAL WASHING HINTS
lPour a dose of the washing agent into the chamber as recommen-
ded by the manufacturer. The washing agent may also be poured
directly into the washing machine drum.
IX. Delicate
fabrics
lProgramme
Select an appropriate washing programme (SYNTHETICS, WOOL,
DELICATE).
lLoad.
See section V “Load”.
The washing machine has special rinse and spin programmes
adapted to delicate fabrics – they are marked with a symbol on
the panel.
X. Dosage In accordance with the recommendations of the manufacturer of wa-
shing agents.
An insufcient dose of the washing agent may cause:
lGrey laundry.
lPellets of oil, built-up scale.
An excessive dose of the washing agent may cause:
lExcessive foaming.
lReduced washing efciency, poor rinsing results.
Stubborn stains
lTreat the stains additionally with a stain remover, in conformance
with instruction of use.
Heavily soiled clothes
lWash smaller loads of laundry at a time
lAdd more washing agent
lAfter the heavily soiled clothes (e.g. working clothing) or clothes,
which lose bres, are washed, in order to rinse the washing machine,
it is recommended to use the washing programme of a temperature
of 60°C without a load, e.g. COTTON or SYNTHETICS.
Lightly soiled clothes
See section regarding “Energy savings”
Hard water causes scale to be built up.
Information on the water hardness can be obtained from the nearest
Water Company.
It is recommended to use water softeners for each wash.
XII. Water
hardness
Energy and water
lWash lightly soiled linen, using the EVERYDAY or SHORT WASH
programme.
lAdditional rinsing is not necessary, when optimal doses of washing
agents are applied.
XII. Degree of
soiling
XI. Savings

Pralka 18
Guarantee
Guaranteed services according to the Guarantee Card
The manufacturer will not be held responsible for any damages resulting from inappropriate
usage of the appliance.
Examination in respect with the label, in accordance with the PN-EN-60456 on the cotton
60oC programme with intense washing function operating:
lwater consumption during one washing cycle is 39,5 l * / 49,5 l **
lpower consumption is 0,85 kWh*/ 1,02 kWh**
*AWSN xxDA,
**AWCN xxDA/AWCNxxDAB
lType AWSN xxDA/AWCN xxDA/AWCN xxDAB
lRated voltage 230V / 50Hz.
lRated power 2300 W.
lOvercurrent protection 10 A.
lMaximal load max 5,0 kg*/6,0 kg**
lWater pressure min 0,1 MPa (1 bar), max 0,8 MPa (8 bar).
lOverall dimensions 425*, 505**/ 850 / 595
lWeight 61 kg*/65 kg**
lComplies with EC regulations norma PN- EN- 60456.
TECHNICAL SPECIFICATION

19 Pralka
TECHNICAL SPECIFICATION
(In accordance with the Regulation of the Minister of Economy, Labour and Social Policy dated April
2003 on the requirements regarding the energy efciency).
1)Energy efciency class in a scale from A (more efcient) to G (less effective)
2)For a standard washing cycle ”cotton 60°C” with active the “Intensive wash”function
3)Estimated yearly consumption (200 standard washing cycles ”cotton 60°C” for a family of 4 persons)
Type
Manufacturer name AMICA WRONKI S.A.
Energy efciency class1) 2) A A A A A A
Electric power consumption in
[kW / cycle] 2)
0,85 0,85 1,02 1,02 1,02 1,02
Washing efciency class1) 2) A A A A A A
Spin efciency class1) 2) C B C B B B
Drainage efciency in [%] 2) 58 53 58 53 51 53
Spin speed in [rev./min] 2) 1000 1200 1000 1200 1400 1200
Rated load in [ kg ] 2) 5,0 5,0 6,0 6,0 6,0 6,0
Water consumption in [l] 2) 39,5 39,5 49,5 49,5 49,5 49,5
Programme duration time in
[min] 2)
150 150 150 150 150 150
Mean yearly electric power
consumption in [kWh]
170 170 204 204 204 204
water in [ l ] 3) 7900 7900 9900 9900 9900 9900
Noise level in [ dB(A) re 1 pW ]
washing 60 60 60 60 60 60
spinning 74 76 74 76 78 76
AWSN 10DA AWSN 12DA
AWCN 10DA AWCN 12DA
AWCN 14DA
AWCN 12DAB

Service Help Line
For the UK: please call 0844 815 8880
0818 46 46 46
For Ireland: please call
