Amino Kamai 6 User manual

Kamai 6
media ReceiveR
Quick Start Guide

QUICK START GUIDEKAMAI MEDIA RECEIVER
1
COPYRIGHT
©2016 Amino Communications Ltd. All rights reserved. This document contains proprietary information
protected by copyright. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise,
without the prior written consent of Amino Communications Ltd, Buckingway Business Park, Anderson
Road, Swavesey, Cambridge, CB24 4UQ, United Kingdom.
DISCLAIMER
IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE PERMISSION FROM THE COPY-
RIGHT OWNER OF THE MATERIALS TO AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAMAGES
OR OTHER REMEDIES.
TRADEMARKS
Amino and connecting the home are trademarks of Amino Communications Ltd. All other trademarks or
registered trademarks belong to their respective owners.
This item incorporates copy protection technology that is protected by U.S. patents and other intellec-
tual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
CHANGES
The material in this document is for information only and is subject to change without notice. While
reasonable eorts have been made in the preparation of this document to assure its accuracy, Amino
Communications Ltd. assumes no liability resulting from the use of the information contained herein.
Amino Communications Ltd. reserves the right to make changes in the product design without reserva-
tion and without notication to its users.
P/N: 99-708804-06 - V1.0
Table of Contents
OVERVIEW
2 Safety Instructions
4 What’s Included
6 Front Panel
7 Rear Panel
CONNECTING VIDEO
8 High-Denition TVs
9 Standard-Denition TVs
CONNECTING AUDIO
10 Stereo
11 Surround Sound
CONNECTING NETWORK
12 Ethernet or MoCA
POWERING UP
14 Setting up Remote Control
14 Using IR Extender Receiver
15 Connecting to Power Source
16 Declaration of Conformity

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
32
Important Safety Instructions
• WARNING: To reduce the risk of re or electric shock, do not expose this ap-
paratus to rain or moisture.
• The apparatus shall not be exposed to dripping or splashing and that no ob-
jects lled with liquids, such as vases, shall be placed on the apparatus.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manu-
facturer’s instructions.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prongs are provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long peri-
ods of time.
• Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the ap-
paratus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
• To reduce the risk of electric shock, DO NOT remove cover or back panel. No
user serviceable parts inside. Refer servicing to qualied personnel.
Important Safety Instructions (Continued)
• To help prevent electric shock, plug the power cable into properly grounded
sources. Use only properly grounded extension cords and adaptors, if they are
needed.
• The AC main plug is used as the disconnect device, the disconnect device shall
remain readily operable.
• Make sure nothing is lying on any of the cables.
• Be sure the cables are located where they will not be stepped on or tripped
over.
• Do not spill food or liquids onto the unit.
• Do not push any objects into the free slots. Doing so will damage the unit, can
cause re or electrical shock, and can short out interior components.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
• Do not block cooling vents.
• Do not place the equipment in a closed-in wall unit.
• When you disconnect a cable, pull on its connector or on its strain relief loop,
not on the cable itself. Some cables have a connector with locking tabs; if
you are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cables.
• When you connect a cable, make sure both connectors are correctly oriented
and aligned before connecting to avoid bending connector pins.
• For PLUGGABLE EQUIPMENT, the socket-outlet should be installed near the
equipment for easy access.
• Changes or modications not expressly approved by the party responsible
could void the user’s authority to operate this device.
Operating Information
Operating Temperature: 0 °C (32 °F) to 35 °C (95 °F)

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
54
What’s Included
2 Batteries for
Remote Control
Kamai Quick Start Guide Remote Control Guide*
Kamai Media Receiver
Ethernet Cable (Optional)
HDMI Cable (Optional)
Additional items that may be required (not included):
• Ethernet Cable
• HDMI Cable
• Digital Audio Cable
• Network Router
• MoCA Bridge
AC Power Adapter
DIN-to-RCA Cable
*The Remote Control may vary and is dependent on your service provider.
IR Extender Receiver (Optional)
IR Remote Control*

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
76
Kamai — Front Panel
Name Description
1
Network LED Solid green indicates network is connected
2
Power LED Solid blue indicates the unit is on
Solid red indicates the unit is in standby mode
Flashing blue indicates the unit is starting up
Kamai — Rear Panel
Name Description
1
MoCA IN Port for connecting to MoCA network
2
A/V OUT 9-Pin DIN conector for connecting to video output us-
ing DIN-to-RCA cable
3
Digital Audio S/PDIF digital optical audio TOSLINK output
4
Reset Reset the device factory settings with a thin metal
probe
5
HDMI Digital video and audio port for connecting to a high-
denition TV (HDTV)
6
IR Extender Jack To connect IR Extender Receiver
7
USB To connect USB 3.0 devices such as USB Flash Drive
and External Hard Drive
(max 900mA load)
8Ethernet Plug for wired network connection
9Power DC power jack (100-240V, Output 12V/2A)
Availability of certain features is dependent on your service provider. Availability of certain features is dependent on your service provider.
127
4
8
125
36
9

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
98
STEP 1: CONNECTING VIDEO
Kamai provides two video options for connecting to your TV:
HDMI and Composite Video.
Select a video option then proceed to Step 2.
Make sure your TV is turned on and the correct video input is
selected.
Option 1: HDMI (Recommended)
If your TV has an HDMI connection,
use an HDMI cable (may not be
included) and connect Kamai to the
HDMI IN port on your TV. This connection provides both video
and audio so you do not need a separate audio connection.
Proceed to“Connecting Network” on page 12”.
Delivers the best video & audio
quality via a single cable
S-VIDEO
Cable is optional and
may not be included
Option 2: Composite Video
Use the DIN-to-RCA cable provided
and connect the yellow cable to the
yellow VIDEO IN port on your TV.
Then proceed to the next step (“Connecting Audio”) to con-
nect the red/white cables.
If you have already selected HDMI or Component Video as
your video connection, then do not use this cable.
Composite Video
Delivers good picture quality
Cable included
S-VIDEO

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
1110
STEP 2: CONNECTING AUDIO
Kamai has two audio options: Stereo or Surround Sound. Se-
lect an audio option and proceed accordingly.
NOTE: If you have already selected HDMI as your video con-
nection, then skip this audio section and proceed to “Connect-
ing Network” on page 12.
Option 1: Stereo
Use the DIN-toRCAx6 cable provided and connect the 3.5mm
jack to the Kamai A/V Out port and the red and white cables to
the AUDIO IN port on your TV.
S-VIDEO
Cable included Cable not included
Option 2: Surround Sound
If your TV is connected to an A/V Receiver that supports Dolby
Digital 5.1 Surround Sound, use a digital audio cable (sold
separately) to connect Kamai to the OPTICAL AUDIO IN port
on your A/V Receiver.

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
1312

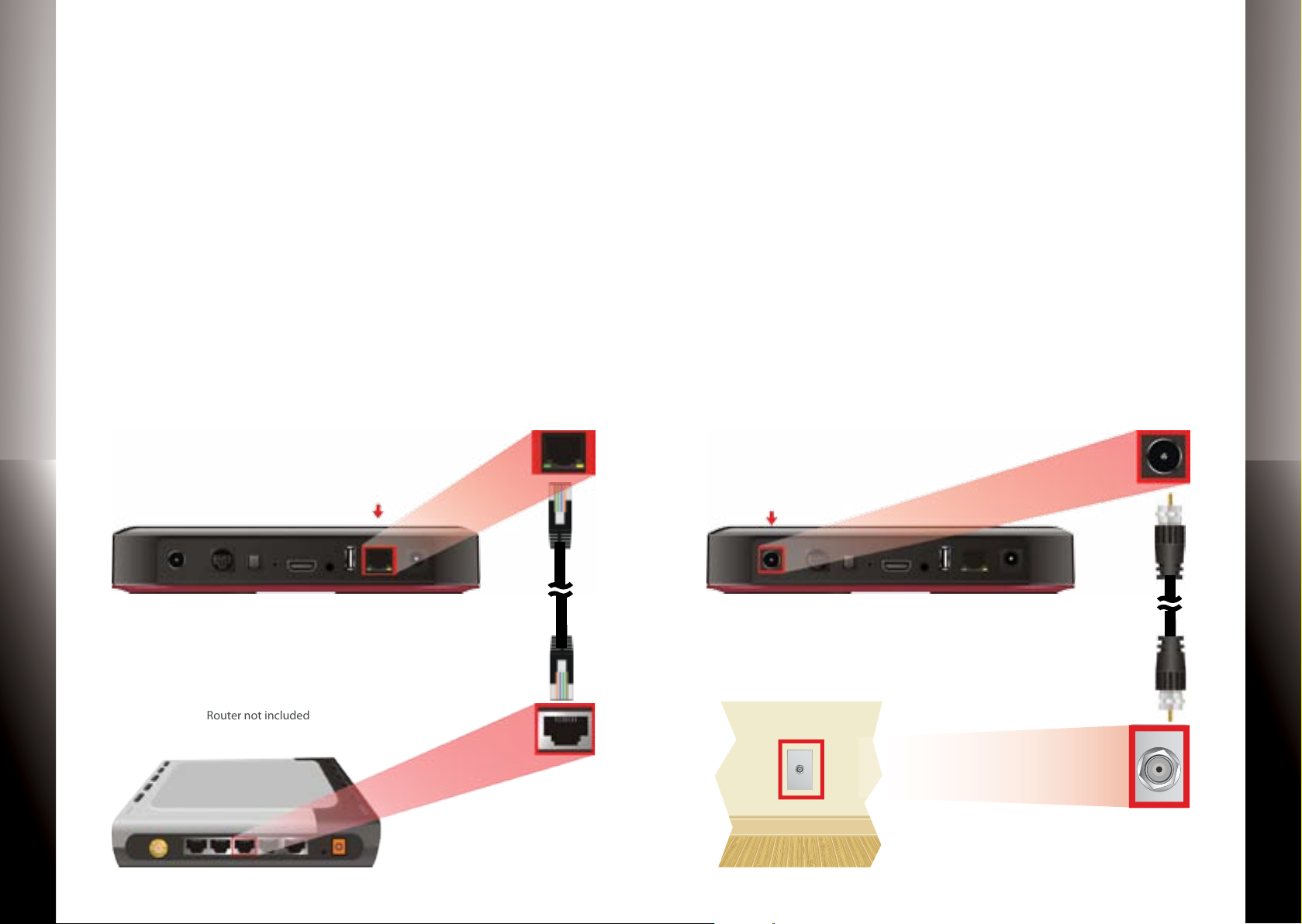

STEP 3: CONNECTING NETWORK
Select from one of the following networking options.
Option 1
Connect an Ethernet cable (sold separately) from Kamai to a
cable/DSL modem or Network Router.
Router not included
Cable is optional and
may not be included
Option 2
Connect your Kamai to a MoCA Network.
NOTE: Contact your service provider for more details and
instructions about the MoCA network conguration.
Cable not included

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
1514

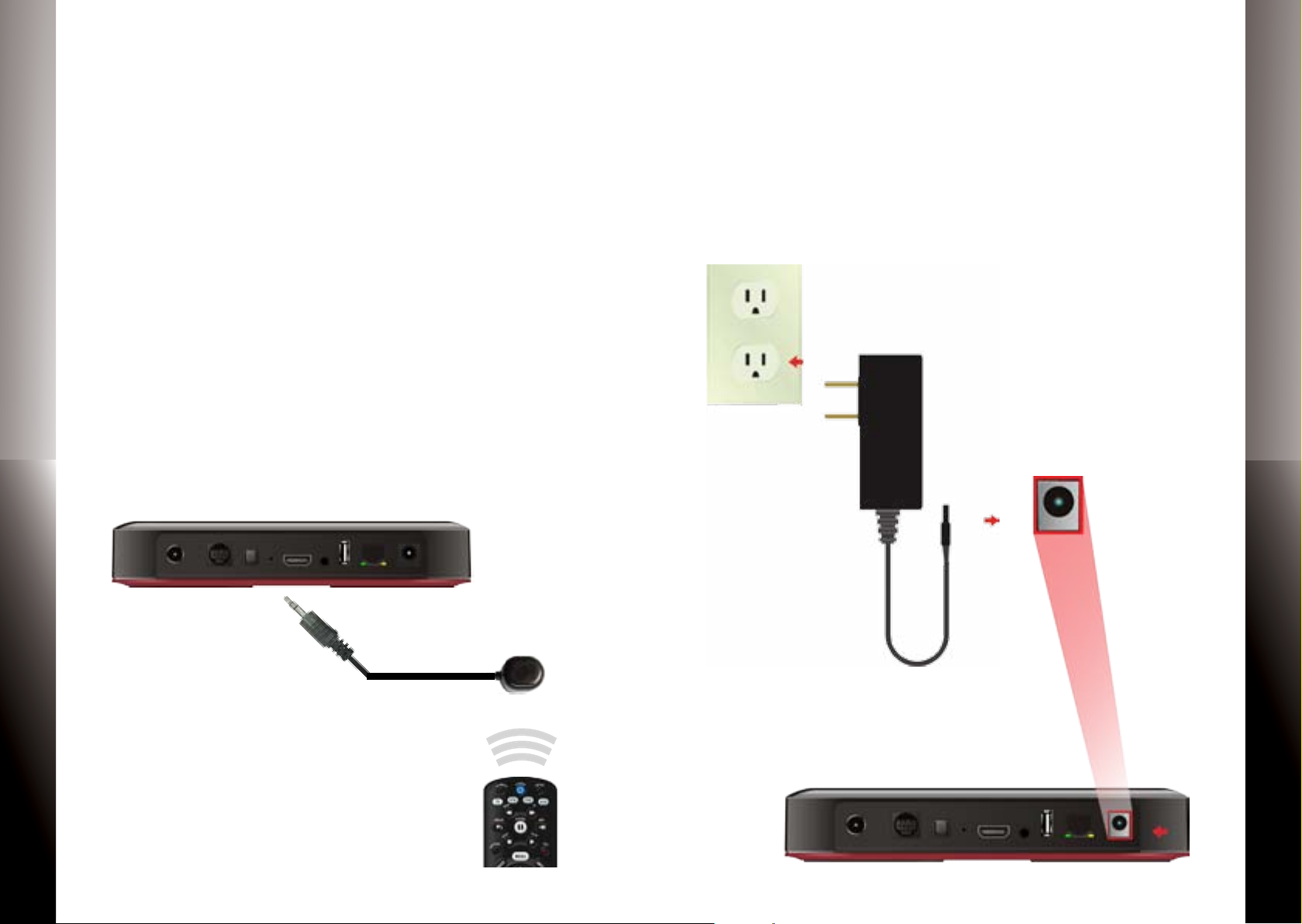

STEP 4: POWERING UP
Setting Up Remote Control
1. Open the battery cover by pressing down on the battery
cover latch and sliding it o.
2. Insert the batteries, matching the“+” and “-” marks on the
batteries with the interior of the remote control.
3. Snap on the battery cover to close.
NOTE: Refer to the Remote Control Guide for more details
about other remote control features.
Using IR Extender Receiver
The remote control uses InfraRed (IR) light signals to control
the Kamai. IR signals cannot go through walls or other solid
objects. If the line of sight of your Kamai is blocked, then you
can use the IR Extender Receiver provided to extend the reach
of IR signals from the remote control.
Connecting to Power Source
1. Connect the power cord to the POWER port on the back of
the Kamai.
2. Plug the AC power adapter to a power outlet.
3. Follow the on-screen instructions.
NOTE: Make sure your TV is turned on and the correct video
input is selected.

QUICK START GUIDE
QUICK START GUIDE
KAMAI MEDIA RECEIVER
KAMAI MEDIA RECEIVER
1716
Declaration of Conformity
To ensure proper use of this product, please read this manual carefully and retain it for fu-
ture reference. Should the unit require maintenance, contact an authorized service location.
WARNING: This symbol indicates the presence of uninsulated dangerous voltage within the
product’s enclosure that constitutes a risk of electric shock. Do not open the product’s case.
CAUTION: This symbol indicates you must take care; there is risk of damage to the equip-
ment or to yourself.
Declaration of Conformity (Europe Only)
This product is in conformity with the Council Directives:
•EMCDirective2004/108/EC
•LowvoltageDirective2006/95/EC
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonc-
tionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un mini-
mum de 20 cm de distance entre la source de rayonnement et votre corps.
Declaration of Conformity (Continued)
To prevent re or shock hazard, do not expose this product to rain or moisture. To reduce
the risk of electric shock, DO NOT remove the cover or back. No user serviceable parts are
inside. For servicing refer to qualied personnel.
Declaration of Conformity (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired opera-
tion. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the Federal Communication Commission (FCC) Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment OFF
and ON, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandthereceiver.
•Connecttheequipmenttoadierentcircuitfromthattowhichthereceiveriscon-
nected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC Caution: Any changes or modications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
®
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
Manufactured under licence from DolbyLaboratories. Dolby and the double D symbol are
trademarks of Dolby Laboratories.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AND INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

©2016 Amino Communications Ltd. Amino and connecting the home are trademarks of Amino Communications Ltd. Other company,
product, and service names may be trademarks or service marks of others. All information contained in this document is subject to change
without notice. Information contained in this document is provided on an as is basis. In no event will Amino be liable for damages arising
directly or indirectly from any use of the information contained in this document. Subject to change without notice.
