Amperes iPX Series User manual

Thank you for choosing another quality product from Amperes Electronics.
Amperes iPX Series of IP equipment provides multiple advantages over conventional systems in term of cabling
infrastructure and future expansions. With continuous development of more IP products in the pipeline, the
possibilities of more applications based on IP shall be beyond imagination.
With iPX modules, existing conventional system can be converted into IP without much changes, thus reducing the
cost of upgrading. With our policy of understanding the needs of the market, we offer some simple tools with
powerful functions to achieve the needs. A simple graphical illustration and basic engineering knowledge shall be
sufficient to apply these products into your installation, making it a system of countless limitations.
iPX5300 is used to received music files from music server or via PC with PMX Music Server Interface and provide a
balanced audio output. This dedicated music client shall be placed in satellite buildings of a system to receive central-
ized BGM. Among applications shall be university complexes, multiple buildings or factories.
INSTRUCTION MANUAL
iPX5300
Ethernet Music Client
VER 2 / 2020
iPX 5300
ETHERNET MUSIC CLIENT
EHTERNET ADDRESS
ETHERNET
RESET
BALANCED LINE
OUTPUT
amperes

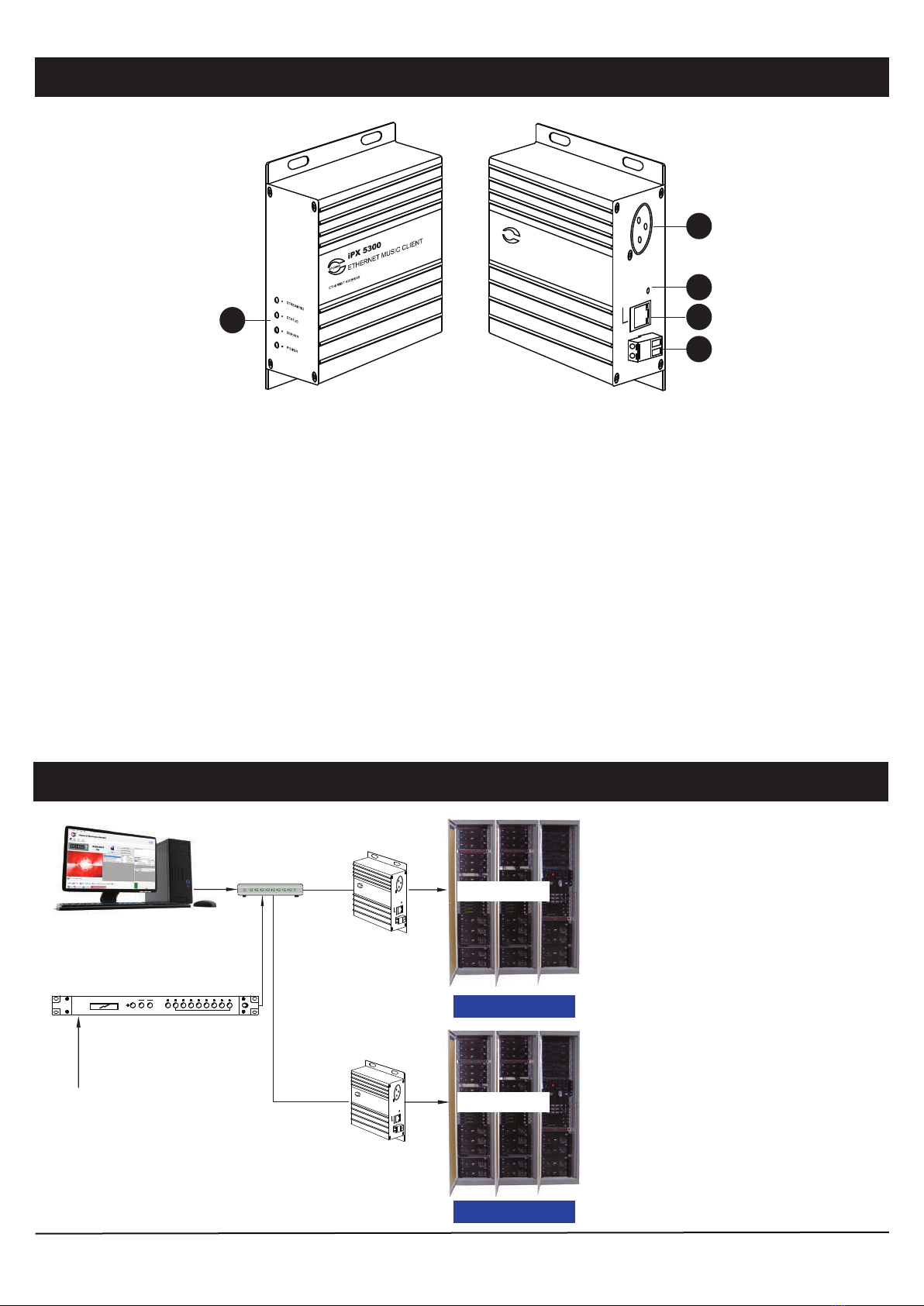

Parts Identification
Page 2 iPX5300 ETHERNET MUSIC CLIENT
1
1. AUDIO OUTPUT
Balanced line output via XLR jack.
2. RESET BUTTON
Button for resetting the unit to factory default. Use only when required as setting done previously would be lost.
3. ETHERNET PORT
Ethernet Port accept cables with RJ45 connectors.
4. POWER PORT
24V power supply.
5. INDICATOR LEDS
POWER - This blue LED shall lit when iPX5300 is powered ON.
SERVER - This green LED shall lit when iPX5300 successfully establish a connection with Music Server (iPX5200).
STATUS - Blink whenever there is a network activity ongoing.
STREAMING - Blink whenever iPX5200 receive streaming audio from Music Server.
iPX 5300
ETHERNET MUSIC CLIENT
ETHERNET ADDRESS
ETHERNET
RESET
BALANCED LINE
OUTPUT
amperes
2
3
4
Front View Rear View
Schematic Diagram
Network Switch
To Mixer Input
LOCATION 1
To Mixer Input
LOCATION 2
PMX with music
server interface
or
Audio
Audio
iPX5200 Music Server
Fiber optic connectivity is possible for distance above 100m
iPX5300 Music Client
iPX5300 Music Client
Analogue Audio Source
(CD / Tuner / aux)
iPX 5300
ETHERNET MUSIC CLIENT
ETHERNETADDRESS
ETHERNET
RESET
BALANCEDLINE
OUTPUT
amperes
iPX 5300
ETHERNET MUSIC CLIENT
ETHERNETADDRESS
ETHERNET
RESET
BALANCEDLINE
OUTPUT
amperes
IPX 5200 amperes
UP
PRE
DOWN
SOURCE NEXT
STREAMING 1 2 345 6 78
MUSICCLIENT GROUP
ETHERNET MUSIC SERVER
POW
START/ STOP
The illustration on the left shows Music
Client ( iPX5300 ) can be used alongside
with a PC running PMX.
PMX is a software featured with music
playing & paging capability. These audio
can be fed into iPX5300 via IP network
and have them broadcasted from main
rack.
iPX5200 Music Server is another IP
based audio source that can be worked
with iPX5300. iPX5200 accept analog
audio from CD / Tuner and have these
audio sent to iPX5300 which placed at
remote buildings via network.
5

iPX5300 ETHERNET MUSIC CLIENT Page 3
Connecting to iPX5300
microSD
ON/OFF
IPX 5200
ETHERNET MUSIC SERVER
Quality Product From
AMPERES ELECTRONICS
RESET
+ -
DC 24V
100mA
LEFT
RIGHT
ETHERNET ADDRESS :
SERIAL NO :
ETHERNET
24V DC Power
Supply (Amperes
PS9400) 0.5A
Mini SD
Card
Unbalanced stereo input (RCA jack)
CD Player
AM / FM Tuner
MP3 Player
iPX5200
Back View
PC Audio Source
CAT5e
Network Switch
Fiber Optic
Convertor
.................
iPX 5300
ETHERNET MUSIC CLIENT
ETHERNET ADDRESS
ETHERNET
RESET
BALANCED LINE
OUTPUT
amperes
iPX5300
Single mode /
Multimode
~
~
Fiber Optic
Convertor
iPX 5300
ETHERNET MUSIC CLIENT
ETHERNET ADDRESS
ETHERNET
RESET
BALANCED LINE
OUTPUT
amperes
iPX5300
Audio Output to Local
PA System / Mixer amp.
Remote
Location via
Fiber Optic
BASS
CH2 CH3 CH4 CH6CH5
TREBLE
MASTER
O
I
CH1
Speaker
24V DC
Line Audio Output
(Balanced)
MA2024
Mixer Amp
CAT5e
24V DC
CAT5e

Page 4 iPX5300 ETHERNET MUSIC CLIENT

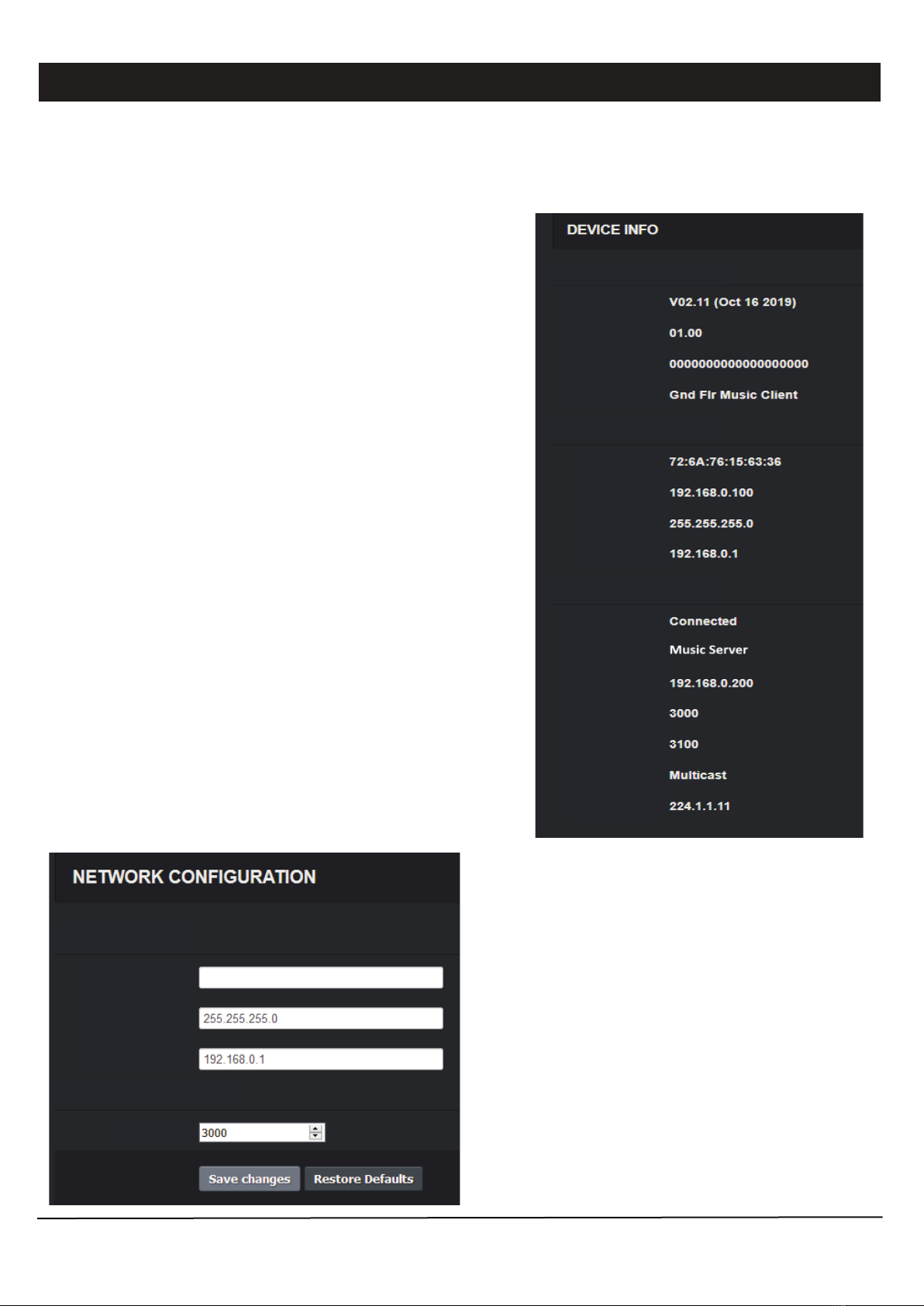

Device Setup Via Browser
iPX5300 shall require some simple setups, kindly follow the step by step instructions as listed below. The unit shall be connected
to LAN network together with iPX5200 IP Server / PMX II to form a complete system. The default IP address is 192.168.0.100.
Login page shall appear and the default User ID and Password are both “admin”.
Info / Main Page
Info: Provide firmware version, network ports, IP address and
connection status with Music Server. This shall be the first page once
you enter the iPX5300 web page.
Network Configuration: For configuration of IP address and its
related ports.
System Configuration: For Application Settings such as volume
controls, User and Password setup and System’s web page and
firmware updates.
Network Configuration
Unless required, you are recommended to change the IP
address only, leaving other setting such as port number as
default. Once the address has been changed to suit the
environment, click the “Save Changes” button.
Network Settings
Application Settings
IP Address
Subnet Mask
Gateway Address
Data Port
192.168.0.100
Hardware Information
Firmware Version
Hardware Revision
Serial Number
Device Name
Network Information
MAC Address
IPV4 Address
Subnet Mask
Gateway Address
Application Information
Connection Status
Server Name
Server IP
Data Port
Stream Port
Stream Mode
Stream IP

iPX5300 ETHERNET MUSIC CLIENT Page 5

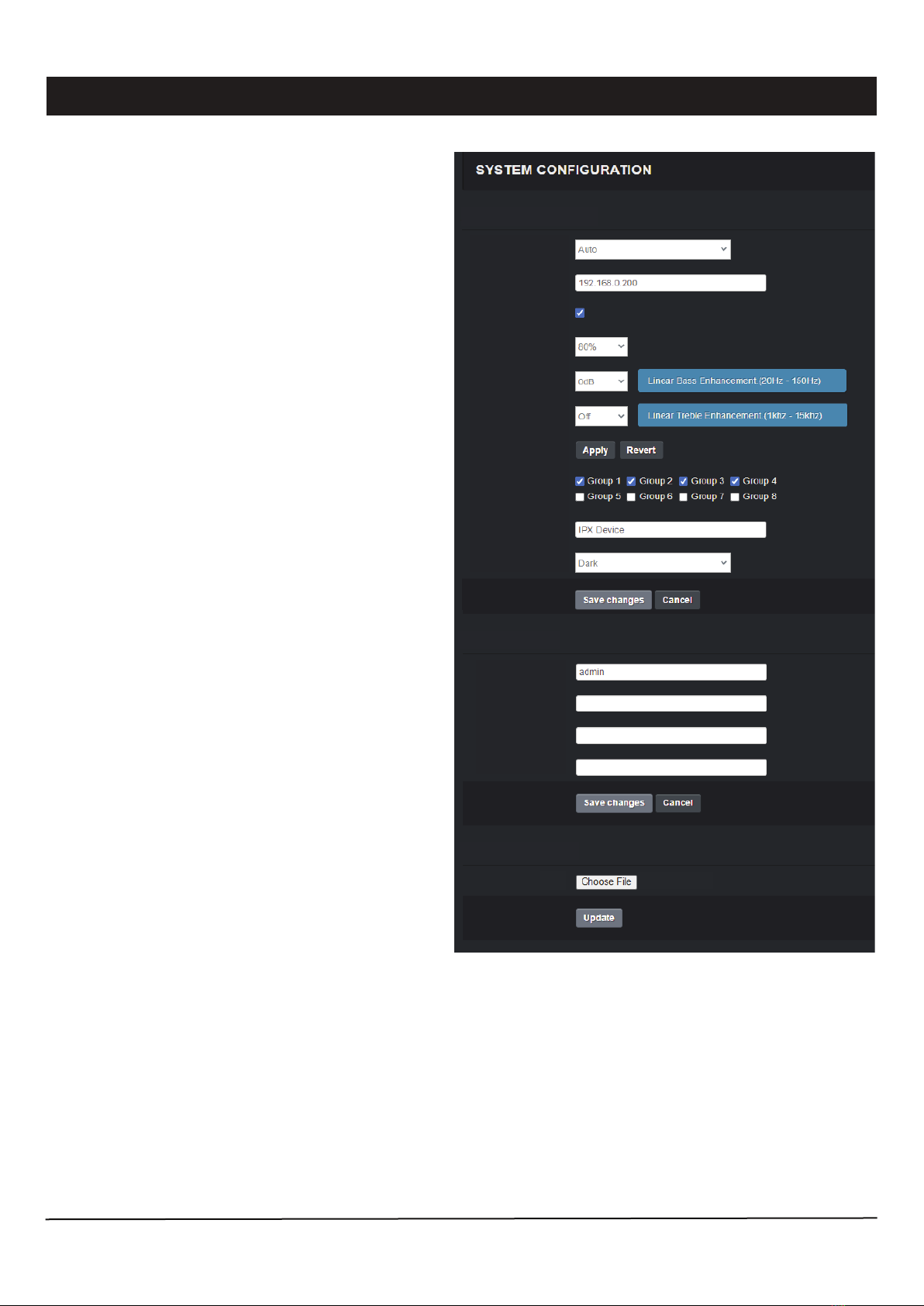

Device Setup Via Browser
System Configuration
Application Settings:
Music Server IP: Enter iPX5200 Music Server IP address
here. If PMX is used as the source, the Music Server IP shall
be corresponding to the PC’s IP address.
Sync With Server: If checked, whenever iPX5300 is
powered ON, the Volume, Bass and Treble levels shall follow
the levels configured in iPX5200.
Volume / Bass / Treble: Volume / Bass / Treble level
can be adjusted here.
Group: Group refer to default clients that are able to receive
streaming audio from a iPX5200 each time the iPX5200 is
reset or turned on.
Example:
On an iPX5200, enable Group 1 & 2;
On an iPX5300, Group 1 is checked,
then whenever the iPX5200 is turned on, the iPX5300 will be
able to play streaming music sending from the iPX5200. Any
clients that are not belongs to Group 1 or 2 will not play the
audio.
Device Name: A meaningful device name like “Level 1
Music Client” can be entered here. The name will be reflected
in iPX5300 Info page.
Authentication: You can alter the user name and pass-
word to avoid unnecessary access to the system.
Firmware Update: Firmware is stored in the unit’s
memory. Should there be any updates available, use this
section to perform system upgrades accordingly. Refer to next
page (page 6).
Application Settings
Volume
Bass
Treble
Group
Device Name
Connection Mode
Music Server IP
Sync With Server
Web Page Theme
Authentication
New User Name
Old Password
New Password
Confirm Password
Firmware Update
File No file selected

Page 6 iPX5300 ETHERNET MUSIC CLIENT

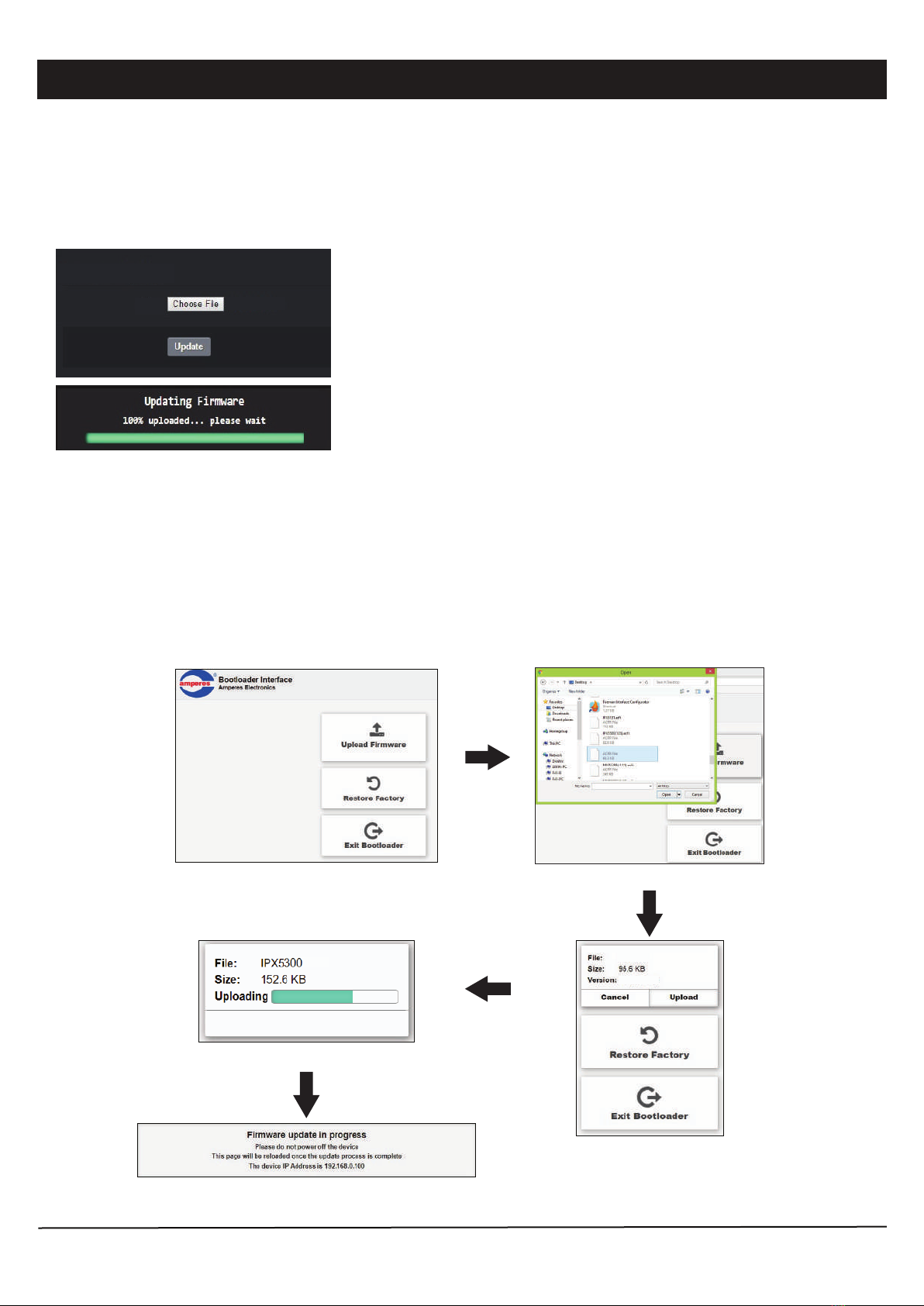

Firmware Update
1. Press & hold the reset button until “ STREAMING ” LED is turned ON. This will set the IP address to default address
192.168.0.100.
2. Press & hold the reset button untill “STATUS” LED is turned ON. This will make iPX5300 enter bootloader mode.
3. Open a browser and enter the IP address 192.168.0.100. A web page as shown below shall appear.
4. Select “ Upload Firmware ”, choose a binary file with “ .acfr ” extension and click “UPLOAD”
5. Once the uploading is completed, the browser shall enter the login page.
Update firmware in Bootloader Mode:
If the iPX5300 “hanged”, it is required to perform system reset by :
Click the Upload Firmware button to find the
updated firmware file.
Find the updated firmware file.
Ready to upload, click Upload
button to upload the firmware.
Updating progress
After finish updating firmware, the browser automati-
cally restart.
System firmware shall be updated once in a while when new features are available or to fix bugs. There are 2 methods of
doing;
1. Open a browser and type in the iPX5300 IP Address.
2. Under “System Configuration” page look for “Firmware Update” section as shown in below.
Update firmware in Normal Operation Mode:
Click “ Choose File” and choose a binary file with “.acfr” extension. Click
“Update”.
Firmware Updates
File
Once the update is completed, the browser should enter the login page.
iPX5300.acfr
IPX5300.acfr
IPX5300 IPX5300
2.11
IPX5300

iPX5300 ETHERNET MUSIC CLIENT Page 7
Technical Specifications
Power Requirement:
Voltage
Current
Connectivity
- LAN Interface
- Common Protocols
- Priority Protocols
Broadcast mode
Audio
- Analogue In / out (peak-to-peak)
- Input Load resistance
- Input Load Capacitance
- Total Harmonic Distortion (THD)
- S/N Ratio (full scale signal)
- Digital Format
User Interface
Firmware Upgrade
Operating Condition:
Temperature
Humidity
Case:
Dimension (WxHxD)
Weight
12 ~ 24V DC (Normal DC 24V)
<100 mA
RJ-45, 100Mb/s
TCP/IP, UDP, IGMP, HTTP
UDMP, ADP
Unicast / Multicast
1.25Vrms
30 Ohm
100 pF
0.1%
83 dB
IMA ADPCM / MP3 (CBR / 320 kbps max) / WAV
(Web Browser) IE V8+, Firefox V22+, Google Chrome V25+, RS485
Via Web Browser
-20°C ~ 80°C
0 - 70%
100 x 147 x 40 mm
300 g
PC Interface Via PMX
The PC Interface via PMX for iPX5300 shall be used to broadcast centralized BGM to remote buildings. The play mode can be
One to One, One to Multiple Sites or One to All. This shall enable the user to control the Source of BGM to be played at remote
buildings from the main rack.
iPX5300 Music Clients that are
connected to PMX will be listed in
PMX user interface.
To allow PMX communicate with iPX5300
make sure under PMX > iPX Configuration, the
‘ Data Port ’ setting is the same as iPX5300 >
NETWORK CONFIGURATION > Application
Settings ‘ Data Port ’ setting.
iPX5300 192.168.0.100 connected
iPX5300
192.168.0.100
connected
Network Settings
IP Address
Subnet Mask
Gateway Address
Application Settings

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
PUBLISHED : JUNE 2020
ISO 9001: 2008
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Information contained in this manual is subject to change without prior notice and does not represent a
commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any
loss or damages whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS
SDN BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in
conjunction with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages
caused by service, maintenance or repair by unauthorized personnel, or by use other than that intended by
the manufacturer.
AMPERES ELECTRONICS SDN BHD
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes
Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn
Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor,
Malaysia or its authorized dealers. This warranty is not valid if repairs are performed by unauthorized
personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as
well as removal and installation of the product from the main system are for the account of the purchaser.
This warranty shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using
the product with power supply voltage other than shown on the product, or any other power supply source /
adaptor not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not
directly related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of
use of the unit; moreover the warranty does not cover any damages which may be caused to people and
things when using the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on
this certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 36 months from
the date of purchase or for a specified period in countries where this is stated by a national law. In this case,
the extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if
the design changes or improvements are made.
