Amperes CM1400 User manual

Thank you for choosing another quality product from Amperes Electronics.
CM1400 offers 6 chimes and 2 siren tones with selectable balanced and unbalanced line output. Activation of chime shall be from
front switches or via remote triggering terminal, enabling the unit to be linked to external sensors or triggering system such as
alarm panel, remote mic or emergency switch. Siren has priority over chimes.
It is suitable for installation in schools, factories, hazardous areas etc.

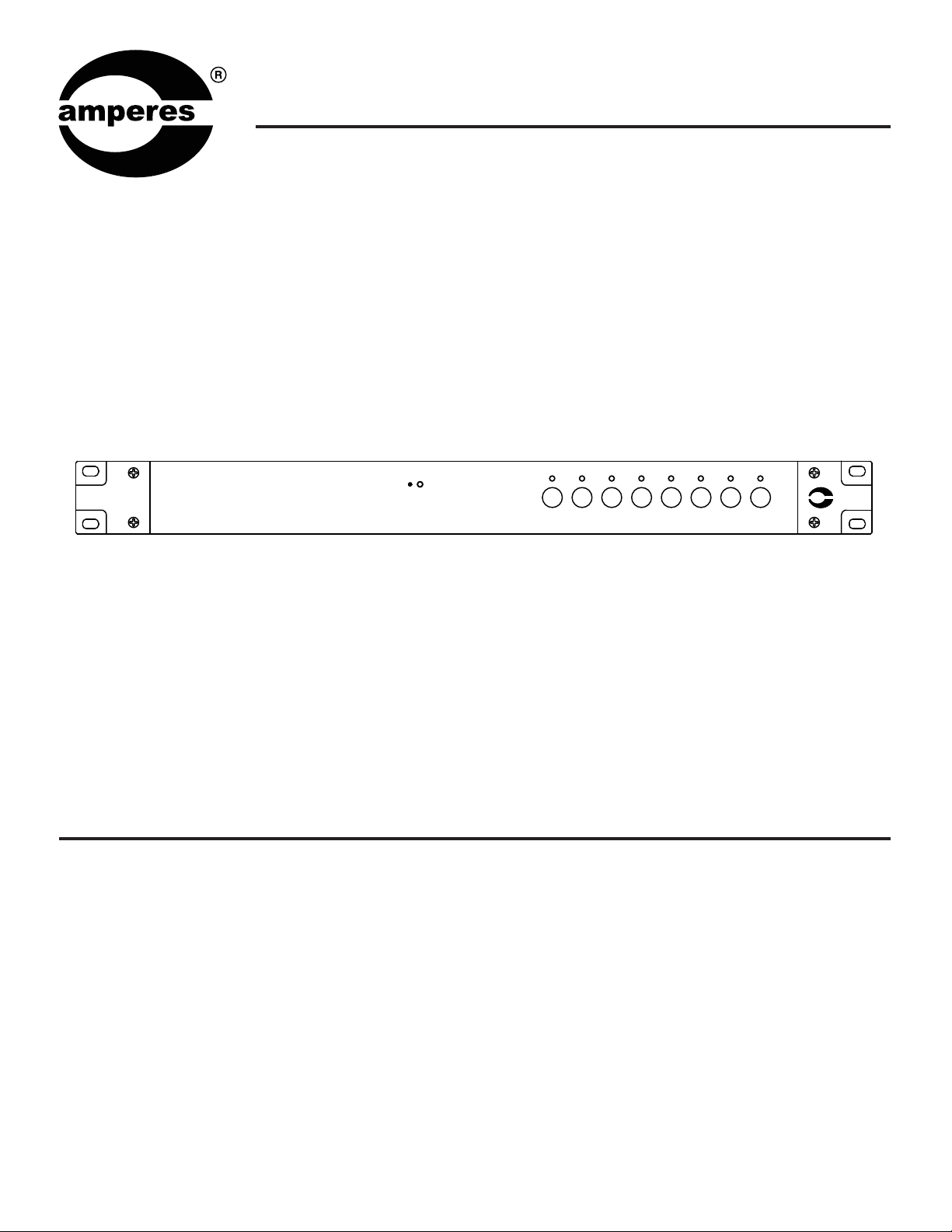

INSTRUCTION MANUAL
CM1400
Chime / Siren Tone Generator
Ver 3 / 2019
CM 1400 amperes
SIREN / CHIME GENERATOR
POWER
SIREN - SIREN ~ 4T UP 4T DOWN 2 TONE WESTMINSTER BELL DOOR BELL

Front View:
Parts Identifications
Rear View:
12
458910
10. OUTPUT MODE
1. POWER LED
It is to indicate the presence of 24V DC supply to the unit.
5. REMOTE ACTIVATION PORT
Triggering of the siren / tone / chime can be done remotely. Auto dual mode triggering is available for all ports;
momentarily or latched.
9. GAIN CONTROL
The output is line level, 0dB. Adjust the volume via this knob.
The user shall have option to have balanced or unbalanced output by using this switch.
2. SIREN SWITCHES
The switches activate siren in constant or wavy mode. Press once to active and again to switch Off. Siren broadcast
shall has priority over chime or tone activation.
3. TONE / CHIME GENERATION
The activation is via momentary switches. While any of the tone is in active mode, pressing the siren shall bypass it.
Tones available are 4 tone up / down, 2 tone, westminster, bell rings and ding dong.
4. POWER SUPPLY
The unit operates using 24V DC supply with rating of 0.3A.
Warning :
Do not connect the unit directly to back up batteries, as higher voltage in charging mode shall damage the unit.
We recommend Amperes PS9400 power supply unit or any other regulated 24V DC adaptor.
PAGE 2 CM1400 | CHIME AND SIREN TONE GENERATOR
11. OUTPUT JACK
Output is via 1/4" stereo jack. PHONE JACK
TIP : +VE / HOT SIGNAL
RING : -VE / COLD
SLEEVE : GROUND / SCREEN
CM 1400 amperes
SIREN / CHIME GENERATOR
POWER
SIREN - SIREN ~ 4T UP 4T DOWN 2 TONE WESTMINSTER BELL DOOR BELL
- +
DC 24V
WEST. 2 TONE BELL SIREN ~ SIREN - DING D. 4 T. UP 4 T.DOWN
MIN MAX
OUTPUT
SELECT SWITCH
UNBALANCED
BALANCED 1.0 V / 10K Ω
OUTPUT
NO AB
RS485RELAY
CONT
GND
CM 1400
CHIME/SIREN GENERATOR
SIREN ~ LATCHED CONTACT.
CHIMES ~ MOMENTARY CONT.
REPEAT IF LATCHED.
REMOTE TRIGGERING
amperes electronics
Another Quality Product From
MADE IN MALAYSIA
INPUT GAIN
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNING !
11
3
7. RELAY CONTACT
Triggering the front panel mic switch message or siren shall activate an internal relay. This ports provide a dry contact
which can be used to connect E/M overriding signal or to activate ALL CALL at speaker zone selector.
8. RS485
External controls or interface devices shall be able to communicate with the unit.
7
6. GND
Ground and external trigger will form a pair of circuit for remote activation.
6

- +
DC 24V
WEST. 2 TONE BELL SIREN ~ SIREN - DING D. 4 T. UP 4 T.DOWN
MIN MAX
OUTPUT
SELECT SWITCH
UNBALANCED
BALANCED 1.0 V / 10K Ω
OUTPUT
NO AB
RS485RELAY
CONT
GND
CM 1400
CHIME/SIREN GENERATOR
SIREN ~ LATCHED CONTACT.
CHIMES ~ MOMENTARY CONT.
REPEAT IF LATCHED.
REMOTE TRIGGERING
amperes electronics
Another Quality Product From
MADE IN MALAYSIA
INPUT GAIN
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNING !
PAGE 3CM1400 | CHIME AND SIREN TONE GENERATOR
Technical Specifications
Operating voltage 24V DC ; 0.3 A
Power consumption 7.2W
Chime type 4 tone up, 4 tone down, 2 tone
Ringing bell, Westminster, Ding Dong
Siren type Constant siren 8 KHz
Wavy siren
Frequency response 70 - 15KHz
External activation 3A Dry contact
Output Line 1.2V balanced
Output impedance 600 Ohm
Gain +4 dB max
Communication control RS485
Dimensions (WxHxD) 482 x 44 x 180 mm
Weight 1.55 kg

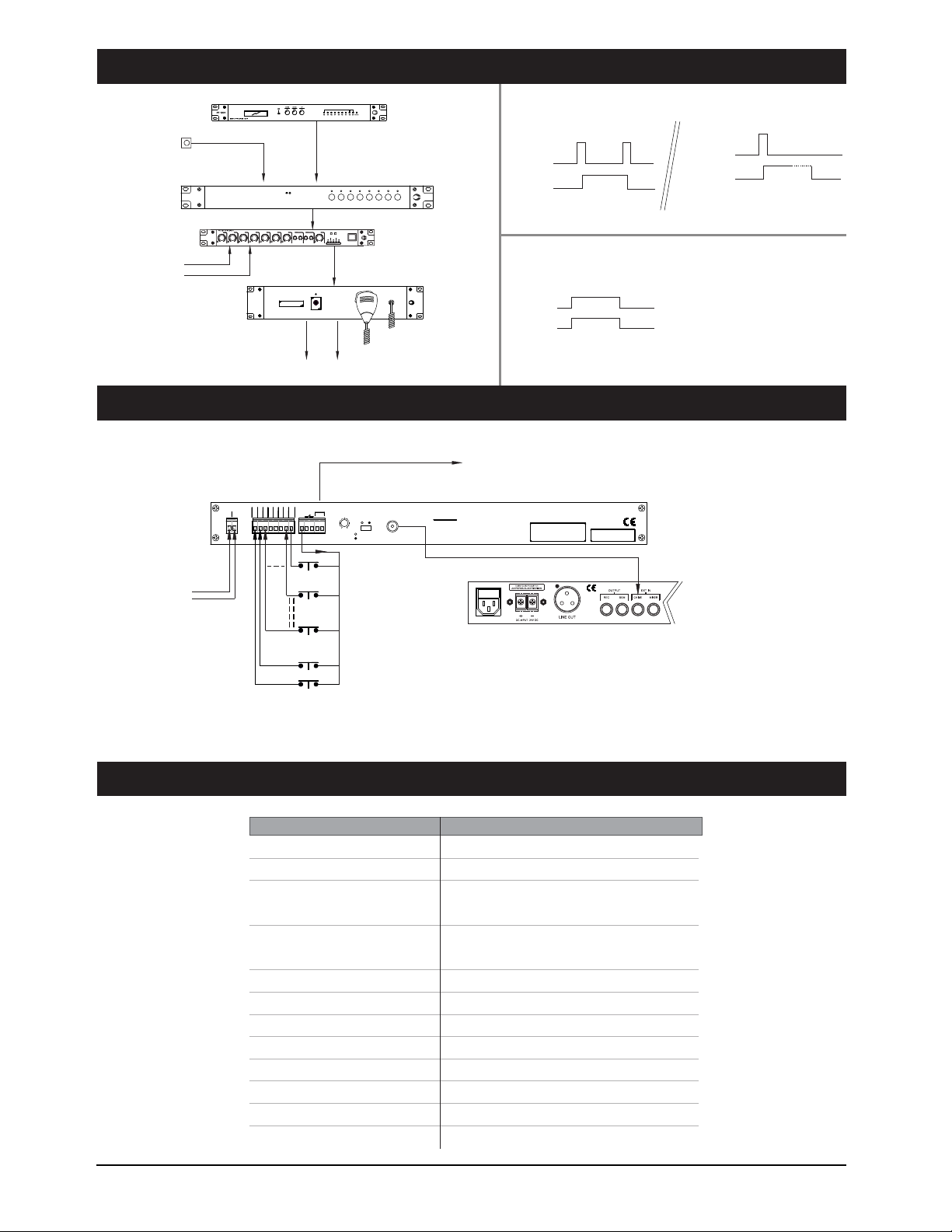

Application Schematic
Connecting The Unit
PT1801
MX2222
E/M PANEL
To power amplifier and speakers
Other Inputs
E/M SWITCH
CM1400
contact
NO
contact
chime input
line out
O
I
2122
MX
SIGIN
AUX
MAXMIN MAXMIN MAXMIN MAX
SIGIN SIGIN
CH2CH1 CH3
MINMIN MAXMIN MAX
SIGINSIG IN SIGIN
CH4 CH6CH5
TONECTRL
MIN MAX
TREBLEMIXERCHIME
SIGIN
MIN
SOURCE
MIN MAXMAX
EXTINPUT
MIN MAX
BASS
SIGIN
MUSICSOURCE
MASTER
OFF
CASS
CD
TUNER
SELECTOFF
POWER
EP 1200 amperes
EMERGENCY PAGINGPANEL
MIC
SIRENSWITCH
SIREN
FIRE
EMERGENCY/ SIREN ACTIVE
amp e r e s
RELAYOUTPUT CONTACT MELODY
CM 1400 amperes
SIREN / CHIME GENERATOR
POWER
SIREN- SIREN ~ 4TUP 4T DOWN 2TONE WESTMINSTER BELL DOOR BELL
Rear view of CM1400
TO 24V DC
POWER
SUPPLY
OPTIONAL REMOTE
TRIGGERING
Chime
remote
switches
Siren remote
switches
1/4" stereo phone jack
GND
External controls or interface devices shall be able to communicate
with the unit, also use for firmware update.
:
AC 220 - 240V 50/60Hz
Rear view of MX2222
Pulse
trigger
Melody
play
ON ON
<1 sec
stop
start
Hold
trigger
Melody
play start stop
ON
>1 sec
Pulse Trigger Mode ( Front and Rear )
Latch Contact Trigger Mode ( Rear only )
stop
Pulse
trigger
one
Melody
play
ON
duration
of tone
start
Rear remote trigger is a dual mode activation; Pulse and Latch

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
Published : July 2019
ISO 9001: 2015
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Information contained in this manual is subject to change without prior notice and does not represent a
commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or
damages whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS SDN
BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in conjunction
with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages caused by
service, maintenance or repair by unauthorized personnel, or by use other than that intended by the manufacturer.
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics
Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan
Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized
dealers. This warranty is not valid if repairs are performed by unauthorized personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as well as
removal and installation of the product from the main system are for the account of the purchaser. This warranty
shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using the
product with power supply voltage other than shown on the product, or any other power supply source / adaptor
not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not directly
related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of use of the
unit; moreover the warranty does not cover any damages which may be caused to people and things when using
the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on this
certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 36 months from the
date of purchase or for a specified period in countries where this is stated by a national law. In this case, the
extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if the
design changes or improvements are made.
