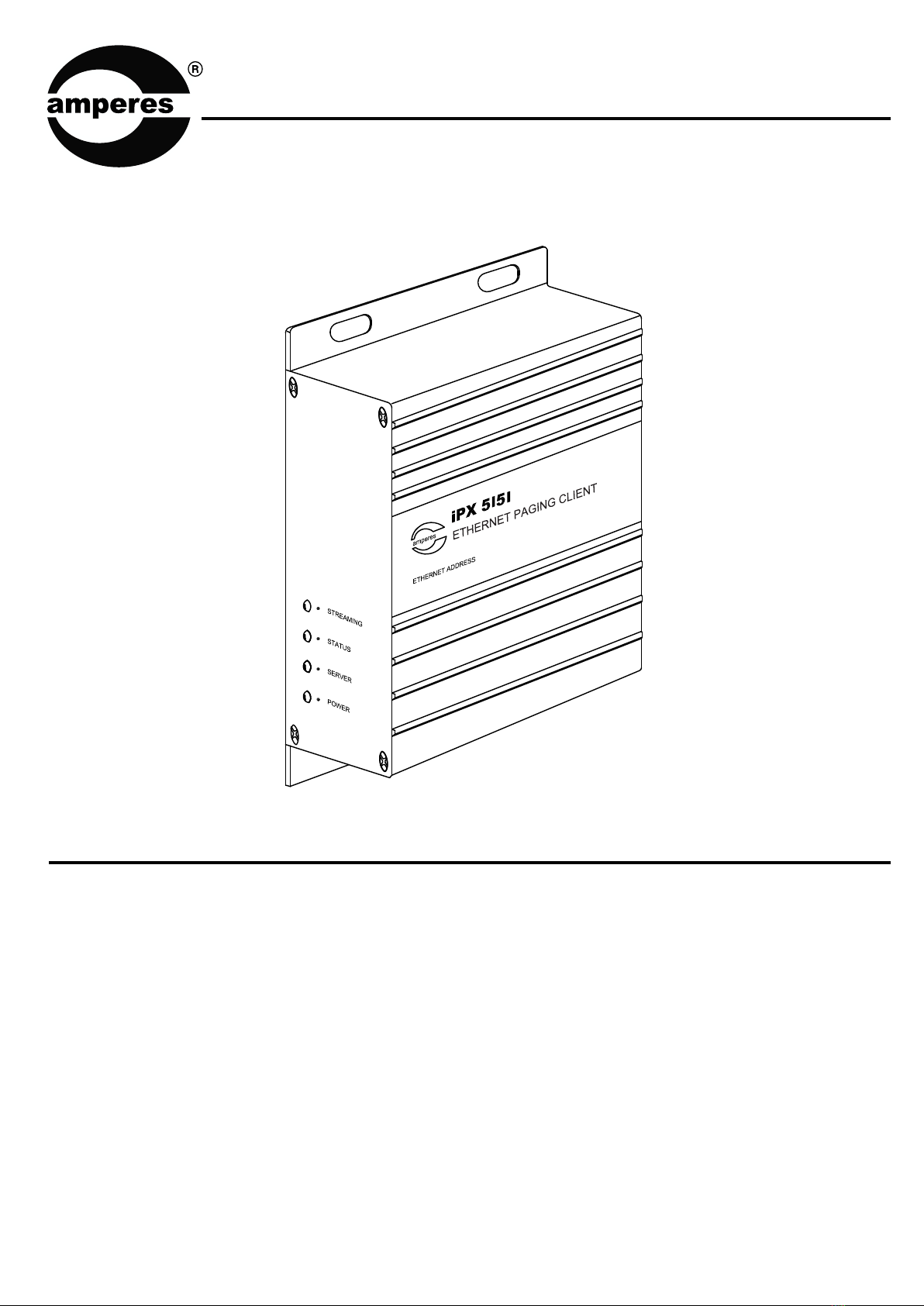

Amperes iPX5151 User manual

INSTRUCTION MANUAL
iPX5151
Ethernet Paging Client
Thank you for choosing another quality product from Amperes Electronics.
iPX5151 is an Ethernet Paging Client which receives and transmits paging audio and RS485 data from digital paging microphone,
which is then fed to a receiving paging client via Ethernet connection. The receiving client can then broadcast the audio via PA mixer
for amplification.
iPX5151 is now refreshed with newer technology for Ultra Low Latency audio transmission, thus reducing the delay in sound delivery.
Parameter settings are done using web browser, connected directly to the unit for channel setup, bass and treble controls, volume, etc.
VER 4 / 2021Applicable for Version 2.17 and above
ULTRA LOW LATENCY

Parts Identification
2
PAGE 2 iPX5151 | ETHERNET PAGING CLIENT
3
6
7
1
Front View
Rear View
9 10
5
4
8
POWER - This blue LED shall lit when iPX5151 is powered On.
SERVER - This green LED shall lit when iPX5151 successfully establish a connection with Paging Server (iPX5101).
STATUS - Blink whenever there is a network activity ongoing.
STREAMING - Blink whenever iPX5151 start streaming audio to a receiving paging client (iPX5155).
1. INDICATOR LEDS
24V DC power supply input.
2. POWER PORT
Ethernet port for connecting to network switch.
3. ETHERNET PORT
Button to allow iPX5151 enters Bootloader mode or reset settings to factory default settings.
Bootloader mode: To enter this mode, hold the reset button until POWER, SERVER and STATUS LEDs lit. Enter this
mode to do firmware updating if normal mode updating does not work. All iPX5151 settings remain intact in this mode.
Reset to factory default settings: Hold the reset button until POWER, SERVER, STATUS and STREAMING LEDs lit
will reset all iPX5151 settings to factory default settings.
4. RESET BUTTON
This ports provide a dry contact which can be used as E/M overriding signal or activate ALL CALL at speaker zone selector.
5. RELAY CONTACT
We can activate iPX5151 paging using voltage free dry contact. Link PM series paging mic / MR1301 message recorder / TI6100
Telephone Interface dry contact to this port will allow these audio sources activate iPX5151 and have their analog audio accepted by
iPX5151.
6. REMOTE TRIGGER PORT
For data transmission between PD paging mic and iPX5151.
7. RS485 PORT
This LED shall blink according to the rhythm of the input paging mic audio.
8. SIGNAL INDICATOR
Connect paging mic or other audio source analog audio to this port. The signal shall be in balanced line level.
9. AUDIO INPUT PORT
Audio that sending to Audio Input Port shall also broadcast via this output port. The signal is in balanced line level.
10. AUDIO OUTPUT PORT

iPX5151 | ETHERNET PAGING CLIENT PAGE 3
Connecting to iPX5151
PD SERIES
PAGING MIC
iPX5151
cat5e
iPX 5101
ampe re s
ACT STATUS POWERREM
FROM FIRE ALARM
INTERFACE
EP1200 EMER.
PAGING MIC
MR1301
MESS. PLAYER
MP3 / TUNER / CD
MEDIA PLAYER
iPX5101
IP PAGING CONTROLLER
iPX5200 MUSIC
SERVER
iPX5151
NETWORK SWITCH WITH FIBER LINK
iPX 5300
ETHERNETMUSIC CLIENT
ETHERNETADDRESS
ETHERNET
RESET
BALANCEDLINE
OUTPUT
amperes
iPX5300
Paging Audio & Data
LOCAL PA EQUIPMENT INCL. PRE-AM-
PLIFIER MIXER ZONE DECODER
POWER AMPLIFIERS ETC.
Fiber redundant loop ( not available to all switchers )
iPX 5300
ETHERNETMUSIC CLIENT
ETHERNETADDRESS
ETHERNET
RESET
BALANCEDLINE
OUTPUT
amperes
LOCAL PA EQUIPMENT INCL.
PRE-AMPLIFIER MIXER ZONE
DECODER POWER AMPLIFIERS
ETC.
NETWORK SWITCH WITH FIBER LINK
iPX5300
Music
Audio
Paging Audio & Data
SUB RACK
Music Audio
MAIN RACK
Note:
In a system, only one iPX5101 is required, no matter what the size of the system or the number of clients ( iPX5151 / iPX5155)
are installed.
EP 1200
amperes
EMERGENCYPAGING PANEL
MIC
SIRENSWITCH
SIREN
FIRE
EMERGENCY/ SIREN ACTIVE
Paging Audio & Data
cat5e
POWER SIG CALL RELAY
OUTPUT
PAGING
CHIME
POWER
TI6100 TELEPHONEPAGINGMODULE
DC24V
100mA
TI6100
PABX Telephone extension
Ext 101
Ext 102
PM1000
Paging Audio &
Dry contact
iPX5151
iPX5151
Line Audio &
Dry contact
cat5e
iPX5155
(Output Mode)
iPX5155
(Output Mode)

Device Setup Via Browser
PAGE 4 IPX5151 | ETHERNET PAGING CLIENT
iPX5151 shall require some setups via web browser. Kindly follow instruction listed below.
Open a browser (Chrome / IE) and enter iPX5151 IP address. The default address is 192.168.0.100. Default username and password
are both “admin”.
Device Info
The first page appear upon login shall be Device Info. Informa-
tion such as firmware version, networking addresses and
paging server status are shown. No configuration is needed in
this page.
Network Configuration
Edit iPX5151 IP address, Subnet address and Gateway
address here to suit you networking environment. It is recom-
mended to leave the Data port number unchanged. Click the
‘SAVE’ button to save your changes.
IP Address
Subnet Address
Gateway Address
Data Port
Room A Paging Client

IPX5151 | ETHERNET PAGING CLIENT PAGE 5
Device Setup Via Browser
System
Unit Configuration: We can enter a meaningful Device Name here, e.g. “Room
A Paging Client”. The name will be shown in Device Info page of iPX5151 and iPX5101
Paging Server - Client Browser tab.
Authentication: You can alter the user name and password to avoid unnecessary
access to the system.
Update Firmware: Firmware is stored in the unit’s memory. Should there be any
updates available, use this section to perform system upgrades accordingly. Refer
page 6 on firmware updating.
Backup & Restore: You can backup the configuration and can reset the settings
to default settings.
Device Name
Room A Paging Client
Enter new username
Enter new password
Paging Configuration
Paging Enabled: Enable this setting all the time.
Auto Connect: We can either turn On the Auto Connect to allow iPX5151 search
and connect to Paging Server automatically or turn Off the setting and specify the
Paging Server IP address here.
Note: If paging Server IP address is changed to an unknown value, turn On the
Auto Connect allow iPX5151 auto capture the server IP address and show up in the
device information page.
Remote Trigger
Enabled: If PM1000 or TI6100 were used as the paging audio source, enable this
setting such that iPX5151 Remote Trigger port accept the devices triggering via dry
contact.
No Priority: There are 13 priority levels. No priority is the 13th level which is the
lowest. Disable this setting allow us to set a higher level for paging device that
connected to this iPX5151. The lower the priority number, the higher the priority
level.
Auto Override Low Priority (AOLP): Enable this setting if we want to allow
device that connect to this iPX5151 Remote Trigger port to override other lower
priority devices. More about AOLP can refer to iPX5101 instruction manual.
Paging Enabled
Auto Connect
192.168.0.101
Enabled
No Priority
Auto Override Low Priority
Paging Server IP Address
Priority

PAGE 6 iPX5151 | ETHERNET PAGING CLIENT

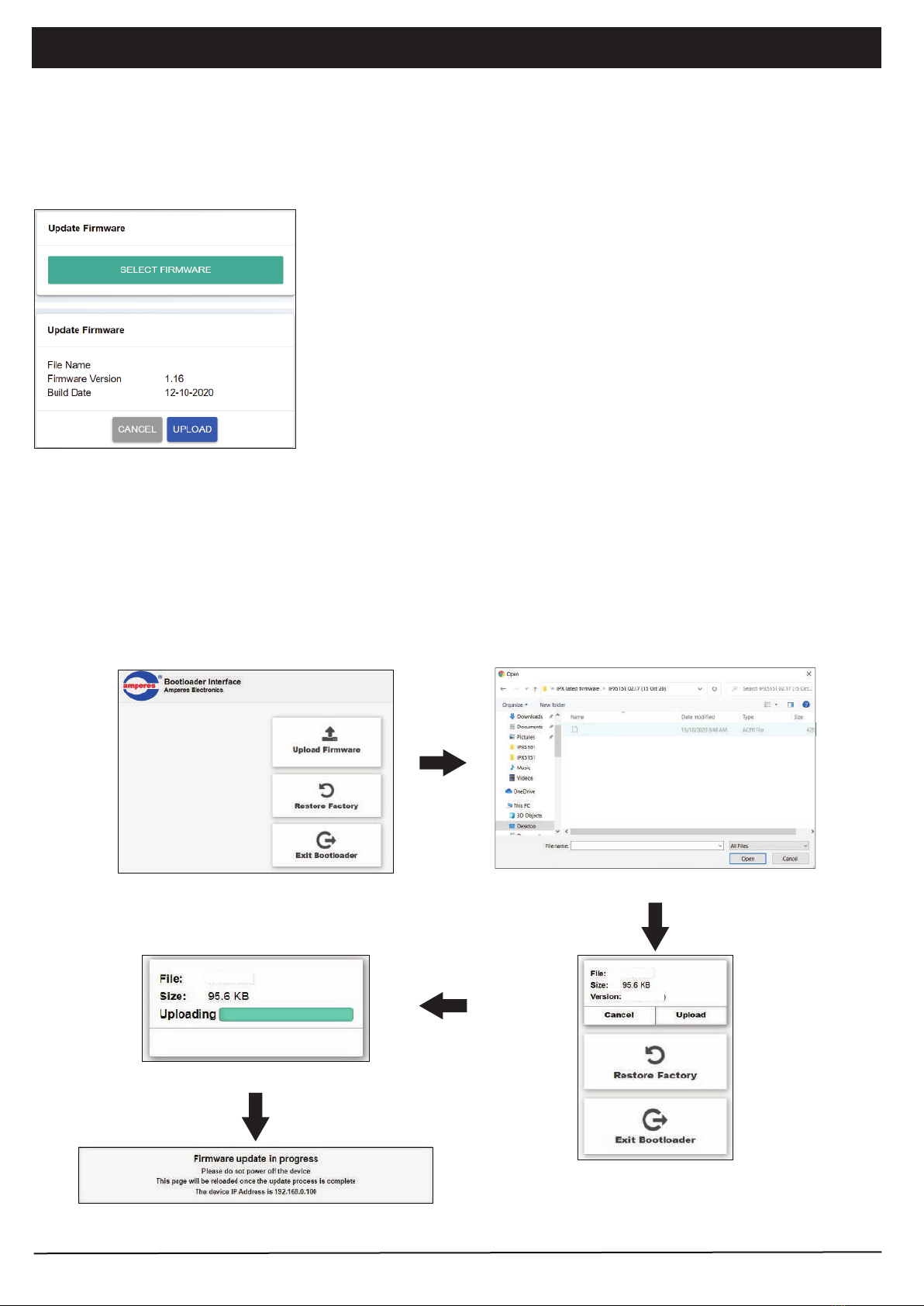

Update Firmware
1. Press & hold the reset button until “ STREAMING ” LED is turned ON. This will set the IP address to default address
192.168.0.100.
2. Open a browser and enter the IP address 192.168.0.100. A web page as shown below shall appear.
3. Select “ Upload Firmware ”, choose a binary file with “ .acfr ” extension and click “UPLOAD”
4. Once the uploading is completed, the browser shall enter the login page.
Update firmware in Bootloader Mode
If the iPX5151 “hanged”, it is required to perform system reset by :
Click the Upload Firmware button to find the
updated firmware file.
Find the updated firmware file.
Ready to upload, click Upload
button to upload the firmware.
Updating progress
After finish updating firmware, the browser automatically
restart.
System firmware shall be updated once in a while when new features are available or to fix bugs. There are 2 methods of doing;
1. Open a browser and type in the iPX5151 IP Address.
2. Under “System” page look for “Update Firmware” section as shown in below.
Update firmware in Normal Operation Mode
Click “ SELECT FIRMWARE” and choose a binary file with “.acfr” extension. Click
“UPLOAD”.
Once the update is completed, the browser should enter the login page.
IPX5151 IPX5151
2.06
iPX5151.acfr
IPX5151.acfr
IPX5151.acfr

iPX5151 | ETHERNET PAGING CLIENT PAGE 7
Technical Specification
Power requirement :
Voltage
Current
Power consumption
Connection
- LAN interface
- Protocol
Audio
- Analog in (max)
- Analog out
- Input impedance
- Input capacitance
- Total harmonic distortion (THD)
- S/N ratio (full scale signal)
- Paging encoding
User interface
Firmware upgrade
Operating condition :
Temperature
Humidity
Case :
Dimension (WxHxD)
Weight
18 ~ 24V DC (Normal DC 24V)
60 mA
1.5W
RJ45 (10 / 100 Base - T)
TCP/IP, UDP, HTTP, IGMP, ADMP
3.2Vrms
1Vrms (with Analog in 850mVrms)
90 Ohm
100 pF
0.1%
83 dB
G.722
Google Chrome, MS Edge, IE V8+
Via Web Browser
-20°C ~ 80°C
0 - 70%
100 x 147 x 40 mm
300 g
Note:
The above specifications are correct at time of printing but subjected to changes without prior notice due to product
improvements.

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
PUBLISHED : JANUARY 2021
ISO 9001: 2008
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Information contained in this manual is subject to change without prior notice and does not represent a commitment
on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages
whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS SDN
BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in conjunction
with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages caused by
service, maintenance or repair by unauthorized personnel, or by use other than that intended by the manufacturer.
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics
Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan
Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized
dealers. This warranty is not valid if repairs are performed by unauthorized personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as well as
removal and installation of the product from the main system are for the account of the purchaser. This warranty
shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using the
product with power supply voltage other than shown on the product, or any other power supply source / adaptor
not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not directly
related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of use of the
unit; moreover the warranty does not cover any damages which may be caused to people and things when using
the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on this
certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 36 months from the
date of purchase or for a specified period in countries where this is stated by a national law. In this case, the
extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if the
design changes or improvements are made.
