Amphenol RES-SCE-AC-4US User manual

RES SCE AC 8US - UM rev. 1.2 Page 1 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Amphenol
RJ-Switch
IP67/68 rugged Ethernet Portable Switch
RES-SCE-AC- US
& RES-SCE-AC-8US
- User Manual -
Contents
Section 1 General Information Page 3
Section 2 Hardware Page 4
Section 3 Installation Page 5
Section 4 Wiring Page 7
Section 5 Features Overview Page 10
Section 6 Service Information Page 12
This manual applies to the following products:
•RES SCE AC 4US
Rugged IP67/68 Unmanaged Miniature Ethernet Switch, 4x 10/100 Mbps
•RES SCE AC 8US
Rugged IP67/68 Unmanaged Miniature Ethernet Switch, 8x 10/100 Mbps
Revision Date Modifications
1.0 January 11, 2013 Initial document
1.1 April, 10, 2013 Updates drawings and pictures
1.2 January, 6, 2015 Added 4 ports model

RES SCE AC 8US - UM rev. 1.2 Page 2 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Amphenol Statement of Limited Warranty:
Products shall benefit from a legal guarantee of one year following the date of delivery in accordance with the terms and
conditions indicated hereunder.
In all instances, Seller’s guarantee shall be limited to free replacement, in identical quantities, of the Product acknowledged as
defective by Seller with the exclusion of any compensation or damages and interests other than agreed in a specific contract.
The guarantee is subject that Client notifies Seller of defect immediately following discovery thereof by any written means
during the legal guarantee period. Defective Products shall be returned to Seller in accordance with the same procedure as that
applicable to Products which do not comply with orders as indicated under article 9 hereinabove.
The following shall be excluded from the guarantees provided by Seller:
- Product defects resulting from inadequate maintenance, or supervision and, more widely, any use which does not comply with
written instructions of Seller and indicated in technical notices and/or product specifications, or default in respecting applicable
standards or professional customs and uses;
- Product defects resulting from an external cause or any modification or intervention by Client or third party without the prior
written consent of Seller;
- The guarantee shall not cover normal wear and tear of Products;
- Product defects resulting generally in whole or in part from damage or accidents attributable to Client or a third party;
- More specifically whether the cover of the switch enclosure have been opened.
- Whether the components have been damaged in transit or have not been stored by the Customer in conditions in accordance
with the specification.
- The guarantee shall not cover any defects resulting from instructions given by Client to Seller ;
- Whether the components have been subjected to abuse (mechanical, electrical or thermal) on installation or on use and, in the
case of slices/dice, have been subjected to handing or such operations as the welding of connecting wires mounting by soldering
or sticking.
- Whether the unfitness or defectiveness of the components has resulted from exceeding the maximum values for usage
(temperature limit, maximum voltage, etc.) as defined by the Vendor, or from incorrect choice of application.
- Damages resulting from force majeure, such as this is defined under article 11 of Amphenol Socapex Sales Conditions
hereunder, or resulting from any unpredictable event or natural disaster.
- Furthermore, the guarantee shall not cover consequential liability, direct or indirect which may result from the failure of a
component supplied by the Vendor.
Client shall retain sole and exclusive liability for the use of Products provided by Seller and the suitability thereof for use.
Client should ensure that its premises and storage conditions are adequate for the due and proper storage of Products and ensure
all safety guarantees as stipulated by regulations in force. No guarantee shall be provided by Seller in this regard.
CE Declaration of conformity:
This equipment complies with the requirements relating to electromagnetic compatibility and security.
EN55022 (Emissions);
EN55024 (EN50082-1 ou -2) et/ou EN61326-1 (Immunity);
EN61010-1 ou EN60950 (Electrical safety);
This meets the essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the
laws of the Member States relating to electromagnetic compatibility.
Note: All information in this document is subject to change without notice.

RES SCE AC 8US - UM rev. 1.2 Page 3 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 1
General Information
Overview
This manual will help you install and maintain the Amphenol Rugged Ethernet Portable
switches. These products are extremely easy to install and operate.
Military applications can now take full advantage of 100Mbps Fast Ethernet performance.
The installation guide describes how to install and use the hardened compact Ethernet
RES-SCE-AC-4US & RES-SCE-AC-8US Military Rugged Switch. Capable of operating
at extreme temperature of -35°C to +75°C and meet the toughest industrial and military
environments such as MIL-STD-810F, MIL-STD-461E up to the highest levels. The
mentioned ability turns the RES-SCE-AC-4US & RES-SCE-AC-8US to the optimal
solutions switch of choice for harsh environments constrained by space.
Developed for military and harsh mobile applications, the switch features mechanical
packaging enhancements designed for MIL-STD-810F airborne and ground environmental
compliance and high reliability. The unit has been especially hardened to improve ingress,
impact, and shock/vibration protection, as well as eliminate all moving parts through
passive cooling, and interface through sealed SCE2 connectors.
Leveraging best-in-class switching technology, the switch serves as a robust solution for
providing local area network (LAN) connectivity to IP-enabled computing and net-centric
devices. Compact in size, the RES-SCE-AC-4US & RES-SCE-AC-8US are particularly
useful for expanding port density to tactical IP routers in space-constrained airborne and
ground vehicle environments.
RES-SCE-AC-4US & RES-SCE-AC-8US are specifically designed for Data Acquisition &
Transmission, Battlefield Communication C4ISR, Rugged Networks, Mobile
Communications, Combat vehicles and Avionic & Shipboard Systems.
Performance
Specifications
These general specifications apply to these switches. Refer to Section 6 for complete
technical specifications.
Ports RES-SCE-AC-4US : 4x 10/100BaseT(x)
RES-SCE-AC-8US : 8x 10/100BaseT(x)
Voltage
5Vdc Nominal
Power Consumption: 2W Typical
MIL standards MILSTD-461E, MILSTD-810F
Electromagnetic MIL-STD-461E Electromagnetic compatibility
RE-02, RS-03
Operating Temp. -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
Waterproof IP67

RES SCE AC 8US - UM rev. 1.2 Page 4 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 2 Hardware
Overview

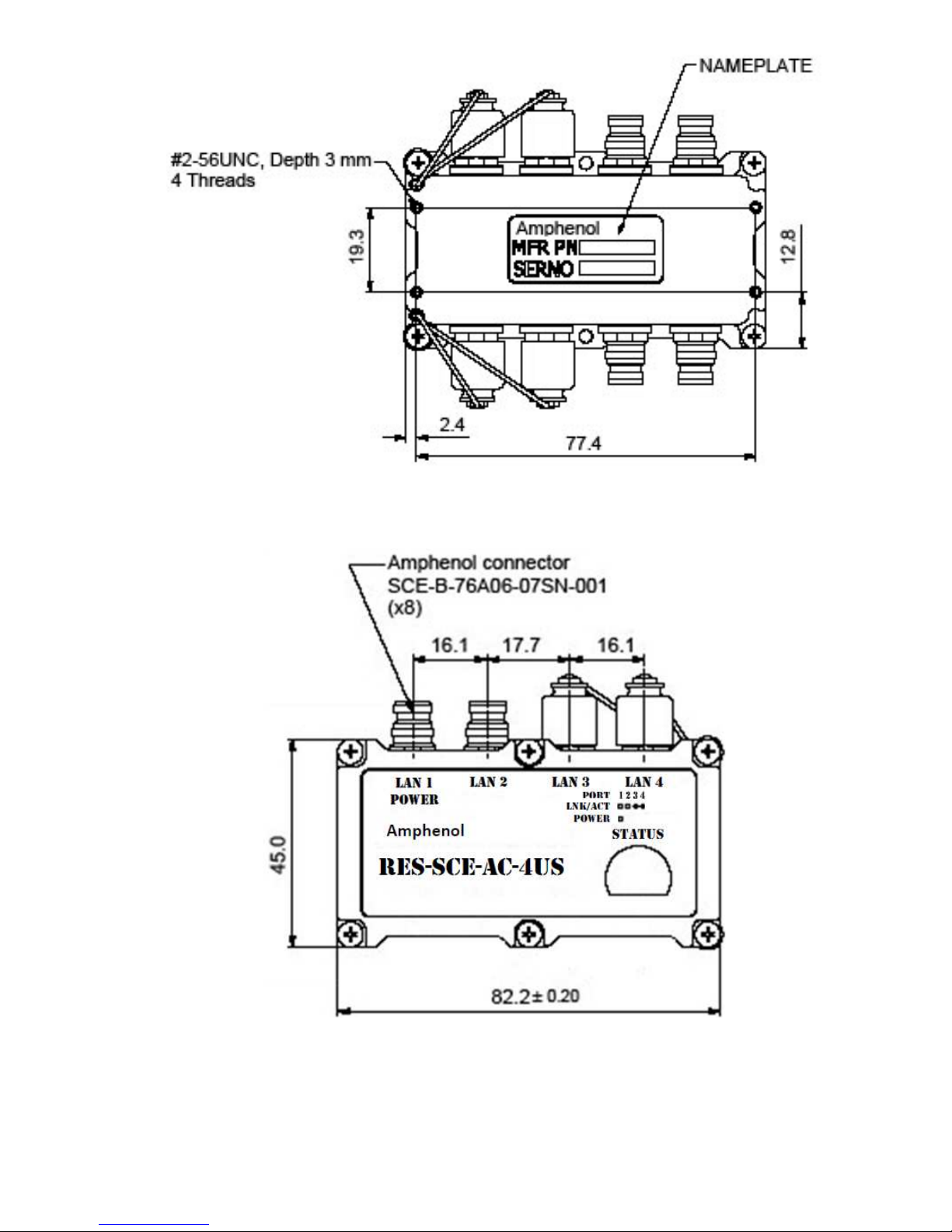

The switches can be mounted directly to a flat surface or to a wall. Refer to the mechanical
drawing below. Its high protected enclosure makes it able to withstand immersion (IP67/68
rating).
The Ethernet connections come out from rugged SCE2 connectors.
Front Panel
Display The following describes the front panel, and LED indicators of the RES-SCE-AC-4US &
RES-SCE-AC-8US.
LED Indicators
Note: Due to Tactical requirements, LED’s will ONLY operate while pressing and holding
the marked “Push-Button”!
The Single LED indicator on the front panel positioned above the “Push-Button” shows the
operative status of the switch.
Once the LED is turned on, the switch is powered and ready-for-use.
This LED will be on solid yellow/green when proper power (5VDC) has been applied to the
unit.
Above the single “power” LED you will find 8 additional LEDS.
•Each port has a single LEDs indicator that indicates Link / Activity (Off – there is no
link, Steady Green – There is a device connected, Flashing Green – data is being
transmitted)

RES SCE AC 8US - UM rev. 1.2 Page 5 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 3 Installation
Selecting a
Site
As with any electronic device, you should place the switch where it will not be subject to
extreme temperatures, humidity, or electromagnetic interference that exceeds the profile of
RES-SCE-AC-4US & RES-SCE-AC-8US. Specifically, the site you select should meet the
following requirements:
•The ambient temperature should be between -35 to 75 degrees Celsius.
•The relative humidity is recommended to be less than 95% percent, non-
condensing.
•Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for MIL-STD-461E.
CAPS for
unused
connectors
The switches are pre-equipped with caps on all ports, including power and Ethernet.

Make sure all connectors are protected with cap or sealed plug to ensure sealing
and prevent from deterioration of the contacts.

RES SCE AC 8US - UM rev. 1.2 Page 6 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com

RES SCE AC 8US - UM rev. 1.2 Page 7 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 4 Wiring
Overview
These switches provide connections to Ethernet devices in harsh environment. Typically a
port is used to connect to another Ethernet switch that is connected to the main Ethernet
backbone. The other Ethernet ports are then connected to Ethernet devices such as
communication systems, Ethernet I/O, or industrial computers. Electrical isolation is
provided on the Ethernet ports for increased reliability.
Power wiring
This switch is powered by using port number 1.
Power plug
We suggest using SCE2-B-L1K06-07PN.
Note : pay attention to use the cable’s shield for the ground continuity during the wiring
process.
Power plug
wiring
rear view of the plug

RES SCE AC 8US - UM rev. 1.2 Page 8 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Ethernet
wiring
Use data-quality (not voice-quality) twisted pair cable rated category 5 (or better) with
SCE2 connector.
Ethernet plug
part number
We suggest using SCE2-B-L1K06-07PN.
Note : pay attention to use the cable’s shield for the ground continuity during the wiring
process.
Ethernet plug
wiring
rear view of the plug
RJ45 Wiring
Guidelines Use data-quality (not voice-quality) twisted pair cable rated category 5e (or better) with
standard RJ45 connectors.
Please note that these cables are available as straight-thru or cross-over configurations.
Either type can be used because these switches support auto-mdi/mdix-crossover. For
reference, the pin-outs of the two cable types are listed below.
Ethernet Cable
Pin-outs
Straight-thru Cable Wiring Cross-over Cable Wiring
Pin 1 Pin 1 Pin 1 Pin 3
Pin 2 Pin 2 Pin 2 Pin 6
Pin 3 Pin 3 Pin 3 Pin 1
Pin 6 Pin 6 Pin 6 Pin 2
Ethernet
Connector
Pin Positions

RES SCE AC 8US - UM rev. 1.2 Page 9 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Ethernet
Connector
Pin-outs
Pin
# MDI-X Port MDI Port (typical for
uplink)
Auto-
MDI/
MDI-X
Ethernet
Device
Port
1 TX+ RX+ TX/RX+ RX+
2 TX- RX- TX/RX- RX-
3 RX+ TX+ RX/TX+ TX+
6 RX- TX- RX/TX- TX-
Cable Distance
The maximum cable length for 10/100BaseT(x) is typically 100 meters (328 ft.).
Note: Hubs and switches are different devices. Hubs simply broadcast all messages
out all ports. Switches intelligently route messages only out the appropriate port.

RES SCE AC 8US - UM rev. 1.2 Page 10 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 5 Features Overview
Switching
Features
Here’s a brief explanation of some of the features found in these switches documented by
this manual.
ETHERNET PORTS:
•RES-SCE-AC-4US : 4 x switched 10/100 (Fast Ethernet) ports
•RES-SCE-AC-8US : 8 x switched 10/100 (Fast Ethernet) ports
NETWORKING:
•Full wire-speed forwarding rate
•Store-and-forward mechanism
•Auto MDI-II, MDI-X
•Auto-Negotiation Protocol
•Address Look-Up
•Migration
•Learning
CONNECTORS:
•LAN & Power Connector Type: SCE2-B-76A06-07SN-001
CHASSIS:
•Low profile rugged aluminum extrusion
•Conductively cooled w/custom internal heat-sinks
•Ingress protection against sand, dust and moisture
•Anodize Coating, MIL-A-8625, Type II, Class 2
STANDARDS:
•MILSTD-461E, MILSTD-810F GM, IP67
VOLTAGE OPERATION:
•Standard USB - 5VDC @ 0.5A
PERFORMANCE:
•128K Byte of SRAM for Frame Buffering
•2.0Gbps High-Performance Memory Bandwidth
•Wire-Speed Reception and Transmission
•Integrated Address Look-Up Engine
•Automatic Address Learning

RES SCE AC 8US - UM rev. 1.2 Page 11 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
STANDARDS COMPLIANCE:
•IEEE 802.3 10 Mbps 10BASE-T (Ethernet)
•IEEE 802.3u 100BASE-TX 100 Mbps (Fast Ethernet)
•IEEE 802.3x Flow Control
POWER:
•Voltage Input: 5Vdc, 0.5A, Can be powered by USB
•Power Consumption: 2.0W Typical
•Ground: Grounding screw provided for connection to system chassis ground
- Optional
ELECTROMAGNETIC:
•MIL-STD-461E Electromagnetic compatibility
•CE-102, CS-114, CS-115, CS-116, RE-102, RS-103
SHOCK/VIBRATION/HUMIDITY:
•MIL-STD-810F, Random vibration (514.5I), Bench Handling (516.6VI),
High Temp.(501.5I,II), Low Temp.(502.5I), Humidity (507.5II), Air Pressure
(500.5I,II), Blowing Rain (506.5I), Immersion (512.5I), Salt Atmosphere
(509.5I), Blowing Dust (510.5I), Loose Cargo Vibration (514.6II), Wind
Analysis
•IP67
PHYSICAL:
•Dimensions: 82.2mm (L) x64.1(W) x 26.0(H), including connectors &
hardware (Not Including Caps)
•Weight: 140g including dust caps
INSTALLATION:
•Set of Four mounting screws on bottom for mounting to any flat surface.
COOLING:
•No Moving Parts. Passive Cooling
OPERATING TEMP:
•-35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up
STORAGE TEMP:
•-45ºC to +85ºC (-49ºF to +185ºF)

RES SCE AC 8US - UM rev. 1.2 Page 12 of 12 Last Rev: 6-Jan-15
Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
Section 6 Service Information
Service
Information
We sincerely hope that you never experience a problem with any Amphenol product. If
you do need service, call Amphenol at [phone] and ask for Applications
Engineering. A trained specialist will help you to quickly determine the source of the
problem. Many problems are easily resolved with a single phone call. If it is necessary to
return a unit to us, an RMA (Return Material Authorization) number will be given to you.
Amphenol tracks the flow of returned material with our RMA system to ensure speedy
service. You must include this RMA number on the outside of the box so that your return
can be processed immediately.
The applications engineer you are speaking with will fill out an RMA request for you. If
the unit has a serial number, we will not need detailed financial information. Otherwise, be
sure to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not
covered under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RMA form and supplied to the repair department before your
unit arrives. This helps us to provide you with the best service, in the fastest manner.
Normally, repairs are completed in two days. Sometimes difficult problems take a little
longer to solve.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Amphenol system for future
reference:
P.O. #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
Product
Support
To obtain support for Amphenol products:
Visit our website. http.//www.rjswitch.com
Phone: [phone]
Fax: [phone]
E-mail: mailto:[e-mail]
Mailing Address: Amphenol, Promenade de l’Arve, B.P.29, 74311 Thyez Cedex, France
For more
information
You will find all useful information on the RJ-Switch series on the dedicated website:
http://www.rjswitch.com
