Please open this page for an ‘At a glance’ guide to your PowerTel 501
At a glance
Helpline 0844 800 6503 (See page 20 for costs and hours of operation)
AtAglAnce

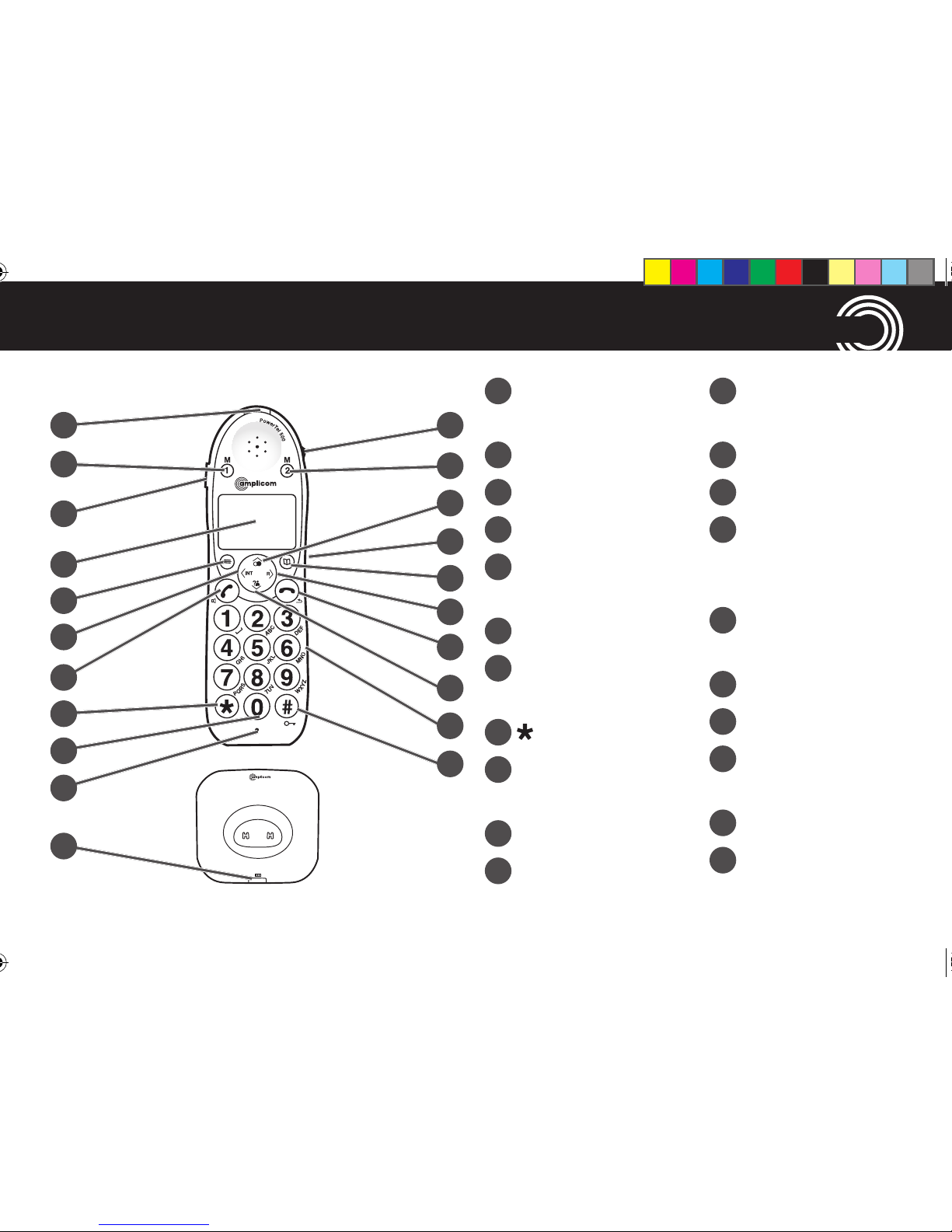

Handset and charger base 1Incoming
call light
2Memory 1
335dB Boost
4Display
5Enter Menu/
Mute/Delete
6Internal call
7External call/
Handsfree
8/Ringer on/off
9Pause
(long press 0)
10 Microphone
11 Charging
12 Volume
up/down
13 Memory 2
14 Up/Redial
15 Headset socket
(Headset not
included)
16 Phonebook/
Save/OK
17 Recall
18 End call
19 Down/Calls list/
Equaliser
20 Keypad
21 #/Keylock
11
1
2
3
4
5
7
8
10
6
9
12
13
14
16
15
17
18
19
20
21
9483 PowerTel 501 fold-out.indd 1-2 12.05.10 11:49

Please open this page for an ‘At a glance’ guide to your PowerTel 501
At a glance
Helpline 0844 800 6503 (See page 20 for costs and hours of operation)
AtAglAnce
Handset and charger base 1Incoming
call light
2Memory 1
335dB Boost
4Display
5Enter Menu/
Mute/Delete
6Internal call
7External call/
Handsfree
8/Ringer on/off
9Pause
(long press 0)
10 Microphone
11 Charging
12 Volume
up/down
13 Memory 2
14 Up/Redial
15 Headset socket
(Headset not
included)
16 Phonebook/
Save/OK
17 Recall
18 End call
19 Down/Calls list/
Equaliser
20 Keypad
21 #/Keylock
11
1
2
3
4
5
7
8
10
6
9
12
13
14
16
15
17
18
19
20
21
9483 PowerTel 501 fold-out.indd 1-2 12.05.10 11:49

9483 PowerTel 501 UG [2].indd 2 12.05.10 11:46

3
Helpline 0844 800 6503 (See page 20 for costs and hours of operation) 3
CONTENTS
Getting started....................................5
Check box contents .............................6
Set up your handset and charger
base in four simple steps ...................7
Handset display icons explained ...... 14
Handset menu guide ......................... 17
General information.......................... 19
Help and support ............................... 20
Safety information............................. 20
Disposal.............................................. 23
Technical details ................................ 24
Maintenance and guarantee ............. 25
Declaration of Conformity................. 27
9483 PowerTel 501 UG [2].indd 3 12.05.10 11:46

Helpline 0844 800 6503 (See page 20 for costs and hours of operation)
4
9483 PowerTel 501 UG [2].indd 4 12.05.10 11:46

5
Helpline 0844 800 6503 (See page 20 for costs and hours of operation)
Getting started
9483 PowerTel 501 UG [2].indd 5 12.05.10 11:46

Helpline 0844 800 6503 (See page 20 for costs and hours of operation)
6
GETTING STARTED
Getting started
Important: please make sure you’ve read the safety information on page 20
before you set up your handset and charger base.
Check box contents
You should have:
t DPSEMFTTIBOETFU
t CBUUFSZDPWFS
t CFMUDMJQ
t DIBSHFSCBTF
t QPXFSBEBQUFSBMSFBEZBUUBDIFEUPZPVSDIBSHFSCBTF
t SFDIBSHFBCMF"""7N"I/J.)CBUUFSJFT
Important: use only the power adapter and batteries supplied with your
PowerTel 501 otherwise your handset may not work.
9483 PowerTel 501 UG [2].indd 6 12.05.10 11:46

Helpline 0844 800 6503 (See page 20 for costs and hours of operation) 7
GETTING STARTED
Set up your handset and charger base in four
simple steps

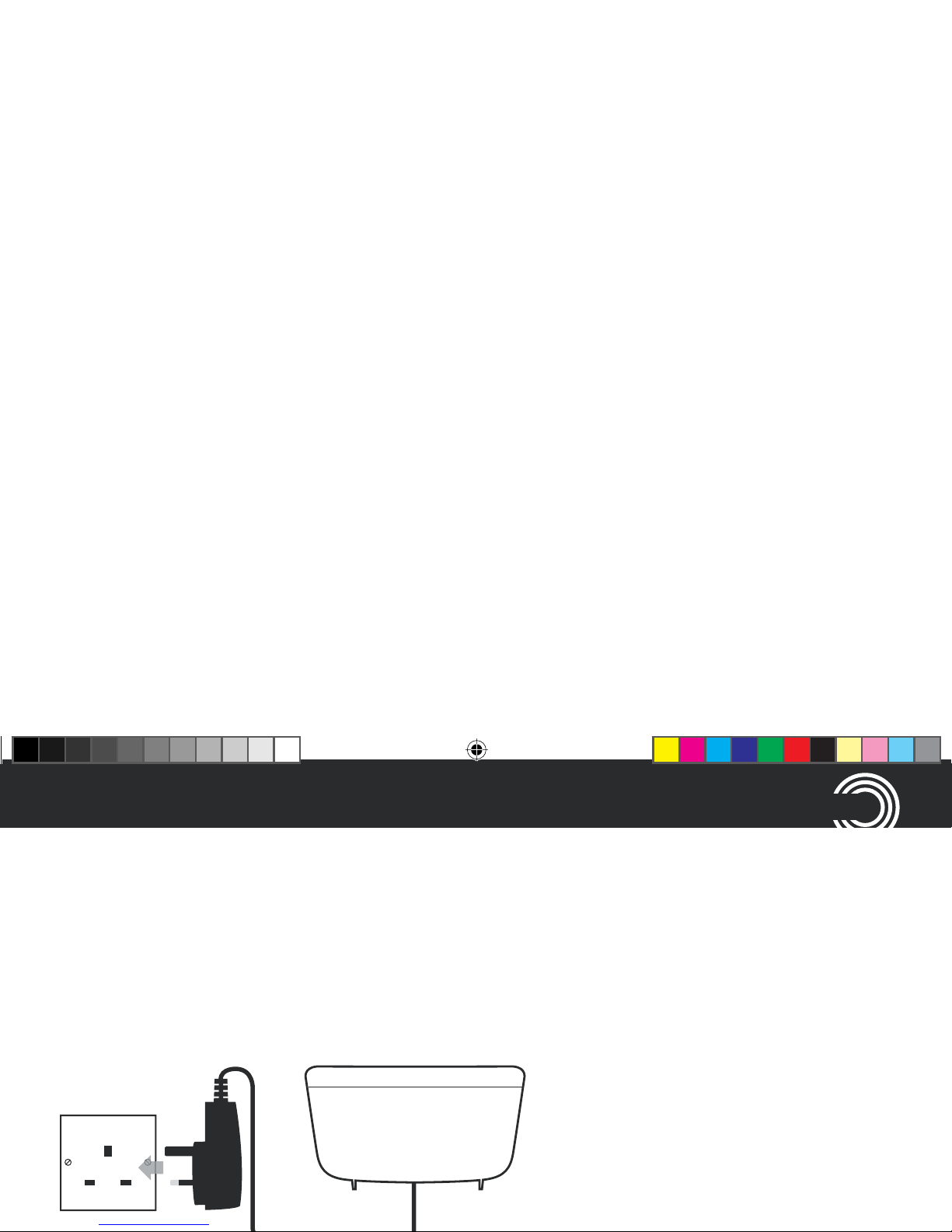

1 Connect your charger base
