Amplicom PowerTel 501 User manual

User Guide
PowerTel
501

2
CONTENTS
Important Safety Instructions........................ 4
Getting Started — Included Equipment ....... 6
Set up ................................................................ 6
Registration key guide .................................. 10
Handset Display Icons................................... 11
Help and Support........................................... 13
Troubleshooting Guide ................................. 13
Technical D etails ............................................ 15
Default Settings ............................................ 16
Maintenance and Warranty .......................... 17
Instructions available in other languages at www.amplicomusa.com.
The FCC requires that you will be advised of certain requirements involving the use of this telephone.
1. This equipment complies with Part 68 of the FCC rules. A label on the base unit of this equipment contains, among other information, the ACTA Registration Number
(US:AAAEQ##TXXXX) and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.
2. An applicable certication jacks Universal Service Order Codes (USOC) for the equipment is provided (i.e., RJ11C) in the packaging with each piece of approved terminal equipment.
3. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the
ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation
instructions for details.
4. The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your number is called. In most, but not
all areas, the sum of the REN of all devices should not exceed ve (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should call
your local telephone company to determine the maximum REN for your calling area.
NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone company or a qualied installer.
5. If your telephone causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance
notice is not practical, you will be notied as soon as possible. You will be advised of your right to le a complaint with the FCC.
6. Your telephone company may make changes to its facilities, equipment, operations or procedures that could affect the proper operation of your equipment. If they do, you will be
given advance notice so as to give you an opportunity to maintain uninterrupted service.
7. If you experience trouble with the telephone, please contact the Amplicom Service Center at 1-866-AMPLICOM (267-5426) for repair/warranty information. The telephone company
may ask you to disconnect this equipment from the network until the problem have been corrected or you are sure that the equipment is not malfunctioning.
8. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. (Contact your state public utility
commission or corporation commission for information.)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Changes or
modications not expressly approved in writing by Amplicom may void the user’s authority to operate this equipment.
Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs; to minimize or prevent such interference, the base of the cordless phone should
not be placed near or on top of a TV or VCR; and, if interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect
the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.
For body-worn operation, this handset has been tested and meets the FCC RF exposure guidelines when used with the Amplicom accessories supplied or designated for this product.
Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
FCC Compliance

33
PHONE GUIDE
PowerTel 501 Cordless handset and charger base
Warning: This Handset has been specially designed for individuals who are hard
of hearing and has a normal volume which is louder than a standard phone.
Use of the Boost feature can cause hearing damage to individuals who are not
experiencing hearing loss.
1Incoming
call light/
Boost mode
indication
2Memory 1
3Boost
4Display
5Enter Menu/
Mute/Delete
6Internal call
7External call/
Handsfree
8/Ringer on/off
9Pause
(long press 0)
10 Microphone
11 Charging
12 Volume
up/down
13 Memory 2
14 Up/Redial
15 Headset socket
(Headset not
included)
16 Phonebook/
Save/OK
17 Recall
18 End call
19 Down/Calls
list/Equalizer
20 Keypad
21 #/Keylock
11
1
2
3
4
5
7
8
10
6
9
12
13
14
16
15
17
18
19
20
21

Service Center
4
Important Safety Instructions
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of re, electric shock and injury to persons,
including the following:
1. Do not use this product near water, for example, near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not
dispose of batteries in a re. They may explode. Check with local codes for
possible special disposal instructions. Save these instructions for future use.
SAVE THESE INSTRUCTIONS
Intended use
This phone is suitable for use on a public telephone network. Any other use is
considered unintended use. Unauthorized modication or reconstruction is not
permitted. Do not open the device and attempt any repair work yourself.
Phone location
Locate the base:
• On a dry, at and stable surface
• Where the power cable will not be a trip hazard
• Where it is not obstructed by furniture
SAFETY

1-866-AMPLICOM (267-5426) 5
SAFETY
• At least three feet from other electrical appliances
• Away from smoke, dust, vibration, chemicals, moisture, heat or direct
sunlight.
Power failure – What to do
Power failure can affect your phone and equipment. Only the corded phone will
work if there is a power failure.
Medical equipment
Do not use the phone near emergency or intensive care medical equipment, or
during an electrical storm. If you have a pacemaker check with a medical expert
before using this product.
Hearing aid compatibility
This phone works with most popular hearing aids. However, given the wide
range of hearing aids available, the phone may not function fully with every
hearing aid.
Telephones identied with this logo have reduced noise and
interference when used with most T-coil equipped hearing aids
and cochlear implants. The TIA-1083 Compliant Logo is a
trademark of the Telecommunications Industry Association.
Used under license.
Caution: The phone will produce high volume when Boost is switched on.

Service Center
6
Getting Started — Included Equipment
• 1 Cordless Handset
• 1 Battery Cover
• 1 Charger Base
• 1 Power Adapter (attached to charger base)
• 1 Rechargeable AAA 2.4V 750mAh NiMH Battery Pack
Set up

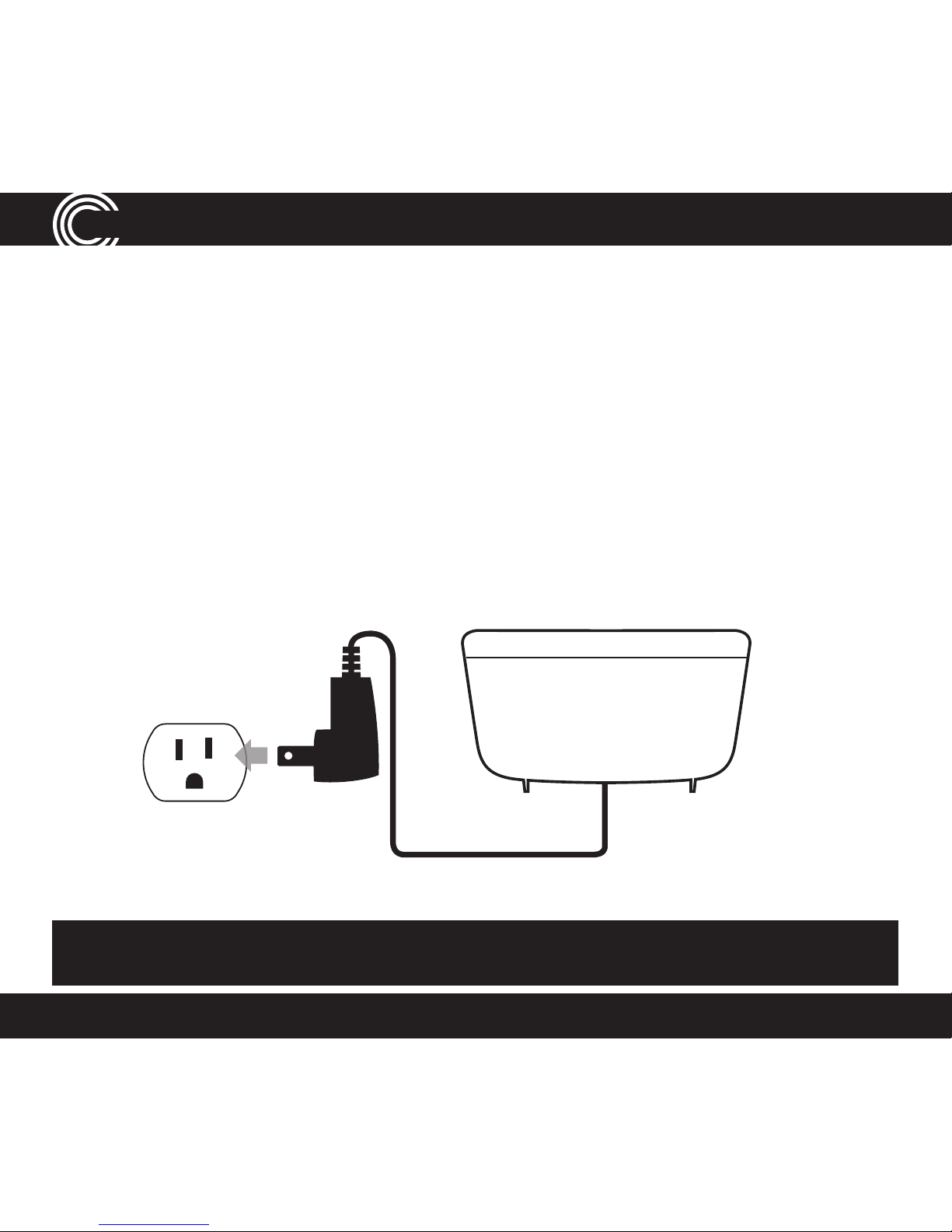

1. Connect cordless phone charger base
Plug the power adapter from the charger base into a wall socket.
2. Install battery pack
GETTING STARTED
Important: Use only Power supply model S008CU1200067 supplied by Ten
Pao Industrial Co., Ltd. for Base unit.

1-866-AMPLICOM (267-5426) 7
GETTING STARTED
Insert the rechargeable battery pack into the handset and plug it in as shown.
Dispose of battery pack properly. Do not allow battery pack to come into
contact with re or water.
3. Charge handset
Place the handset on its base to charge for a minimum of 15 hours before use.
Important: Only use the rechargeable battery pack model GPHCH73N07, 750mAh
NiMH supplied by GPI INTERNATIONAL LIMITED.
4. Register the handset
Prior to use, the new handset must be registered to a PowerTel base.
For PowerTel 500, 580 or 580 Combo registeration, use the instructions below. For
older PowerTel models, follow the instructions on page 8.
Important: Make sure the handset is fully charged before registering it.
Caution: Risk of explosion
if battery is replaced by an
incorrect type. Dispose of
used batteries according
to the instructions.

Service Center
8
Register the handset to a PowerTel 500, 580, 580 Combo
or 680
At the new PowerTel 501 additional handset:
Press and hold for 10 seconds until the display shows Press and hold Page
key, which activates the registration mode.
For a PowerTel 500 or 580, at the base:
Press and hold (500) or (580) for 10 seconds until the charging light on
the base ashes.
Or:
For PowerTel 580 Combo or 680, at the base:
Press and hold for 10 seconds until the display shows Register.
Register the handset to an older PowerTel model base
1. Open the menu by pressing , then scroll using to highlight
Handset. Press .
2. Scroll until Registration is highlighted and press .
3. Base 1 will be displayed. Press . PIN is displayed.
GETTING STARTED

1-866-AMPLICOM (267-5426) 9
4. Use the keypad to enter the PIN code: 0000 (each ‘0’ it will be displayed
as a *) Press . The display will show Press & hold base Page key.
5. Press and continue to hold down the Page key on the PowerTel base until
the handset beeps. This can take between 10–15 seconds.
Note: The Page key is used for registration and is located on the PowerTel
base that the handset will be registered to. The key will have an icon like
this on it. See page 10 for an example of where it may be located.
6. The new additional handset is now successfully registered to the base.
POWERTEL and the number of the handset registered to the base is
displayed, e.g. POWERTEL 2.
Attach the belt clip (optional)
Slide the belt clip into the two holes located on either side of the handset.
Your PowerTel 501 handset is now ready for use!
GETTING STARTED

Service Center
10
GETTING STARTED

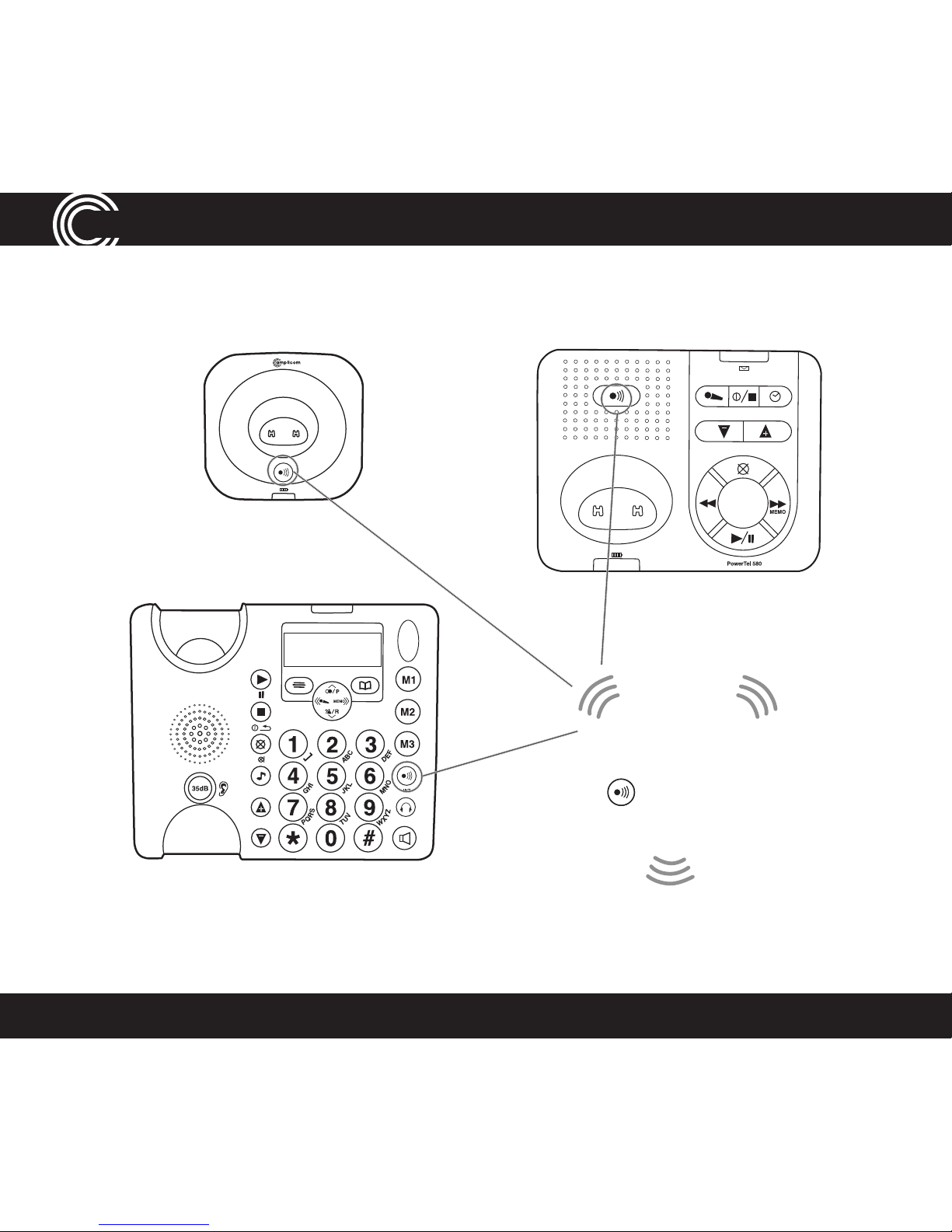

Registration key guide
PowerTel 580
Press and hold
registration key
for at least
10 seconds
PowerTel
500
PowerTel 580 Combo/680

1-866-AMPLICOM (267-5426) 11
Menu
Previous menu
Conrm / OK
Phone book mode
More information to view left
More information to view right
Battery status
Ringer off
Keylock is on
Handsfree mode
Call in progress
Boost receiver volume is on
(Icon will ash)
Mute handset microphone
New calls
Answering machine is on (if applicable)
Answering machine is off (if applicable)
When steady— handset is in
range
When ashing — handset
is out of range
Internal call in progress (if
additional handsets are installed)

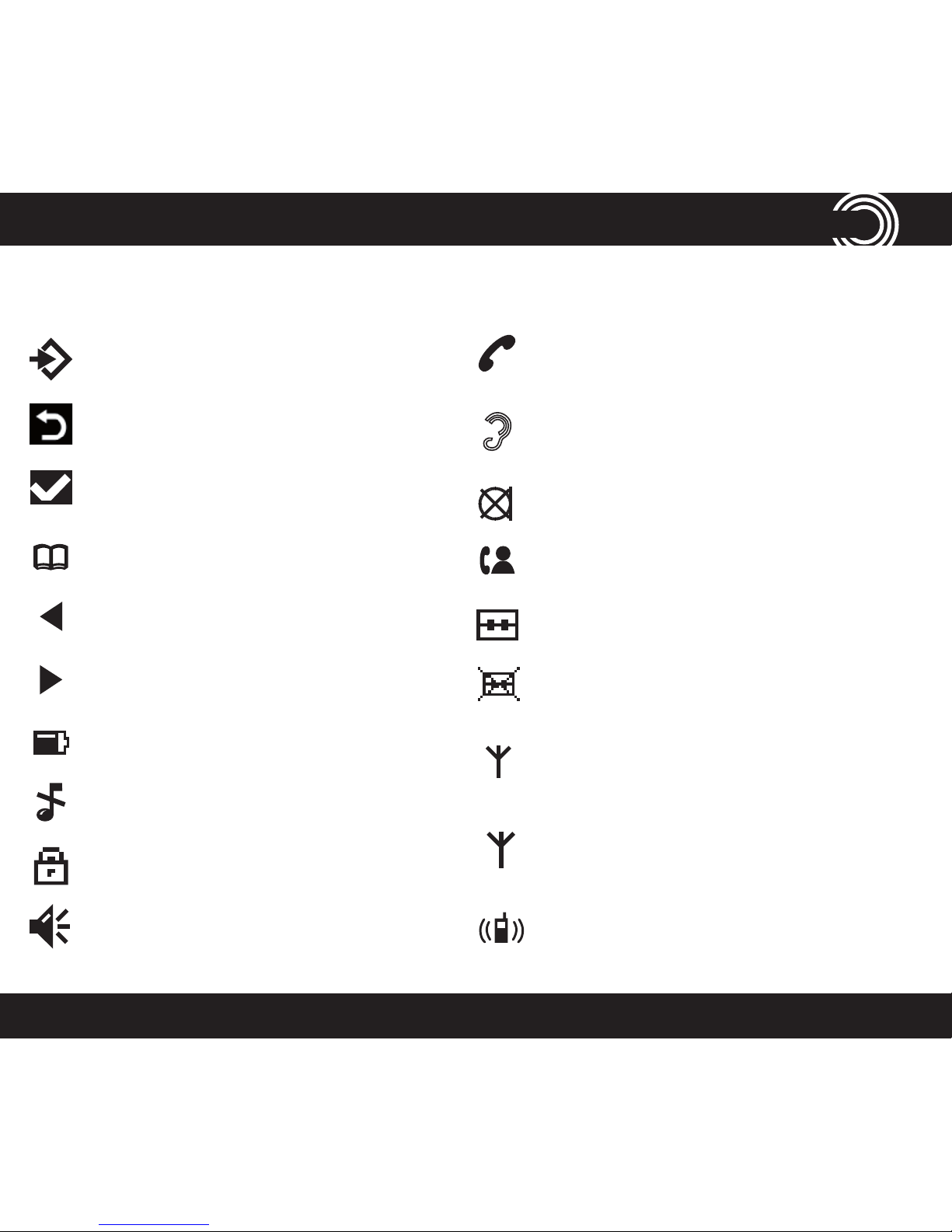

Handset Display Icons
The following icons can appear in the handset display:
GETTING STARTEDGETTING STARTED

Service Center
12
Phone Menu and Display Guide
The phone menu display allows access to each phone’s functionality.
Open main menu: Press .
Browse sub menu: Open the main menu and then press or .
Select sub menu item: Scroll using or until the menu item desired
is highlighted and press .
Browse a function: Open the sub menu and press or .
Select a function: Scroll using or until the required function is
highlighted and press .
Enter digits or letters: Use the keypad.
Conrm or save an entry or action: Press .
Cancel and return to standby: Press .
Note: After 20 seconds, the phone will go into standby mode unless a
button is pressed.
GETTING STARTED
GETTING STARTED

1-866-AMPLICOM (267-5426) 13
Help and support
For additional cordless phone features, please see your PowerTel 500, 580,
580 Combo or 680 User Guide.
Some issues may simply be resolved by disconnecting the power to the unit.
In such instances the power to the main base station should be switched off
and battery pack in the handset should also be removed for about 20 min-
utes. After 20 minutes, replace the battery pack and reconnect everything to
determine if this has resolved the issue.
Troubleshooting guide
I can’t make phone calls
1. Make sure the phone cable is connected properly. Make sure you are using
the phone cable that came with your phone.
2. Make sure the base is plugged in, switched on and working.
3. Make sure you are not located too far from the base (the phone should work
up to 325 yards outdoors and up to 53 yards indoors).
4. Test the phone line and socket by using another phone.
5. Make sure the handset is correctly registered to a currently installed
PowerTel phone (500, 580, 580 Combo or 680).
I keep losing my connection on the cordless handset
1. Make sure you aren’t too far from the base (in ideal conditions, it should
work up to 325 yards outdoors and up to 53 yards indoors).
2. The base may not be in an ideal location – see Safety Information.
HELP AND SUPPORT

Service Center
14
My handset keeps switching off
1. It may need recharging. So it can charge fully, place your handset on its charger
base for at least 15 hours with the charger base plugged in and working.
2. Replace the rechargeable battery pack. Any replacement battery packs
should be the same type as those provided.
The phone system isn’t responding
You may need to reset to default settings. Please see page 54.
My handset or base doesn’t ring
Check that the ringer is on.
I’ve got a buzzing noise on my radio, TV, or computer
We suggest you use your cordless handset at least 3 feet away from electrical
equipment and mobile phones.
There is interference in the earpiece and/or internet
connection is very slow when using the phone
You must plug the phone into the wall socket via an ADSL lter if you have
broadband internet on your phone line.
HELP AND SUPPORT

1-866-AMPLICOM (267-5426) 15
GENERAL INFORMATION
Disposal
The symbol on this product indicates that electrical and electronic apparatus
and battery pack must be disposed of separately from domestic waste at
suitable collection points provided by the public waste authorities.
Technical details
Standard DECT¹ GAP²
Power supply (charger station) Input: 120V~60Hz 150mA
Output: 7.5VDC 300mA
Range Outdoors Approx 325 yards/300m
Indoors Approx 53 yards/50m
Standby Up to 100hrs
Maximum Talk Time Up to 10hrs
Rechargeable battery pack AAA 2.4V 750mAh NiMH
Dialling mode Tone (DTMF)
Pulse
Optimum ambient temperature 32˚F to 113˚F (0˚C to 45˚C)
Optimum relative humidity 20% to 80%
Recall 100, 300 ms
¹ DECT: Digital Enhanced Cordless Telecommunication
² GAP: Generic Access Prole = standard for the operation of handsets and base stations
from different manufacturers.

Service Center
16
GENERAL INFORMATION
Maintenance and Warranty
Maintenance
• Please clean your equipment’s surfaces with a soft, lint-free cloth.
• Never use cleaning agents or solvents.
Warranty
AMPLICOM equipment is produced and tested according to the latest
production methods. The implementation of carefully chosen materials and
highly developed technologies ensure trouble free functioning and a long
service life. The terms of the warranty do not apply where the cause of the
equipment malfunction is the fault of the telephone network operator or any
interposed private branch extension system. The terms of the warranty do not
apply to the rechargeable battery pack or power packs used in the products.
The period of warranty is 24 months from the date of purchase.
All deciencies resulting from material of production faults which occur during
the period of warranty will be eliminated free of charge. Rights to claims under
the terms of warranty are annulled following intervention by the purchaser or
third parties. Damage caused as a result of improper handling or operation,
incorrect positioning or storing, improper connection or installation, Acts of
God or other external inuence are not covered by the terms of warranty.
In the case of complaints, we reserve the right to repair or replace defect
parts or provide a replacement device. Replacement parts or devices become

1-866-AMPLICOM (267-5426) 17
GENERAL INFORMATION
our property.
Rights to compensation in the case of damage are excluded where there is no
evidence of intent or gross negligence by the manufacturer.
If your equipment shows signs of defect during the period of warranty, please
return to the sales outlet in which you purchased the AMPLICOM equipment
together with the purchase receipt. All rights to claims under the terms of
warranty in accordance with this agreement must be asserted exclusively with
regard to your sales outlet.
Two years after the purchase of our products, claims under the terms of
warranty can no longer be asserted.
Declaration of conformity
The ETL Listed Mark is an alternative to the CSA and UL marks. ETL
Testing Laboratories owned by Intertek Testing Services (ITS) is
recognized by OSHA as a Nationally Recognized Testing Laboratory
(NRTL). ITS tests products according to nearly 200 safety and
performance standards. The ETL Listed Mark is accepted throughout the United
States when denoting compliance with nationally recognized standards such as
ANSI, IEC, UL, and CSA.
This certication mark indicates that the product has been tested to and has
met the minimum requirements of a widely recognized (consensus) U.S.
product safety standard, that the manufacturing site has been audited, and that
the applicant has agreed to a program of periodic factory follow-up inspections
to verify continued conformance.

Service Center
18
INDEX
C
Charging the battery pack 7
Check the contents of the box 6
Connecting the base and charger 6-7
D
Default settings 15
Display icons 11
R
Register a handset 8-9

THIS PAGE LEFT INTENTIONALLY BLANK

Guía del
usuario
PowerTel
501
