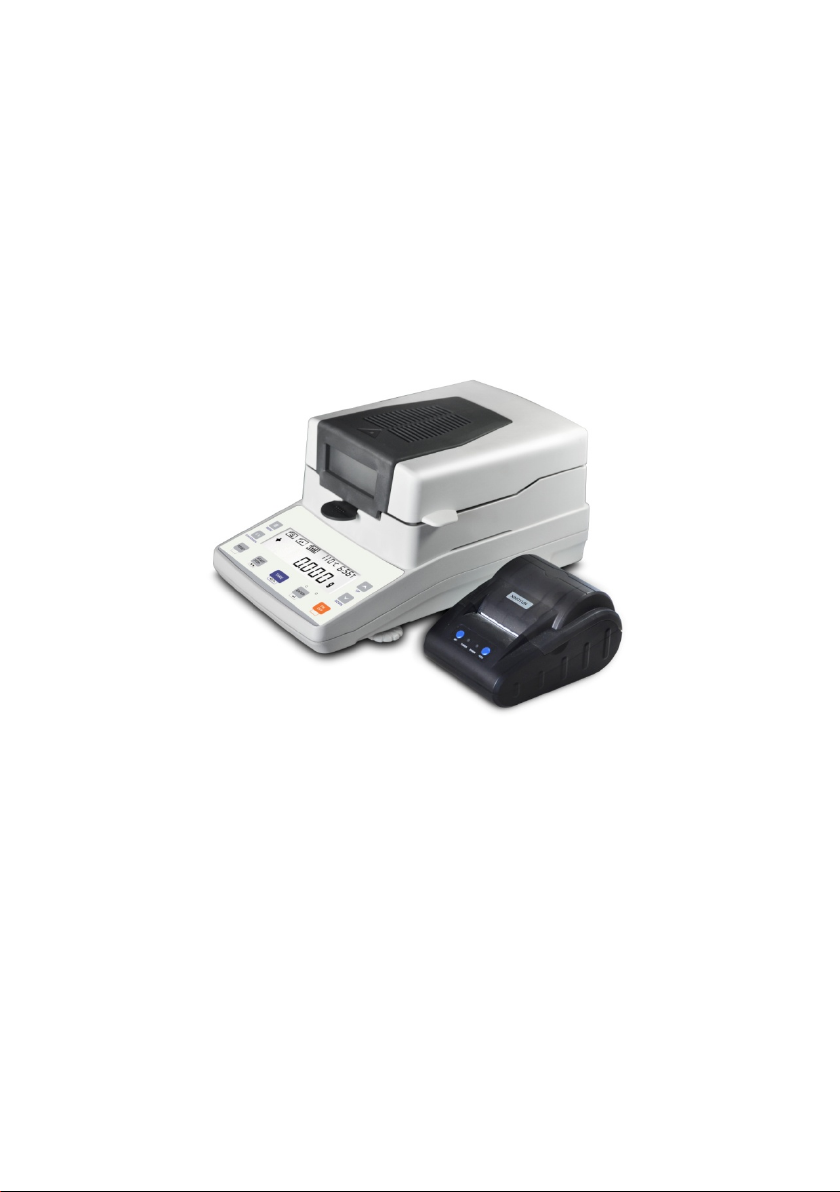

AMTAST MB65 User manual

Moisture Analyzer
MB65 MB66 MB67
User Manual
(Printer is optional)
AMTAST USA INC

I Instruction
1. Security
Please reading the following before you use the Moisture analyzer
a. The instrument can use for test the moisture of the sample, each
improper operation may result in personal injury and equipment
damage
b. Please access the AC power accordance with the manual;
c. Please make sure the power cord does not interfere with people
action;
d. Do not use the instrument under the hazardous, wet or unstable
environment;
e. Unplug the power before you clean the analyzer;
f. Please keep enough space around the instrument, and keep the top of the
space at least 1m;
g. During a special experiment, please wear protective equipment by youself;
h. Please do not change the instrument's components and any other aspects.
Maintenance of this equipment by the factory authorized professionals。
Moisture analyzer use Halogen lamp.
i. Do not put the flammable materials around the instrument;
j. Do touch the halogen lamp when it on working.
Special attention to the dangers of some sample;
k. Before you test the moisture of dangerous good, please take Full
investigation
Inflammable and explosive materials: Heating the inflammable and
explosive materials will produce flammable gases or vapors, so need to
lower the temperature in a dry environment. In case of fire or explosion.
Toxic and corrosive substance: Keep the samples of toxic or corrosive
ingredients in well-ventilated environment.
Above the sample test will be particularly careful, for any damage caused
by your own risk
1

II. Installation
2.1 Standard Packing List Please check the packaging and accessories.
Standard Quantity Note
Moisture Analyzer Mainframe 1 set
Wind Cover 1 piece
The sample pan holder 1 piece
Tray handle
1 piece
Power cord
1 piece
Aluminum sample tray
1 set
50 pcs of aluminum pan
100g standard weight
1 piece
Product Manual
1 piece
Product certification
1 piece
Warranty card 1 piece
2.2 Moisture meter placement requirements.
Operating table, Temperature stable, good ventilation should be stable dry, without
strong vibration, of the environment without strong magnetic field.
2.3 Installation of accessories
Place the wind cover,
aligned holes.
Place the sample tray
holder, rotate until
positioning.
Put the aluminum sample
tray on the bracket.
2

2.4 Adjust the level and connect the power
There are two feet in front of the instrument, adjust it and keep the
instrument level.
Connect the instrument with power, put one side of power cord
Please warm up more than 30minutes for keep it stable and accurate.
III Operation
3.1. Display
3.2. Icon Introduction
----The percentage of dry weight ----The percentage of moisture
----Gram ----Temperature
---- Time set and heat time
----Heated mode
----Standard mode ----Rapid heating mode
---- Gentle heating mode ---- Stop heated mode
---- Automatic -----Manual stop mode
----Timing stop mode
---- Heated state
3

3.3. Keypad
NAME Key Features
ON/OFF Power on / off, Just off the internal DC power supply
START / STOP Start heated/ stop heated
TARE Weighing peeled, Settings exit
MENU Enter the setting menu
CONVERSION Switching measurement results
ENTER Confirm the current setting, go to next
RESET Return to the weighing mode (short press), calibration
balance (long press)
DOWN
Reduce
UP Add
3.4 First testing
1. First test, if not change the temperature and time settings, the moisture meter
defaults to factory defaults.
2. Put empty sample pan on the holder (see section 2.3).
3. Press the “TARE” to clean weight.
4.Put the sample on the pan (Sample weight should be heavy than 1g, the general 3-5g).
5. Close the heating cover, press the "Start / Stop" button to start the test. At this point,
4

heated tube lights, fans turn on, heated symbol in the upper left flashing. While rolling
on the screen displays the current temperature, has been heating time, moisture
content of the current sample.
6. End of the test, heated lamp automatic shut off, the buzzer alarm. Then the sample
is displayed on the moisture content, heating time, current temperature and the
parameter setting mode.
Note: Don't touch the sample plate, the temperature is too high now.
7 Press the "Reset" button, the instrument returns to weighing mode.
3.5 Parameters Setting
3.5.1 Heated parameter storage and recall
a. The instrument can store a total of 16 0-F group of heated parameters. Each group
can set the heating method, stop mode, time and time test parameters.
b. In weighing mode, press the "Settings" button to enter the parameter setting mode,
then store the address number (the number show the highest bit) is flashing. Press
"down" or "up" key to select the desired address number, the 0 is the factory
setting,1-F for the user store.
c. The memory address number 0 means factory settings, then click "ENTER" button
to exit the settings back to weighing mode. At this point heated mode is the
factory defaults.
d. When the memory address range for the 1-F any one number, press "ENTER" key,
and enter the parameter setting after the completion of a parameter (heated
mode, stop mode, time mode) setting. Press the "TARE" key, the address
number of the test parameters have been stored.
3.5.2 Heated mode and setting（）
a. Standard heated mode：（ ）
This mode is the factory setting, suitable for most samples. Heating
temperature can be set, the sample is heated to a temperature, and keep to
the test ends automatically.
b. Rapid heating mode: ( ）
This mode is suitable for samples with higher moisture content. You can set
the heating temperature, heating the temperature will exceeds the set value,
the future will be reduced to the set temperature and hold until the test ends
automatically.
5

c. Gentle heating mode: ( ）
This mode is suitable for low moisture content, surface casing is easy to form,
easy to burn the sample. From the heat began to rise to the long time
required to set temperature, heating up even slowly. Heating time user
selectable.
d. Press the "MENU" to enter the parameter setting mode, press the "ENTER"
until the heating mode, the icon flashes. Press "UP" or" Down"
choose the mode you need. and press "ENTER" confirm.
3.5.3 Stop mode setting：（ ）
a. Automatic stop mode：（ ）
Heating the sample within the specified time during the weight loss of less
than 2mg will automatically stop when the test. This mode after 15 seconds in
the heating effect.
b. Manual stop mode：（ ）
Sample heating process is the continuing until the press the "start/stop"
button to end testing.
c. Timing Stop Mode：（ ）
Stop time set by the user, the sample heating process is continued until the
end of the heating time to set the value of the test.
Press the "MENU" button to enter the parameter setting mode, press the
"ENTER" key until the shutdown mode when flashing. Press "UP" or" Down"
to choose the stop mode. and press "ENTER" confirm，Parameters are defined,
and go to the next parameter (temperature) setting.
3.5.4 Heating Temperature Setting
The instrument temperature setting range is from 0-199 degrees. Press the
"MENU" to enter the parameter setting mode, press the "ENTER" key until
the flashing，Press "UP" or" Down" to choose the temperature. and
press "ENTER" to go to next setting (time setting)
Icon will transform other temperature when its heating.
3.5.5 Heating time setting
1.Just choose timing stop mode need set the stop time.
Press the "MENU" to enter the parameter setting mode, press the "ENTER"
key until the flashing，Press "UP" or "Down" to choose the
6

temperature. and press "ENTER"
2, Heating cycle: Just gentle heating mode need choose heating cycle
3.6 For example：
a. sample：water
b. Press the "MENU" to enter the parameter setting mode, choose the （
）,temperature:120℃，Press "ENTER" go to weighing state
c. Put a dry paper on the pan, and press "Tare" clean the weight.
Put on the 3g water on the paper, until the readability stable.
Press"START / STOP " begin test.
Waiting for it stop. look the result. The m% will be 100%.
Weighing error or sample weight deficiency can lead to the result of the test
a deviation
3.7 Calibration
When the instrument error or improper operate. Calibration weights can be adjusted
with accuracy.
Press "Reset" key and does not release until it display“-cal-”,
Then flashing “100.000”, put on the calibration weight, then it will display "= = = = = =",
until it display “100.000” remove the weight, it will display "= = = = = = "again, Waiting
it show" 0.000 ", the calibration is completed.
IV Technical Parameters
Model MB65 MB66 MB67
Specification 110g/5mg 110g/2mg 110g/1mg
Readability 5mg 2mg 1mg
Tray size
Φ90
Heating Mode Halogen Lamp
Display LCD
Temp. Setting 40℃~199℃
Time Setting 1~99 minutes
ATRO 100%~999%
ATRO 0%~999%
Data Storage 15 groups
6

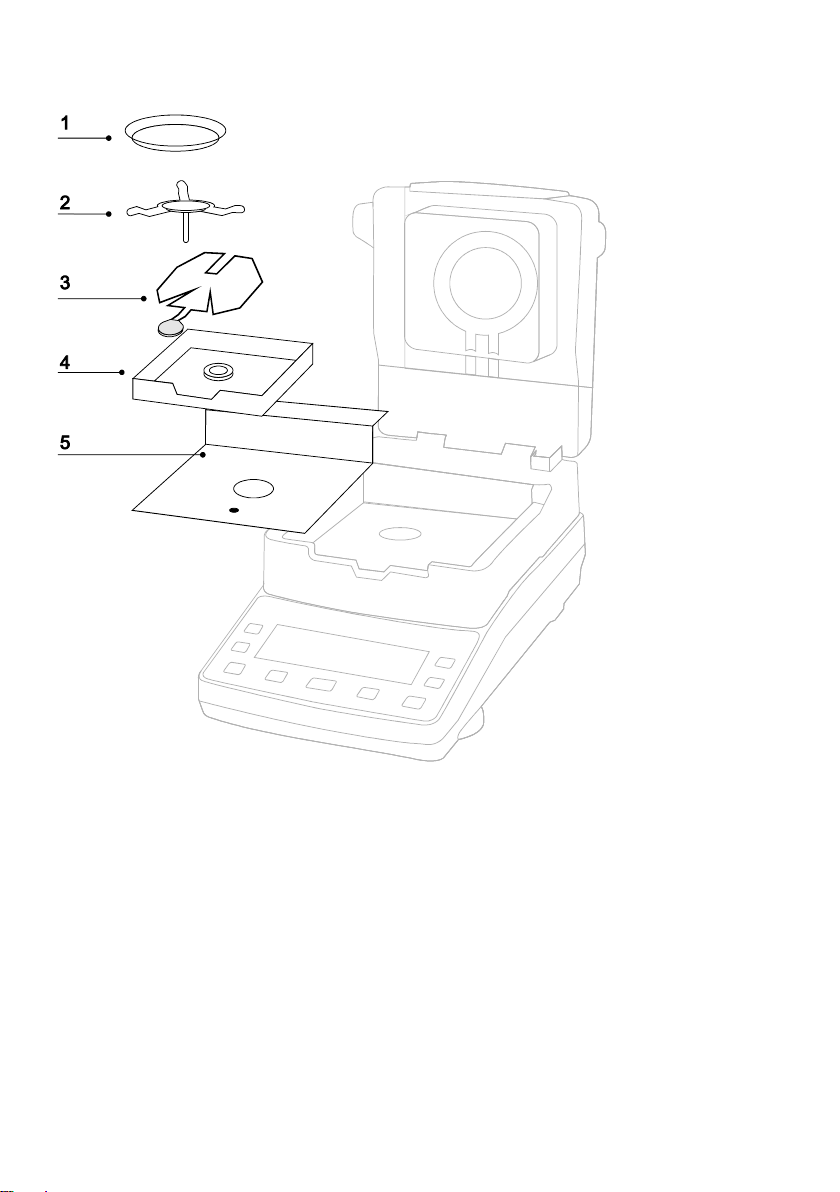

Schedule: Assembly drawing
Please installation the instrument according the picture
Installation order from top to bottom :1 --2--3--4--5
1. Aluminum scale weighing tray
2. The triangle scale frame
3. Scale tray brackets
4. Wind cover
5. Stainless steel plate
3.8 the use of the printer and Settings (Optional)
A. the realization of the function of moisture meter print must choose my company
special printer
7

B. moisture test over, if you want to print the test report according to the following:
1. Long press \"set\" button, when there is a \"print\" let go, to print function setting
state. When a T for the RS232 serial port output.
2. L - C (Chinese) or L - E (English) select print language, according to the \"on\" or
\"down\" button to print the language. Press the \"confirm\" to enter the next level
menu.
3. Showing 1-5 select print in the recent 5 times water test records at any time,
choose to end press \"confirm\" button to print the selected the water test report.
Continue to choose 1-5, then press \"confirm\" button to print the selected another
water test report.
4. Press the \"reset\" button to exit the Settings back to the state of weighing
Tips:
1. Warm-up the analyzer 30 minutes and take the first time calibration;
2. After the end of a water calibration experiments (see 3.6);
3.Each time the switch machine, please interval of 5 seconds;
4. Cover the heater, do not leave the weight on the pan, or halogen lamps will be
crushed.
