Table of Contents
i
DAS-SIRIUS Sirius Satellite Radio Tuner Module
Table of Contents
DAS-SIRIUS Tuner Module ..................................................................................1
Overview .................................................................................................................. 1
Installation ................................................................................................................ 2
Setting the Jumpers ................................................................................................. 2
Audio Controller Jumpers - Location .............................................................................. 3
Audio Controller Jumpers - ON/OFF Settings ................................................................ 3
Audio Controller Jumpers - Dual Tuner Setting .............................................................. 4
DAS-SIRIUS Tuner Module Jumper Settings (Standard Installation) ................................ 4
Tuner 1 Jumper Settings ................................................................................................. 5
Tuner 2 Jumper Settings ................................................................................................. 5
Changing the Jumper Settings on the DAS-AMFM Tuner Module.................................. 5
Installing the DAS-SIRIUS Tuner Module................................................................... 6
Removing Tuner Modules ......................................................................................... 7
Connecting and Positioning the SIRIUS Antenna ...................................................... 8
Activating Your SIRIUS Subscription ......................................................................... 8
Mi Series – SIRIUS Setup screen .........................................................................9
Accessing the SIRIUS Setup Screen .......................................................................... 9
SIRIUS Setup ............................................................................................................. 9
SIRIUS Setup - CAT........................................................................................................ 10
SIRIUS Setup - CH ......................................................................................................... 10
SIRIUS Setup - ID........................................................................................................... 10
SIRIUS Setup - Status .................................................................................................... 10
Controlling SIRIUS via the LCD Keypad ............................................................11
Overview ................................................................................................................ 11
Selecting SIRIUS as the Audio Source..................................................................... 12
SIRIUS SAT Main screen.......................................................................................... 12
Display Line #1 Channel # & Channel Name ................................................................. 12
Display Line #2 Artist Name, Song Title & Composer ................................................... 12
Channel - / Channel +.................................................................................................... 12
SIRIUS Preset screen............................................................................................... 13
SIRIUS NUMERIC screen ......................................................................................... 13
SIRIUS MORE>> screen .......................................................................................... 14
List - Channels ............................................................................................................... 14
List - Category............................................................................................................... 15
SIRIUS - Presets....................................................................................................... 15
SIRIUS - Favorites.................................................................................................... 16

ii DAS-SIRIUS Sirius Satellite Radio Tuner Module
Table of Contents
SIRIUS – Tactile Keypad ....................................................................................17
SIRIUS Source Control............................................................................................. 17
SIRIUS Messages ...............................................................................................19
Overview ................................................................................................................ 19
SIRIUS ID Display .................................................................................................... 19
Invalid Channels ...................................................................................................... 19

DAS-SIRIUS Tuner Module
1
DAS-SIRIUS Sirius Satellite Radio Tuner Module
DAS-SIRIUS Tuner Module
Overview
Add Sirius satellite radio functionality to your AMX Distributed Audio system with the DAS-SIRIUS Satellite
Radio Tuner Module (FG1110-02).
 The DAS-SIRIUS Tuner Module can be used with both Mi-Series and Tango Audio Controllers.
 All Mi-Series and Tango Audio Controllers come equipped with a DAS-AMFM AM/FM Tuner
Module. Since Mi-Series and Tango Audio Controllers support 2 Tuner Modules in any
combination, the DAS-SIRIUS Module can either be installed in addition to the DAS-AMFM
Module, or the DAS-AMFM Module can be removed to allow 2 DAS-SIRIUS Modules.
 Each Tuner Module uses 1 source input on the Audio Controller.
FIG. 1 DAS-SIRIUS Satellite Radio Tuner Module
SIRIUS Antenna
connector
20-pin Tuner
Ribbon Cable
connector
Tuner Jumpers
Tuner
Mounting
Plate
“SIRIUS”, the SIRIUS dog logo, and channel names and logos are trademarks of
SIRIUS Satellite Radio Inc. All rights reserved.

DAS-SIRIUS Tuner Module
2DAS-SIRIUS Sirius Satellite Radio Tuner Module
Installation

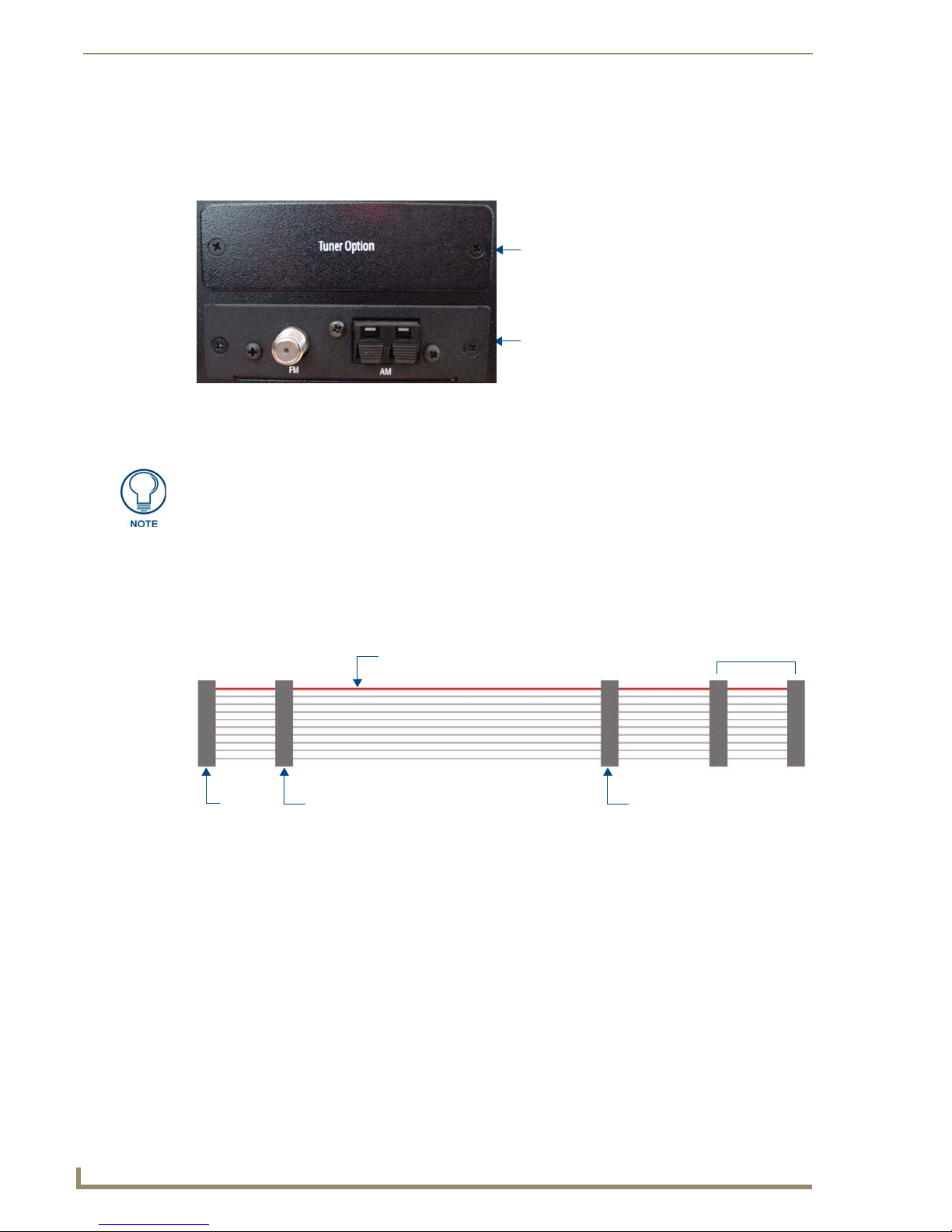

Installing/removing Tuner Modules requires removing the cover from the Audio Controller, removing the
Tuner Option cover plate from the rear panel of the Controller, installing the Tuner Module, and setting
Jumpers on both the Tuner Module to specify each Tuner as either TUNER 1 or TUNER 2, and on the rear
board pin-bus of the Audio Controller to enable/disable Tuner 1 and 2.
FIG. 2 provides orientation for the various internal components that must be accessed to install the Tuner and
set the Jumpers.
Setting the Jumpers
While Mi-Series and Tango Audio Controllers support 2 Tuner Modules in any combination, this document
describes installing the DAS-SIRIUS Tuner Module into Slot 1 (as TUNER 2), leaving the DAS-AMFM Tuner
Module in Slot 2 (as TUNER 1).
Disconnect all power sources before opening the chassis. Failure to disconnect
power before performing this installation may cause injury or death.
FIG. 2 Audio Controller - Internal view
front
Rear-Board Pin Bus
(Controller Jumpers) rear
AMFM Tuner
Module
Tuner
Ribbon
Cable
(20-pin)
Slot 1
(with faceplate)
installed in
Slot 2 Tuner slots:
Top = Slot 1
Bottom = Slot 2
Discharge all static electricity from your body before touching any components of the
Tuner Modules or the Audio Controller. Failure to do so may lead to permanent
damage to the Tuner or Controller.
Because of the location of the Jumpers in the Controller and on the Tuner Module, it
may be easier to make all jumper settings before installing the Tuner Module in the
Controller.

DAS-SIRIUS Tuner Module
3
DAS-SIRIUS Sirius Satellite Radio Tuner Module
Audio Controller Jumpers - Location
Examine the configuration of the jumpers on the left-side Rear-Board Pin Bus, as seen when viewing the rear
board from the front of the Controller (FIG. 3).
Audio Controller Jumpers - ON/OFF Settings
 ON position = pins 3 and 2 jumpered (with pin 1 exposed).
 OFF position = pins 2 and 1 jumpered (with pin 3 exposed).
FIG. 3 Audio Controller - Rear-Board Pin Bus / Jumpers
FIG. 4 Controller Jumper Settings
Audio Controller Jumpers rear panel
Rear-Board Pin Bus -
Slot 1 (with faceplate installed)
Slot 2 (with AM/FM Tuner module installed)
(see Fig 4 & 5)
3
1
3
1
Jumper (pins 3-2)
exposed pin (1)
Jumper (pins 3-2)
Jumper (pins 2-1)
exposed pin (3)
Jumper (pins 2-1)
ON position
(Jumper pin 1 & 2)
OFF position
(Jumper pins 2 & 1)
exposed pin (1)
exposed pin (3)

DAS-SIRIUS Tuner Module
4DAS-SIRIUS Sirius Satellite Radio Tuner Module
Audio Controller Jumpers - Dual Tuner Setting
With the DAS-SIRIUS Tuner installed in Slot 1 (top), and the DAS-AMFM Tuner installed in Slot 2 (bottom),
the Audio Controller jumpers should all be set to ON, as shown in FIG. 5:
Move the TUNER 2 jumpers to the ON position by connecting the top 2 sets of pins (pins 3-2) and leaving the
bottom pins (pin 1) exposed.
DAS-SIRIUS Tuner Module Jumper Settings (Standard Installation)
There are 2 sets of Jumpers on the DAS-SIRIUS Tuner Module (FIG. 6). These must be set to differentiate
Tuner 1from Tuner 2 in the Controller.
Since Mi-Series and Tango Audio Controllers are shipped with a DAS-AMFM Tuner Module pre-installed in
Slot 2 (as Tuner 1), the DAS-SIRIUS Tuner Module, is typically installed in Slot 1(as Tuner 2).
FIG. 5 Audio Controller Jumper Configuration (Dual Tuners)
FIG. 6 DAS-SIRIUS Tuner Module - Tuner 1 & 2 Jumper locations
Tuner 1 jumpers (in ON position)
Tuner 2 jumpers (in ON position)
Top Left of Rear-Board Pin Bus
3
13
1
3
1
3
1
TUNER 1
Jumpers
TUNER 2
Jumpers
20-pin Tuner
Ribbon Cable
Connector
DAS-SIRIUS Tuner 1 & 2 Jumpers

DAS-SIRIUS Tuner Module
5
DAS-SIRIUS Sirius Satellite Radio Tuner Module
Tuner 1 Jumper Settings
The DAS-SIRIUS Tuner Module defined as Tuner 1 must be set to Tuner 1 via jumpers on the Tuner, as shown
in FIG. 7:
Tuner 2 Jumper Settings
The DAS-SIRIUS Tuner Module defined as Tuner 2 must be set to Tuner 2 via jumpers on the Tuner, as shown
in FIG. 8:
Changing the Jumper Settings on the DAS-AMFM Tuner Module
By default, a DAS-AMFM Tuner Module is installed in Slot 2. There are jumpers on the DAS-AMFM Tuner
Module that differentiate Tuner 1 from Tuner 2 in the Controller. By default, DAS-AMFM Tuner Modules are
set to the single tuner configuration.
When adding the DAS-SIRIUS Tuner Module to the Controller, it is necessary to change the jumper
settings on the pre-installed DAS-AMFM Tuner Module, to allow a second Tuner.
The jumpers on the DAS-AMFM Tuner Module (FIG. 9) must be set to differentiate Tuner 1from Tuner 2 in
the Controller.
Examine the configuration of the jumpers located on the Tuner Modules, to the right of the 20-pin ribbon cable
connector (as seen when viewing the installed modules from the front of the controller).
 Note that there are two rows of 5 pins as shown in FIG. 9.
 With only a single tuner, all pins are jumpered.
FIG. 7 Tuner Module - Tuner 1 Jumper Configuration
FIG. 8 Tuner Module - Tuner 2 Jumper Configuration
FIG. 9 Tuner Module Jumper Configuration
TUNER 1 Jumpers
TUNER 1 Jumpers
TUNER 2 Jumpers
TUNER 2 Jumpers
empty pins
(no jumpers) Single Tuner (all pins jumpered) Dual Tuners:
TUNER 1 Dual Tuners: TUNER 2
All DAS-AMFM AM/FM Tuner Modules are shipped in the single tuner configuration.

DAS-SIRIUS Tuner Module
6DAS-SIRIUS Sirius Satellite Radio Tuner Module
Installing the DAS-SIRIUS Tuner Module
The DAS-SIRIUS Tuner is typically installed into Slot 1 (see FIG. 2):
1. Remove the cover from the Audio Controller chassis.
2. Remove the cover plate (labelled “Tuner Option”) on the rear panel (FIG. 10) to expose Slot 1.
3. Carefully insert the DAS-SIRIUS Tuner Module into the Controller (electronics facing up), and replace
the cover plate screws to secure the Module to the Controller.
 The Rear Panel connector at the end of the Tuner Ribbon Cable is connected to the Controller’s rear
board pin-bus (see FIG. 2).
 Keep the Tuner Ribbon Cable oriented so that the red stripe is always on top, in order to preserve
the orientation of the pins on the Tuner connectors. The red stripe on the ribbon cable indicates Pin
1 (FIG. 11):
4. Connect the Slot 1 connector on the ribbon cable to the 20-pin Tuner Ribbon Cable connector on the
DAS-SIRIUS Module (FIG. 12).
Verify that all of the 20-pin connectors of the Tuner Ribbon Cable are securely plugged into their
respective boards.
FIG. 10 Rear Panel - Tuner Slots 1 and 2
Slot 1
Slot 2
(DAS-AMFM installed)
(Tuner Option cover plate installed)
Be careful not to damage the white ribbon cable on the top of the Tuner Module.
FIG. 11 Tuner Ribbon Cable
Slot 2 Slot 1 Rear Panel
RED STRIPE (to Pin 1)not used
(see Note below)

DAS-SIRIUS Tuner Module
7
DAS-SIRIUS Sirius Satellite Radio Tuner Module
The Controller should only be powered back on once all Tuners are installed and the cover is replaced on the
chassis.
Removing Tuner Modules
In some cases it is necessary to remove the existing Tuner Module, in order to install a different Tuner. Since
each Tuner Module uses 1 source input on the Audio Controller, you may choose to use the source input for
other purposes.
1. Remove the cover from the Audio Controller.
2. Carefully remove the ribbon cable from the Tuner Module.
3. Remove the screws from the Tuner Module cover plate (on the Controller’s rear panel) and carefully slide
the Tuner Module out of the chassis.
4. To remove TUNER 1, place the TUNER 1 Audio Controller jumpers in the OFF position (FIG. 13).
5. To remove TUNER 2, place the TUNER 2 Audio Controller jumpers in the OFF position (FIG. 14).
6. To remove both Tuner Modules, set all Audio Controller jumpers in the OFF position.
FIG. 12 Tuner 1 / 2 Module Connections (side view of Controller)
rear of Controller
DAS-AMFM
Slot 1 connector
Slot 2 connector Tuner Ribbon
(side view)
(connect to DAS-SIRIUS
Module)
(shown connected to DAS-AMFM Module) Cable
While it is recommended that you use the Slot 2 connector on the ribbon cable to
connect the Tuner installed in Slot 2 (in this case, the DAS-AMFM Tuner), the ribbon
cable itself does not determine which Tuner is Tuner 1 and Tuner 2.
This determination is set by the jumper settings on each Tuner Module (see “Tuner 1
Jumper Settings” and “Tuner 2 Jumper Settings” above. Therefore, it is not required
that the connections indicated in FIG. 10 are followed exactly, as long as the Tuner
Jumper Settings are set correctly for each installed Tuner Module.
FIG. 13 Audio Controller Jumper Configuration (No TUNER 1)
Tuner 1 jumpers (in OFF position)
3
13
1
TUNER 1
Jumpers
Top Left of Rear-Board Pin Bus

DAS-SIRIUS Tuner Module
8DAS-SIRIUS Sirius Satellite Radio Tuner Module
Connecting and Positioning the SIRIUS Antenna
1. Connect the provided SIRIUS Antenna to the DAS-SIRIUS (see FIG. 1).
2. Verify the Signal strength
a. Via the programming menus via the front of the Controller, select Setup\SIRIUS.
b. Select Status. In this menu, you can check the following:
c. Select "SAT" to determine the Satellite Signal Strength (None, Weak or Good).
d. Ensure the signal strength is at a minimum of "weak". Adjustments may need to be made to the
position of the Antenna in order to get a better signal.
Activating Your SIRIUS Subscription
SIRIUS Satellite Radio is a subscription service. In order to use your DAS-SIRIUS module, you will have to
activate your SIRIUS subscription.
1. Once you have installed the DAS-SIRIUS module, you can activate your SIRIUS subscription by phone:
Call 1.888.539.SIRIUS (7474).
2. You will be asked for a “Sirius ID”. This ID can be found in several places:
 If using a Matrix LCD keypad, select channel "0" to display the Sirius ID.
 If using either a Metreau or Matrix tactile keypad with the optional numeric keypad, select channel
"0". The Sirius ID will be displayed on the LCD display on the front of the Controller.
 If using either a Metreau or Matrix tactile keypad without the optional numeric keypad, access the
programming menus via the front of the Controller by pressing the centre Nav button on the
Controller:
Select Setup\SIRIUS, then select ID from the SIRIUS menu, and the SIRIUS ID will be displayed.
FIG. 14 Audio Controller Jumper Configuration (No TUNER 1)
• ANT: Antenna Status
• ACT: Activation Status
• SAT: Satellite Signal
• TER: Terrestrial Signal
Tuner 2 jumpers (in OFF position)
3
1
3
1
TUNER 2
Jumpers
Top Left of Rear-Board Pin Bus
Until you have activated your subscription, you will only be able to tune to channels
0 and 184.

Mi Series – SIRIUS Setup screen
9
DAS-SIRIUS Sirius Satellite Radio Tuner Module
Mi Series – SIRIUS Setup screen
Accessing the SIRIUS Setup Screen
1. To access the SIRIUS menus on the Controller, press the SELECT button on the front of the Controller.
The following screen will be displayed (FIG. 15):
2. Select Setup to display the System Setup Mode screen. If an on-board DAS-SIRIUS module is detected,
SIRIUS is displayed on this screen.
3. Select SIRIUS (FIG. 16).
If there are two SIRIUS modules on-board, there is an additional screen that allows you to choose
between the two (FIG. 17):
SIRIUS Setup
1. When SIRIUS is selected, the SIRIUS Setup screen is displayed (FIG. 18):
The options on this page are described in the following sub-sections:
FIG. 15 Mi Series Controller - Main Menu
FIG. 16 System Setup Mode menu
Use the Navigation button array (<< / >>) on the front of the Controller to navigate
through the menus, and the “SELECT” button to make a selection.
FIG. 17 SIRIUS Setup Mode menu (for Controllers with two DAS-SIRIUS modules on-board)
FIG. 18 SIRIUS Setup screen
Category
Channel
SIRIUS ID
Status
Exit SIRIUS Setup

Mi Series – SIRIUS Setup screen
10 DAS-SIRIUS Sirius Satellite Radio Tuner Module
SIRIUS Setup - CAT
Selecting CAT (Category) displays the following screen (FIG. 19), where the Category can be selected by
choosing PREV/NEXT. The default = 1 All.
SIRIUS Setup - CH
Selecting CH (Channel) will display the following screen (FIG. 20), where a Channel can be selected by
choosing PREV/NEXT.
Presets can be set via this screen if the installer chooses. There are 10 available preset positions. Presets
can also be set at the keypad.
SIRIUS Setup - ID
Selecting ID displays the SIRIUS ID (FIG. 21).
SIRIUS Setup - Status
Selecting STATUS will display the following SIRIUS status screen (FIG. 22):
FIG. 19 SIRIUS Category screen
Category will be updated to the LCD keypads after exiting the Controller setup
screens.
FIG. 20 SIRIUS Channel screen
Channel will be updated to the LCD keypads after exiting the Controller setup
screens
FIG. 21 SIRIUS ID screen
FIG. 22 SIRIUS Status screen
Exit SIRIUS Setup
Terrestrial Signal Level
Activation Status
Satellite Signal Level
Antenna Status

Controlling SIRIUS via the LCD Keypad
11
DAS-SIRIUS Sirius Satellite Radio Tuner Module
Controlling SIRIUS via the LCD Keypad
Overview
The LCD keypad is a full touch screen keypad with two tactile buttons that are used for Volume
UP/DOWN. There are 3 LCD screens for the SIRIUS Source (FIG. 23):
•HOME screen User can select any of the available sources
•MAIN screen Displays metadata, including: Channel #, Channel Name, Artist, Song Title &
Composer and any SIRIUS messages.
The options on this screen allow the user to Channel UP/DOWN, recall presets,
and direct numeric control.
•MORE screen Displays metadata: Channel #, Channel Name, Artist, Song Title & Composer
and any SIRIUS messages.
The options on this screen provide access to the Channel List and Category List
screens, and allow the user to view and select Channels and Categories from a
list, set Presets and Favorites and access the NUMERIC screen for direct
numeric control
FIG. 23 LCD Keypad - SIRIUS screens
LCD Keypad - Home screen LCD Keypad - Main screen LCD Keypad - MORE screen

Controlling SIRIUS via the LCD Keypad
12 DAS-SIRIUS Sirius Satellite Radio Tuner Module
Selecting SIRIUS as the Audio Source
On the Home screen, SIRIUS will appear in the top left touch field and is considered to be Source 1 (FIG. 24).
 To turn ON the SIRIUS source, touch the text “SIRIUS”. The screen will change to the SIRIUS
Main Screen and the >icon appears in front of the text to indicate that SIRIUS is ON in that room.
 Volume UP to the desired volume level.
SIRIUS SAT Main screen
There are two lines of metadata display on the LCD Keypad with a maximum display of 14 characters per line
(FIG. 25).
Display Line #1 Channel # & Channel Name
Channel # + Channel Name will be displayed up to a max. of 14 characters.
 This display line scrolls once and stops.
 Touch the line of text to update the text and scroll the info once.
Display Line #2 Artist Name, Song Title & Composer
The Artist, Song Title & Composer are displayed up to a max. of 14 characters.
 This display line scrolls once and stops.
 Touch the line of text to update the text and scroll the info once.
Channel - / Channel +
 Touch Channel – to select the previous channel/station and begin playing.
 Touch Channel+ to select the next channel/station and begin playing.
FIG. 24 LCD Keypad - Home screen
FIG. 25 LCD Keypad - SIRIUS SAT Main screen
Select SIRIUS (Source 1)
Display Line #1 - Channel #, Name
Display Line #2 - Artist, Song Title,
Channel NextChannel Prev
Display the Preset screen
where the user can select 1
of 10 available presets
Displays the
Home screen Displays the SIRIUS
MORE screen
Composer
Display the Numeric screen where the
user can enter the channel number
directly

Controlling SIRIUS via the LCD Keypad
13
DAS-SIRIUS Sirius Satellite Radio Tuner Module
SIRIUS Preset screen
Touch Preset on the SIRIUS SAT Main screen (FIG. 25 on page 12) to display the Preset screen where the user
can select 1 of 10 available presets (FIG. 26).
SIRIUS NUMERIC screen
Touching NUMERIC on the SIRIUS SAT Main screen (FIG. 25 on page 12) displays the standard Numeric
screen where the user can directly key in the Channel of their choice (FIG. 27).
Press the numeric buttons to specify a channel number, and press Enter to select. When the Channel is
selected:
 The SIRIUS MAIN screen is displayed, and the Channel selected begins playing.
 The Channel #, Channel Name, Artist, Song Title & Composer are displayed.
FIG. 26 LCD Keypad - SIRIUS Preset screen
FIG. 27 LCD Keypad - SIRIUS NUMERIC screen
Return to the SIRIUS
SAT Main screen
Select Presets 1-10
Selects the channel
Numeric buttons
Use the "point" button
to specify channels
that use a point in their
channel number
(Ex: 90.1)
SIRIUS Satellite Radio does not utilize points for it’s channels. Therefore, the "point"
button is used for other Source types (such as AM/FM tuner, CD, etc.), but not for
SIRIUS channels.

Controlling SIRIUS via the LCD Keypad
14 DAS-SIRIUS Sirius Satellite Radio Tuner Module
SIRIUS MORE>> screen
Touch MORE on the SIRIUS SAT Main screen (FIG. 25 on page 12) to display the SIRIUS MORE screen
(FIG. 28).
The options on this screen allow the user to perform the following:
 List Channels
 List Categories
 Set Presets
 Set Favorites
List - Channels
Touch CH LIST on the SIRIUS MORE screen (FIG. 28 on page 14) to display the List-Channel screen, with
the current channel displayed (FIG. 29).
To scroll through the channels, touch “SCROLL +” or “SCROLL –”. When scrolling, up to 3 channels will be
displayed
Touch any channel to select it. When the Channel is selected:
 The SIRIUS MAIN screen is displayed & the Channel selected begins playing.
 The Channel #, Channel Name, Artist, Song Title and Composer are displayed.
FIG. 28 LCD Keypad - SIRIUS MORE screen
FIG. 29 LCD Keypad - SIRIUS List Channels screen
Return to the SIRIUS
List Channels List Categories
Set Presets Set Favorites
SAT Main screen
Return to the
SIRIUS MORE screen
Scroll down Scroll up

Controlling SIRIUS via the LCD Keypad
15
DAS-SIRIUS Sirius Satellite Radio Tuner Module
List - Category
Touch CAT on the SIRIUS MORE screen (FIG. 28 on page 14) to display the List-Category screen, with the
current category displayed (FIG. 30).
To scroll through the Categories, touch SCROLL + or SCROLL –. When scrolling, up to three Categories
will be displayed.
To select a category, touch the category of choice. When the Category is selected:
 The SIRIUS MAIN screen is displayed, and the default Channel (set by the SIRIUS module) within
the Category selected begins playing.
 The Channel #, Channel Name, Artist, Song Title and Composer are displayed.
SIRIUS - Presets
Users can set up to 10 presets per source.
1. From the SIRIUS More screen (FIG. 28 on page 14), touch PRESET, to access the Numeric screen
(FIG. 31).
2. Use the numeric buttons to key in the Channel.
3. Touch ENTER.
4. A Preset screen is displayed. Select the Preset # you wish to assign to the selected channel.
5. To set another preset, repeat steps 2 – 3.
FIG. 30 LCD Keypad - SIRIUS List Categories screen
FIG. 31 LCD Keypad - SIRIUS Presets screen
Return to the
SIRIUS MORE screen
Scroll down Scroll up
Selects the channel
Key in a channel that you
Use the "point" button
to specify channels
that use a point in their
channel number
(Ex: 90.1)
want to set a Preset for,
using the Numeric buttons

Controlling SIRIUS via the LCD Keypad
16 DAS-SIRIUS Sirius Satellite Radio Tuner Module
SIRIUS - Favorites
Favorites is a standard functionality of the Matrix Controller and is available for all sources.
One minute after an “ALL OFF” has been performed, or 10 Minutes after every zone/room has been turned off,
the controller will send a Power OFF command to all sources.
The first time a source is turned on in any room (after a system power off), if a favorite has been set for that
room and that source, the favorite station/channel will begin playing.
For example: A “favorite” channel of “7” is set in Room 1 for the SIRIUS source type. If Room 1 is the first
room to be turned ON after a system OFF, Channel 7 will begin playing (whether it was the last channel played
or not.
1. From the SIRIUS More screen (FIG. 28 on page 14), touch SET FAV, to access the Favorites screen
(FIG. 32).
2. From the SIRIUS Favorites screen (FIG. 19), select SET FAV. A numeric screen will be displayed. Key in
the channel to be set as the favorite, and select ENTER.
FIG. 32 LCD Keypad - SIRIUS Favorites screen
Return to the
SIRIUS MORE screen
