AN SON 720P 1.3MP User manual

Address: 4F, Block 5, Wuzi Industrial Park, Fada
Road, Bantian, Longgang District, Shenzhen, China
Shenzhen Enerson Technology
C o m p a n y L i m i t e d
ANSON (HK) Technology Co., LTD.
E-Mail: info@cctv-ax. net Website: www. cctv-ax. com
Address: 4F, Block 5, Wuzi
Industrial Park, Fada Road,
Bantian, Longgang District,
Shenzhen, China
E-Mail: info@cctv-ax. net
Website: www. cctv-ax. com

Rev.1.4(EN141015)
Before installing and using the Network Camera, Please read these instructions
thoroughly and retain them for later.
Contact your supplier immediately.
Network Camera device
Accessory bag
Warranty card
Certificate of approval
The followings are optional accessories:
Power adapter, power connector and power cable (Optional)
User manual (Optional)
Installation CD (Optional)
Quick Installation Guide (Optional)
Rev. 1.4_EN141015
Update date: Sep. 6th, 2012
This manual is applied to the following products of the software version 4.3.0 and WEB version
1.0.0 and above.
Standard definition and high definition fixed box network camera.
Revision History:
Rev. 1.0: Initial release.
Rev. 1.2: Major revision.
Rev. 1.3: Updated screenshots.
Rev. 1.4: Updating the document logical structure.
Package Contents
Please check the package list in your package in time. If anything is missed or
damaged, please.

Statement:
The right of the propriety and the final explanation of all parts of this product, including accessories and software,
are reserved for our company. This user manual has no guarantee or promise in any form. If there are any data
loss, profit loss or career termination caused directly or indirectly by this user manual or the product information
mentioned, or the damages and hazards incurred directly, indirectly, intentionally and non-intentionally by any
wrong installation and usage, our company and its employees shall not take any responsibility. Moreover, the
performance and software functions mentioned in this manual are only for reference. Our company reserves the
right to modify and upgrade this manual without further notice.
This product is a professional surveillance device. Before use to ensure compliance with the requirements of the
local laws and regulations. Our Company does not assume any liability caused by users for illegal purposes.
The product names used in this manual are only for identification and may belong to other companies’ brand or
copy rights.
This product is guaranteed for warranty under its warranty card and serial number. No warranty is available for
the product if its warranty card or serial number are damaged or cannot be recognized.
Note:
CONTENTS
SAFETY INSTRUCTION
CHAPTER 1 OVERVIEW
CHAPTER 2 INSTALLATION AND CONNECTION READY
1.1 PRODUCT DESCRIPTION
1.2 INTERFACE DEFINITION
2.1 HARDWARE INSTALLATION
2.2 NETWORK AND IP ADDRESS CONFIGURATION
CHAPTER 3 ACCESSING THE NETWORK CAMERA
1.2.1 INTERFACE DESCRIPTION
2.1.1 HOW TO MAKE 10M/100M ETHERNET CABLE
2.1.2 LENS AND SD CARD INSTALLATION
2.1.3 CONNECTING CAMERA
2.2.1 FACTORY DEFAULT SPECIFICATION OF NETWORK CAMERA
2.2.2 RESTORING FACTORY DEFAULTS
2.2.3 USING ADMIN TOOL CONFIGURE THE CAMERA’S IP ADDRESS
2.2.4 TEST CONNECTION
1
3
6
3
4
6
8
4
6
6
7
8
9
9
13
13

3.1 USING WEB BROWSERS CONNECTION
3.2 USING RTSP PLAYERS CONNECTION
3.3 USING NVR DEVICE CONNECTION
3.4 USING VIDEO MANAGEMENT SOFTWARE CONNECTION
4.1 CHANNEL PARAMETER
4.2 NETWORK PARAMETERS
CHAPTER 4 PARAMETER SETTING
3.1. 1 LOGON
3.1. 2 VIDEO PLUG-IN
3.1. 3 WEB BROWSER INTERFACE

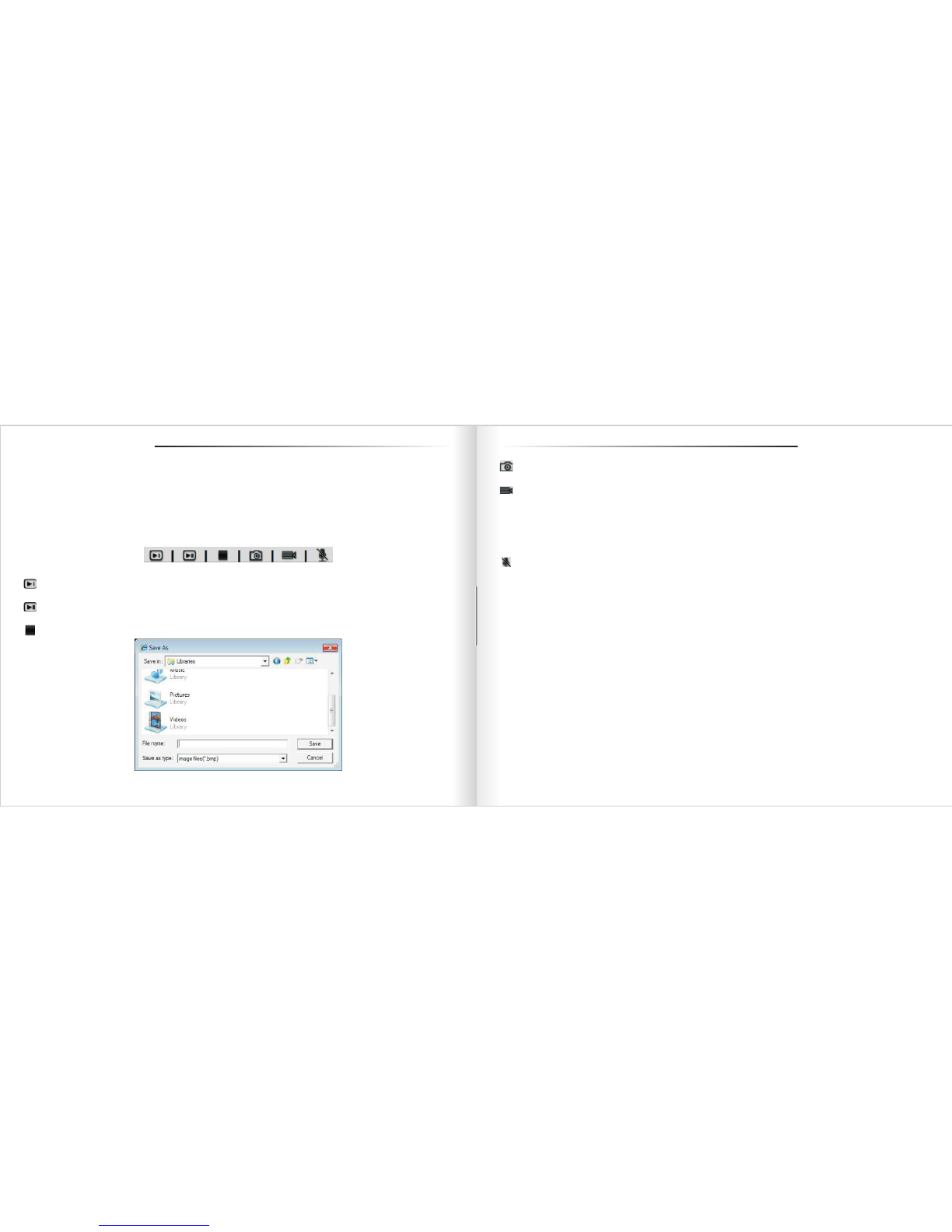

3.1. 4 CONNECTION, SNAPSHOT AND RECORDING
3.1. 5 RECORDING IN SD CARD
3.1. 6 VIDEO SPECIFICATION ADJUSTMENT
3.1. 7 PTZ CONTROL
3.1. 8 IMAGE MODES
3.1. 9 VIDEO REPLAY
3.1.10 VIDEO STREAM PARAMETER
3.1.11 OSD
3.1.12 MOTION DETECTION
3.1.13 ADVANCED FUNCTIONS
3.1.14 DEVICE INFORMATION
3.1.15 PRIVACY MASK
4.1.1 AUDIO PARAMETER SETTING
4.1.2 RS485 PARAMETERS
4.2.1 NETWORK SETTINGS
4.2.2 RTSP PARAMETERS
4.2.3 NTP PARAMETERS
4.2.4 HEARTBEAT SETTING
4.2.5 WLAN SETTINGS
4.3.1 STORAGE PLAN
4.3.2 FTP PARAMETERS
4.3.3 SNAPSHOT PARAMETERS
4.3.4 RECORDING WHEN NETWORK DISCONNECTED
4.4.1 ALARM INPUT
4.4.2 ALARM OUTPUT
4.5.1 USER MANAGEMENT
4.5.2 ADVANCED SYSTEM MAINTENANCE
4.3 RECORDING PARAMETERS
4.4 ALARM SETTINGS
4.5 SYSTEM PARAMETERS
4.6 DISK INFORMATION SETTINGS
4.7 LOG
4.5.2.1 SYSTEM TIME
4.5.2.2 UPGRADING SOFTWARE VIA WEB
4.5.2.3 SAVING SETTINGS
4.5.2.4 RESTORING FACTORY DEFAULTS
4.5.2.5 RESTART
4.5.2.6 AUTO-IRIS INTELLECTUAL CORRECTION
APPENDIX A FAQ
45
48
49
50
50
52
54
55
56
56
58
59
61
52
56
59
65
66
61
62
63
64
64
65
66
13
39
40
41
42
44
42
13
15
16
18
19
20
21
24
25
26
28
30
32
37
38
43
44

HD Network Camera Us er ’s Man ual
01
APPENDIX B PORT MAPPING
APPENDIX C REFERENCE FOR CLIENT SETTINGS
APPENDIX D PRODUCT SPECIFICATION
68
69
70
Safety Instruction
Electrical safety
The device is not designed for water-proof. Please take good measures for water-proof and thunder-proof when
using the device outdoor, or it may incur unpredictable serious damages; do not let any over flown water or other
liquid into the device so as to avoid short-current which may cause fire or electric shock.
Please install the lens, data line connecting this device, and then connect the power cable before installation.
Please properly do earth-grounding and take good measures for thunder-proof before connecting external cables
to the camera, avoiding any static electricity that can damage the internal main board.
When connecting the alarm signal cable, please confirm that the camera can only access weak electricity (switch)
signal. Or the camera parts may be damaged.
Please make sure that the power voltage setting is adjusted to the standard voltage value used by user’ s
country/region. If the user cannot be sure of the voltage in his/her area, please consult the user’ s local electricity
company. The mismatched power may cause short-current or damage the device.
If the power is damaged, please ask professional technicians or dealers for help.
Please stay away from generators with strong electromagnetic radiation, e.g. radio, TV, and electricity generator,
etc. avoiding any interference.
Operational safety
Please read the information provided by this manual carefully before you power on the device.
Due to the unpredictable reasons, e.g. transportation, the hardware inside the camera may be damaged. Please
check if the device as a whole is damaged seriously before you install the product; if the problem is any critical
defect that you cannot solve, please contact your dealer as soon as possible.
Please plug in and remove any cable or SD card while the power is on.

0302
Dust, moisture and any drastic temperature variation can affect the service life of the camera. Please try not to
place the device in these places.
Please do not place the camera at the place where vibrates. When transporting or moving the device, please
handle it with care. Please do not put heavy goods over the device.
Please do not use any volatile objects that can damage the device surface, e.g. pine oleoresin, benzene, and
pesticide, etc. You can use soft cloth or a small amount of cleanser to wipe the device body.
Non-professional personnel should not open the device cover by themselves. If there is any technical problems
occurred during usage, please contact certified or experienced technicians.
Note
1) The power supply, lens and SD card are optional when the network video camera is delivered from the factory.
2) Please take special cautions when installing the power supply which must be safely earthed. Please notice not to
wrongly connect the positive and negative polarity of the 12V DC. The reversed polarities may damage the device.
The 12V DC inlet cannot access any 24V AC. Please read the specification and installation manual carefully
before installation, and connect the positive and negative polarity following the order on the device tag.
3) No warranty is guaranteed for any damages which are caused by inappropriate operations or human factors.
4) If not specially specified, the user interface in the manual is screenshots under Windows 7 32bit and the web
browser uses IE9.0.
Glossary
In order to make sure you configuring the device settings correctly, please pay attention to the special meanings
represented by the following terms in the manual.
Client: The software product that connects and browses the network video camera. For instance, WEB browsing
user end, and special user end, etc.
Server: Normally refer to the network camera.
CHAPTER 1 Overview
1.1 Product Description
Thanks for using our serial of SD/HD network Camera which is based on the standard H.264 Main Profile @ Level
5.0 algorithm. It uses the progressive scanning image transducer of mega pixels and its definition can meet the
broadcast image quality. It supports real-time dual-stream coding and its recording files can be decoded by
standard decoders and played by common player software. The device doubles the quality of MPEG-4 with the
same bit rate. To achieve the same image quality, the bit rate is only half of that of MPEG-4. The system has a VMP
video management center to provide a complete system-level solution! The product is easy to be operated and
installed, and can significantly reduce the cost of wiring and construction and extend your CCTV network infinitely.
Special features
The HD progressive scanning image transducer has its meticulously excellent quality of image.
The image of broadcast quality with 16:9 widens the visual area more.
Standard H.264 algorithm with high compression rate and strong compatibility.
It can realize 25/30fps full real-time video recording in all definitions.
It can support Full D1+Full D1, 720P+Full D1 or 1080P+Full D1+HDMI real-time dual streaming.
4A controls (AWB, AG, AE, and automatic iris correction).
It can support 3D-MCTF noise reduction and digital wide dynamic range function.
It can support using SD/SDHC card to store HD graphics and video for alarm.
RJ45 interface 10M/100M self-adaptive Ethernet network.
It supports power supply through PoE (IEEE802.3af) Ethernet network (optional).
It supports definitions like 1080p, 720p, and 960H, etc.
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual

0504
It supports FTP real-time video recording.
It supports RTSP protocol and is able to use PDA/PPC for motion monitoring.
It has its built-in WEB Server and supports WEB browsing and management.
It provides alarm linkage action measures like video motion detection and sensing linkage action, etc.
It provides standard GPIO alarm outlet, RS485 and duplex audio.
It supports CVBS HD analog output (optional).
It supports batch management, easy to retrieve and manage network cameras.
It completely integrates with VMP video management center platform software.
Applications
The places monitored by HD network that are applicable to low illumination:
Real-time traffic monitoring of highway, bridge and tunnel.
Real-time night HD monitoring for financial organizations, like banks.
24-hour security monitoring HD network for factories and stadium.
Real-time remote monitoring for warehouses, oil depots, gas fields, and steel plants.
HD environment monitoring for forest and water resources, etc.
24-hour outdoor monitoring for tourism spots and parks.
Remote network monitoring for border defense and military defense.
24-hour monitoring for security places.
1.2 Interface Definition
1.2.1 Interface Description
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
Item
DC-IRIS
CVBS (Analog output)
Status (Status indicator)
Ethernet (Network interface)
PWR (Power inlet)
A-OUT (Linear audio outlet)
Micro SDHC
A-IN (Linear audio inlet)
Fun
Pole mount cup (dock)
Alarm In (Alarm inlet)
Relay (Relay outlet)
RS485 (PTZ control)
USB
Rear focus locking screw
Rear focus adjustment wheel
CS (C) Ring adaptor
HDMI or mimi HDMI
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Application
CVBS: Analog video output, standard BNC interface.
Flickering indicates working normally; constant light-up indicates starting
or upgrading; No light or flickering abnormally indicates error.
Standard Ethernet RJ45 outlet, 10M/100M self-adaptation, compatible
PoE (IEEE802.3af).
Dual power supplies of 12V DC and 24V AC. It is able to choose one power supply.
Attention: The positive and negative polarity for DC 12V.
3.5mm audio inlet, linear level, resistance: 600L. It is required to access
active output devices.
General slot for micro SD/SDHC storage card.
3.5mm audio inlet, linear level: 2.0~2.4Vp-p, resistance: 1kL. It is required
to access active output devices.
Function keys (Reset and restart, etc ).
Standard camera dimension UNC 1/4".
One-way switch volume signal input, normally closed (Open circuit alarm
and software adjustable).
One-way switch volume signal output.
PTZ control signal. “+” for positive, “-” for negative, GND for common use.
Mini-USB interface, USB 2.0 norm.
Locking the position of the rear focus.
Adjust the rear focus.
If using C interface lens, please add C ring. It is covered by the lens lid
when delivered from factory.
HD digital video is output via HDMI interface.
DC drive automatic iris lens mount.

0706
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
CHAPTER 2 Installation and connection ready
2.1 Hardware Installation
2.1.1 How to make 10M/100M Ethernet Cable
A network camera is connected with a switch or PC via standard Ethernet interface. Please refer to the order of
wiring of the standard TIA/EIA568A and TIA/EI568B about how to make the network cable.
Standard 568A: Green white -1, green-2, orange white-3, blue white-5, orange-6, brown white-7, and brown-8
Standard 568B: Orange white-1, orange-2, green white-3, blue-5, blue white-5, green-6, brown white-7, and brown-8
1) Straight-through cable: The crystal heads on both sides of a network cable follow the TIA/EIA 568B standard.
It is normally used for the connection of a network camera with a HUB/Switch/Router or the connection of a
PC with a router.
2) Crossover cable: One end of a network cable uses TIA/EIA568A and another one uses TIA/EIA568B for wiring.
It is normally used for the direction connection of a network camera’s network interface with a PC or the
cascaded PC-PC, switch-switch, and router-router connection.
The 10M/100M indicator of a network camera lights up after a successful connection.
2.1.2 Lens and SD Card Installation
Lens installation: Open the package of your network camera, remove the lens lid and install your lens. In order
to achieve the best display effect, it is suggested to choose the mega pixel lens in 1/3 inches or 1/2 inches. If a
C mount lens is used, please add a 5mm CS/C conversion ring. If an automatic iris lens is used, please connect
the automatic iris control cable to the DC-IRIS outlet of the network camera. When it is the first time to use a new
automatic iris lens, please carry out intellectual correction for automatic iris lens once so that the device can
control the iris accurately. Please refer to the section 4.5 Auto IRIS Intellectual Correction.
SD card installation: Please insert SD card facedown into the SD card slot in the camera. It shall be locked
automatically when being pushed to the end. If the card cannot be pushed into the end, it is possible that it is
inserted in a wrong way. Please flip the card over and try again.
SD card removal: Use your thumb to press the SD card inward and the SD card shall be popped out from the slot
automatically.
2.1.3 Connecting camera
Connection cable
1) Refer to the description in the section 2.2 to use a straight-through cable to connect a network camera and a
switch/router.
2) If analog video output is required, please use special video coaxial cable to connect CVBS (BNC) interface.
3) If audio I/O is required, please use an active microphone/pickup to access audio inlet; and use an active audio
sound box to connect audio out. External power amplification devices can be added if necessary.
Connection power
1) Use 12V DC 1A power adapter to connect a network camera. If centralized power supply is adopted, it is required
to pay attention to the polarity of power supply and the interfaces cannot be wrongly connected. A power
adaptor is provided in the package with the device, which can be installed according to the supplied power.
2) If you are using PoE power supply. Please use TIA/EIA568B standard Ethernet cable to connect the camera
and support PoE output switches / routers, using Power over Ethernet (PoE) without the other pick DC 12V
power adapter, but should pay attention to the the PoE supply of distance usually 100meters.
The physical position of a network camera in a network monitoring system is shown as below.

0908
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
2.2 Network and IP address configuration
With other network devices, connect and use network camera, network camera IP address and the user's computer
IP address set in the same network segment. Please pay attention that the IP addresses cannot be same within
a LAN, or there shall be conflicts that cause the device failed to work normally.
2.2.1 Factory Default Specification of Network Camera
A network camera is a network device. It is required to properly configure its network IP address and gateway
before its usage. The product is configured with the default network specification when delivered. These values
can be changed according to your requirement. Please take the followings as reference.
IP address: 192.168.1.4 (It is stick to the device tag for customer-made model.)
Sub-network mask: 255.255.0.0
Gateway: 192.168.1.1
Data port: 6002
WEB port: 80
2.2.2 Restoring Factory Defaults
Hard Reset
If it needs to restore the network camera’s system settings to be the factory defaults, please refer to the following steps:
1) Press FUN bottom at the bottom of the device for over 5 seconds.
2) When the Status indicator is flickering, please loose the FUN button. Then the network camera is restored into
its factory defaults.
Soft Reset
After logging on the network camera, please select ”Detailed settings-System parameters-Advanced system
settings”. In the page of the advanced settings, please click the button “Restore”. All the parameters including
IP address shall be restored to its factory defaults after the camera is restarted. Please refer to the section 4.5.2.
2.2.3 Using Admin Tool configure the camera’s IP Address
Note:
Before a network camera is fully started, the power cannot be turned off. Other wise, the
settings may not be restored to its factory defaults.
(Fig.2-1-1)

1110
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
The system provides the management test tool-Admin Tool. Please check the system CD. The tool can:
1) Search network cameras or video servers in the network.
2) View serial number, name, IP, version, product model, port, and MAC address, etc.
3) Assign and setup IP and specify a management center in batch.
4) The status indicator can confirm the current network camera for restart and upgrade, etc.
Configure the IP address of the specified camera
Running the Admin Tool management tools automatically retrieve network camera device available in the current
network. Lists the MAC address, IP address, device name and other information. Select a device and double-click,
the device information dialog box pops up, you can configure the device name, ip address, default gate and
other information.
Batch configure the IP address of the network camera
The Admin Tool management tools can use the same IP address each camera factory before being installed in
bulk configuration of multiple network cameras IP address.
(Fig.2-2-1)
(Fig.2-2-2)

1312
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
These network cameras are connected to the same switch with the machine, through the Admin Tool quick search
network of devices, the mouse marquee multiple camera equipment, click the "batch Configuration" button, the
batch IP address configuration window pop-up. The user can set the starting IP address and ending IP address
and other content, bulk assign IP addresses to these network cameras, specify the subnet mask, default gateway,
port and center IP information. Meanwhile, we can use the tool to open the status indicator to confirm which
network camera is being tested, easy for putting on a label after testing.
2.2.4 Test Connection
After configuring the IP address, please click “Start” at the lower left corner of user computer, then “All programs”-
”Accessories” - ”Run” to select and open “Command Prompt”. In the command line, use PING command to test
if the computer is connected to the network camera.
Command format is: Ping 192.168.1.4
If the screen displays “Request timed out”, it indicates that the device is not connected properly. You can check
the followings,
Whether the hardware is connected correctly?
Whether the computer’s TCP/IP is set up to be in the same network range as that of the camera? Whether the
PING command is not allowed in the network. Please consult your web administrator.
Chapter 3 Accessing the Network Camera
This chapter introduces how to access a network camera via webpage browser, RTSP player and VMP video
management software. The screenshots in the manual are all done under Windows 7 and IE9.0.
3.1 Using WEB Browsers Connection
3.1.1 Logon
Fill in the IP address of the network camera into the URL of your WEB browser. The default IP is 192.168.1.4. The
logon dialog box is shown as below.
(Fig.2-2-3)

1514
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
Username: The default username of the network camera is system.
Password: The default password of the network camera is system.
Port: The data port of the network camera is default to be 6002.
Note:
1) If the data port of the network camera is changed, please fill in the changed port when
logging on. Or it is not allowed to log on.
2) Please click the push-down list at the upper right corner of the logon interface to change
the language.
3.1.2 Video Plug-in
First-time logon and installation:
After logging on successfully, the user is prompted to download the play plug-in if it is the first time for the
device to access. Please download and run the play plug-in installation manually. The name of the play plug-in
is HDLive.exe.
Double-click the downloaded HDLive.exe. The file shall automatically start its installation of play plug-in for
WEB browser. Confirm your installation by clicking “Next Step” till the completion of the installation. After the
completion of the installation, return to the WEB browser page and refresh the page to browse the video.
Updating plug-in
When detecting new version of the play plug-in, the system shall prompt updating new version of play plug-in.
(Fig.3-1-1)
(Fig.3-1-2)
(Fig.3-1-3)

1716
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
Note:
It is required to install this play plug-in if using WEB to browse the video. Currently the
plug-insupports Windows XP/2003/7 32 bits OS.
Note:
There is always delay when transferring video via network . The delay has relation to the
processing capability of user computer as well as the number of switches and routers that
are passed by. In general circumstance, it is normal for mega pixel HD network video to
have the delay within 500ms.
Due to the reason that the security setting of IE browsers is different, it may be required to allow the uploading
of the play plug-in. Please click “Allow” button when the following prompt is shown.
Some browsers may be required to configure “Internet options-Security-Custom level”. In the security settings,
please set the ActiveX component and plug-in to be “Enable” or “Prompt”.
3.1.3 WEB Browser Interface
Please refresh the video browse page after installing the play plug-in. It is divided into three sections shown as below.
Top: Login user information, detailed settings and exit.
Lower left: Video display
Lower right: Common parameter adjustment and control. Click labels to switch and configure.
It is able to download components again by using the button “Update video component” on the top of the video
display. It is required to close the browser interface during the installation. The status information of the video
connection shall be displayed on the upper left of the video, like IP address, connection status, definition and
frame rate shown as below.
(Fig.3-1-4)
(Fig.3-1-5)
(Fig.3-1-6) (Fig.3-1-7)

1918
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
In the video display, the information like camera name, date and time, can be concatenated. Please refer to the
section 4.1 for settings. It is shown in Fig. 3-1-7 above.
3.1.4 Connection, Snapshot and Recording
If the play plug-in is installed with no mistake, the video browse page shall automatically connect the network
camera’s main stream. The buttons at the bottom of the video area are shown as:
: Click this button to connect the image of the network camera via the set parameters of the Stream 1 (main
stream). It is default to connect automatically.
: Click this button to connect the image of the network camera via the set parameters of the Stream 2 (slave
stream). Some models may not support this.
: Click this button to disconnect the currently connected image of the network camera.
: Click this button to capture the image snapshots currently browsed. The “Save as” dialog box is popped out
to set the file name that is to be saved.
: Click “Video recording” button to pop up “Save as” dialog box. It is able to start the video recording manually
and select the local storage path. While clicking “Video recording” button, the camera is starting to record video.
Please fill in the file name in the popped up dialog box. The status of “Video is recording” is prompted at the
bottom of the video display area. Now the button is changed to “Stop video recording”. Click “Stop video recording”
button to end the recording and save
it into the local path.
: This button can open or close real-time audio monitoring.
3.1.5 Recording in SD Card
Install SD card
If a user needs to record onto the SD card of the camera, it is required to install the SD card before the power is
connected. Please refer to the section 2.1 of this manual.
SD card Initialization
Initialize the SD card in the camera’s “Configuration” – “System parameters” – “Disk info settings”. Please refer
to the section 4.6 of this manual.
Start storage plan
Start the front-end recording and set up the timeline for recording in the camera’s “Detailed settings” – “Recording
parameters” – “Storage plan settings”. Please refer to the section 4.3 of this manual.
Replay records in the SD card
After recording, click “Search” button to search the records in the SD card to replay in the replay interface. Please
refer to the section 3.1.9 of this manual.
Automatic recording after network disconnection
This camera supports automatic recording after network being disconnected. If the SD card is normally initialized,
(Fig.3-1-8)
(Fig.3-1-9)

2120
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
the system shall automatically start the local recording into the SD card when any malfunction like network
disconnection occurs, avoiding the data loss caused by the interrupted network.
3.1.6 Video Specification Adjustment
Click “Video adjustment” label at the right of the video browsing window to adjust the information including video
brightness, contrast, saturation and color. Please click ‘Set” button to save the adjustment after completing the
adjustment. The video parameters have been optimized when delivered from the factory. The default values are:
Brightness: 120 Contrast: 75 Saturation: 70 Color: 128 Sharpness: 127
Sharpness
Sharpness is also called “definition” sometimes. It is an index that reflects the image definition and the sharpness
of the image edge. Its default value is between 80 - 100. When the value of sharpness is too large, the image may
have many noises appeared. When it is too small, the image definition may be affected.
Types of video transmission
Use a slide bar to adjust the buffer time for video image so as to make the video connection more real-time or
smoother. The “Real-time” on the left has the 0ms buffer time (No buffer). The “Smooth” on the right has the
buffer time of 5000ms. Users can adjust by themselves according to the user-end host configuration and the
network bandwidth. The default is set to be real-time connection and the buffer time is about 300ms.
3.1.7 PTZ Control
Click the “PTZ” label at the right of the video browsing window to control the PTZ.
PTZ speed
The PTZ rotation rate is adjustable between 1 to 255. Different PTZs have different rate. The corresponding value
is slightly different. Please refer to PTZ specification.
(Fig.3-1-11)
(Fig.3-1-12) (Fig.3-1-13)

2322
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
UP, DOWN, LEFT AND RIGHT KEY
The keys are used for controlling the movement of the PTZ orientation.
PTZ Automatic Rotation
After being pressed down, the PTZ can automatically rotate horizontally. The function needs the support of the PTZ.
ZOOM, IRIS, FOCUS
These control rooming, iris and focus of the camera lens, used for electrical zoom lens and
integral control.
3D Positioning Control
Enable the 3D positioning control function to use the left mouse key to click or select any area to operate, like
moving the area to the center of the image preview, automatic zooming (within the valid zoom range of the
automatic zoom lens), and automatically rotating the PTZ to its current position (It requires the support of PTZ.)
Mouse click: The view shifts to one centering on the currently clicked point.
The mouse can select from the upper left to lower right. The view shifts to one centering on the currently selected
area. The lens automatically zooms in the currently selected area.
Mouse selects from the lower right to the upper left. The view shifts to one centering on the currently selected
area. The lens automatically zooms out the currently selected area.
Aux Switch
It supports turning on/off of the PTZ’S windscreen wiper, fan (heat dispersion), spot light, and heating.
Focus modes
Manual and auto. It is able to set the focus modes of the zoom lens to be manual focus or auto focus. Under the
mode of manual focus mode, the lens focal distance is always locked without any change.
Preset point
1-255. It records the PTZ’s current position and lens zoom. The operations like addition, edition, calling and
deletion, etc., can be carried out. The preset point supported by different PTZs may be slightly different.
Operation: Move the PTZ to a location and click “Save” button to save the current location to be preset point.
Select one preset point to click the corresponding button to start the operations like edition, calling, and
deletion, etc.
Mode path (Pattern, track)
8 paths to record the PTZ’s whole running path and the lens zooming. The track number and record time that
can be saved by different PTZs are also different.
Operation: Click to add “start recording”, then rotate the PTZ or control the lens zooming, and click stop when
completed. The system shall record the whole process of the operation and save it as a path of scan track. Click
the recorded track to call or delete.
Preset Group (preset points grouping)
8 patrol groups. Each group has 16 pre-set points. Select any number of pre-set points and specify the stop time
of each point. The PTZ can patrol these points automatically. The number of the PTZ that can be set by a patrol
group depends on the PTZ.
Go Home (Watch function, Park function)
The default is over 30s. If the PTZ receives no operation instruction (idle) in a specified time period, the PTZ shall
automatically call (return) the pre-set point.
Operation: Enable the keep watch function to set the idle time and the number of the called preset point and
save them.
Note:
Set up the information of the camera, like RS485 port bit rate, protocol, and address, etc.
Please refer to the section 4.1.4 RS485 Parameter Setting.

25
24
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
3.1.8 Image Modes
Click “Image mode” label at the right to set up the video parameters under certain circumstances (E.g. daylight,
strong light, and night light, etc.) These modes can set up different start time and stop time, and can automatically
adjust to match the latitude and longitude of where the camera is installed.
Image mode setting: Daytime mode, strong light mode, dawn mode and night mode. Each mode can set to
be a corresponding time range. Each mode can set up different video parameters according to the current
circumstance so as to reach the best image effect.
Longitude and latitude setting: If enabling the image mode, the system shall provide the longitude and
latitude setting of the device installation position. After setting up the longitude and latitude of the device
installation as well as the initial start time and stop time of the image mode, the system shall automatically
calculate the start and stop time of the image mode every day based on the longitude and latitude.
Note:
In the time-phased setting, if the start time of two modes overlaps, the mode gets started
according to the order of the modes, subject to the last mode.
If the parameters above are modified, please go to the page of “Advanced settings” to click
“Save settings” button. Otherwise, all the modified parameters shall be lost after the power
is disconnected. Please refer to “Saving settings”.
3.1.9 Video Replay
Click “Playback” label in the right of the video display area to switch to the record file play windows to play the
local record files and those on the SD card of the network camera.
(Fig.3-1-14)
(Fig.3-1-15)

2726
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
If there is a SD card in the camera, it is able to click “Search” button to search the records on the SD card according
to date and channel. The “Select local files” button can be used to select the local manually recorded or backup
files and list below. Double click a file to replay it. While replaying, the operations like fast play, snapshot and
opening audio, can also be carried out. When the record is paused, click “Next frame” to browse the image in
each frame.
As for the record files or pictures searched remotely, select a file and right click the mouse to download it to the
local computer.
“Search”: It is used for searching the record files on the SD card of the network camera.
“Select local files”: Retrieve and select the record files manually recorded or backup for play.
“Play/Pause”: Play or replay the currently-selected record file. Press “Next frame” to play the next frame
while pausing.
“Stop”: Stop playing.
“Fast Forward X2”: Play fast forward by doubling the speed.
“Fast Forward X4”: Play fast forward by 4 times of the speed.
“Snapshot”: Capture the snapshot of the record video that is played.
“Open audio/Stop audio”: Open audio while replaying. Click “Stop audio” if mute is acquired.
“Return”: Return to the replay window. It is able to browse the interface in real-time.
3.1.10 Video Stream Parameter
Select “Stream” label at the right of the video display area to set up the parameters like video definition rate, and
the size of stream, etc. Users can select the video stream type built in the system as well as select the combination
of multi-bit stream types. The default stream 0 is the main stream and the stream 1 is the slave stream. The stream
2 can be CVBS analog output or HDMI HD digital output.
Stream types: The video coding types built-in the system include dual-stream, triple-stream, dual-stream+CVBS
analog output, and dual-stream HDMI HD digital output, etc. If it is required to be tested via CVBS(That is, BNC
interface), please select the video code type with CVBS output. For different video camera models, the highest
definition combination supported by main stream is different. Please refer to Appendix D.
Frame rate: There are many types of frame rate. Full frame rate represents the real-time level with the highest
of 25 frames (PAL mode) or 30 frames (NTSC mode), and the 1/10 level with the lowest of 2 frames (PAL mode)
or 3 frames (NTSC mode).
Coding types: There are two options: video stream and composite stream. The video stream contains no audio.
However, the composite stream includes video and audio.
Bit rate mode: It includes two types: fixed bit rate and limited bit rate. Users can select the size of the bit rate,
and also can self-define the upper bound of the bit rate.
Image quality: It sets up 6 grades from normal to the best. Normally if the image quality is prior without
(Fig.3-1-16)

29
28
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
considering the bandwidth occupation, it can set up to be the best; if the image quality and the bandwidth (bit
rate) are both under consideration, it can set up to be better or even better.
Bit rate upper bound: 32Kbps~2048Kbps. User can self-define the higher bit rate.
Custom bit rate: When the bit rate type is limited bit rate, users can self-define the upper bound of the bit
rate. For Full HD (1920x1080P), the bit rate is recommended to be 4~6Mbps (4096~6144Kbps); for HD (1280x720)
to be 2~4Mbps (2048~4096Kbps); and for Full D1(720x576) or 960H(960x576) to be 1~3Mbps(1024~3072Kbps).
The highest bit rate can be 8Mbps. The set bit rate cannot exceed the highest upper bound of the bit rate under
each individual definition.
3.1.11 OSD
Select “OSD” label at the right to overlap the information of videos, like channel name, week, and time etc.
Note:
1) Compression format: The main stream is default to use H.264 compression format. The
slave stream can select H.264 and MJPEG. When the slave stream is H.264 compression
format, the highest definition supported is Full D1(720x576); when the slave stream is in
MJPEG compression format, the highest definition supported is HD(1280x720). The slave
stream in MJPEG compression format is commonly used for the camera to capture images
with higher definition.
2) It is required to save parameters in “Detailed settings -> System parameters -> Advanced
settings” and restart settings after the video stream type is modified.
3) Three mega-pixel and five mega-pixel cameras only have Stream 0 when it is in its highest
definition. Application
Set up channel names to overlap on the video images. It supports 63 English characters or
31 Chinese characters. The characters exceeding the limit shall be automatically truncated.
It is able to insert \n to change lines.
Upper left corner, lower left corner, upper right corner, lower right corner.
0~576
Item
Channel name
Overlap setting
Coordinate
(Fig.3-1-17)

3130
HD Network Camera Us er ’s Man ualHD Network Camera Us er ’s Man ual
Overlap channel name, overlapping week and date and time are optional for users.
Overlap channel name: The position can be relative to the upper left, lower left, upper right, lower right of a video.
The coordinate can be any relative positions between 0 - 576.
Overlap time can choose a long complete date: year month day weekday hour minute second; or a short date:
year month day or hour minute second.
3.1.12 Motion Detection
Select “VMD” label on the right for users to start the camera’s video motion detection. If the camera is installed
at the places like corridor, door or windows, the image pictures are normally static relatively. Once the camera
detects any object in movement in the video, it shall start recording or generate alarm linkage or output.
The video area on the left is the video motion detection area. Users can use their mouse to draw up at most five
areas in the video area to be the targeted motion detection areas. When detecting any element in motion in the
video, the corresponding associated alarm linkage shall be triggered. If it is required to redraw the areas for
detection, users can click “Clear areas” button on the right.
On the right are the settings for the motion detection for defending and the alarm linkage.
Motion threshold: The default value is 1 (The range of the value is 0 - 100). The motion threshold value is for
measuring the ratio of objects in motion in the selected areas. Smaller the value is, smaller the ratio of objects
in motion is.
Sensitivity: The default value is 3 (The range of the value is 0-5). The sensitivity is used for evaluating the level
of sensitivity of motion detection. Larger the value is, higher the sensitivity is. Even small motions can be detected.
Note:
A very low sensitivity may cause failure to report (No alarm when there is any object in
motion in the video). A very high sensitivity may cause false alarms (Any subtle motion like
leaf or mice may trigger alarm.) The motion threshold and sensitivity need to be adjusted
in an actual application according to user environment. If the values cannot be ensured,
please keep the default values or increase the sensitivity.
(Fig.3-1-18) (Fig.3-1-19)
