TRENDnet TV-IP301 - ProView Advanced Day/Night Internet Surveillance... User manual

1
TABLE OF CONTENTS
ABOUT THIS GUIDE...................................................3
INTRODUCTION............................................................4
FEATURES AND BENEFITS..............................................................5
UNPACKING THE PACKAGE............................................................8
SYSTEM REQUIREMENT .................................................................9
COMPONENTS GUIDE ...................................................................10
HARDWARE INSTALLATION ................................14
A TTACHING THE C AMERA TO THE S TAND ....................................14
CONNECTING THE ETHERNET CABLE ...........................................15
ATTACHING THE POWER SUPPLY.................................................15
SECURITY......................................................................16
APPLICATIONS ...........................................................17
APPLICATIONS OF THE CAMERA ..................................................18
USING THE CAMERA ...............................................20
WEB CONFIGURATION UTILITY ...................................................20
INFORMATION..............................................................................23
CONFIGURATION..........................................................................25
SYSTEM........................................................................................43
VIEWING IMAGE –ACTIVE XMODE............................................56
VIEWING IMAGE–JAVA MODE...................................................59
IPVIEW PRO..................................................................62
INSTALLATION .............................................................................62
GETTING STARTED.......................................................................66
USING IPVIEW PRO......................................................................69
CONFIGURING THE SYSTEM .........................................................75
APPENDIX .....................................................................92
AFREQUENTLY ASKED QUESTIONS.......................................92
BPING YOUR IP ADDRESS....................................................94

2
CTROUBLESHOOTING............................................................95
DTIME ZONE TABLE..............................................................99
EADJUSTING CAMERA FOCUS.............................................101
FI/O TERMINAL APPLICATION............................................103
GSPECIFICATION..................................................................105
HGLOSSARY OF TERMS .......................................................107

3
ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use
your TV-IP301/TV-IP301W Advanced Day/Night (Wireless)
Internet Camera Server with Audio, includes:
zChapter 1, Introduction, provides the general information
on the camera.
zChapter 2, Hardware Installation, describes the hardware
installation procedure for the camera.
zChapter 3, Security, explains the security feature of the
camera.
zChapter 4, Application of the Camera, provides the
illustrations of the camera’s applications.
zChapter 5, Using the Camera, guides you through the
configuration using the web browser.
zChapter 6, IPView Pro, helps you to install and use the
software.
zChapter 7, Appendix.
Please note that the illustrations or setting values in this manual
are FOR YOUR REFERENCE ONLY. The actual settings and
values depend on your system and network. If you are not sure
about the respective information, please ask your network
administrator or MIS staff for help.

4
1
INTRODUCTION
Thank you for purchasing the TV-IP301/TV-IP301W Advanced
Day/Night (Wireless) Internet Camera Server with Audio, a
standalone system that can be connected directly to an Ethernet or
Fast Ethernet network. With support for latest MPEG4
technology, you can record streaming video that utilizes high
quality MPEG-4 images to your hard drive, enable motion
detection and setup automated e-mail alerts for security. The
built-in microphone provides you with the audio function,
allowing you to “watch” and “listen” from the camera.
Compared to the conventional PC Camera, this camera features a
built-in CPU and web-based solutions that can provide a cost-
effective solution to transmit the real-time high-quality video
images and sounds synchronously for monitoring.
The camera can be managed remotely, so that you can use a web
browser to access and control it from any desktop/notebook
computer over the Intranet or Internet. The simple installation
procedures and web-based interface allow you to integrate it into
your network easily. With comprehensive applications supported,
the Internet camera is your best solution for remote monitor, high
quality, and high performance video images.

5
Features and Benefits
Simple to Use
TV-IP301/TV-IP301W Advanced Day/Night (Wireless)
Internet Camera Server with Audio is a standalone system
with built-in CPU, no special hardware (such as a PC frame
capture card) or software required. The camera supports DirectX
9.0; therefore, the only requirement you need is the web browser
software such as Internet Explorer 5.0 or above. Once you have a
valid IP Address, just connect it and you can view the picture and
receive sound from your camera.
Support Variety of Platforms
Supporting TCP/IP networking, SMTP e-mail, HTTP and other
Internet related protocols, the camera can be utilized in a mixed
operating system environment, such as Windows. It can be
integrated easily into other www/Intranet applications.
Web Configuration
Using a standard web browser, the administrator can configure
and manage the camera directly from his own web page via the
Intranet or Internet. Up to 64 users name and password are
permitted with privilege setting controlled by the administrator.

6
Remote Utility
The powerful IPView Pro application assigns the administrator
with a pre-defined user ID and password, so that the administrator
can modify the camera’s settings from the remote site via Intranet
or Internet. When new firmware is available, you can also
upgrade remotely over the network for added convenience. Users
are also allowed to monitor the image and take snapshots.

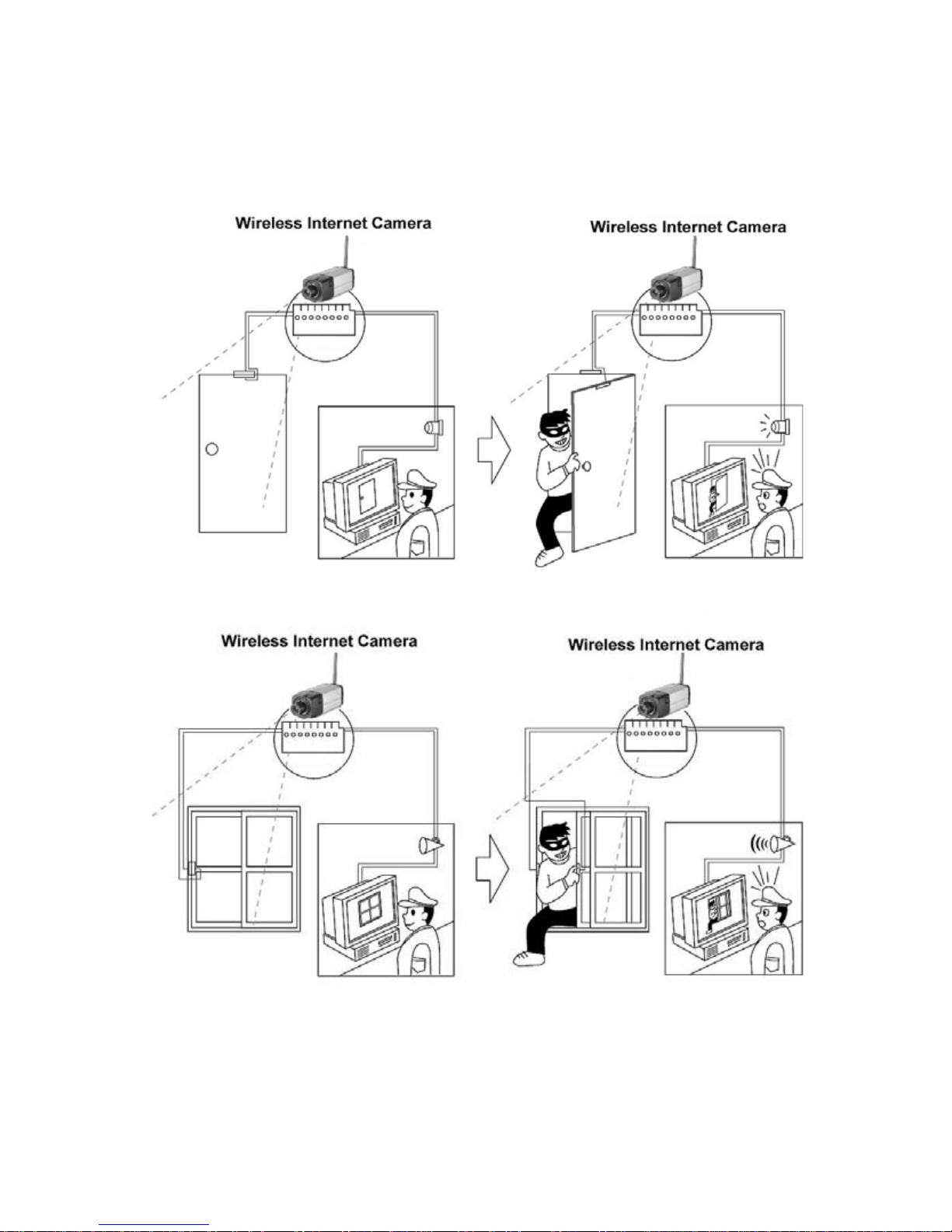

Connection to External Devices
Supporting auxiliary Input/Output Connector, you can connect
the camera to a variety of external devices, such as switches and
alarm relays. One can combine with programmable alarming
facilities to develop a variety of security applications that are
triggered on alarm-based events. The camera provides one
input/output connector to connect external devices.
Broad Range of Applications
With today’s high-speed Internet services, the camera can provide
the ideal solution for live video images and audio sounds over the
Intranet and Internet. The camera allows remote access from a
web browser for live image viewing, so that you can use it to
monitor various objects and places anytime and anywhere, such
as homes, offices, banks, hospitals, child-care centers, amusement
parks and other varieties of industrial and public monitoring. The
camera can be used for intruder detection; in addition, it can
capture still images for archiving and many other applications.

7
RS-485 Support
The pin 7 & 8 of the I/O connectors are used for RS-485 data
transmission. You can connect a special featured device (such as
an external camera stand with rotation function) to meet you
needs. When the external device is connected, you can configure
the settings and control the device from the RS-485 window of
Web Configuration Utility.
Day & Night Feature
The camera equipped with a Day & Night CCD IR lens which
included 12 infrared LEDs to provide crystal clear images in real
time, even at night. In a dark low light situation, the camera
switches to deliver black & white images using its infrared LEDs,
making it the best choice for your outdoor application.

8
Unpacking the Package
Unpack the package and check all the items carefully.
One TV-IP301 or TV-IP301W.
One External Antenna (TV-IP301W only)
One Multi-Language Quick Installation Guide
One Driver & Utility CD-ROM with User’s Guide
One AC power adapter suitable for your country’s electric
power.
One Metal Camera Stand.
One RJ45 Ethernet Cable
If any packaging content is damaged or missing, please contact
your local dealer immediately. Also, keep the packing materials
and box in case you need to ship the units in the future.

9
System Requirement
Networking
Local Area Network:
10Base-T Ethernet or 100Base-TX Fast Ethernet.
Wireless Local Area Network (TV-IP301W only):
IEEE 802.11g WLAN.
Accessing the Camera
For Web Browser Users
OS: Microsoft® Windows® 98SE/ME/2000/XP
CPU: Intel Pentium III 350MHz or above
Memory Size: 128MB
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
For IPView Pro Application Users
OS: Microsoft® Windows® 98SE/ME/2000/XP.
CPU: Intel Pentium 1GHz or above
Memory Size: 256MB
Resolution: 1024x768 or above
NOTE: When you connect multiple cameras and monitor their images
synchronously, it is recommended to use a high performance system, such
as a Pentium 4 2.4GHz PC.

10
Components Guide
This section provides the multi-views of the camera and explains
the function of each component.

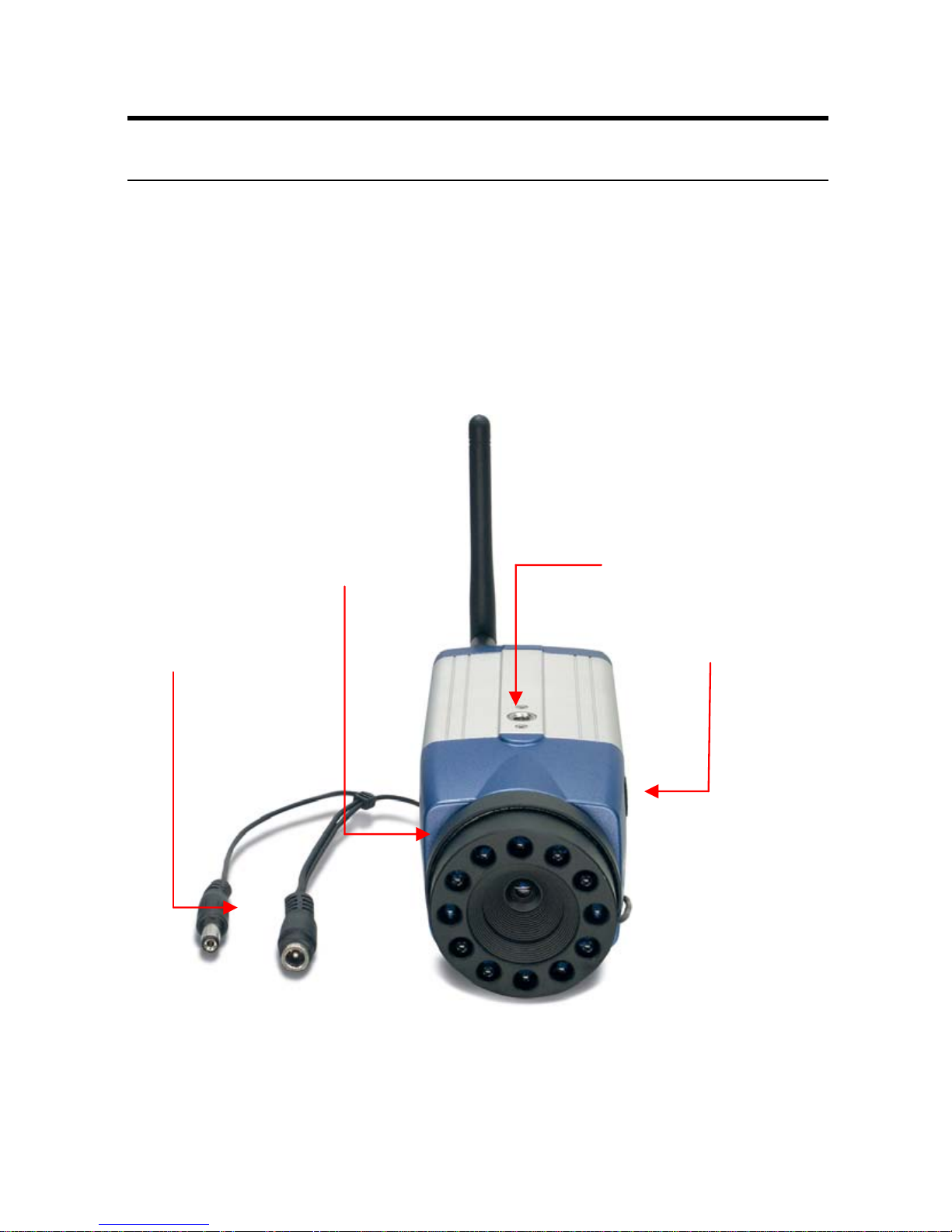

Front, Side and Top/Bottom Panel
3. Internal MIC
2. DC-Iris Connecto
r
1. Screw Hole
4. IR Lens Power Cable

11
1. Screw Hole
Located on the top/bottom panel of the camera, the screw hole is
used to connect the camera stand onto the camera by attaching the
screw head on the camera stand into the screw hole of the camera.
2. Internal MIC
The built-in omni-directional microphone allows the camera to
receive sound and voice.
3. DC-Iris Connector
The camera supports additional DC-Iris lens, and provides the
power and control signal required for adjusting the lens through
this DC-Iris connector (4-pin). You can attach any standard DC-
Iris lens (optional) for specific purpose, such outdoor applications.

12

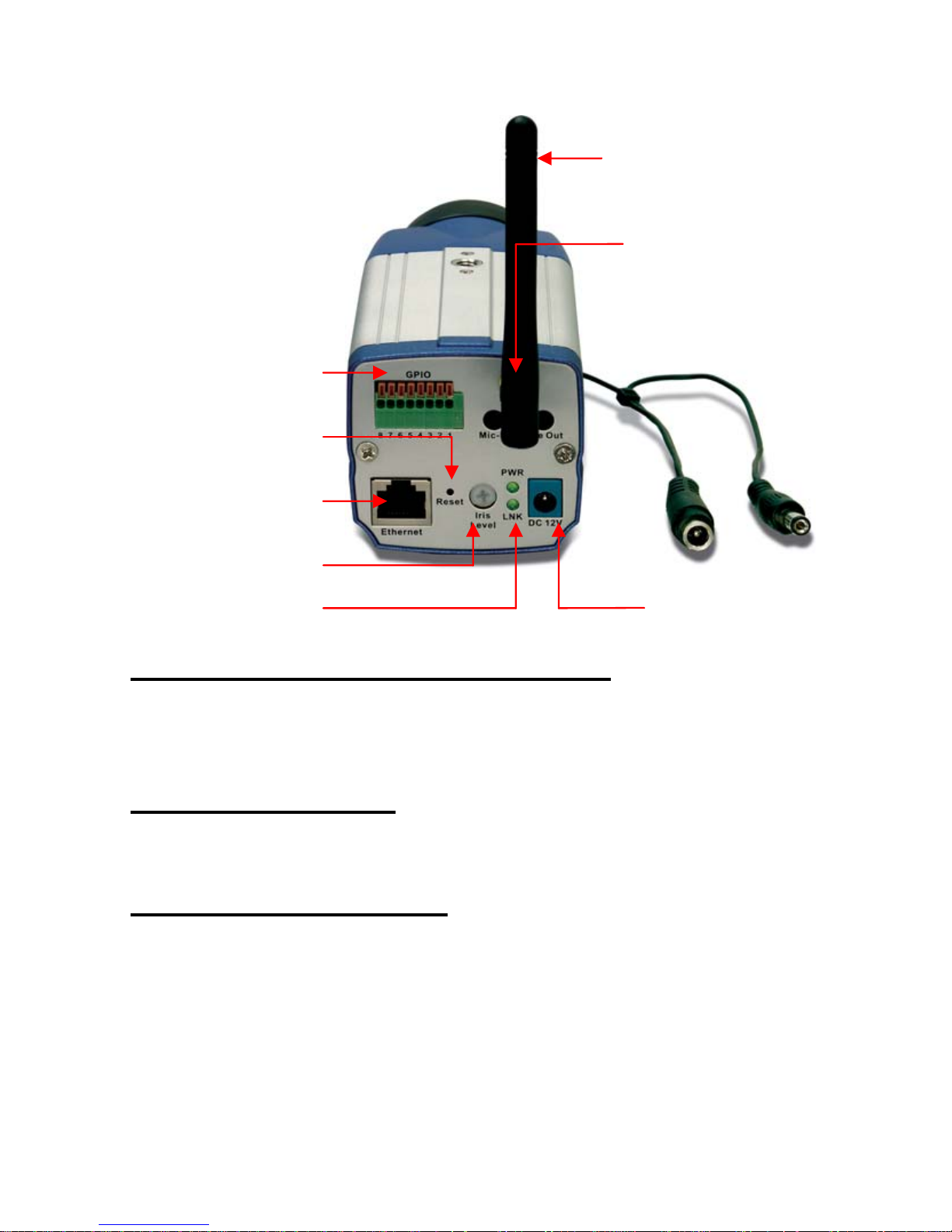

Rear Panel
1. Detachable Antenna (TV-IP301W)
The detachable external antenna allows you to adjust its position
to obtain the maximum signal.
2. Mic-In Connector
This connector allows you to connect an external microphone.
3. DC Power Connector
The DC power input connector is located on the camera’s rear
panel, and is labeled DC 12V with a single jack socket to supply
power to the camera. Power will be generated when the power
supply is connected to a wall outlet.
1. Antenna
(
TV-IP301W
)
6. Network Cable
Connecto
r
7. Reset Button
3. DC Power Connecto
r
8. I/O Connecto
r
5. Iris Level
2. Mic-In Connecto
r
4. Power/Link LEDs

13
4. Power/Link LEDs
The upper LED indicates the camera is powered on with a steady
GREEN light.
The lower LED indicates the camera has good connection to LAN
/WLAN connectivity with a steady GREEN light. It begins
flashing to indicate the camera is receiving/sending data from/to
the LAN/WLAN.
5. Iris Level
This screw-knob is useful only when the DC-Iris lens is
connected to the camera. You can adjust the brightness of the
video images from the DC-Iris lens.
6. Network Cable Connector
This RJ-45 connector is used to connect the 10Base-T Ethernet or
100Base-TX Fast Ethernet network (which should be Category 5
twisted-pair cable). The port supports the NWay protocol,
allowing the camera to automatically detect or negotiate the
transmission speed of the network.
7. Reset Button
Reset will be initiated when this button is pressed. Factory Reset
will be initiated when this button is pressed continuously for five
seconds.
8. I/O Connector
The camera provides the I/O connectors on the rear panel (pin 1/2
are for input, pin 3/4, 5/6 are for output, pin 7/8 are for RS-485),
which provide the physical interface to send and receive digital
signals to a variety of external alarm devices.

14
2
HARDWARE
INSTALLATION
Attaching the Camera to the Stand
The Internet camera comes with
a camera stand, which has a
swivel ball screw head that can
be attached to the camera’s
screw hole on the up (or bottom)
panel. Attach the camera to the
stand and station it for your
application. There are three
holes located in the base of the
camera stand, allowing the
camera to be mounted on the
ceiling or any wall securely.

15
Connecting the Ethernet cable
Connect an Ethernet cable to the
network cable connector located
on the camera’s rear panel, and
then attach it to the network.
Attaching the Power Supply
Attach the power supply plug
to the cable of the lens (A),
and then connect the cable’s
plug to the power connector
located on the camera’s rear
panel labeled DC 12V (B).
Then, connect the power
supply to the wall outlet (C).

16
3
SECURITY
To ensure the highest security and prevent unauthorized usage of
the camera, the administrator has the exclusive privilege to access
the System Administration for settings and control requirements
to allow users the level of entry and authorize the privileges for
all users. The camera supports multi-level password protection.
Accessing to the camera is strictly restricted to defined users with
a "User Name" and "User Password", which are assigned by the
administrator.
The administrator can release a public user name and password.
Therefore, when remote users access the camera, they will have
the right to view the image transmitted by the camera.
NOTE: Since the default settings are Null String, it is highly recommended to
set the "Admin Password" when you are the first time to use the camera.
Once the password is defined, only the administrator is permitted to manage
the camera. The security feature of the camera will not be enabled until the
"Admin Password" is defined; therefore, you have to complete this procedure
as soon as possible.

17
4
APPLICATIONS
The TV-IP301/TV-IP301W Advanced Day/Night (Wireless)
Camera Server with Audio can be applied in wide variety of
applications, including:
zMonitor local and remote places and objects through a web
browser, such as construction sites, hospitals, parks, schools
and day-care centers.
zCapture single frame images or video images from the
IPView Pro application.
zConnect up to two external devices to the camera for alarm
notifications; in addition, when the trigger is activated, you
can configure the camera to send e-mail messages that
attach the video clip (with sound).
The following section provides the typical applications for your
camera with the IPView Pro application, and also includes some
basic knowledge to assist in the installation and configuration of
the camera.

18
Applications of the Camera
Home/ Business Application Diagram

19
I/O Connector Application Diagram
