Anaconda DUNE 4WD User manual
LITHIUM
POWER PACK
24Ah
PRODUCT MANUAL
©ANACONDA GROUP PTY LTD
www.anacondastores.com 1
PRODUCT MANUAL
LITHIUM
POWER PACK
24Ah
Dune 4WD 24Ah LITHIUM POWER PACK Dune 4WD 24Ah LITHIUM POWER PACK
2 3
1. Safety InstructionsContents
Notice:
Please read this instruction manual thoroughly, prior to operation. Keep the manual
in a safe place for future reference.
1. Safety Instructions
2. Product Overview
4. Maintenance and Product Care
..................................................3
...................................................4
.............................................5
...................................................................5
.............................................................5
............................................5
...............................................6
.............................................................6
................................7
.....................................................8
..........................................................9
................................................................10
5. Troubleshooting
7. Technical Data
9. Warranty
Contents
1. Safety Instructions
1. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not use the appliance.
3. This appliance is not suitable for use in locations where children are likely to
be present.
4. 32700 6000mAh 3.2V rechargeable LiFePOcells are contained in the
appliance.
5. Do not leave the appliance unattended while charging and discharging.
6. Use only with supplied battery charger.
7. Do not charge the appliance in temperatures below 0°C or above 60°C. The
appliance will automatically shut down in extreme temperatures.
9. Ensure the appliance is charged and used in a well-ventilated area. Excessive
heat buildup can damage batteries or devices.
10. Do not expose the device to high humidity environments.
11. Avoid storing the appliance long-term in ambient temperatures exceeding
35°C (such as but not limited to cars, sheds or poorly ventilated spaces on
hot days) as this will affect the longevity of the battery cells.
13. Never attempt to disassemble the appliance.
14. Do not drop, impact, puncture the appliance.
15. Do not immerse in water.
16. Always be aware of the risk of the power pack terminals being short-circuited
by metal objects.
17. Ensure the device is protected from direct sunlight and rain at all times.
18. Do not use the appliance in temperatures below -10°C or above 60°C.
Extreme temperatures can affect battery performance and life span.
19. Do not use cables if damaged.
20. This appliance contains batteries that are non-replaceable. When the battery
is at end of life, the appliance shall be properly disposed of.
21. Regularly inspect the status of the appliance, including battery charge levels
and external damage. If any issues arise, stop use immediately.
22. Follow applicable disposal regulations to safely dispose of the device at the
end of its service life.
23. Do not dispose in household waste or recycling bins. Improperly discarded
LiFePO
environment.
Charge the power pack
Charge your devices
LED Torch
3. Operating Instructions
Controls
Instructions
Dune 4WD 24Ah LITHIUM POWER PACK Dune 4WD 24Ah LITHIUM POWER PACK
4 5
3. Operating Instructions2. Product Overview

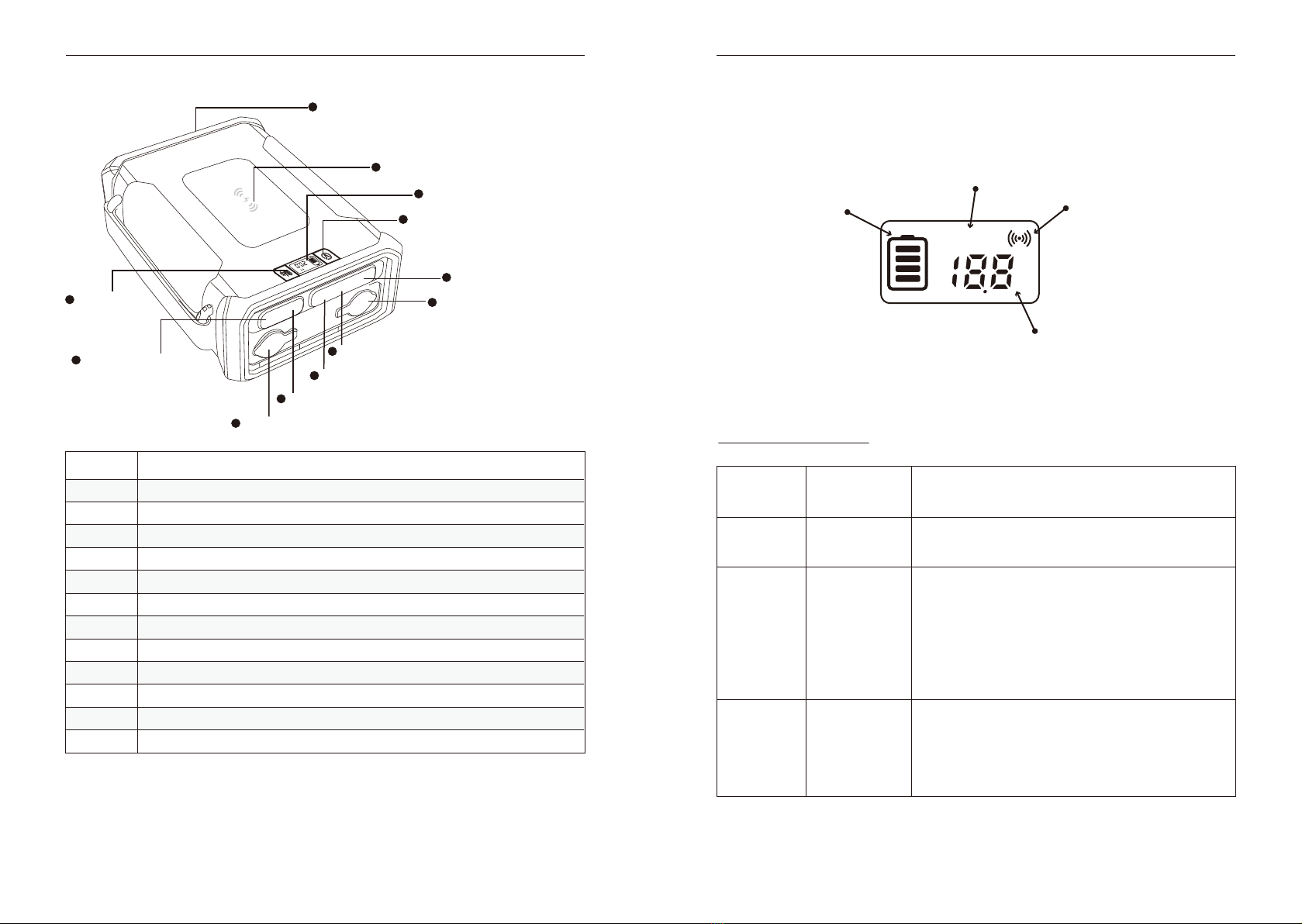

2. Product Overview
Item No. Item Name
1
2
3
4
5
6
7
8
9
10
11
12
LED Torch
Wireless Charging Pad
Power Button
Charging Port – connect to supplied 240V AC Adaptor
12V Cigarette Lighter Socket
USB-C IN/OUT
USB-A 1 OUT
USB-A 2 OUT
12V Cigarette Lighter Socket
DC OUT – DC5521 Port
DC OUT Voltage Level Selection Button – DC5521 Port
LED Display
What’s in the box
• Dune 4WD 24Ah Lithium Power Pack
• 240V AC Adaptor
• USB-C to USB-C Cable
• DC5521 to DC5521 Cable
• DC5521 Plug Converter Set
• Product Manual
LED Display
DC
IN
US B C
IN /O UT OUT
US B2 U SB1
OU T
DC
OU T
12V/15A
OUT
12 V/1 5A
OUT
11
10
9
12
2
3
4
6
8
7
5
1
OUT
%
V
Wireless Charging Pad
Power Button
LED Torch
DC OUT – DC5521 Port
12V Cigarette Lighter Socket
12V Cigarette Lighter Socket
Charging Port
– connect to supplied
240V AC Adaptor USB-C IN/OUT
USB-A 1 OUT
USB-A 2 OUT
DC OUT Voltage
Level Selection
Button – DC5521 Port
Battery Charge Level
4 Bars: 100%
3 Bars: 75%
2 Bars: 50%
1 Bar: 25%
Charging Indicator
IN: Battery is being charged
OUT: Battery is charging devices
Wireless
Charging
ON/OFF
DC5521 Port
Voltage Output Level
IN OUT
%V
3. Operating Instructions
Controls
Instructions
Charge the power pack
You can charge the power pack via the following methods:
Charging
Method
Approximate
Charge Time Notes
240V
AC Adaptor ~10 Hours • Only use the supplied AC Adaptor
• Ensure this is plugged into ‘DC IN’ port.
• Charge time for the USB-C input depends
on the output power of your charger.
• If charging via USB-C, we recommend using
an adaptor that supplies at least 60W for
fast charging.
• Ensure that the adapter output power
matches the input power of the device
• Charge time depends on a range of factors,
including the power output of your solar
panel, the light intensity at the solar panel
cells and voltage drop in your cable.
• It can support up to 80W charging.
Solar Panel
USB-C
N/A
~6 Hours
(60W PD)
Note: When using DC IN port to charge the power pack, USB-C Out port will not work.
Dune 4WD 24Ah LITHIUM POWER PACK Dune 4WD 24Ah LITHIUM POWER PACK
6 7
4.Maintenance and Product Care3. Operating Instructions
Charge your devices
NOTE: The power pack will automatically turn on and charge devices when they
the current charge level.
NOTE: This device is capable of pass-through charging.
NOTE: The power pack will automatically turn off after devices are unplugged
from the ports.
LED Torch
• Amber LED Torch: Hold the power button to turn ON/OFF
• White LED Torch: Double tap the power button to turn ON/OFF.
1.To activate wireless charging, press the power button.
2.The wireless charging indicator on the LED display will appear to indicate that
that the wireless charging function is active.
Wireless Charging
WARNING: Serious damage may occur to your device if an incorrect voltage
level is selected. Ensure you are using the correct voltage setting for your
device before using this port.
Your power pack comes with a DC5521 to DC5521 connector and several plug
converters for use with this port.
The DC OUT port (DC5521) is capable of providing several voltage level
outputs, to power a range of 12-24V DC devices. Use this to charge laptops,
fans, pumps, LED lights and more. See Technical Data for the range of DC
output levels.
connecting it to this port.
1. Press and hold the ‘DC OUT Voltage Selection’ button to unlock this setting.
2. Press the button to cycle through voltage levels.
3. Select the voltage level required by your device.
5 .Connect your device with an appropriate cable.
‘DC OUT’
4. Maintenance and Product Care
• To protect battery life, please unplug the charging cable once the power pack
is fully charged.
• Run a full charge / discharge cycle at least once every three months to avoid
shortening the life span of the battery.
• When storing the power pack long-term, we recommend storing at
approximately 80% charge.
• Although the power pack is capable of pass-through charging, avoid charging
and discharging the power pack at the same time as this may reduce the
battery's life span.
• When supply power for different devices. A further 10% - 20% is lost by the
device being charged and the charging cable used.
• Always use the original cable supplied with the device.
Dune 4WD 24Ah LITHIUM POWER PACK Dune 4WD 24Ah LITHIUM POWER PACK
8 9
5. Troubleshooting 6. Technical Data
5. Troubleshooting
AC adaptor.
and that the power source matches the power input requirements of the
power pack as indicated in Technical Data.
and that you have placed the solar panel in a location with adequate sunlight
and that the actual power output from the solar panel matches the power
• If issues persist, please contact your local Anaconda store.
Power pack will not recharge or recharges slowly
power input requirements of your appliance.
are able to use all output ports at once, but the maximum total load cannot
exceed 180W.
• It is recommended to avoid using the DC5521 and USB port when the
cigarette socket is drawing maximum power as indicated in Technical Data.
checking the wireless charging indicator (see ‘product overview’ above). Press
the power button to activate wireless charging.
Power pack has charge remaining but is not charging my device
Note: Maximum power output of the power pack is 180W.
6. Technical Data
Product
Article No.
Power Pack Capacity
Battery Cell Capacity
Dimensions (mm)
Net Weight (kg)
Dune 4WD 24Ah Lithium Power Pack
90217641
24Ah/307.2Wh @12.8V DC
6Ah/19.2Wh @3.2V DC
226 x 165 x 76
3
Input
DC 18-24V, 4A
DC5521
Solar Panel
USB-C
80W Max
DC 5V/3A
DC 9V/3A
DC 12V/3A
DC 15V/3A
DC 20V/3A
Output
DC 12V, 10A Constant, 15A PeakCigarette Socket
Wireless Charging Pad
USB-A 1&2
USB-C
DC5521
10W
DC 5V/3A
DC 9V/2A
DC 12V/1.5A
DC 5V/3A
DC 9V/3A
DC 12V/3A
DC 15V/3A
DC 20V/3A
DC 12V/5A
DC 16.5V/4A
DC 20V/3.5A
DC 24V/3.5A
Dune 4WD 24Ah LITHIUM POWER PACK
10
7.Warranty
THIS PRODUCT IS GUARANTEED TO BE FREE FROM DEFECTS IN WORKMANSHIP AND
MATERIALS FOR A PERIOD OF 1 YEAR FROM THE DATE OF PURCHASE. THE PRODUCT
WILL BE REPLACED OR REFUNDED FOR A MAJOR FAILURE. THE PRODUCT WILL BE
REPAIRED OR REPLACED AT OUR DISCRETION, SHOULD THE PRODUCT FAIL TO BE OF
AN ACCEPTABLE QUALITY AND FAILURE IS NOT CONSIDERED A MAJOR FAILURE.
WARRANTY WILL NOT APPLY IF THE PRODUCT (A) IS DAMAGED THROUGH MISUSE
(INCLUDING FAILURE TO MAINTAIN), NEGLECT, ACCIDENT OR ORDINARY WEAR AND
TEAR (INCLUDING RUST, CORROSION, NORMAL FADING, WEATHERING, STAINING,
DISCOLOURATION, SCRATCHING OR CHIPPING); (B) IS DAMAGED THROUGH EXPOSURE
TO HEAT; (C) IS USED COMMERCIALLY; (D) HAS NOT BEEN USED OR INSTALLED IN
ACCORDANCE WITH ANY APPLICABLE INSTRUCTIONS; OR (E) HAS BEEN MODIFIED,
REPAIRED OR TAMPERED WITH BY THE PURCHASER OR AN UNAUTHORISED SERVICE
PERSON.
OUR GOODS COME WITH GUARANTEES THAT CANNOT BE EXCLUDED UNDER THE
AUSTRALIAN CONSUMER LAW. YOU ARE ENTITLED TO A REPLACEMENT OF REFUND
FOR A MAJOR FAILURE AND FOR COMPENSATION FOR ANY OTHER REASONABLY
FORESEEABLE LOSS OR DAMAGE. YOU ARE ALSO ENTITLED TO HAVE THE GOODS
REPAIRED OR REPLACED IF THE GOODS FAIL TO BE OF AN ACCEPTABLE QUALITY AND
THE FAILURE DOES NOT AMOUNT TO A MAJOR FAILURE.
TO CLAIM UNDER THIS WARRANTY, PLEASE TAKE THIS PRODUCT TO THE ANACONDA
WHERE YOU PURCHASED IT. YOU WILL NEED YOUR RECEIPT OR OTHER PROOF OF
PURCHASE. ADDITIONAL INFORMATION MAY BE REQUESTED OF YOU TO PROCESS
YOUR CLAIM. SHOULD YOU NOT BE ABLE TO PROVIDE PROOF OF PURCHASE WITH A
RECEIPT; A BANK OR CREDIT STATEMENT, AND IDENTIFICATION SHOWING YOUR NAME,
ADDRESS AND SIGNATURE MAY BE REQUIRED TO PROCESS YOUR CLAIM. ANY EXPENSE
RELATING TO THE RETURN OF THE PRODUCT TO THE STORE WILL BE AT THE EXPENSE
OF THE CUSTOMER. FOR ONLINE PURCHASES, PLEASE CONTACT US TO ARRANGE
WHERE AND HOW TO RETURN THE PRODUCT.
TO OBTAIN COMPENSATION, YOU WILL NEED TO PROVIDE DOCUMENTARY EVIDENCE
OF THE LOSS OR DAMAGES SUFFERED, AND DOCUMENTARY EVIDENCE THAT SUCH
LOSS OR DAMAGE WAS REASONABLY FORESEEABLE CONSEQUENCE OF A FAILURE.
SUCH EVIDENCE MAY INCLUDE PHOTOGRAPHS, STATUTORY DECLARATIONS, RECEIPTS,
REPORTS (EG. FROM YOUR DOCTOR), DEPENDING ON THE LOSS OR DAMAGE.
THE BENEFITS GIVEN BY THIS WARRANTY ARE IN ADDITION TO OTHER RIGHTS AND
REMEDIES UNDER THE AUSTRALIAN CONSUMER LAW IN RELATION TO THE GOODS AND
SERVICES TO WHICH THIS WARRANTY RELATES. WARRANTY EXCLUDES CONSUMABLE
REPLACEMENT/SERVICEABLE PARTS (WHERE APPLICABLE TO THE PRODUCT) AS
DETAILED IN THE PRODUCT INSTRUCTION MANUAL OR PACKAGING WHICH ARE
AVAILABLE FOR PURCHASE.
7.Warranty
THIS WARRANTY IS PROVIDED BY:
ANACONDA GROUP PTY LTD (ABN 53 955 173 782)
LEVEL 6, 111 CECIL STREET, SOUTH MELBOURNE, VIC, 3205
WWW.ANACONDASTORES.COM PH: 1300 558 990
IMPORTED BY:
ANACONDA GROUP PTY LTD (ABN 53 955 173 782)
LEVEL 6, 111 CECIL STREET, SOUTH MELBOURNE, VIC, 3205
MADE IN CHINA
Other manuals for DUNE 4WD
1
This manual suits for next models
1
Table of contents
