USER MANUAL
Model: RSN-BX007
Please read these instructions carefully
and keep for future reference
ALL-IN-ONE PORTABLE & RECHARGEABLE SOLAR POWER PACK

2
CONTENT
IMPORTANT SAFETY INSTRUCTION…………………………………………………………………..........….3
INTRODUCTION……………………………………..………………………………………………………………4
WHAT’S IN THE BOX? ...……………………….....……………………………………………………………….4
PRODUCT DIAGRAM …………..………………..…………………………………………………………………5
CHARGING / DISCHARGING INTERFACE .…..…………………………………………………………………5
FEATURES ……………………………..…………………………………………………………………..………..6
SPECIFICATION ……………………………..………………………………………………………….…………..6
OPERATION INSTRUCTION ……………………………..……………………………………………..…………7
CHARGING YOUR RISEN ……………………………..………………………………………...……………8
POWERING / CHARGING YOUR DEVICES ……………………………..………………………………….…9
LED LIGHT …………………………………..……………………………………………………………………...10
MAINTENANCE AND CARE ……………………………..……………………………………………………….10
CAUTIONS ……………………………..……………………………………………………………………….…..10
WARRANTY INFORMATION ……………………………..………………………………………………………11

3
RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER.
To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside this unit. Refer servicing
to a qualified technician.
The lightning flash with the arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of un-insulated 'dangerous voltage' within the products in-closure, that may be
of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle, is intended to alert the user to the presence of
important operating and maintenance (servicing) instruction in the literature accompanying the
appliance.
CAUTION: always read and observe all warnings and instructions given in the instruction manual and those marked on
the unit.
Read these instructions carefully and keep them in a safe place.
Do not use this appliance near water.
Clean only with a soft dry cloth.
Only use attachments/accessories specified by the manufacturer.
Unplug this unit during lightning storms or when not in use.
Refer all servicing to a qualified service personnel. Servicing is required when the appliance is damaged in anyway.
No object filled with liquids such as vases shall be placed on the appliance.
Do not place naked flame sources such as candles on the appliance.
Make sure all electrical connections are properly made in accordance with the manufacturer’s instructions. Switch off
and unplug from the mains before changing any connections.
Make sure the mains cord is routed so that it is not likely to be walked on, or subjected to water and heat. Should the
power cord need replacing, it must be replaced with a cord of the same type by a qualified technician.
Do not obstruct the vents with such things as newspapers, table cloths, curtains and so on.
Do not operate the appliance if you are in doubt about it working normally, or if it is damaged in any way. Make sure
there is adequate ventilation space around the appliance, at least 10 cm at the sides and on the top.
Always unplug from the mains when not in use.
The mains plug should not be obstructed and remain readily accessible during intended use.
The rating markings are located on the base of the unit.
Do not place this equipment in a confined or building-in space such as a book case or similar unit, and remain a well
ventilation conditions. The ventilation should not be impeded by covering the ventilation openings with items such as
newspaper, table-clothes curtains etc.
WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before
installing or operating the apparatus.
WARNING: While charging/discharging with power cords, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be
placed on apparatus.
WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as direct
sunshine, fire or the like.
WARNING: The mains switch is used as the disconnect device, so the disconnect device shall remain readily operable.
IMPORTANT SAFETY INSTRUCTION

4
Congratulations on purchase of RISEN the All-In-One Portable & Rechargeable Solar Power Pack. The RISEN
combines leading-edge technology in mono-crystalline photovoltaic and electronics into one portable device to provide
you with the best that technology has to offer for your portable charging needs.
- Please read the User’s Guide prior to using your RISEN.
- Failure to follow the instructions can result in irreparable damage to the device.
- Please keep this User’s Guide for future reference.

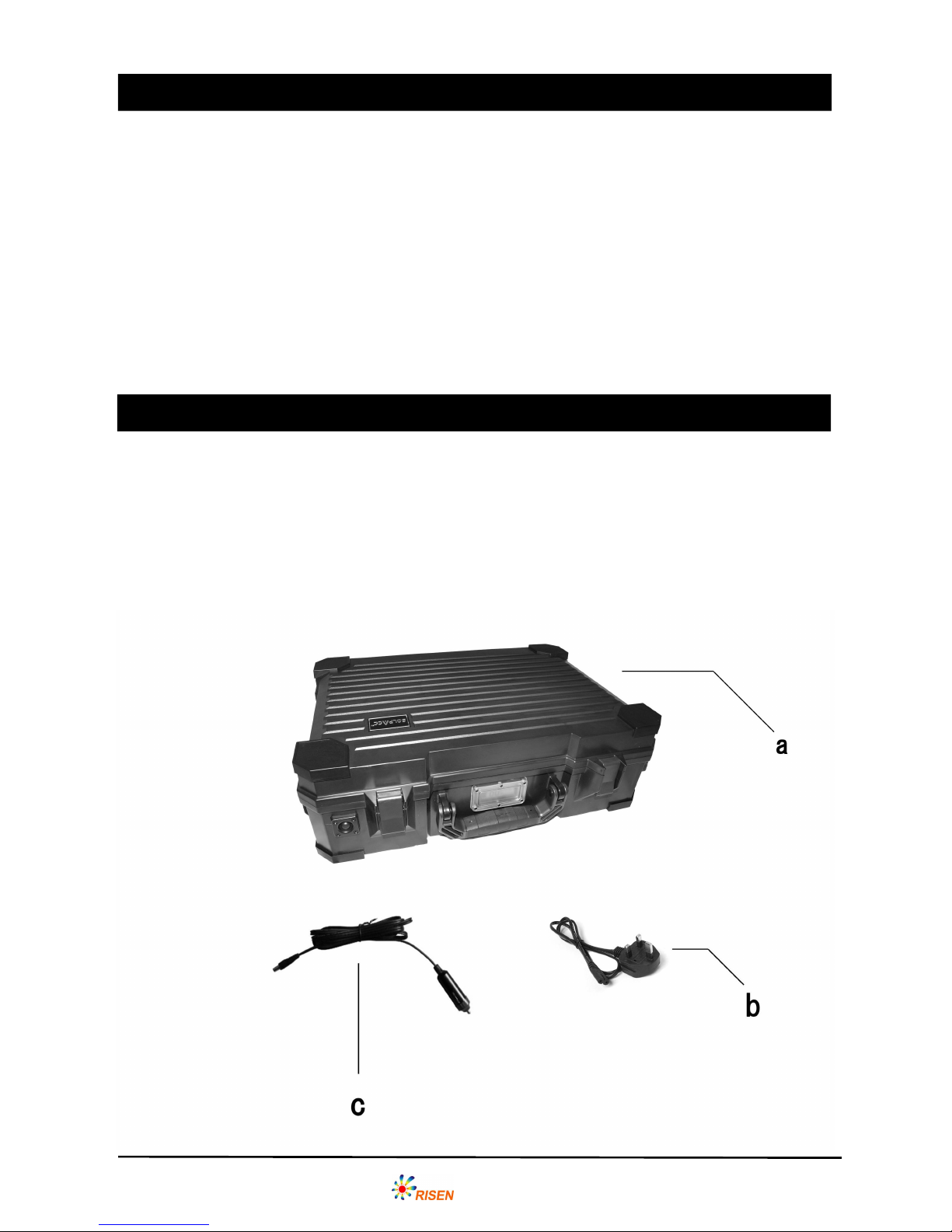

a - RISEN - Solar Power Pack
b - AC 220V charging cable
c - DC 12V charging cable
INTRODUCTION
WHAT’S IN THE BOX?

5
PRODUCT DIAGRAM
ⒶAC 220V OUTPUT
ⒷDC 12V CAR SOCKET
ⒸAC 220V INPUT
ⒹDC 5V USB
ⒺDC 12V OUTPUT (5.5X2.1mm)
ⒻDC 12V OUTPUT (5.5X2.1mm)
ⒼDC 12V~23V INPUT
ⒽDC ON /OFF
ⒾAC ON /OFF
①Solar panels
②3W LED bulb
③3W LED ON/OFF switch
④Solar panel connector
⑤LCD screen
⑥Hinge guard
⑦Master switch
⑧Waterproof safety door
⑨Charging & Discharging interface
⑩Weatherproof rugged construction
CHARGING / DISCHARGING INTERFACE

6
Self-contained portable & rechargeable solar power pack for travel, outdoor activities and
emergency/disaster preparedness.
Folding up to a briefcase size with lightweight & self-contained with impact-resistance & IP65 waterproof
design, the RISEN is a rugged portable & rechargeable solar power source that can convert virtually
unlimited supply of solar energy to power all modern technologies and also provided power storage for
later use when needed.
AC & DC outputs for powering/charging multiple devices up to 350W, such as small appliances, lamps,
electric fans or TV, 12V car electronics, laptops, tablets, cell phones & other portable gadgets
simultaneously.
Charging the built-in 32/48Ah Lithium Polymer battery indoor or outdoor from:
- 5 x 10 watt mono-crystalline solar panels
- AC 220V wall socket using power cord included
- DC 12V car cigarette lighter socket using power cord included
- Additional external solar panels not included
Ingress Protection rating IP65 meaning totally protected against dust ingress and protected against low
pressure water jets from any direction. Limited ingress permitted.
Universal AC 220V socket that accepts British, NEMA USA, European plug and Australian power plugs.
Built-in super-bright 3 watt white LED bulb with 2 selectable modes, flashlight or SOS beacon light.
Back-lit LCD display with battery strength, input, output and operation status indicators.
SPECIFICATION
FEATURES
Model No. RSN-BX007
Waterproof IP65
Solar panels (Mono-crystalline) 5 x 10W 16V
Inverter (Pure Sine Wave) 350W AC 220V
Battery (Lithium Polymer) 12V 32Ah/48Ah
Controller 12V 8A
LED 3W Lighting with SOS feature
Outputs
Universal AC 220V - 1 pc
DC 12V (5.5X2.1mm) - 2 pcs
DC 12V car socket - 1pc
DC 5V/2A USB - 2 pcs
Inputs AC 220V - 1 pc
DC 12-23V/4A - 1 pc
Dimensions 452*347*137mm
Weight 9.5/10.8kg

7

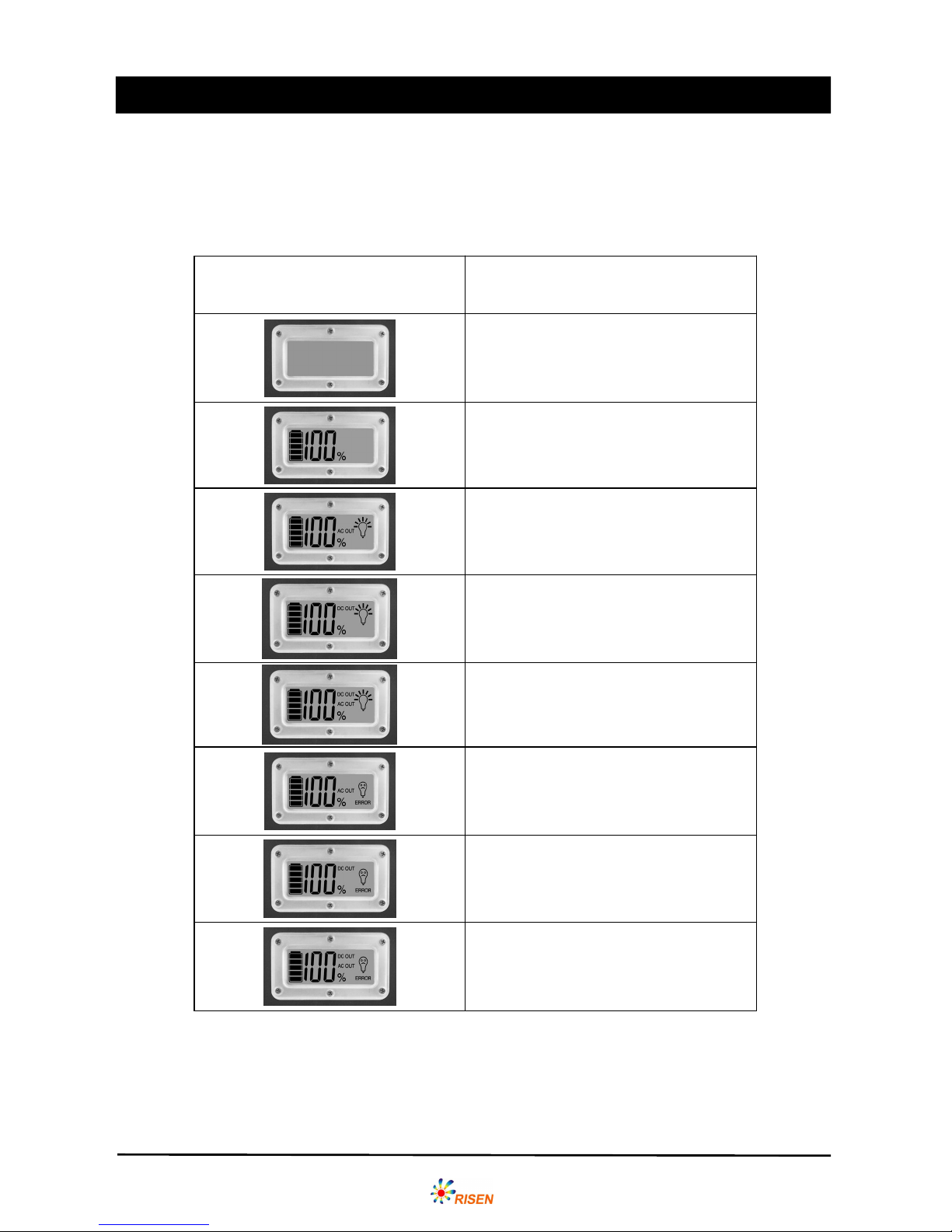

RISEN features a blue back-lit LCD status indicator.
LCD Display Working state
POWER OFF
POWER ON
AC OUTPUT ON
DC OUTPUT ON
AC&DC OUTPUT ON
AC ERROR
DC ERROR
AC&DC ERROR
OPERATION INSTRUCTION

8
There are three ways to charge your RISEN.
SOLAR CHARGING
The RISEN can be charged by using the power of the Sun. Open your RISEN and for best results, place it
in direct sunlight. The battery capacity on ④LCD display will start going up. Make sure ①the solar panel
can get as much sunlight as possible.
The ①solar panels can be detached from RISEN and placed further away if required. To do it first
disconnect ⑤Solar panel connector next release hinge by pulling ⑥Hinge guard away from ①Solar
panels and lift them up. Reconnect RISEN to ①Solar panels using 5m extension cable(NOT INCLUDED)
for solar panels.
You can add additional solar panels (Max.100W) by connecting them through ⒼDC 12V~23V INPUT
connector and putting them under direct sunlight, to charge the RISEN faster (not included).
After the ④LCD display shows the battery 100% full please close the RISEN and / or disconnect
additional solar panels to protect the battery.
The 32/48Ah internal backup battery will take about 12/18 hours to fully charge.
In cloudy conditions, RISEN may take approximately 2 times longer to charge than the above mentioned
times, but this is depending on the time of year, density of cloud etc.
If charging from behind the glass, it will increase the time needed to charge, sometimes up to three times
longer than if outside.
AC CHARGING
The RISEN can be charged by any standard AC 220V wall outlet using the included (b) AC charging cable.
Connect (b) charging cable to RISEN in to Ⓒthe AC 220V INPUT and plug the other end into any
standard AC wall outlet to begin charging. The battery capacity on ④LCD display will start going up. After
④the LCD display shows the battery 100% full disconnect the charging cable to protect the battery.
The 32/48Ah internal backup battery will take about 6/9 hours to fully charge.
DC CHARGING
The RISEN can be charged by car DC 12V cigarette socket using the included (c) DC charging cable.
Connect (c) charging cable to RISEN in to the ⒼDC 12V-23V INPUT and plug the other end into DC 12V
car cigarette socket to begin charging. The battery capacity on ④LCD display will start going up. After the
④LCD display shows the battery 100% full, disconnect the charging cable to protect the battery.
The 32/48Ah internal backup battery will take about 7 -12 / 10,5 - 18 hours to fully charge.
Approx. Charging Time
Approx. Battery
charging capacity
time
Charging method
12V 32Ah 12V 48Ah
AC charging 6 hours 9 hours
DC charging 7-12 hours 10,5 - 18 hours
50W solar charging 12 + hours 18 + hours
CHARGING YOUR RISEN

9
Turn ⑥the master switch ON.
To use AC press the ⒾAC ON/OFF button to turn it ON.
Connect AC 220V device to ⒶAC 220V OUTPUT socket, make sure the load power is no bigger than
350W. Recommended continuous power load is 300W.
After finishing powering/charging, disconnect the device from the RISEN and press the ⒾAC ON/OFF
button to turn off the AC power.
To use DC press the ⒽDC ON/OFF button to turn it ON.
Connect DC 12V device to Ⓑor Ⓔor ⒻDC 12V OUTPUT socket, make sure the load power is no
bigger than 60W.
After finishing powering/charging, disconnect the device from the RISEN and press the ⒽDC ON/OFF
button to turn off the DC power.
ⒹThe Universal USB power ports allows you to charge mobile devices such as iPod®, iPhone®, iPad®,
Zune®, Samsung® and other devices which require special proprietary OEM cables. Simply connect your
OEM USB cable to your device and to the RISEN as described in the steps above.
You can use AC & DC power at the same time, but make sure the load power does not exceeds the limits.
Sample Items RISEN with 48Ah Battery Can Power On a Full Charge
POWERING / CHARGING YOUR DEVICES
Sample Items
Power
Load Quantity
Cumulative
Daily Working
Hours
Daily Power
Consumption
Continued
Working days
CFL Bulb 15W 2 4 120Wh 4 Days
LED bulb 3W 4 4 48Wh 10 Days
LCD TV(28 inch) 60W 1 3 180Wh 2.7 Days
Laptop 60W 1 2 120Wh 4 Days
Inkjet printer 30W 1 0.5 15Wh 32 Days
Tablet 10W 1 6 60Wh 8 Days
Handheld console 6W 1 5 30Wh 16 Days
Radio 3W 1 6 18Wh 27 Days
Cell phone 2.5W 2 8 40Wh 12 Days
Hand vacuum 80W 1 2 160Wh 3 Days
Satellite Phone 12W 1 2 24Wh 20 Days
GPS 4W 1 4 16Wh 30 Days
Multiple Items Can Be Powered Simultaneously

10
The RISEN is equipped with a side-loaded ②LED light. It can be used as a torch, reading light,
emergency backup light, for camping and more. Simply press the ③LED switch to turn ON the light.
Press it again to switch ON the SOS mode. By pressing it third time the LED light will be turned OFF.
When 32/48Ah battery fully charged, continues working time of LED light is approx. 106/160 hours.
Avoid direct eye contact with the LED light during operation. Prolonged exposure to a high-intensity light
source may cause eye damage.
Wipe the exterior surface with a damp cloth and dry thoroughly with a soft dry cloth prior to use.
Do not use abrasive or volatile cleaning compounds.
For the best results, please ensure that the solar cell is free from any dust or debris that may impede
direct sunlight exposure.
For long term storage, ensure the unit is placed in a cool dry indoor location.
Recharge your RISEN every 6 months when not in use.
Check the voltage of your device before connecting with RISEN.
Do not use any devices above 350W to prevent damage of the inverter.
Keep in a safe place free from dust, liquid and extreme temperatures.
Do not store and operate RISEN outside of the following temperature range: from -5ºC to 45 ºC.
Keep out of reach of small children.
When not in use, please disconnect from power sources.
Do not drop or apply excessive pressure to the solar panels.
Do not use sharp objects near the solar panels to avoid damage.
Do not attempt to repair the unit, always contact technical support if you experience any faults.
LED LIGHT
MAINTENANCE AND CARE
CAUTIONS
This unit contains a Li-Polymer 12V 32/48Ah battery.
Do not dispose of this product in your household waste. Contact your local authority for
details of local recycling schemes Batteries should not be disposed of in household waste.
Batteries should be taken to appropriate disposal points or alternatively contact your local
authority for details on disposal schemes.

11
Your RISEN is supplied with a 12 month warranty from the date of purchase against defects in material
and workmanship under normal use and service. Should your RISEN prove defective within 1 year from
the date of purchase, return the device product, freight prepaid along with a copy of the proof of purchase
and an explanation of the claim to RISEN.
RISEN does not accept liability for any 3rd party damage how so ever caused or any costs associated with
the return of faulty products.
Under this warranty RISEN will replace or repair any parts found to be defective due to manufacturers
defect. This warranty extends only to personal use and does not extend to any product that has been used
for commercial use, rental use, or use which is not intended. There are no warranties other than that
expressly set forth herein. This warranty is not transferable.
RISEN is not responsible in any way for damages, losses, or inconveniences cost by equipment failure or
by user negligence, abuse, or use in not accordance with the “User Manual” or any other additional safety,
use, or warnings included in the product materials.
Further, RISEN is not liable for incidental, data loss, or consequential damages of any nature resulting
from the use of this product and any liability shall not exceed the purchase price of the product.
These warranty conditions in no way affect your statutory rights.
Please visit www.fllhsolar.cn
Copyright Ⓒ2013 RISEN
All rights re
served.
WARRANTY INFORMATION
