FEATURES
Full-featured evaluation board for the AD5422
On-board reference
Link options
Direct hook-up to USB port of PC
PC software for control
EVALUATION BOARD DESCRIPTION
The EVAL-AD5422 is a full-featured evaluation board that is
designed to allow the user to easily evaluate all features of the
16-bit AD5422 current source and voltage output digital-to-
analog converter (DAC). All of the AD5422 pins are accessible
at on-board connectors for external connection. The board can
be controlled by two means, via the on-board connector (J8) or via
the USB port of a Windows® 2000-, NT®-, XP®-based PC using the
AD5422 evaluation software. The default setup is for control via
the USB port.
Two separate packages exist for the AD5422 (24-lead TSSOP and
40-lead LFCSP); therefore, two corresponding evaluation boards
are available.
DEVICE DESCRIPTION
The AD5422 is a low cost, precision, fully integrated 16-bit
converter, offering a programmable current source and
programmable voltage output designed to meet the requirements
of industrial process control applications. The output current
range is programmable to 4 mA to 20 mA, 0 mA to 20 mA, or an
overrange function of 0 mA to 24 mA. The voltage output is
provided from a separate pin that can be configured to provide
0 V to 5 V, 0 V to 10 V, ±5 V or ±10 V output ranges; an overrange
of 10% is available for all ranges. Analog outputs are short- and
open-circuit protected and can drive capacitive loads of 1 μF. The
device is specified to operate with a power supply range from
10.8 V to 40 V. The output loop compliance is 0 V to AVDD − 2.5 V.
Complete specifications for the AD5422 are available in the
AD5422 data sheet and should be consulted in conjunction
with this document when using the evaluation board.
FUNCTIONAL BLOCK DIAGRAM
USB
CONNECTOR
POWER SUPPLY INPUTS
PIN
HEADER (J8)
CONTROLLER
CY7C68013A
SELECT ADC
REFIN
INPUT/
OUTPUT
REFOUT
AD5422
5V
VOLTAGE
REFERENCE
EXT REF
ITOV
VOUT
IOUT
08230-001
Figure 1.

UG-442 Evaluation Board User Guide
Rev. C | Page 2 of 16
TABLE OF CONTENTS
Features .............................................................................................. 1
Evaluation Board Description......................................................... 1
Device Description........................................................................... 1
Functional Block Diagram .............................................................. 1
Revision History ............................................................................... 2
Evaluation Board Hardware ............................................................ 3
Power Supplies .............................................................................. 3
Link Options ..................................................................................3
Evaluation Board Software...............................................................6
Software Installation .....................................................................6
Software Operation .......................................................................6
Evaluation Board Schematics and Artwork...................................8
Ordering Information.................................................................... 14
Bill of Materials........................................................................... 14
REVISION HISTORY
10/13—Rev. B to Rev. C
Change to Figure 6 ........................................................................... 9
Change to Figure 8 ......................................................................... 11
Changes to C3, Supplier/Number Column, Table 5 .................. 14
3/13—Rev. A to Rev. B
Change to Control Register Section and Added Figure 4;
Renumbered Sequentially................................................................ 7
7/12—Rev. 0 to Re v. A
Document Title Changed from E VA L -AD5422 to
UG-442.................................................................................Universal
Changes to Evaluation Board Description Section...................... 1
Changes to Figure 3.......................................................................... 6
Changes to Figure 4.......................................................................... 8
Changes to Figure 5.......................................................................... 9
Inserted Figure 6; Renumbered Sequentially.............................. 10
Inserted Figure 7............................................................................. 11
Changes to Figure 8 to Figure 10.................................................. 12
Inserted Figure 11 to Figure 13..................................................... 13
4/09—Revision 0: Initial Version

Evaluation Board User Guide UG-442
Rev. C | Page 3 of 16
EVALUATION BOARD HARDWARE
POWER SUPPLIES
The following external supplies must be provided:
•5 V between the 5 V and 0 V inputs for the digital supply
of the AD5422 and digital circuitry. Alternatively, place
LK6 in Position A to power the digital circuitry from the
USB port (default).
•10.8 V to 40 V between the AVDD and GND inputs for the
analog supply of the AD5422.
•0 V to −26.4 V between the AVSS and GND inputs for the
negative analog supply of the AD5422. (This is only required
if a bipolar output voltage range is programmed; otherwise,
the negative supply of the AD5422 can be connected to
GND by placing LK4 in Position A.)
•10.8 V to 16.5 V between the V+ and GND inputs for the
analog supply of the AD7321 (on-board analog-to-digital
converter [ADC]) and ADR435 (on-board voltage reference).
If the analog supply connected to the AVDD input is less than
16.5 V, the AD7321 and ADR435 can be powered from this
by placing LK9 in Position A, and the V+ input can be left
unconnected.
•0 V to −16.5 V between the V− and GND inputs for the
negative analog supply of the AD7321 (on-board ADC). If
the negative analog supply connected to the AVSS input is
less than (magnitude) −16.5 V, the AD7321 can be powered
from this by placing LK16 in Position A, and the V− input
can be left unconnected.
The analog and digital planes are connected at one location, close
to the AD5422. It is recommended not to connect GND and
DGND elsewhere in the system to avoid ground loop problems.
Each supply is decoupled to the relevant ground plane with 10 µF
and 0.1 µF capacitors. Each device supply pin is again decoupled
with a 10 µF and 0.1 µF capacitor pair to the relevant ground plane.
Excessive Power Supply
If a power supply in excess of 16.5 V is connected to the AVDD
input, LK9 must be in Position B to prevent potential damage to the
5 V voltage reference and to the ADC (see U2 and U6, respectively,
in Figure 6). However, if a power supply in excess of −16.5 V is to
be connected to the AVSS input, LK16 must be in Position B to
prevent potential damage to the ADC.
LINK OPTIONS
The position of LK7 configures the board for either PC control via
the USB port (default setup) or for control by an external source
via J8. Set the link options on the evaluation board for the required
operating setup before using the board. The functions of the link
options are described in Table 4.
Default Link Option Setup
The default setup is for control by the PC via the USB port. The
default link options are listed in Table 1.
Table 1. Link and Switch Options for PC Control
Link No. Option
LK1 A
LK2 A
LK3 Inserted
LK4 B
LK5 B
LK6 A
LK7 A
LK8 A
LK9
A
LK10 Inserted
LK11 Inserted
LK12 Inserted
LK13 Inserted
LK14 Inserted
LK15
C
LK16 A
LK17 Inserted
LK18 Inserted
Connector J8 Pin Descriptions
Table 2. Connector J8 Pin Configuration1
2 4 6 8 10
1 3 5 7 9
1LK7 must be in Position B to enable the use of J8.
Table 3. Connector J8 Pin Descriptions
Connector J8 Pin No. Function
1 SDO
2 CLEAR SELECT
3 DGND
4 CLEAR
5 DGND
6 FAULT
7 SDIN
8
DGND
9 SCLK
10 LATCH

UG-442 Evaluation Board User Guide
Rev. C | Page 4 of 16
Table 4. Link Options
Link No. Description
LK1 This link selects the state of the CLEAR SELECT pin (when the evaluation board is configured for external control).
Position A ties the CLEAR SELECT pin to 0 V.
Position B ties the CLEAR SELECT pin to DVCC.
LK2 This link selects the state of the CLEAR pin (when the evaluation board is configured for external control).
Position A ties the CLEAR pin to 0 V.
Position B ties the CLEAR pin to DVCC.
LK3 This link selects the state of the DVCC SELECT pin.
When inserted, the DVCC SELECT pin is tied to 0 V, disabling the internal supply; an external supply must be connected to the
DVCC pin via LK17.
When removed, the DV
CC
SELECT pin is unconnected, enabling the internal supply. Removing LK3 eliminates the need for an
external digital supply; therefore, LK17 can also be removed.
LK4 This link selects the negative supply voltage for AVSS.
Position A selects 0 V as the negative supply voltage (unipolar voltage output operation).
Position B selects the AVSS connection of J2 as the negative supply voltage (bipolar voltage output operation).
LK5 This link selects how the IOUT current loop return is connected to ground on the evaluation board.
Position A connects the I
OUT
current loop return directly to ground.
Position B connects the IOUT current loop return input to GND through a 51 Ω resistor. The high side of the resistor is
connected to the VIN1 input of the on-board ADC (AD7321), allowing readback to the PC of the output current.
LK6
This link selects the 5 V power supply source for the digital circuitry.
Position A selects the USB port as the 5 V digital circuitry power supply source.
Position B selects J7 as the 5 V digital circuitry power supply source.
LK7 This link selects whether the AD5422 evaluation board is controlled by the PC via the USB port or by an external source via J8.
Position A selects the evaluation board to be controlled by the PC via the USB port.
Position B selects the evaluation board to be controlled by an external source via J8.
LK8 This link selects the digital supply voltage value for the AD5422 and the on-board ADC (U6).
Position A selects 5 V as the supply value.
Position B selects 3.3 V as the supply value.
LK9 This link selects the positive power supply source for U2 and U6.
Position A selects the AVDD input as the positive power supply source (use only if the power supply applied to AVDD is less
than 16.5 V).
Position B selects the V+ input as the positive power supply source (use if the power supply applied to AVDD input is greater
than 16.5 V). A power supply voltage of 10.8 V to 16.5 V can be applied to V+.
LK10 This link is used to enable/disable the external boost transistor.
When this link is inserted, the external boost transistor is disabled.
When this link is removed, the external boost transistor is enabled.
LK11 This link connects the −VSENSE input to ground.
When this link is inserted, the −VSENSE input is connected directly to ground.
When this link is removed, the −V
SENSE
input is left floating and should be connected to the low side of the load resistance
external to the evaluation board.
LK12 This link connects the +VSENSE input to VOUT.
When this link is inserted, the +V
SENSE
input is connected directly to the V
OUT
pin.
When this link is removed, the +VSENSE input is connected to VOUT through a 47 kΩ resistance (to prevent the integrated
voltage amplifier loop from opening).
LK13
This link connects the I
OUT
connector directly to the GND connector.
When this link is inserted, the IOUT connector is connected directly to the GND connector.
When this link is removed, the IOUT connector is disconnected from the GND connector (an external load must be connected).
LK14 This link connects the VOUT output of the AD5422 to the VIN0 input of the on-board ADC (AD7321).
When this link is inserted, the voltage at the VOUT pin can be read back to the PC.
When this link is removed, the voltage at the VOUT pin is disconnected from the on-board ADC input.

Evaluation Board User Guide UG-442
Rev. C | Page 5 of 16
Link No. Description
LK15 This link selects the voltage reference source.
Position A selects the internal voltage reference of the AD5422 as the voltage reference source.
Position B selects an external source that can be applied at Connector J3.
Position C selects the on-board ADR435 as the voltage reference source.
LK16 This link selects the negative power supply source for U6.
Position A selects the AVSS input as the negative power supply source (use only if the power supply applied to AVSS input is
less (in magnitude) than −16.5 V).
Position B selects the V− input as the negative power supply source (use only if the power supply applied to AV
SS
input is
greater (in magnitude) than −16.5 V).
LK17 This link connects the DVCC pin of the AD5422 to the on-board digital power supply.
When this link is inserted, the DVCC pin of the AD5422 is connected to the on-board digital power supply (LK3 must be
inserted to disable the AD5422 internal digital power supply).
When this link is removed, the DVCC pin of the AD5422 is disconnected from the on-board digital power supply (LK3 should
be removed to enable the AD5420 internal digital power supply).
LK18 This link connects the AVDD pin of the AD5422 to the power supply applied at the AVDD input connector, J2 (LK18 must be
inserted for operation of the AD5422).

UG-442 Evaluation Board User Guide
Rev. C | Page 6 of 16
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION
The AD5422 evaluation kit includes self-installing software on a
CD. The software is compatible with Windows 2000/NT/XP. If
the setup file does not run automatically, run the setup.exe file
from the CD.
To install the evaluation software, do the following:
1. Install the evaluation software before connecting the
evaluation board to the USB port of the PC to ensure that
the evaluation board is correctly recognized when connected
to the PC.
2. After installation from the CD is complete, power up the
AD5422 evaluation board as described in the Power Supplies
section.
3. Connect the board to the USB port of the PC using the
supplied cable.
4. When the evaluation board is detected, proceed through
any dialog boxes that appear. This finishes the installation.
SOFTWARE OPERATION
To launch the software, complete the following steps:
1. From the Start menu, select Analog Devices – AD5422/
AD5422 Evaluation Software. The main window of the
software then displays (see Figure 3).
2. If the evaluation board is not connected to the USB port when
the software is launched, a connectivity error is displayed
(see Figure 2). Simply connect the evaluation board to the
USB port of the PC and click Retry.
08230-002
Figure 2. Connectivity Error Alert
08230-003
Figure 3. Main Window

Evaluation Board User Guide UG-442
Rev. C | Page 7 of 16
The main window is divided into eight sections: Input Register,
Status Register, Control Register, Reset Register, Clear/Clear
Select Pins, Read/Write Registers, Measure Output Voltage/
Current, and Program Voltage/Current.
Input Register
The Input Register section displays the contents of the input
register. The 24-bit display is updated each time a read or a
write operation is requested via the main window controls. It
allows users to associate the value written to the AD5422 with
the various programmable functions.
Status Register
The Status Register section displays the states of the three bits
of the read-only status register. To read the register, click the
Read Status Register button.
Control Register
The Control Register section facilitates programming of the
control register on an individual bit basis. To change the value
for a bit, click the relevant button. Each button also displays the
current state of the bit. You can also enter code in the SR CLOCK
and SR STEP text boxes and select an output range from the
OUTPUT RANGE drop-down box.
When using an external current setting resistor, it is recom-
mended to only set REXT when also setting the OUTEN bit.
Alternately, REXT can be set before the OUTEN bit is set, but
the range must be changed on the write in which the output is
enabled. The Read/Write Registers section should be used for
these commands (see Figure 4).
Reset Register
The sole function of the Reset Register section is to allow the
AD5422 to be reset to its power-on state. To change the value of
the reset bit, click the RESET button.
Clear Pin
In the Clear/Clear Select Pins section, you can change the state
of the CLEAR pin by clicking the CLEAR button. Likewise, you
can change the state of the CLEAR SELECT pin by clicking the
CLEAR SELECT button.
Read/Write Registers
In the Read/Write Registers section, you can read from and write
to all registers in the AD5422. To select a register and request a
read or write, click the Select Control Function drop-down
box. Then, to write data to the register, select the desired data
from the Data Write drop-down box and then click OK. Register
data is updated and displayed for you to read in the Data Read
text box each time you click OK.
Measure Output Voltage/Current
To display the programmed output current in the Measure Output
Current section, click the Measure output Current button. The
output current is measured using the on-board ADC and is
displayed in milliamperes in the VOUT or IOUT box. The output
current is measured with an accuracy of approximately 1% and is
therefore not intended as precise, but rather is an approximate
feedback of the programmed value.
Program Current
To program a voltage or current output value, enter the value in
either volts or milliamperes (mA) in the Enter Value text box of
the Program Voltage/Current section, and press Enter. The
output must first be enabled, and the output range must be
selected via the Control Register section.
08230-300
POWER-ON
SOFTWARE RESET
CONTROL REGISTER WRITE (ONE WRITE COMMAND)
• SELECT RSET EXTERNAL/INTERNAL
• SET THE REQUIRED RANGE
• CONFIGURE THE SLEW RATE CONTROL (IF REQUIRED)
• CONFIGURE DAISY CHAIN MODE (IF REQUIRED)
• ENABLE THE OUTPUT
DATA REGISTER WRITE
• WRITE REQUIRED CODE TO DATA REGISTER
CONTROL REGISTER WRITE
• DISABLE OUTPUT
RSET CONFIGURATION CHANGE RANGE CHANGE
Figure 4. Programming Sequence to Write/Enable the Output Correctly

UG-442 Evaluation Board User Guide
Rev. C | Page 8 of 16

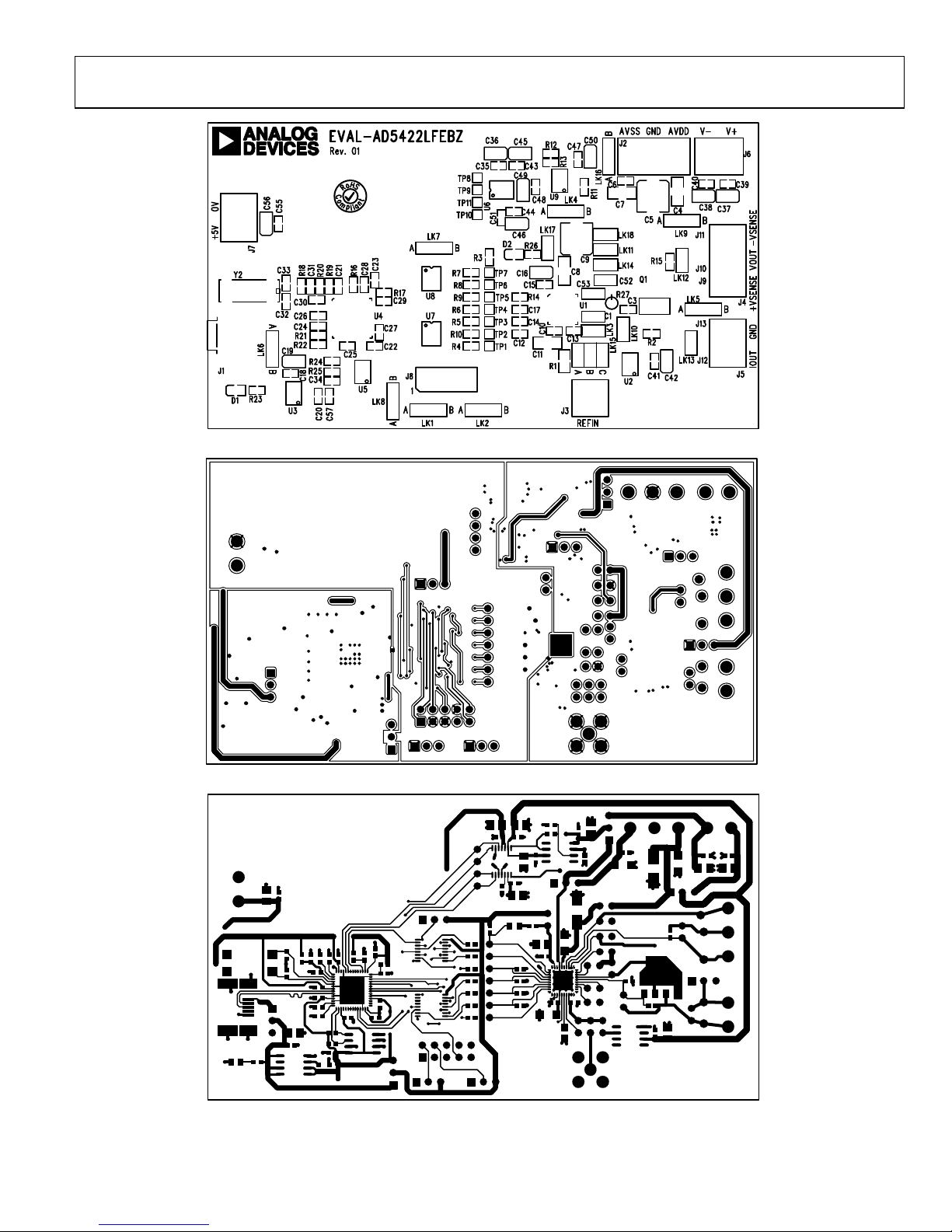

EVALUATION BOARD SCHEMATICS AND ARTWORK
08230-004
SDO
CLEAR_SELECT
CLEAR
FAULT
SDIN
SCLK
LATCH
DGND
DGND
DGND
0V
+5V
RED
R17 100kΩ
C29 0.1µF
C33 22pF
C32
22pF
1
VBUS 2
D– 3
D+ 4
IO 5
GND
SHIELD
J1
USB-MINI-B
R22
10kΩ
R16 100kΩ
R18 0Ω
C30
0.1µF
C21
0.1µF
C22
0.1µF
C23
0.1µF
C24
0.1µF
C25
0.1µF
C26
0.1µF
C27
0.1µF
Y2
24 MHz
C20 0.1µF
8IN1 7IN2 5SD
4
GND
1
OUT1 2 OUT2 6
ERROR 3
NR
U3
ADP3303-3.3
R23
1kΩ
D1
C18
0.1µF
R20
10kΩ
R19
10kΩ
R21
10kΩ
R24 2.2kΩ
R25 2.2kΩ
C34
0.1µF
1
A0 2 A1 3 A2 4
VSS
5SDA 6SCL 7WP 8VCC
U5
24LC64
50
PD5/FD13 51 PD6/FD14 52 PD7/FD15
54 CLKOUT
1RDY0/*SLRD 2RDY1/*SLWR 4
XTALOUT 5
XTALIN
8D+ 9D–
13 IFCLK 14 RSVD
15
SCL
16
SDA
18
PB0/FD0 19 PB1/FD1 20 PB2/FD2 21 PB3/FD3
49
PD4/FD12
48
PD3/FD11
47
PD2/FD10
46
PD1/FD9
45
PD0/FD8
44 *WAKEUP
42 RESET
40 PA7/*FLD/SLCS
39 PA6/*PKTEND 38 PA5/FIFOADR1 37 PA4/FIFOADR0 36 PA3/*WU2 35 PA2/*SLOE 34 PA1/INT1
33 PA0/INT0
31
CTL2/*FLAGC
30
CTL1/*FLAGB
29
CTL0/*FLAGA
25
PB7/FD7
24
PB6/FD6
23
PB5/FD5
22
PB4/FD4
3
AVCC
7
VCC 11
VCC 17
VCC 27
VCC 32
VCC 43
VCC 55
VCC
6AGND
10 GND
12 GND
26 GND
28 GND
41 GND
53 GND
56 GND
U4
CY7C68013-CSP
C31
2.2µF
+C19
10µF
20%
1
IN
2S1A
3
S1B
4
D1
5S2A
6
S2B
7
D2
8
GND
9
D3
10
S3B
11 S3A12
D4
13
3
6
10
13
S4B
14 S4A
15
EN
16 VDD
U7
ADG774
1
IN
2S1A
S1B
4
D1
5S2A
S2B
7
D2
8
GND
9
D3
S3B
11 S3A12
D4
S4B
14 S4A
15
EN
16 VDD
U8
ADG774
A B
LK7
J8-1
J8-2
J8-3
J8-4
J8-5
J8-6
J8-7
J8-8
J8-9
J8-10
J7-1 J7-2 C55
0.1µF
+C56
10µF
AB
LK8
C57
0.1µF
A B
LK1
A B
LK2
A B
LK6
C28 0.1µF
3.3V
3.3V
3.3V3.3V
3.3V
PA3 PA2
CS_ADC
USB_POWER
3.3V
3.3V
3.3V 3.3V
3.3V
PGND
PGND
PGND
PGNDPGNDPGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGNDPGND
PGND
PGND
PGND
PGND
PGND
LATCH SCLK SDIN FAULT CLEAR CLEAR_SELECT SDO
DVCC
DVCC
DVCC
PA5 PA6 PA7 PA3 PA2
FD7
DOUT_ADC FD7
PA5 PA6 PA7
PGND DGND
DGND
DGND
DGND DGND
5V
SDIN_ADC SCLK_ADC
PGND
DVCC
DVCC
DGND
DGND
FD8
FD8
EXT_5V DVCC
PGND

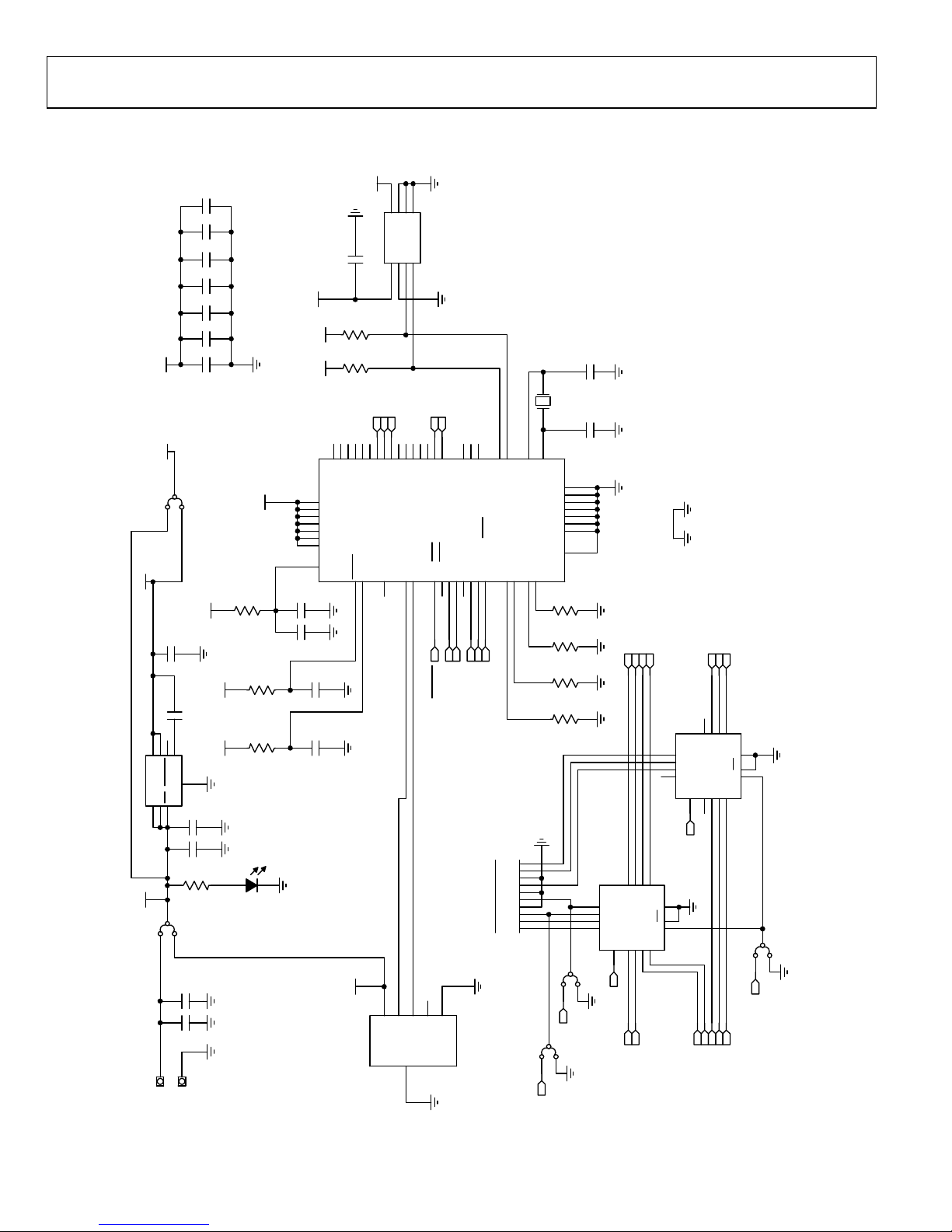

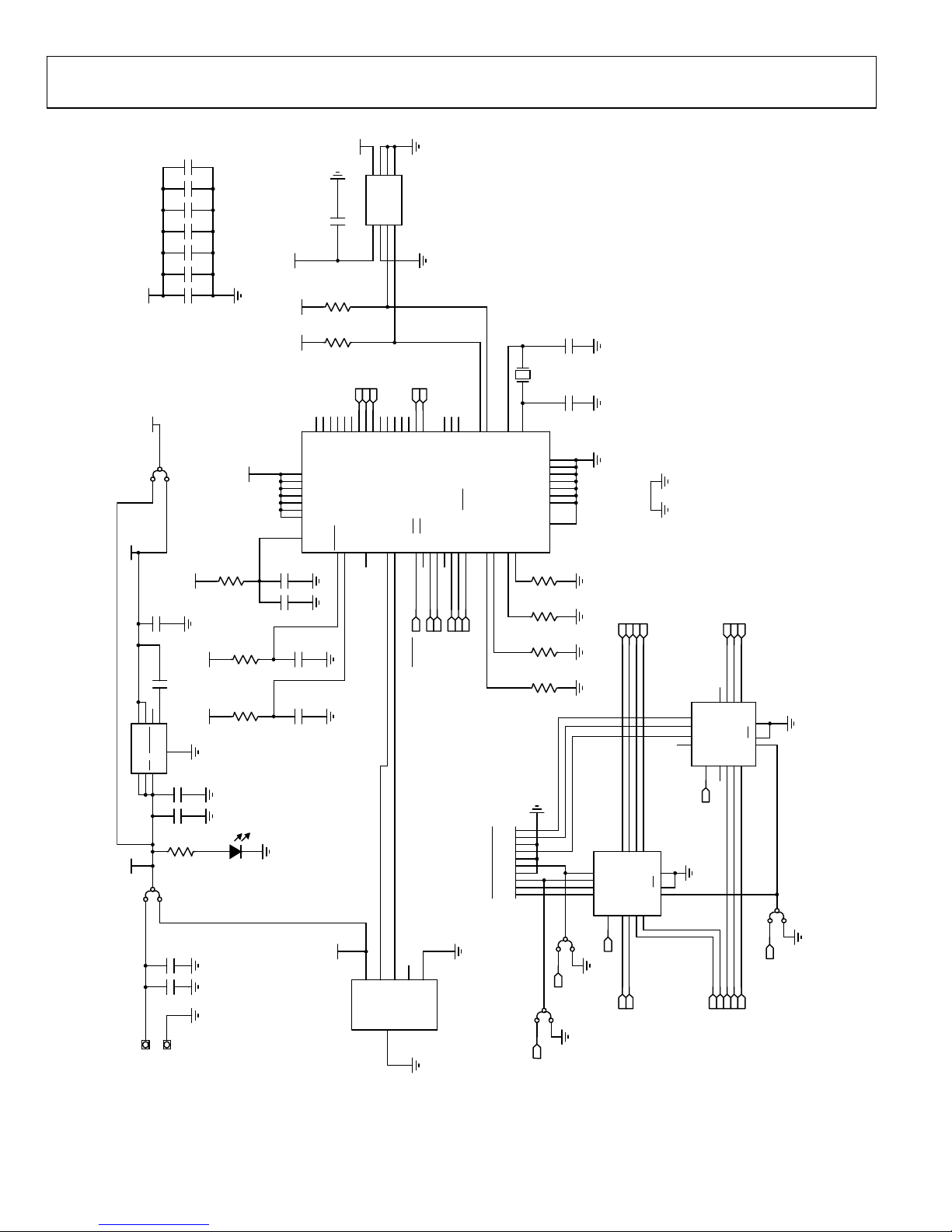

Figure 5. AD5422 TSSOP Evaluation Board Schematic of the Controller Circuitry

Evaluation Board User Guide UG-442
Rev. C | Page 9 of 16
08230-005
SOCKETED
REFIN
C4,C5,C8,C9 MUST BE RATED OVER 60V C6,C7,C10,C11 MUST BE RATED OVER 30V THE FOLLOWING COMPONENTS ARE NOT TO BE POPULATED : C12, C14, C17, C52, C53, R27
RED
SOCKETED
LK3
BA
LK4
J2-1
J2-2
J2-3
J3
C1 4nF
R1 15kΩ
R3
10kΩ
J4-1
J4-2
J4-3
Q1
R21kΩ
LK10
J5-1
J5-2
LK11 LK12
C3
22nF
+C5
10µF
20%
C6 0.1µF
C8
0.1µF
C10
0.1µF
C13 0.1µF
C15
0.1µF
+C16
1µF
20%
R4 0Ω
R5 0Ω R6 0Ω R7 0Ω R8 0Ω R9 0Ω
R10 0Ω
TP1 TP2 TP3 TP4 TP5 TP6 TP7
C12
C14
C17
R11
51Ω
C35 0.1µF
+
C36 10µF
20%
B
A
LK5
LK13
LK14
J6-1
J6-2
+C37
10µF
20%
+C38
10µF
20%
C39
0.1µF C40
0.1µF
2+VIN
5TRIM
6
VOUT
4
GND
U2
ADR435
A
B
C
LK15
C41 0.1µF
+C42
10µF
20%
BA
LK9
1CS 2DIN
3DGND
4AGND
5
REFIN/OUT
6VSS
7
VIN0
8
VIN1
9
VDD
10
VCC
11 VDRIVE 12 DOUT
13 DGND
14 SCLK
U6
AD7321
BA
LK16
C43 0.1µF C44 0.1µF
+
C45 10µF
20%
+
C46 10µF
20%
TP8
TP9
TP10
TP11
3
+2
–
4V– 7V+
6
U9
AD820
R12
5.6kΩ
R13 39kΩ
C47
0.1µF
C48 0.1µF
+
C49 10µF
20%
+C50
10µF 20%
C51 680nF
R14
10kΩ
R15
4.7kΩ
J9-1
J10-1 J11-1
J12-1
J13-1
LK17
D2
R26
1kΩ
R27
LK18
+C9
10µF
20%
C4
0.1µF
C7
10µF
C11 10µF
1
AVSS
2
DVCC
3FAULT 5CLEAR_SELECT
6CLEAR
7LATCH 8SCLK 9SDIN
10 SDO
11
GND
12
GND
13
RSET
14
REFOUT
15
REFIN
16 DVCC_SELECT
17
CCOMP1 18
CCOMP2
19
IOUT
20
BOOST
21
VOUT
22
+VSENSE
23
–VSENSE
24
AVDD
4
GND
U1
AD5422_TSSOP
X1
CLAMP-SOIC-TSSOP
FAULT
CLEAR_SELECT
CLEAR LATCH
SCLK
SDIN
SDO
AVSS
AVDD
DVCC
AVDD
DVCC
DGND
DGND
DVCC
VIN0
V+
V–
AVDD
V+
VIN0
CS_ADC
SDIN_ADC
SCLK_ADC
DOUT_ADC
DGND
AVSS V–
DGND AVSS
+VSENSE
VOUT
–VSENSE
IOUT
GND
V+
V–
AVDD AVSS
AGND
NOTES 1. PIN 18 IS LISTED AS NC IN THE AD5422 DATA SHEET AND CCOMP2 IN THIS SCHEMATIC. CONNECTING THE COMPENSATION CAPACITOR BETWEEN
PIN 17 AND PIN 18 OR PIN 17 AND PIN 21 HAS THE SAME EFFECT. NEW DESIGNS MUST FOLLOW THE AD5422 DATA SHEET RECOMMENDATIONS OF INSERTING THE COMPENSATION CAPACITOR BETWEEN C
COMP
AND V
OUT
.
Figure 6. AD5422 TSSOP Evaluation Board Schematic of the AD5422Circuitry

UG-442 Evaluation Board User Guide
Rev. C | Page 10 of 16
SDO
CLEAR_SELECT
CLEAR
FAULT
SDIN
SCLK
LATCH
DGND
DGND
DGND
0V +5V
RED R17
100kΩ
C29 0.1µF
C33
22pF
C32 22pF
1
VBUS 2
D- 3
D+ 4
IO 5
GND
SHIELD SHIELD
J1
USB-MINI-B
R22
10kΩ
R16 100kΩ
R18
0Ω
C30
0.1µF
C21
0.1µF
C22
0.1µF
C23
0.1µF
C24
0.1µF
C25
0.1µF
C26
0.1µF
C27
0.1µF
Y2
24 MHz
C20 0.1µF
8IN1 7IN2 5SD
4
GND
1
OUT1 2 OUT2 6
ERROR 3
NR
U3
ADP3303-3.3
R23
1kΩ
D1
C18
0.1µF
R20
10kΩ
R19
10kΩ
R21
10kΩ
R24
2.2kΩ
R25
2.2kΩ
C34
0.1µF
1
A0 2 A1 3
A2 4
VSS
5SDA 6SCL 7WP 8VCC
U5
24LC64
50
PD5/FD13 51
PD6/FD14 52 PD7/FD15
54 CLKOUT
1RDY0/*SLRD 2RDY1/*SLWR 4
XTALOUT 5
XTALIN
8D+ 9D-
13 IFCLK 14 RSVD
15
SCL 16
SDA
18
PB0/FD0 19
PB1/FD1 20 PB2/FD2 21 PB3/FD3
49
PD4/FD12 48
PD3/FD11 47
PD2/FD10 46
PD1/FD9 45 PD0/FD8
44 *WAKEUP 42 RESET
40 PA7/*FLD/SLCS
39 PA6/*PKTEND 38 PA5/FIFOADR1 37 PA4/FIFOADR0
36 PA3/*WU2 35 PA2/*SLOE 34 PA1/INT1 33 PA0/INT0
31
CTL2/*FLAGC 30
CTL1/*FLAGB 29
CTL0/*FLAGA
25
PB7/FD7 24 PB6/FD6 23
PB5/FD5 22 PB4/FD4
3
AVCC
7
VCC 11
VCC 17
VCC 27
VCC 32
VCC 43
VCC 55
VCC
6AGND
10 GND
12 GND
26 GND
28 GND
41 GND
53 GND
56 GND
U4
CY7C68013-CSP
C31
2.2µF
+C19
10µF
20%
1
IN
2S1A
3
S1B
4
D1
5S2A
6
S2B
7
D2
8
GND
9
D3
10
S3B
11 S3A 12
D4
13
S4B
14 S4A
15
EN
16 VDD
U7
ADG774
1
IN
2S1A
3
S1B
4
D1
5S2A
6
S2B
7
D2
8
GND
9
D3
10
S3B
11 S3A 12
D4
13
S4B
14 S4A
15
EN
16 VDD
U8
ADG774
AB
LK7
J8-1
J8-2
J8-3
J8-4
J8-5
J8-6
J8-7
J8-8
J8-9
J8-10
J7-1 J7-2 C55
0.1µF
+C56
10µF
A
B
LK8
C57 0.1µF
A B
LK1
A B
LK2
A B
LK6
C28 0.1µF
3.3V
3.3V
3.3V3.3V
3.3V
PA3 PA2
CS_ADC
USB_POWER
3.3V
3.3V
3.3V 3.3V
3.3V
PGND
PGND
PGND
PGNDPGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGNDPGND
PGND
PGND
PGND
PGND
PGND
LATCH SCLK SDIN FAULT CLEAR CLEAR_SELECT SDO
DVCC
DVCC
DVCC
PA5 PA6 PA7 PA3 PA2
FD7
DOUT_ADC FD7
PA5 PA6 PA7
PGND DGND
DGND
DGND
DGND DGND
5V
SDIN_ADC SCLK_ADC
PGND
DVCC
DVCC
DGND DGND
FD8
FD8
EXT_5V DVCC
PGND
08230-006
Figure 7. AD5422 LFCSP Evaluation Board Schematic of the Controller Circuitry

Evaluation Board User Guide UG-442
Rev. C | Page 11 of 16
08230-007
SOCKETED
REFIN
RED
SOCKETED
SOCKETED
2FAULT 4CLEAR_SELECT 5CLEAR 6LATCH 7SCLK 8SDIN 9SDO
12
GND
13
GND
14
AVSS
15
GND
16
RSET
17
REFOUT
18
REFIN
23 DVCC_SELECT 24
CCOMP1 25 CCOMP2
26
IOUT
27
BOOST
32
VOUT
33
+VSENSE
34
-VSENSE
36
AVDD
37
AVSS
39
DVCC
28
CAP1 29 CAP2
3
GND
U1
AD5422
LK3
BA
LK4
J2-1
J2-2
J2-3
J3
C1 4nF
R1 15kΩ
R3
10kΩ
J4-1
J4-2
J4-3
Q1
R2
1kΩ
LK10
J5-1
J5-2
LK11
LK12
C3
22nF
+C5
10µF
20%
C6
0.1µF
C8 0.1µF
C10
0.1µF
C13 0.1µF
C15 0.1µF
+C16
1µF
20%
R4 0Ω
R5 0Ω
R6 0Ω
R7 0Ω
R8 0Ω
R9 0Ω
R10 0Ω
TP1 TP2 TP3 TP4 TP5 TP6 TP7
C12
C14
C17
R11
51Ω
C35 0.1µF
+
C36 10µF
20%
BA
LK5
LK13
LK14
J6-1
J6-2
+C37
10µF
20%
+C38
10µF
20%
C39 0.1µF
C40 0.1µF
2+VIN
5TRIM
6
VOUT
4
GND
U2
ADR435
A
B
C
LK15
C41 0.1µF
+C42
10µF
20%
BA
LK9
1CS
2DIN
3DGND
4AGND
5
REFIN/OUT
6VSS
7
VIN0
8
VIN1
9
VDD
10
VCC
11 VDRIVE 12 DOUT
13 DGND
14 SCLK
U6
AD7321
B A
LK16
C43 0.1µF
C44 0.1µF
+
C45 10µF
20%
+
C46 10µF
20%
TP8
TP9
TP10
TP11
3
+
2
–
4V– 7V+
6
U9
AD820
R12
5.6kΩ
R13 39kΩ
C47 0.1µF
C48 0.1µF
+
C49 10µF
20%
+C50
10µF
20%
C51 680nF
R14
10kΩ
R15
4.7kΩ
J9-1
J10-1
J11-1
J12-1
J13-1
LK17
D2
R26
1kΩ
C52
C53
R27
LK18
+C9
10µF
20%
C4 0.1µF
C7 10µF
C11 10µF
FAULT
CLEAR_SELECT
CLEAR
LATCH
SCLK
SDIN
SDO
AVSS
AVDD
DVCC
AVDD
DVCC
DGND
DGND
DVCC
VIN0
V+
V–
AVDD
V+
VIN0
CS_ADC
SDIN_ADC
SCLK_ADC
DOUT_ADC
DGND
AVSS V–
DGND AVSS
+VSENSE
VOUT
-VSENSE
IOUT
GND
V+ V–
AVDD AVSS
AGND
NOTES 1. PIN 25 IS LISTED AS NC IN THE AD5422 DATA SHEET AND CCOMP2 IN THIS SCHEMATIC. CONNECTING THE COMPENSATION CAPACITOR BETWEEN
PIN 24 AND PIN 25 OR PIN 24 AND PIN 32 HAS THE SAME EFFECT. NEW DESIGNS MUST FOLLOW THE AD5422 DATA SHEET RECOMMENDATIONS OF INSERTING THE COMPENSATION CAPACITOR BETWEEN CCOMP AND VOUT.
Figure 8. AD5422 LFCSP Evaluation Board Schematic of the AD5422 Circuitry

UG-442 Evaluation Board User Guide
Rev. C | Page 12 of 16
08230-008
Figure 9. AD5422 TSSOP Evaluation Board Component Placement
08230-009
Figure 10. AD5422 TSSOP Evaluation Board Solder Side PCB
08230-010
Figure 11. AD5422 TSSOP Evaluation Board Component Side PCB

Evaluation Board User Guide UG-442
Rev. C | Page 13 of 16
08230-011
Figure 12. AD5422 LFCSP Evaluation Board Component Placement
08230-012
Figure 13. AD5422 LFCSP Evaluation Board Solder Side PCB
08230-013
Figure 14. AD5422 LFCSP Evaluation Board Component Side PCB

UG-442 Evaluation Board User Guide
Rev. C | Page 14 of 16
ORDERING INFORMATION
BILL OF MATERIALS
Table 5.
Qty Reference Designator Description Supplier/Number
1 U1 16-bit current source DAC (TSSOP Package) Analog Devices/AD5422BREZ
16-bit current source DAC (LFCSP Package) Analog Devices/AD5422BCPZ
1 U2 5 V voltage reference Analog Devices/ADR435ARZ
1 U3 3.3 V low dropout voltage regulator Analog Devices/ADP3303ARZ-3.3
1 U4 USB microcontroller Cypress Semiconductor/
CY7C68013-56LFXC
1 U5 64 K EEPROM Digi-Key/24LC64-I/SN-ND
1 U6 12-bit ADC Analog Devices/AD7321BRUZ
2 U7, U8 Quad 2:1 multiplexer Analog Devices/ADG774BRQZ
1
U9
Low noise, precision operational amplifier
Analog Devices/OP27GSZ
1 C3 22 nF, 16 V X7R ceramic capacitor FEC 165-8869
2 C4, C8 0.1 µF, 100 V ceramic capacitor FEC 1288275
2 C5, C9 10 µF, 63 V (FK series) electrolytic capacitor FEC 9696008
2 C6, C10 0.1 µF, 50 V, X7R ceramic capacitor FEC 1288255
2 C7, C11 10 µF, 35 V, Y5V ceramic capacitor Digi-Key/587-1352-1-ND
25
C13, C15, C18, C20, C21, C22, C23, C24, C25,
C26, C27, C28, C29, C30, C34, C35, C39, C40,
C41, C43, C44, C47, C48, C55, C57
0.1 µF, 16 V X7R ceramic capacitor
FEC 1216538
1 C16 1 µF, 10 V SMD tantalum capacitor FEC 197099
10 C19, C36, C37, C38, C42, C45, C46, C49, C50,
C56
10 µF SMD tantalum capacitor
1 C31 2.2 µF, 10 V, Y5V ceramic capacitor FEC 9402098
2 C32, C33 22 pF, 50 V NPO ceramic capacitor FEC 722005
1 C51 680 nF, 16 V, Y5V ceramic capacitor Digi-Key/490-1581-1-ND
9 LK1, LK2, LK4, LK5, LK6, LK7, LK8, LK9, LK16 3-pin (0.1" pitch) header and jumper socket FEC 1022249 and FEC 150-411
8 LK3, LK10, LK11, LK12, LK13, LK14, LK17,
LK18
2-pin (0.1" pitch) header and jumper socket FEC 1022247 FEC 150-411
1 LK15 6-pin (3 × 2) 0.1" header and jumper socket FEC 1022231 and FEC 150411
1 J1 USB mini-B connector FEC 9786490
2 J2, J4 3-pin terminal block (5 mm pitch) FEC 151790
1 J3 50 Ω SMB jack FEC 1111349
3 J5, J6, J7 2-pin terminal block (5 mm pitch) FEC 151789
1 J8 2-row, 36 + 36 header FEC 1022244 (36 + 36 pin strip)
2 D1, D2 Red SMD LED FEC 5790840
11 TP1 to TP11 Black test point FEC 8731128
1 R1 15 kΩ SMD precision resistor FEC 1140932
3 R2, R23, R26 1 kΩ SMD resistor FEC 9330380
6
R3, R14, R19, R20, R21, R22
10 kΩ SMD resistor
FEC 9330399
8 R4 to R10, R18 0 Ω SMD resistor FEC 9331662
1 R11 51 Ω SMD resistor FEC 9331336
1 R12 5.6 kΩ SMD resistor FEC 9331352
1 R13 39 kΩ SMD resistor FEC 9331158
1 R15 4.7 kΩ SMD resistor FEC 9331247
2
R16, R17
100 kΩ SMD resistor
FEC 9330402
2 R24, R25 2.2 kΩ SMD resistor FEC 9330810
1 Y2 24 MHz plastic SMD crystal FEC 9509658
1 Q1 NPN transistor, PBSS8110Z FEC 8736677

Evaluation Board User Guide UG-442
Rev. C | Page 15 of 16
NOTES

UG-442 Evaluation Board User Guide
Rev. C | Page 16 of 16
NOTES
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD.Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
Legal Terms and Conditions
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions
set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you
have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.
(“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal,
temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided
for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional
limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term
“Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including
ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may
not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of this Agreement, Customer agrees to
promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any
occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board.
Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice
to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO
WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED
TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL
PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF
THE EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE
AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable
United States federal laws and regulations relating to exports. GOVERNING L
AW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of
Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby
submits to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.
©2009–2013 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
UG08230-0-10/13(C)
