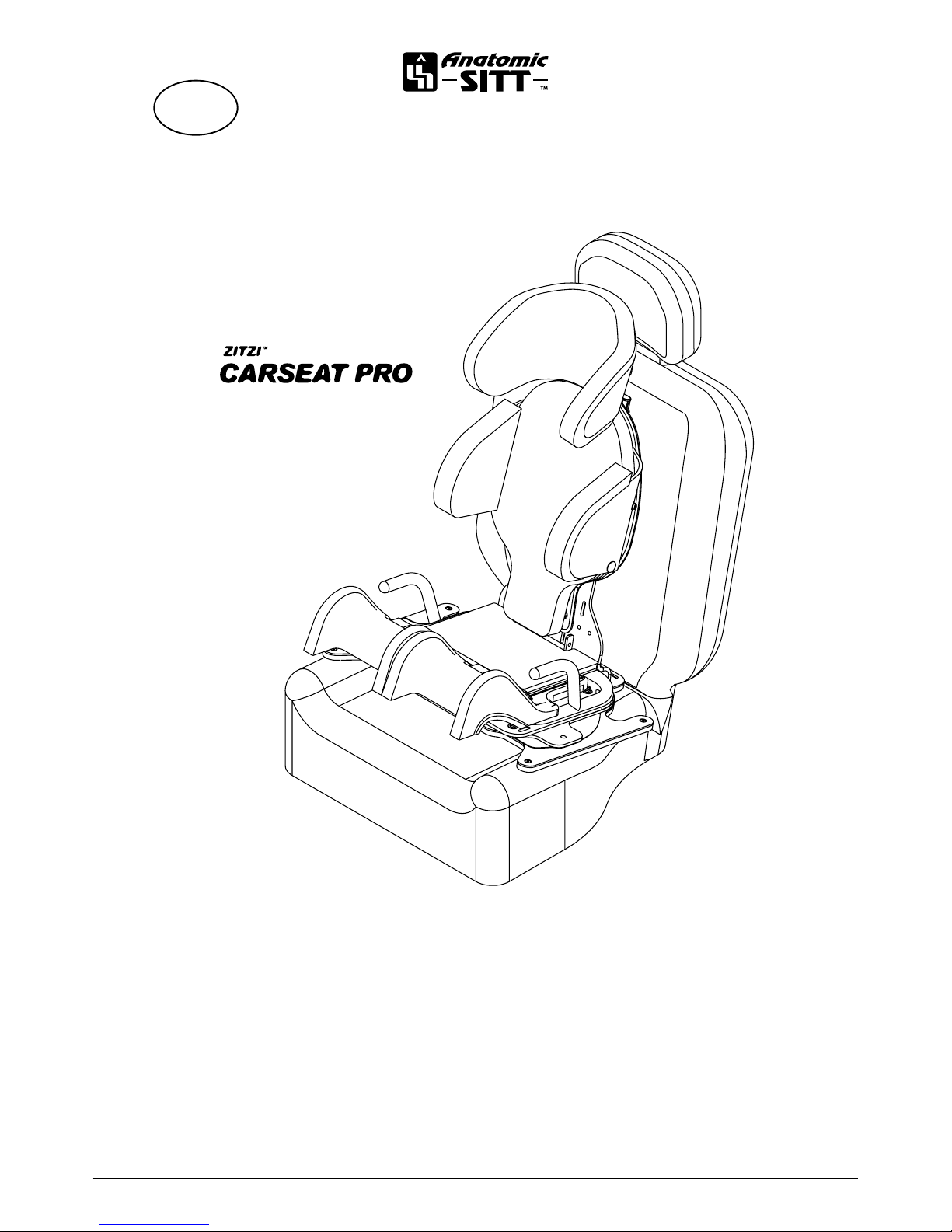

Anatomic SITT Zitzi Carseat pro User manual

EN
User Manual
Zitzi Carseat pro
2018-08-30

2
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Safety precautions ................................. 3
Tools ..........................................................4
Back strap.................................................4
Seat adjustments ....................................4
Leg length dierence�����������������������������������5
Leg part lining��������������������������������������������������5
Seat slope adjustment���������������������������������5
Abduction and adduction��������������������������6
Adjustment of the back......................... 7
Back part adjustment ����������������������������������7
Decrease the lateral width������������������������� 7
Adjustment of the lateral support ���������8
Headrest.................................................... 9
To adjust the headrest in height �������������9
To adjust the head support plate
sideways �������������������������������������������������������������9
Pelvis support........................................ 10
Lumbar support ..................................... 11
Footrest....................................................12
Hip belt.....................................................13
Mounting of the support series ......... 14
Table..........................................................15
Mounting in the car .............................. 16
Swivel base..............................................17
Maintenance instructions.....................18
Care and maintenance������������������������������� 18
Recycling���������������������������������������������������������� 18
Combinations������������������������������������������������� 18
Spare parts������������������������������������������������������ 18
Marking ������������������������������������������������������������� 18
Warranty����������������������������������������������������������� 19
Summary and follow-ups������������������������� 19
Materials������������������������������������������������������������ 19
Table of contents
Congratulations on your choice of car seat Zitzi Carseat Pro� It is a safety seat
to grow in and we know there is a chair that will work well for a long time to
come� Safety, convenience and customization options have been important in the
development of Zitzi Carseat Pro�
A prerequisite for the car seat to function properly is that it is used properly, it is
important that you read all instructions before using Zitzi Carseat Pro�
The instructions should also be saved for future use�
This product is only intended to be used as a car seat
manufactured by Anatomic SITT AB.

3
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Safety precautions
• Zitzi Carseat Pro can be used in both front and rear seats�
• Zitzi Carseat Pro may be used only with the car’s regular 3-point belt�
• Zitzi Carseat Pro may not be used without the cover� The cover must not be changed to
anyone other than the one supplied by the seat manufacturer because it is an integral
part of car seat’s safety�
• Zitzi Carseat Pro must always be fastened with a seat belt even if it is not currently used�
A loose seat could cause damage in a rapid deceleration�
• Make sure the belt always fastened securely, and that the seat is installed according to
instructions�
• No form of change may be made on the car seat, as this may aect safety�
• It is also not permitted to alter the car’s seat belt�
• NEVER mount Zitzi Carseat Pro on a car seat with side facing forward�
• ALWAYS secure the patient when he / she sits in the chair, even on short trips�
• Check that Zitzi Carseat Pro does not get squashed by a movable car seat, backrest, car
door or back door�
• Loose items should NEVER be left on the car’s parcel shelf� In a rapid deceleration, these
danger ahead and can cause serious damage�
• After an accident should Zitzi Carseat Pro be replaced� Even if it appears undamaged, it
may not protect the user the best possible way� Contact your insurance company�
• Never leave a child unattended in the car�
• Zitzi Carseat Pro can become hot when the car is parked in the sun�
• All belts, both in the car seat and in the car must be whole, well-secured and non-
twisted�
• If the swivel base is installed, check that the latch is locked in the direction of travel
before the journey begins�
• Zitzi Carseat Pro be should NEVER be installed rear-facing�
• The back strap should always be mounted on the chair to avoid unnecessary strain
on the product
• Save instructions so that they can be used at a later date�
Zitzi Carseat Pro is approved according to current European safety
(ECE R44�04) and is suitable for children of weight class 15-25 kg and 15-36 kg
WARNING! Zitzi Carseat Pro should NEVER
be installed rear-facing!

4
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

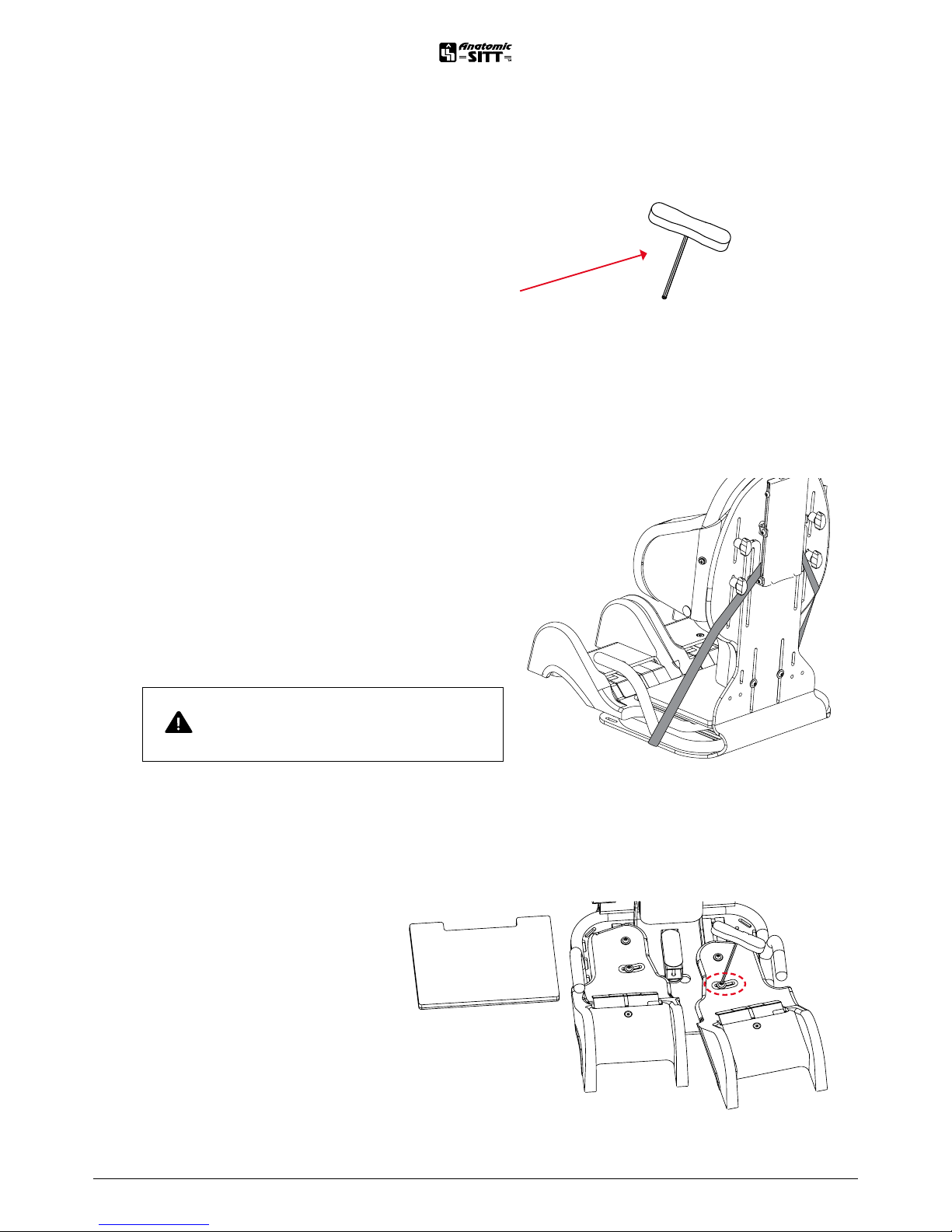

Seat adjustments
Tools
Seat depth, leg length
dierence and abduction/
adduction of the legs can easily
be adjusted� Start with take
away the lining of the seat plate
to get to the adjustment bolts�
Note! Do not loosen the bolt
completely, just loosen it up a
bit�
In order to make certain settings on the chair
you need tools� Most by these can be made
with a 4 mm Allen key�
Feel free to use our own t-key to this�
This symbol indicates that changes need to be
done with an Allen key�
Back strap
Carseat comes with a back strap that is fixed in
the base plate and goes around the back� The
strap is designed to ensure the back does not
straighten out more than it should when the
user is placed in the chair or when handling the
chair outside the car�
If necessary, the length of the belt can be
adjusted using the tri-glide buckles to fit the
individual user�
The back strap should always be
mounted on the chair to avoid
unnecessary strain on the product

5
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Leg length dierence
Loosen the front bolt with the allen key and move
the leg part to desired track position� Tighten the
bolts when desired position is reached�
Leg part lining
First lift up the lining to gain access to the button
that keeps the leg part lining in place� Then snap o
the leg part lining from push-button�
Each leg part consists of two leg part linings� The
right leg part has two leg part linings marked with
”Right” and the left leg part has two leg part linings
marked with ”Left” (viewed from behind with your
Carseat Pro in front of you�)
The curved side of the leg part lining should always
be on the outside and the straight side must always
sit on the inside�
Seat slope adjustment
When adjusting the seat depth, you also should
adjust the seat slope�
Example If the seat depth is adjusted to 24 cm (gray bar on the size 2)
the seat slope should also be adjusted to the gray box to maintain the
seat slope size, and obtain a correct sitting position
Loosen the screw of the leg part by using the wrench� Pull the seat slope
adjustment to desired position� Lock the screw�
Curved side
(outside)
Straight side
(inside)

6
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

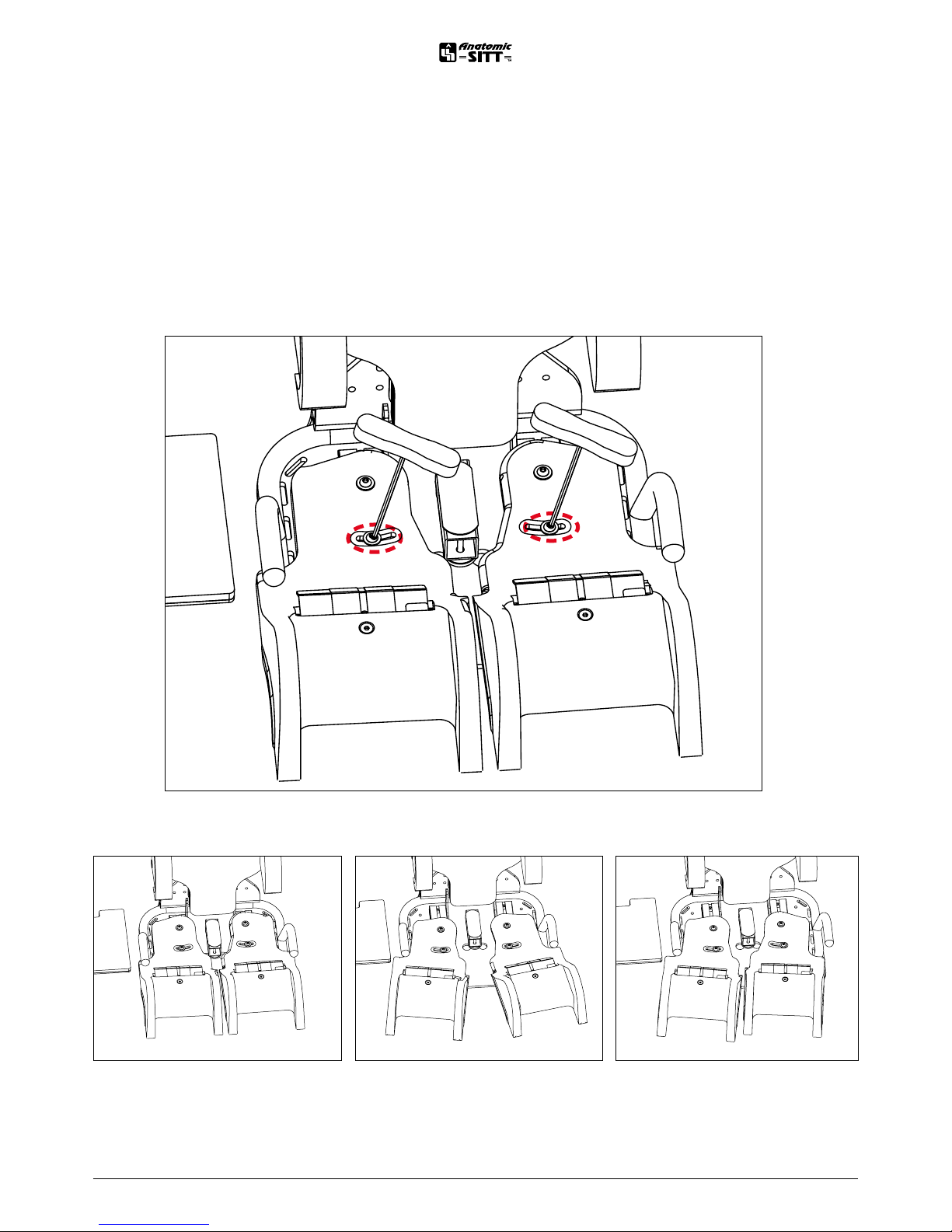

Abduction and adduction
Loosen the front screw on the leg part by using the wrench� Move the leg part to
desired position and tighten the screw when you reached the desired position�
Neutral Abduction Adduction / Windswept

7
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

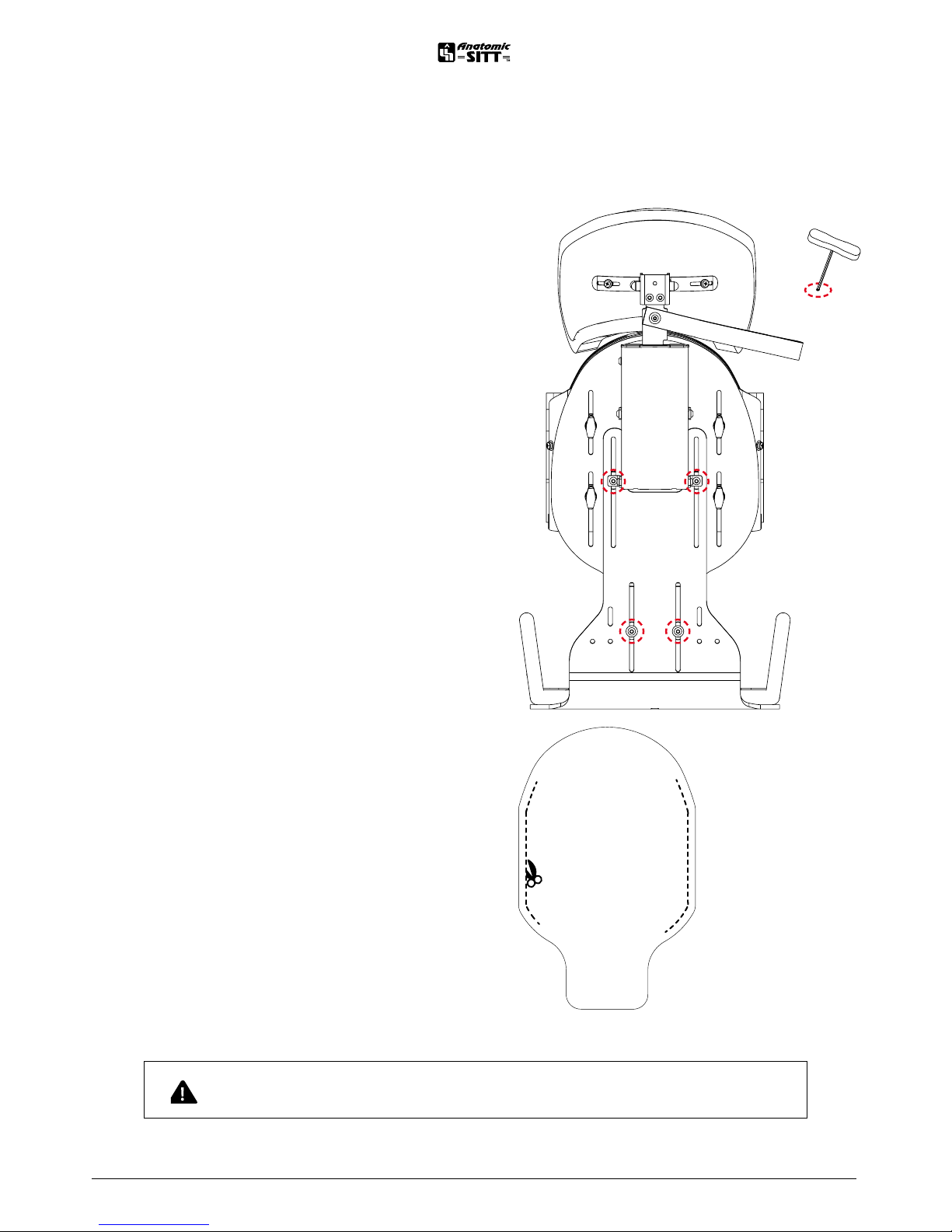

Adjustment of the back
Back part adjustment
Loosen the red marked screws (4) by
using the wrench and then adjust to
desired height�
Lock screws when the desired height is
reached�
Decrease the lateral width
To reduce the lateral width further,
remove the back plate and its lining from
your Carseat Pro�
Then remove a maximum of 2 cm from
the back plate � Either you cut out just the
trunk, or do you cut the whole plate�
IMPORTANT! Never remove more than 2 cm from back plate�

8
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

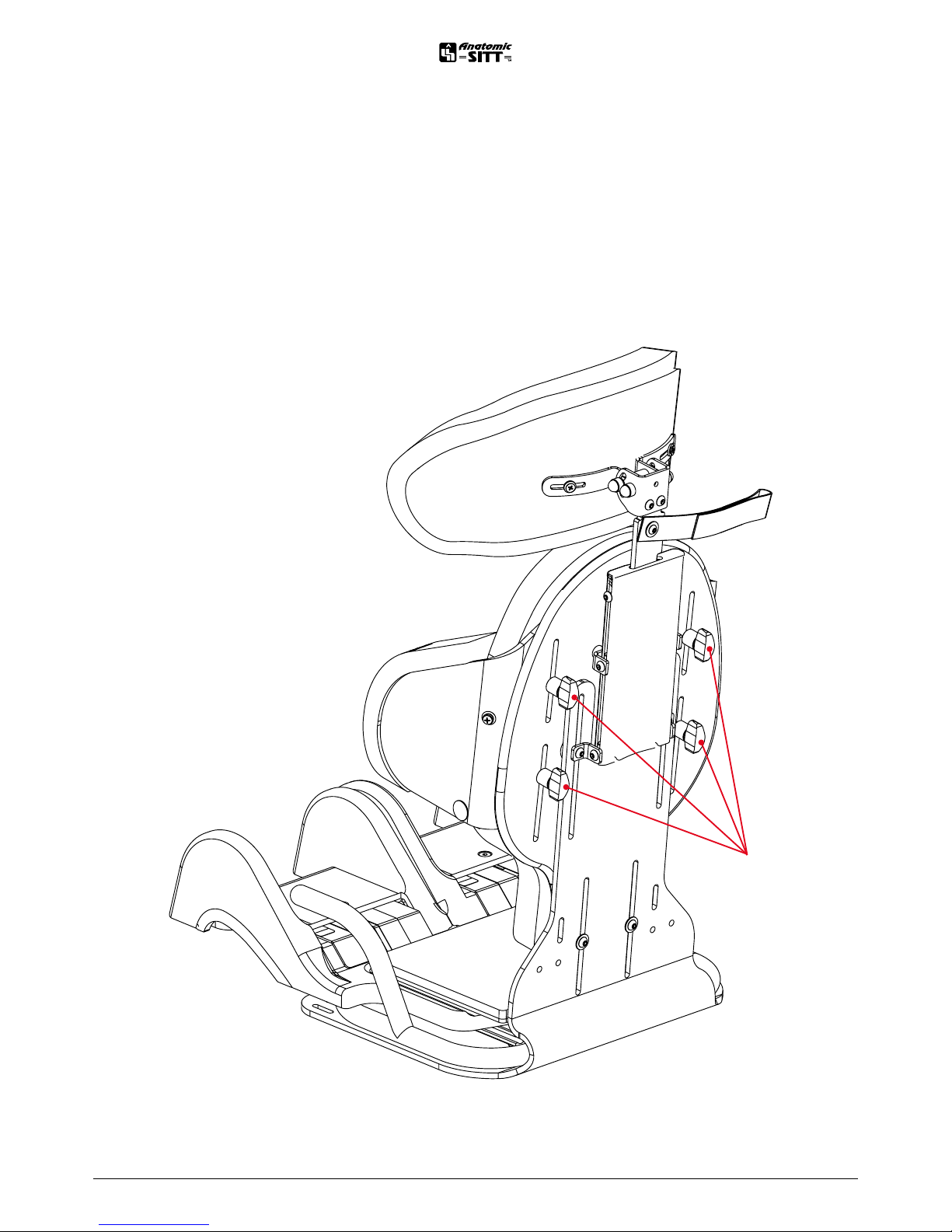

Adjustment of the lateral support
Loosen the red marked knobs (4) and then adjust to the desired width, angle and
height� Lock knobs when the desired adjustment is reached�
Knobs

9
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Headrest
Screw (A)
Screw (B)
Nut cap (D)
Nut cap (D)
Nut cap (D)
Screw (C)
(A)
To adjust the headrest in height
• Loosen the adjustment screw (A)�
• Adjust to desired height�
• For security reasons, it is
impossible to remove the headrest�
• Lock the adjustment screw�
To adjust the head support plate
side ways
• Loosen the adjustment screws (B)�
• Adjust to desired position�
• Lock screws�
Adjustments
• Loosen the nut caps (D) on the M6 nuts�
• Loosen the adjustment screws (C)�
• Then adjust to desired height and angle�
• Lock screws (C)�
• Put the nut caps back (D)�

10
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Pelvis support
The pelvic support is mounted in the seat’s pelvic support brackets with enclosed
screws, nuts and washers as illustrated� Tighten the screws after assembly�
NOTE! The pelvic supports should be placed inside the security bow�

11
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

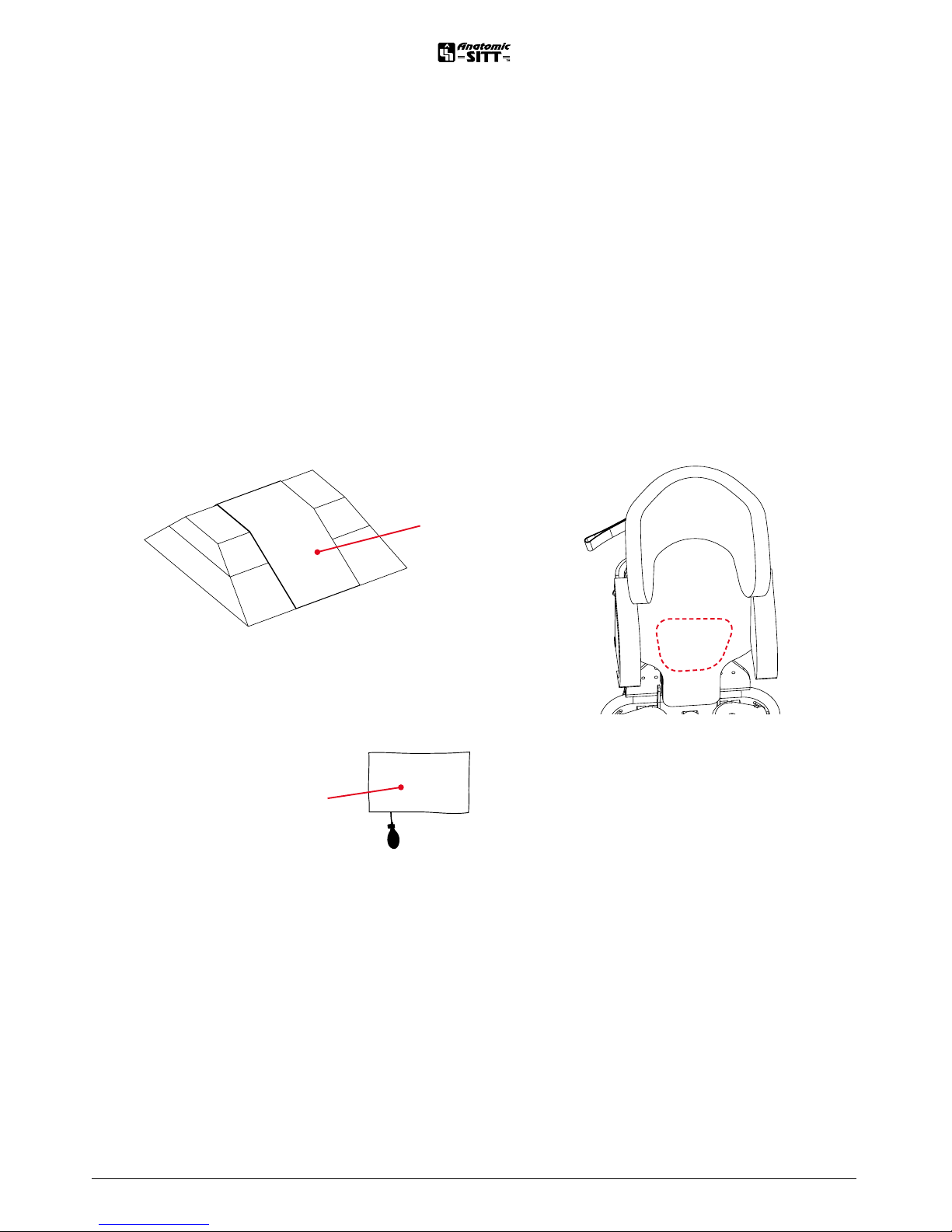

Lumbar support
Extra accessories, inflatable lumbar support with pump
Before mounting of the lumbar support, adjust the back as described earlier�
• Remove the lining of the back
• Attach the the lumbar support inside of the back lining (approximate position
within the marked red in the picture below) with the help of Velcro�
• Then put back the lining�
Velcro
Inflatable lumbar support
with pump as an option

12
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Footrest
Included velcro should be glued to the
underside of Carseat Pro� (Fig� 1)� The
inner edge of the Velcro should be
in line with the holes and just behind
them as shown�
First, place the footrest on the seat
(Fig� 2)�
Then place your Carseat Pro on the
top of the footrest upper surface and
as close to the backreast as possible�
Make sure the velcro tabs attach to
each other�
Adjusting the footrest
The footrest to Carseat pro is foldable�
To adjust the height of the footrest
loosen the knob and set to desired
height� Fig 2
Velcro
Fig 1

13
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

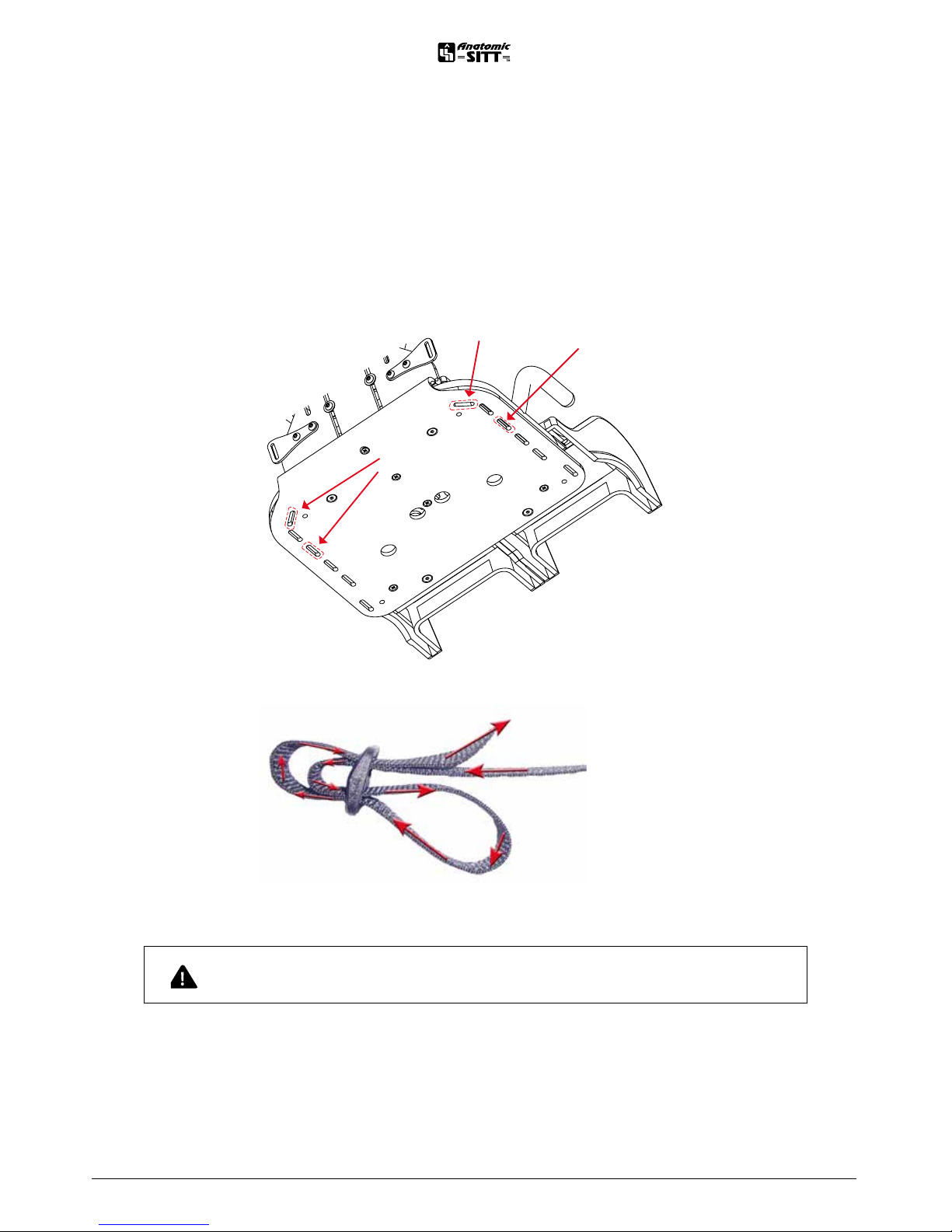

Hip belt
E
When replacing of the hip belt
Move the straps through the red marked traces in the plate according to the Triglide
method (E)�
NOTE! Do not forget to use the seat belt!

14
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

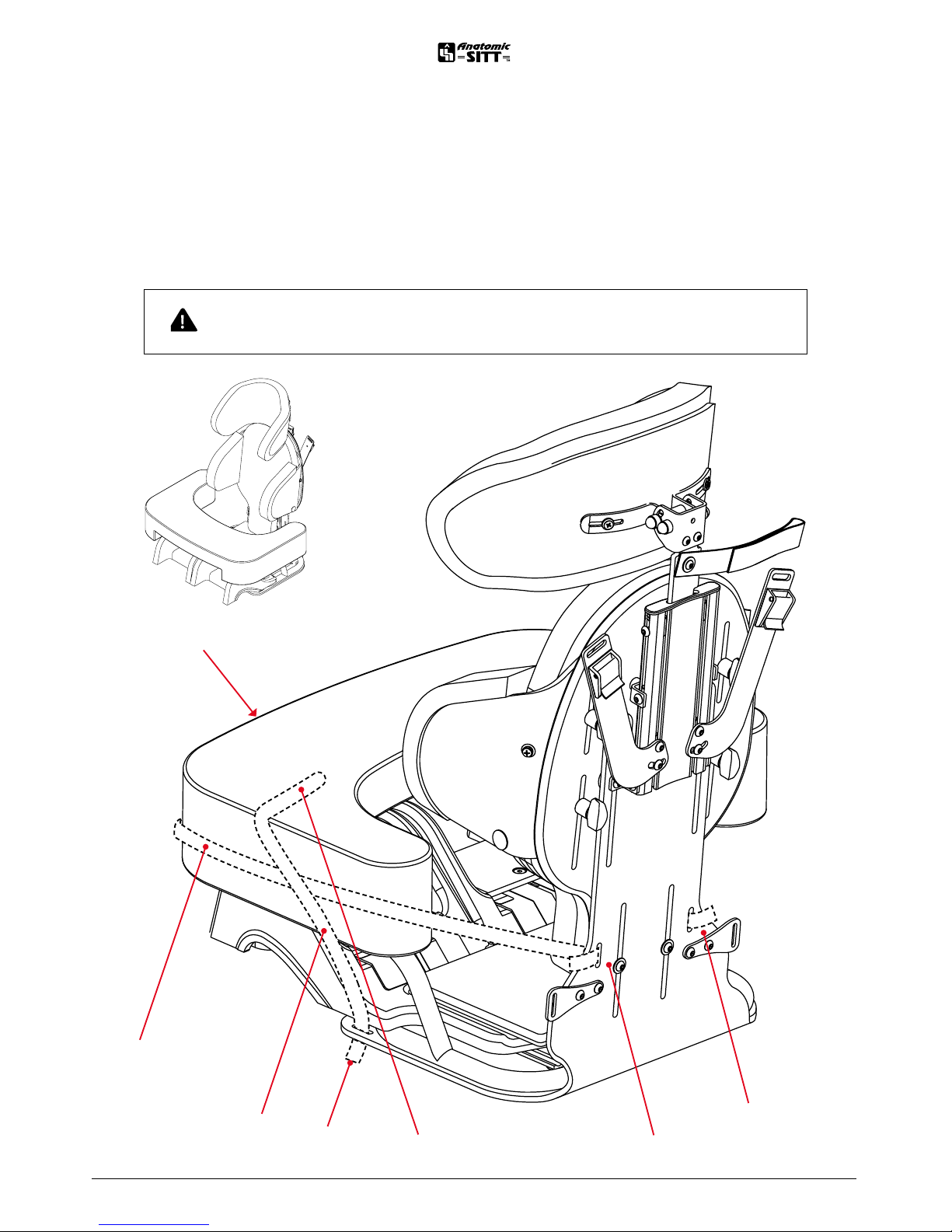

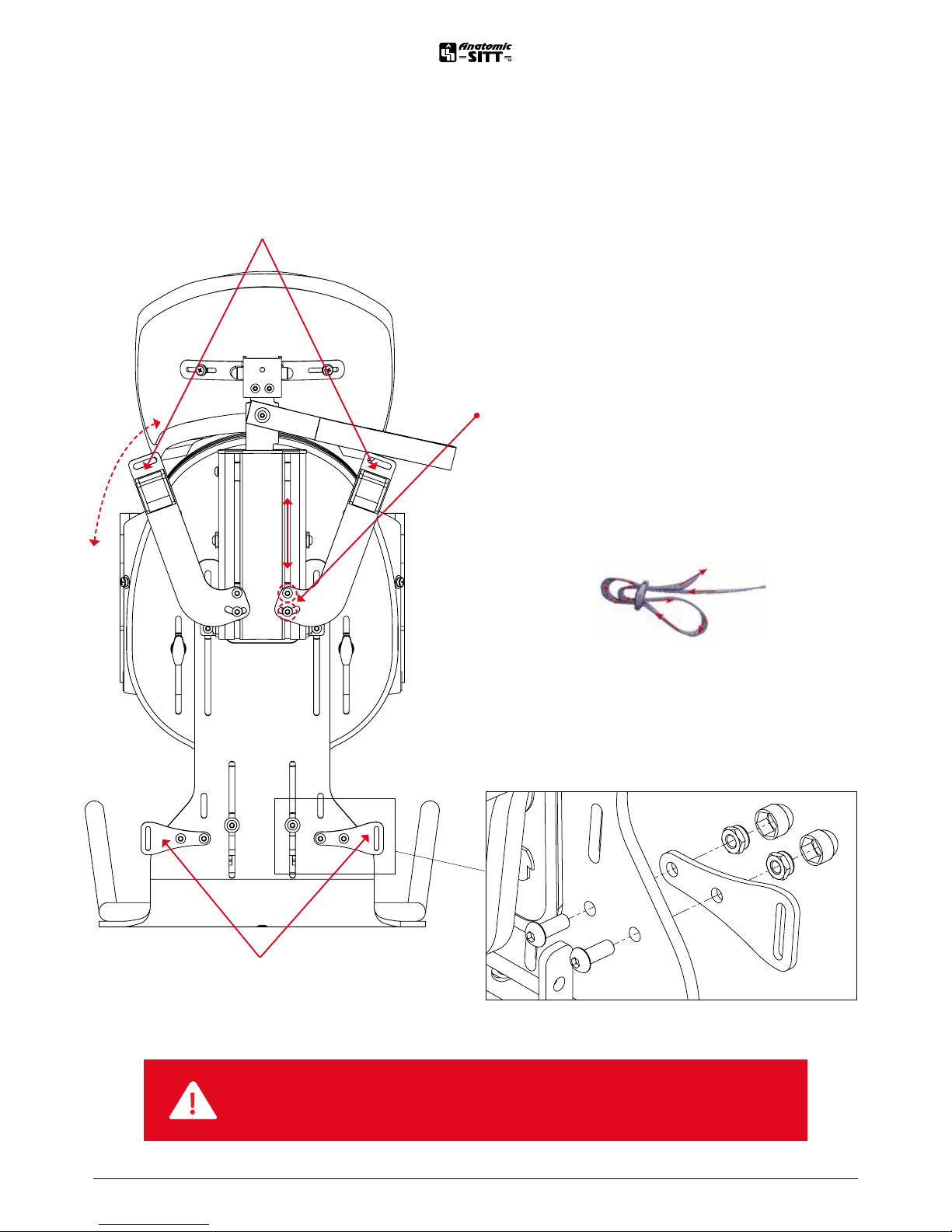

Installation of upper mounting brackets (A)
Push the upper mounting brackets from the
underside of the slots on the profile to the
desired position� Lock screws�
Adjustment of upper mounting bracket (A)
Loosen the screws and adjust to the desired
height and angle� Adjust the height of the
mounting bracket so that the pull direction end
up slightly over the shoulder� Lock screws�
Mounting of harness
Put straps through upper slot and into the
buckle� Put the lower anchor points of the
harness into the lowest bracket� Use the
attached Triglide buckles (E)�
Lower mounting bracket (B)
Mount the lower mounting brackets with
enclosed screws, nuts and washers as shown in
picture (2)� Tighten the screws�
Mounting of the support series
E
Lower mounting brackets (B)
Picture (2)
Upper attachment brackets (A)
WARNING! Be sure to allow enough room for the neck. Also
check the pressure of the strap and belt pads and that they are
where they should be.

15
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Table
Velcro on the front of
the table
Velcro Tri-glideTri-glide
Tri-glide
1
2
The table is placed on the patient’s knee and mounted using Velcro (1) & (2)
attached to your Carseat Pro according to the picture bellow� The user can use the
table as an armrest, where desirable�
NOTE! Ensure that the table is not too tight around the patient’s
stomach, and to secure it in place�

16
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]

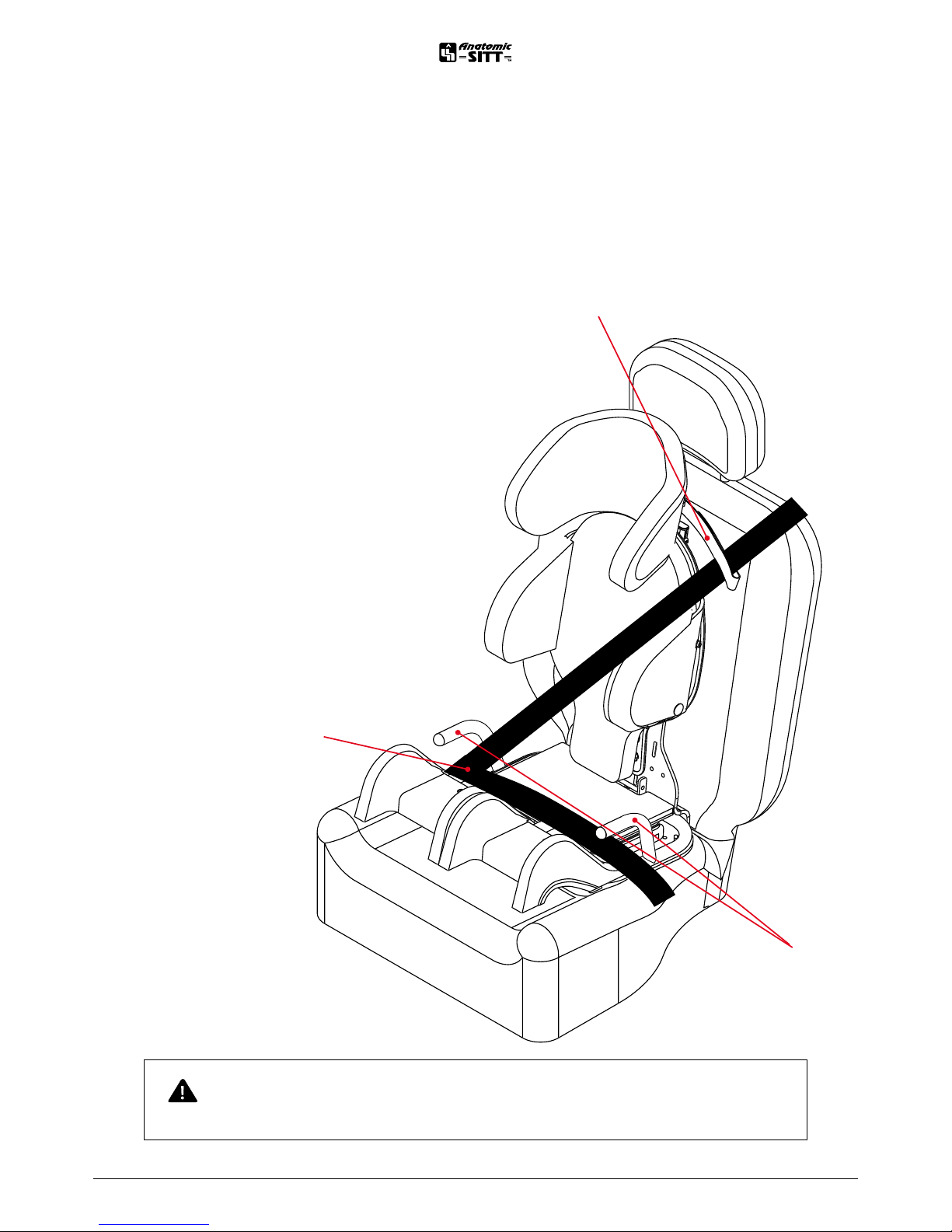

Mounting in the car
Always use the belt holder
It’s very important you put
the belt through the belt
holder�
Under tube frame
The seat belt is drawn
below the safety bow
as shown and then
down to the buckle�
• Zitzi Carseat Pro must always be
used in conjunction with the 3-point
harness of the car�
• The seat belt must be drawn as
illustrated in the picture�
• Place Zitzi Carseat Pro in the car seat�
• Make sure the Carseat Pro is
centered�
• Place the child into your Carseat Pro�
• Attach the 3-point belt around the
child� Hip belt should fit over the
child’s hips under the red safety bows
(A)�
• Attach the belt around the shaft (by
the shoulder)�
• Tighten the belt afterwards to get the
belt as tight as possible�
• Loosen the child through releasing
safety belt lock� Zitzi Carseat Pro can
beleft in the car, but must be
fastened by a seat belt�
(A)
NOTE! The more you tighten the belt, the better the child is, in the
event of an accident� If possible, ensure any jacket is not between
the belt and the user’s hip�

17
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Swivel base
Zitzi Carseat Pro
mounted on a swivel base
in a car seat�
Neutral Turned-out Fully turned-out
1
3
2
4
The swivel base is attached to the underside
of your Carseat Pro using enclosed screws
(1), spacers (2) and nuts (3), according to the
shown picture� Nut Caps (4) is turned on after
mounting�
Then place the swivel base of the seat and
ensure that the back of your Carseat Pro is as
close to car’s back seat as possible, The rear
part of the swivel base can be positioned so
that it goes into the seat between the seat
and the back�
To turn your Carseat Pro to a better position
for entry and exit, pull the knob (marked red
in the pictures) upwards to release it and turn
the chair�
The block can be locked in two positions -
with your Carseat Pro directed in the direction
of travel of the seat and against seat side
(entry and exit position)�
NOTE! Always ensure the block has been locked thoroughly before
entry and exit, and before process of the vehicle is started�

18
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Maintenance instructions
Combinations
Zitzi Carseat Pro is an ECE-approved product that can be combined with all the
accessories described in this manual� Zitzi Carseat Pro may NOT be combined with
other products�
Spare parts
Only spare parts delivered by Anatomic SITT AB may be used�
Marking
Zitzi Carseat Pro with its accessories is an ECE-approved product� A unique serial
number is located in the lower part of the back plate (see the red marked area on
the picture)� This serial number shall be indicated at all correspondence regarding
the product�
Care and maintenance
Cushion & belt cushions: 60o, cold wash� Do not dry in a tumbler or drying
cupboard� Plastic & metal parts: Wipe o the dirt with a damp rag� Maintenance
should be carried out with regular intervals and when necessary� Do not forget
to take away fabric and lining details before such cleaning� Think about the
environment! Please use a biological degradable degreasing agents�
Controll all movable parts for torn damages, exchange if needed�
If you feel insecure about anything, you are more than welcome to contact us by
calling [phone] or send us an email at info@anatomicsitt�com�
Recycling
A used part or product should be dismantled and discarded� The parts should be
separated by material type, metal, plastic and combustibles (textiles) (see next
page)�
• This is a universal car seat� It is approved to ECE
regulation no� 44�04 for general use in vehicles and is
suitable for most, but not all, automotive seats�
• Proper attachment can be achieved if the vehicle
manufacturer acknowledges, in its handbook of the
vehicle, is adapted for incorporation of a car seat the
universal type for the specified weight group�
• This car seat has been classified as universal under more
stringent conditions than those used earlier versions of
child safety seats which do not carry this certificate�
• If in doubt contact the manufacturer of this car seat or
the retailer�

19
User manual – Zitzi Carseat Pro www.anatomicsitt.com | [phone]
Summary and follow-ups
Continue to regulary perform the follow-ups which is described in respective point:
• Regulary examine that all the screws are securely locked�
• Regulary examine the wear of straps and cushions�
• You should check the above points each time the user will use Zitzi Carseat Pro�
Warranty
1 year against manufacturing defects, eective from the date of purchase� Warranty
only on products that were not changed by the owner� The warranty does not apply
to products that have been exposed to a collision or similar incident�
Materials
• Metal
Safety bow, profiles, footrest bracket, headrest stay, pelvis support brackets, leg
part reinforcement, seat slope adjustment bracket�
• Plastic
Seat- and back part, table, footrest plate, leg parts, lateral supports and
headrest cushion�
• Combustible
Lining and hip belt�

Anatomic SITT A/S
Viengevej 4, 8240 Risskov, Denmark
Tel [phone]
Fax [phone]
Anatomic SITT AB (tillverkare)
Box 6137, SE-600 06 Norrköping, Sweden
Tel [phone]
Fax [phone]
Besöksadress
Terminalgatan 1, SE-602 29 Norrköping, Sweden
Rehaco OY
Haaransuontie 6 A7, 90240 Oulu, Finland
Tel: [phone]
Anatomic SITT Nederland BV
Postbus 6027 / 4000 HA Tiel, Netherlands
Tel [phone]
Fax [phone]
DK
SE
FI
NL
anatomicsitt�com
info@anatomicsitt�com
facebook�com/anatomicsitt
youtube�com/anatomicsitt
