Safety 1st Summit ISO 30 User manual

CONVERTIBLE CAR SEAT
SUMMIT ISO 30
Suitable for newborn to 4 years
Discover life safely
4yrs0m+
Illustrations and designs may vary.
IMPORTANT: KEEP THIS BOOKLET IN THE
PLACE PROVIDED ON THE CHILD RESTRAINT.

2
QUICK START INSTALLATION
REARWARD-FACING USING SEATBELT
PUSH
DOWN
PULL
OUT
SLACK
CLICK
NEWBORN UP TO
30 MONTHS, APPROX.

3
QUICK START INSTALLATION
FORWARD-FACING USING SEATBELT
PUSH
DOWN
SASH
LAP
PULL
OUT
SLACK
CLICK
SELECT
RECLINE
1, 2, 3
TODDLER (12 MONTHS,
APPROX) UP TO 4 YEARS

4

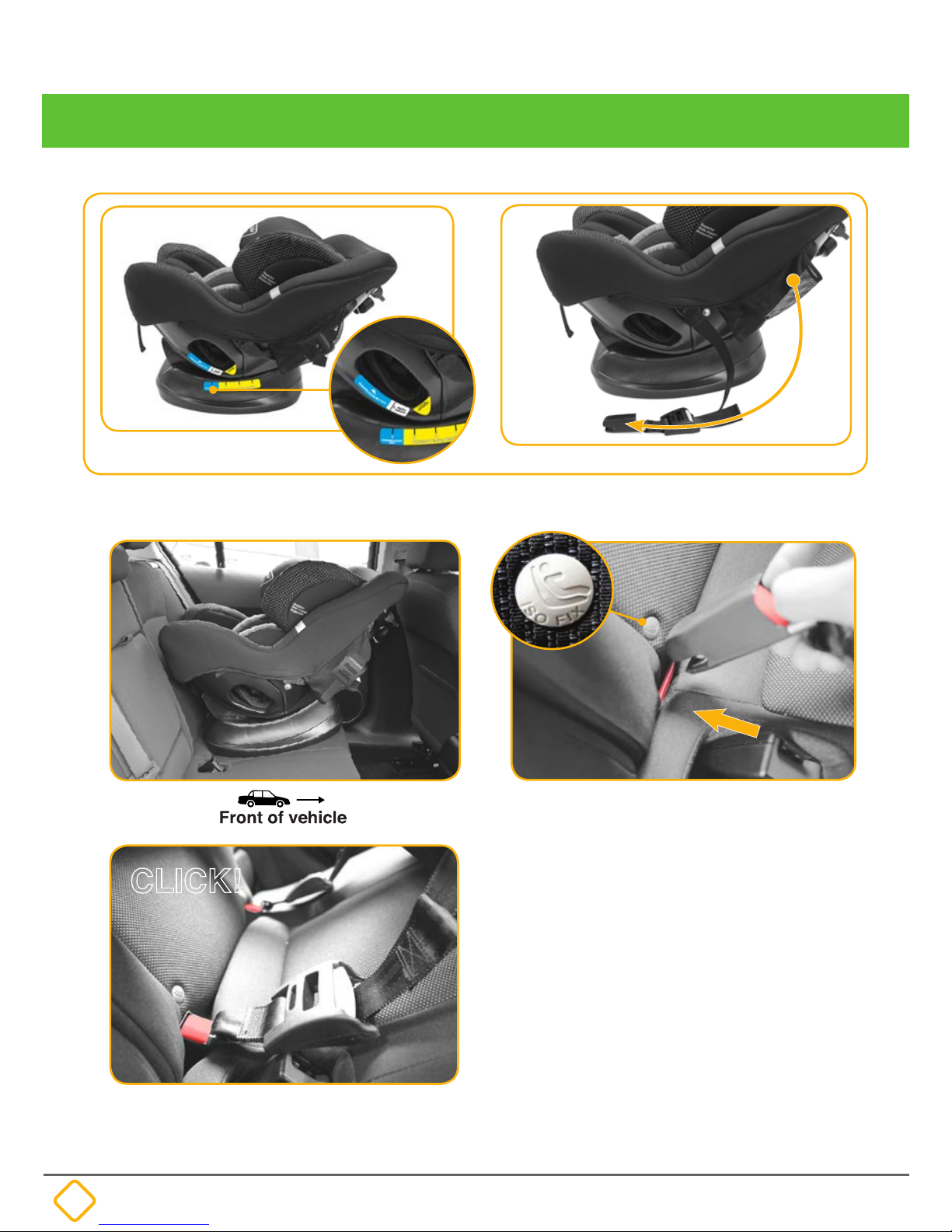

QUICK START INSTALLATION
REARWARD-FACING USING ISOGO
CLICK!
BOTH SIDES
NEWBORN UP TO
30 MONTHS, APPROX.

5
PUSH
PULL
PULL
ATTACH TOP TETHER STRAP
Press the child restraint rmly
down into the vehicle seat whilst
pulling on the ISOGO straps.
tip: Always check for GREEN at eye level.
Pull loose end of the strap until you
get a majority GREEN indication.

6

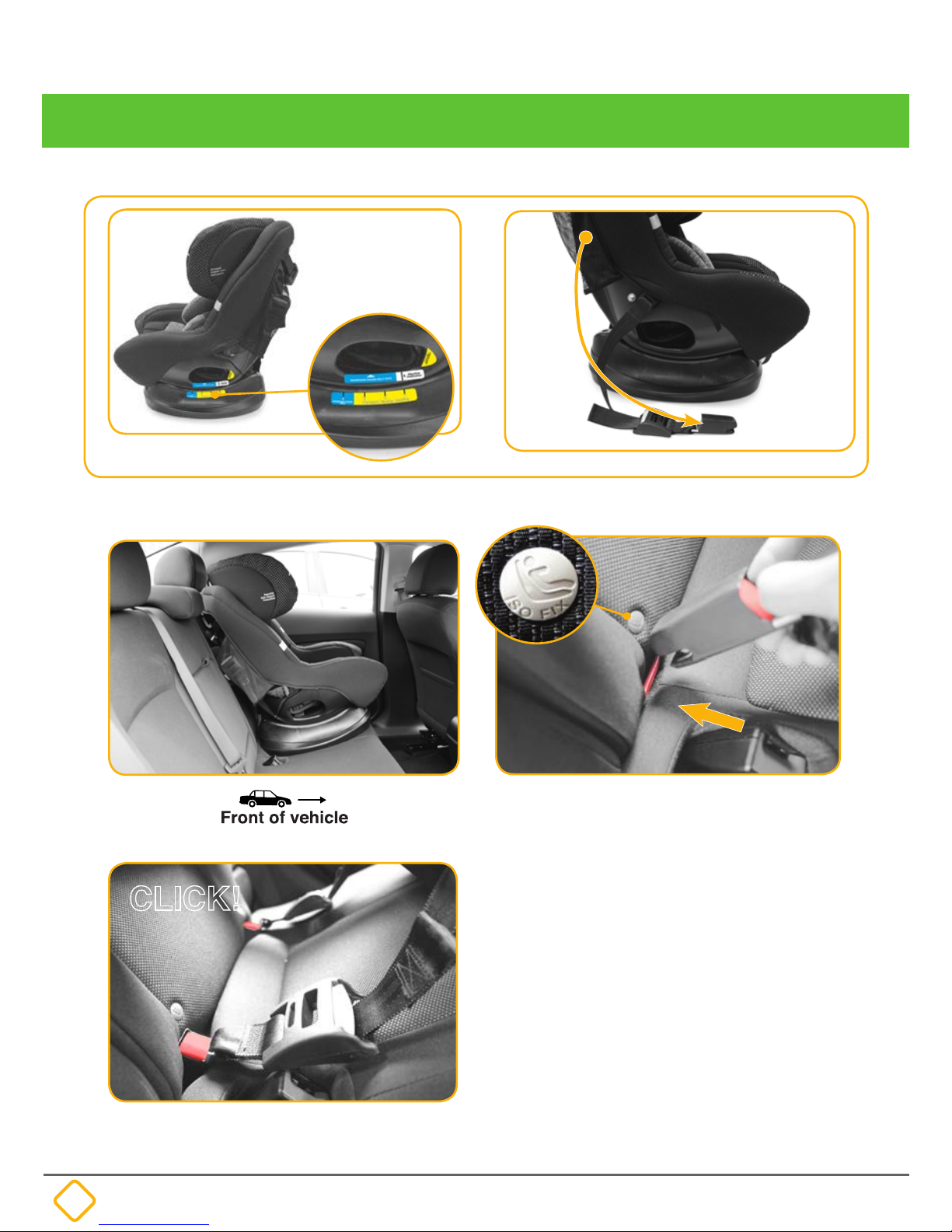

QUICK START INSTALLATION
FORWARD-FACING USING ISOGO
CLICK!
BOTH SIDES
SELECT
RECLINE
1, 2, 3
TODDLER (12 MONTHS,
APPROX) UP TO 4 YEARS

7
Press the child restraint rmly
down into the vehicle seat whilst
pulling on the ISOGO straps.
PUSH
PULL
PULL
ATTACH TOP TETHER STRAP
tip: Always check for GREEN at eye level.
Pull loose end of the strap until you
get a majority GREEN indication.

8
CONTENTS
Quick Start Installation .............................................................................................. 2 - 7
Contents ......................................................................................................................... 8
Introductions ................................................................................................................... 9
Warnings ................................................................................................................. 10 - 12
VEHICLE INFORMATION
Correct Rearward-Facing Vehicle Position ............................................................. 13
Correct Forward-Facing Vehicle Position ............................................................ 14
Anchor Fitting Location ................................................................................................ 15
Anchor Fitting Installation ..................................................................................... 16-18
Angle Adjustment ........................................................................................................ 19
Parts List ................................................................................................................ 20 - 21
Transition Period From Infant To Toddler Use ................................................... 22 - 23
INSTALLATION
Conguring Harness Straps ..................................................................................... 24
Adjusting Headrest Height and Harness Height ....................................................... 25
To Fasten Buckle Assembly ...................................................................................... 26
Adjusting Top Tether Strap ......................................................................................... 27
Rearward-Facing Installation Using Seatbelt ..................................................... 28
Forward-Facing Installation Using Seatbelt ........................................................... 29
Rearward-Facing Installation Using ISOGO .................................................. 30 - 31
Forward-Facing Installation Using ISOGO...................................................... 32 - 33
Next Seat For Your Child ........................................................................................... 34
CARE & MAINTENANCE
CleaningInstructionsForBuckle............................................................................35 - 36
Care Instructions .......................................................................................................... 37
Removing Trim For Cleaning .................................................................................... 37
Removing Accessories For Cleaning ................................................................... 38
Guarantee ..................................................................................................................... 39
Customer Service ........................................................................................................ 40

9
Thank you for purchasing this child seat. This product is
suitable for newborn children to toddlers approximately
4 years old. We welcome you as a valued customer, and
trust that your child will enjoy many years of comfort and
safety.
No child restraint can guarantee absolute protection from
a crash. However proper use of this restraint may reduce
the risk of injury or death!
BEFORE YOU START:
www.Safety1st.com.au
Call our Customer Service Team: 1300 809 526
Monday to Friday (8:30am - 5:00pm AEST)
or send an email: [email protected]
NEED ASSISTANCE?
www.Safety1st.com.au Safety1stAustralia
ACCIDENT
EXCHANGE

10
Read and follow all of the installation instructions for maximum
protection. If you have any questions regarding the installation or use
of this child restraint in Australia or New Zealand, please contact our
customer service numbers provided. An alternative option is to also
contact any registered child tting station authorised by your local
transport authority.
•Tobeusedonlyinarearward-facingpositionuntiltheinfant’sshoulders
eitherreachthelowershoulderheightmarker(approximately12monthsof
age)orreachthemiddleheightmarker(approximately2to3yearsofage).
Thentobeusedinaforward-facingpositionuntilthechild’sshoulders
reachtheuppershoulderheightmarker(approximately4yearsofage).
•Continuetousethischildrestraintuntilthechildreachesthislimit.
•Donotuseforwardfacinguntilchild’sshouldersareabovethelower
shoulderheightmarker.
•Infantsareatriskofseriousinjuryiftheyfaceforwardtooearly.
•Childrenareatriskofseriousinjuryiftheymovetoboosterseatstoo
early.
•Childrenwhohaveoutgrownthisrestraintaresafestinalargerchild
restraintwithanin-builtharnessoraboosterseatuntiltheirshoulders
reachtheuppershoulderheightmarkeroftherestraint.
GENERAL
•Usetherestraintexactlyasshownintheinstructions.
•Supervisionofchildrenisneededbecausetheymaybeabletoundothe
buckles.
•DONOTLEAVECHILDRENUNATTENDEDINTHECAR.
•Donotalterormodifythisrestraint.
•Repairsmustonlybedonebythemanufacturersoragent.
•Donotallowtherestrainttocomeintocontactwithpolishes,oils,bleach
andotherchemicals.
•Destroytherestraintifithasbeeninaseverecrash,evenifnodamageis
visible
•DONOTUSETHISRESTRAINTWITHOUTTHECOVER.
•Toensureinfant’sbackisevenlysupported,donotputmorethanone
nappyonthebabyandmakesurethenappyisnotthicklyfoldedatthe
back.
•DONOTUSEAREAR-FACINGCHILDRESTRAINTWHEREANAIRBAG
ISFITTEDINFRONTOFTHESEATINGPOSITION.
WARNINGS

11
•Fittherestraintrmlytothecarseat.
•Fittheharnessrmlytothechild.
•Alooserestraintorharnessisdangerous.
•Donotharnessaninfantwrappedinablanketorswaddled.Anyblanket
orwrapmustonlybeplacedovertheharnessandinfant.
•Seatbeltextendersarenotrecommendedtobeusediftheseatbeltis
notlongenoughtosecurethechildrestraint.Ifseatbeltsaretooshort
thenadviceshouldbesoughtfromachildrestrainttterandtheir
recommendationbeconsideredbeforeusingaseatbeltextender.
•Alwayssecurethelooseendofthetoptetherstrap.Donotusethechild
restraintwherethisstrapmayfallintoasplitintheseatbackoroffthe
sideoftheseat.
•Alwayssecurethelooseendofthetoptetherstraptopreventithanging
outofthecarorbeingaccessiblebythechild.
•ALWAYSATTACHHOOKANDREMOVESLACK.
•THISRESTRAINTISNOTSUITABLEFORUSEWHERETHETOPTETHER
STRAPMAYFALLINTOASPLITINTHESEATBACKOROFFTHESIDE
OFTHESEAT.
•THISRESTRAINTMUSTBEATTACHEDTOACHILDRESTRAINT
UPPERANCHORAGEPOINTINTHECAR.REFERTOCAROWNER’S
HANDBOOKFORLOCATIONOFUPPERANCHORAGEPOINTS.REFER
TOACHILDRESTRAINTFITTINGSTATIONIFNOUPPERANCHORAGE
POINTSAREINTHEMOTORCAR.
•Alwayscheckthemeasurementsbetweenthefrontoftheseatbackof
therearseatandallfrontseatsinthecarinwhichthechildrestraintis
intendedtobeused,toensurethatthespaceissufcient.
•Careandattentionbegiventoventilationandshadingoftheoccupant.
•TOBEUSEDWITHALAP-SASH/LAP-ONLYSEATBELTORISOFIXLOW
ANCHORAGESINTHEFRONT/BACKOFMOSTCARSWITHFORWARD
FACINGSEATS.
WARNINGS

12
WARNINGS
•Theuseofchildrestraintsinthefrontseatmayberestrictedforchildren
ofspecicagesbylocallegislation.Pleasecheckwithyourlocal
legislationregardinganyrestrictionforchildrestraint.Ifacarhastwoor
morerowsofseats,childrenunderfourmustnottravelinthefrontseat.
Ifallseats,otherthanthefrontseats,arebeingusedbychildrenunder
sevenyears,childrenagedbetweenfourandsixyears(inclusive)may
travelinthefrontseat,providedtheyuseanapprovedchildrestraintor
boosterseat.
•Useofaftermarketaccessories(i.e.itemsnotprovidedintheboxwiththe
childrestraint),canreducethesafetyprovidedbychildrestraintandmay
causeinjuryordeath.Forapprovedaftermarketaccessoriespleaserefer
topage 15.
•PleasecontactDorelAustraliaCustomerServicewithanyquestionsor
concerns.

13
Correct Rearward-Facing Vehicle Position
SomeseatingpositionsinyourvehiclemayNOT besafeforthissafety
seat.Somevehiclesdonothaveanyseatingpositionsthatcanbeused
safelywiththeseat.
Ifyouarenotsurewheretoplacetheinfantseatinyourvehicle,consult
yourvehicle’sowner’shandbook.
Vehicle Seat Location Requirements
Childrenaresaferwhenproperlyrestrainedinrearvehicleseatingpositions.
Wheneverpossible,securetheinfantseatinthecentrepositionoftheseat
directlybehindthefrontseats.
WARNING
IMPROPER PLACEMENT OF THE SAFETY SEAT INCREASES THE RISK
OF SERIOUS INJURY OR DEATH.
CORRECT USE
CORRECT USE
500mm
550mm

14
Correct Forward-Facing Vehicle Position
CORRECT USE
CORRECT USE
INCORRECT USE

15
Location of Anchorage Fitting
NOTE:
•Theanchorpointcanbefoundindifferentlocationsindifferentcar.The
illustrationaboveshowspossiblelocationsofanchorpoints.Sometimes
itisontheparcelshelfinsedans,andontheoorareainstationwagons,
vansandhatchbacks.Makesurethatyoudonotconfusetheluggage
hookinthebackofastationwagonwithanchorpoints.Refertoyour
owner’smanual.
•Anextensionstrapmaybeneededforvehicleswithoutaxedparcelshelf.
Extensionstrapsandextrattingsareavailablefromvariousstores.
Extensionstraps300mmrefno.014398 Extensionstraps600mmrefno.014399
Anchorboltkitrefno.014400 Lockingcliprefno.014401

16
Assembling: Wanderer StrollerAnchorage Fitting Installation
Childrestraintsmustbeusedcorrectlytoprovideproperprotectionforyour
child.Theanchoragesystemonchildrestraintmustbeusedinthecorrect
way.
CORRECT
Makesurethereisnoslackinthetopstrapandtheattachmentclipis
uprightintheanchoragetting.
INCORRECT
Theclipmustnotlieatontheanchoragetting.
INSTALLATION CORRECT
Make sure there is no
slack in the top strap
and the attachment
clip is upright in the
anchorage tting.
The clip must not
lie at on the
anchorage tting.
Anchorages in
vertical panel at
rear of vehicle
Floor mounted
anchorages
INCORRECT
FIGURE 1
FIGURE 2
x
x

17
Upper Anchorage Fitting Installation
FOR CARS FITTED WITH A CHILD
RESTRAINT UPPER ANCHORAGE POINT
Locatetheupperanchoragepointbehindthe
rearseatingposition(consultthecarowner’s
handbookforthelocationoftheupper
anchoragepoint).
Removethethreadplugfromtheparcelshelf/
oor/roofandinstalltheattachmentboltas
shownin Figure 1.
CAUTION:DONOTOVERTIGHTENTHE
ATTACH-MENTBOLT.OVERTIGHTENING
MAYFRACTUREORBREAKBOLT.
MAXIMUMTORQUEIS20Nm.
FOR CARS NOT FITTED WITH A CHILD
RESTRAINT UPPER ANCHORAGE POINT
For sedans only
Drilla9mmdiameterholeintheparcelshelf
onthecentre-lineoftheseatingpositionas
shownin Figure 2.Installtheanchorboltas
showninFigure 3. Itisrecommendedthatthis
installationbecarriedoutbyachildrestraint
ttingstationorlicencedmotormechanic.
For vehicles other than sedans
InAustralia,consultyournearestchildrestraint
ttingstationortrafcauthorityforvehicle
inspectiontondthebest,correctpositionfor
theplacementoftheupperanchoragepoint,
andforthecorrectattachmentboltlengthand
useofspacers.InNewZealand,consultthe
agentforthevehicle.
Vehicle metal
structure
Spacer(s)
(ifrequired)
Attachment bolt
Anchor fitting
Vehicle trim
Vehicle metal
structure
Spacer(s)
(ifrequired)
Attachment bolt
Anchor fitting
Vehicle trim
Lock washer
Nut
Reinforcing
washer
Centre line of
seating position
200mm
min.
FOR SEDANS ONLY:
1
2
3
Front of vehicle

18
Assembling: Wanderer StrollerUpper Anchorage Fitting Installation
CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL
OR TO WOOD OR SYNTHETIC STRUCTURES. WHEN DRILLING THE
9mm HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS,
ELECTRICAL WIRING, OR RADIO SPEAKERS. WEBBING STRAPS
MUST BE PROTECTED FROM SHARP CORNERS AND EDGES.
THE ANCHOR FITTING MUST BE USED ONLY AS DESCRIBED ABOVE.
IT MUST NOT BE HOOKED ONTO ANY OTHER OBJECT.
WARNINGS

19
Seat Angle
Front of vehicle
•DO NOT install convertible child restraints excessively reclined,
ensure the angle is no greater than 40°.
•DO NOT adjust harness or tether strap hardware such that it sits
too close to the occupant.
•Ensure that correct seatbelt path is used and that the restraint is
installed in the correct direction for rearward facing application
(Refer to page 28).
•DO NOT wrap baby in a blanket or swaddled as infant can be
ejected and killed in an accident.
•Ensure the harness ts the baby rmly.
•Ensure that any blanket or other covering may only be placed over
the harness after the harness is adjusted rmly.
•The infant’s legs are not be bound or wrapped together and the
arms are not bound or wrapped together.
Positionseatensuringthattheangleis
nogreaterthan40˚fromhorizontalplane.
WARNINGS
40˚

20
Components List
1. Adjustable Headrest
2. Air Protect Cell (x2)
3. Multi-Purpose Utility
Straps
4. Belt Mates (x2)
5. Harness
6. Buckle
7. Padded Insert
8. Belt Path Opening
(both sides)
9. Centre Front Adjuster
(under cover)
10. Seat Base
11. Adjuster Strap
12. Base Recline Adjuster
1
2
8
10
7
9
11
4
5
3
6
12
