Ancona AN-1278 User manual

Under Cabinet Range Hood
User Manual
and
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
MAAN1278-01
2022-01-24

— 2 —
INSTALLERS - Start Here
Safety Instructions are on pages 4 and 5 and
Installation Instructions are on pages 8 to 15.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of
this manual BEFORE installing the range hood.
3. Remove all packing materials.
4. When nished, make sure to leave these instructions with the consumer.
5. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
6. Product failure due to improper installation is not covered under the Warranty.
CONSUMERS - Start Here
Safety Instructions are on pages 4 and 5 and Operating Instructions are
on pages 16 to 18, and 21.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the manual BEFORE operating the range hood.
3. Remove all packing materials.
4. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
5. Product failure due to improper installation is not covered under the Warranty.
Before You Begin
Hardware Note: For safety reasons, range hood mounting screws and
anchors will not be included due to the variation of cabinetry constructions
and wall material. Please consult your installation specialist regarding the
optimal type of mounting screws and wall anchors to suit your home’s
construction.

— 3 —
Before You Begin............................................................................................................................... 2
Table of Contents .............................................................................................................................. 3
Important Safety Information ............................................................................................................ 4
Included Parts ................................................................................................................................... 6
Range Hood Dimensions .................................................................................................................. 7
Specications.................................................................................................................................... 7
Installation......................................................................................................................................... 8
Step 1 - Read the Safety Instructions............................................................................................ 8
Step 2 - Unpack Range Hood and Prepare Tools.......................................................................... 8
Step 3 - Plan Desired Location ...................................................................................................... 8
Step 4 - Test Unit Functions .......................................................................................................... 8
Step 5 - Venting Installation Guidelines ......................................................................................... 9
Step 6 - Preparations................................................................................................................... 11
Step 7 - Attaching Vent................................................................................................................ 11
Top venting using 6 in. (15.3 cm) round damper............................................................ 11
Top venting using rectangular damper........................................................................... 11
Rear venting (horizontal) using rectangular damper ...................................................... 11
Step 8 - Rotating the motor (For rear venting only) ..................................................................... 12
Step 9 - Install top vent plate and rear damper (For rear venting only) ....................................... 13
Step 10 - Assemble the Storage Bar ........................................................................................... 13
Step 11 - Attaching the unit to the wall ....................................................................................... 13
Step 12 - Attaching the unit under the kitchen cabinets ............................................................. 14
Step 13 - Connect to AC.............................................................................................................. 15
Step 14 - Install Filters ................................................................................................................. 15

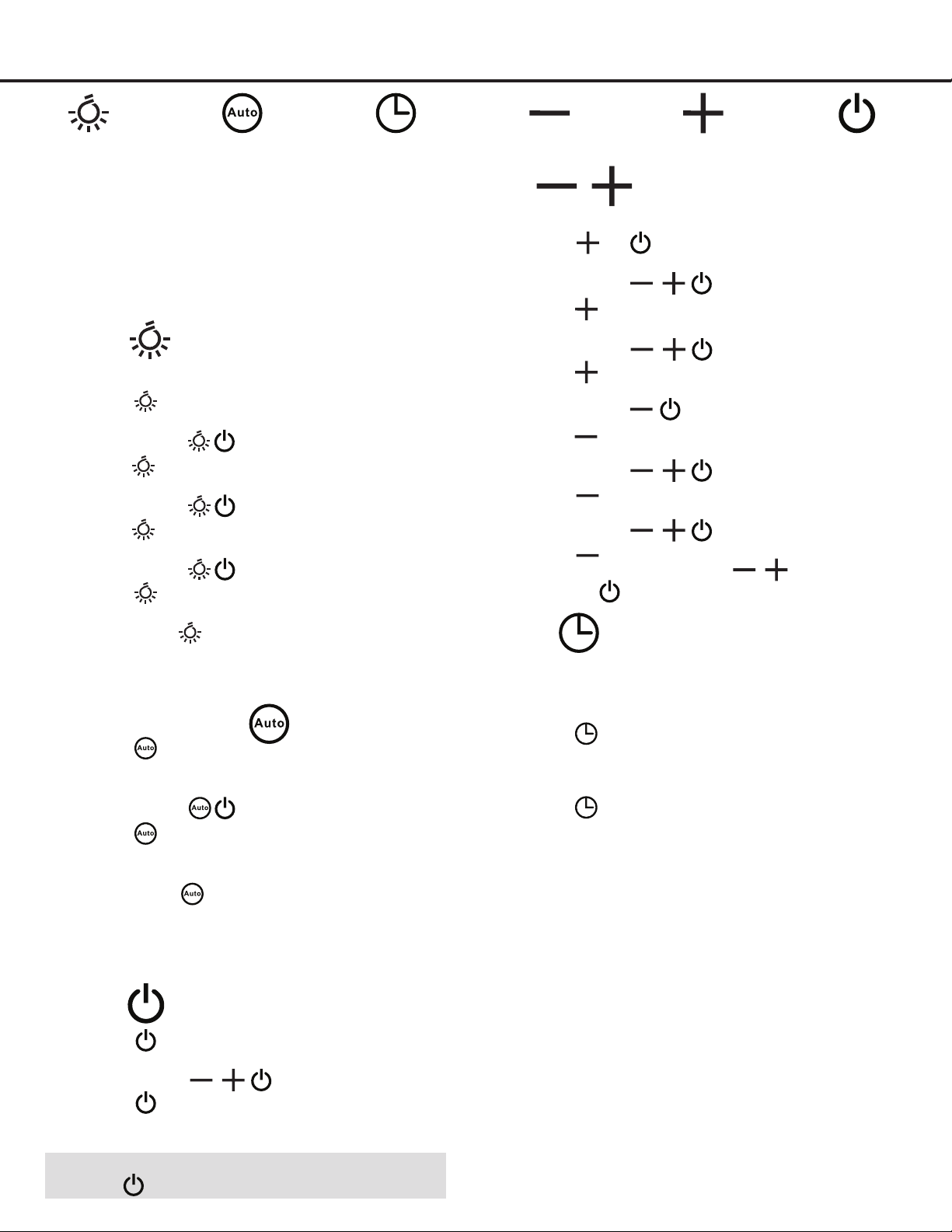

Operation ........................................................................................................................................ 16
Lamps (with 3 luminance setting + auto mode) ........................................................................... 16
Auto Night-Light........................................................................................................................... 16
Power ........................................................................................................................................... 16
Fan (with 3 speed setting)............................................................................................................ 16
Timer ............................................................................................................................................ 16
Maintenance.................................................................................................................................... 17
Replacing the Light Pucks ........................................................................................................... 17
Hood Cleaning ............................................................................................................................. 17
Cleaning Filters ............................................................................................................................ 18
Troubleshooting............................................................................................................................... 18
Range Hood Assembly ................................................................................................................... 19
Assembly......................................................................................................................................... 20
Circuit Diagram ............................................................................................................................ 20
Blower Assembly ......................................................................................................................... 20
Electrical Assembly...................................................................................................................... 20
Use and Care Information............................................................................................................... 21
Table of Contents

— 4 —
Important Safety Information
• Theinstallationinthismanualisintended
for qualied installers, service technicians or
persons with a similar qualied background.
Installation must be done by qualied
professionals and in accordance with all
applicable codes and standards, including
re-rated construction.
• The range hood may have very sharp
edges; please wear protective gloves if it is
necessary to remove any parts for installing,
cleaning or servicing.
• Activating any switch to ON position before
completing installation may cause damage or
electric shock.
• Duetothesizeofthisrangehood,atwo-
person installation is recommended.
To reduce the risk of fire, electric shock, or
injury to persons:
• Forgeneralventilatinguseonly.DO NOT use
to exhaust hazardous or explosive materials
and vapours.
• WARNING: To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
• Thecombustionairowneededforsafe
operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline
and safety standards such as those published
by the National Fire Protection Association
(NFPA), and the American Society of Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and other local code authorities.
• Beforeservicingorcleaningtheunit,switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Cleangrease-ladensurfacesfrequently.To
optimize performance and to disperse air
properly, make sure to vent air outside. DO
NOT vent exhaust into spaces between walls,
crawl spaces, ceilings, attics or garages.
• Ducted fans MUST always be vented to
the outdoors.
• ThisunitMUSTbegroundedandusedwith
metal ductwork only.
• Sufcientairisneededforpropercombustion
and exhausting of gases through the duct to
prevent back drafting.
• Whencuttingordrillingintowallorceiling,be
careful not to damage electrical wiring or other
hidden utilities.
• Allelectricalwiringmustbeproperlyinstalled,
insulated and grounded.
• Old ductwork should be cleaned or replaced
if necessary to avoid the possibility of a
grease re.
• Check all joints on ductwork to ensure
proper connection; all joints should be
properly taped using a certied aluminum
or foil tape.
• Usethisunitonlyinthemannerintended
by the manufacturer. If you have questions,
contact the vendor.
READ AND SAVE THESE
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Read and follow all instructions before using the range hood to prevent the risk of re, electric shock,
personal injury, or damage when using the range hood or appliances with the range hood. This guide
does not cover all possible conditions that may occur. Always contact your service technician or
manufacturer about problems that you do not understand.

— 5 —
Important Safety Information
WARNING: TO REDUCE RISK OF A RANGE
TOP GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn range hood ON when cooking at
highheatorwhenambéingfood(i.e.Crepes
Suzette, Cherries Jubilee, etc.).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or lter.
Before servicing or cleaning unit, unplug and
disconnect the hood from the power supply.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING: TO REDUCE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING *
a) S MOTHER FLAMES with a close-tting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS.Iftheamesdonotgoout
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class A, B, C
extinguisher, and you already know how to
operate it.
2) The re is small and contained in the area
where it is started.
3) The re department is being called.
4) You can ght the re with your back to an exit.
*Based on “Kitchen Fire Safety Tips”
published by NFPA
To reduce the risk of injury to persons in the
event of a gas leaks:
• Extinguishanyopename.
• DO NOT turn on the lights or any type of appliance.
• Openalldoorsandwindowstodispersethe
gas. If you still smell gas, call the gas company
and re department.
Your safety and the safety of others is very
important. We have provided many important
safety messages in this manual and on your
appliance. Always read and obey all safety
messages. All safety messages outline any
potential hazards, how to reduce the chance of
injury, and possible risks if the instructions are not
followed.
READ AND SAVE THESE
INSTRUCTIONS

— 6 —
Included Parts
Hardware Note: For safety reasons, range hood mounting screws and anchors will
not be included due to the variation of cabinetry constructions and wall material.
Please consult your installation specialist regarding the optimal type of mounting
screws and wall anchors to suit your home’s construction.
Range Hood
Round vent/damper
6 in. (15.3 cm)
ST4 × 8 mm Screw
2 Filters
M4 × 12 mm Screw
Bar
Rectangular Vent/Damper
3.25 × 10 in. (8.3 × 25.4 cm)
Hooks

— 7 —
Range Hood Dimensions
Specifications
Body Design Stainless Steel
Power Rating 120 V / 60 Hz (cETLus Certied)
Total Input Power 215 W (210 W + 2 × 2.5 W)
Motor Input Power 210 W
Amperage 2.5 A
Speed Control Levels 3 Speeds
Interference Protection Radio Frequency Interference Protected
Motors Single Motor
Control Electronic control panel
Filtration Bafelter
Illumination 2 × 2.5 W LED
Fan Type Centrifugal Squirrel Cage
Venting Size Top 6 inches (15.3 cm) round, or 3 1/4 × 10 inch
(8.3 cm × 25.4 cm) rectangle, top or rear
12 in. (30.5 cm
9.7 in. (24.7 cm)
27.8 in. (70.8 cm)
3.5 in.
(9 cm)
29.5 in. (75 cm)
3.1 in. (8 cm)
1.5 in. (3.8 cm)
1.1 in.
(2.8 cm)
7.2 in.
(18.5 cm)
7.2 in.
(18.5 cm)
1.1 in. (2.8 cm)
3.5 in.
(9 cm)
9.7 in. (24.7 cm)
27.8 in. (70.8 cm)
3.5 in.
(9 cm)
9.6 in.
(24.5 cm)
20.6 in.
(52.5 cm)
9.25 in.
(23.5 cm)
12 in. (30.5 cm)
29.5 in. (75 cm)
3.1 in. (8 cm)
9.6 in.
(24.5 cm)
20.6 in.
(52.5 cm)
Ø 6 in. (15 cm)
1.8 in.
(4.6 cm)
2.3 in.
(5.8 cm)

— 8 —
STEP 1
Read the Safety Instructions
• It is very important to read the safety instructions on pages 4 and 5.
IMPORTANT: It is the installer’s responsibility to comply with installation clearances.
STEP 2
Unpack Range Hood and Prepare Tools
• Carefully unpack the range hood and parts. Make sure all parts are included as shown on page 6.
• DO NOT remove the protective lm covering the appliance until the installation is fully completed.
• Consult a qualied and trained installer or check local codes for makeup air requirement, if any.
STEP 3
Plan Desired Location
• Plan a desirable location that ts all requirements in the Safety and Installation sections of this manual. Plan where
and how the ductwork will be installed.
• A straight or short duct run will allow the unit to perform most efciently. Long duct runs, elbows and transitions
will reduce the performance of the unit. Each elbow is equivalent to 5 to 10 feet (1.5 m to 3 m) of straight run.
• If ductwork is already installed: ensure ductwork is free from debris.
STEP 4
Test Unit Functions
• Plug the unit in and test all of the functions before installing.
• Placetherangehoodonaat,stablesurface.Connecttherangehoodtoadesignatedstandardoutlet(120-Volt,60Hz,
AC only) and turn on the range hood. Verify all operations of the range hood by referring to Range Hood Operations.
• Turn power On in control panel.
• Check all lights and fan operations.
WARNINGS:
• PleasemakesuretoreadALLsafetyinstructionsonpages4and5.
• Usetwoormorepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinseriousinjury.
Installation

— 9 —
Installation
STEP 5
Venting Installation Guidelines
• The following steps are for exterior ventilation.
Height and Clearance
IMPORTANT:
• Vent system must terminate to the outside (roof or side wall).
• DONOT terminate the vent system in an attic or other
enclosed area.
• DONOTuse4in(10.2cm)laundry-typewallcaps.
• Usemetal/aluminumventonly.Arigidmetal/aluminum
vent is recommended.
• DONOTuseaplasticvent.
• Alwayskeeptheductcleantoensureproperairflow.
• Calculatethefollowingfiguresbeforeinstallation:
1. Distance from the floor to the ceiling
2. Distance between the floor and the countertop/stove
3. A distance of 24 in to 30 in (61 cm to 76.2 cm) is
recommended between stove top and the bottom of
range hood. 30 in (76.2 cm) minimum is required for
gas stove tops.
4. Height of hood and duct cover.
For the most efficient and quiet operation:
• Itisrecommendedthattherangehoodbevented
vertically through the roof through 6 in. (15.3 cm) round,
or through the roof or wall 3-1/4 × 10 in. (8.3 cm × 25.4
cm) rectangular duct or bigger metal/aluminum vent
work.
• Thesizeoftheventshouldbeuniform.
• Usenomorethanthree90°elbows.
• Make sure there is a minimum of 24 in (61 cm) of
straight vent between the elbows if more than one
elbow is used.
• DONOTinstalltwoelbowstogether.
• The length of vent system and number of elbows should be
kept to a minimum to provide efficient performance.
• Theventsystemmusthaveadamper.Ifrooforwall
cap has a damper, you may remove damper flaps from
damper to increase air flow.
• Onlyoneflangeisneededintheairductsystem,either
on top of the motor or outside.
• Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.
24 in. (610 mm) Min / 30 in. (762 mm) Max

— 10 —
IMPORTANT:
• A minimum of 6 in. (15.3 cm) round or 3-1/4 × 10 in. (8.3
cm × 25.4 cm) rectangular duct must be used to maintain
maximum airflow efficiency.
• Alwaysuserigidtypemetal/aluminumductsifavailableto
maximize airflow when connecting to provided duct.
• PleaseuseDuctRunCalculationbelowtocompute
total available duct run when using elbows, transitions
and caps.
• ALWAYS,whenpossible,reducethenumberor
transitions and turns. If long duct run is required,
increase duct size from 6 in. (15.3 cm) to 7 in. (17.7
cm) or 8 in. (20.3 cm). If a reducer is used, install a
long reducer instead of a pancake reducer. Reducing
duct size will restrict airflow and decrease airflow, thus
reduce duct size as far away from opening as possible.
• Ifturnsortransitionsarerequired,installasfaraway
from opening and as far apart, between two (2), as
possible.
• Minimummountheightbetweenstovetoptohood
bottom should be no less than 24-inch (61 cm) for
electric cook tops and minimum of 30-inch (76.2 cm)
for gas stove tops and no higher than 30-inch (76.2 cm)
for electric cook tops.
• Itisimportanttoinstallthehoodatthepropermounting
height. Hoods mounted too low could result in heat
damage and fire hazard; while hoods mounted too high
may be hard to reach and will lose its performance and
efficiency.
• Ifavailable,alsorefertostovetopmanufacturer’s
height clearance requirements and recommended
hood mounting height above range.
Installation
• This range hood is factory set for venting through the roof or wall.
• Ventworkcanterminateeitherthroughtherooforwall.Toventthroughawall,a90°elbowisneeded.
IMPORTANT:
• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or
garages. All exhaust must be ducted to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.
• Use caulking to seal exterior wall or roof opening around the cap.
Duct Run
Calculation
example:
One roof cap, two
90º elbows, and
one 45º elbow use.
0ft + 9ft + 9ft + 5ft
= 23ft used.
Deduct 23ft from
30ft, 7ft maximum
available for
straight duct run.
TOP VENTING
ROOF EXHAUST
TOP VENTING
WALL EXHAUST
REAR VENTING

— 11 —
Installation
STEP 6
Preparations
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
• Determine and mark the centre line on the ceiling or wall where the range hood will be installed.
• Make sure there is proper clearance within the ceiling or wall for exhaust vent.
• Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and
secure in the ceiling or wall.
• Put a thick, protective covering over counter top, cooktop or range to protect from damage or dirt.
• Remove any hazardous objects around the area when installing.
CAUTION
If moving the cooking range is necessary to install the hood, turn OFF the power on an electric range at the main
electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.
STEP 7
Attaching Vent
Top venting using 6 in. (15.3 cm) round damper
• If you require 6 in. round venting, keep the unit as provided in the packaging and
install the round damper provided.
• Position the damper on top of the unit and set in place with screws provided (see
Figure 1).
• Connect duct work to damper.
• Use Duct Tape to ensure joint is sealed and air tight.
Top venting using rectangular damper
• If you require rectangular top (vertical) venting simply install the rectangular
damper provided (see Figure 2). Connect duct work to damper.
• Use Duct Tape to ensure joint is sealed and air tight.
Rear venting (horizontal) using rectangular damper
• Remove unit from packaging.
• Positiontheunitonitsbackonaatnon-abrasivesurface
- front facing you (see Figure 3).
• Remove the 2 lters to allow access to the inside of the
unit (see Figure 3).
• Cut tie wraps on motor cables so wires are free to move
and be relocated (see Figure 4).
Figure 1
Figure 2
Figure 3 Figure 4

— 12 —
Remove rear vent back plate
• Positiontheunitfacedownonaatnon-abrasivesurfacewithrearofproduct
facing you.
• Remove the back plate by removing the 4 screws (see Figure 5).
STEP 8
Rotating the motor (For rear venting only)
• Positiontheunitonitsbackonaatnon-abrasivesurface–perpendiculartoyourworkingsurface(seeFigure6).
• Place hand to hold motor in position and ensure weight of motor is well supported (see Figure 6). This will ensure
screws don’t get bent or broken.
• Remove 4 screws that hold motor in place on the top side of the hood. Ensure the motor weight is well supported by
your hand as the last screw in place may break under the weight of the motor.
• Once the motor is set free from the hood, rotate motor clock wise to position
venting outlet with rear rectangular hole, ensuring that:
• Put unit upside down so the screw holes securing the motor are in a position
facing you.
• Install4screwstoholdmotor–Useascrewdrivertoperformoperation–NOT
A DRILL as it may strip the motor housing thread (see Figure 9).
Installation
Figure 5
SAFETY WARNING: Risk of electrical shock. This range hood must
be properly grounded. Make sure this is done by a qualified electrician in
accordance with all applicable national and local electrical codes. Before
connecting wires, switch power off at service panel and lock service panel
to prevent power from being switched on accidentally.
• Electric wire is located under the motor as you relocate the motor outlet
(see Figure 7).
• Electric wire is not caught under the motor outlet (See Figure #8).
• 4 holes are aligned with screw holes at the rear.
Figure 6
Figure 7 Figure 8 Figure 9

— 13 —
Installation
STEP 9
Install top vent plate and rear damper (For rear venting only)
• Re-install the plate removed in step 7 to block top venting hole.
• Put plate in position and put in 4 screws from step 7 (see Figure 10).
• Install rectangular air damper outlet on the rear vent location (see Figure 11).
• Connect duct work to damper.
• Use Duct Tape to ensure joint is sealed and air tight.
Figure 11
STEP 11
Attaching the unit to the wall
• Mark or drill a small hole on the mounting position according to the dimensions on the following drawings.
• Insert suitable screws into the holes.
• Hang the range hood onto the screws.
The following drawings show the mounting dimensions of the 30 in. (750 mm) width.
Method 1: attach the ducting to the top round 6 in. damper and exhaust outdoors.
Figure 10
Figure 13
BC
Fig #13
Fig #14 Fig #15
Fig #12
190 mm (7.48 in.)
170 mm
(6.69 in.)
180 mm
(7.08 in.)
708 mm (27.87 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.) 38 mm
(1.5 in.)
230 mm
(9.05 in.)
180 mm (7.08 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.)
140 mm
(5.51 in.)
140 mm
(5.51 in.)
708 mm (27.87 in.)
108 mm
(4.25 in.)
19 mm
(0.75 in.)
38 mm
(1.5 in.)
230 mm
(9.05 in.)
708 mm (27.87 in.)
280 mm (11 in.)
108 mm
(4.25 in.)
30 mm
(1.18 in.)
90 mm
(3.54 in.)
STEP 10
Assemble the Storage Bar
• Align bar to the mounting holes and use M4 × 12 mm
screws to x the bar on the hood (Figure 12).
Take protective measures to prevent injuries, such as
wearing gloves.
Figure 12

— 14 —
STEP 12
Attaching the unit under the kitchen cabinets
• Mark or drill a small hole on the mounting position according to the space and dimensions cited on the following
drawings.
• Install the hood under the cabinet using suitable screws to x in position.
The following drawings show the mounting dimensions of the 30 in. (750 mm) width.
Method 3: Attaching under kitchen cabinets using 6 in. round ducting.
Method 4: attach the range hood under the kitchen cabinets and ducting to the rear rectangular damper and exhaust
outdoors.
Installation
Method 2: attach the ducting to the rear rectangular damper and exhaust outdoors.
Figure 14
Figure 15
Figure 16
BC
Fig #13
Fig #14 Fig #15
Fig #12
190 mm (7.48 in.)
170 mm
(6.69 in.)
180 mm
(7.08 in.)
708 mm (27.87 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.) 38 mm
(1.5 in.)
230 mm
(9.05 in.)
180 mm (7.08 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.)
140 mm
(5.51 in.)
140 mm
(5.51 in.)
708 mm (27.87 in.)
108 mm
(4.25 in.)
19 mm
(0.75 in.)
38 mm
(1.5 in.)
230 mm
(9.05 in.)
708 mm (27.87 in.)
280 mm (11 in.)
108 mm
(4.25 in.)
30 mm
(1.18 in.)
90 mm
(3.54 in.)
BC
Fig #13
Fig #14 Fig #15
Fig #12
190 mm (7.48 in.)
170 mm
(6.69 in.)
180 mm
(7.08 in.)
708 mm (27.87 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.) 38 mm
(1.5 in.)
230 mm
(9.05 in.)
180 mm (7.08 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.)
140 mm
(5.51 in.)
140 mm
(5.51 in.)
708 mm (27.87 in.)
108 mm
(4.25 in.)
19 mm
(0.75 in.)
38 mm
(1.5 in.)
230 mm
(9.05 in.)
708 mm (27.87 in.)
280 mm (11 in.)
108 mm
(4.25 in.)
30 mm
(1.18 in.)
90 mm
(3.54 in.)
BC
Fig #13
Fig #14 Fig #15
Fig #12
190 mm (7.48 in.)
170 mm
(6.69 in.)
180 mm
(7.08 in.)
708 mm (27.87 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.) 38 mm
(1.5 in.)
230 mm
(9.05 in.)
180 mm (7.08 in.)
28 mm
(1.1 in.)28 mm
(1.1 in.)
140 mm
(5.51 in.)
140 mm
(5.51 in.)
708 mm (27.87 in.)
108 mm
(4.25 in.)
19 mm
(0.75 in.)
38 mm
(1.5 in.)
230 mm
(9.05 in.)
708 mm (27.87 in.)
280 mm (11 in.)
108 mm
(4.25 in.)
30 mm
(1.18 in.)
90 mm
(3.54 in.)

— 15 —
IMPORTANT:
• Observeallgoverningcodesandordinances.
• It is the customer’s responsibility to contact a qualified electrical installer.
• Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualifiedelectriciandeterminethat
the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp
circuit, fused on both sides of the line.
• DONOTgroundtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethattherangehoodisproperlygrounded.
• DONOThaveafuseintheneutralorgroundcircuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
GROUNDING INSTRUCTIONS:
• Thisappliancemustbegrounded.Intheeventofanelectricalshort-circuit,groundingreducestheriskofelectric
shock by providing an escape wire for the electric current.
• Thisapplianceisequippedwithacordhavingagroundingwirewithagroundingplug.Theplugmustbeplugged
into an outlet that is properly installed and grounded.
WARNING: Improper grounding can result in a risk of electric shock.
• Consultaqualifiedelectricianifthegroundinginstructionsarenotcompletelyunderstood,orifdoubtexistsasto
whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
Installation
STEP 14
Install Filters
To install lters, follow four steps below (see Figure 17):
• Angle the lter into slots at the back of the hood.
• Push the button on handle of the lter.
• Release the handle once the lter ts into a resting position.
• Repeat to install all lters.
Figure 17
STEP 13
Connect to AC
• Connect AC plug into a grounded AC outlet having 120V, 60Hz.
Place the outlet at a maximum distance of 33-1/2 in. (851 mm)
from where the cord exits on the hood.
3-Pronged Plug
Ground Plug
3-Prong Receptacle

— 16 —
Operation
Lamp Power
(On/off)
Increase
Auto Timer Decrease
NOTE: When the hood has been initially connected to the
Power or after a Power Failure, all indicators turn ON for 1
second then OFF, the hood is in Standby condition.
Once the hood is connected with electricity, if wires for the control
are not well connected or control board has poor connection or
malfunction, buzzer will emit Six Beeps. You must then disconnect
the hood from the Power, x the problem and reconnect the hood.
Lamps
(with 3 luminance setting + auto mode)
uPress once: Lamps turn ON with High luminance.
Indicators for are ON.
v
Press second time:
Lamps turn ON with Low luminance.
Indicators for are ON.
w
Press third time:
Lamps turn ON with Night-Light luminance.
Indicators for are ON.
x
Press fourth time:
Lamps will turn OFF.
Indicator for is OFF.
Cycle is: “High luminance - Low luminance -
Night-Light luminance - lamps OFF - High luminance …”
Auto Night-Light
yPress once: You will hear a "Long audible beep",
Lamps now work in Auto Night-Light mode.
Indicators for are ON.
UPress second time: You will hear a "Short audible beep",
Auto Night Light mode is disabled.
Indicator for is OFF.
NOTE: When light sensor detects the room is dark, lamps
will turn on to Night-Light luminance. When light sensor
detects the room is less dark, Night-Light will turn OFF
automatically. And cycle repeats again and again.
Power
uPress once: Fan starts to work at 1st-speed.
Indicators for are ON.
v
Press second time:
Fan will turn OFF, hood is in Standby condition.
All indicators are OFF.
Fan
(with 3 speed setting)
uPress or once: Fan starts to work at 1st-speed (minimum speed).
Indicators for are ON.
v
Press second time:
Fan will work at 2nd-speed (medium speed).
Indicators for are ON.
w
Press third time:
Fan will work at 3rd-speed (maximum speed).
Indicators for are ON.
x
Press once:
Fan will work at 2nd-speed.
Indicators for are ON.
y
Press second time:
Fan will work at 1st-speed (minimum speed).
Indicators for are ON.
UPress third time:
Fan will turn OFF. Indicators are OFF.
Indicator is OFF (if lamps are OFF).
Timer
You can only activate the TIMER function when Fan is
working. TIMER will not function with only Lamps ON.
TIMER is xed for 3 minutes delay OFF.
u
Press once when Fan is working at any speed:

Fan will work continuously for 3 minutes, then Fan will
shut OFF automatically.
vPress again before the end of 3 minutes, and TIMER will be deactivated.
w
After activating the TIMER, if you change the FAN
speed, TIMER will be deactivated instantly.
AYD-056B
AYD-013B
AYD-055B
AYD-056B
AYD-013B
AYD-055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD-056B
AYD-013B
AYD-055B
AYD-056B
AYD-013B
AYD-055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD-056B
AYD-013B
AYD-055B
AYD-056B
AYD-013B
AYD-055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD-056B
AYD-013B
AYD-055B
AYD - 056B
AYD - 013B
AYD - 055B
AYD - 056B
AYD - 013B
AYD - 055B
IMPORTANT: When Lamps and/or Fan are working …
Pressing once will turn them OFF instantly!
AYD - 056B
AYD - 013B
AYD - 055B

— 17 —
Proper maintenance of the Range Hood will ensure proper performance of the unit.
Use a warm detergent solution. Grease lters are dishwasher safe.
Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its appearance.
Cleaning tips:
• Hot water with soap or detergent is all that is usually required.
• Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water marks.
• For discolorations or deposits that persist, use a non-scratching household cleanser or stainless steel polishing powder
with a little water and a soft cloth.
• For stubborn cases, use a plastic scouring pad or soft bristle brush with cleanser and water. Rub lightly in direction of
polishing lines or “grain” of the stainless nish. Avoid using too much pressure, which may mar the surface.
• DO NOT allow deposits to remain on surface for long periods of time.
• DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface causing rust.
• DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel
for extended periods. Many of these compounds contain chemicals which may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
Maintenance
Replacing the Light Pucks
uMake sure the range hood is unplugged or turn OFF breaker.
vRemove lters and push the spring, pull out the LED puck and unplug it.
CAUTION: PUCK MAY BE HOT, PLEASE
TAKE OUT THE PUCK WHEN THE PUCK IS
COMPLETELY COOL!
wReplace with a 10.2 Volt, 2.5 Watt max, LED lights. Plug in new puck and push back into light panel.
xTurn ON breaker and range hood to test for operation.
IMPORTANT:
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION
ON THE APPLIANCE.
Hood Cleaning
Figure 18

— 18 —
Troubleshooting
Problem Possible Cause
If the range hood or LED light
does not operate after installation:
Check if the range hood has been plugged in, make sure that all power
has been turned back ON, fused not blown and all electrical wiring are
properly connected.
The range hood vibrates when the
blower is on:
The range hood might not have been secured properly on to the ceiling or
wall.
The blower or fan seems weak: Check that the duct sized used is at least 6 in. (15.3 cm) or 3 1/4 × 10 in.
(8.3 × 25.4 cm). Range hood WILL NOT function efciently with insufcient
duct size. For example: 7 in. (17.7 cm) duct over 6 in. (15.3 cm) hole and
loosely secured.
Checkifductiscloggedorifdamperunit(half-circularange)isnot
installed correctly or opening properly. A tight mesh on a side wall cap unit
mightalsocauserestrictiontotheairow.
The lights work but the fan is not
spinning at all, is stuck or is rattling:
The fan might be jammed or scraping the bottom due to shipping damage.
Please contact us immediately.
The hood is not venting out
properly:
Make sure the distance between the stove top and the bottom of the hood
is within 24 in. and 30 in. (61 and 76.2 cm) in distance.
Reduce the number of elbows and length of duct work. Check if all joints
are properly connected, sealed, and taped.
Maintenance
Cleaning Filters
IMPORTANT: Drain oil from baffles, spacers, filters, oil tunnels, oil containers before oil and residue overflow!
• Removeallbafes,spacers,lters,greasetray,andoilcontainersanddiscardoilandresidue.
• Washwithwarmsoapywater.NOTE:Stainlesssteelbafes,spacersandoiltunnelaretoprackdishwashersafe.
• Dry thoroughly before replacing and follow directions for installation in reverse.
• Filters should be cleaned after every 30 hours of use.
• Should lters wear out due to age and prolonged use, replace with a new lter.

— 19 —
Range Hood Assembly
Number Part
1 Round duct or valve (Exhaust)
2 Air outlet cover
3 Housing assembly
4 Back plate
5 Power cord
6 Electronic box
7 Cover plate
8 PCB
9 Capacitor
10 Electronic box cover
11
Blower assembly
(includes motor)
12
13
14
15
16 Switch bracket
17 Switch box
18 Switch board
19 Light panel
20 LED puck lights
21 Bafelters
22 Bars
23 Hooks
24 Rectangle air outlet
25 Screw bag
11
12
15
14
13
1
25
8
7
6
9
10
2
3
4
5
18
19
20
17
16
21
22
24
23
w
x
y
U
V
W
X
al
ao
aq
bt
bk
bl
u
v
ak
am
an
at
ap
ar
as
bm
bn
bo

— 20 —
Assembly
Circuit Diagram
7
6
8
9
10
Electrical Assembly
Number Part
1 Electronic box cover
2 Capacitor
3 PCB
4 Cover plate
5 Electronic box
u
v
w
x
AC 0V 60Hz12
Main PCB
L
N
E
Capacitor
MAX 10.2V 250mA 2.5W
Temperature / Humidity
Sensor
CN6
CN5
(Optional)
CN1
CN2
CN3
CN4
CH B CN8
90P-2G [C5 Motor, 3-Speed]
2.5W (LSD E) LED

+4x -
90P-2G [C5 Motor, 3-Speed]
2.5W (LSD E) LED

+2x -
CAAM01
Motor
+
_
LED Pucks
___
Controls PCB
Controls PCB
Number Part
1Grid
2Motor
3Impeller
4Blower
5Wind drum inlet
Number Part
1Bracket of electronic box
2Base of electronic box
3Terminal connector
4Capacitor
5Cover of electronic box
Blower Assembly
Electrical Assembly
Blower Assembly
Number Part
1 Grid
2 Motor
3 Impeller
4 Blower
5Wind drum inlet
u
v
w
x
y
y
