Ancona PRESTO 30 User manual

MODEL: TRINA 30 & 36
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
MODEL: PRESTO 30 & 36
06/27/2013 MA1130-2

IMPORTANT SAFETY NOTICE
READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE
● The installation in this manual is intended for qualified installers, service technicians or persons
with similar qualified background. Installation and electrical wiring must be done by qualified
professionals and in accordance with all applicable codes and standards, including fire-rated
construction.
● Range hood may have very sharp edges; please wear protective gloves if it is necessary to
remove any parts for installing, cleaning or servicing.
● Activating any switch ON before completing installation may cause ignition or an explosion.
● Due to the size and weight of this range hood, two people installation is recommended.
To reduce the risk of fire, electric shock, or injury to persons:
● For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials
and vapors.
● The combustion air flow needed for safe operation of fuel-burning equipment may be affected
by this unit’s operation. Follow the heating equipment manufacturer’s guideline and safety
standards such as those published by the National Fire Protection Association (NFPA), and the
American Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
other local code authorities.
● Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to
prevent power from being switched ON accidentally.
● Clean grease laden surfaces frequently. To optimize performance and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces,
ceiling, attics or garages.
● Ducted fans MUST always be vented to the outdoors.
● This unit MUST be grounded and use only metal ductwork.
● Sufficient air is needed for proper combustion and exhausting of gases through the duct to
prevent back drafting.
● When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other
hidden utilities.
● All electrical wiring must be properly installed, insulated and grounded.
● Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease fire.
● Check all joints on duct work to ensure proper connection and all joints should be properly
taped.
● Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the vendor.
2

IMPORTANT SAFETY NOTICE
READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE
To reduce the risk of stove top grease fire:
●             
              
  
●               
●         
●              
           
●    
●       
●           
Note: * if included with your model
To reduce the risk of injury to persons in the event of a stove top grease fire:
●               

●  L     PICK UP A  P  
 P    MAL AWAY   
       ACUA  CALL   PA 
●    WA           

●    LY 
 Y        C         
             
      
 Y          
To reduce the risk of injury to persons in the event of a gas leaks:
●    
●           
●                 
   
Y          We     
                
                   
         
3

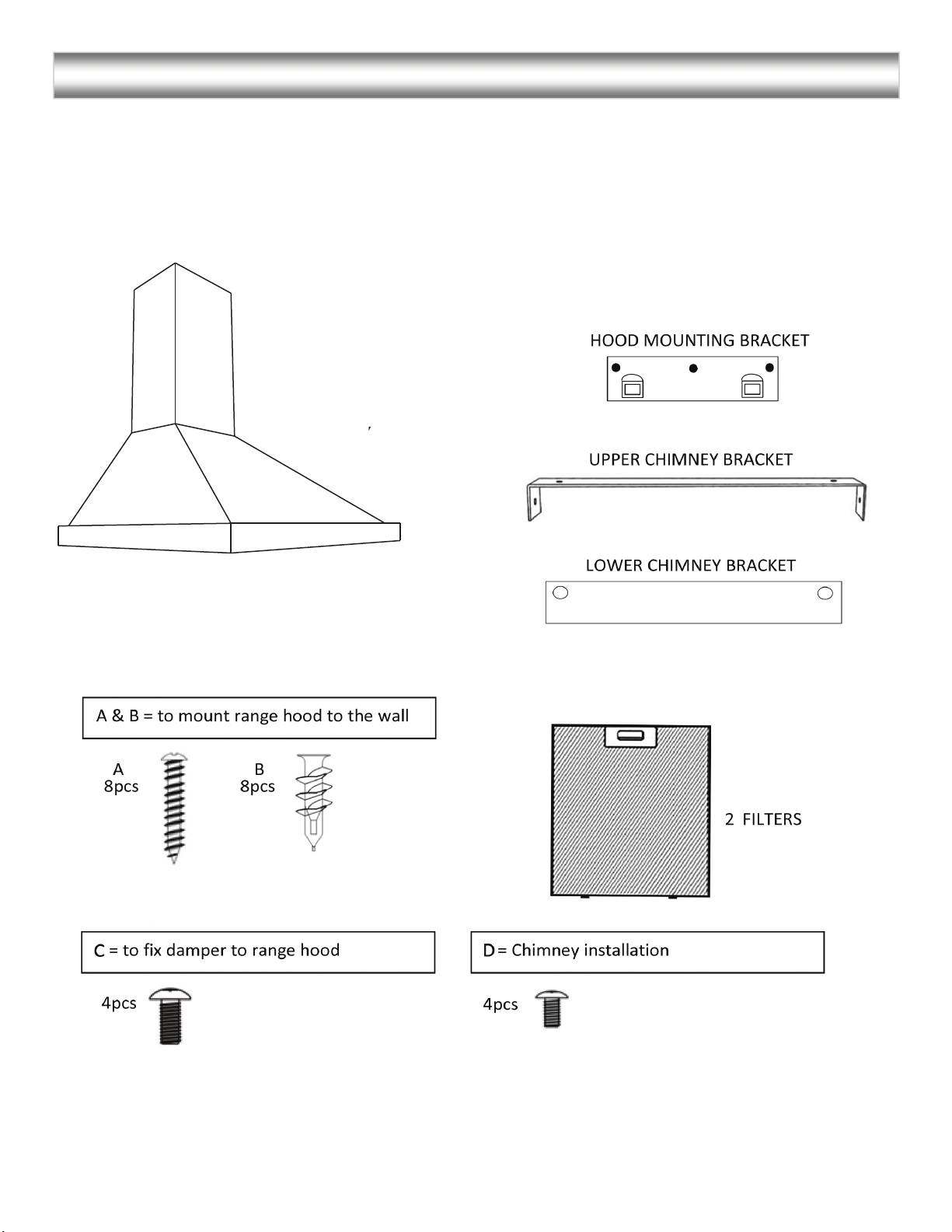

PARTS SUPPLIED:
4

 Vent system must terminate to the outside
(Roof or side wall).
 DO NOT terminate the vent system in an attic
or other enclosed area.
 DO NOT use 4” (10.2 cm) laundry-type wall
caps.
 Use metal/aluminum vent only. Rigid metal/
aluminum vent is recommended.
 DO NOT use plastic vent.
 Always keep the duct clean to ensure proper
airflow.
 Calculate the following figures before
installation:
1. Distance from the floor to the ceiling
2. Distance between the floor to the
countertop/stove
3. Distance between the cooking surface to
the range hood (recommend 24” to 30”)
minimum of 30” is required for gas cook top
4. Height of hood and duct cover
For the most efficient & quiet operation:
 A distance of 24” to 30” is recommended
between stove top and the bottom of range
hood. 30” minimum is required for gas stove tops.
 It is recommended that the range hood be
vented vertically through the roof through 6”
(15.3 cm) or bigger round metal/aluminum
vent work.
 The size of the vent should be uniform.
 Use no more than three 90° elbows.
 Make sure there is a minimum of 24” (61 cm) of
straight vent between the elbows if more than one
elbow is used.
 DO NOT install two elbows together.
 The length of vent system and number of elbows
should be kept to a minimum to provide efficient
performance.
 The vent system must have a damper. If roof or
wall cap has a damper, DO NOT use damper (if
supplied) on top of the range hood.
 Use silver tape or duct tape to seal all joints in the
vent system.
 Use caulking to seal exterior wall or roof opening
around the cap.

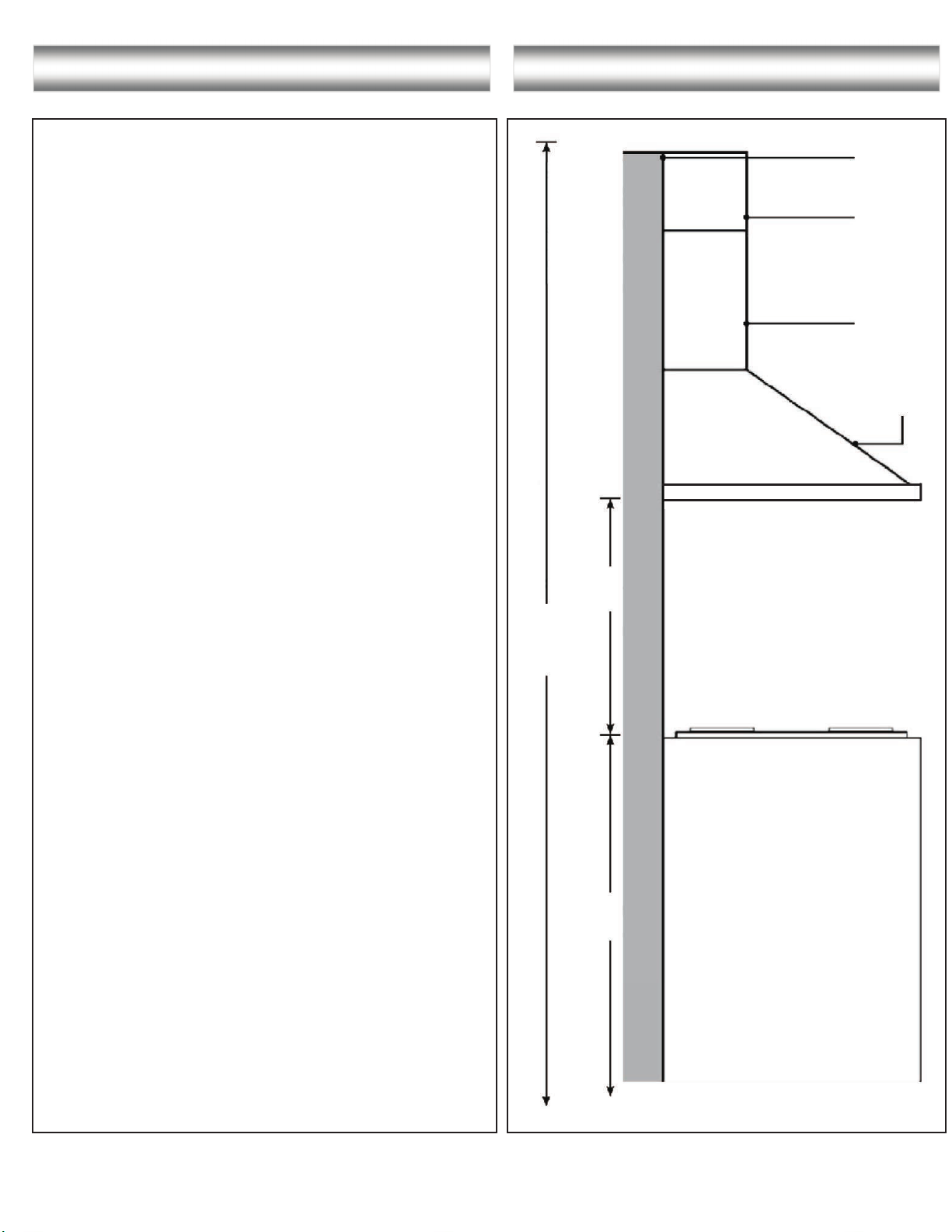

VENTING REQUIREMENTS: HEIGHT & CLEARANCE:
Max:
108.85”
Min: 24”
Max: 30”
Maximum
ceiling clearance
at 112 7/8”
at 30” clearance
above
countertop/stove.
Chimney mounting bracket
Upper chimney
Lower chimney
Range hood
Countertop / Stove
5

IMPORTANT:
                 
   
              
 
               
  
                
                     
               
    
                  
  
                
                 
 
                  
                   
  
             
    

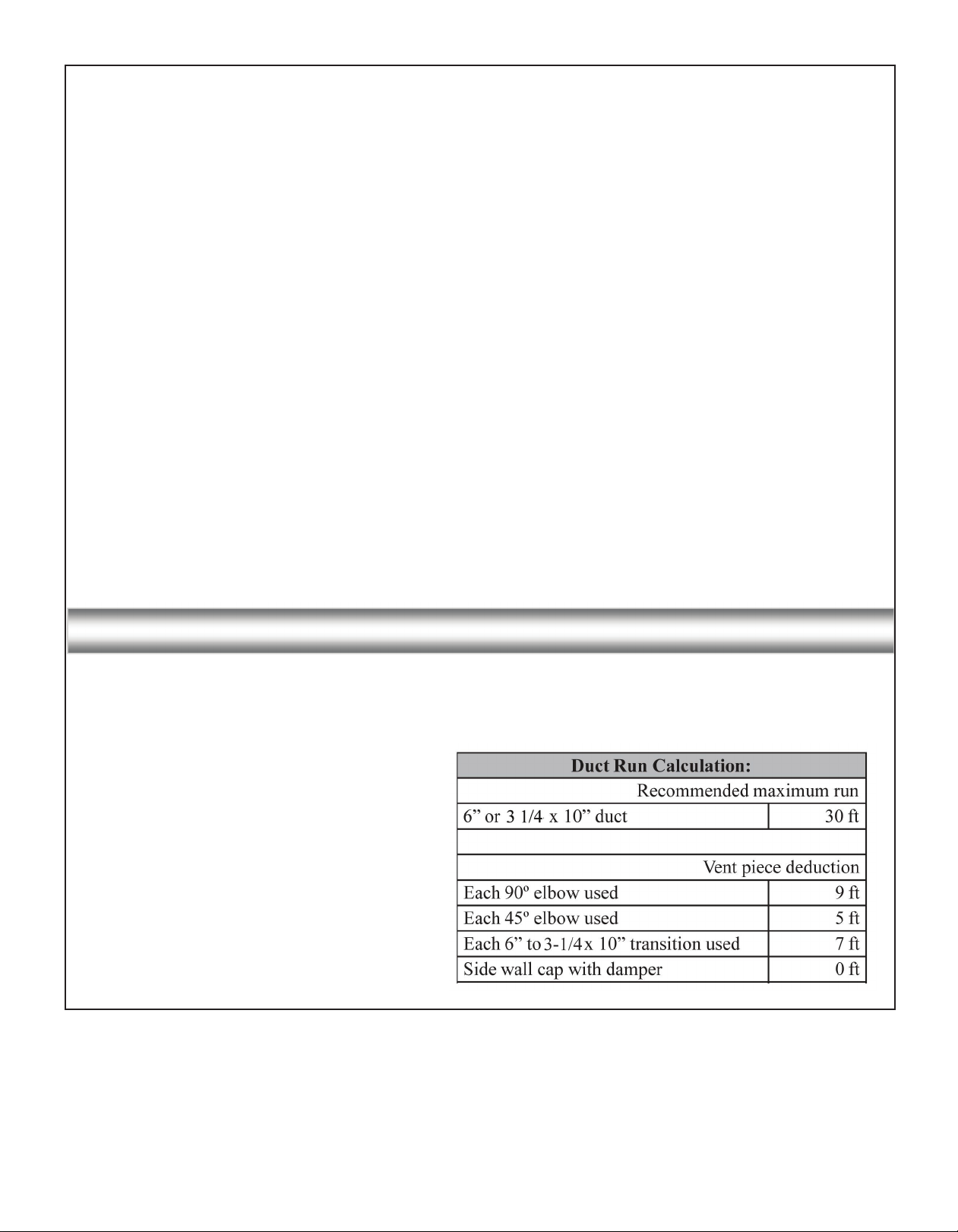

CALCULATING VENT SYSTEM LENGTH:
                   
      
Duct Run Calculation example:
One roof cap, two 90º elbows, and one 45º
elbow use
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 30ft, 7ft maximum
available for straight duct run.
-
6

 This range hood is factory set for venting through the roof or wall.
 Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.
IMPORTANT:
 NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,
attics or garages. All exhaust must be ducted to the outside.
 Use metal/aluminum duct work only.
 Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.
 Use caulking to seal exterior wall or roof opening around the cap.

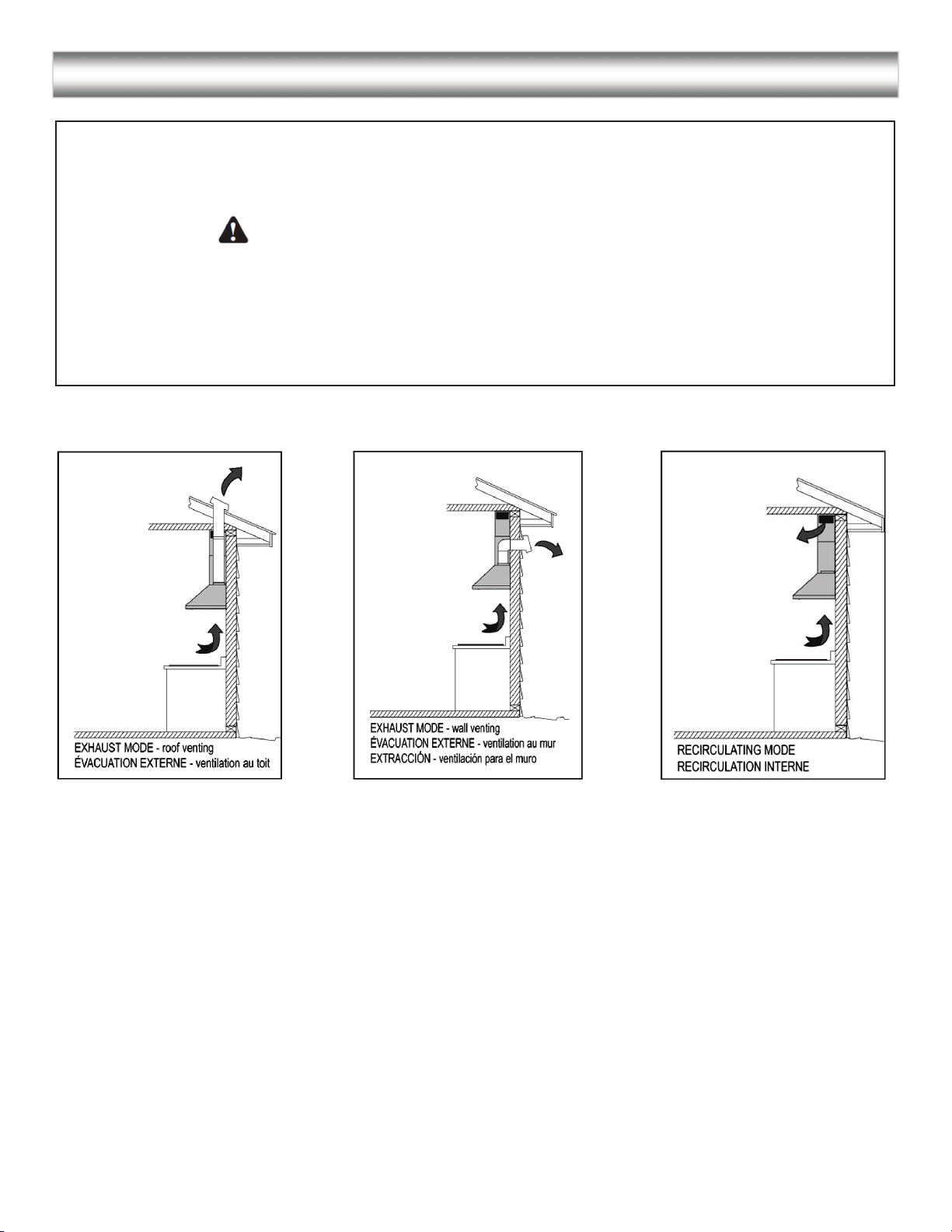

VENTING METHODS:
7

IMPORTANT:
Observe all governing codes and ordinances.
It is the customer’s responsibility to contact a qualified electrical installer.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine
that the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both
sides of the line.
DO NOT ground to a gas pipe.
Check with a qualified electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through
flexible armored or non-metallic sheathed copper cable. UL/CSA listed strain relief must be provided at
each end of the power supply cable.
ELECTRICAL REQUIREMENTS:
Place the outlet at a maximum distance of 33
1/2” from where the cord exits on the hood
8

Advanced Preparations:
             Range Hood Operations  
                  
                 
  Range Hood Operations
                  
     
Preparations:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
                  
             
                   
         
                  
        
CAUTION
If moving the cooking range is necessary to install the hood, turn OFF the power on an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE
PREPARATIONS:
9

Installations (refer to Page 4 for parts):
NOTE: Use threaded drywall anchors only when
mounting the hood on sheet rock. Mounting
the hood on wall studs or lumbars is highly
recommended.
Step 1: Measuring
         m    A      
         
 T             
             
Step 2: Installing the hood mounting bracket
              A      
                
            
Step 3: Installing the upper chimney bracket
                
             
        
INSTALLATION:
10

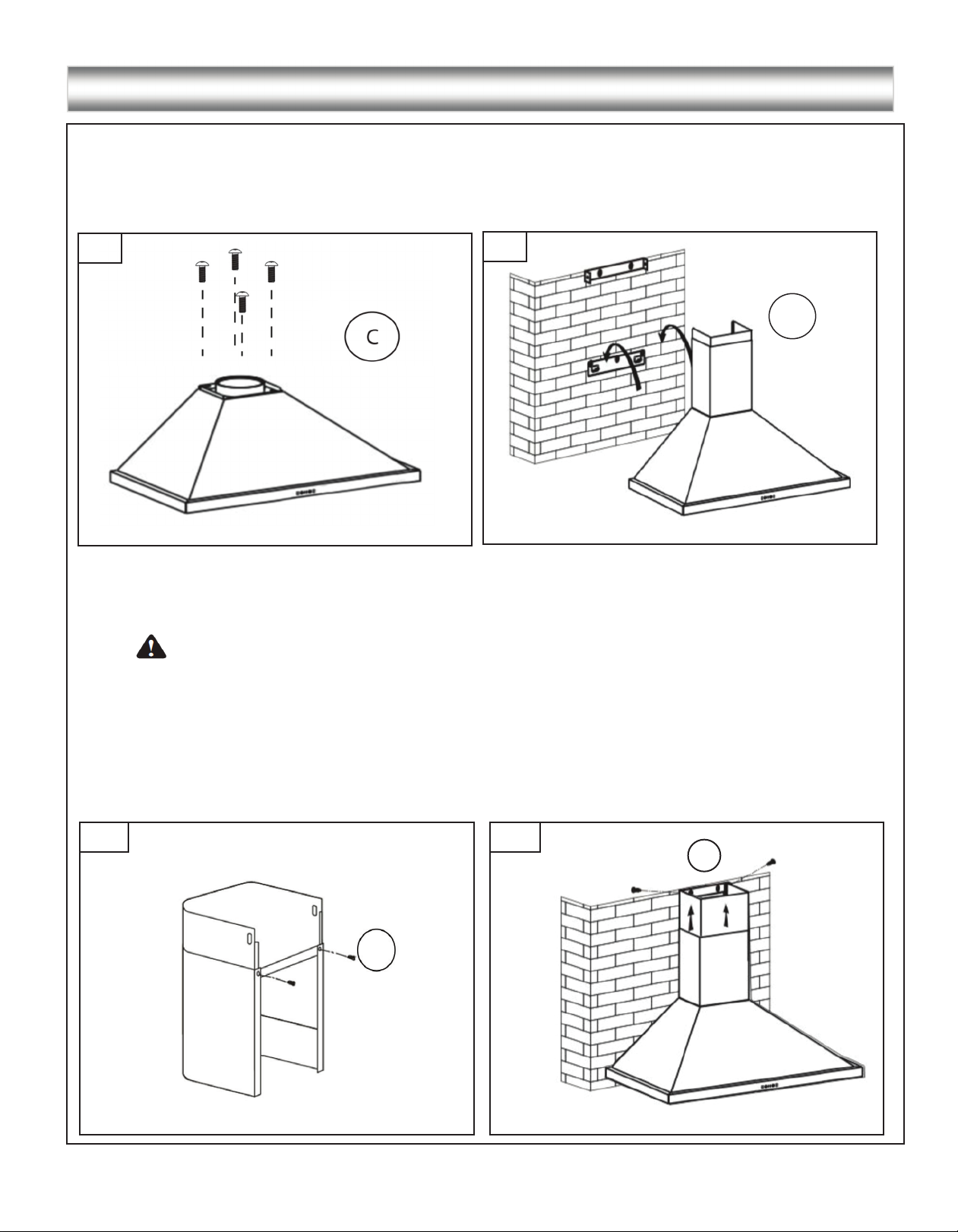

Step 4: Venting
               
                 
               
Step 5: Mounting the hood on the wall
                
          
CAUTION - Make certain the range hood is secure before releasing!
                
 
                 
          
                
              
          V    
INSTALLATION CONTINUE:
23
4 5
D
D
A
11

Step 6: Installing filters
 To install filters for the following four steps (See Figure # 6):
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
Step 7: Test hood
 Turn power On in control panel.
      
          r.
INSTALLATION CONTINUE:
6
12

Control Panel Layout and Buttons Configurations:
Electronic Controls with Time Delay
 
           
  
    +          
    +        
    +         
    -            
  
                
       
               
  .
CONTROL PANEL OPERATION:
Increase

Decrease

Timer 
13

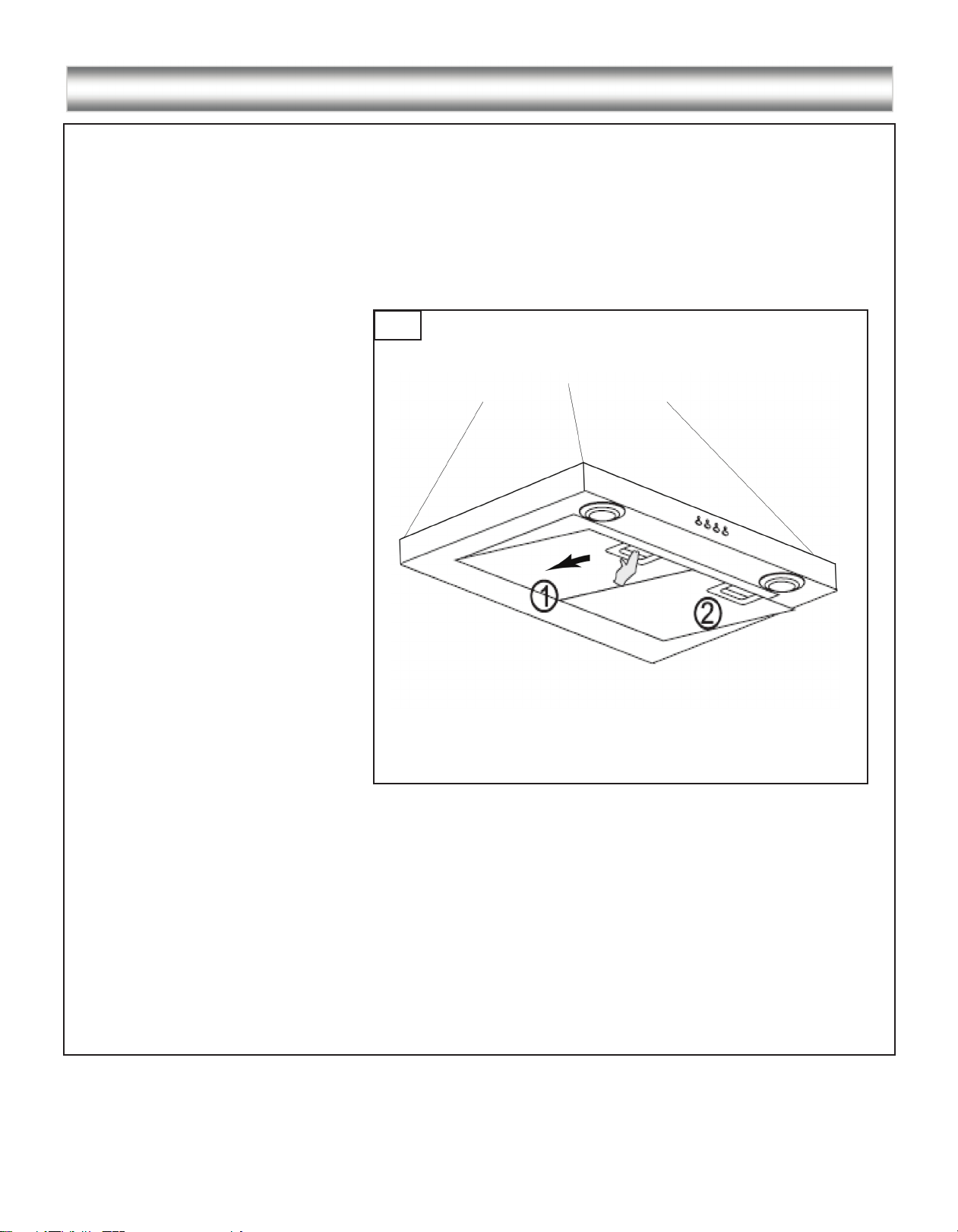

REPLACING THE BULBS:
Replacing the light bulbs:
          
           
            
        
             
              
      
NOTE:           
   
          
14

MOUNTING BRACKETS:
Upper Chimney Bracket
Lower Chimney Bracket
Mounting Bracket Hook
4 7/8” (124 mm)
8 5/8” (219 mm)
8” (203 mm)
4 5/8” (119 mm)
8 5/8” (219 mm)
7 7/8” (200 mm)
3 15/16” (100 mm) 3 15/16” (100 mm)
8 5/8” (219 mm)
15

MEASUREMENTS AND DIAGRAMS:
(300 mm)
(170mm)
6 3/4’’ 8 3/4’’
(222mm)
11 3/4’’
1 5/8’’
(40mm)
19 3/4’’
(500mm) 29 1/2” 35 1/2”
(750mm) (900mm)
(430 - 850 mm)
17” - 33.5’’
/
16

1) If the range hood or halogen light does not
operate after installation:
2) The range hood vibrates when the blower is on:
3) The blower or fan seems weak:
4) The lights work but the fan is not spinning at
all, is stuck or is rattling:
5) The hood is not venting out properly:
TROUBLE SHOOTING:
         
make sure that all power has been turned back
ON,fused not blown and all electrical wiring
are properly connected.
        
properly on to the ceiling or wall.
           
       
     
       
secured.
         
(half-circular flange) is not installed correctly
or opening properly. A tight mesh on a side
wall cap unit might also cause restriction to the
air flow.
        
bottom due to shipping damage. Please
contact us immediately.
        
         
       
stove top.
        
       
connected, sealed, and taped.
17

RANGE HOOD ASSEMBLY:
No. Description
1Flexible tube-optional
2Decorative upper flue
3Decorative lower flue
4Upper flue mounting bracket
5Lower flue mounting bracket
6Power cord
7Air metal outlet
8Mounting bracket for hood
9Connection plate
10 Rear plate
11 Housing
12 Decorative plate
13 Front plate
14 Light
15 Electronic box
16 PCB board
17 Capacitor
18 Transformer
19 Transformer box
20 Grid
21 Blower assembly
22 Impeller
23 Motor
24 Switch bracket
25 Electronic switch
26 Filter
27 Screw bag
18

SPECIFICATIONS:

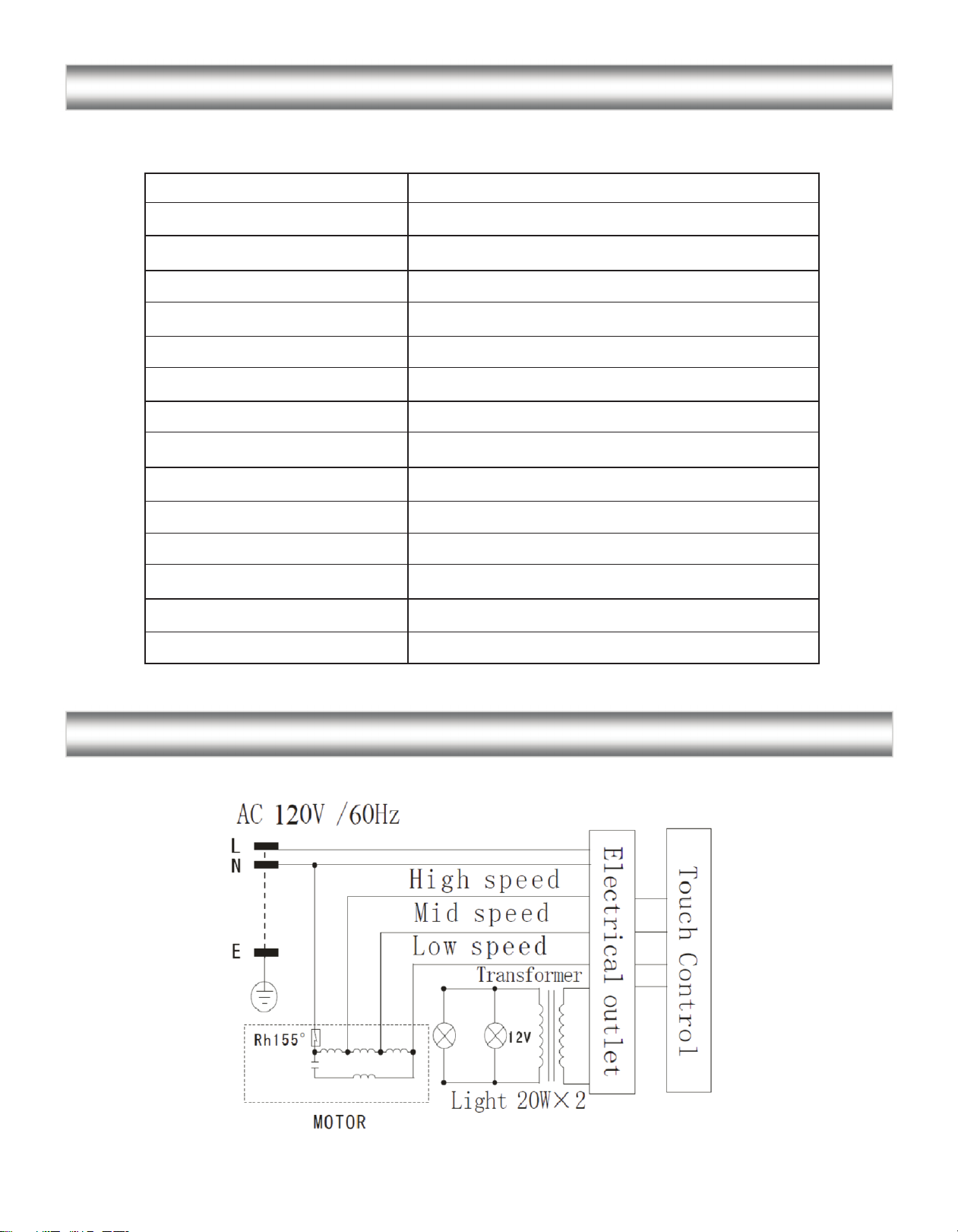

CIRCUIT DIAGRAM:
Body design
Power rating
General input power
Motor input power
Ampere
Levels of speed control
Airflow
Noise Level
Number of Motor
Fan Type
Control Type
Filtration Type
Illumination
Venting Size
Interference Protection
Stainless steel
120V / 60Hz (USA & Canada standard)
250W (210W + 2x20W)
210W
2.2A
3 levels
250CFM/330CFM/450CFM
(50db)/(55db)/(60db)
Single motor
Centrifugal squirrel cage
Electronic button control panel
Aluminum filter
2x20W 12V maximum
Top, 6 inches round
Radio frequency interference protected
19

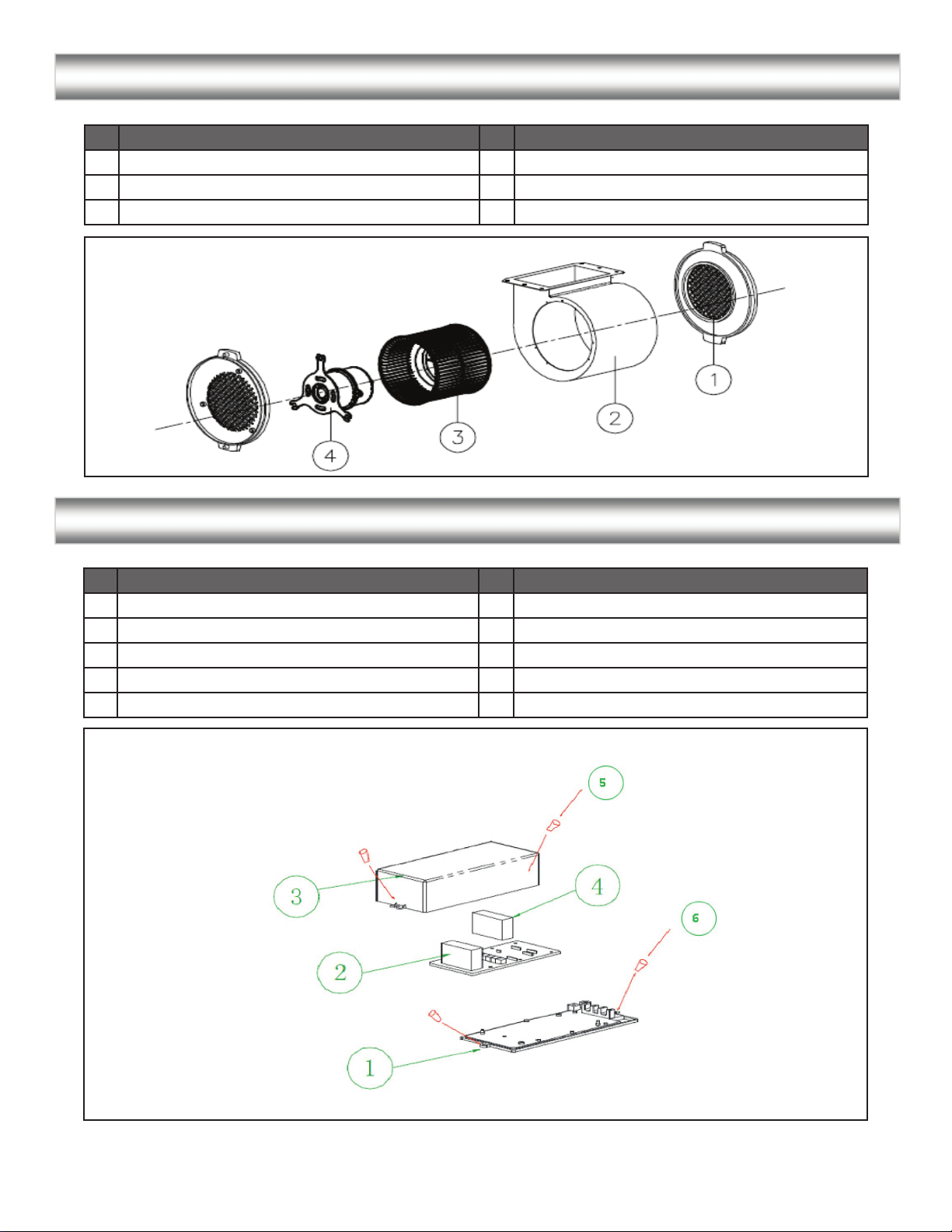

BLOWER ASSEMBLY:
ELECTRICAL ASSEMBLY:
No. No.Description Description
1
2
3
4
No. No.Description Description
1
2
3
4
5
6
7
8
9
10
Grid
Blower
Impeller
Motor
Electrical box base
PCB
Electrical cover
Capacitor
Screw (ST3*10)
Screw (ST3*6)
20
