Ancona WPE630 User manual

®
Range Hood
Ancona Elite
WPE630 & WPE636
User Manual
&
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.

— 2 —
INSTALLERS - Start Here
Safety Instructions are on pages 4 and 5 and
Installation Instructions are on pages 6 to 16.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of
this manual BEFORE installing the range hood.
3. Remove all packing materials.
4. When nished, make sure to leave these instructions with the consumer.
5. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
6. Product failure due to improper installation is not covered under the Warranty.
CONSUMERS - Start Here
Safety Instructions are on pages 4 and 5 and
Operating Instructions are on pages 17 and 18.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the manual BEFORE
operating the range hood.
3. Remove all packing materials.
4. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
5. Product failure due to improper installation is not covered under the Warranty.
Before You Begin
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be
included due to the variation of cabinetry constructions and wall material. Please consult your
installation specialist regarding the optimal type of mounting screws and wall anchors to suit your
home’s construction.

— 3 —
Before You Begin............................................................................................................................... 2
Table of Contents .............................................................................................................................. 3
Important Safety Information ............................................................................................................ 4
Included Parts ................................................................................................................................... 6
Range Hood Dimensions .................................................................................................................. 7
Specications.................................................................................................................................... 7
Installation......................................................................................................................................... 8
Step 1 - Read the Safety Instructions............................................................................................ 8
Step 2 - Unpack Range Hood and Prepare Tools.......................................................................... 8
Step 3 - Plan Desired Location ...................................................................................................... 8
Step 4 - Test Unit Functions .......................................................................................................... 8
Step 5 - Venting Installation Guidelines ......................................................................................... 9
Step 6 - Mark Placement of Range Hood Mounting Screws....................................................... 10
Step 7 - Mount Range Hood Onto Wall ....................................................................................... 10
Step 8 - Install Damper ................................................................................................................ 10
Step 9 - Connect Ductwork ......................................................................................................... 11
Step 10 - Connect to AC.............................................................................................................. 11
Step 11 - Install Lower Chimney.................................................................................................. 12
Step 12 - Install Upper Chimney Bracket .................................................................................... 12
Step 13 - Install Upper Chimney.................................................................................................. 13
Step 14 - Install Filters ................................................................................................................. 13
Operation ........................................................................................................................................ 14
Using the Fan............................................................................................................................... 14
Using the Time Delay Function .................................................................................................... 14
Turning the Light On or Off........................................................................................................... 14
Maintenance.................................................................................................................................... 15
Replacing the Light Bulbs............................................................................................................ 15
Cleaning the Range Hood............................................................................................................ 15
Table of Contents

— 4 —
Important Safety Information
• Theinstallationinthismanualisintended
for qualied installers, service technicians or
persons with a similar qualied background.
Installation must be done by qualied
professionals and in accordance with all
applicable codes and standards, including
re-rated construction.
• The range hood may have very sharp
edges; please wear protective gloves if it is
necessary to remove any parts for installing,
cleaning or servicing.
• Activating any switch to ON position before
completing installation may cause damage or
electric shock.
• Duetothesizeofthisrangehood,atwo
person installation is recommended.
To reduce the risk of re, electric shock, or
injury to persons:
• Forgeneralventilatinguseonly.DO NOT use
toexhausthazardousorexplosivematerials
and vapors.
• WARNING: To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
• Thecombustionairowneededforsafe
operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline
and safety standards such as those published
by the National Fire Protection Association
(NFPA), and the American Society of Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and other local code authorities.
• Beforeservicingorcleaningtheunit,switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Cleangrease-ladensurfacesfrequently.To
optimizeperformanceandtodisperseair
properly, make sure to vent air outside. DO
NOT vent exhaust into spaces between walls,
crawl spaces, ceilings, attics or garages.
• Ducted fans MUST always be vented to
the outdoors.
• ThisunitMUSTbegroundedandusedwith
metal ductwork only.
• Sufcientairisneededforpropercombustion
and exhausting of gases through the duct to
prevent back drafting.
• Whencuttingordrillingintowallorceiling,be
careful not to damage electrical wiring or other
hidden utilities.
• Allelectricalwiringmustbeproperlyinstalled,
insulated and grounded.
• Old ductwork should be cleaned or replaced
if necessary to avoid the possibility of a
grease re.
• Check all joints on ductwork to ensure
proper connection; all joints should be
properly taped using a certied aluminum
or foil tape.
• Usethisunitonlyinthemannerintended
by the manufacturer. If you have questions,
contact the vendor.
READ AND SAVE THESE
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Read and follow all instructions before using the range hood to prevent the risk of re, electric shock,
personal injury, or damage when using the range hood or appliances with the range hood. This guide
does not cover all possible conditions that may occur. Always contact your service technician or
manufacturer about problems that you do not understand.

— 5 —
Important Safety Information
WARNING: TO REDUCE RISK OF A RANGE
TOP GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn range hood ON when cooking at
highheatorwhenambéingfood(i.e.Crepes
Suzette,CherriesJubilee,etc.).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or lter.
Before servicing or cleaning unit, unplug and
disconnect the hood from the power supply.
d)Useproperpansize.Alwaysusecookware
appropriateforthesizeofthesurfaceelement.
WARNING: TO REDUCE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING *
a) S MOTHER FLAMES with a close-tting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS.Iftheamesdonotgoout
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class A, B, C
extinguisher, and you already know how to
operate it.
2) The re is small and contained in the area
where it is started.
3) The re department is being called.
4) You can ght the re with your back to an exit.
*Based on “Kitchen Fire Safety Tips”
published by NFPA
To reduce the risk of injury to persons in the
event of a gas leaks:
• Extinguishanyopename.
• DO NOT turn on the lights or any type of appliance.
• Openalldoorsandwindowstodispersethe
gas. If you still smell gas, call the gas company
and re department.
Your safety and the safety of others is very
important. We have provided many important
safety messages in this manual and on your
appliance. Always read and obey all safety
messages. All safety messages outline any
potentialhazards,howtoreducethechanceof
injury, and possible risks if the instructions are not
followed.
READ AND SAVE THESE
INSTRUCTIONS

— 6 —
Included Parts
Range Hood
Damper
Filters 30” x 2
Filters 36” x 3
Upper Chimney
Lower Chimney Upper Chimney Bracket
Damper Gasket
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to
the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding
the optimal type of mounting screws and wall anchors to suit your home’s construction.
4 x Damper Screws
2 x Upper Chimney Screws

— 7 —
Range Hood Dimensions
29.9 “ (760 mm) /
35.4 “ (900 mm)
18.9 “ (480 mm)
1.18 “
(30 mm)
4.7 “
(120 mm)
17.1“
(435 mm)
10.2 “
(259 mm)
11.5 “ (291.5 mm)
10.2 “ (260 mm)
12 “ (306.5 mm)
10.5”
(266.5 mm)
18.9 “ - 37.5”
(480 mm - 954 mm)
6.3” (160 mm)
Specications
Body Design Stainless Steel
Power Rating 120V/60Hz(cETLusCertied)
Total Input Power 466 W
Motor Input Power 460 W
Total Amps 3.8 A
Speed Control Levels 4 Levels
Interference Levels Radio Frequency Interference Protected
Airow 620 CFM
Motors Single Motor
Control Electronic Control Panel
Filtration Stainless Steel Filters
Illumination 2 x 3W LED
VentingSize Top Round 6 Inches (152 mm)

— 8 —
Installation
STEP 1
Read the Safety Instructions
• It is very important to read the safety instructions on pages 4 and 5.
IMPORTANT: It is the installer’s responsibility to comply with installation clearances.
STEP 2
Unpack Range Hood and Prepare Tools
• Carefully unpack the range hood and parts. Make sure all parts are included as shown on page 6.
• DO NOT remove the protective lm covering the appliance until the installation is fully completed.
• Consult a qualied and trained installer or check local codes for makeup air requirement, if any.
STEP 3
Plan Desired Location
• Plan a desirable location that ts all requirements in the Safety and Installation sections of this manual. Plan where
and how the ductwork will be installed.
• A straight or short duct run will allow the unit to perform most efciently. Long duct runs, elbows and transitions
willreducetheperformanceoftheunit.Eachelbowisequivalentto5to10feetofstraightrun.Propersizeduct
work should be 6” (152 mm) in diameter.
• To reach a 9 foot ceiling make sure hood is installed 30 inches from cooking surface. If you have a ceiling
greater than 9ft, please visit anconahome.com to order a chimney extension.
• If ductwork is already installed: ensure ductwork is free from debris and measures 6” (152 mm).
STEP 4
Test Unit Functions
• Plug the unit in and test all of the functions before installing.
WARNINGS:
• PleasemakesuretoreadALLsafetyinstuctionsonpages4and5.
• Usetwoormorepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinseriousinjury.

— 9 —
Installation
STEP 5
Venting Installation Guidelines
• The following steps are for exterior ventilation.
• If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit.
Height and Clearance
IMPORTANT:
• Vent system must terminate to the outside (roof or side wall).
• DONOT terminate the vent system in an attic or other
enclosed area.
• DONOTuse4”(10.2cm)laundry-typewallcaps.
• Usemetal/aluminumventonly.Arigidmetal/aluminum
vent is recommended.
• DONOTuseaplasticvent.
• Alwayskeeptheductcleantoensureproperairflow.
• Calculatethefollowingfiguresbeforeinstallation:
1. Distance from the floor to the ceiling
2. Distance between the floor and the countertop/stove
3. A distance of 24” to 30” is recommended between
stove top and the bottom of range hood. 30” minimum
is required for gas stove tops.
4. Height of hood and duct cover.
For the most efficient & quiet operation:
• Itisrecommendedthattherangehoodbevented
vertically through the roof through 10” (15.3 cm) or
bigger round metal/aluminum vent work.
• Thesizeoftheventshouldbeuniform.
• Usenomorethanthree90°elbows.
• Make sure there is a minimum of 24” (61 cm) of
straight vent between the elbows if more than one
elbow is used.
• DONOTinstalltwoelbowstogether.
• The length of vent system and number of elbows should be
kept to a minimum to provide efficient performance.
• Theventsystemmusthaveadamper.Ifrooforwall
cap has a damper, you may remove damper flaps from
damper to increase air flow.
• Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.
To reach 9 ft ceiling, make sure
range hood is installed at least
30” (762 mm) from cooking surface.
24” (610 mm) Min /
30” (762 mm) Max

— 10 —
Installation
STEP 6

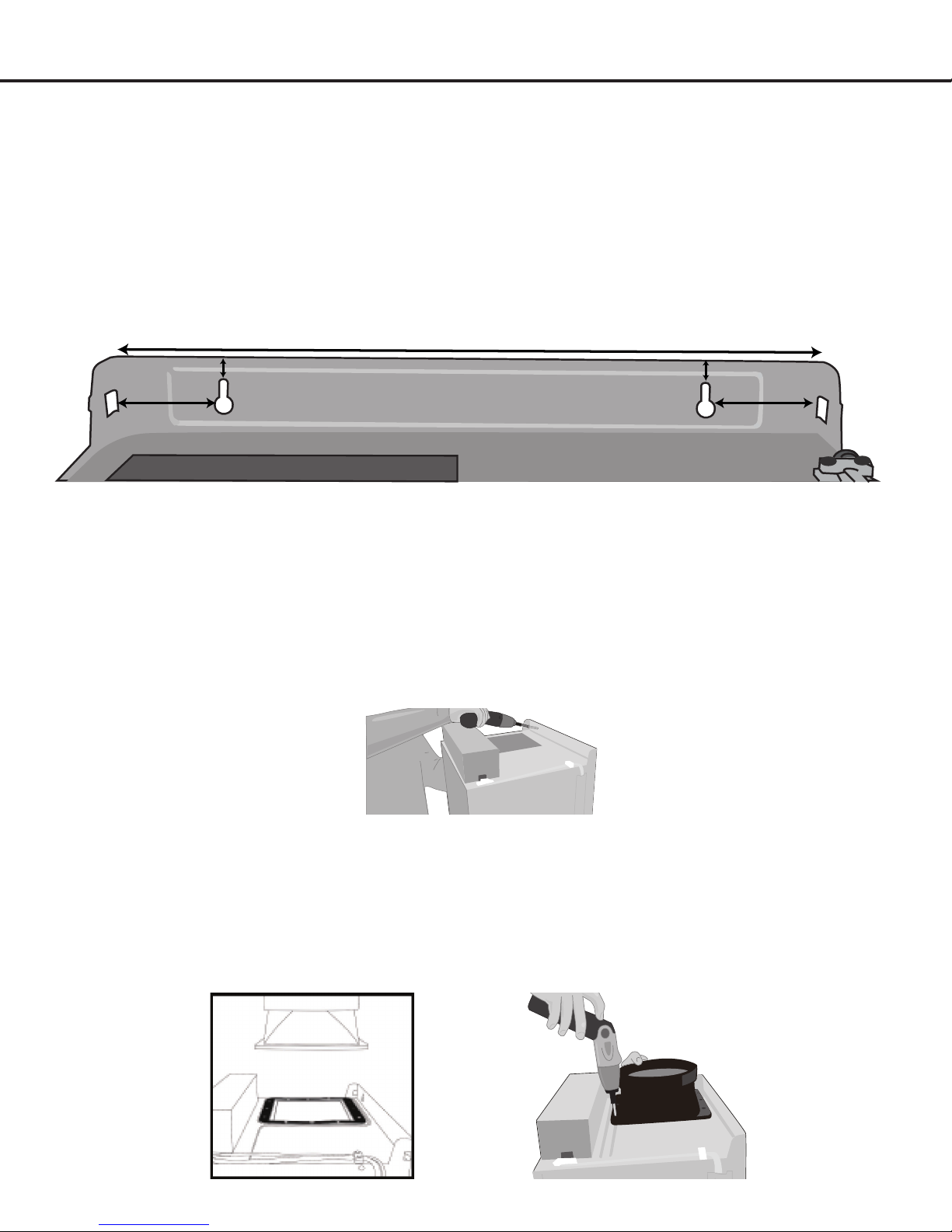

Mark Placement of Range Hood Mounting Screws
• Use a pencil to mark on the wall the desired placement of the range hood mounting screws.
• Screw two wood screws (not provided) into wall.
• Leave approximately 1/4” (6.3 mm) of the screw head protruding from the wall to allow clearance for mounting the
range hood.
• Use threaded drywall anchors when mounting the range hood onto sheet rock. Mounting the hood into wall studs or
lumbars is highly recommended.
2-3/8”
(60 mm)
1” (25 mm) 1” (25 mm) 2-3/8”
(60 mm)
15” (381 mm)
STEP 7
Mount Range Hood Onto Wall
• Position the range hood’s mounting key holes securely onto the range hood mounting screws.
• Finish screwing in the screws until they cannot tighten any further.
STEP 8
Install Damper
• Place the damper gasket followed by the damper over the ventilation hole on top of the motor body.
• Secure using the four screws (included).

— 11 —
STEP 9
Connect Ductwork
• Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air-tight.
• Donotinstalltheducttapetootightlyasthismaypreventthedamperapsfromopeningwhichwilloverworkthemotor
and cause improper functioning of the unit.
• Fasten all connections with sheet metal screws and tape all joints with certied aluminum or foil tape. Use caulking to
seal exterior wall or roof opening around the cap.
STEP 10
Connect to AC
• ConnectACplugintoagroundedACoutlethaving120V,60Hz.Placetheoutletatamaximumdistanceof33-1/2”
(851 mm) from where the cord exits on the hood.
• SEE IMPORTANT INSTRUCTIONS ON THE
FOLLOWING PAGE.
3-Pronged Plug
Ground Plug
3-Prong Receptacle
IMPORTANT:
• Observeallgoverningcodesandordinances.
• It is the customer’s responsibility to contact a qualified electrical installer.
• Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualifiedelectriciandeterminethat
thegroundpathisadequate.A120-Volt,60Hz,AC-only,fusedelectricalsupplyisrequiredonaseparate15-amp
circuit, fused on both sides of the line.
• DONOTgroundtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethattherangehoodisproperlygrounded.
• DONOThaveafuseintheneutralorgroundcircuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
GROUNDING INSTRUCTIONS:
• Thisappliancemustbegrounded.Intheeventofanelectricalshort-circuit,groundingreducestheriskofelectric
shock by providing an escape wire for the electric current.
• Thisapplianceisequippedwithacordhavingagroundingwirewithagroundingplug.Theplugmustbeplugged
into an outlet that is properly installed and grounded.
WARNING: Improper grounding can result in a risk of electric shock.
• Consultaqualifiedelectricianifthegroundinginstructionsarenotcompletelyunderstood,orifdoubtexistsasto
whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.

— 12 —
Installation
STEP 11
Install Lower Chimney
• Place lower chimney on top of the main housing.
STEP 12
Install Upper Chimney Bracket
• Position the upper chimney bracket onto the wall directly below the ceiling. Align the upper chimney bracket with the
range hood below.
• Use a pencil to mark desired placement of the upper chimney bracket on the wall.
• Use two wood screws (not provided), and screw the upper chimney bracket into the wall.
• Use threaded drywall anchors when mounting the bracket onto sheet rock. Mounting the upper chimney bracket into
wall studs or lumbars is highly recommended.
12” (306.5 mm)
6-1/4” (160 mm)2-7/8” (73 mm) 2-7/8” (73 mm)

— 13 —
Installation
STEP 13
Install Upper Chimney
• Remove the protective lm from the upper chimney.
Carefully slide the upper chimney inside the lower
chimney.
• Extend the telescopic upper chimney until it reaches
the upper chimney bracket and attach the upper
chimney to the bracket using the provided screws.
• Peel off protective lm from the rest of the range hood.
STEP 14
Install Filters
• Holdthebafelterbythetwoknobs.
• Placethefrontofthebafeagainsttheinteriorfront
of the range hood.
• Slide it up and push the rear of the lter back until it
sits securely.
• Thebafelterschannelgreasereleasedbycooking
foodsintothegreasetraysandpreventamingfoods
on the cook top from damaging the inside of the
rangehood.Forthisreason,thebafeltersmust
ALWAYS be installed during range hood use.
• Thebafeltersandgreasetraysshouldbecleaned
once a month, or as needed. See page 18 for
cleaning instructions.
Align the upper chimney
bracket with the range hood
below.

— 14 —
Operation
Using the Fan
Press to begin low
speed. Screen will display
1.
Turning the Light On of Off
Press to turn light on
and again to turn light
off.
Press while light is
on to have light turn off
after “15 minutes”.
Press again to stop
suction. Screen will dis-
play 00.
Press to increase speed
suction. Screen will display
increments as 2, 3, 4.
Press to begin high
speed suction. Screen will
display 3.
Press again to stop
suction. Screen will dis-
play 00.
Press again to begin
high speed suction to 4.
Using the Time Delay Function
Press to increase or
decrease the time period
for the Time Delay
Function.
Press to activate the
Time Delay Function.
Screen will display
“15 minutes”.
Press to cancel the
Time Delay Function.
u
v
w
v
u
v
u

— 15 —
uUnplug the unit from the AC outlet.
vRemove ve screws from the light panel, then remove the light bulbs by popping them out.
wDisconnect the light clip.
xReverse the removal procedures to install the new light bulbs and plug the unit back in.
Be sure electrical power is off and all surfaces are cool
before cleaning or servicing any part of the hood.
Range Hood Body
• Do not use a steel wool pad; it will scratch the surface.
• To clean the stainless steel surface, use warm soapy
water or a stainless steel cleaner. Closely follow the
cleanser label instructions. DO NOT use corrosive or
abrasive detergents, ammonia products, abrasives or
oven cleaners. Always wipe the surface in the direction
of the grain.
Filters
• The saturation of greasy residue in the fan and lters
maycauseincreasedinammability.Keepunitclean
and free of grease and residue build-up at all times to
prevent possible res.
• Filters can be cleaned in a standard dishwasher or by
using a mild cleaner. DO NOT use corrosive or abrasive
detergents, ammonia products, or oven cleaners.
• To remove, rst drain and wipe all excess grease with
adrypapertowel.Graspthebafelterknobsandpull
them up, forward and out.
Maintenance
Replacing the Light Bulbs Cleaning the Range Hood
• When cleaning is completed, replace the lters as
shown in Step 14.

— 16 —
Please register your product warranty by visiting the Ancona Home website.
Canada & USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.anconahome.com
Ancona is in association with Mr Appliance for all after sales service calls.
Please contact their service provider or visit their website:
Phone: [phone]
Website: www.mrappliance.com
© 2015 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modied or distributed.
MAAN1162-01
