6 T Equipment Pipe Rail Series
• G.V.W.R.-12,000 #
• G.A.W.R.(EachAxle) - 6,000 #
• Coupler - 2 - 5/16” adjustable
•SafetyChain-3/8”grade43withhooks
• Jack -10,000 # drop leg
•Frame-5”anglew/H.D.21/2”piperail
•Crossmembers-3”channel
•Fenders-10”x72”diamondplatewithbacks
•Tongue -6”channelwraparound
• Bed witdth - 81”
•Axles - 2-6,000 # cambered brake axles
•Suspension-Slipperspringwithequalizer
• Tires - ST 235 / 80R 16”load range D
• Wheel -16” 8 bolt white spoke
• Deck - 2” pressure treated pine
•Lights-D.O.T.stop, tail, turn,andclearance
• Elec. plug - 7-way RV
•Paint-highsolids acrylicenamel
•Ramps - 4’ fold down
•Sealedmodularwiringharness
Standard Features
•16” white spoke
•Pressuretreateddecking
•Light protectors
•Electric breakaway
•E-ZLubeaxles
OptionalFeatures
• Steel deck
•48”split gate
•Selfcleaningdovetail
•D-Rings

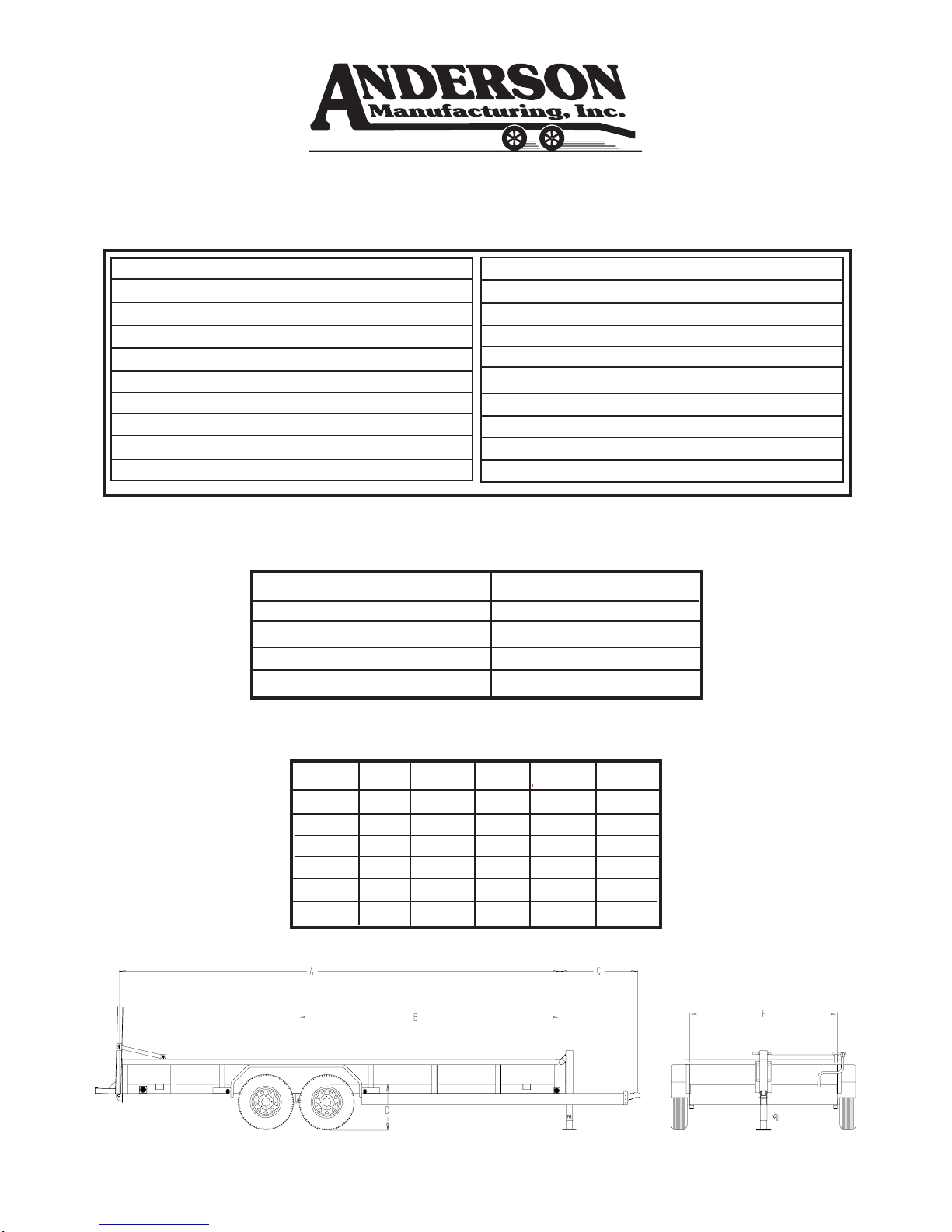

Dimensions
Length
12’
14’
16’
18’
20’
22’
A
144”
168”
192”
216”
240”
264”
B
95.5”
107.5”
119.5”
131.5”
143.5”
155.5”
C
43”
43”
43”
43”
43”
43”
D
25”
25”
25”
25”
25”
25”
E
81”
81”
81”
81”
81”
81”
