ANLU AG-HA-1000D User manual

MODEL: AG-HA-1000D
GENERATOR OWNER’S MANUAL
BEFORE OPERATING THIS MACHINE
PLEASE READ THESE INSTRUCTIONS CAREFULLY

1
（I）WARNING
1. Read the operator’s instruction manual.
2. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation
system!
3. Children should be protected by keeping.
4. Refilling of the generating sets are not allowed during the operation!
5. If the generator will be mounted in a closed room, relevant safety regulations against fire and
explosion should be followed!
6. Do not connect to household circuit.
7. Do not use in wet condition!
8. Keep in flammable away.
9. Avoid touching hot parts of the machine.
10. When refueling:
·stop engine
·no smoking
·do not spill
Take appropriate measures to protect your hearing.
Beware of hot parts
（II）PRE-OPERATION PREPARATION
1.To prevent get an electric chock, when operating the machine
link with earth.
2. Use oil-mixed gasoline, if not, engine will be overheated.

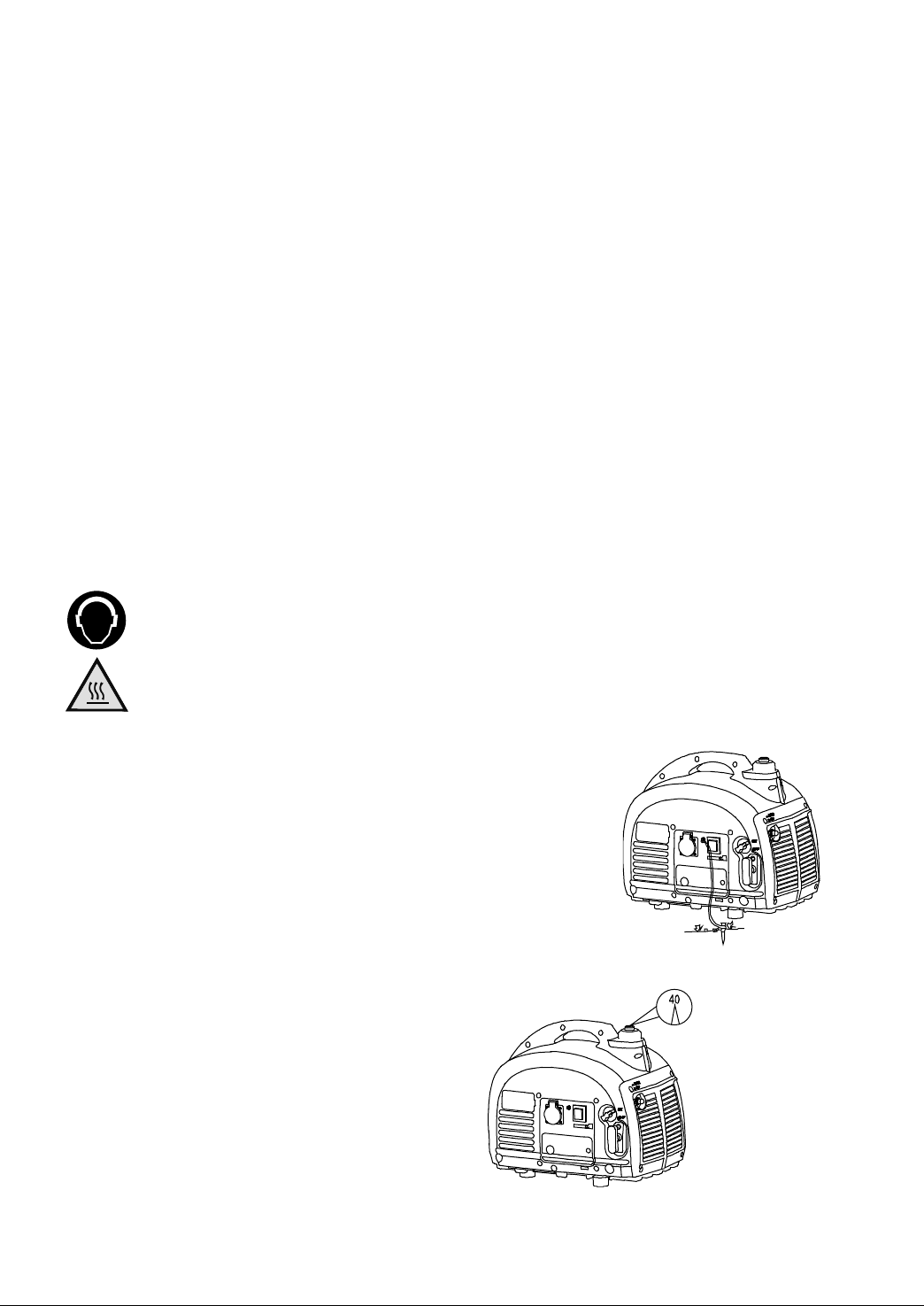

Gasoline and oil mixing ratio 40:1 (Picture 2). Picture 1
3. Fuel tank capacity 2.5L.
Picture 2

2
4. Do not fill above fuel filter top.(Picture 3)
5.1. Use fuel tank cap to measure oil as.(Picture 4)
5.2. Put gasoline and oil into one container with mixing ratio 40:1.
5.3. After shaking, put them into fuel tank.
（III）STARTING THE ENGINE
Before starting, do not connect electric apparatus. (Picture 5)
1. Shake fuel tank before starting engine.
2. Turn fuel cock lever to “ON”.(Picture 6)
3. Turn chock lever to ①.(Picture 7)
4. Turn engine switch to “ON”. (Picture8)

3
5. Pull slowly on recoil starter until engaged, then put it
briskly. (Picture 9)
6．Return chock lever. (Picture10).
(IV) STOPPING THE ENGINE
1. Before stopping, turn off electric apparatus.
(Picture 11)
2. Turn engine switch to “STOP”. (Picture 12)
3．Turn fuel cock lever to “OFF”. (Picture 13)

4
(V) CONNECTION
1. Wind lead 2 or 3 turns around handle. (Picture 14)
2. Start engine.
3. Plug into AC socket. (Picture 15)
4. SAFETY DEVICES
Press the button to reset protector, to reduce output load
if AC protector turns off. (Picture 16)
RESET
(Picture 16)
OFF
(VI) PERIODIC MAINTENANCE
1. Spark plug (per 50h or per one month)
1.1. Remove spark plug. (Picture 17)
1.2. Remove carbon deposits. (Picture 18)

5
1.3. Check for discoloration. Standard: Tan color.
1.4. Check spark plug gap.Standard:0.7~0.8mm. (Picture 19)
2. AIR FILTER (TIME: per 100h or per one month)
2. 1. Remove air filter. (Picture 20①)
2. 2. Wash clearly in solvent. (Picture 20②)
2．3.Get Motor oil. (Picture 20③)
2. 4. Squeeze Motor oil out. (Picture 20④)
Warning: Never run engine without air filter.

6
3. FUEL COCK AND FUELTANK FILTER
(TIME: per 150h or per three month).
3.1. Clean fuel cock.
3.1.1. Stop engine.
3.1.2. Turn fuel cock lever to “OFF”.
3.1.3. Clean with solvent. (Picture21)
3.2 Clean fuel tank filter.
3.2.1. Clear in solvent.
3.2.2. Wipe off.
3.2.3. Insert into fuel tank. (Picture 22)
(VII) TROUBLE SHOOTING
Engine won’t start
1. Check fuel
2. Check engine switch
3. Check spark plug
4. If engines still won’t start, check following
4.1 If fuel cock is clogging
4.2 If air filter is clogging.
4.3 Installation and major repair work shall be carried out only by specifically trained personnel.
4.4 Or consult dealer or manufacturer.

7
(VIII) APPLICABILITY
Electric apparatus Rated Load Maximum Load Power factor cosø
700W 850W 1
550W 650W 0.7-0.8
500W 600W 0.7-0.95
(IX) STORAGE
When the generator set is not being operated or being stored more than one month, follow these
instructions:
1. Drain all the fuel out of the tank, fuel cock, and carburetor.
2. Shake the tank till all the excess being drain off.
3. Pour about one tablespoon of motor oil through the spark plug hole, then pull the starter
several times and install the plug (with ignition off), until you feel that piston is on its compression,
stop pulling.
4. Stay the generator set in a dry, well-ventilated place, with the cover place over it.
(X) ACCESSORIES
1. User’s manual
2. Sparkplug sleeve
3. Screwdriver

8
GASOLINE GENERATOR SET
Type: AG-HA-1000D
AC voltage: 230V/50Hz
AC output: 800W
Power factor: 1.0
Max. output 900W
Speed 3000 r /min
Weight 19kg
Performance class G1
Max. temperature: 40℃IP23M
Max. Altitude:1000m Bj2017
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater
and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for
disposals at least free of charge.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
