User Manual
Intelligent network camera

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment shall be installed and operated with minimum distance 20cm
between the radiator & body.
Safety Regulation
FCC Requirement

The product and attached accessory should meet the safety regulations of CE and have
“CE” sign. In addition, it should comply with the listed applicable Uniform European Standard in
EMC Directive 2014/30/eu, which is 2014/35/eu, RoHS Directive 2011/65/eu.
2012/19/eu (WEEE Directive): In European Union, the product with this symbol cannot be
handled as unclassified municipal waste. In order to be recycled, the used product should be
returned to local vendor or recycled at assigned recycled spot while you are buying new
equivalent equipment. For more information, please refer to www.recyclethis.info
2006/66/ec (Battery Directive): This product concludes a type of battery that cannot be
handled as unclassified municipal waste in European Union. Please refer to related material for
specified battery requirement. Batter with this symbol might contain the letters that indicates
Cadmium, lead and mercury. In order to recycle properly, please return the batteries to vendor or
assigned gathering spot. For more information, please refer to www.recyclethis.info
Safety Instruction
This statement is to ensure users’ proper operation of products in case of danger or
property loss.
Please be aware of fire danger and shock hazard. The working voltage of this smart safety
light is 120V. While install, please be aware of the electric system of this light. Please
contact qualified electrician to install without knowing it.
Please cut off power fuse or breaker before install or maintain.
To avoid electric shock, don’t disassemble the product.
To avoid circuit damage or abrasion, don’t expose wire on metal board or edges of other
sharp objects.
This product only applies 120V/60Hz alternating current bulb. The max power of bulb is
75W.
EU Request Statement

Accessories Instructions
NO.
Description
Quantity
A
Smart Safety Light
1
B
Bulb
1
C
Cross Plate
1
D
Hook
1
E
Adjustable Holder
1
F
Cup Head Screw
2
G
Decorative fixture nut
2
H
Wiring Cap
3

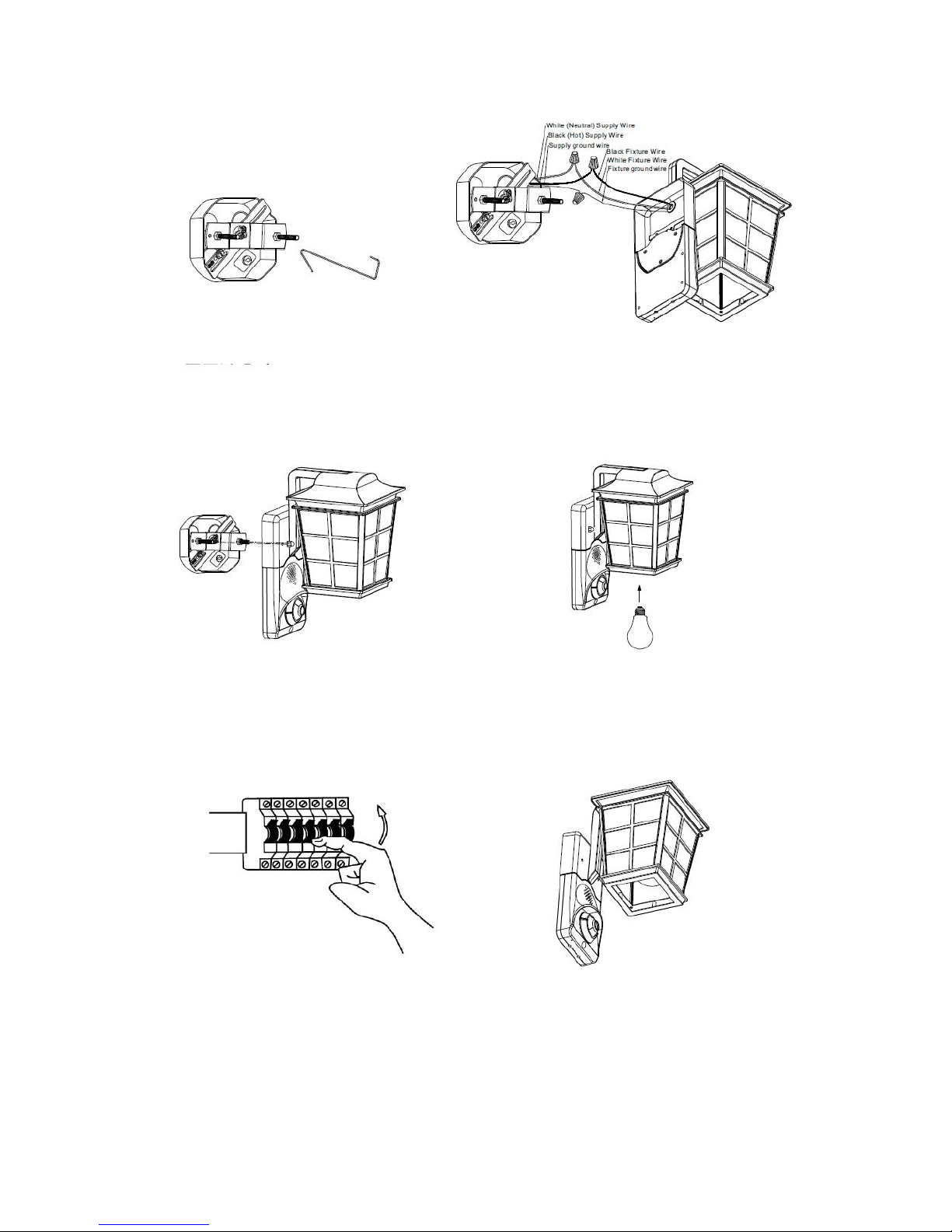

Installation Instruction
1.Cut off the power
2.Install cross plate to junction box.
3.Adjust cross plate to make it horizontal,
fasten the cap head screws.
4.Use adjustable holder, adjust the length
of cap head screws on cross plate.

5. Use hook to pull out the wire in
the junction box.
6.Connect the corresponding wire and bare copper wire
with wiring cap, make sure to screws.
7.Put the light through cap head screws on cross
plate, adjust its position, fasten the decorative fixture
nuts.
8.Install light bulb.
9.Turn the power on.
10.Debugging.

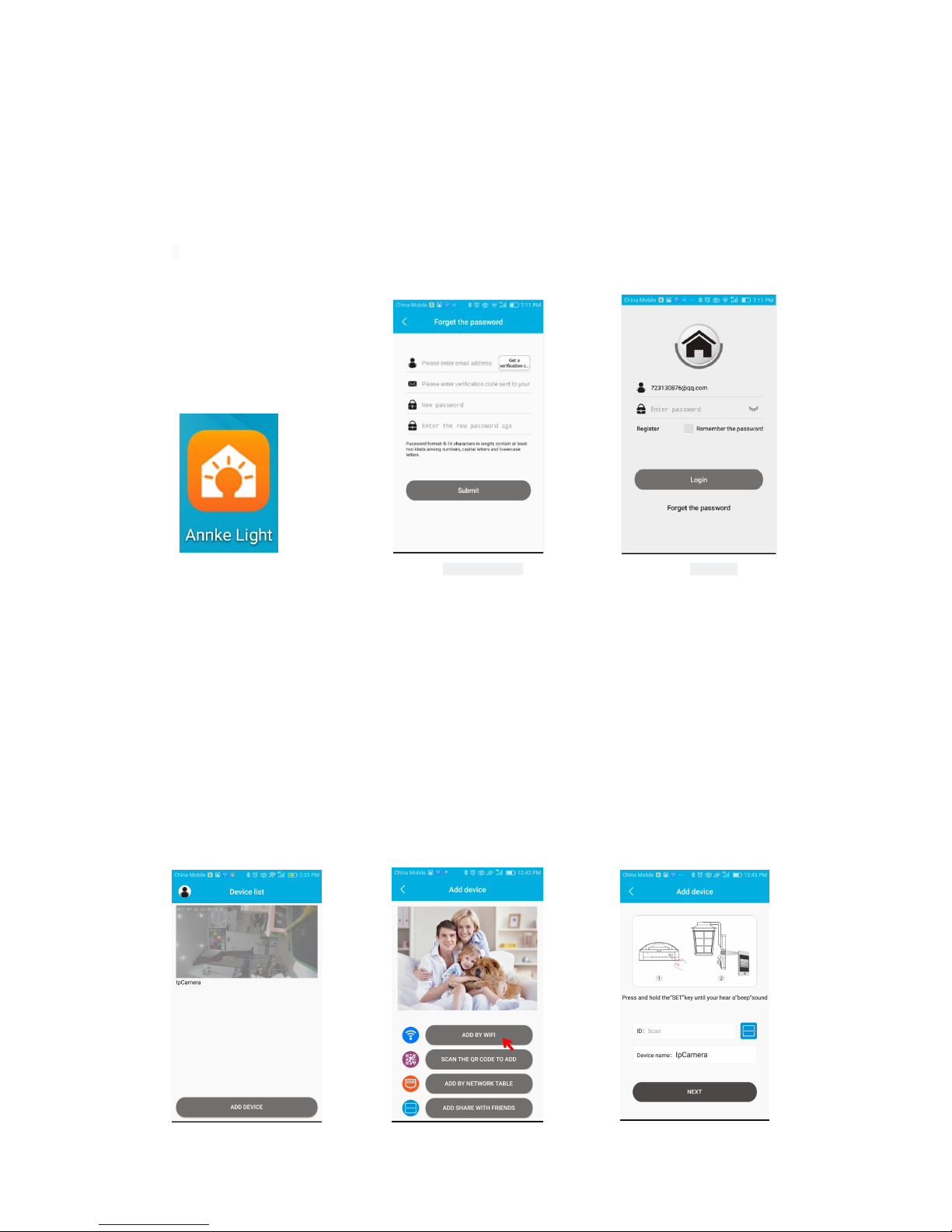

APP Installation
Step 1: Download and install 'Annke Light' APP from APP Store or Google Play.
Step 2: Click “Annke Light” open.
Step 3: Sign up with e-mail address.
Step 4: Log in with e-mail address and password.
WiFi Connection:
Step 1: Click “add camera”
Step2: Click “add by WIFI”
Step 3: Enter device name and click scan QR code.
Step 4: Scan QR code.
Step 5: Use needle push the “SET” button for one second to reset.
Step 6: Configure WIFI, input the password.
Step 7: Click “NEXT”, APP will search device automatically until connection,
Step 8: After connection, the monitor view is live.
③
②
①
APP user login
APP User registration
Click “add by WIFI”
Click “add camera”
⑶
⑵
⑴
Enter device name and click scan QR code.

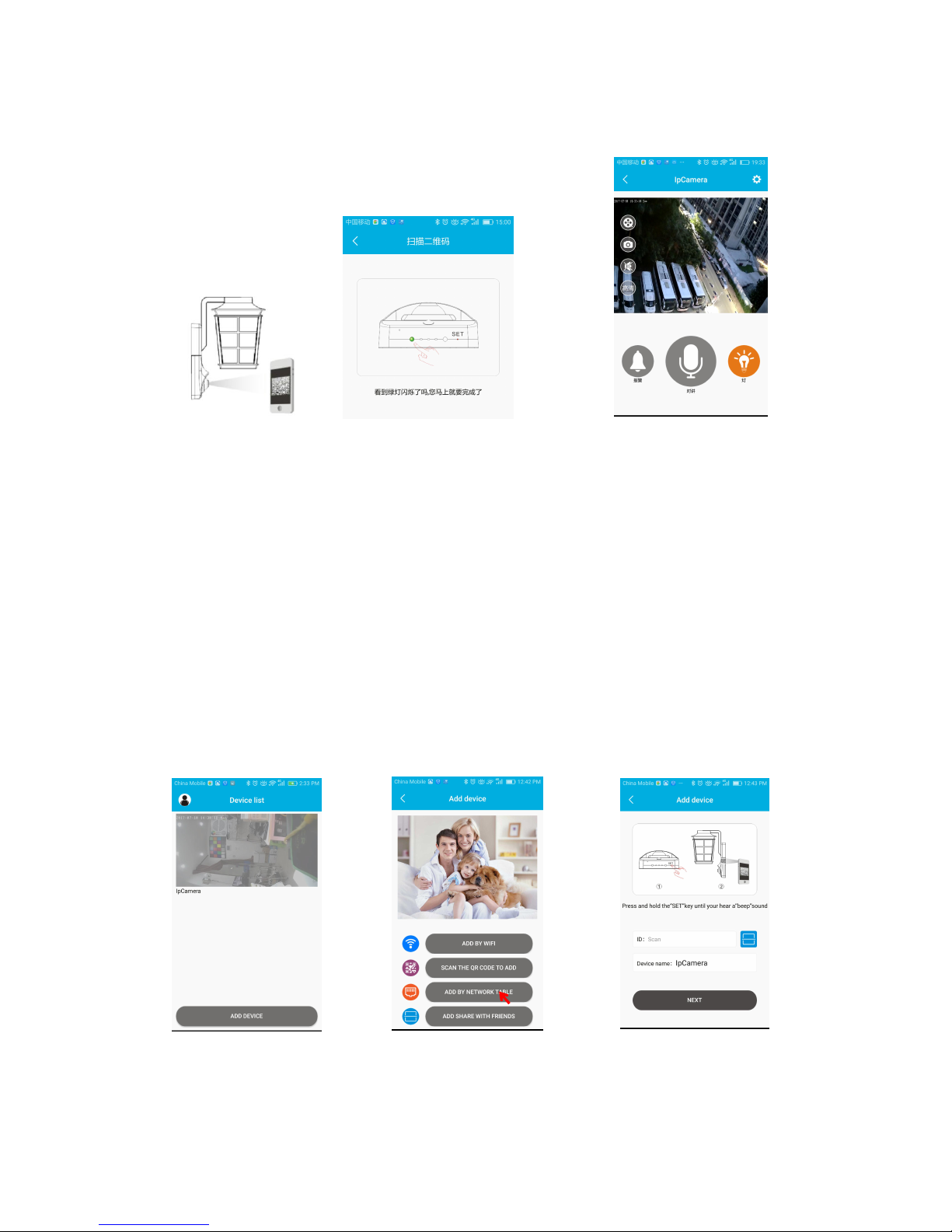

Wireless Connection (QR connection)
Step 1: Click “add camera”
Step2: Click “add by WIFI”
Step 3: Enter device name and click scan QR code.
Step 4: Scan QR code.
Step 5: Use needle push the “SET” button for one second to reset.
Step 6: Configure WIFI, input the password.
Step 7: Put QR code in front of the camera within 5-10 cm. If the scan was completed, you
can hear “beep” sound.
Step 8: When LED light turns green, it means connection is completed.
Step 9: The monitor view is live.
⑷
Use needle push the “SET” button for
one second to reset.
⑸
Configure WIFI, input the password.
Scan QR code.
⑹
⑻
⑼
⑺
When LED light turns green, it means
connection is completed.
Click “NEXT”, APP will search device
automatically until connection
After connection, the monitor
view is live.

Click “add by WIFI”
Click “add camera”
⑶
⑵
⑴
Enter device name and click
scan QR code.
⑸
⑷
⑹
Scan QR code.
Use needle push the “SET” button
for one second to reset.
Configure WIFI, input the password.
Configure WIFI, input the password.

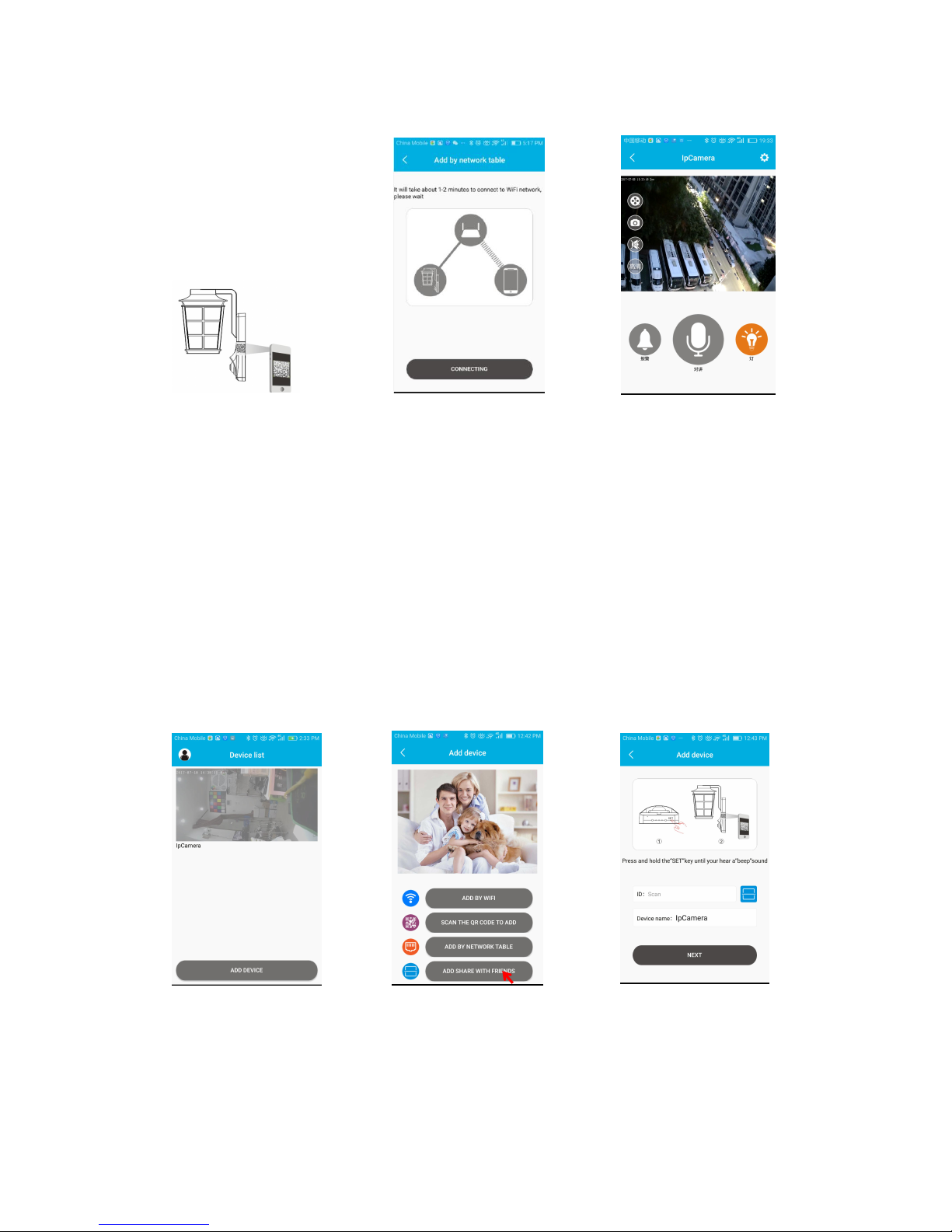

Network Table Connection:
Step 1: Click “add camera”
Step2: Click “add by network table”
Step 3: Enter device name and click scan QR code.
Step 4: Scan QR code.
Step 5: After scanning, APP will search device automatically until connection,
Step 6: After connection, the monitor view is live.
Put QR code in front of the camera
within 5-10 cm. If the scan was
completed, you can hear “beep” sound.
⑻
⑼
After connection, the monitor
view is live.
When LED light turns green, it
means connection is completed.
Click “add by network table”
Click “add camera”
⑶
⑵
⑴
Enter device name and click
scan QR code.
⑺

Wireless Connection (add share with friends)
Step 1: Click “add camera”
Step 2: Enter device name and click scan QR code.
Step3: Click “add share with friends”
Step 4: Scan QR code.
Step 5: After scanning, APP will search device automatically until connection,
Step 6: After connection, the monitor view is live.
After connection, the monitor
view is live.
After scanning, APP will
search device automatically
until connection,
⑷
⑸
⑹
Scan QR code.
Click “add share with friends”
Click “add camera”
⑶
⑵
⑴
Enter device name and click
scan QR code.

Software Reset
Step1: Log into the APP, click connected device, enter into device preview image, tap
to enter setting screen
Step2: Tap Reset (The bulb will turn on, and you will hear “Ding Ding Ding” sound, finally
the Led will turn to red and flashes)
Step3: Reset successfully.
Click this button to
enter the Settings
action interface
⑸
After connection, the monitor
view is live.
Scan QR code.
⑷
图一
图二
Select the remove device in the Settings
menu bar
⑹
After scanning, APP will search
device automatically until

Reset button
Step1: Press the reset button 5-10 seconds with needle at the bottom of the Fixture.
(The bulb will turn on, and you will hear “Ding Ding Ding” sound, finally the Led will turn to
flashing red.)
Step2: Reset completes.
Warning/Caution
Read this guide carefully and keep it for future reference
Follow all instructions for safe use of the product and handle with care
Use the camera within given temperature, humidity and voltage levels noted in Camera
Specifications
Do not disassemble the camera
Do not point the camera directly towards the sun or a source of intense light
Periodic cleaning may be required. Use a damp cloth only. Do not use harsh cleaners or
aerosol cleaners.
Support
Need Help?
Visit our official website to get more support.
Go to www.annke.com and search your device model number.
Click product in the search list to download what you need.
Press this reset button for 5 ~ 10
seconds with the pin
