annke I61DQ User manual

Camera
Network Mini PT Dome Camera
Quick Start Guide

1
Table of Contents
1Appearance Description................................................................... 4
1.1 Overview............................................................................... 4
1.2 Installing SD Card...................................................................7
2Installation....................................................................................... 7
3Accessing via Phones......................................................................10
3.1 Download and Install the APP..............................................10
3.2 Power on the IP Camera...................................................... 10
3.3 Add the Camera to Your Annke Vision Account....................10
3.3.1 Wireless Connection................................................. 11
3.3.2 Wired Connection..................................................... 11
4ANNKE Cloud P2P...........................................................................11
4.1 Live View............................................................................. 12
4.2 Recording.............................................................................12
4.3 Playback.............................................................................. 12
4.4 Alarm Notification............................................................... 12
5 Software Download And FAQ........................................................13

2
About this Manual
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to
firmware updates or other reasons. Please refer to Chapter 5
Software Download And FAQ to get latest contents contained in the
CD in case of updating.
Warnings
●Proper configuration of all passwords and other security settings is
the responsibility of the installer and/or end-user.
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please refer
to technical specification for detailed information.
●Do not connect several devices to one power adapter as adapter
overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the device
shall be firmly fixed.
●If smoke, or noise rise from the device, turn on the power at once
and unplug the power cable, and contact the service center.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.

3
●Do not touch sensor modules with fingers. If cleaning is necessary,
use a clean cloth with a bit of ethanol and wipe it gently. If the
camera will not be used for an extended period, replace the lens cap
to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places. Blooming
or smearing may occur (which is not a malfunction), and affect the
sensor’s endurance at the same time.
●The sensor may be burned out by a laser beam, so when any laser
equipment is in use, make sure that the surface of sensor will not be
exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating
temperature shall be -10°C to +40°C), dusty, or damp locations, and
do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, ensure that there is good ventilation
to the device.
●Keep the camera away from liquids.
●While in delivery, pack the camera in its original, or equivalent,
packing, packing materials. Or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic capacitor)
of the equipment shall be replaced regularly according to their
average endurance. The average time varies because of differences
between operating environments and usage history, so regular
checking is recommended for all users. Please contact your dealer
for more details.

4
1 Appearance Description

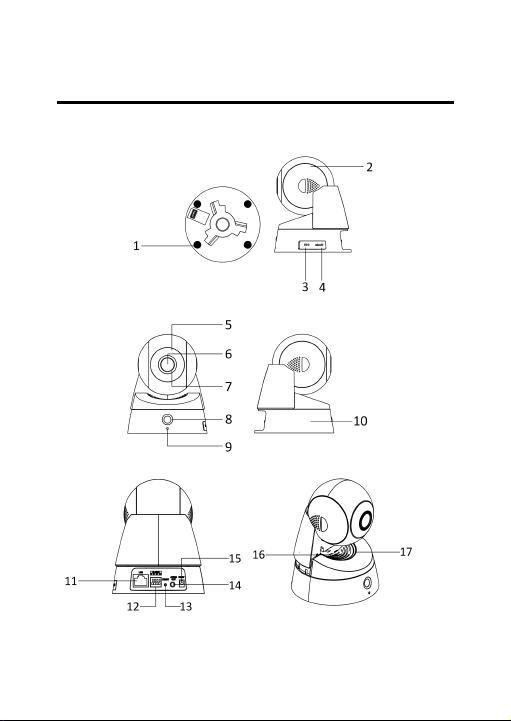

1.1 Overview

5
Description of Network Mini PT Camera
No.
Description
1
Silicone Gasket
2
Dome Drive
3
WPS(Wi-Fi Protected Setup) Button
4
Micro SD Card Slot
5
Photic Cover
6
Lens
7
Lens Ring
8
PIR(Passive Infrared) sensor
9
MIC
10
Mounting Base
11
10M / 100M self-adaptive Ethernet interface
12
Alarm Input/output
13
Reset
14
Audio Out
15
Power supply (5 VDC)
16
Speaker
17
Status LED
Solid blue: Network is connected, and
camera is unarmed.

6
No.
Description
Flicking blue: No network connection.
Solid red: Camera is armed.
Flicking red: Camera is not working
properly.
Solid green: Camera is connected to the
platform.
How to reset
(1) Make sure the device is powered on. Use a pin to press the
“Reset”button in the back, keep pressing the button for 10 seconds .
(2) The camera will automatically turn 1 minute later;it will stop
turning after 40 seconds, then the status lamp turns blue and starts
to flash, indicating reset successful.

7
1.2 Installing SD Card
Steps:
1. Pull the removable cover on the mounting base outwards and
move it aside.
2. Insert the micro SD card into the micro SD card slot.
3. Fix the cover back to the mounting base.
2 Installation
Steps:
1. Drill the screw holes on the ceiling according to the supplied drill
template.

8
2. Align the screw holes on the ceiling and adapter plate, and then
fix the adapter plate to the ceiling with the supplied screws.
3. Align the mounting base of the camera to the adapter plate, and
rotate the camera clockwise until it is locked up by the three
bayonet joints on the adapter plate.

9
4. Adjust surveillance view angle.
1) Hold and rotate the main camera body to adjust the view angle
in the pan direction: [0°~355°].
2) Move the dome drive upwards or downwards to adjust the
view angle in the tilt direction: [-20°~90°].

10
3 Accessing via Phones
3.1 Download and Install the APP
1. Connect your mobile device to Wi-Fi.
2. Download and install the Annke Vision app by searching the
"Annke Vision" in App Store or Google Play.
3. Launch the app and register an Annke Vision user account.
3.2 Power on the IP Camera
Plug in the power adapter to get it powered (No need of connecting
the Ethernet cable)
3.3 Add the Camera to Your Annke Vision
Account
Please configure Wi-Fi as the following steps when your IP camera
stops turning after first power on(waiting about 2 minutes):
1. Connect your mobile phone to a Wi-Fi (5G Wi-Fi is not supported
yet).

11
2. Log into the Annke Vision app.
3. In the Home page,tap "+" on the upper-right corner to add a
camera.
4. Scan the QR code on the camera
5. Tap Connect to a Network button in the popup interface.
6. Choose Wired Connection or Wireless Connection on your
demand in the popup interface.
3.3.1 Wireless Connection
Input the Wi-Fi password that your mobile phone has connected to,
and tap Next to start the Wi-Fi connection process. (Locate the
camera within 3 meters from the router when setting up the Wi-Fi.)
3.3.2 Wired Connection
Connect the camera to the router with a network cable and tap
Connected in the Result interface. The router should be the same
one that your mobile phone has connected to.
4 ANNKE Cloud P2P
With Annke Cloud P2P service, you can realize some certain
functions of this product (including, but not limited to, live view, and
remote playback) , which depend on the internet and telecom
value-added services.

12
4.1 Live View
Launch the Annke Vision app and you can get the live view of the
connected devices.
4.2 Recording
Check the memory card status by tapping on the Storage Status in
the Device Settings interface.
If the memory card status displays as Not Initialized, tap to initialize
it. The status will then change to Normal. You can then start
recording any event-triggered video in the camera such as motion
detection.
4.3 Playback
Launch the Annke Vision app, tap a connected device and tap Gallery
button to play back.
Note: If no video record is found, make sure you have enabled Alarm
Notification in [Home]-[I61DQ/I61DS]-[Setting]-[Alarm Notification]
4.4 Alarm Notification
When a motion is detected, a message will be pushed to your smart
phone automatically and timely to let you know what is happening.
Alarm Notification is even more convenient and practical than Email
Alarm to get alarm notification.
Launch the Annke Vision app and tap Message to see the alarm
messages.

13
Note: Make sure you have enabled Alarm Notification, and you can
select "Mute" in [Home]-[I61DQ/I61DS]-[Setting]-[Alarm
Notification]-[Notification Sound Mode] if you want to close Alarm
sound.
5 Software Download And FAQ
If your have problems when using the device or need to download
the content contained in the CD, please follow the steps below.
1.Visit www.annke.com
2.Search I61DQ or I61DS
3.Click the “Downloads”to choose and get what you want in the list
Note: The contents in the CD may not be the latest owing to
updating, Please download the latest from the official website .
Tech support: s[email protected]
