INSTRUCTION MANUAL
AR 330 bp
AR 330 LFP
AR 380 bp
AR 380 LFP

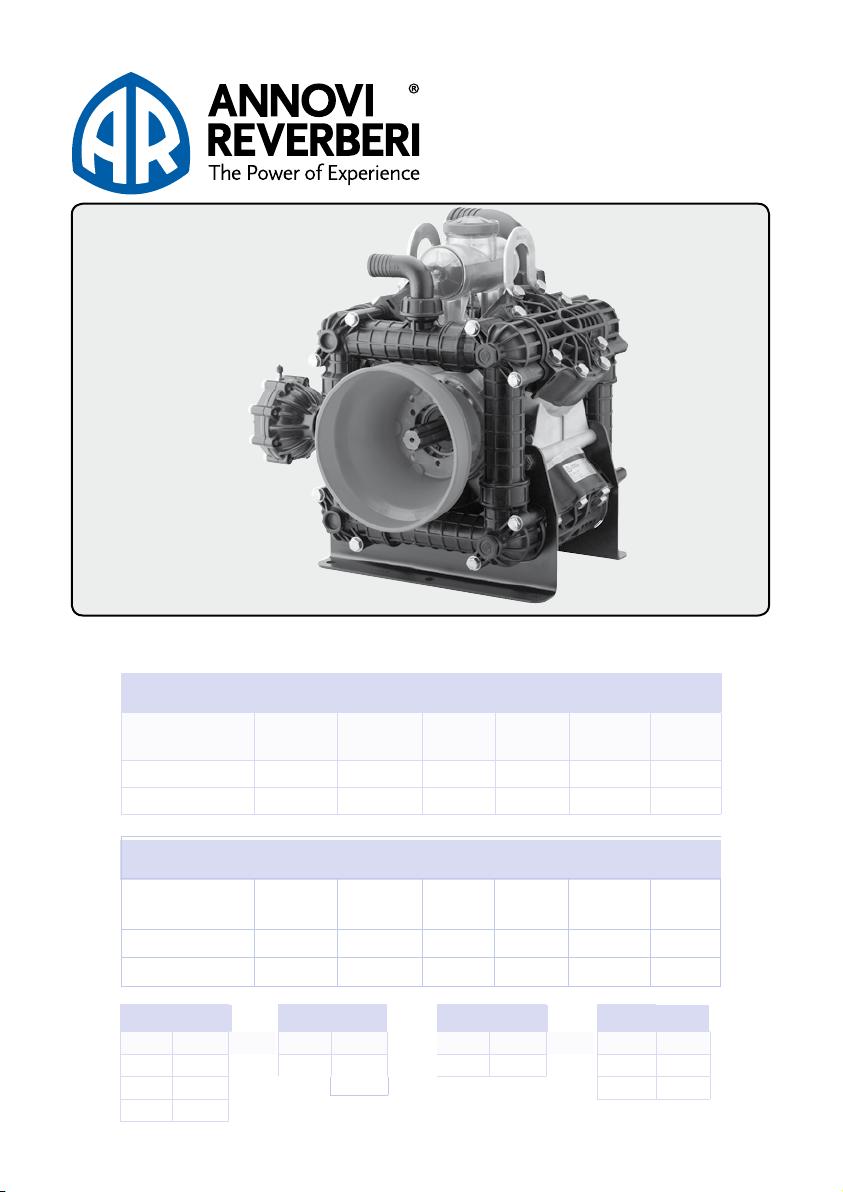

AR330LFP • AR380LFP - 550 RPm - Semi-HydRAuLic FouR-diAPHRAgm PumP
m odeL m Ax gPm m Ax L/m in m Ax PSi m Ax B AR HP P oweR
w eigHT
L
BS .
AR330LFP-C/C 84.0 317.9 220 15 11.6 128
AR380LFP-C/C 97.1 367.7 220 15 13.8 128
diAPHRAgm KiTS
modeL deScRiPTion
AR43274 BlueFlex
AR43273 Desmopan
AR43272 NBR
VALVe KiTS
modeL deScRiPTion
AR43182
Valves LFP
o-Ring KiTS
modeL deScRiPTion
AR43183 O-Rings
oiL
modeL deScRiPTion
AR64532D Oil
AR64532D-C Case (6)Oil
AR330BP • AR380BP - 550 RPm - Semi-HydRAuLic FouR-diAPHRAgm PumP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
AR330BP-C/C 84.2 317.9 290 20 17.4 132
AR380BP-C/C 97.1 367.7 290 20 17.4 132
AR42980 Valves BP
140° F - Max Water Temp
2 1/2” - Suction
1-1/4” - Outlet

IMPORTANT SAFETY INFORMATION
Intended uses
The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the
protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap-
proved by the manufacturer's technical service
The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be
modified or improperly used.
Misuses
Do notput the pump into service until the plant or machinery in which it is incorporated has been declared
compliant with the relevant national and local legal requirements.
Do not use the pump in a potentially explosive atmosphere.
Do not use the pump for flammable, toxic or corrosive liquids or liquids with unsuitable density, especially
seawater, adhesives, bitumens, asphalt sealers, two-step curing compounds, concrete sealers, liquefied
gases or solvents of any kind, paints of any kind or liquids containing solids in suspension, and in all cases do
not use with any liquid unless certain that it is compatible with the materials used in the pump circuit.
Do not draw in liquids at temperatures above 50°C or below 5°C.
Do not use the pump in drinking water supply systems.
Do not use the pump on products for human consumption.
Do not use the pump on pharmaceutical products.
Do not use the pump without first checking that the intake and delivery circuit pipelines are correctly secured
and free from leaks.
Do not use the pump without the safety devices provided: guards for shafts and drive couplings and suitably
rated relief valve on the delivery circuit.
Do not use the pump to wash or spray: people, animals or delicate items, live electrical equipment or chemicals
whose characteristics are not known.

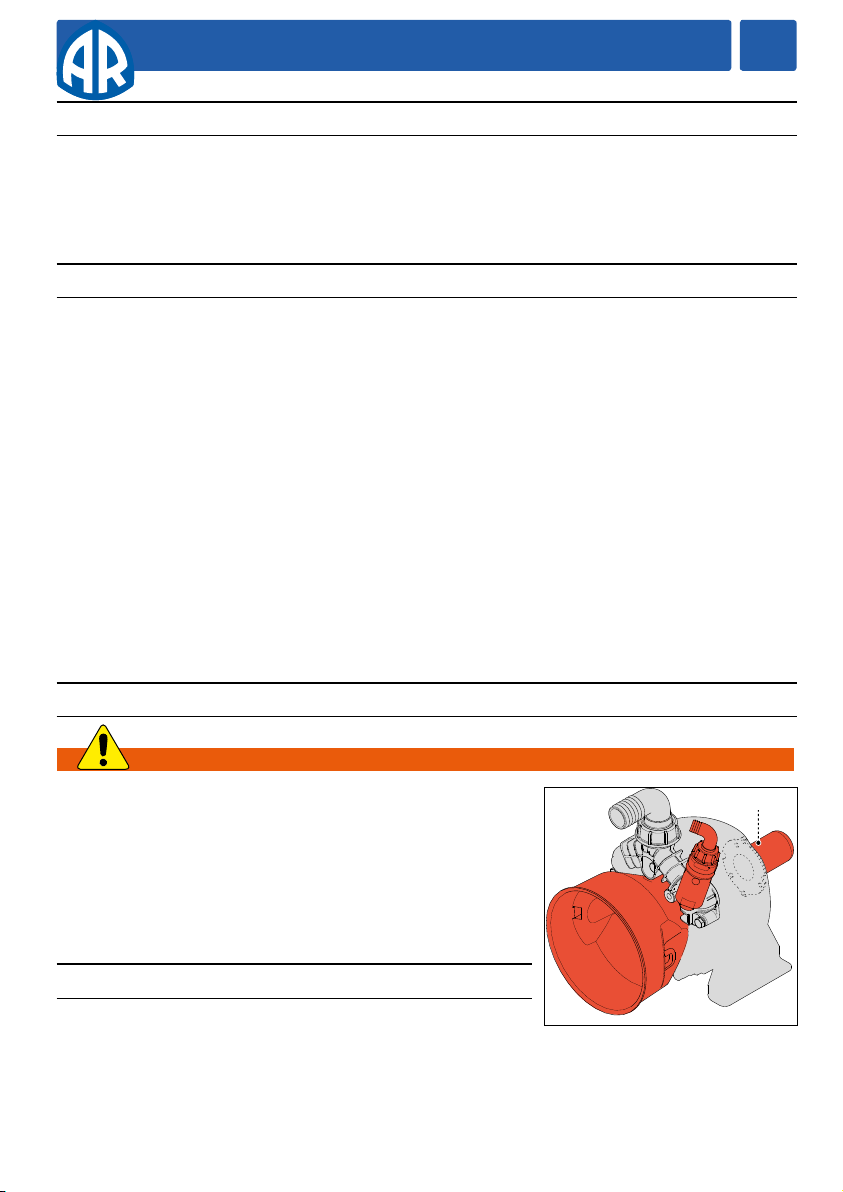

Safety devices
Danger - Warning
Never tamper with or by-pass the safety devices. Maintain all safe-
ty devices regularly to ensure they all work efficiently.
The drawing shows the position of the safety devices mounted on the
machine.
Additional safety devices must be added as necessary during the de-
sign phase (see “Installation information”).
A) Fixed guard: provides protection against accidental contacts with
the drive shaft when in operation.
Residual risks
Even if the safety regulations and information provided in the manual
are complied with, the residual risks described in the declaration of
incorporation still apply when the pump is in operation.
A

Installation diagram (guideline)












English language
Use and Installation
5
General guidelines on water supply connection
To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure.
Do not supply the pump with pressurised liquids.
Forcontinuous duty, thepumpshouldnotdrawinwaterbygravityfromcontainerswithliquidlevelatheights
above 3m.
For continuous duty, the pump should not draw in liquids by vacuum from containers with the liquid level
more than 3m belowthe pump intake fittingandthe circuit must consist of hoses of lengthand diameter ap-
propriate tothe pump intake fitting (see “Technical Data”),free from restrictions andelbows, andwith a filter
ofsuitablecapacity (see “Installation”).
Foroccasionalduty,suchasfillingwatersupplytanks,thepumpcanbeoperatedatavacuumdrawinginliq-
uids from reservoirs havingthesurface of the liquidup to5 m belowthe pump intakefitting,forperiods ofno
more than 15minutes.
Drawing in liquidsfrom lowerlevels or forlongertimes causes cavitation in thepump circuitand re-
duces the lifetimeofthediaphragms,valvesandmechanicalparts.
INSTALLATION INSTRUCTIONS
POSITIVE HEAD
VACUOMETER
ZERO HEAD
ZERO HEAD
Pump is operating
at acceptable
inlet
vacuum
PUMP
WARNING!
MAXIMUM OPERATING
TIME 15 MINUTES
NEGATIVE HEAD
Pump is
operating at
high inlet
vacuum
UN003415-EW
NEGATIVE HEAD
3m (9.8 ft ) m a x
3m (9.8 ft ) m a x
5m (16.4 ft ) m a x














 


















•
•


•
 7  H 

•
 







 



 z  x 









      
 A 

 
  A/  A  6  5 

 
 



 



 
   
  

  

  -
 
  

  

  
   
   







   30  















       







 /R  P 
D  P  P/  64  3  D 
       


1)  .
  �
C
A /R P ump O il
P/ N A
R64 5 32D





 
 



 /R  P  S  R64511 






A/R Pump Saver
P/N 64511
Protects Pumps from
Freezing Conditions

TROUBLESHOOTING
 




Problem









Cause





















Remedy





























Problem Cause Remedy
 

 
 Stop the pump at once. 
{1)






32 - 2
32 - 3
32 - 5
32 - 1
2021 AR North America
32
32 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA
58
5554
61
62
63
59 6056
55
57
66 65 64 63 62 61 57
54 64
65
10
19
17
17
14
20
13
16
15
8
719
18
7
1
13
1
6
14
1413
8 20
1413
18
9
4
68
17
3 5 7 8 74
12
17
2
11
21
11
14
13
17
13
13
14
17
14
78
23
22
7
8
73
11
17
17
13 14
30
29
27 26
25
32
33
24
35
34
28
31
32
28
33
39
38
37
34
34
34
36 34 34
40
41
41
42
46
45
52 53 52
44
43
51 50 49
48 47
(C)
AR 330 bp - AR 380 bp
V
e
r
s
i
o
n
C/C

2021 AR North America 33
Low pressure
Pos Code Description Q.ty Note
46
3040083 Diaphragm 4 BlueFlex
3040080 Diaphragm 4 NBR
47 3040130 Hub pin 4 TT265* (a)(a)
48 3040110 Piston ring 4
49 3040100 Piston Ø 100 4
50
3280110 Sleeve stroke 19 Ø100 4AR330bp
3280160 Sleeve stroke 22 Ø110 4 AR380bp
51 3280020 Connecting-rod 4
52 160691 Ring circlip Øi 18 8
53 540070 Pin 4
54 850251 Bolt TCEI M8x12 3 Geomet TT90*
55 390314 Washer 3 Geomet
56 1500470 Shield 1
57 161050 Ring circlip Øi 72 2 sp.2.5
58 450261 Bolt TE M6x35 6 Geomet TT180*
59 3040021 Flange 1
60 1800160 O-ring Ø 113.97x2.62 1
61 2680120 Ring seal 2
62 160751 Bearing 2
63
540040 Retaining washer 2 AR330bp
3280190 Retaining washer 2AR380bp
64 850130 Ring connecting rod 2
65 850320 Bearing 2
66
3280100 Shaft marked DR 1 AR330bp C/C
3280150 Shaft marked ER 1 AR380bp C/C
68
43066 Air chamber 1 Blueex™
1508 Air chamber 1 NBR
69
3040360 Retaining washer 1 AR330bp
3280190 Retaining washer 1 AR380bp
70 2240390 Ring connecting rod 1
71 3040321 Flange 1
72 2680130 Ring seal 1
73 3280050 Manifold suction 1
74 3280060 Manifold manifold 1
(a) Bolt piston side with Loctite 242 Strong.
(c) Attention! Assemble with grease between the Retaining washer and the diaphragm.
@ Pump and manufacturer identication.
* Torque: in-lbs +/- 10%
AR 330 bp - AR 380 bp
Pos Code Description Q.ty Note
1621781 Bolt TE M8x40 8Geomet TT180*
2180020 Air valve 1 TT25*
3620232 Semi air chamber upper 1Black
4 650542 Gasket 1
5
550194 Diaphragm air chamber 1Blueex™
550190 Diaphragm air chamber 1NBR
6 3040310 Semi air chamber lower 1 Plasticised
73040280 Bolt TE M10x85 16 Geomet TT240*
8320621 Washer 16 Geomet
9 280220 O-ring Ø 29.75x3.53 1
10 3280070 Manifold 1
11 3280040 Manifold asp./manifold 3
12 751200 Elbow 1 1/4" 1
13 3049050 Valve 8
14 3040200 Gasket 8
15 750670 Ring nut 1 1/2" G 1
16 390290 O-ring Ø 29x3 1
17 100320 O-ring Ø 52.39x3.53 16
18 3040370 Plug 3/4”G 2 TT90*
19 1540630 O-ring Ø 23.47x2.62 2
20 3280041 Manifold threaded 2
21 750740 O-ring Ø 56.74x3.53 2
22 750710 Ring nut 2”1/2 G 1
23 750720 Elbow Ø 60 1
24 3040260 Plug 1
25 3040510 O-ring Ø 70x3 1
26 3049001 Oil sight glass Assy 1
27 3040250 Oil sight glass 1
28 3040490 Fitting 2
29 1040060 O-ring Ø 72.69x2.62 1
30
1800060 Plug black 1 AR330bp
750050 Plug red 1 AR380bp
31 3040500 Hose barb 1 34 mm 98 Sh
32 3040590 O-ring Ø 22x3 2
33 394171 Bolt M8x16 2 Geomet TT90*
34 3040290 Bolt TE M14x40 6 Geomet TT445*
35 3280090 Bolt M10x14 2 Geomet TT180*
36 3280030 Base 2
37 820361 Plug 1/2”G brass 1
38 180101 O-ring Ø 17.5x2 1
39 3280010 Pump body 1
40 3280080 Support 2
41 3040300 Bolt TE M12x85 32 Geomet TT445*
42 390090 Washer 28 Geomet
43 3040030 Head plasticised 4
44 750980 Nut M12 4SS TT265*
45 3040120 Retaining washer 4
AR 43274
BlueFlex™ diaphragms
AR 43272
Buna diaphragms
AR 43273
Desmopon diaphragms
Pos. Qty
5 1
14 8
46 4
Suggested oil
Type Oz
AR64532D 32
AR 42591
O-Rings
Pos. Qty Pos. Qty
9 1 60 1
16 1
17 16
19 2
21 2
25 1
29 1
32 2
38 1
AR 42980
Valves
Pos. Qty
13 8
14 8
2154700 Air chamber decal
Pump and
manufacturer
identication.
Crankcase Oil
Capacity 148 oz
C/C
AR330bp 31719
AR380bp 31720
