Description
Plunger Pumps are designed for a wide variety of high
pressure washing applications. They are constructed
with die-cast bodies and feature a brass head. Internal
components include coated ceramic plungers for long life
and durability. Precision cast cooling fins are anodized for
maximum heat dissipation. Oversized needle bearings on the
drive side, and ball on the non-drive side together with the
precision supports assure positive alignment and centering
in relation to the crankcase. Valve cages of special designed
Ultra-Form provide positive seating and extended life. One-
piece connecting rods are special alloy aluminum, bronze
rods over 4,000 psi units, oversized for strength and load
disbursement. These pumps are designed for gasoline driven
systems.
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Operating Instructions and Parts Manual RSV Series Pumps
RSV 3400 rpm D Version - 3/4”
Model Max GPM Max PSI
RSV2.5G25D-F25 2.5 2500
RSV3G25D-F25 3 2500
RSV 3400 rpm D Version - 1”
Model Max GPM Max PSI
RSV3G35D-F40 3 3500
RSV3.5G35D-F40 3.5 3500
RSV4G40D-F40 4 3000
RSV4G40D-F40 4 4000
Figure 1
Hollow Shaft
Figure 2
Hollow Shaft

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
$VERSION&
(OLLOWSHAFTPUMPv
236
 










'
'
'




 
2
2
. ª
ª
ª






$VERSION&
(OLLOWSHAFTPUMPv
236

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
Formulas
Nozzles:
Impact Force (lbs.) = .0526 x GPM x √PSI
Nozzle # = GPM x 4000
√ PSI
GPM= Nozzle # x PSI
√4000
PSI = (GPM/Nozzle #)2 x 4000
Horse Power:
GPM x PSI = Hydraulic HP
1714
GPM x PSI = EBHP
1457
EBHP x 1457 = GPM
PSI
EBHP x 1457 = PSI
GPM
HP loss due to altitude = 3% per 1000 FT
above sea level
Pump Speed and Flow:
Rated GPM = Desired GPM
Rated RPM Desired RPM
Motor Pulley Ø = Pump Pulley Ø
Pump RPM Motor RPM
Conversions
Gallons x 3.785412 = Liters
Gallons x 128 = Oz.
PSI x .06896 = Bar
Bar x 14.5038 = PSI
1 inches = 25.4 millimeters
Liters x .2642 = Gallons (US)
Ft. Lbs. x 1.356 = Newton Meters
Inch Lbs. x .11298 = Newton Meters
Newton Meters x .737562 = Ft. Lbs. (force)
Newton Meters x 8.85 = In. Lbs. (force)
Temperature = 1.8(C° + 17.78) = F°,.555(F°
- 32) = C°
1 U.S. Gallon of freshwater = 8.33 lbs.
1 PSI = 2.31 feet of water
1 PSI = 2.04 inches of mercury
1 Foot of water = .433 PSI
1 Foot of water = .885 inches of mercury
1 Meter of water = 3.28 feet of water
Kilograms x 2.2 = Lbs.
General Safety Information
WARNINGS
Gasoline Drive Pumps
The pump is designed to pump non-
flammable or non-explosive fluids.
These pumps are intended to pump
clean filtered water only.
Do not operate in or around an
explosive environment.
Always wear safety glasses
or goggles and appropriate
clothing.
Do not alter the pump from the
manufacturers design.
Do not allow children to operate
the pump.
Never point the high-pressure
discharge at a person, any part of
the body or animals.
Do not operate gasoline engines in a
confined area; always have adequate
ventilation.
Do not exceed the pump
specifications in speed or pressure.

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
General Safety Information
(continued)
Maximum water temperature is
140°F.
All positive displacement plunger
pumps must have a safety relief valve
installed on the discharge side of the
pump, this valve could be either an
unloader or regulator and must be of
adequate flow and pressure for the
pump.
Adequate protective guards must
cover all moving parts. Perform
routine maintenance on the pump and
components.
Use only components that are rated
for the flow and pressure of the pump,
this would include hose, fittings, safety
valves, spray guns etc.
Electric Drive Pumps
Your power supply must conform to the
system requirements.
The motor must be grounded. Use
GFCI plugs and receivers.
Do not handle the pump/motor with
wet hands.
Only use power cords that are in
good condition.
Never pull the unit by the power
cord.
Never spray or clean the unit with water
Failure to follow these warnings
may result in personal injury or
damage to property.
Installation

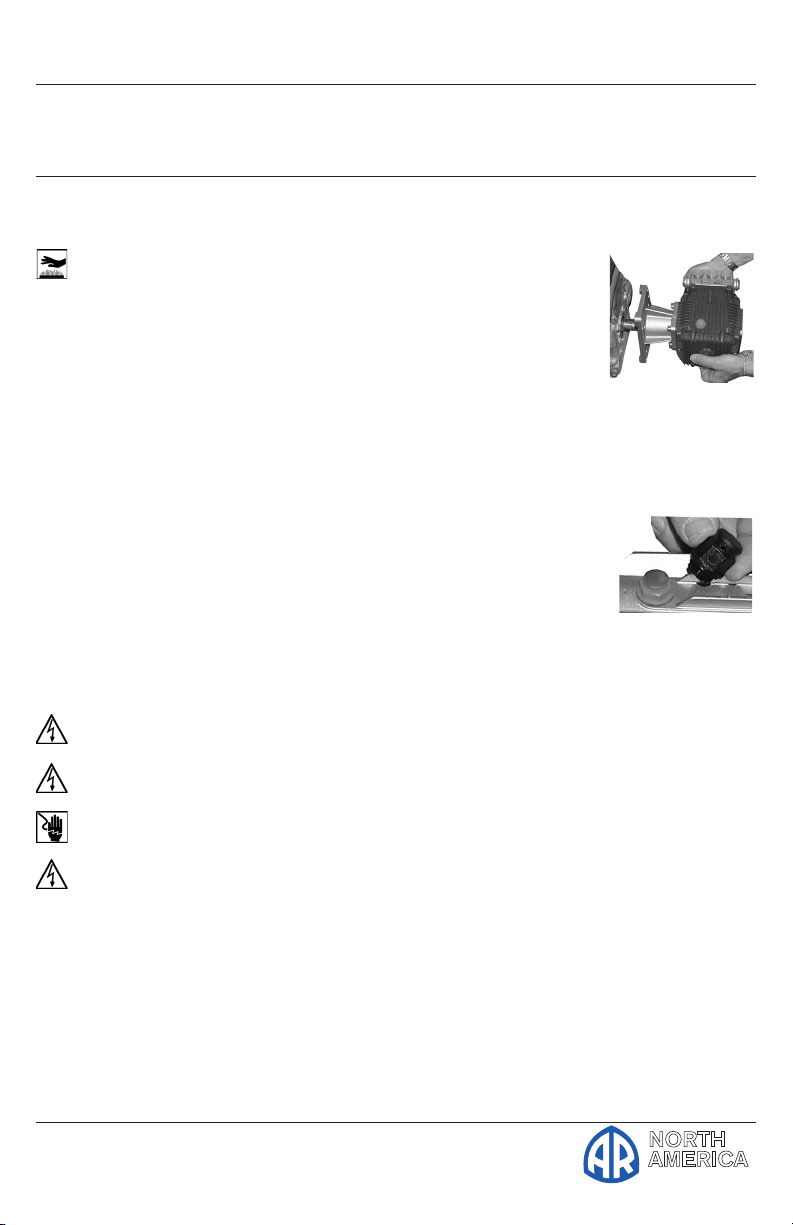

Direct Drive Gasoline Pumps
1. Install the
shaft key into the
keyway and apply
a light coating of
anti-seize on the
engine shaft. (See
Figure 3)
2. Align the two key ways
and push the pump completely
onto the engine.
3. Install all four (4) bolts and tighten
evenly.
4. Remove the red
shipping oil cap and
install the black
crankcase vent cap.
(See Figure 4)
5. Install the appropriate
unloader valve and other
accessories.
6. Install the appropriate water inlet
and discharge fittings.
7. Connect the water supply hose and
high-pressure discharge hose/spray
gun.
8. Turn on the water supply.
9. Open the spray gun to purge the
system of any air.
10. Start the engine.
11. Adjust the engine speed and
unloader valve.
Winter or Long Time Storage
1. Drain all of the water out of the
pump.
2. Run a 50% solution of a RV or
non-toxic/biodegradable antifreeze
Figure 4
Figure 3

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
through the pump.
3. Flush the pump with fresh water
before the next use.
4. In freezing conditions failure to
do this may cause internal pump
damage.
5. For long periods of storage in
non-freezing areas the solution
will keep the seals and O-rings
lubricated.
Service Pumps
Servicing the Valves
The inlet and discharge valves in this
series pumps are all the same. The
valves are located under the six 19mm
hex plugs. The inlet valves are located
on the inside portion of the head under
the seal assemblies and the discharge
valves are located on the top row of the
pump head.
Tools required: #8-32x” machine screw
and diagonal pliers, screw driver, 19mm
socket, ratchet, and torque wrench.

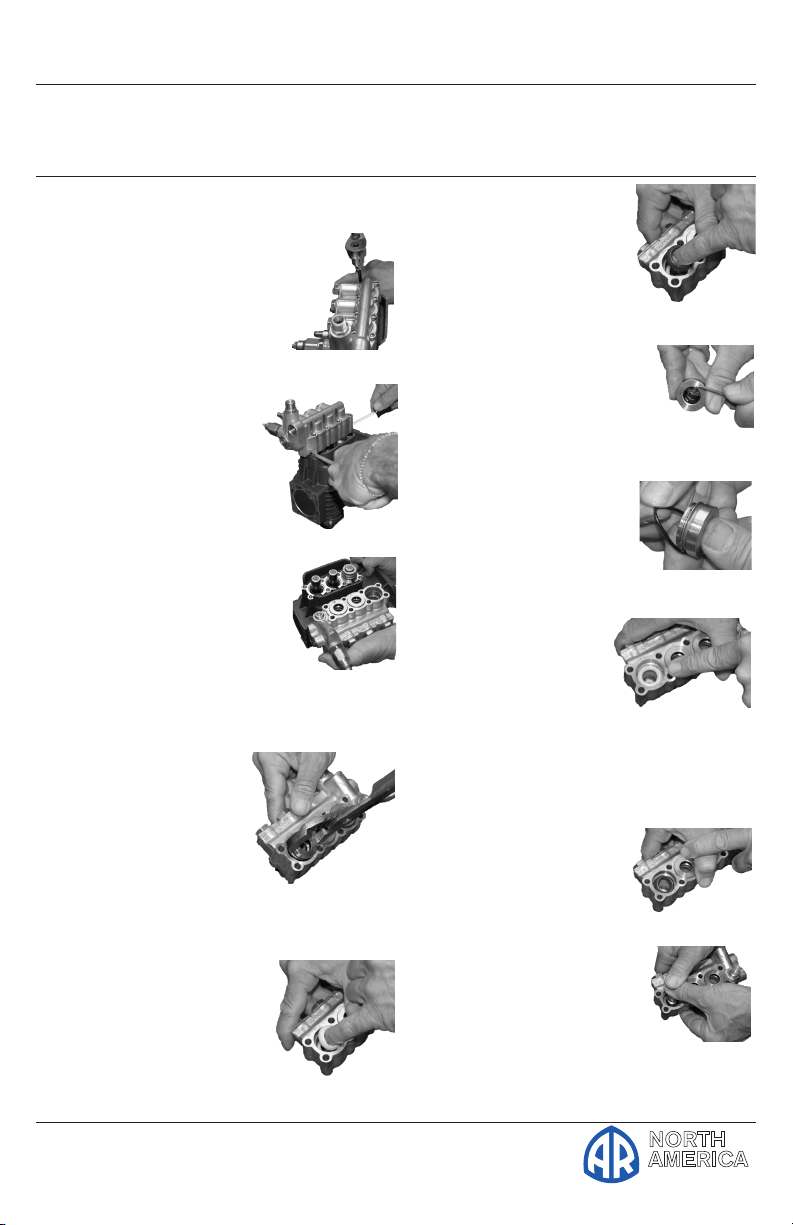

Discharge Valve
Removal:
1. Remove the valve
cap. (See Figure 5)
2. Inspect the valve
cap O-ring for any
damage, replace if
necessary.
3. Screw the machine screw
into the hole on top of the valve
cage (approx 1/8”). Using the
diagonal pliers grasp the screw at
the lowest reachable point. Using
the pump head as a base, push
down on the pliers, the
valve will lift out. (See
Figure 6)
4. Use a small probe to
move the poppet up
and down to assure that
the valve is functioning
properly and that no
debris is stuck in the
valve. (See Figure 7)
5. Inspect the valve o-ring
for any damage, replace
if necessary.
Discharge Valve Assembly:
1. Insert the valve
assembly squarely
into the port
pushing it into place
with a deap well
socket (you will feel
the valve assembly
seat). (See Figure 8)
3. Install the
valve cap
and torque
to the proper
specification.
(See Figure 9)
Servicing the Packings/Seals and
Inlet Valves
To access the water seals and inlet
valves for inspection or replacement,
you will first need to remove the head
of the pump.
Tools required: 5mm hex socket,
ratchet, (2) long screwdrivers, channel
lock pliers, mechanics pick and torque
wrench.
Figure 5
Figure 6
Installation (continued)
Figure 7
Figure 9
Figure 8

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
Disassembly:
1. First remove the eight
5mm head bolts. (See
Figure 10)
2. Place the screwdrivers
as shown between the
head and crankcase of the
pump, lifting one up
and the other down.
The head should
start to lift off of
the plungers. (See
Figure 11)
3. When you remove
the head you may notice
that some of the water
seals have stayed on the
plungers and some in
the head. To remove
the seals from the
plungers simple turn the
assemblies and pull off.
(See Figure 12)
4. If the seal assemblies
are in the head use
the channel lock
pliers to grab the
seal retainer on the
outside ring, twist
the retainer in either
direction (this is done to
free the retainer O-ring
which is stuck to the manifold) and
lift out. (See Figure
13)
5. With your finger pull
out the white restop
ring. (See Figure 14)
6. With your finger pull the
high-pressure seal and
head ring out of the
head. (See Figure 15)
7. The low-pressure seal
is located in the brass
seal retainer. Using
the mechanics pick, go
in between the seal and
retainer and pull the
seal toward the center
and pull outwards. (See
Figure 16)
8. Remove the seal retainer
O-ring with the
mechanics pick. (See
Figure 17)

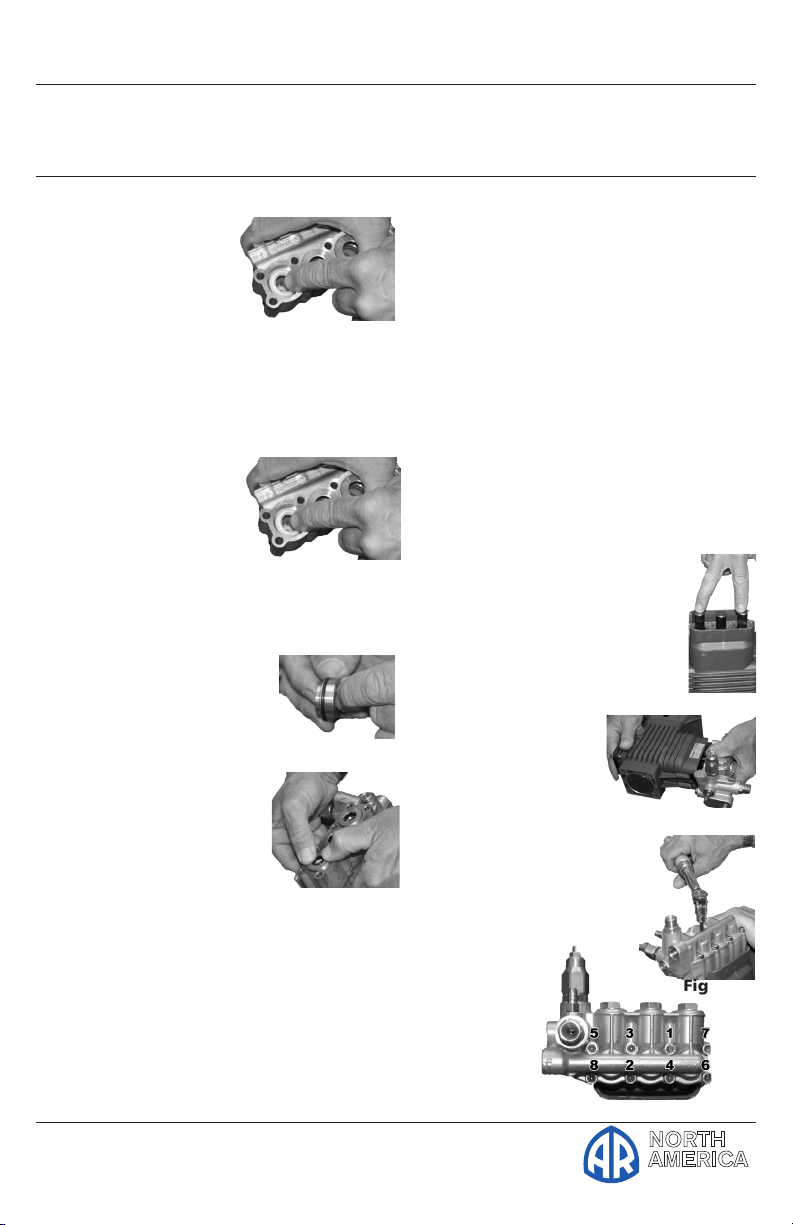

Assembly:
1. Install the plastic head
ring into the head
(the flat side is on
the bottom). (See
Figure 18)
2. Install the high-
pressure seal. Place the
seal so the open “V” portion is
toward the head ring. You need
to place the seal at an angle and
pull and push to work the seal into
position with your
fingers (do not use any
tools you may damage
the seal). Make sure
the seal is totally
seated against the head
ring. (See Figure 19 &
20)
3. Place the white restop
ring so it mates to the
top of the high pressure
Figure 11
Figure 12
Figure 14
Figure 13
Figure 10
Figure 16
Figure 17
Figure 15
Figure 18
Figure 20
Figure 19
Service Pumps (continued)

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
seal (Make sure it
is squarely seated).
(See Figure 21)
4. Installing the low-
pressure seal You
want the open side of the
seal to be pointed toward
the water side of the head (toward
the high-pressure seal) and the flat
side toward the drive end of the
pump.
Place the seal into
the gland at an
angle, with your
finger push the
exposed side of the
seal towards the center
and work the seal into position.
After the seal is in the gland you
can work it into it proper position..
(See Figure 22)
5. Install the retainer
O-ring. (See Figure 23)
6. Squarely seat the
retainer into the head
and push with even
pressure until it snaps
into position. (See
Figure 24)
Inlet Valve Removal:
1. Remove the valve cap.
2. Inspect the valve cap O-ring for any
damage, replace if necessary.
3. Screw the machine screw into
the hole on top of the valve cage
(approx 1/8”). Using the diagonal
pliers grasp the screw at the lowest
reachable point. Using the pump
head as a base, push down on the
pliers, the valve will lift out.
4. Use a small probe to move the
poppet up and down to assure that
the valve is functioning properly
and that no debris is stuck in the
valve.
5. Inspect the valve o-ring for any
damage, replace if necessary.
Inlet Valve Assembly:
1. Insert the valve assembly squarely
into the port pushing it into place
with a deap well socket (you will
feel the valve assembly seat).
3. Install the valve cap and torque to
the proper specification.
Pump Head to Drive End
Installation
1. Turn the crankshaft to align
the plungers as shown. (See
Figure 25)
2. Place the head
evenly onto the
plungers and push
it until it makes
contact with the
drive end of the
pump. (See Figure 26)
3. Torque the head
bolt as shown in the
tightening sequence
diagram.
(See Figure
27 & 28)
Figure 21
Figure 23
Figure 24
Service Pumps (continued)
Figure 22
Figure 25
Figure 26
Figure 27
Figure 28

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
Oil Change
Change oil after first 50 hours of use.
Then every 500 hours. Refer to parts
breakdown for oil type.
Servicing the Built-in Unloader
and Check Valve
These partw are serviced as assenbled
kits.
Tools required: 3/8” drive ratchet, 19mm
deepwell socket, medium strength
thread locker, needle nose pliers.
Check Valve Removal:
1. Remove the chemical
injector discharge
nipple. Use the needle
nose pliers to lift out
the check valve. (See
Figure 29)
Check Valve Assembly:
1. Place the check valve into the
discharge outlet with the pointed
side going in first (NOTE: older
model pumps have
springs that go into
the hollow portion
of the valve, newer
models do not have
springs.) (See Figure
30)
2. Inspect the o-rings on the injection
nipple, if damaged
replace. Place small
amount of thread locker
on the thread and
tighten. (See Figure 31)
Unloader Removal:
Tools required: 3/8” rachet, 22mm deep
well socket, crescent wrench, small
hammer, 6mm x approximately 8mm or
longer, medium strength thread locker.
Unloader assembly removal:
1. Using the 22mm
socket rotate the
pressure adjusting
cap so both set of
hexes are alligned.
Use screw to remove
the complete unloader
assembly. (See Figure 32)
1. Screw the 6mm bolt into the
unloader piston seat, grab the bolt
with the crescent
wrench just under
the head. Using
the hammer tap
the bottom of the
wrench. The seat will pop
out. (See Figure 33)
Unloader assembly:
1. Piston seat installation
screw the new seat
onto the bolt (NOTE:
the flat side is the
bottom). Push squarly
into the unloader base
and tap into place with
the hammer. (Remove
the bolt) (See Figures 34
& 35)
2. Place a small amount
of thread locker on
the unloader cartride
threads and screw into the
base and tighten.
Figure 30
Figure 31
Figure 29
Figure 35
Figure 34
Figure 32
Figure 33
Service Pumps (continued)

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
Unloader Adjusting Instructions
Follow these easy steps to adjust the
pressure:
1. Loosen nut (pos. #3) with 10mm
wrench.
2. Turn brass (pos. #4) clockwise until
it stops.
3. Start pump, watch pressure gauge
and turn (pos. #2) using 3mm hex
clockwise until recommended/rated
pressure is obtained. Line pressure
will be approximately 200 psi less
then actual head pressure. DO NOT
set line pressure to rated.
4. Release trigger and make sure there
is minimal spike (200-300 psi) (Re-
peat this step two or three times).
5. Tighten nut (pos. #3) down against
(pos. #4).
4
2
3
Service Pumps (continued)

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
Symptom Possible Cause(s) Corrective Action
Oil leak between
crankcase and pump-
ing section
Worn rod oil seals Replace crankcase piston rod
seals
Frequent or prema-
ture failure of the
packing
1 Cracked, damaged or worn
plunger
1 Replace plungers
2 Overpressure to inlet
manifold
2 Reduce inlet pressure
3 Material in the fluid being
pumped
3 Install proper filtration on pump
inlet plumbing
4 Excessive pressure and/or
temperature of fluid being
pumped
4 Check pressures and fluid inlet
temperature; be sure they are
within specified range
5 Running pump dry 5 Do not run pump without water
Pump runs but pro-
duces no flow
Pump is not primed Flood suction then restart pump
Pump fails to prime Air is trapped inside pump Disconnect discharge hose from
pump. Flood suction hose,
restart pump and run pump until
all air has been evacuated
Pump looses prime,
chattering noise,
pressure fluctuates
1 Air leak in suction hose or
inlet
1 Remove suction line and inspect
it for a loose liner or debris
lodged in hose. Avoid all unnec-
essary bends. Do not kink hose
2 Clogged suction strainer 2 Clean strainer
Low pressure at
nozzle
1 Unloader valve is by-pass-
ing
1 Make sure unloader is adjusted
property and by-pass seat is not
leaking
2 Incorrect or worn nozzle 2 Make sure nozzle is matched
to the flow and pressure of the
pump. If the nozzle is worn,
replace
3 Worn packing or valves 3 Replace packing or valves
Pressure gauge fluc-
tuates
1 Valves worn or blocked by
foreign bodies
1 Clean or replace valves
2 Packing worn 2 Replace packing
Low pressure 1 Worn nozzle 1 Replace with nozzle of proper
size
2 Belt slippage 2 Tighten or replace with correct
belt
Troubleshooting

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
Symptom Possible Cause(s) Corrective Action
Low pressure (cont.) 3 Air leak in inlet plumbing 3 Disassemble, reseal and reas-
semble
4 Relief valve stuck, partially
plugged or improperly
adjusted valve seat worn
4 Clean and adjust relief valve;
check for worn or dirty valve
seats
5 Worn packing. Abrasive
in pumped in cavitation.
Inadequate water
5 Install proper filter suction at
inlet manifold must be limited to
lifting less than 20 feet of water
or 8.5 psi vacuum
6 Worn inlet, discharge valve
blocked or dirty
6 Replace inlet and discharge valve
Pump runs extremely
rough, pressure very
low
1 Inlet restrictions and/or air
leaks.
1 Clean out foreign material
2 Stuck inlet or discharge
valve
2 Replace worn valves
Water leakage from
under manifold
Worn packing or cracked
plunger
Install new packing or plunger
Slight leak, oil leak-
ing in the area of
crankshaft
1 Worn crankshaft seal or
improperly installed oil seal
o-ring
1 Remove oil seal retainer and
replace damaged 0-ring and/or
seals
2 Bad bearing 2 Replace bearing
Excessive play in the
end of the crankshaft
pulley
Worn main bearing from
excessive tension on drive
belt
Replace crankcase bearing and/or
tension drive belt
Water in crankcase 1 Humid air condensing into
water inside the crankcase
1 Change oil intervals
2 Worn packing and/or
cracked plunger
2 Replace packing. Replace
plunger
Loud knocking noise
in pump
1 Cavitation or sucking air 1 Check water supply is turned on
2 Pulley loose on crankshaft 2 Check key and tighten set screw
3 Broken or worn bearing 3 Replace bearing
Troubleshooting (cont.)

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps

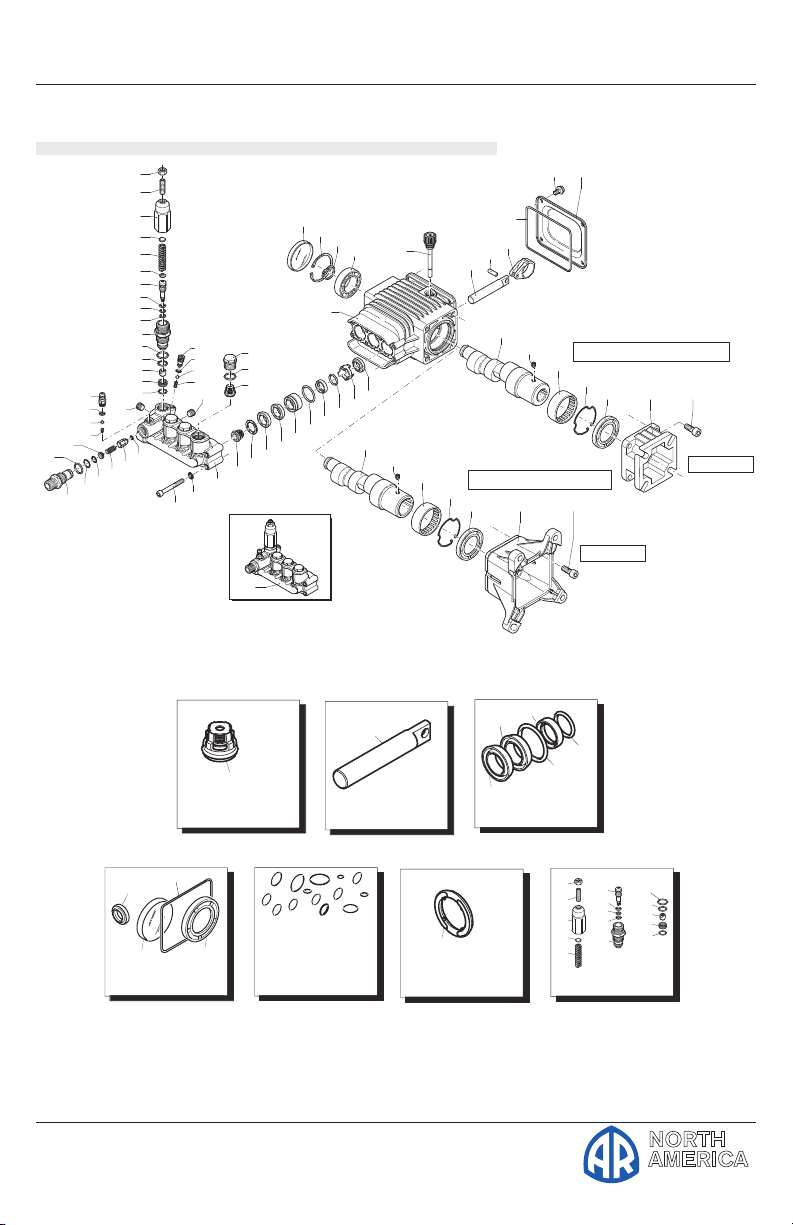

RSV 3400 r p m
Repair Kits
69
58
59
64 70 66
67
28
12
21
20
22242526
27
29
33
32
31
17
30 34
11
35
36 37 38 39 40 41 42 43 44
45
46 47 48 49 50 53
52
51
54
55 56
35
33
23
19
18
17
16 15
14
13
12
11
10
9
8
7
6
4
5
4
3
2
1
"D" VERSION Ø3/4”
TYPE F25
68
58
59
64 71 66
67
"D" VERSION Ø1”
TYPE F40
62
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1
Valves
Kit 2186
35(6)
Pistons
Kit 2187
51(3)
46
Oil Seals
Kit 2188
64
O-Rings
Kit 2190
7(1)
8(1)
9(1)
11(4)
19(1)
21(1)
22(1)
26(1)
12(2)
15(1)
17(2)
18(1)
Water Seals
Kit 2189
38(3)
40(3)
42(3)
37(3)
41(3) 54
44(3)
Support Ring
Kit 2191
36(3)
Unloader
Kit 2280
15
14
13
12
11
10
9
8
7
6
5
4(2)
3
2
1

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
Pos. Code Description Qty. Pos. Code Description Qty.
1 1980300 Nut M6 1
2 2760420 Grub screw M6x12 1
3 1980540 Unloader knob 1
4 1980220 Spring plate 2
5 2760410 Spring 1
6 2760400 Valve piston 1
7 2260100 O-Ring Ø6.02x2.62 1
8 660190 O-Ring Ø6.07x1.78 1
9 2760210 Ring 1
10 2760050 Piston guide 1
11 1200690 O-Ring Ø15.6x1.78 4
12 394280 O-Ring Ø12.42x1.78 2
13 2260070 By-pass jet 1
14 2760090 Seat 1
15 770140 O-Ring Ø11.11x1.78 1
16 1982520 Hose nipple 1
17 480480 O-Ring Ø4.48x1.78 2
18 1250280 Ball 1
19 1560520 Spring 1
20 2760230 Detergent injector 3/8” G 1
21 2760270 O-Ring Ø12x1 1
22 1470210 O-Ring Ø9x1 1
23 2760120 Injector insert 1
24 2760200 Spring 1
25 2760130 Jet 1
26 1460430 O-Ring Ø4x2.5 1
27 801080 Bolt M6x50 (92 in/lbs) 8
28 1381550 Lockwasher 8
29 2760020 Head 1
30 2760140 Ez-start plug 1
31 1982240 Ball 1
32 1981800 Spring 1
33 2760260 Plug 1/4” G 2
34 2760180 Plug (442 in/lbs) 3
35 2769050 Complete valve 6
36 2760220 Support ring 3
37 1342761 Gasket 3
38 1981580 Ring 1
39 1981570 Piston guide 3
40 770260 O-Ring Ø23.52x1.78 3
41 1260440 Gasket 3
42 640070 O-Ring Ø13.95x2.62 3
43 2760310 Spacer 3
44 1260460 Oil seal 3
45 2760010 Pump body 1
46 1266740 Bearing cap 1
47 1260790 Circlip Øi52 1
48 1780550 Snap ring 1
2760340 Bearing mrx 1
49 1780490 Bearing ln 1
50 880130 Oil cap 1
51 2760040 Piston 3
52 1780050 Piston pin 3
1780040 Con rod Aluminum mrx 3
53 1780710 Con rod Bronze ln 3
54 2760280 O-Ring Ø101.27x2.62 1
55 802190 Bolt M6x12 (71 in/lbs) 4
56 2760110 Rear cover 1
2760350 Bearing mrx 1
58 1321190 Bearing ln 1
59 1321080 Snap ring 1
62 2769201 Complete pump head 1
64 480671 Oil seal 1
66 180030 Bolt M8x20 4
67 820440 Set screw M6 1
1780340 Hollow shaft Ø1” ml 1
1780920 Hollow shaft Ø1” 1
68 1780330 Hollow shaft Ø1” rn 1
1780590 Hollow shaft Ø3/4” 1
69 1780600 Hollow shaft Ø3/4” x1
70 1780580 Flange F25 x 1
71 2760290 Flange F40 mlrn 1
AR64516 Oil 1
Oi l Ca p a C i t y - 12 O z
Legend
Ø15 Ø15 Ø15 Ø15
For For xFor For r
RSV2.5G25 RSV3G25 RSV3.5G35 RSV4G30
For m  For n
RSV3G30 RSV4G35
RSV4G40
For l
RSV3G35

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
Notes

Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
First Choice When Quality Matters
NORTH
AMERICA
Notes

First Choice When Quality Matters
NORTH
AMERICA
Plunger Pumps
Operating Instructions and Parts Manual RSV Series Pumps
Li m i t e d Wa r r a n t y
Annovi Reverberi (A.R.) Cam Shaft Plunger Pumps are warranted for a
period of five years and Axial Radial Pumps are warranted for a period
of one year to the original purchaser. Electric Pressure Washers are
warranted for a period of one year to the original purchaser. This is from
the date shipped from factory or U.S. Warehouse. AR, ArrowLine and
GF accessories are warranted for a period of 90 days.
Warranty covers manufacturing defects or workmanship that may
develop under normal use and service in a manner up to the directions
and usage recommended by the manufacturer.
Warranty does not apply to misuse or when pump or accessory is altered
or used in excess of recommended speeds, pressures, temperatures or
handling fluids not suitable for pump or accessory material construction.
Warranty does not apply to normal wear, freight damage, freezing
damage or damage caused by parts or accessories not supplied by AR
North America, Inc.
Liability of manufacturer for warranty is limited to repair or replacement
at the option of the manufacturer when such products are found to be of
original defect or workmanship at the time it was shipped from factory.
This warranty is in lieu of all other warranties, expressed or implied,
including any warranty of merchantability and of any and all other
obligations or liabilities on the part of the manufacturers or equipment.
Wa r r a n t y re t u r n s
Items returned for warranty consideration must have a Returned Mer-
chandise Authorization (RMA) number. All unauthorized returns will
be refused and shipped back to sender. Please fax requests to: 763-398-
2009 or e-mail to [email protected].
Torque Specifications in/lbs:(ft/lbs)
Oil Manifold Piston Rear Side Valve Connecting
Capacity (Head) Nut Cover Cover Cap Rods
12 92/(5) N/A 71/(6) N/A 442/(37) N/A
