Annovi Reverberi AR160LFP-C/C User manual

INSTRUCTION MANUAL
AR 160 LFP AR 185 LFP
AR 185 LFP AR 160 LFP
AR160LFP / AR185LFP - 550 RPm - Semi-HydRAuLic THRee-diAPHRAgm PumP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
AR160LFP-C/C 43.9 166.2 220 15 6.8 55.1
AR185LFP-C/C 48.1 182.1 220 15 7.4 55.1
10
diAPHRAgm KiTS
modeL deScRiPTion LiST PRice
AR43259 BlueFlex $196.04
AR43257 Desmopan $133.90
AR43256 NBR $136.24
AR43258 Viton $1,472.66
VALVe KiTS
modeL deScRiPTion LiST PRice
AR43169 Valves $677.71
o-Ring KiTS
modeL deScRiPTion LiST PRice
AR43170 O-Rings $187.83
oiL
modeL deScRiPTion LiST PRice
AR64532D Oil $15.50
AR64532D-C Case (6)Oil $90.00
10
diAPHRAgm KiTS
modeL deScRiPTion LiST PRice
AR43259 BlueFlex $196.04
AR43257 Desmopan $133.90
AR43256 NBR $136.24
AR43258 Viton $1,472.66
VALVe KiTS
modeL deScRiPTion LiST PRice
AR43169 Valves $677.71
o-Ring KiTS
modeL deScRiPTion LiST PRice
AR43170 O-Rings $187.83
oiL
modeL deScRiPTion LiST PRice
AR64532D Oil $15.50
AR64532D-C Case (6)Oil $90.00
diAPHRAgm KiTS
modeL deScRiPTion
AR43259 BlueFlex
AR43257 Desmopan
AR43256 NBR
AR43258 Viton
VALVe KiTS
modeL deScRiPTion
AR43169 Valves
o-Ring KiTS
modeL deScRiPTion
AR43170 O-Rings
deScRiPTion LiST PRice
Oil $15.50
Case (6)Oil $90.00
oiL
modeL deScRiPTion
AR64532D Oil
AR64532D-C Case (6)Oil
140° F - Max Water Temp
2” - Suction
1-1/2” - Outlet

IMPORTANT SAFETY INFORMATION
Intended uses
The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the
protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap-
proved by the manufacturer's technical service
The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be
modified or improperly used.
Misuses
Do not put the pump into service until the plant or machinery in which it is incorporated has been declared
compliant with the relevant national and local legal requirements.
Do not use the pump in a potentially explosive atmosphere.
Do not use the pump for flammable, toxic or corrosive liquids or liquids with unsuitable density, especially
seawater, adhesives, bitumens, asphalt sealers, two-step curing compounds, concrete sealers, liquefied
gases or solvents of any kind, paints of any kind or liquids containing solids in suspension, and in all cases do
not use with any liquid unless certain that it is compatible with the materials used in the pump circuit.
Do not draw in liquids at temperatures above 50°C or below 5°C.
Do not use the pump in drinking water supply systems.
Do not use the pump on products for human consumption.
Do not use the pump on pharmaceutical products.
Do not use the pump without first checking that the intake and delivery circuit pipelines are correctly secured
and free from leaks.
Do not use the pump without the safety devices provided: guards for shafts and drive couplings and suitably
rated relief valve on the delivery circuit.
Do not use the pump to wash or spray: people, animals or delicate items, live electrical equipment or chemicals
whose characteristics are not known.
Safety devices
Danger - Warning
Never tamper with or by-pass the safety devices. Maintain all safe-
ty devices regularly to ensure they all work efficiently.
The drawing shows the position of the safety devices mounted on the
machine.
Additional safety devices must be added as necessary during the de-
sign phase (see “Installation information”).
A) Fixed guard: provides protection against accidental contacts with
the drive shaft when in operation.
Residual risks
Even if the safety regulations and information provided in the manual
are complied with, the residual risks described in the declaration of
incorporation still apply when the pump is in operation.
A

Installation diagram (guideline)












English language
Use and Installation
5
General guidelines on water supply connection
To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure.
Do not supply the pump with pressurised liquids.
Forcontinuous duty,thepumpshouldnot drawinwaterbygravityfromcontainerswithliquidlevelatheights
above 3m.
For continuous duty, the pump should not draw in liquids by vacuum from containers with the liquid level
more than 3 m belowthepump intake fitting and the circuit must consist of hoses of lengthand diameter ap-
propriate tothepump intakefitting (see “Technical Data”),freefrom restrictions andelbows, andwith afilter
ofsuitablecapacity (see “Installation”).
Foroccasionalduty,suchasfillingwatersupplytanks,thepumpcanbe operatedatavacuumdrawinginliq-
uids from reservoirs havingthesurface oftheliquid up to5 m belowthe pump intake fitting,for periods ofno
more than 15minutes.
Drawing in liquidsfrom lowerlevels or for longertimes causes cavitation in the pump circuitand re-
duces the lifetimeofthe diaphragms,valves andmechanical parts.
INSTALLATION INSTRUCTIONS
POSITIVE HEAD
VACUOMETER
ZERO HEAD
ZERO HEAD
Pump is operating
at acceptable
inlet
vacuum
PUMP
WARNING!
MAXIMUM OPERATING
TIME 15 MINUTES
NEGATIVE HEAD
Pump is
operating at
high inlet
vacuum
UN003415-EW
NEGATIVE HEAD
3m (9.8 ft ) m a x
3m (9.8 ft ) m a x
5m (16.4 ft ) m a x














 


















•
•


•
 7  H 

•
 







 



 z  x 









      
 A 

 
  A/  A  6  5 

 
 



 



 
   
  

  

  -
 
  

  

  
   
   







   30  















       







 /R  P 
D  P  P/  64  3  D 
       


1)  .
  �
C
A /R P ump O il
P/ N A
R64 5 32D





 
 



 /R  P  S  R64511 






A/R Pump Saver
P/N 64511
Protects Pumps from
Freezing Conditions

TROUBLESHOOTING
 




Problem









Cause





















Remedy





























Problem Cause Remedy
 

 
 Stop the pump at once. 
{1)






34 - 2
34 - 3
34 - 5
34 - 1
2021 AR North America
34
34 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA
45
46
44
43
42
41
4547
40
85
15 16
38
39
37
36
29
49
29
34
29
33
35
15
16
29
32 16
33
29
28
28
27
27
31
30
29
17
18
48 16
15
33
29
26
31
15
78
4
5
6
1
31
6
6
7
89
13
14
12
6
11
10
2
51
51
52
53
32
29
33
31
29
29
33
29 50
29
33
31
29
32 17
29
33
32
15 16
48
18
65 66
67
64
68
72
69
70
71 73
74
75
76
75 74
73
71
68
67
V
e
r
s
i
o
n
56
55 54
58
59
63
60
57
61
62

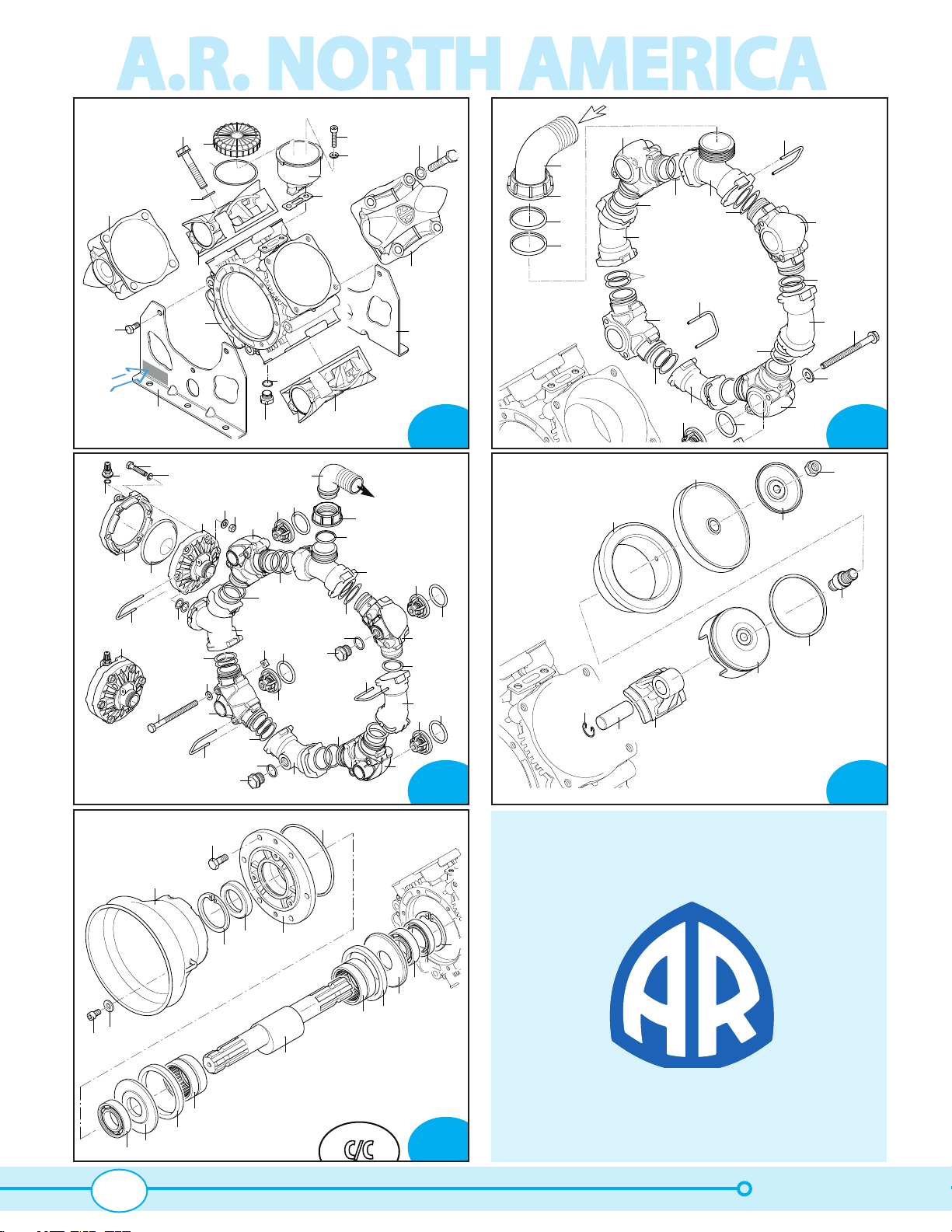

AR 160 LFP - C/C / AR 185 LFP - C/C

2021 AR North America 35
Low pressure
C/C
BlueFlexTM
AR160LFP 31484
AR185LFP 33125
AR 160 LFP / AR 185 LFP

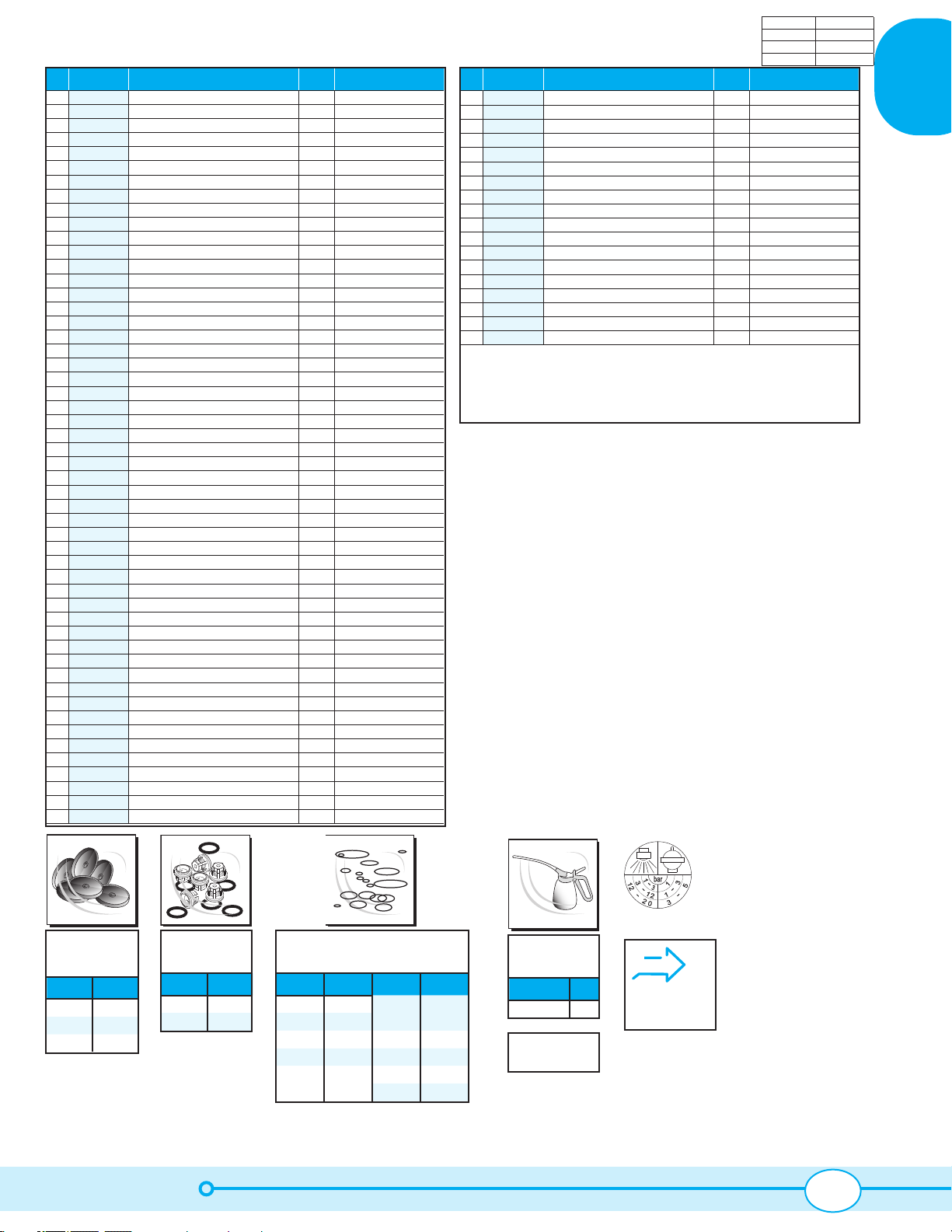

Pos Code Description Qty Note
1761031 Base 2
2160673 Bolt TE M10x25 6SS T354*
3761010 Pump body 1
4880530 Plug 3/8" G 1T177*
5740290 O-ring Ø 14x1.78 1
63460020 Head 4
7750072 Bolt TE M12x70 16 SS T309*
8390092 Washer 16 SS
9750040 Gasket 1
10 751170 Oil sight glass 1
11 1980340 O-ring Ø 83.8x2.62 1
12 751183 Cap Red 1
13 380243 Washer 2
14 680350 Bolt TCEI M8x35 2T88*
15 2429051 Valve AISI 316L 8
16 3460380 Gasket 8Viton
17 3460201 Bolt TE M8x100 16 SS T88*
18 390315 Washer 16 SS
26 761240 Manifold section 1
27 1150641 O-ring Ø 20x24x2.62 2Viton
28 3460490 Plug 1/2" G 2T88*
29 230061 O-ring Ø 34.52x3.53 32 Viton
30 3460210 Fork 1
31 761250 Fork 16
32 761200 Manifold section 4
33 761190 Manifold section 7
34 761230 Manifold section air chaimber 1
35 761191 Manifold section SRV port 1
36 761220 Manifold section discharge 1-1/2" G 1
37 1880460 O-ring Ø 29x3 1 Viton
38 750670 Ring nut 1-1/2" G 1
39 3040160 Elbow Ø 35 1
40 3460180 Semi air chamber lower 1Nylon
41 800192 Diaphragm air chaimber 1BlueFlexTM
42 3460190 Semi air chamber upper 1Nylon
43 650542 Gasket 1
44 180020 Air valve 1T22*
45 390315 Washer 12 SS
46 621782 Bolt TE M8x40 6SS T177*
47 3120260 Nut M8 6SS T177*
48 3120510 Nut famework M8 16 SS
49 880311 O-ring Ø 26.65x2.62 2Viton
50 761210 Manifold section inlet 2" G 1
51 3040471 O-ring Ø 39.34x2.62 2Viton
52 3040450 Ring nut 2" G 1
53 3040440 Elbow Ø 50 1
54 760140 Connecting-rod 4
55 160700 Pin 4
56 160691 Ring Øi 18 8
57 550081 Diaphragm 4BlueFlexTM
58 750122 Piston Ø 80 4
59 500260 Piston ring 4
Pos Code Description Qty Note
60 750115 Sleeve 4AR160LFP
61 751251 Retaining washer 4
62 2240670 Nut M10 AISI 316L 4 T221*
63 2240101 Hub pin AISI 316L 4(a) T265*
64 1500470 Shaft protection 1
65 850252 Bolt TCEI M8x12 3 SS T88*
66 390315 Washer 3SS
67 200390 Ring Øi 62 2
68 160740 Ring seal 2
69 680020 Support 1
70 851360 O-ring Ø 120.32x2.62 1
71 230350 Bearing 1
72 160673 Bolt TE M10x25 6SS T309*
73 540040 Retaining washer 2
74 750130 Ring piston rod 2
75 750090 Bearing 2
76 750174 Shaft C/C m-AV 1AR160LFP
85 43067 Air chamber LFP BlueFlexTM 1
(a) BoltShankpistonsidewith Loctite 242Strong threadlock(Green)andlubricate theshankside Retainingwasher with
Molykote grease1000.
* Torque: in-lbs +/- 10%
Suggested oil
Type Oz
AR64532D 32
AR 43169
Valves
Pos. Qty
15 8
16 8
Pump and
manufacturer
identication.
2154700 Air chamber decal
Crankcase Oil
Capacity 56 oz
AR 43259
BlueFlex diaphragms
Pos. Qty
9 8
30 4
52 1
AR 43170
O-Rings
Pos. Qty Pos. Qty
5 2 61 1
9 8 65 2
16 169 1
21 174 1
25 2
53 1
