INSTRUCTION MANUAL
AR 20 LFP
AR 25 LFP
AR25LFP - 1450 RPm - Semi-HydRAuLic THRee-diAPHRAgm PumP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
AR25LFP 6.4 24.3 290 20 1.19.2
AR20LFP - 1450 RPm - Semi-HydRAuLic THRee-diAPHRAgm PumP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
AR20LFP
5.3 20 290 20 1.09.2
140° F - Max Water Temp
1” - Suction
3/8” HB - Outlet
diAPHRAgm KiTS
modeL deScRiPTion
AR46561 BlueFlexTM
VALVe KiTS
modeL deScRiPTion
AR46564 Valves (bp)
AR46565 Valves (LFP)
oiL
modeL deScRiPTion
AR64532D Oil
AR64532D-C Case (6)Oil

AR20LFP AR25LFP Pump
-SP-GCI Version
-GR-GCI Version
for Gas Engines with 3/4" Shaft
Shown with Hydraulic Flange SAE A-A
Part Number AR55387
(Hydraulic Motor not included)
AR20LFP-GCI-12VDC
AR25LFP-GCI-12VDC
AR20LFP-GCI-24VDC
AR25LFP-GCI-24VDC

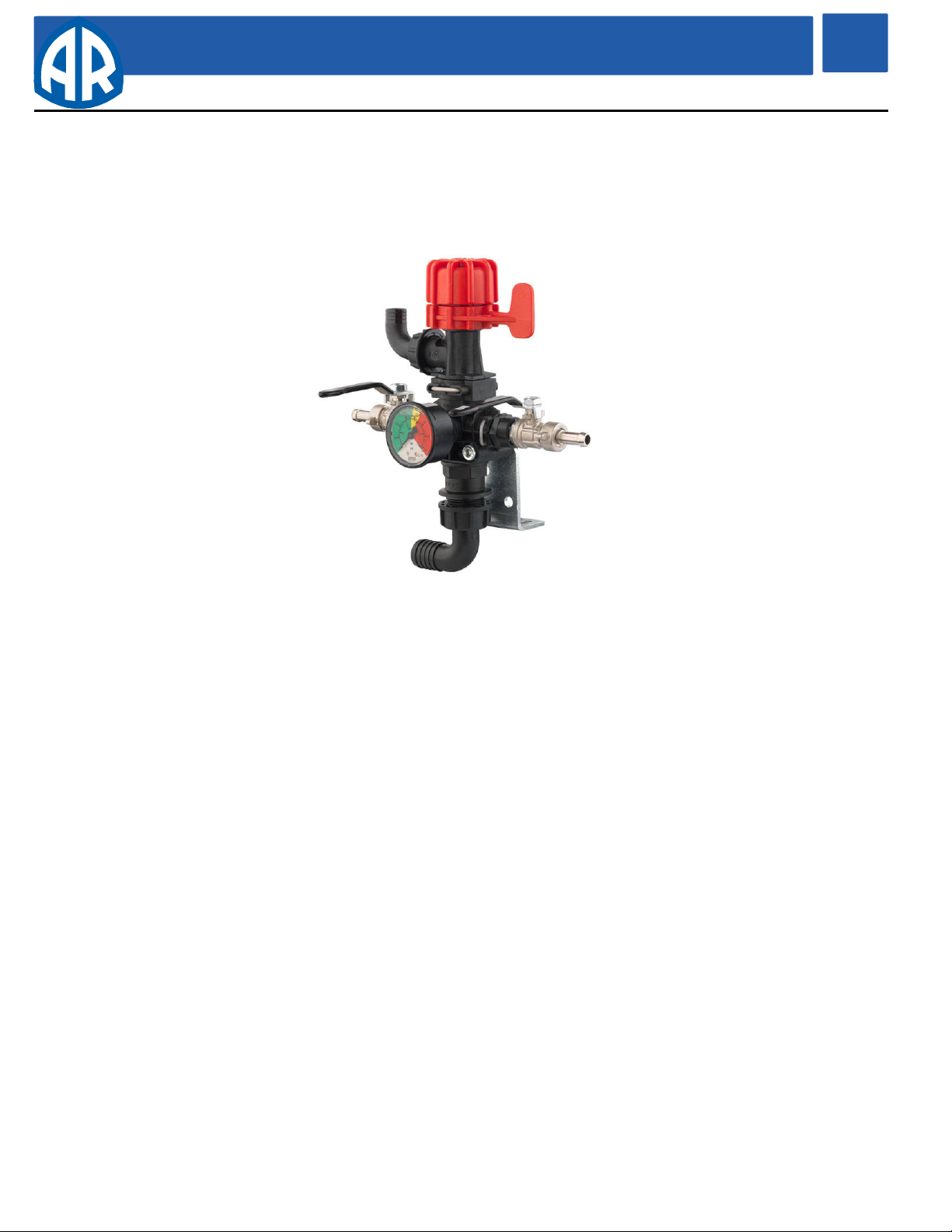

Outlet
Hose Barb
2 Places
Bypass Hose
Barb
Remote Mount
Inlet Hose Barb
Red Pressure
Adjustment Knob
Pressure/Bypass
Lever shown in
Pressure Position
CONTROL UNIT INSTRUCTIONS
1. When starting the pump, keep the control unit in the full bypass position until
the pump has primed.
2. After starting the pump, and after the pump is primed, move the control unit
into the pressure regulation position. Adjust the pressure by turning the red
pressure adjustment knob on the control unit.
3. To stop the pump, reduce the pressure by rotating the lever to the full bypass
position.
4. Stop the pump.

IMPORTANT SAFETY INFORMATION
Intended uses
The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the
protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap-
proved by the manufacturer's technical service
The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be
modified or improperly used.
Misuses
Do not put the pump into service until the plant or machinery in which it is incorporated has been declared
compliant with the relevant national and local legal requirements.
Do not use the pump in a potentially explosive atmosphere.
Do not use the pump for flammable, toxic or corrosive liquids or liquids with unsuitable density, especially
seawater, adhesives, bitumens, asphalt sealers, two-step curing compounds, concrete sealers, liquefied
gases or solvents of any kind, paints of any kind or liquids containing solids in suspension, and in all cases do
not use with any liquid unless certain that it is compatible with the materials used in the pump circuit.
Do not draw in liquids at temperatures above 50°C or below 5°C.
Do not use the pump in drinking water supply systems.
Do not use the pump on products for human consumption.
Do not use the pump on pharmaceutical products.
Do not use the pump without first checking that the intake and delivery circuit pipelines are correctly secured
and free from leaks.
Do not use the pump without the safety devices provided: guards for shafts and drive couplings and suitably
rated relief valve on the delivery circuit.
Do not use the pump to wash or spray: people, animals or delicate items, live electrical equipment or chemicals
whose characteristics are not known.
Safety devices
Danger - Warning
Never tamper with or by-pass the safety devices. Maintain all safe-
ty devices regularly to ensure they all work efficiently.
The drawing shows the position of the safety devices mounted on the
machine.
Additional safety devices must be added as necessary during the de-
sign phase (see “Installation information”).
A) Fixed guard: provides protection against accidental contacts with
the drive shaft when in operation.
Residual risks
Even if the safety regulations and information provided in the manual
are complied with, the residual risks described in the declaration of
incorporation still apply when the pump is in operation.
A

Installation diagram (guideline)












English language
Use and Installation
5
General guidelines on water supply connection
To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure.
Do not supply the pump with pressurised liquids.
Forcontinuous duty, thepump shouldnotdrawinwaterbygravityfromcontainerswith liquidlevelatheights
above 3m.
For continuous duty, the pump should not draw in liquids by vacuum from containers with the liquid level
more than 3 m belowthepump intake fittingandthe circuit must consist of hoses of lengthand diameter ap-
propriate tothe pump intake fitting (see “Technical Data”),free from restrictions andelbows, and with afilter
ofsuitable capacity (see “Installation”).
Foroccasionalduty,suchasfillingwatersupplytanks,thepumpcanbeoperatedatavacuumdrawinginliq-
uids from reservoirs having thesurface of theliquid up to5 m belowthepump intake fitting,forperiods ofno
more than 15minutes.
Drawing in liquids from lower levels or for longer times causes cavitation in the pump circuit and re-
duces the lifetime of the diaphragms, valves and mechanical parts.
INSTALLATION INSTRUCTIONS
POSITIVE HEAD
VACUOMETER
ZERO HEAD
ZERO HEAD
Pump is operating
at acceptable
inlet
vacuum
PUMP
WARNING!
MAXIMUM OPERATING
TIME 15 MINUTES
NEGATIVE HEAD
Pump is
operating at
high inlet
vacuum
UN003415-EW
NEGATIVE HEAD
3m (9.8 ft ) m a x
3m (9.8 ft ) m a x
5m (16.4 ft ) m a x














 


















•
•


•
 7  H 

•
 







 



 z  x 






 (  )


       
 A 
 A  j 
 
  A/  A  6  5 

 
 



 



 
   
  

  

  -
 
  

  

  
   
   







   30  















       







 /R  P 
D  P  P/  64  3  D 
       


1)  .
   �
C
A /R P ump O il
P/ N A
R64 5 32D





 
 



 /R  P  S  R64511 






A/R Pump Saver
P/N 64511
Protects Pumps from
Freezing Conditions

TROUBLESHOOTING
 




Problem









Cause





















Remedy





























Problem Cause Remedy
 

 
 Stop the pump at once. 
{1)






6 - 2
6 - 3
6 - 5
6 - 1
2021 AR North America
6
6 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA

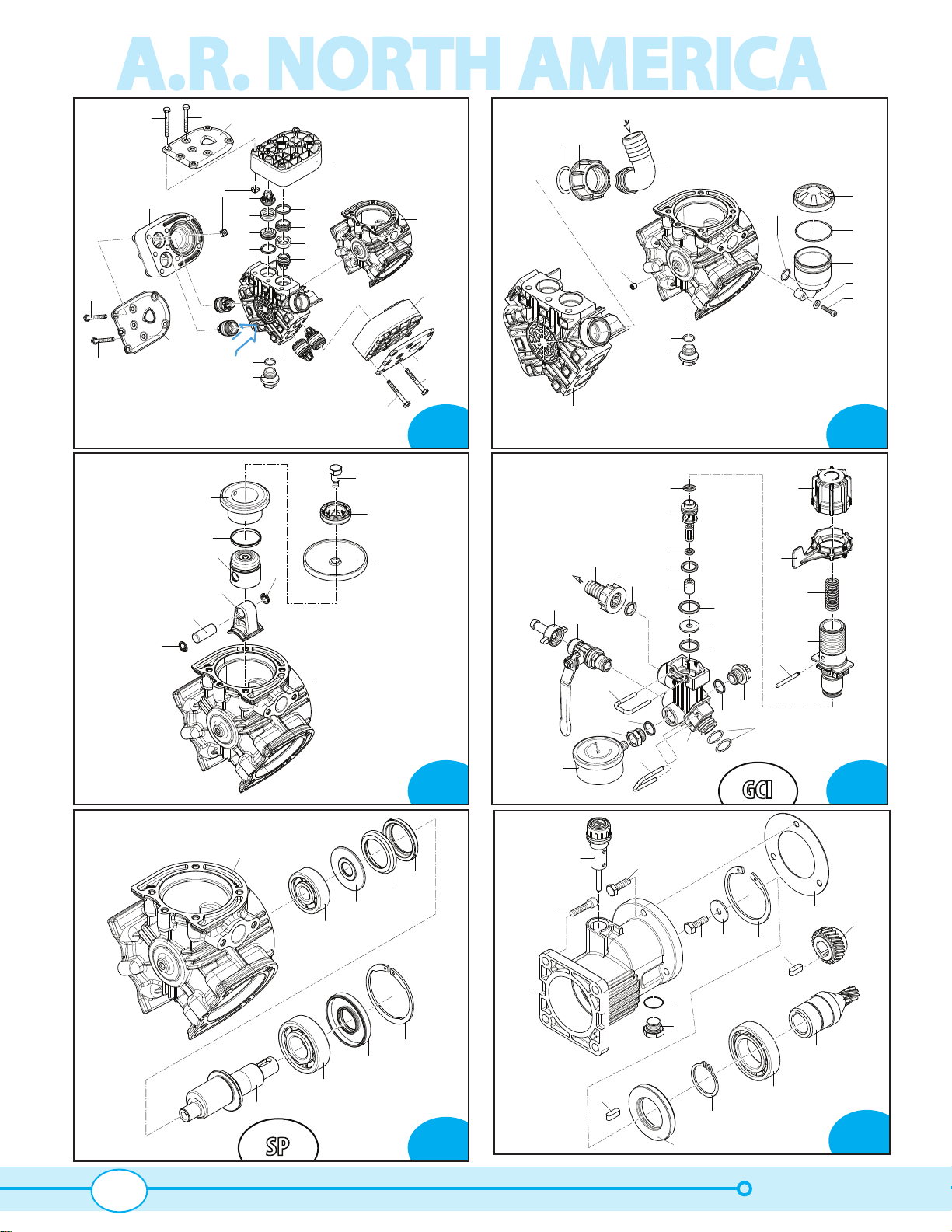

AR20LFP-GR-GCI / AR25LFP-GR-GCI
1
11
9
10
7
5
7
77
13
10
9
11
3
5
84
3
2
3
4
5
84
4
4
6
84
1
15
17
76
18
20
21
16
80
79
19
2
22
78
1
27
28
81
29
25
24
26
23
25
83
38
37
36
46
88
87
42
41
86
40
39
33
47
51
52
48
49
34
35
31
44
43
31
32
85
30
82
V
e
r
s
i
o
n
89
91
92
105
93
94 95
97
98
99
100
96
103
90
101
102
104
53
54
55
55
57
58
60
61
1
V
e
r
s
i
o
n
6 - 6

2021 AR North America 7
Low pressure
AR20LFP-GR-GCI / AR25LFP-GR-GCI
Pos Code Description Qty Note
60 3120150 Ring 1
61 1460490 Snap ring Øi 47 1
76 393790 Washer 2 SS
77 2840891 O-ring Ø 14x2 1 Viton
78 3202140 Plug 1/4" G 1 T177*
79 820510 O-ring Ø 10.82x1.78 1
80 1140451 O-ring Ø 20.24x2.62 1 VitonViton
81 3340081 Diaphragm 3 BlueFlexTM
82 960161 O-ring Ø 17.86x2.62 2 Viton
83
3340520 Sleeve Ø 30 3 AR20
3340530 Sleeve
Ø 30 3AR25
84 3340181 Bolt M60x60 15 T44* SS
85 740291 O-ring Ø 14x1.78 1 Viton
86 1880260 O-ring Ø 15.08x2.62 1 Viton
87 3340670 Spring 1
88 3340320 Lever 1
89 3340400 Body 1
90 130610 Bolt M6x20 3 T88*
91 820510 O-ring Ø 10.82x1.78 1
92 3340710 Dipstick 1
93 880581 Plug 1/4" G 1
94 11640 Bolt M6x16 1 T780*
95 391470 Washer 1 SS
96 881670 Snap ring Øi 55 1
97 881660 Ring 1
98 320242 Snap ring Øe 30 1
99 881650 Bearing 1
100 3340480 Pinon Z=8(3/4") 1
101 3340470 Gear Z=23 1
102 1200450 Key 1
103 3340410 Gasket 1
104 3340770 Key 1
105 320360 Bolt M8x22 4 T221*
106 620440 Bolt 5/16" 24 UNF 7/8" 4 T221*
* Torque: in-lbs +/- 10%
Suggested oil
Type Oz
AR64532D 32
Pos Code Description Qty Note
1 3340011 Pump body 1
2 3340030 Manifold 1
3 3340020 Head 3
4 3340590 Retaining washer 3
5 3340221 Bolt M6x55 9 T44* SS
6 3340600 Nut M6 9 SS
7 3349051 Valve AISI 316L 6
9 3340200 Spacer 6
10 3340211 Gasket 6 Viton
11 390061 O-ring Ø 20.63x2.62 6 Viton
13 3120690 Plug 3/8" G 1 T18*
15 3120460 Hose barb Elbow 1" 1
16 3120440 Ring nut 1" G 1
17 394380 Bolt M6x30 2 T88* SS
18 1040310 Oil sight glass 1
19 390180 O-ring Ø 18.72x2.62 1
20 650920 O-ring Ø 53.65x2.62 1
21
1040326 Cap black 1 AR20
1040324 Cap red 1AR25
22 820440 Bolt M6x6 1
23 3340541 Connecting-rod aluminum 3
24 3340510 Pin 3
25 480160 Snap ring Øi 10 6
26 3340060 Piston Ø 30 3
27 3340280 Piston ring Ø 30 3
28 3340090 Retaining washer 3
29 3340070 Retaining Bolt 3 T88*
30 3340610 Body 1
31 3340290 Fork 2
32 1880250 Fitting 1
33 391240 Pressure gauge Ø 63 1 0 - 350 psi
34 2840891 O-ring Ø 14x2 1 Viton
35 3120690 Plug 3/8" G 1
36 800211 O-ring Ø 13.10x2.62 1 Viton
37 3340630 Plug 1
38 390181 O-ring Ø 18.72x2.62 1 Viton
39 3340351 Plug 1
40 390061 O-ring Ø 20.63x2.62 1 Viton
41 2540100 O-ring Ø 6.02x2.62 1 Viton
42 3340310 Valve spool 1
43 3340450 Pin 1
44 3340620 Body 1
46 3340330 Knob 1
47 3120430 Ring nut 3/4" G 1
48 800211 O-ring Ø 13.10x2.62 1 Viton
49 3120470 Hose barb 3/4" G 1
51 1880492 Valve 3/8"G- 1/2" GM-MSX 1
52 110130 Ring nut 1/2" G 1
53 3340130 Spacer 1
54 3340580 Bearing 1
55 3340491 Ring 2
57
3340560 Shaft marked EC 1 AR20
3340570 Shaft marked ED 1 AR25
58 380230 Bearing 1
AR 46561
BlueFlex diaphragms
Pos. Qty
81 3
AR 46565
Valves
Pos. Qty
7 6
10 6
Pump and
manufacturer
identication.
Crankcase Oil
Capacity oz 6.3
GR GCI
AR20LFP 33280
AR25LFP 33279

4 - 2
4 - 3
4 - 5
4 - 1
2021 AR North America
4
4 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA
AR20LFP-SP-GCI / AR25LFP-SP-GCI
1
11
9
10
7
5
7
77
13
10
9
11
3
5
84
3
2
3
4
5
84
4
4
6
84
1
15
17
76
18
20
21
16
80
79
19
12
14
2
22
78
1
27
28
81
29
25
24
26
23
25
83
38
37
36
46
88
87
42
41
86
40
39
33
47
51
52
48
49
34
35
31
44
43
31
32
85
30
82
V
e
r
s
i
o
n
53
54
55
55
57
58
60
61
1
V
e
r
s
i
o
n
4 - 6
V
e
r
s
i
o
n
109
108
107
82
110
31

2021 AR North America 5
Low pressure
AR20LFP-SP-GCI / AR25LFP-SP-GCI
Pos Code Description Qty Note
57
3340560 Shaft marked EC 1 AR20
3340570 Shaft marked ED 1 AR25
58 380230 Bearing 1
60 3120150 Ring 1
61 1460490 Snap ring Øi 47 1
76 393790 Washer 2 SS
77 2840891 O-ring Ø 14x2 1 Viton
78 3202140 Plug 1/4" G 1 T177*
79 820510 O-ring Ø 10.82x1.78 1
80 1140451 O-ring Ø 20.24x2.62 1 VitonViton
81 3340081 Diaphragm 3 BlueFlexTM
82 960161 O-ring Ø 17.86x2.62 2 Viton
83
3340520 Sleeve Ø 30 3 AR20
3340530 Sleeve
Ø 30 3AR25
84 3340181 Bolt M60x60 15 T44* SS
85 740291 O-ring Ø 14x1.78 1 Viton
86 1880260 O-ring Ø 15.08x2.62 1 Viton
87 3340670 Spring 1
88 3340320 Lever 1
106 620440 Bolt 5/16" 24 UNF 7/8" 4 T221*
107 3340150 Adapter 1
108 3340381 O-ring Ø 10.5x2 1
109 5374 Ring nut 1/2" G 3
110 3340440 Hose barb 1/2" G 3
* Torque: in-lbs +/- 10%
Suggested oil
Type Oz
AR64532D 32
Pos Code Description Qty Note
1 3340011 Pump body 1
2 3340030 Manifold 1
3 3340020 Head 3
4 3340590 Retaining washer 3
5 3340221 Bolt M6x55 9 T44* SS
6 3340600 Nut M6 9 SS
7 3349051 Valve AISI 316L 6
9 3340200 Spacer 6
10 3340211 Gasket 6 Viton
11 390061 O-ring Ø 20.63x2.62 6 Viton
12 3340270 Base 1
13 3120690 Plug 3/8" G 1 T18*
14 180433 Bolt 2
15 3120460 Hose barb Elbow 1" 1
16 3120440 Ring nut 1" G 1
17 394380 Bolt M6x30 2 T88* SS
18 1040310 Oil sight glass 1
19 390180 O-ring Ø 18.72x2.62 1
20 650920 O-ring Ø 53.65x2.62 1
21
1040326 Cap black 1 AR20
1040324 Cap red 1AR25
22 820440 Bolt M6x6 1
23 3340541 Connecting-rod aluminum 3
24 3340510 Pin 3
25 480160 Snap ring Øi 10 6
26 3340060 Piston Ø 30 3
27 3340280 Piston ring Ø 30 3
28 3340090 Retaining washer 3
29 3340070 Retaining Bolt 3 T88*
30 3340610 Body 1
31 3340290 Fork 2
32 1880250 Fitting 1
33 391240 Pressure gauge Ø 63 1 0 - 350 psi
34 2840891 O-ring Ø 14x2 1 Viton
35 3120690 Plug 3/8" G 1
36 800211 O-ring Ø 13.10x2.62 1 Viton
37 3340630 Plug 1
38 390181 O-ring Ø 18.72x2.62 1 Viton
39 3340351 Plug 1
40 390061 O-ring Ø 20.63x2.62 1 Viton
41 2540100 O-ring Ø 6.02x2.62 1 Viton
42 3340310 Valve spool 1
43 3340450 Pin 1
44 3340620 Body 1
46 3340330 Knob 1
47 3120430 Ring nut 3/4" G 1
48 800211 O-ring Ø 13.10x2.62 1 Viton
49 3120470 Hose barb 3/4" G 1
51 1880492 Valve 3/8"G- 1/2" GM-MSX 1
52 110130 Ring nut 1/2" G 1
53 3340130 Spacer 1
54 3340580 Bearing 1
55 3340491 Ring 2
AR 46561
BlueFlex diaphragms
Pos. Qty
81 3
AR 46565
Valves
Pos. Qty
7 6
10 6
Pump and
manufacturer
identication.
Crankcase Oil
Capacity oz 6.3
SP GCI
AR20LFP 33310
AR25LFP 33309

8.4"
4.3"4.1"
11.6"
Ø1"
Ø3/4"
97
9.2"
4.8"
Ø0.33"
7.72"
3.82" 3.90"
AR20LFP-SP-GCI & AR25LFP-SP-GCI Dimensions
2.05" 1.22"
0.79"
2.57"
2.93"2.95"
5.89"
7.74"
Ø 14 mm
