ANSIO 1321 (M20v01)
[e-mail]
1
OIL FILLED RADIATOR HEATER
Instruction and Operating Manual
THANK YOU
We thank you for purchasing our product. We understand that this
purchase represents your trust in us. We are grateful for this and assure
you that we aspire to deliver the best value to you in return. We are proud
of our creation and take every precaution to avoid problems. Despite this,
sometimes a product might reach you with a defect. If this happens, our
responsive customer services team will be able to assist you towards a
quick resolution. So, do not hesitate to contact us regarding any aspect of
your purchase.
This product is only suitable for well insulated spaces or occasional use.
NOTE: Always place the Radiator Heater in a vertical position as shown.
Any oil leaks should be reported to the manufacturer immediately.

ANSIO 1321 (M20v01)
[e-mail]
2
This Heater is for residential use only.
It is not intended to be used in commercial, industrial or agricultural settings.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,
OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
IMPORTANT SAFEGUARDS
1. Warning: In order to avoid overheating, do not cover the
heater.
2. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4. The heater must not be located immediately below a socket-
outlet.
5. Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.
6. CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT
COVER THE HEATER.

ANSIO 1321 (M20v01)
[e-mail]
3
ADDITIONAL SAFETY INFORMATION
•To reduce the risk of fire, electrical shock or personal injury, always
follow these important safety instructions and warnings
•Faulty wall outlet connections may cause the wall outlet to
overheat. Be sure that heater plug fits tightly into outlet before
each use. During use, check to make certain the heater plug is
not overheating. If necessary, have a qualified electrician
check and/or replace the wall outlet. In case of overheating or
any other malfunctioning of the heater, please contact us for
further assistance.
•Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable
people are present.
•DO NOT plug heater into any other cord connected device, such as
a power strip/extension cord, surge protector, multiple outlet
adapter, universal adapter, cord reel or outlet-type air freshener.
•To reduce the risk of fire, electric shock and personal injury, DO
NOT attempt to remove, replace, repair or tamper with the originally
supplied plug.
•ALWAYS turn OFF and unplug the power cord when servicing,
cleaning or moving the heater.
•DO NOT run the power cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange the power cord away from traffic
area and where it will not be tripped over.
•DO NOT depend on the on/off switch as the sole means of
disconnecting power when servicing or moving the heater. Always
unplug the power cord. Always turn off and unplug heater before
leaving the area. Never leave children unattended when the heater
is on or plugged in.
•DO NOT block or tamper the heater in any manner while it is in
operation.
•DO NOT insert fingers or foreign objects to enter any ventilation as
it may cause an electric shock, fire and can damage the heater.
•DO NOT use this heater in the immediate surroundings of a bath, a
shower, a swimming pool, etc.
WARNING

ANSIO 1321 (M20v01)
[e-mail]
4
•DO NOT place the heater on soft surfaces like a bed as the openings
may become blocked. Always place the heater in a flat, even
surface.
•DO NOT use the heater outdoors.
•Keep combustible materials, such as bedding, pillows, furniture,
papers, clothes and curtains at least 5 feet (1.5 m) away from the
heater.
•DO NOT use this heater in areas where flammable liquids or
vapours are used, stored or are present, including paints, gasoline,
varnishes, floor refinishing products or solvents.
•Make certain that the room is equipped with a working smoke
detector.

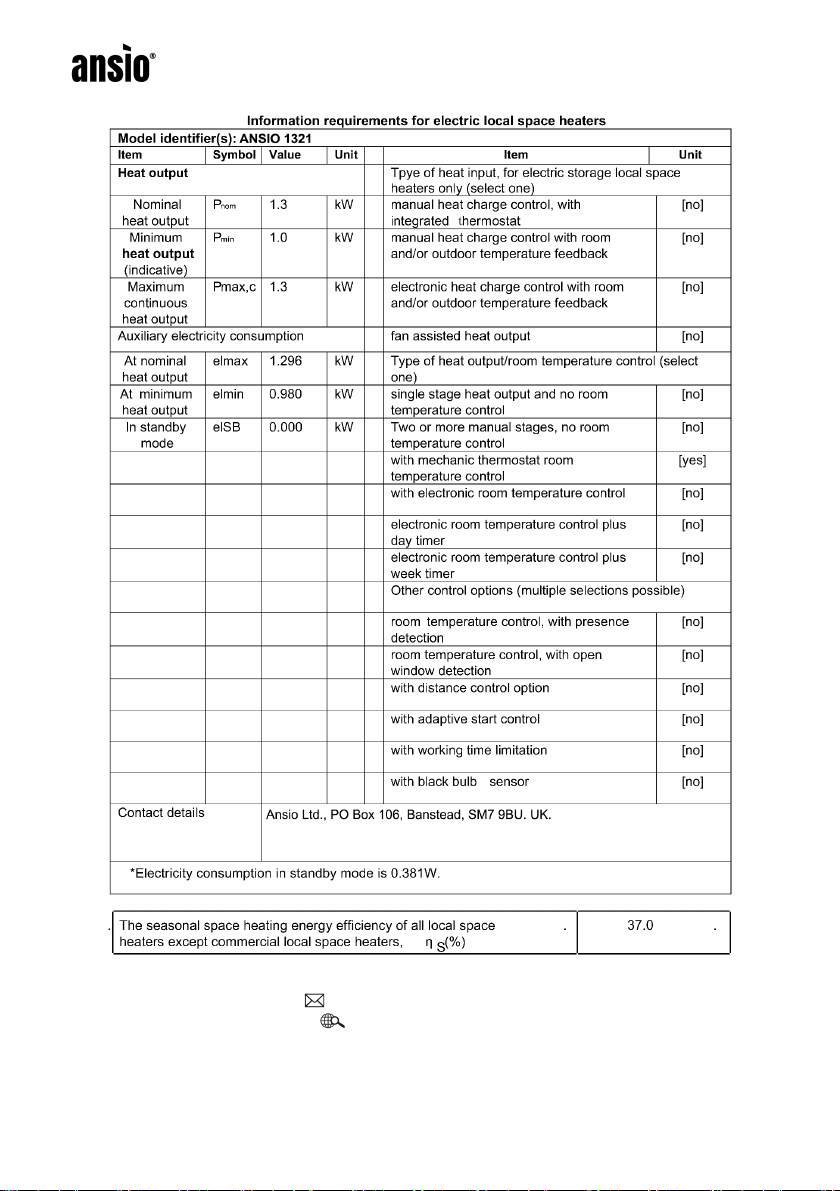

TECHNICAL SPECIFICATIONS
MAX POWER: 2300W
VOLTAGE: 220-240V / 50 Hz
GUARANTEE
This product comes with standard 1 Year Warranty against all
manufacturing defects. In addition, register your purchase at
www.ansio.co.uk within 15 days, and you can get an additional one year
FREE Extended Warranty. Terms and conditions apply. Visit our website
for more info.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not affect your statutory rights.
NOTE
•There may be traces of smoke or odour arising from the heating coil when
the heater is first operated. This is expected and will quickly fade away
and will not re-occur. If the smoke or bad odour persists, do not use the
heater and contact us for assistance.

ANSIO 1321 (M20v01)
[e-mail]
5
•The room temperature when regulated by the heater may vary by a few
degrees compared to a store-bought room temperature sensor. The
difference can arise from various factors including the location of the
heater and the room temperature sensor and the quality of the store-
bought room temperature sensor.

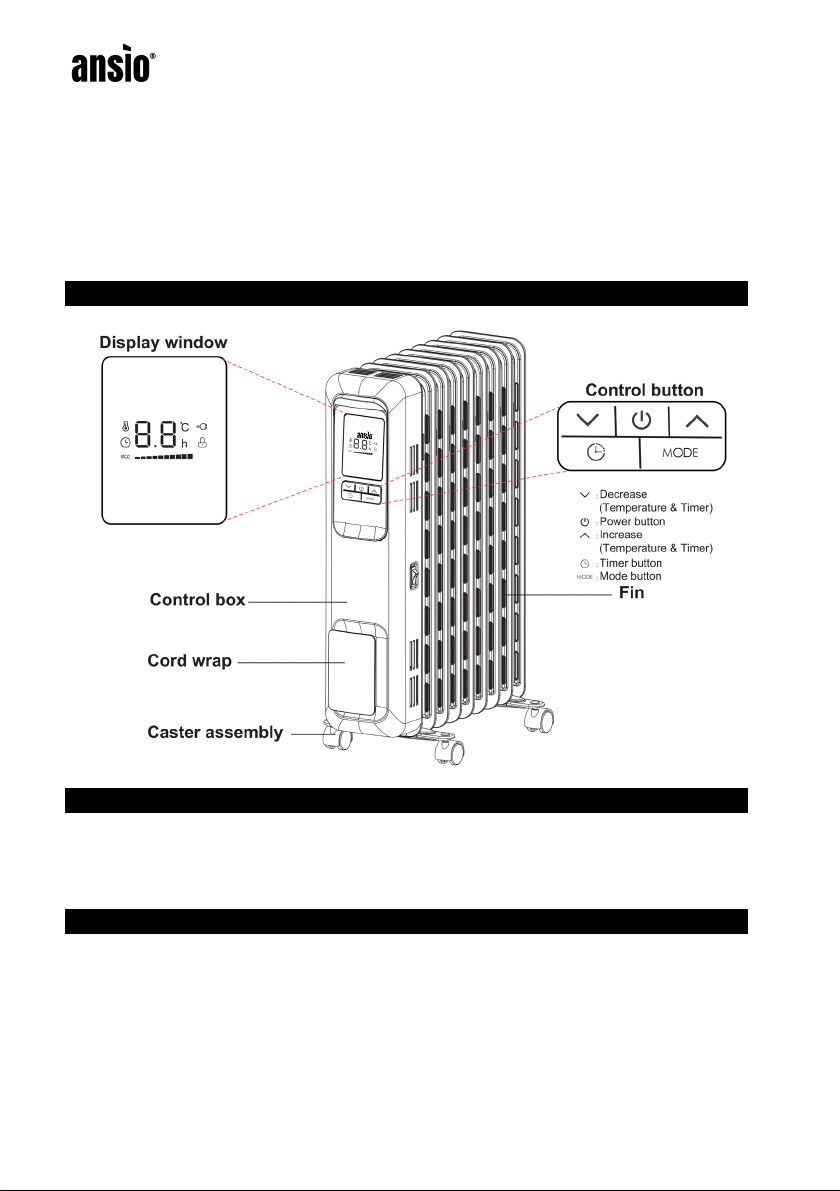

COMPONENTS OF THE HEATER
TOOLS NEEDED FOR ASSEMBLY
No tools are needed – the product comes with Butterfly nuts that can be
fixed by hand.
BEFORE USING THE HEATER
1. Check if the power cord is in good condition.
2. Ensure that the heater is connected to an appropriate power socket in
accordance with the local regulations.
3. Always place the heater on a flat surface. The tip over switch at the
base of the heater will turn the heater off if the heater is placed on an
uneven surface or if the heater is accidentally knocked off.

ANSIO 1321 (M20v01)
[e-mail]
6
INSTALLATION OF THE CASTER ASSEMBLY
1. Place the heater upside down as shown in the figure. To avoid
scratching the surface of the heater, it is
advisable to place a soft cloth
underneath the inverted heater.
Note: While inverting, it is possible that
you hear the oil flowing within the
appliance. This is normal and expected.
2. Connect and tighten the two-wheel
carrier plates to the body of the heater
with butterfly nuts supplied, as shown in
the figure.
3. Place the heater upright after secure installation of the wheel carrier
plates, with the wheels touching the ground.
OPERATING INSTRUCTIONS
NOTE: When the heater is working, it is normal to hear clicking noises in
the appliance. Do not be concerned or alarmed due to this.
STAND-BY MODE
The heater is in Stand-by mode while the black switch at the side of the
heater is ‘ON’ and the power button is ‘Off’.
SAFETY PROTECTION FEATURE
If the room temperature exceeds 50 °C, all the buttons on the control panel
of the heater will be disabled. The heater beeps 10 times and displays “FF”
even if it is on the standby mode. The heater then switches OFF as a safety
feature.
TEMPERATURE CHECK
Whenever the heater is set to a temperature lower than that of the room
temperature, the heater will turn ON for a few minutes and then the
thermostat sensor will turn the heater off. However, once the room
temperature falls below the set temperature, the heater turns back ON
automatically.
STARTING THE HEATER
Connect the heater to the power supply. You will hear a beep sound. Turn
on the power switch at the side of the heater. Now, press the Power button
on the heater or on the remote.

ANSIO 1321 (M20v01)
[e-mail]
7
FUNCTION SWITCHING
Pressing the MODE button on the heater or on the remote repeatedly
cycles through the modes as below:
The High Power Mode, Medium Power Mode and Low Power Mode can
be distinguished by the length of the power level indicator bar on the
Display panel while the Eco mode is displayed as “eco” in green.
High Power Mode:
The heater operates at 2300W.
Medium Power Mode:
The heater operates at 1300W
Low Power Mode:
The heater operates at 1000W.
Eco Mode:
The Eco mode is intended for saving power. When you select the ECO
mode using the Mode button either on the heater or using the remote, the
heater will automatically set the power level for maximum energy efficiency
by comparing the set temperature and the room temperature.
NOTE: If the room temperature is above the set temperature, the heater
will switch ON for a few minutes and then automatically switch OFF.
TEMPERATURE SETTING
When the heater is ON, press the and buttons on the
heater or + and - buttons on the remote to set the desired temperature
level. The available temperature range is between 5˚C and 35˚C. When
the room reaches the set temperature level, the heater will go to the
standby mode. Once the room temperature drops below the set
temperature, the heater will turn ON automatically.
TIMER SETTING
Stop Timer
When the heater is turned ON, press the Timer button on the control
panel or on the remote to set the desired number of hours by when you
want the heater to stop. You can set a value between 1-24 hours by
pressing the and buttons to increase and decrease the
timer by 1 hour respectively. To cancel the Timer, press the power button
twice. The timer can only be operated in increments or decrements of
hours.

ANSIO 1321 (M20v01)
[e-mail]
8

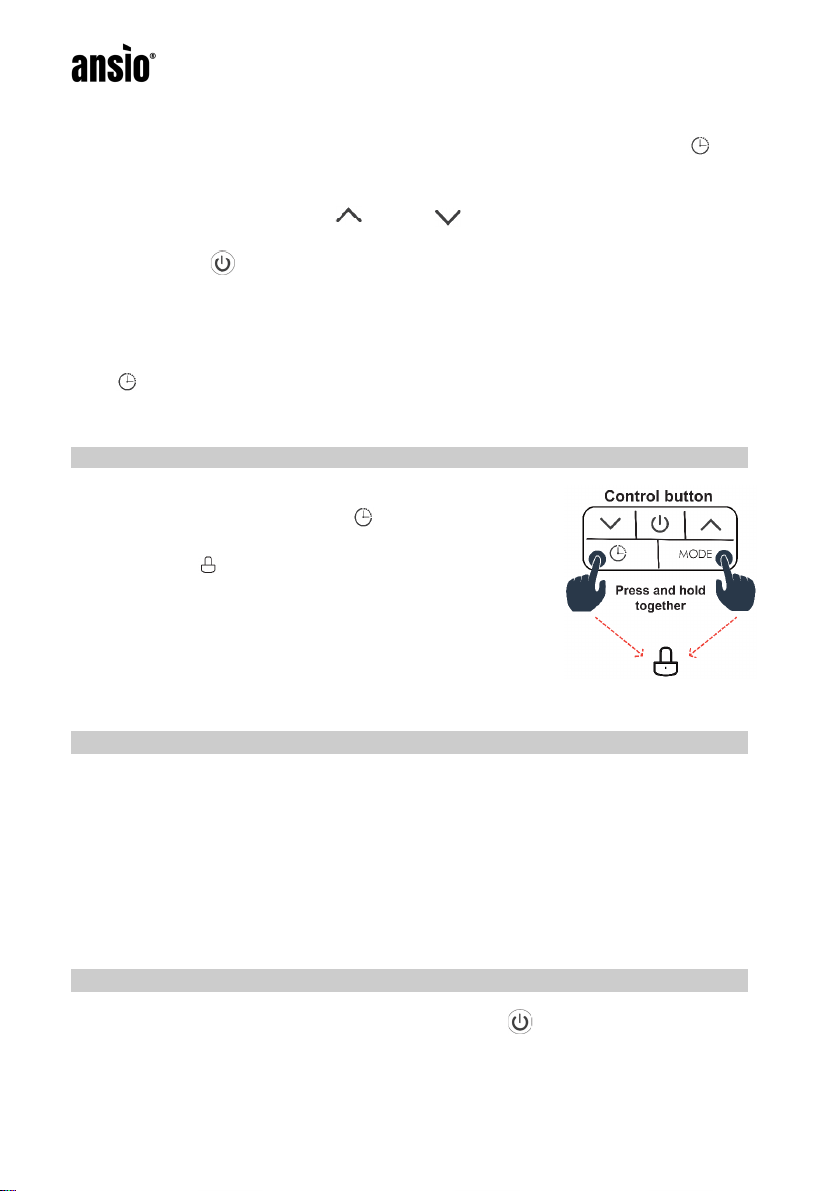

Start Timer
When the heater is in the Stand-by mode, press the Timer button on
the control panel or on the remote to set the desired number of hours after
which you want the heater to be started. You can set a value between 1-
24 hours by pressing the and button to increase and
decrease the timer by 1 hour respectively. To cancel the Timer, press the
power button twice. The timer can only be operated in increments or
decrements of hours.
NOTE:
•You can check the timer duration anytime by pressing the Timer button
The timer will only display the time in hours and not minutes.
•The memory function will not retain the last used timer settings.
CHILD LOCK SETTING
To turn the child lock setting ON, Press the MODE
button and the Timer button together for a few
seconds. The child lock setting will turn ON and a
lock symbol will be displayed.
NOTE:
•When the heater is turned OFF or after a power
failure, the child lock setting will be turned OFF.
•Child Lock cannot be activated using the
Remote.
MEMORY FUNCTION
When the heater is turned OFF and turned back ON again, the heater will
retain the last used settings.
NOTE:
•When you turn the heater ON for the first time, the heater will start with
a high-power mode at 35˚C automatically.
•The Memory function does not retain the last used Timer setting if the
heater is turned OFF and turned back ON.
TURNING THE HEATER OFF
To turn the heater OFF, press the power button to switch OFF. Turn the
black switch found at the side of the heater OFF and pull out the plug from
the mains.

ANSIO 1321 (M20v01)
[e-mail]
9
BEFORE MOVING THE HEATER
Before moving the heater, follow the instructions on “Turning the heater
OFF” as above and then move the heater to a desired place.
USING THE REMOTE CONTROL
The remote-control buttons operate the same way as the buttons on the
control panel.
FIRST TIME USE:
To activate the battery, remove the transparent
film by pulling it out. The remote control will
then be activated and ready for use.
REPLACING THE REMOTE WITH NEW BATTERY:
1. To pull out the battery holder tray, push the locking latch in the direction
of arrow (A), while pulling the notch in the direction of arrow (B)
simultaneously.
2. Insert 1 x CR2032 Lithium battery in the battery holder tray, making sure
that the positive side is facing upwards.
3. Push the battery holder tray back in.
NOTE: Remote-control buttons cannot be used for operations which
require two buttons to be used simultaneously. In these cases, use the
buttons on the control panel.

ANSIO 1321 (M20v01)
[e-mail]
10
SAFETY PROTECTION FEATURES
1. Overheat protection feature: When the temperature of the heater is
too high, the thermostat will automatically turn the heater OFF. When
the heater cools down completely, it can be used normally. Improper
usage of the heater, dusty environment etc. can cause this. The heater
needs to be cooled down completely and can be re-used as normal.
2. Accidental Tip-Over protection feature: When the heater is
accidentally tipped over, the safety tip-over switch at the base of the
heater will automatically cut the power off. When the heater is placed
in an upright position on an even surface, it can then be used normally.
CLEANING AND MAINTENANCE
Before attempting to clean this heater, always ensure that the power
plug is removed, and the heater is cooled down completely.
1. Accumulated dust must be removed from the heater with a soft cloth.
Wipe the exterior surface of the heater with a cloth moistened (not
dripping wet) with a solution of mild detergent and water. Dry the heater
thoroughly with a soft dry cloth before operating it.
2. Store heater in a clean and dry place when not in use.
3. Do not scrap the surface of the heater with sharp tools. This is to avoid
4. the surface getting rusty by damaging the paint coating.
NOTE: Portable electric heaters are designed to be a supplementary
heating source. They are not intended to be the main source of heating.
TROUBLESHOOTING
Problem
Possible Cause
Solution
When the power is
turned ON, the
power indicator light
does not illuminate,
and the heater does
not work.
The plug may not be
inserted well.
Check whether the plug is
properly inserted into the
wall socket. Alternatively,
ensure that the power
receptacle is fully
functional or try another
plug point.

ANSIO 1321 (M20v01)
[e-mail]
11
The black switch to the
side of the heater is not
turned ON.
Check if the black switch to
the side of the heater is ON.
The heater
suddenly stops
working.
The room
temperature could
have exceeded the
set temperature;
hence the heater is
turned OFF
automatically.
Cool the heater down
completely before reuse.
Or
Raise the set temperature
above the room
temperature.
None of the Control
Buttons work.
Child Lock is ON Press the Mode button
and the Timer button
together for a few seconds
to turn OFF the child lock.
FF flashing on the
display panel
The room
temperature is likely
to be more than 50
degrees.
Cool the heater down
completely before re-use.
WASTE DISPOSAL
You can help protect the environment! Please remember to respect
local recycling laws. Dispose of faulty or unwanted electrical
appliances in accordance with local policies and service centres.
●This item must not be disposed of with household waste.
●Please recycle where facilities exist. In the interests of health,
safety and the environment, please check with your Local Authority for recycling
advice
●By ensuring that you dispose of your old electrical and electronic equipment
according to The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), you are helping to preserve our natural
resources.
For your nearest disposal facility, visit www.recycle-more.co.uk
Environmental Agency Registration Number for ANSIO: WEE/MM6674AA

ANSIO 1321 (M20v01)
[e-mail]
12
Ansio Ltd., PO Box 106, Banstead, SM7 9BU, UK
[e-mail]
www.ansio.co.uk
KEEP THIS INSTRUCTION MANUAL SAFELY, DO NOT THROW IT AWAY
