OWNER’S GUIDE
R-102 RESTAURANT FIRE SUPPRESSION SYSTEM
2018-NOV-29 REV. 04 PAGE 1
One Stanton Street |Marinette, WI 54143-2542, USA |[phone] |www.ansul.com
© 2018 Johnson Controls. All rights reserved. All specifications and other information shown were
current as of document revision date and are subject to change without notice. |Part No. 418127-04
The National Fire Protection Association (NFPA) recommends
employees be instructed in personal safety and the operation
of the fire suppression system. Johnson Controls provides this
owner’s guide with each Restaurant Fire Suppression System.
This owner’s guide has been provided to help you
understand…
…how your restaurant system works
…your responsibilities for maintenance
…what to do in case of fire
This owner’s guide is not intended to cover all requirements
detailed in the Installation, Operation, Recharge, Inspection,
and Maintenance Manual (Part No. 418087). This guide is
solely for the use of the end-user to become more knowl-
edgeable with the fire suppression system and the steps
necessary in the event of a fire.
YOUR ROLE IN FIRE PROTECTION
Your ANSUL®Fire Suppression System is of the highest
quality. It has been carefully engineered to be reliable,
manufactured to exacting standards, proven by over 50 years
of service, and custom designed to protect your particular
hazard.
If properly maintained, the system should provide years of
protection. However, the primary objective of this guide is to
provide enough basic information to help personnel prevent a
disastrous fire. By observing some fundamental rules, you can
greatly reduce the risk of serious fire damage.
1. Keep all kitchen equipment free of grease build-up,
including gas flues which are not intended to be grease
coated.
2. Never use flammable solvents or cleaners. Flammable
residues could be left in the hazard area.
3. Never store flammable materials near cooking equipment
or gas flue areas.
4. Make certain obstructions, such as utensils, pots, pans,
cooking materials, etc., are not stored in areas that can
obstruct the fire suppression system discharge.
5. Operate the appliance exhaust system whenever the
appliance is pre-heating, heating, cooking or cooling.
This helps to prevent excessive heat build up which could
actuate the fire suppression system.
6. Never operate filter-equipped exhaust systems without
the filters in place. Excessive grease may build-up in the
hood and duct system. Cooking with filters removed can
impact air movement and/or temperatures, which may
result in fire suppression system discharge. Use only UL
listed filters.
7. Never restrict air intake passages; this can reduce the
efficiency of the exhaust system. Cooking with filters
containing excessive amounts of grease can impact air
movement and/or temperatures, which may result in fire
suppression system discharge.
8. Operate all UL tested grease extractors following the
manufacturer’s instructions to ensure effective grease
removal from the hood and duct system.
9. Never tamper with the fire suppression system
components (i.e., detectors, nozzles, agent storage
container(s) or releasing unit(s)).
10. Before revising your kitchen equipment layout or making
changes which affect the basic configuration of the
protected area, contact your trained, Authorized ANSUL®
Distributor for a system update evaluation. The fire
suppression system is made up of components tested
within limitations contained in the detailed installation
manual. The system designer must be consulted when-
ever changes are planned for the system or area of
protection.
11. Do not allow anyone except an Authorized ANSUL®
Distributor to perform maintenance on your R-102
Restaurant Fire Suppression System. Maintenance to
your system must be performed semi-annually. It is
essential that the system be maintained properly.
12. Post operating instructions in an obvious place in the
kitchen and make sure employees know what to do in
case of fire.
13. Make certain hand portable extinguishers are properly
placed and compatible with the restaurant system. An
Authorized ANSUL®Distributor can assist with selection
and placement.

OWNER’S GUIDE
R-102 RESTAURANT FIRE SUPPRESSION SYSTEM
(Part No. 418127)
PAGE 2 REV. 04 2018-NOV-29
MANUAL PULL
STATION
AGENT STORAGE
TANK AND
RELEASING UNIT
GAS VALVE FOR
FUEL SHUTOFF
PROTECTED
AREA
DISCHARGE PIPING
DISCHARGE NOZZLE
PROTECTED
AREA
NOTE: This is a typical layout for an ANSUL®R-102
Restaurant Fire Suppression System. The actual
system installation may vary. 003441
HOW THE ANSUL®R-102 SYSTEM OPERATES
1. A fire starts in the protected area.
2. Heat sensitive fusible link detectors activate the system.
3. Appliance energy sources are automatically shut off by
accessory equipment appropriate for the type of fuel used
by your cooking equipment.
4. The fire suppressing agent is discharged into the plenum
and duct and onto the cooking appliances.
5. The agent and the hot grease mix to form a foam. This
temporarily seals combustible vapors, helping to inhibit
re-ignition. This seal must not be disturbed.
INSPECTING THE R-102 SYSTEM
Your ANSUL®R-102 system should be inspected at least
monthly. Should you discover any irregularities, contact
an Authorized ANSUL®Distributor immediately.
1. Never use corrosive cleaning solutions on the fusible links
or cables. Check to make certain there is no corrosion
to any of the detection system components. Certain high
alkaline cleaners could cause corrosion.
2. Ensure that metal fusible links are replaced semi-
annually. Deterioration of these links could cause the
system to be actuated or to malfunction in case of a fire.
3. Make certain the releasing unit has not been tampered
with, and that visual seals are not broken or missing.
4. At daily intervals check your system for loose pipes and
missing or grease covered nozzle caps. Make certain
nozzle caps are in place over the ends of each nozzle.
Temporarily remove cap, check to make certain it is not
brittle, and snap back on nozzle.
Note: If caps are damaged or missing, contact
the Authorized ANSUL®Distributor for immediate
replacement.
5. Check each metal blow-off cap and make certain the cap
can be turned freely on the nozzle.
6. Periodically check your visual indicator on the releasing
unit to make certain the system is cocked.
7. Have your system inspected by an Authorized ANSUL®
Distributor at a maximum of 6 month intervals and
immediately after major hood and duct cleaning. Often
fusible links are wired shut during the cleaning process to
prevent accidental activation. This will prevent the system
from operating automatically. It’s also possible that your
system might have been disconnected, damaged, or has
accumulated excessive deposits of grease causing your
system to become inoperative.
8. Check that the manual pull station is not obstructed, has
not been tampered with, and is ready for operation.
9. Make certain that each tank and releasing unit is mounted
in an area with a temperature range of 32 °F to 130 °F
(0 °C to 54 °C).
10. Make certain the agent storage tank is not in an area in
which the temperature can exceed 130 °F (54 °C) or can
be heated to a temperature exceeding 130 °F (54 °C) due
to conductivity through heated discharge piping.
FUSIBLE LINK DETECTOR

OWNER’S GUIDE
R-102 RESTAURANT FIRE SUPPRESSION SYSTEM
(Part No. 418127)
2018-NOV-29 REV. 04 PAGE 3
IN THE EVENT OF FIRE IN THE PROTECTED AREA
1. Evacuate others from the premises. In a loud, clear
voice say: “WE HAVE A FIRE–PLEASE LEAVE THE
BUILDING CAREFULLY, BUT QUICKLY.”
001633
2. If the automatic actuation has not yet taken place,
operate the system manually as follows:
• Pull handle or pull ring straight out on manual
pull station with enough force to actuate the fire
suppression system.
008326
• Once the fire suppression system is actuated,
equipment to shut off the fuel supply to the cooking
appliances will operate.
3. Call the local fire department or emergency number.
001635
4. Stand by with a wet chemical hand portable fire
extinguisher.
If you need to use the extinguisher:
a. Pull pin
b. Stand back 10 ft (3.0 m)
c. Aim at base of fire, squeeze handle and sweep side
to side
001636
!CAUTION
1. Do not attempt to extinguish a grease fire with a hand
portable fire extinguisher before the Fire Suppression
System has been manually or automatically actuated.
2. Do not discharge wet chemical agent from the wet
chemical hand portable fire extinguisher unless the fire
suppression system will not operate or a re-flash has
occurred.
3. Do not attempt to use a Class ABC Multipurpose Dry
Chemical, CO2, or Water type hand portable fire extin-
guisher in/on an appliance with burning cooking oil or
grease.
EXIT

OWNER’S GUIDE
R-102 RESTAURANT FIRE SUPPRESSION SYSTEM
(Part No. 418127)
PAGE 4 REV. 04 2018-NOV-29
BEFORE RESUMING BUSINESS
1. Immediately after discharge, call your Authorized ANSUL®
Distributor to inspect and recharge your Fire Suppression
System.
2. Have the Authorized ANSUL®Distributor determine the
cause of the system actuation.
3. Area must be cleaned up within 24 hours after discharge
using warm water and cleaning detergents.
CLEANUP PROCEDURES
Although there is no unusual cleanup procedure for ANSULEX
or ANSULEX LpH agents, due to the alkaline nature of these
agents, all agent should be cleaned from kitchen surfaces
within 24 hours after system discharge. The reaction from
the wet chemical agent on cooking grease or oil produces a
foamy bi-product that can be wiped up with a cloth or sponge.
The following procedures should be followed:
!CAUTION
1. Before attempting any cleanup, make certain that all fuel
sources to the equipment to be cleaned have been shut off.
Make certain that the exhaust hood and all appliance elec-
trical controls have been de-energized to avoid any chance
of electrical shock resulting from the cleaning process or
from electrically conductive alkaline liquid agent and/or its
residue.
2. Make certain all surfaces to be cleaned have cooled down
to room temperature.
3. Do not use water to clean any appliances that contain
hot grease or cooking oils. Doing so may result in violent
steaming and/or spattering
1. The fire suppression system agent is non-toxic; however,
food product and cooking grease/oil that has come in
contact with the agent will no longer be suitable for
human consumption and should be discarded.
2. Sponge as much of the agent as possible using sponges
or clean rags. Dispose of these sponges or rags in a local
sanitary land fill site in accordance to local authorities.
Note: Wear rubber gloves during cleanup as sensitive
skin may become irritated. If the ANSULEX agent
or its residue comes in contact with skin or eyes,
flush thoroughly with clean water.
3. Using hot, soapy water and either a clean cloth or
sponge, wipe away all foamy residue and thoroughly
scrub all surfaces that have come in contact with the
agent.
Note: Wear rubber gloves during cleanup as sensitive
skin may become irritated. If the ANSULEX agent
or its residue comes in contact with skin or eyes,
flush thoroughly with clean water.
4. After thoroughly cleaning all affected surfaces, adequately
rinse and allow to completely dry before re-energizing the
equipment.

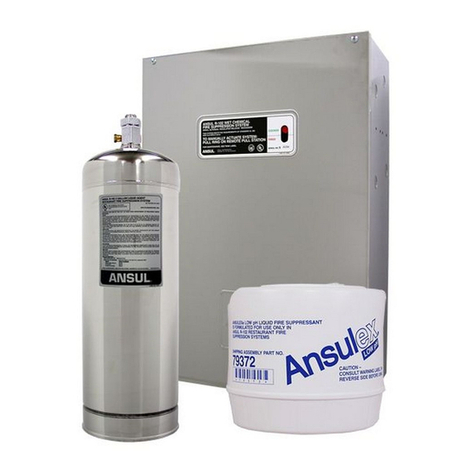

For repairs, parts and service of the ANSUL®R-102 System,
contact your Authorized ANSUL®Distributor
(at www.ansul.com: “Find A Distributor”).
Safety Data Sheets (SDS) are available at www.ansul.com
Note: The converted values in this document are provided for dimensional
reference only and do not reflect an actual measurement.
ANSUL, ANSULEX, and the product names listed in this material are marks
and/or registered marks. Unauthorized use is strictly prohibited.
