Antari Z-1000 III User manual

Z-1000 III
Stage Fog Machine
User Manual
- English
-
中文
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ................................................................................................................................................... 1
2. Safety Information ........................................................................................................................................ 1
3. Package Contents & Inspection .................................................................................................................... 2
4. Machine Details ............................................................................................................................................ 3
5. Technical Label Information ......................................................................................................................... 3
6. Fog Liquid ..................................................................................................................................................... 3
7. Setting and Manual Operation ...................................................................................................................... 4
8. Control Settings ............................................................................................................................................ 4
9. Machine Status .............................................................................................................................................. 4
10. DMX Connection .......................................................................................................................................... 5
11. Z-10 Cable Remote (Standard) ..................................................................................................................... 6
12. Z-40 Time Cable Remote (Optional) ............................................................................................................ 6
13. Z-50 Wireless Remote (Optional) ................................................................................................................. 7
14. Service and Maintenance .............................................................................................................................. 7
15. Technical Specifications ............................................................................................................................... 8
16. Warranty Disclaimer ..................................................................................................................................... 8

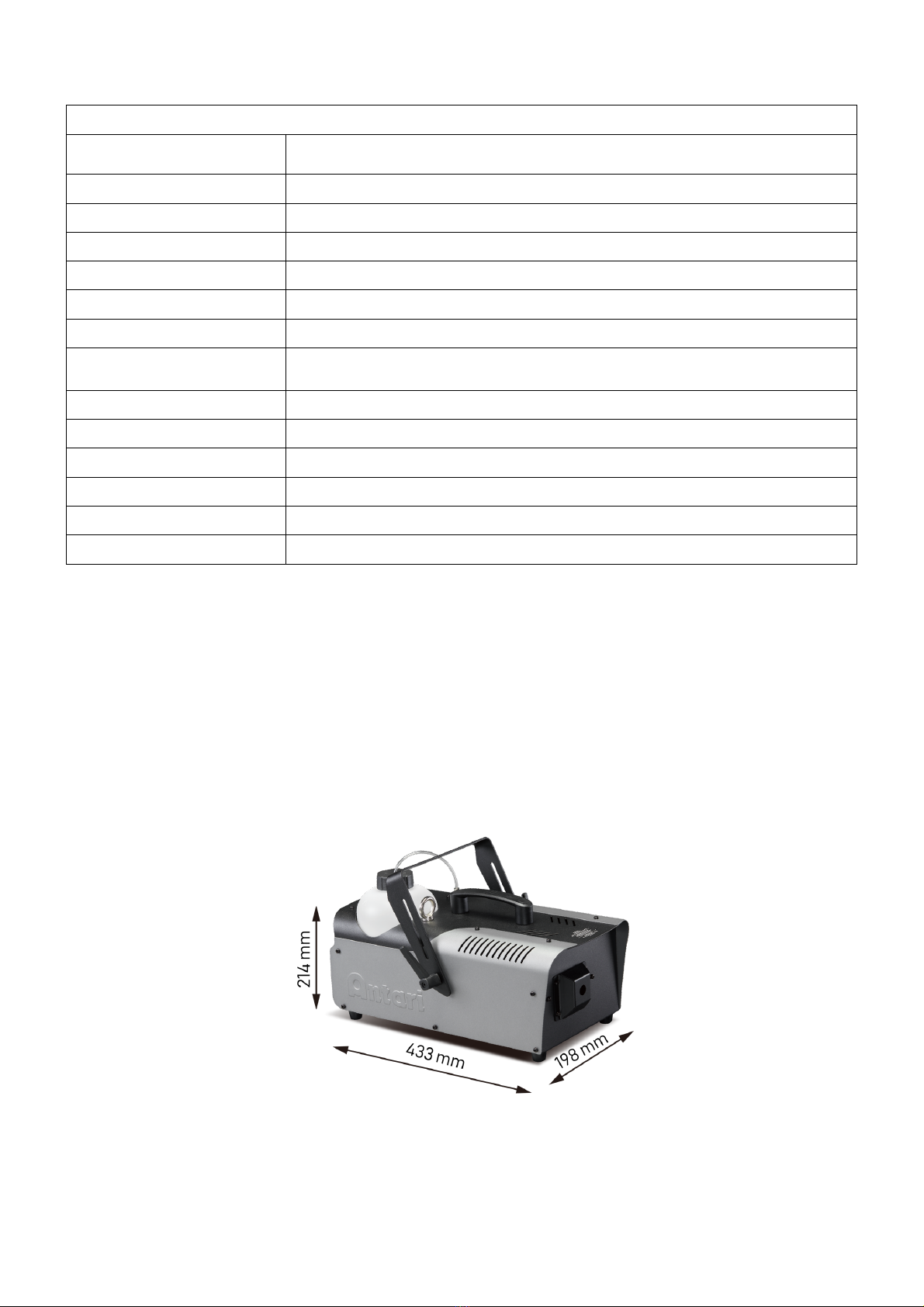

17. Machine Dimension ...................................................................................................................................... 8
1. 前言 ............................................................................................................................................................... 9
2. 安全注意事項 ............................................................................................................................................... 9
3. 包裝內容與檢查 ......................................................................................................................................... 10
4. 機器訊息 ..................................................................................................................................................... 11
5. 技術標籤資訊 ............................................................................................................................................. 11
6. 煙霧水 ......................................................................................................................................................... 12
7. 設定與手動操作說明 ................................................................................................................................. 12
8. 控制設定 ..................................................................................................................................................... 12
9. 機器狀態 ..................................................................................................................................................... 12
10. DMX 說明 .................................................................................................................................................. 13
11. Z-10 有線控制器(標配) ............................................................................................................................. 14
12. Z-40 有線定時控制器(選配) ..................................................................................................................... 14
13. Z-50 無線控制器(選配) ............................................................................................................................. 15
14. 維護和保養 ................................................................................................................................................. 15
15. 技術規格 ..................................................................................................................................................... 16
16. 保固聲明 ..................................................................................................................................................... 16
17. 機器尺寸圖 ................................................................................................................................................. 16

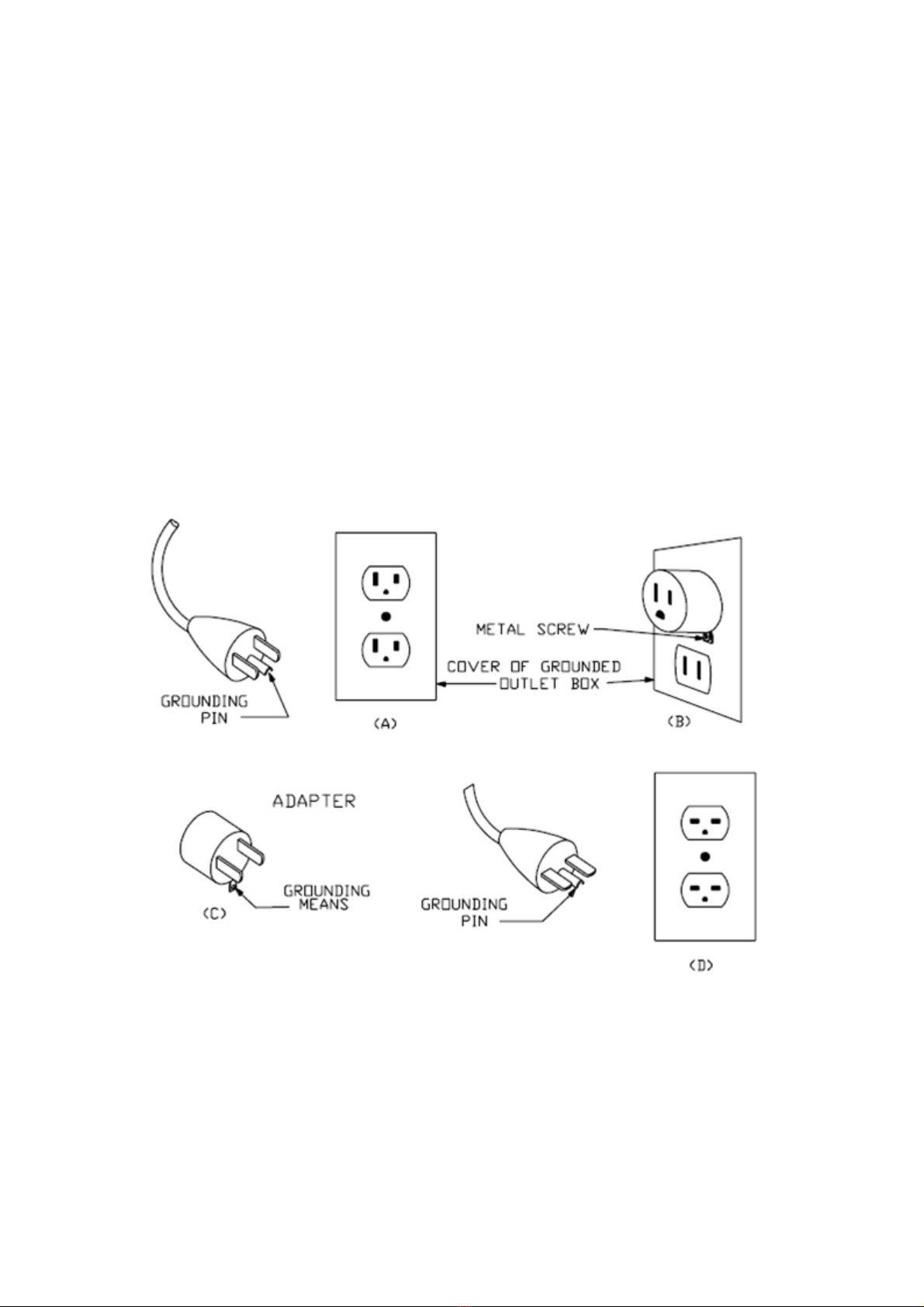

Appendix I – Grounding Instruction ................................................................................................................... 17

1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe condition and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WA R N I N G
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
l Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
l Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 17.
l Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
l When operating the machine, do not point at people, animals, or fire.
WA R N I N G
l Machine’s nozzle is extremely hot, please keep at least 50cm distance from the nozzle when the machine is
running.
l Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
l Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
l The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
l Do not leave the machine running unattended, make sure all powers are off when leaving.
l Children should be supervised to ensure that they do not play with the machine.
l Do not use the machine upside down or tilt it, it might cause damages or malfunction.
l Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
l Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
moisture environment.
l Please make sure the power outlet is not damaged or loose before plug in the power cord.
DANGER

2
l If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
l Before operating the machine, please sure the fluid is filled in the fluid tank to avoid the pump in idling state
which could lead to overeat or malfunction.
l Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)
l The machine is for indoor use only.
l Do not operate the machine in any area with unstable voltage.
l If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
l Do not contact any moving part.
l Only use accessories recommended or sold by Antari.
l Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
l To disconnect, turn all controls to the off position, then remove plug from outlet.
l Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
l Unplug from outlet before servicing or cleaning.
l Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
l To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid
or additive, otherwise it may clog the heater and cause malfunction.
Before operating the machine, please read all warning labels on the machine, description as below:
Top Cover Printing
WA R N I N G !
HOT NOZZLE!
KEEP AT LEAST 50 CM DISTANCE
Rear Cover Printing
WA R N I N G !
DISCONNECT POWER BEFORE CHANGING FUSE.
USE ONLY WITH ADULT SUPERVISION.
DO NOT OPERATE WITHOUT LIQUID.
FOR INDOOR USE ONLY. KEEP DRY.
NO USER SERVICEABLE PARTS INSIDE.
LIQUID
ONLY USE MANUFACTURER DESIGNATED FLUID.
ATTENTION!
NEVER ADD FLAMMABLE SUBSTANCES.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
1 x Z-1000 III Fog Machine
1 x Power Cord
1 x Z-10 Cable Remote
1 x Hanging Bracket
1 x User Manual or Scan QR Code on the Machine

3
3.2 Optional Accessories
Item Code
Description
Z-40
Cable Timer Remote
Z-50
Wireless Remote

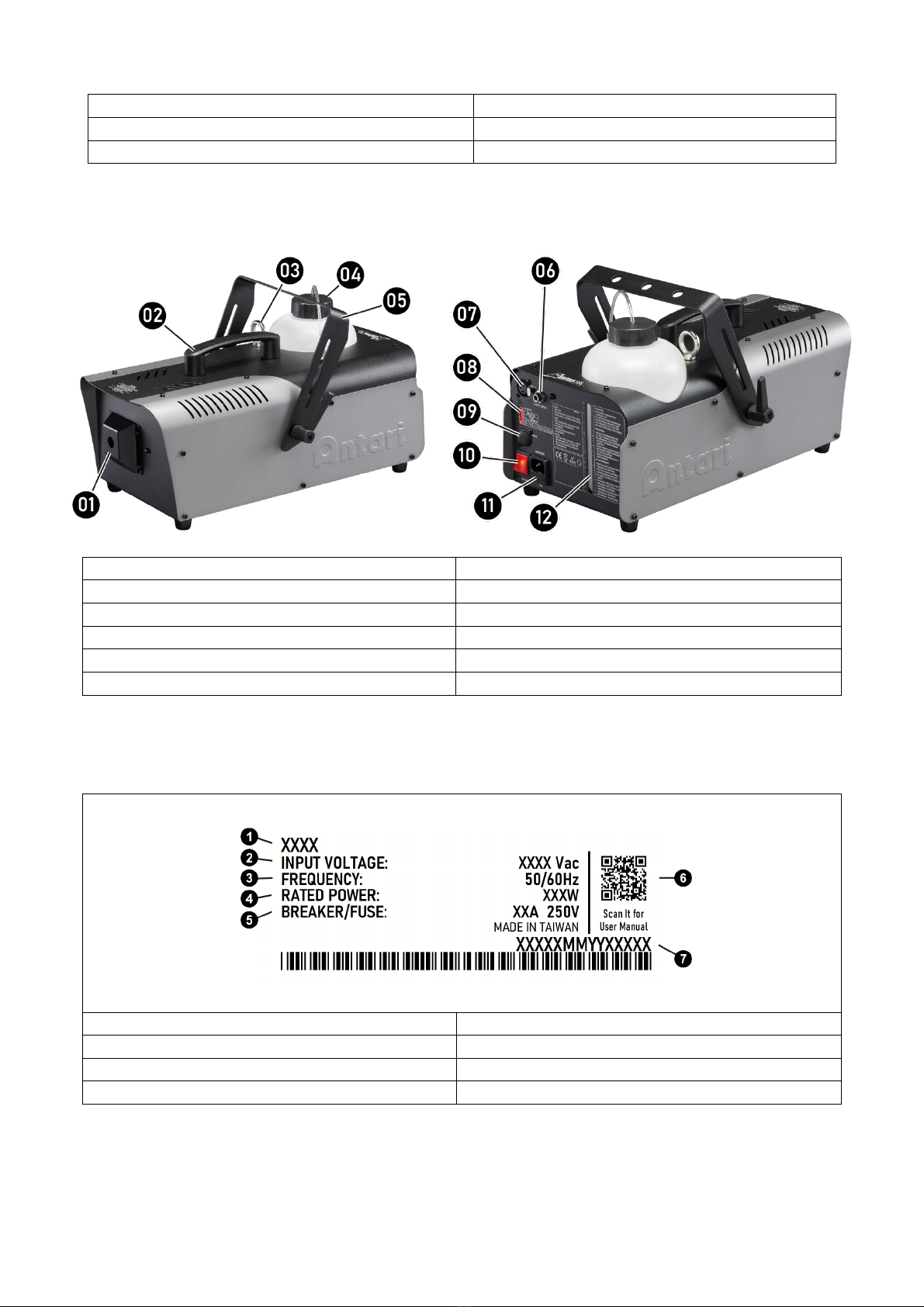

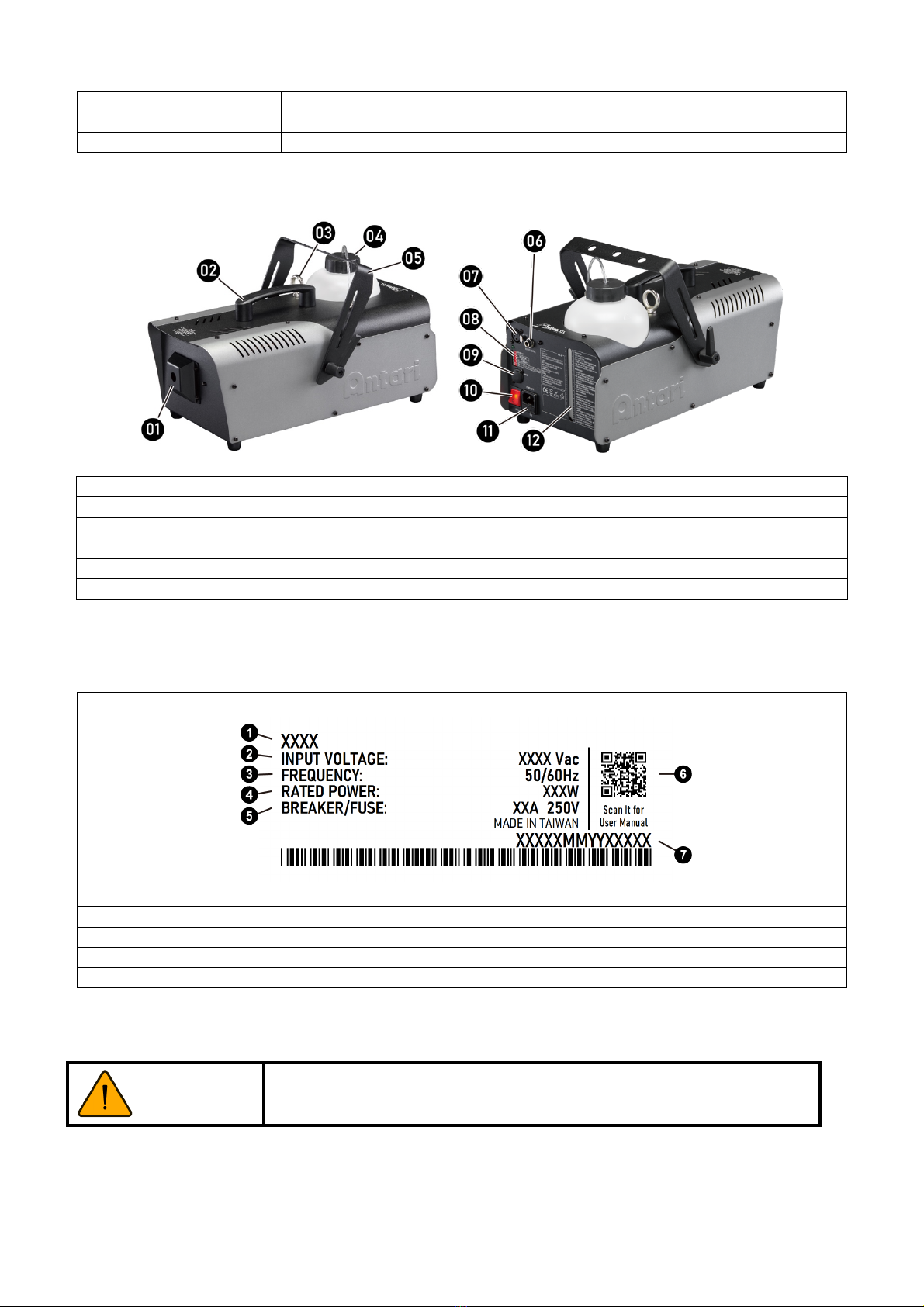

4. Machine Details
01. Fog Nozzle
07. XLR 3-Pin DMX
02. Handle
08. Dip Switch DMX
03. Ring
09. DMX In
04. 1.7 Liter Fluid Tank
10. Power Switch
05. Hanging Bracket
11. IEC Connector (Power)
06. Cable Remote Connector
12. Fluid Indicator
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.
1. Model Name
5. Breaker/Fuse
2. Input Vo l t a g e
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Fog Liquid
CAUTION!
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
l Only the fog liquid manufactured by Antari can be used, do not mix or dilute the fog liquid. Due to improper
storage or using other fluid might clog the heater and cause malfunction.
l The machine is tested and calibrated with the specific fog liquid to get the best performance.

4
l Please empty the fluid in the tank before switching to another fluid to avoid mixing.
l Only the essence manufactured by Antari can be used, and add according to the ratio recommended by Antari
(Recommended ratio is 1:1000), if using other essence or different ratio might clog the heater and cause
malfunction.
l The warranty on your fog machine will be void if you use fog liquid other than that recommended by the
Antari of your smoke machine.
7. Setting and Manual Operation
WA R N I N G
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50 cm open
space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Fill the fluid tank with Antari approved fog liquid, and make sure the tube is not twisted;
Step 3. Plug the machine to the power outlet. Please read the technical label on the back of the machine and make
sure the power outlet has the correct rated voltage for the machine;
Step 4. Turn on the power, the machine starts to warm up and the button on the handle will show red blinking
light. The warming process takes approximately 6 minutes. Once the machine has reached its operating
temperature, the green indicator light on the back will turn solid. Now the machine is ready for operation;
Step 5. Plug the Z-10 cable remote to the back of the machine and wait for the green indicator light turn solid,
now it’s ready to fog;
Step 6. To start fogging, please press and hold the red button and release the red button to stop fogging;
Step 7. To turn off the power, please make sure the machine is not operating. If you will not use the machine a
long period of time, please unplug the power cord.
8. Control Settings
Z-1000 III Fog Machine can be operated in the following modes. The machine can only accept 1 type of signal at a
time. When using different control modes at the same time, the machine will work according to built-in control
priority:
l Manual
l Timer
l DMX512
l Cable Remote
l Wireless
9. Machine Status
9.1 Indicator Light Description
No.
Status
DMX LED Indicator Light
Remote Indicator Light
Buzzer
1
Thermal Line Off
Blink Twice Every 3 Sec.
Blink Twice Every 3 Sec.
Simultaneous Beep
2
Thermal Line Reverse
Blink 3 Times Every 3 Sec.
Blink 3 Times Every 3 Sec.
Simultaneous Beep
3
Heater Error
Blink 4 Times Every 3 Sec.
Blink 4 Times Every 3 Sec.
N/A
4
Heater Overheat
Continuously Fast Blink
Continuously Fast Blink
N/A
5
Warm Up
Green Light Blink
Blink Light
N/A
6
Warm Up Complete
(No DMX)
Constant Green Light
Constant Light
N/A
7
Warm Up Complete
(With DMX)
Constant Orange Light
Constant Light
N/A
8
Wrong Voltage
N/A
N/A
Continuously Beep

5
10. DMX Connection

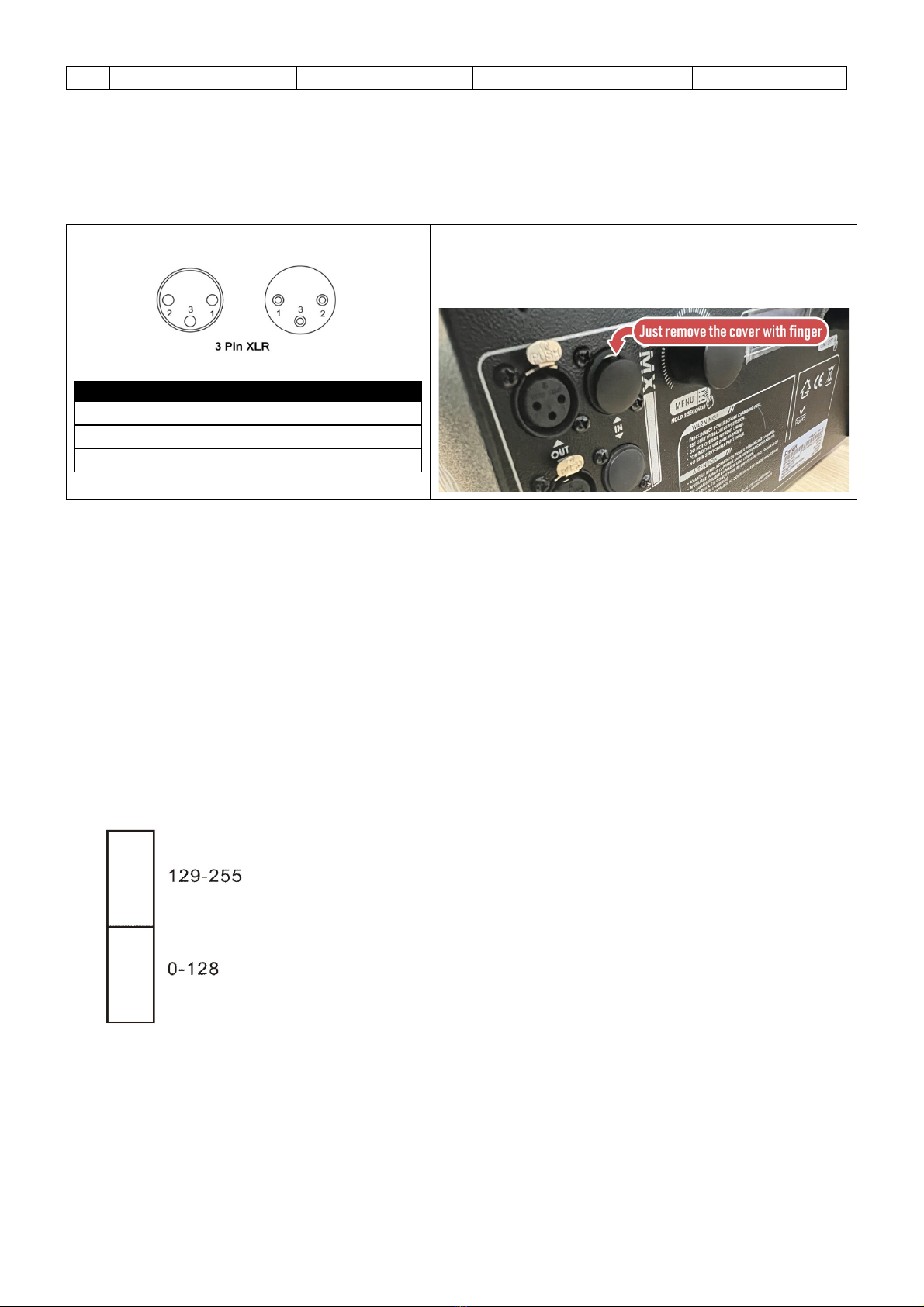

10.1 DMX Connector Pin Assignment
The machine has a XLR 3-Pin for DMX connection. The diagram below indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
The cap on the DMX IN port is a protection cover. Please
remove it with your finger before operation.
10.2 Onboard DMX Setting
The Z-1000 III have an on-board DMX control.
Use 1 channel to control on/off operation. Each channel has a value range of 0 to 255. On/Off function can be
programmed using the DMX controller or the DMX control software being used by lighting and effects operator.
If Channel A has a value from 0 to 128, the unit is OFF.
Between the values 129 to 255 the volume of fog output is at maximum.
Note: In the example above, if the machine was assigned the DMX address of 130, Channel A would correspond to
DMX address 130.
In general, Antari fog machines with onboard DMX conform to the following performance specifications:
1. Average Operating temperature = 250ºC
2. Fogger can maintain maximum output for 30 seconds or more
Channel A
0 - 128 = OFF
129 – 255 = Maximum Volume Output (100%)
10.3 Addressing
Each device occupies 1 channel. To ensure that the control signals are properly directed to each device, they require
addressing. This is to be adjusted for every single device by changing the DIP-switches as set out in the table
below. The starting address is defined as the first channel from which the device will respond to the controller.
Please make sure that you do not have any overlapping channels in order to control each device correctly and
independently from any other fixture on the DMX data link. If two, three or more devices are addressed similarly,
they will work similarly.
Occupation of the DIP-switches:

6
Setting the DMX-Starting
Address
DIP-Switch No.
1
2
3
4
5
6
7
8
9
Device Number & Channels
Staring Address
1
2
4
8
16
32
64
128
256
Device 1 – Channel 1
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 2 – Channel 2
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 3 – Channel 3
On
▲
▲
Off
▽
▽
▽
▽
▽
▽
▽
Device 4 – Channel 4
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 5 – Channel 5
On
▲
▲
Off
▽
▽
▽
▽
▽
▽
▽
11. Z-10 Cable Remote (Standard)
Z-10 Cable Remote is a standard accessory for Z-1000 III Fog Machine, please see instruction below;
1. Plug the cable remote to the connector on the back of the machine;
2. When the green indicator light is solid, it’s ready to fog;
3. Press the red button to start fogging and release the red button to stop fogging.
** If you encounter any problem, please contact your local Antari dealer for assistant.
12. Z-40 Time Cable Remote (Optional)
Z-40 Timer Cable Remote is an optional accessory for Z-1000III Fog Machine, please see instruction below;
1. Plug the timer cable remote to the connector on the back of the machine;
2. Press the RED button to turn on the power of the remote (Red Indicator Light is on) and Press the RED button
again to turn off the power (Red Indicator Light is off);
3. Press the YELLOW button to turn on the TIMER function (Yellow Indicator Light is on), then you can turn the
DURATION and INTERVAL knob according to your needs. Press the YELLOW button again to turn off the
TIMER function (Yellow Indicator Light is off);

7
4. Press the GREEN button to start fogging (Green Indicator Light is on) and Press the GREEN button again to
stop fogging (Green Indicator Light is off).
Note:
** You must turn on the power of the remote in order to use it.
** If the TIMER function is off, you can still press the Green button to start fogging.
** The “DURATION” and “INTERVAL” knob are using analog signal, therefore can’t define a specific time range.
** If you encounter any problem, please contact your local Antari dealer for assistant.

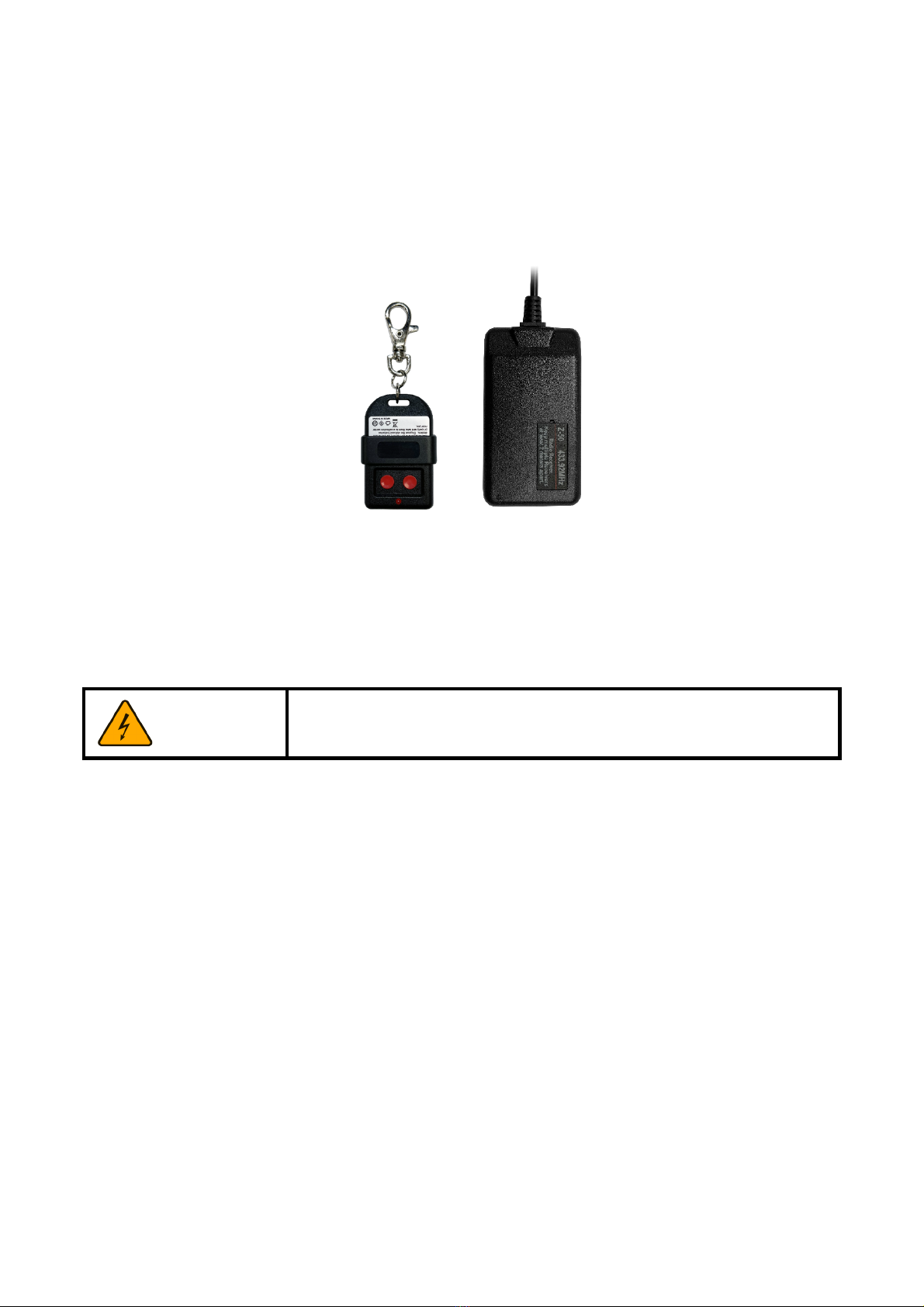

13. Z-50 Wireless Remote (Optional)
Z-50 Wireless Remote is an optional accessory for Z-1000 III Fog Machine, it included a wireless remote control
and a receiver. It’s ready to use, no pairing necessary, please see instruction below;
1. Plug the receiver to the connector on the back of the machine;
2. Press either RED button to start fogging and release the RED button to stop fogging.
** Signal range is approximately 50m in open area, it may vary depending on actual situation on site.
** If you encounter any problem, please contact your local Antari dealer for assistant.
14. Service and Maintenance
DANGER!
Disconnect the power cord before starting maintenance operation!
l Always keep the machine clean.
l Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine.
l Can use a slightly damp cloth to clean the casing.
l Before store the machine, please make sure the machine is completely cool down to avoid moisture inside the
machine causing malfunction.
l It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition.
l Excessive dust and build up liquid residue will reduce the performance and cause overheat.

8
15. Technical Specifications
Z-1000 III
Rated Voltage
US Model : AC 100 - 120V, 50 / 60 Hz 8.5A
EU Model : AC 220 - 240V, 50 / 60 Hz 4.5A
Rated Power
1000 W
Warming-up Time
6 minutes (approx.)
Fluid Consumption
60 ml/min (100% output)
Fluid Tank Capacity
1.7 Liters (0.45 gallon)
Compatible Fluid
Antari FLG Heavy Fog Fluid、Antari FLR Light Fog Fluid
Ambient Temp. Range
0°C – 40°C (32°F – 104°F)
Control Methods
Manual、Timer (Optional)、DMX512、Cable Remote (Standard)、
Wireless (Optional)
Interface
XLR 3-Pin (DMX)、IEC (Power)
DMX Channels
1 Channel
Included Accessories
Hanging Bracket、Z-10 Cable Remote
Optional Accessories
Z-40 Cable Timer Remote、Z-50 Wireless Remote
Dimension
L 433 W 198 H 214 mm (L17.05 W 7.80 H 8.43 inch)
Weight
7.9 kg (17.41 lbs.)
16. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period
of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our
factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any
purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise
which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its
performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated
contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in
connection with the use, sale, or repair of any merchandise purchased from us.
17. Machine Dimension
