Instruction Manual and Safety Information
L-Rix 5100/5200 Sensor
L-Rix 5000 Transmitter
Inline Refractometer
(Original Instruction)

Instruction Manual and Safety Information
L-Rix 5100/5200 Sensor
L-Rix 5000 Transmitter
Inline Refractometer
(Original Instruction)
Disclaimer
This document may contain errors and omissions. If you discover any such errors or if you would like to see
more information in this document, please contact us at our address below. Anton Paar assumes no liability
for any errors or omissions in this document.
Changes, copyright, trademarks etc.
This document and its contents may be changed or amended by Anton Paar at any time without prior notice.
All rights reserved (including translation). This document, or any part of it, may not be reproduced, changed,
copied, or distributed by means of electronic systems in any form (print, photocopy, microfilm or any other
process) without prior written permission by Anton Paar GmbH.
Trademarks, registered trademarks, trade names, etc. may be used in this document without being marked
as such. They are the property of their respective owner.
Further information
Published and printed by Anton Paar GmbH, Austria
Copyright © 2019 Anton Paar GmbH, Graz, Austria
Address of the instrument producer: Anton Paar GmbH
Anton-Paar-Str. 20
A-8054 Graz / Austria – Europe
Tel: [phone]
Fax: [phone]
E-Mail: [email protected]
Web: www.anton-paar.com
Date: December 2019
Document number: D32IB002EN-D

Content
4D32IB002EN-D
Content
1 Safety Instructions.................................................................................................................................. 5
1.1 General Safety Instructions............................................................................................................... 5
1.2 Special Safety Instructions................................................................................................................ 6
1.3 Conventions for Safety Messages .................................................................................................... 6
2 Inline Refractometer - An Overview ...................................................................................................... 7
2.1 Measuring Principle .......................................................................................................................... 7
2.2 L-Rix 5100/5200 Sensor ................................................................................................................... 8
2.2.1 Configurations of L-Rix 5100/5200 ........................................................................................... 8
2.2.2 Components of L-Rix 5100/5200 ..............................................................................................9
2.2.2.1 L-Rix 5100/5200 Sensor without Pico 3000...................................................................... 9
2.2.2.2 L-Rix 5100/5200 Sensor with Pico 3000 and HMI .......................................................... 10
2.2.3 Dimensions ............................................................................................................................. 10
2.3 L-Rix 5000 Transmitter VARIVENT N............................................................................................. 12
2.3.1 Components ........................................................................................................................... 12
3 Checking the Supplied Parts ............................................................................................................... 13
4 Putting the Inline Refractometer into Operation................................................................................16
4.1 Installation Requirements ............................................................................................................... 16
4.2 Mounting Positions of the L-Rix 5000/5100/5200 ........................................................................... 16
4.2.1 Location of L-Rix 5000/5100/5200 within a Pipework............................................................. 17
4.2.2 Installation in a Horizontal Pipe .............................................................................................. 17
4.2.3 Installation in a Vertical Pipe................................................................................................... 17
4.2.4 Installation at 90° Bend........................................................................................................... 18
4.2.5 Prism Wash System ............................................................................................................... 18
4.2.5.1 Mounting the Prism Wash System.................................................................................. 18
4.2.6 Deflector ................................................................................................................................. 19
4.3 Electrical Wiring .............................................................................................................................. 19
4.3.1 Interface Overview.................................................................................................................. 19
4.3.2 Wiring the Sensor and mPDS 5 or Pico 3000......................................................................... 19
4.3.2.1 Wiring with mPDS 5........................................................................................................ 21
4.3.2.2 Wiring with Pico 3000 RC ............................................................................................... 24
4.3.3 Power Supply.......................................................................................................................... 24
4.3.4 Cable Glands and Connectors................................................................................................25
4.3.4.1 Shielding......................................................................................................................... 25
4.3.4.2 Connector Set................................................................................................................. 25
4.3.5 Anton Paar CANopen ............................................................................................................. 26
5 Start-up and Use of L-Rix 5000/5100/5200.......................................................................................... 26
6 Troubleshooting.................................................................................................................................... 26
7 Upkeep and Cleaning .......................................................................................................................... 26
7.1 Cleaning in Place (CIP) / Steaming in Place (SIP) ......................................................................... 26
7.2 Wetted Parts ................................................................................................................................... 27
7.3 Storing and Transporting ................................................................................................................ 27
7.4 Packing the Instrument for Returns ................................................................................................ 27
8 Maintenance Work and Repair............................................................................................................. 27
8.1 Maintenance Performed by an Authorized Anton Paar Service Engineer ...................................... 27
8.2 Repair Performed by an Authorized Anton Paar Representative ................................................... 27
Appendix A: Technical Specifications................................................................................................... 28
Appendix B: Connector Set 4-Pole ........................................................................................................ 30
Appendix C: EU Declaration of Conformity........................................................................................... 31
Appendix D: Confirmation of Compliance............................................................................................. 32
Appendix E: Document Numbers ........................................................................................................... 33

1 Safety Instructions
D32IB002EN-D 5
1 Safety Instructions
• Read the documentation before using
L-Rix 5000/5100/5200.
• Follow all hints and instructions contained in the
documentation to ensure the correct use and
safe functioning of L-Rix 5000/5100/5200.
• The documentation is a part of the product.
Keep this document for the complete working
life of the product and make sure it is easily
accessible to all people involved with the prod-
uct. If you receive any additions or revisions to
the documentation from Anton Paar GmbH,
these must be treated as part of the documenta-
tion.
1.1 General Safety Instructions
Liability
• This document does not claim to address all
safety issues associated with the use of the
instrument and samples. It is your responsibility
to establish health and safety practices and
determine the applicability of regulatory limita-
tions.
• Anton Paar GmbH only warrants the proper
functioning of L-Rix 5000/5100/5200 if no
adjustments have been made to the mechanics,
electronics, and firmware.
• Only use L-Rix 5000/5100/5200 for the purpose
described in the documentation. Anton Paar
GmbH is not liable for damages caused by
incorrect use of L-Rix 5000/5100/5200.
Installation and use
• L-Rix 5000/5100/5200 is not an explosion-proof
instrument and therefore must not be operated
in areas with risk of explosion.
• The installation procedure should only be car-
ried out by authorized personnel who are famil-
iar with the installation instructions.
• Do not use any accessories or spare parts other
than those supplied or approved by Anton Paar
GmbH (see Chapter 3 ).
• Make sure all operators are trained to use the
instrument safely and correctly before starting
any applicable operations.
• In case of damage or malfunction, do not con-
tinue operating L-Rix 5000/5100/5200. Do not
operate the instrument under conditions which
could result in damage to goods and/or injuries
and loss of life.
• Check L-Rix 5000/5100/5200 for chemical resis-
tance to the samples and cleaning agents.
• Use only approved cleaning agents. Follow
manufacturer's instructions for dosing and do
not overdose for environmental reasons. Do not
exceed manufacturer's recommendations for
cleaning temperatures (Typ. 50-70 °C) . One
hour cleaning per week is enough for the sen-
sors. Rinsing with hot water should only be done
once a day.
Maintenance and service
• The results delivered by L-Rix 5000/5100/5200
not only depend on the correct functioning of the
instrument, but also on various other factors.
We therefore recommend you have the results
checked (e.g. plausibility tested) by skilled per-
sonnel before consequential actions are taken
based on the results.
• Service and repair procedures may only be car-
ried out by authorized personnel or by Anton
Paar GmbH.
Disposal
• Concerning the disposal of L-Rix 5000/5100/
5200, observe the legal requirements in your
country.
Returns
• For repairs send the cleaned L-Rix 5000/5100/
5200 (instrument) to your Anton Paar represen-
tative. Only return the instrument together with
the filled out RMA (Return Material Authoriza-
tion) and the form "Safety Declaration for Instru-
ment Repairs". Please download the Safety
Declaration form from our website www.anton-
paar.com.
• Do not return instruments which are contami-
nated by radioactive materials, infectious agents
or other harmful substances that cause health
hazards.

1 Safety Instructions
6D32IB002EN-D
Precautions for highly inflammable samples
and cleaning agents
• Observe and adhere to your national safety reg-
ulations for handling the measured samples
(e.g. use of safety goggles, gloves, respiratory
protection etc.).
• Do not spill sample/cleaning agents or leave
their containers uncovered. Immediately remove
spilled sample/cleaning agents.
• Make sure that the setup location is sufficiently
ventilated. The environment of L-Rix 5000/5100/
5200 must be kept free of inflammable gases
and vapors.
• Supply a fire extinguisher.
1.2 Special Safety Instructions
• Service and repair procedures may only be car-
ried out by authorized personnel or by Anton
Paar GmbH.
• Do not open the housing of the L-Rix 5000/
5100/5200 Sensor. There are no user-service-
able parts inside.
• Check the technical data in Appendix A for
ambient condition.
1.3 Conventions for Safety Messages
The following conventions for safety messages are
used in this document:
TIP: Tip gives extra information about the situation
at hand.
DANGER
Description of risk.
Danger indicates a hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING
Description of risk.
Warning indicates a hazardous situation which, if
not avoided, could result in death or serious
injury.
CAUTION
Description of risk.
Caution indicates a hazardous situation which, if
not avoided, could result in minor or moderate
injury.
NOTICE
Description of risk.
Notice indicates a situation which, if not avoided,
could result in damage to property.
NOTICE
Take care that the warning symbols remain
clearly legible.

2 Inline Refractometer - An Overview
D32IB002EN-D 7
2 Inline Refractometer - An Overview
L-Rix 5000/5100/5200 is an optical inline refracto-
meter for the determination of the refractive index
(RI) in liquids based on Snell’s law of refraction. It
can be immersed directly in the production liquid. It
continuously displays the refractive index (or con-
centrations) at process temperature allowing 24-
hour production control.
The process liquid flows past the sensor. The refrac-
tive index and temperature are measured simulta-
neously and displayed on the screen.
The inline refractive index measurement can be
used as a real-time predictive tool for the final con-
centration, whereby a quick and accurate response
is needed to optimize production.
The robust stainless steel construction of L-Rix
5000/5100/5200 meets all requirements of the pro-
cess environment and is fully CIP/SIP capable.
L-Rix 5000/5100/5200 has integrated self-
diagnosis.
The L-Rix Inline Refractometers are available as:
• L-Rix 5100/5200 Sensor
• L-Rix 5000 Transmitter
(=L-Rix 5100 Sensor + Pico 3000 Analog)
Features and Benefits:
• Maintenance free
• Never requires adjustment
• Long-life LED
• Hygienic design
• Full range sugar scale instrument
• No influence of potential stray lights
• Laboratory comparable refractive index mea-
surement
• Full CIP/SIP capability, reactivating quickly after
a brief time-out interval for cleaning
• Install and forget simplicity
• Compact and rugged design for industrial dura-
bility
• Longevity by hermetical sealing of optical com-
ponents
• Fulfills the NAMUR recommendation NE 107
(self-monitoring and diagnosis)
2.1 Measuring Principle
The L-Rix inline sensor determines the refractive in-
dex of liquids based on the critical angle measure-
ment as shown below. The refractive index is a
direct measure of the concentration. The measuring
prism serves as the interface between the L-Rix and
the sample liquid. The light source illuminates onto
the boundary layer between the prism and sample
liquid. Depending on the angle, some light rays will
be totally reflected, others only partially, with the
majority of the light refracted into the liquid. A CMOS
array detects the reflected light and measures the
critical angle. This angle is used to determine the re-
fractive index (specified as nD) and calculate the
concentration.
Fig. 1: Measuring principle

2 Inline Refractometer - An Overview
8D32IB002EN-D
2.2 L-Rix 5100/5200 Sensor
For different applications and customer require-
ments there are several system configurations
available:
• L-Rix 5100/5200 sensor with mPDS 5 (optional
Davis 5)
• L-Rix 5100/5200 sensor with Pico 3000 and
optional Pico 3000 HMI
• L-Rix 5100/5200 sensor with Pico 3000 RC and
optional Pico 3000 HMI
Fig. 2: Inline Refractometer L-Rix 5100/5200
2.2.1 Configurations of L-Rix 5100/5200
L-Rix 5000/5100/5200 is available in two process
connection versions (Tuchenhagen VARIVENT®
Type N and Tri-Clamp® 3‘‘). There are possible con-
figurations as shown in table 1.
L-Rix 5100 is designed as full range sensor and will
measure Brix values from 0 to 100 °Brix with an
overall accuracy of 0.1 °Brix.
L-Rix 5200 is designed for beverages measuring
form 0 to 65 °Brix with an overall accuracy of
0.05 °Brix.
Table 1: Configurations
L-Rix 5100/5200
+ Pico 3000
L-Rix 5100/5200
+ Pico 3000
+ HMI
L-Rix 5100/5200
+ Pico 3000 RC
L-Rix 5100/5200
+ mPDS 5

2 Inline Refractometer - An Overview
D32IB002EN-D 9

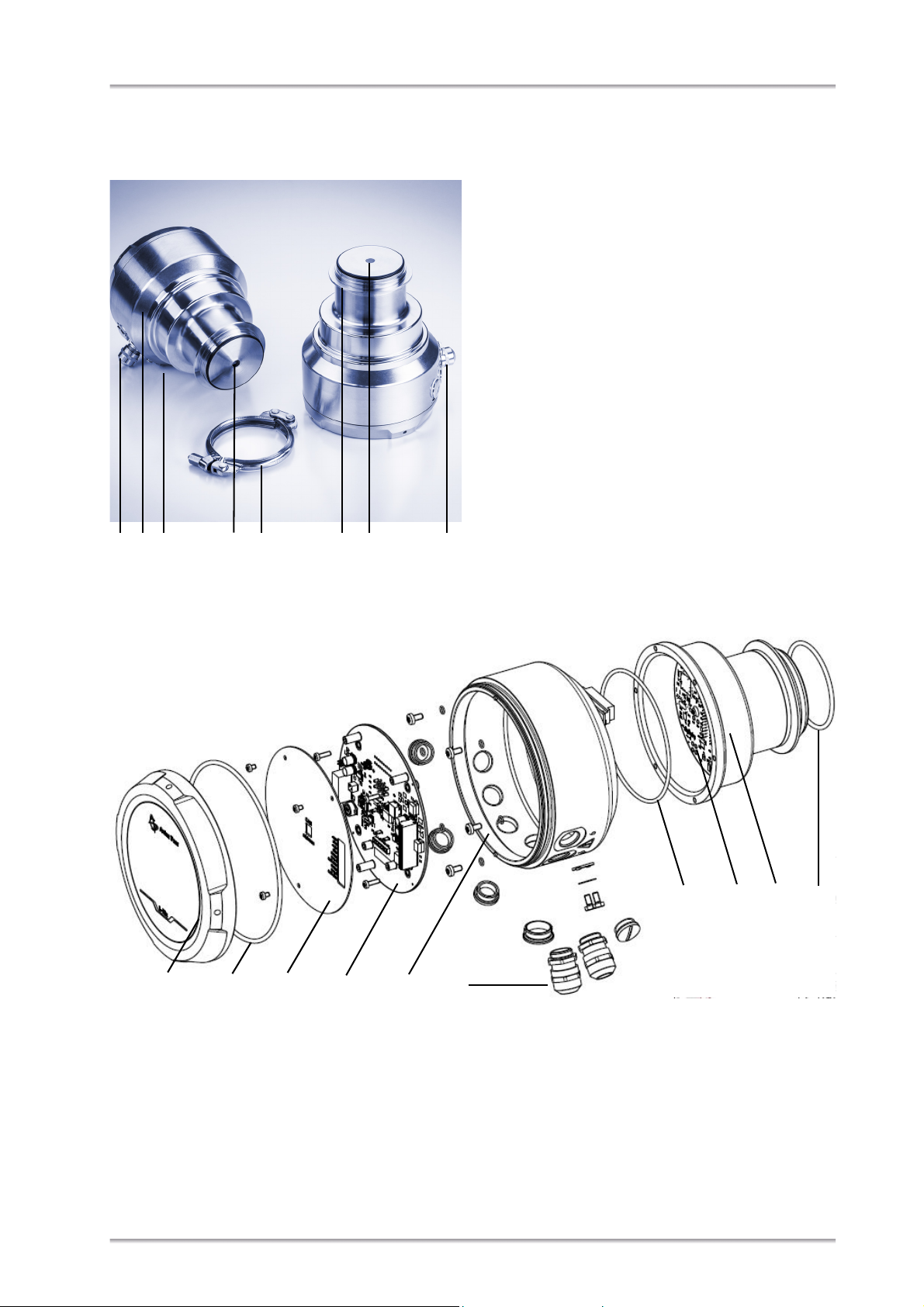

2.2.2 Components of L-Rix 5100/5200 1 Cable glands (or connectors)
2 Electronics module (incl. Pico 3000)
3 Sensor module
4Prism
5 Hinged clamp VARIVENT®N 1.4401
6 Tuchenhagen VARIVENT® N, DN 65
Fig. 3: Components of L-Rix 5100/5200
The central optical element is the prism situated in
the sensor module.The connector board is integrat-
ed into the electronics module, the sensor board
into the sensor module.
L-Rix 5100/5200 Sensor is available with a Tri-
Clamp® 3‘‘ - flange (not shown in Fig. 3) or with a
Tuchenhagen VARIVENT® Type N - flange
(Fig.3:).
2.2.2.1 L-Rix 5100/5200 Sensor without Pico 3000
1 Cover
2O-ring
3 Cover plate
4 Connector board
5 Electronics module
6 Cable glands (or connectors)
7O-ring
8 Sensor board
9 Sensor module
10 Sealing ring
Fig. 4: L-Rix 5100/5200 VARIVENT®N Sensor (to be connected to an mPDS 5 or to Pico 3000 RC)
1 2 3 4 5 6 4 1
7 8 9 10
1 2 3 4 5 6

2 Inline Refractometer - An Overview
10 D32IB002EN-D

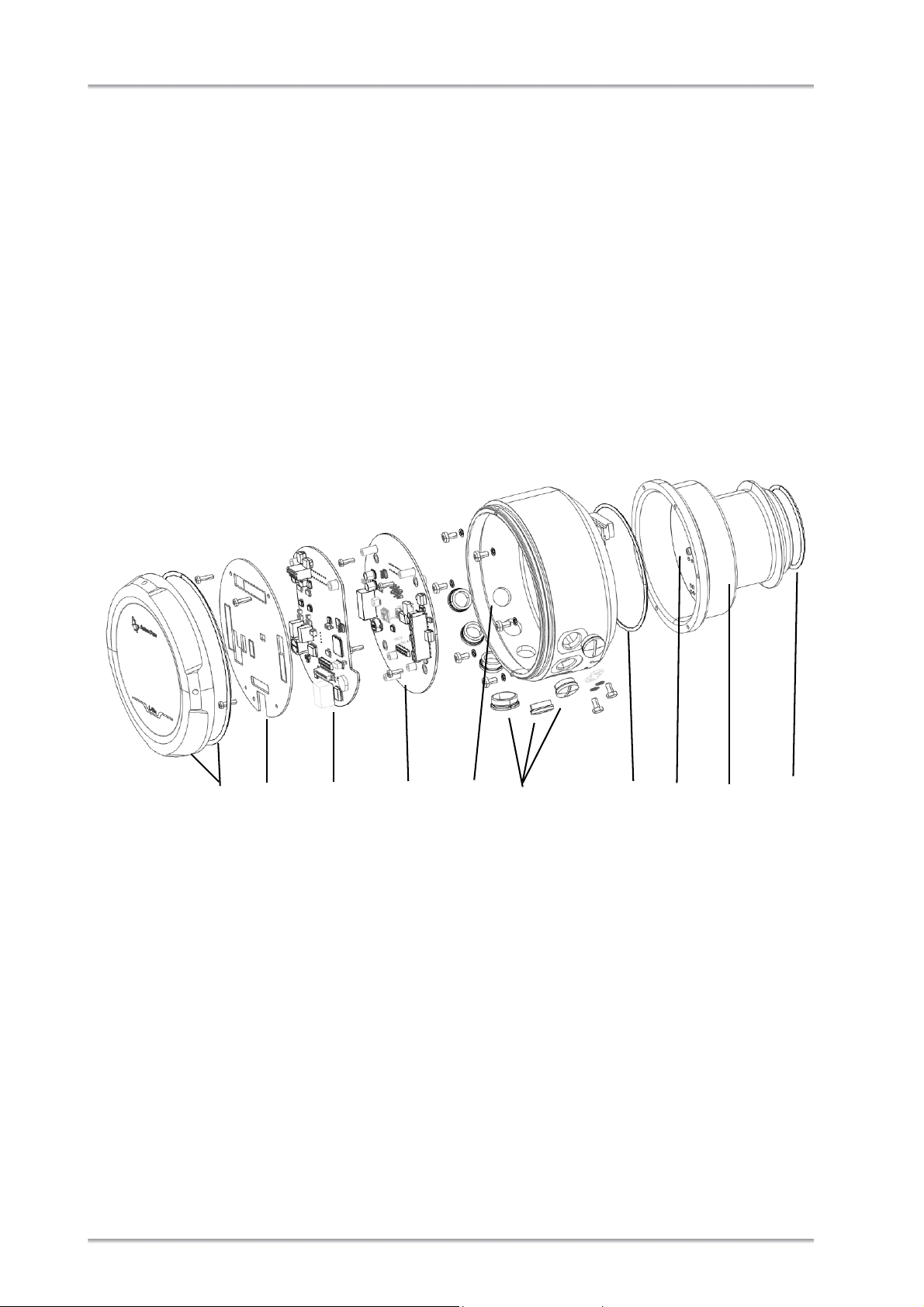

2.2.2.2 L-Rix 5100/5200 Sensor with Pico 3000 and HMI
1 Cover ring, O-ring and HMI with capacitive keys
2 Cover plate
3 Pico 3000 transmitter (fieldbus or analog/digital)
4 Connector board
5 Electronics housing
6 Cable glands (or connectors)
7 O-ring
8 Sensor board
9 Sensor module
10 Sealing ring
Fig. 5: L-Rix 5100/5200 VARIVENT®N Sensor with Pico 3000
2.2.3 Dimensions
L-Rix 5100/5200 Sensor VARIVENT N
Fig. 6: Front view Fig. 7: Lateral view
1 2 3 4 5 6 7 8 9 10

2 Inline Refractometer - An Overview
D32IB002EN-D 11
L-Rix 5100/5200 Sensor TRI-CLAMP 3"
Fig. 8: Front view Fig. 9: Lateral view

2 Inline Refractometer - An Overview
12 D32IB002EN-D
2.3 L-Rix 5000 Transmitter VARIVENT N
L-Rix 5000 Transmitter VARIVENT®N is an entry
model unit designed for standalone applications and
is always equipped with analog outputs.
L-Rix 5000 Transmitter VARIVENT®N consists of:
• L-Rix 5100 Sensor VARIVENT®N
• Pico 3000 Version Analog (already built into the
L-Rix 5000 Transmitter)
• Preselected application: "ICUMSA" -
0... 100 °Brix with 0.1 °Brix accuracy
There are no alternative configurations of the L-Rix
5000 available - the HMI can’t be connected and it
is not possible to use the mPDS 5 in combination
with the L-Rix 5000.
The contents of this instruction manual applies to
the L-Rix 5000 Transmitter in an analog way with
the above restrictions. In fact, the L-Rix 5000 is an
L-Rix 5100, however, it is always equipped with a
Pico 3000 Version Analog and therefore has no oth-
er options, i.e. also the dimensions are the same
(see Fig. 6 and Fig. 7.)
2.3.1 Components
1 Cover, O-ring
2 Cover plate
3 Pico 3000 Version Analog
4 Connector board
5 Electronics housing
6 Dummy plugs
7 O-ring
8 Sensor board
9 Sensor module
10 Sealing ring
Fig. 10: L-Rix 5000 Transmitter
1 2 3 4 5 6 7 8 9 10

3 Checking the Supplied Parts
D32IB002EN-D 13
3 Checking the Supplied Parts
The L-Rix Inline Refractometer was tested and
packed carefully before shipment. However, dam-
age may occur during transport.
1. Keep the packaging material (box, foam piece,
transport protection) for possible returns and further
questions from the transport and insurance compa-
ny.
2. Check the delivery for completion by comparing
the supplied parts to those noted in table below.
3. If a part is missing, contact your Anton Paar rep-
resentative.
4. If a part is damaged, contact the transport compa-
ny and your Anton Paar representative.
Symbol Pcs. Article description Mat. No.
1
L-Rix 5100 Sensor VARIVENT®N
or
L-Rix 5100 Sensor Tri-Clamp 3"
or
L-Rix 5200 Sensor VARIVENT®N
or
L-Rix 5200 Sensor Tri-Clamp 3"
or
L-Rix 5000 Transmitter VARIVENT®N
(L-Rix 5100 + Pico 3000 Version Analog,
no HMI)
219623
220644
219675
220645
220646
1
Instruction Manual
2
Cable gland 90711
4
Dummy plug 92575
TIP For details on mPDS 5 and Pico 3000 please refer to the respective instruction manuals.

3 Checking the Supplied Parts
14 D32IB002EN-D
OPTIONS ACCORDING TO INDIVIDUAL ORDER
Installation Options
Power supply DC 24 V, 2.5 A 96693
1VARINLINE®Access unit set 1.5" OD
max. 16 bar
18479
1VARINLINE®Access unit set 2.5" OD
max. 16 bar
130305
1VARINLINE®Access unit set 2" OD
max. 16 bar
89898
1VARINLINE®Access unit set 2" IPS
max. 16 bar
156966
1VARINLINE®Access unit set 3" OD
max. 10 bar
17287
1VARINLINE®Access unit set 3" IPS
max. 10 bar
97652
1VARINLINE®Access unit set 4" IPS
max. 10 bar
17480
1VARINLINE®Access unit set 4" IPS
max. 10 bar
97653
1VARINLINE®Access unit set 6" IPS
max. 10 bar
155212
1VARINLINE
®Access unit set DN 40 101119
1VARINLINE®Access unit set DN 50
max. 16 bar
101116
1VARINLINE®Access unit set DN 65
max. 16 bar
14872
1VARINLINE®Access unit set DN 80
max. 10 bar
14874
1VARINLINE®Access unit set DN 100
max. 10 bar
14875
1VARINLINE®Access unit set DN 125
max. 10 bar
18317
1VARINLINE®Access unit set DN 150
max. 10 bar
101045
Symbol Pcs. Article description Mat. No.

3 Checking the Supplied Parts
D32IB002EN-D 15
Inline VARIVENT®Adapter DN 25 185900
Inline Tri-Clamp Adapter G1/2" 186577
Inline Tri-Clamp Adapter G1" 186551
VARINLINE®Deflector DN 40 186588
VARINLINE®Deflector DN 65 185877
VARINLINE®Deflector DN 80 185898
VARINLINE®Deflector DN 100 185899
1
Housing connection flange Tuchenhagen
10 bar
21331
1
VARINLINE®Connection flange 90° bend
16 bar
154765
1
Tri-Clamp housing connection flange
max. 16 bar
145823
1
VARINLINE®Prism Wash System DN 65/2.5"
max. 10 bar
or
VARINLINE®Prism Wash System DN 80/3"
max. 10 bar
or
VARINLINE®Prism Wash System DN 100/4"
max. 10 bar
158794
158795
158797
Symbol Pcs. Article description Mat. No.

4 Putting the Inline Refractometer into Operation
16 D32IB002EN-D
4 Putting the Inline Refractometer into Operation
4.1 Installation Requirements 4.2 Mounting Positions of the
L-Rix 5000/5100/5200
The L-Rix 5000/5100/5200 can be installed in a hor-
izontal or vertical pipe or at a pipe bend of 90°. The
flow direction makes no difference in all installation
options. Optionally, a deflector or prism wash sys-
tem can be installed.
WARNING
• Installation, putting into operation,
maintenance and service work
should only be carried out by
trained and authorized personnel.
• Observe the permissible operating
and ambient conditions for the
L-Rix 5000/5100/5200 (see Appen-
dix A Specifications).
• Do not exceed the defined maxi-
mum pressure, maximum sample
temperature and maximum CIP/SIP
temperature for L-Rix 5000/5100/
5200.
NOTICE
• Read this manual carefully before installing
the L-Rix 5000/5100/5200. Incorrect opera-
tion can result in damage to the sensor.
• Work on the instrument with care!
NOTICE
CIP/SIP temperature > 145 °C (293 °F) can
damage the detectors!
CIP/SIP duration > 30 minutes can damage the
detectors!
Line pressure absolute 100 mbar to
16 bar
(10 bar @ > 120 °C
[248 °F])
Process temperature - 20 °C to 105 °C
(- 4 °F to 212 °F)
Max. temperature
(CIP/SIP)
up to 145°C
(293 °F)
Max. duration of SIP at
145 °C
30 min
Power supply DC 24 V
Ambient temperature -20°C to 60°C
(- 4 °F to 140 °F)
NOTICE
Installation of L-Rix 5000/5100
It is recommended not to install the L-Rix 5000/
5100 with Pico 3000 and HMI downwards or
upwards.

4 Putting the Inline Refractometer into Operation
D32IB002EN-D 17

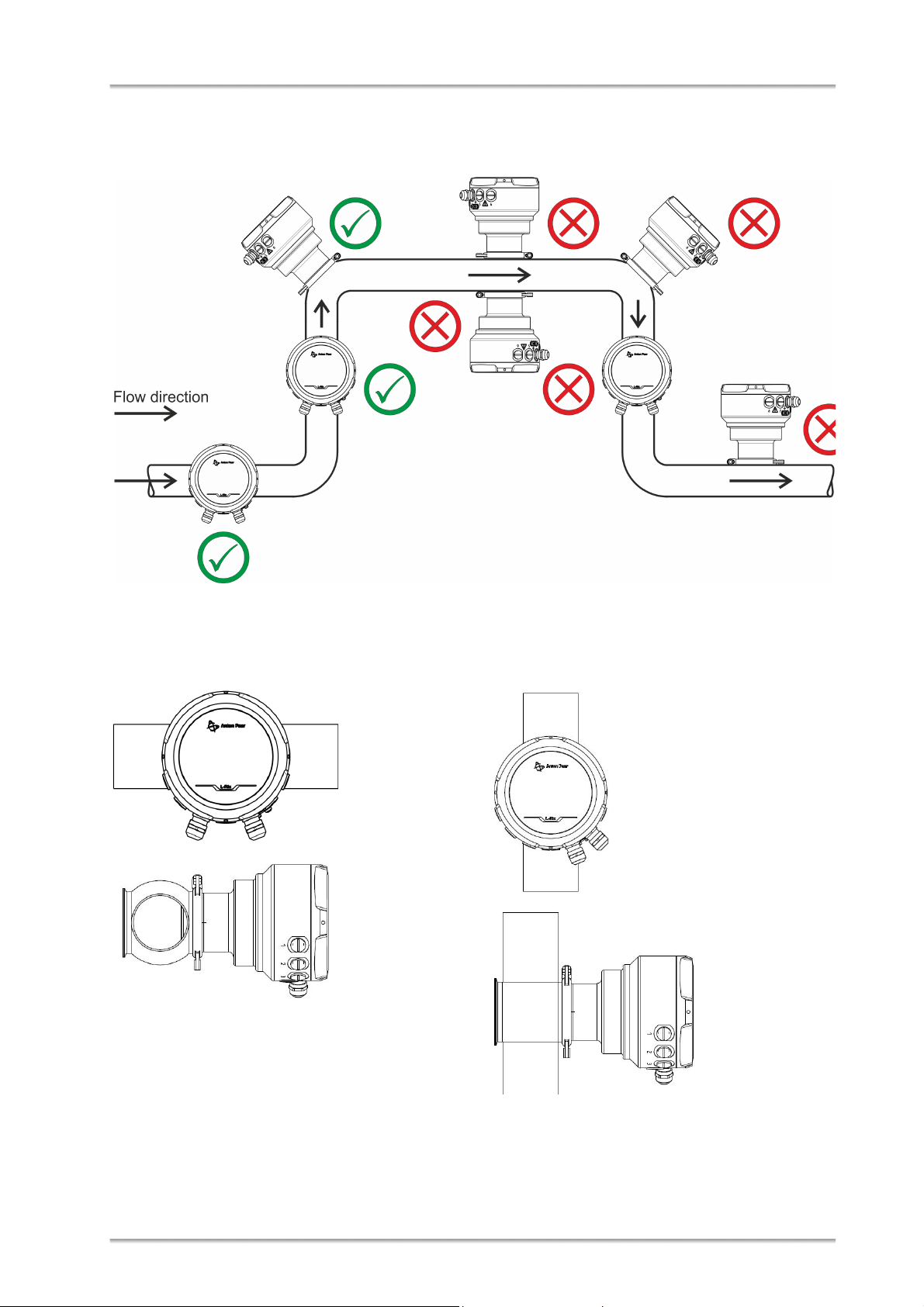

4.2.1 Location of L-Rix 5000/5100/5200 within a Pipework
Fig. 11: L-Rix 5000/5100/5200 within a pipework
4.2.2 Installation in a Horizontal Pipe
Fig. 12: Installation in a horizontal pipe
4.2.3 Installation in a Vertical Pipe
Fig. 13: Installation in a vertical pipe

4 Putting the Inline Refractometer into Operation
18 D32IB002EN-D
4.2.4 Installation at 90° Bend
Fig. 14: Installation at pipe bend
4.2.5 Prism Wash System
The L-Rix 5000/5100/5200 is appropriate for stan-
dard cleaning procedure according to the specifica-
tions:
In case L-Rix 5000/5100/5200 is installed in process
flows without any regular cleaning procedures, de-
posits could build-up on the prism surface and dis-
turb the measurement (abnormal high
concentrations and upward concentration drift). The
prism wash system is an accessory to solve the
coating problem.
For a perfect cleaning the distance between the
wash nozzle and the prism must be correct. There-
fore 3 different standard systems are available ac-
cording to the pipe diameter:
VARINLINE®Prism Wash System DN 65 or 2.5"
VARINLINE®Prism Wash System DN 80 or 3"
VARINLINE®Prism Wash System DN 100 or 4"
1 Wash nozzle
Fig. 15: Prism wash system (VARIVENT flange)
4.2.5.1 Mounting the Prism Wash System
The prism wash system must be mounted in the line
opposite to the L-Rix 5000/5100/5200. It can be
used with cold or warm water under a pressure of
max. 10 bar when the line is empty. For optimal re-
sults wash for 30 seconds or more.
TIP: It is recommended to wash the prism once a
week when the pipe is empty.
.
1Prism
2 Wash nozzle
3 G3/8" thread for washing liquid
Fig. 16: Installation position of prism wash system
NOTICE
CIP/SIP temperature > 145 °C (293 °F) can
damage the detectors!
SIP at 145 °C and duration > 30 minutes can
damage the detectors!
NOTICE
The prism wash system is delivered without cut-
off valve.
1
2
1
3

4 Putting the Inline Refractometer into Operation
D32IB002EN-D 19
4.2.6 Deflector
The deflector will be installed opposite the
L-Rix 5000/5100/5200 and will deflect the flow to-
wards the prism for a self cleaning effect.
For a perfect cleaning the distance between the de-
flector and the prism must be correct. Therefore 4
different standard systems are available according
to the pipe diameter:
VARINLINE®Deflector DN 40 or 1.5"
VARINLINE®Deflector DN 65 or 2.5"
VARINLINE®Deflector DN 80 or 3"
VARINLINE®Deflector DN 100 or 4"
4.3 Electrical Wiring
TIP The L-Rix 5000 Transmitter Varivent N already
includes a Pico 3000 Version Analog. So L-Rix 5000
can not be used in combination with any other Pico
3000 version, the Pico RC nor with mPDS 5. There-
fore some parts of this chapter do not refer to the
L-Rix 5000 Transmitter.
Recommendations:
• Only use shielded cables with double insulation.
Ground the shield of the CAN cable on both
sides (mPDS 5/Pico 3000 RC and sensor side)
and make sure that there is no potential differ-
ence between the sensor and the evaluation
unit.
• Check the polarity when lengthening the cable.
• Use a screwdriver (0.4 x 2.5 mm) to install the
cables in the plugs.
4.3.1 Interface Overview
1 CAN address selector (default=0)
2 Terminal block for power supply and CAN connection
Fig. 17: L-Rix 5100/5200 Sensor interfaces wiring
4.3.2 Wiring the Sensor and mPDS 5 or
Pico 3000
All sensors communicate with the mPDS 5 or Pico
3000 RC via a CANopen bus network. The mPDS 5
or Pico 3000 RC is the CAN-master, all sensors are
slaves.
WARNING
General Risk
The instructions given in this chapter
must be followed precisely. Installation
and service work are only allowed to
be performed by trained and autho-
rized personnel.
DC 24 V Power supply
CAN
H/L/GND
Anton Paar CANopen for communi-
cation between sensor and mPDS 5
or Pico 3000 RC
NOTICE
The CAN address must be set if several sensors
are connected to one mPDS 5.
1
2

4 Putting the Inline Refractometer into Operation
20 D32IB002EN-D
Fig. 18: Detailed view of the terminals of the sensor
All sensors have 2 CAN-interfaces. One is used for
the connection to the Pico RC or to the mPDS 5 and
the other one is used for the terminating resistor or
an additional sensor in the CAN-network. It does not
matter which one is used as CAN IN and CAN OUT.
A CAN-network wiring of more than one sensor can
be done simply without cable stubs.
The CAN-bus needs a 120 Ωterminating resistor at
one CAN-interface. To build up a network with more
sensors, the terminating resistor at CAN OUT must
be removed so that the next sensor can be connect-
ed at CAN OUT. If several sensors of the same type
are connected to one mPDS 5, unique addresses
must be selected.
CAN-cable assignment for CAN-cable (mat.no.
94268) if a separate power cable is used:
CAN-cable assignment for CAN-cable with power
supply:
TIP Wiring of the sensor with integrated Pico 3000
is described in the Pico 3000 reference guide.
Wire color
CAN H Yellow (#1)
CAN L Green (#2)
CAN GND Brown (#3)
Not used White (#4)
Wire color
CAN H Yellow (#1)
CAN L Green (#2)
CAN GND Brown (#3)
+24 V White (#4)
