User Manual

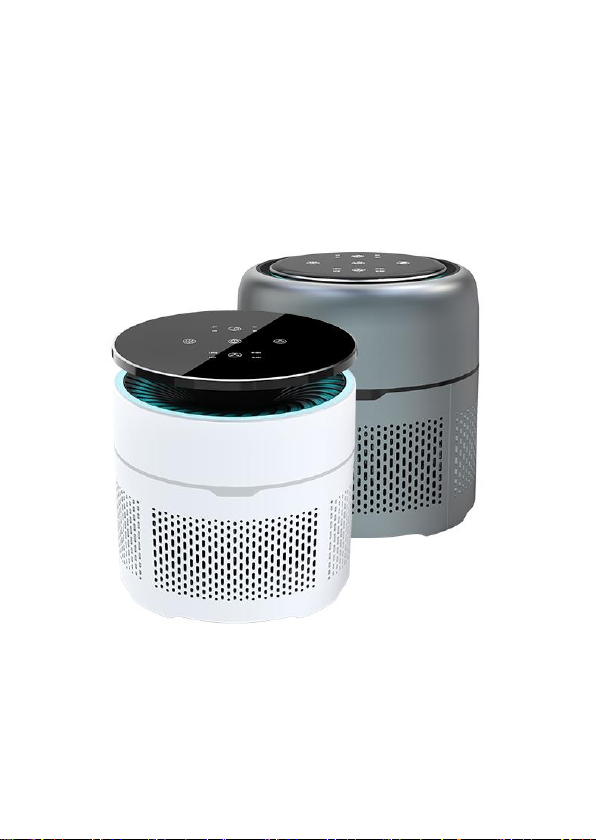

Intelligent Sterilization Air Purifier
AP-M1 Series
AP-M2 Series
Thank you for choosing us
Please read this user manual before using this
Incredible air purifier and keep it for future reference.

GETTING TO KNOW YOUR AIR PURIFIER：
Package Contents:
Main Unit *1 Power Adaptor *1
User Manual *1 HEPA Filter *1(Inside)
Operation Panel
Air Outlet
Air Inlet
Filter Cover

Getting Started:
1. Unpack the air purifier from the box, remove the plastic
bag that covered on the main unit.

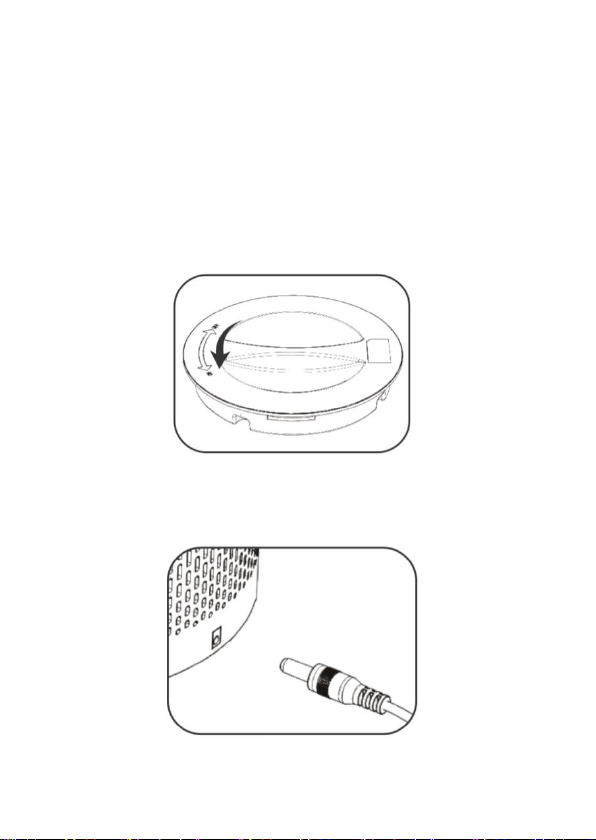

2. Upside down the air purifier, hold and rotate the filter
cover anticlockwise to the“ON”sign, open and remove the
plastic bag of the filter before use.
3. Plug in the connector to the power port at the bottom of
the air purifier, make sure the connection is secure and put
the power adaptor to the socket.

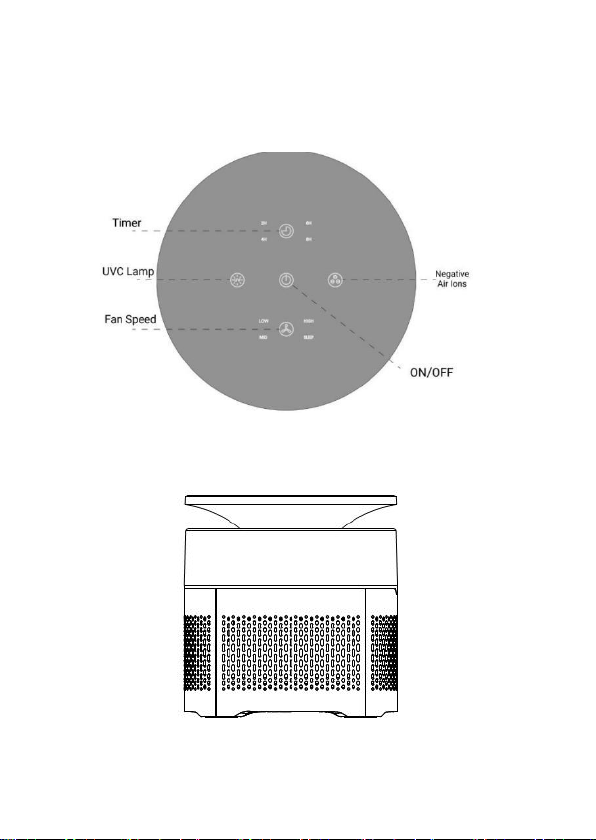

Operation Interface:

CONTROLS
Before Use: Please remove the plastic bag of the filter.
⚫Any service other than regular cleaning or filter
replacement should be performed by qualified
electrician. Failure to comply could result in a voided
warranty.
⚫This air purifier must only be connected to the power
adaptor along with the package with your country or
region standard outlet.
⚫If not in the room for a long time, please turn off the
air purifier for energy saving and prolong the HEPA
Filter's life time.
⚫Avoid touching any moving parts within the air purifier.
Never insert fingers or any other objects through the
fan guard.
⚫For maximum performance and safety, the minimum
distance from a wall or objects should be 20cm, to keep
the air inlet clear.
⚫Do not place any object on top of the touch panel, in
case of unintended activation.
Upside down the air purifier, hold and rotate the filter
cover anticlockwise to the“ON”sign, open and remove the
plastic bag of the filter before use. Reload the HEPA filter and
secure the filter cover.

ON/OFF:
Press the
“ON/OFF”button, the
indicate light will turn from
slightly bright to bright. At
the same time the other
button start to slightly
bright.
Fan Speed:
Press the“Fan
Speed”button, the light
will turn to bright, with
default Mid Wind. And you
can select 4 different fan
speed (High, Mid, Low,
Sleep). When you set the
fan speed at High, Mid,
Low, the ambient light will
turn on. Ambient light turn
off at sleep mode.
Timer:
Press the
“Timer”button,
the light will turn to bright;
you can select 2h, 4h, 6h,
8h countdown and always-
on mode. Once you finish
the selection, the
countdown time indicate
light will turn on. Default
starting up with always-on
mode.
Negative Air Ions
(NAIs):
Press the“NAIs”button,
indicate light will turn
bright. The Negative-ion
generator start to release
NAIs. Press again to close
it.
UVC:
Press the “UV”
button, the indicate light
will turn bright. The UVC
Sterilization Lamp will start
to operate. Press again to
close it.
PLEAE DO NOT LOOK DIRECT TO THE UVC LAMP,
HARMFUL TO EYES AND SKIN.

HOW TO REPLACE FILTER
The HEPA filter life time is approximately 6-12 months
（1500 hours）,when the indicate light of 5 touch buttons start
to blink while you turn on the air purifier. That is the
notification of HEPA filter replacement.

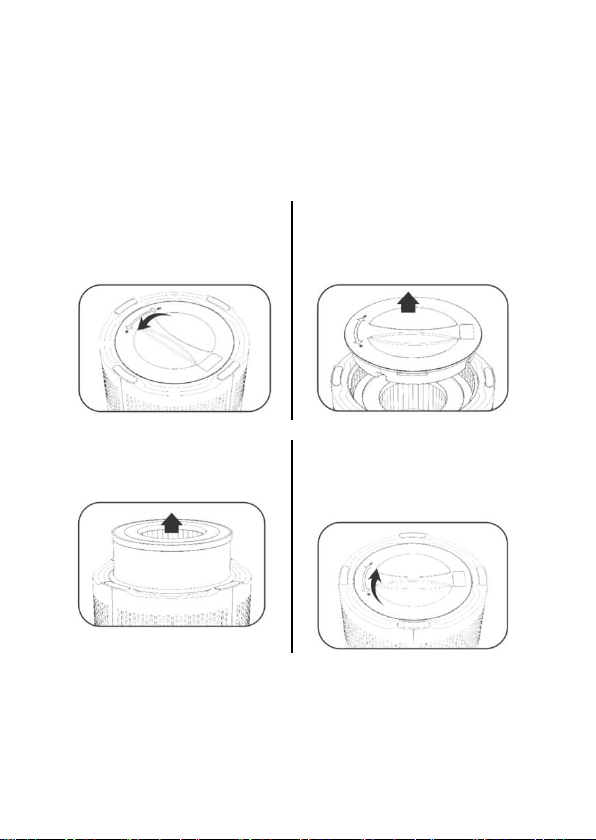

1、Upside down the air
purifier, and rotate the filter
cover clockwise to the“ON”
sign.
2、Pull out the filter cover.
3、Take out the old HEPA
filter, and replace a new one.
4、After put down the filter,
recover the filter cap.
Clockwise and rotate to
the “OFF”sign.
After you changed the HEPA filter. Press the ON/OFF
button for over 10 seconds when the air purifier is on. The
air purifier will automatically start to recalculate the filter
life time.

MAINTENANCE
Safety Protection Tips：
⚫Always shut off the unit and unplug from the socket
before cleaning or performing any maintenance.
⚫Avoid touching any moving parts within the air purifier.
Never insert fingers or any other objects through the
fan guard.
⚫Do not clean the unit by spraying it or immersing it in
water. Use a damp cloth only. Never allow water or
vapors to enter the air purifier unit.
HIGH VOLTAGE ELECTRIC SHOCK WARNING, DO NOT PUT
ANY METAL OBJECTS INTO THE WIND OUTLET.
（The Negative-ion generator will boost up the voltage to -
5000V, creating electric-corona to release NAIs）
HEPA Filter & Wind Inlet Maintenance：
⚫HEPA filter and wind inlet should be cleaned gently by
using a vacuum cleaner to suck away dust and debris
from the surface of them. More frequent cleaning may
be necessary, depending on the air quality.
⚫Use a damp cloth to wipe the wind inlet.
⚫REMEMBER filters are non-washable, water should not
be used on HEPA filters.
Ultraviolet Radiation Warning：
⚫While the unit is connected to power, do not open the
filter cover. Especially when the UVC lamp is on
⚫Do not turn on the purifier without loading the filter.
PLEASE! DO NOT LOOK DIRECT TO THE UVC LAMP,
HARMFUL TO EYES AND SKIN.

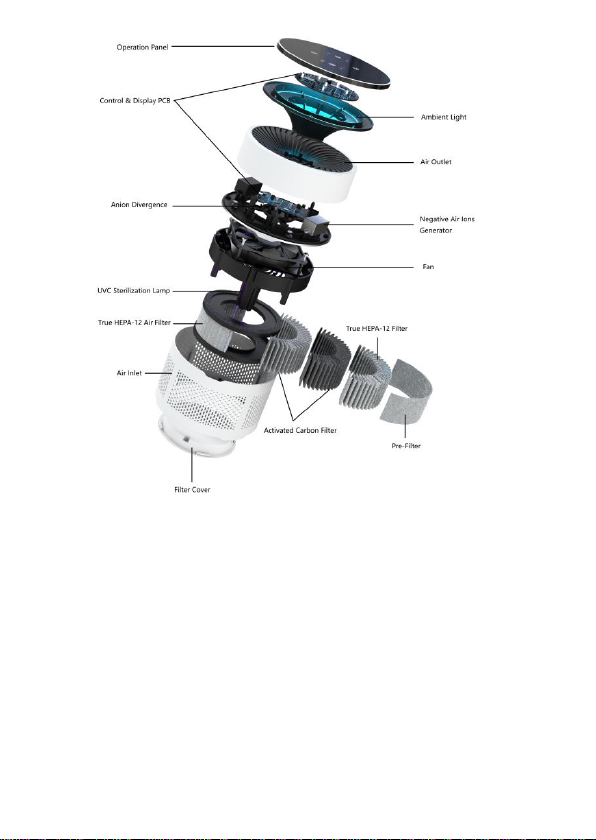

1. Pre-Filter
Helps to neutralize large particles such as lint, fibers,
hair and pet fur.
2. True HEPA-12 Filter
Traps 99.97% of fine particles such as PM2.5, bacteria,
viruses, cigarette smoke, dust & pollen, and other allergens
small as 0.3 microns.
3. Activated Carbon Filter
Absorbs formaldehyde, household odor, volatile organic
compounds (VOCs) and other harmful gases

TROUBLESHOOTING
ISSUE
CHECK
Not Working
1. Check the power adapter is
connected and is the correct rating.
2. Make sure the filter cover is sealed.
3. The HEPA Filter must be in place.
4. Ensure the front panel and the air
purifier unit are undamaged.
Buttons Blinking
1. Press the ON/OFF buttons for
10 seconds to reset the Filter
Lifetime.
Abnormal
Pollutant Smells,
Loud noise
when running
1. Check if the filter is clean.
2. Replace the filter
SPECIFICATIONS
Product Name
Intelligent Sterilization Air Purifier
Model
AP-M1/AP-M2
Rated Power
8W
Power Supply
Input: 100~240V, 50/60Hz
Output: DC 12V, 1.2A
DC-002, 1.1mm
UV Lamp
Ozone Free Quartz
Power 1.5W, Length 48mm
UVC Wave Length 250-280mm
NAIs Module
Output -4V~-5000V, 1200W
Fan Size
120*120*25mm, 12V, 420mA
Filter
HEPA-12 Filter,
Size φ140mm*55mm
Product Size
φ188mm*202mm
Weight
1.2Kg
Noise
30-50dB(A)
CADR
150
