Anvil 2010AOR User manual
VEHICLE RECOVERY
ELECTRIC WINCH
OPERATION MANUAL
READ BEFORE YOU INSTALL
AND USE WINCH
ATV WINCH
2010AOR - 2000 lb. winch w/
synthetic rope & aluminum fairlead
3510AOR - 3500 lbs. winch w/
synthetic rope & aluminum fairlead
4511AOR - 4500 lbs. winch w/
synthetic rope & aluminum fairlead
4501AOR - 4500 lbs. winch with
metal cable & roller fairlead
/
vwaming
vwaming
(1)
F
Right
(2)
Right Wrong
vcaution

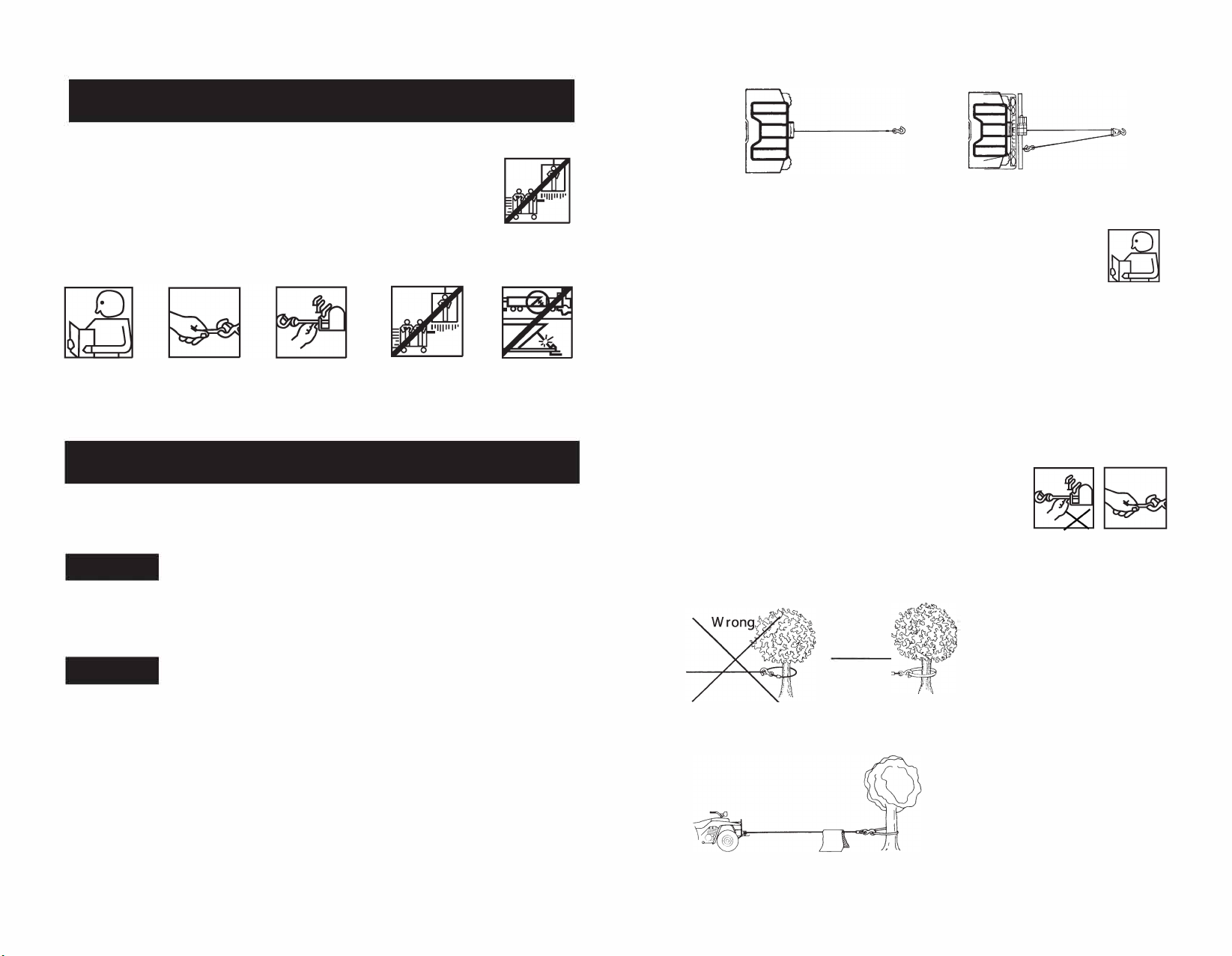

INSTALLATION
When mounting, check all vehicle and winch parts for
free operation. Be sure that the winch mounting
location does not significantly reduce ground clearance.
(3)
Step (1)
Step (2)
Step (3)
vwarning Batteries contain gasses which are flammable and
explosive. Wear eye protection during installation and
remove all metal jewelry. Do not lean over battery
while making connections.
Step (4)
(4)
Motor + (Red)
Motor -(White)
(5)
O
Frees pool
CAUTIONi
on
WINC
WINCH OPERATION
HING
(6)
CAUTIONi
on
WARNINGi
on
OPERATION OF WIRELESS REMOTE
Before you begin, you should familiarize yourself with
our Wireless Remote Control and each of its
functions.
Note: Turn off the remote to extend the battery life.

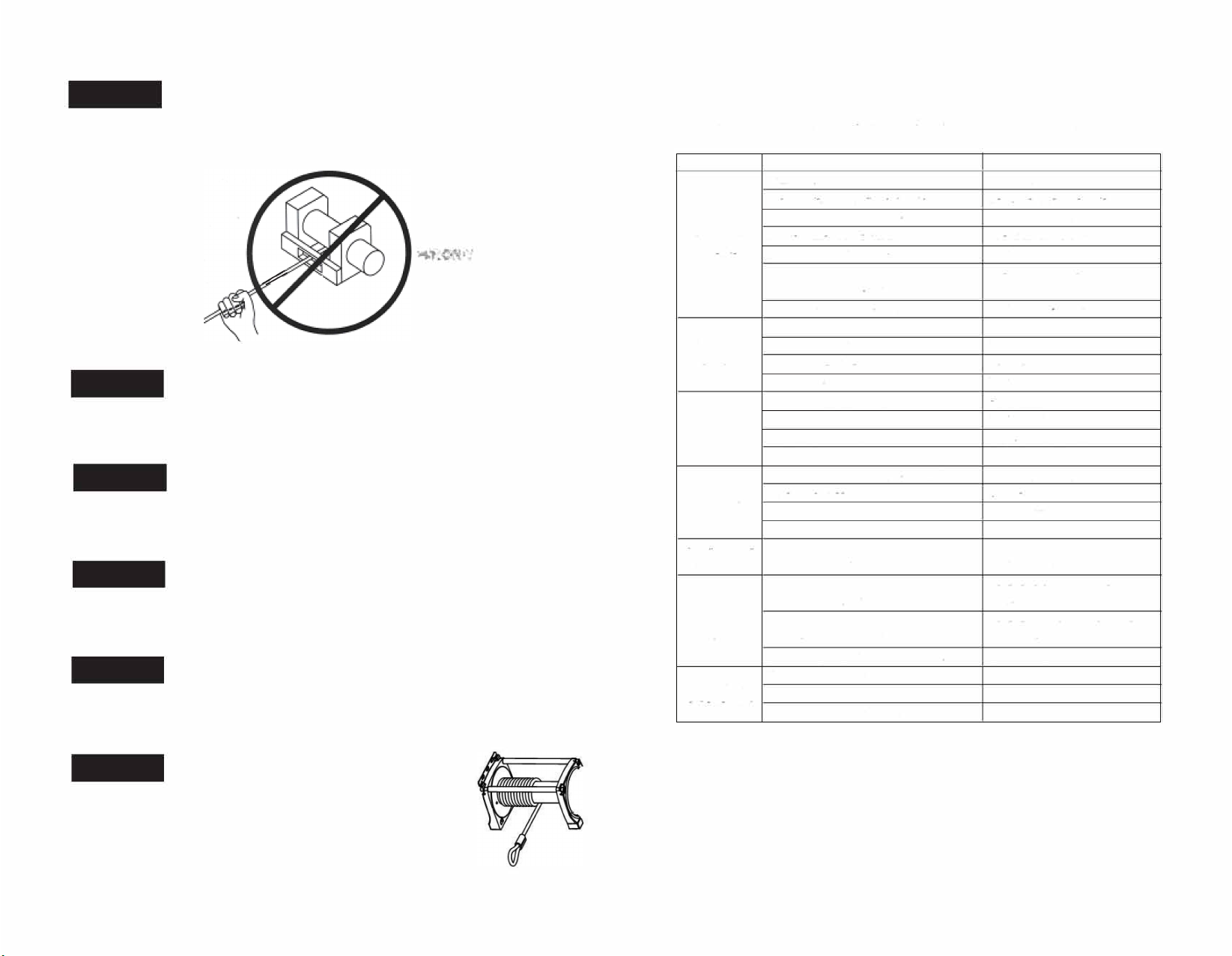

VDanger
Never touch the metal or synthetic rope or hook while they are in
tension or under load. Even at rest, the winch may have
the metal or synthetic rope in tension. Never guide a
metal or synthetic rope under tension onto the drum with
your hands.
Wft,ONG
VDanger
Wear heavy leather gloves when handling metal or synthetic
rope. When handling the hook, always use the hook handle.
vcaution
VDanger
VDanger
VDanger
Use a pulley block to avoid winching at sharp angles. Uneven
layering will cause serious damage to the winch and metal or
synthetic rope. It can be corrected by securing load, spooling
out the wire rope and repositioning it to the opposite end of
the drum.
Do not disengage clutch under load, If your winch is
equipped with a freespool clutch, be certain that there is no
tension on the metal or synthetic rope when you disengage
the clutch. Before winching a load , be sure the clutch is
fully engaged.
Ne ver rely on the winch to hold a load in place . None of our
winches are designed for load-holding applications and may
unwind or fail due to shock loading as the load is being
transported. The load should be secured by other means,
and the winch hook detached from the load.
A minimum of 5 wraps of cable on the
drum is required to hold load. Otherwise
the cable will leave the drum of the winch
and cause damage.
(7)
s
:
st
st
(8)
(9)
(10)
