AOC A2072PWH User manual

1
SMART All-in-One User Manual
A2072PWH/A2272PWH/A2472PWH
www.aoc.com
©2013 AOC.All Rights Reserved.

2
TABLE OF CONTENT
SAFETY ....................................................................................................................................4
National Conventions....................................................................................................................4
Power ................................................................................................................................................5
Installation ........................................................................................................................................6
Cleaning ............................................................................................................................................7
Other.................................................................................................................................................8
SETUP.......................................................................................................................................9
Contents of the Box......................................................................................................................9
Adjusting Viewing Angle.................................................................................................................9
Connecting the Monitor ............................................................................................................ 10
Connecting usb keyboard & mouse ........................................................................................ 11
Setting up the USB keyboard.............................................................................................. 11
ADJUSTING......................................................................................................................... 12
Setting Optimal Resolution ....................................................................................................... 12
Windows Vista ....................................................................................................................... 12

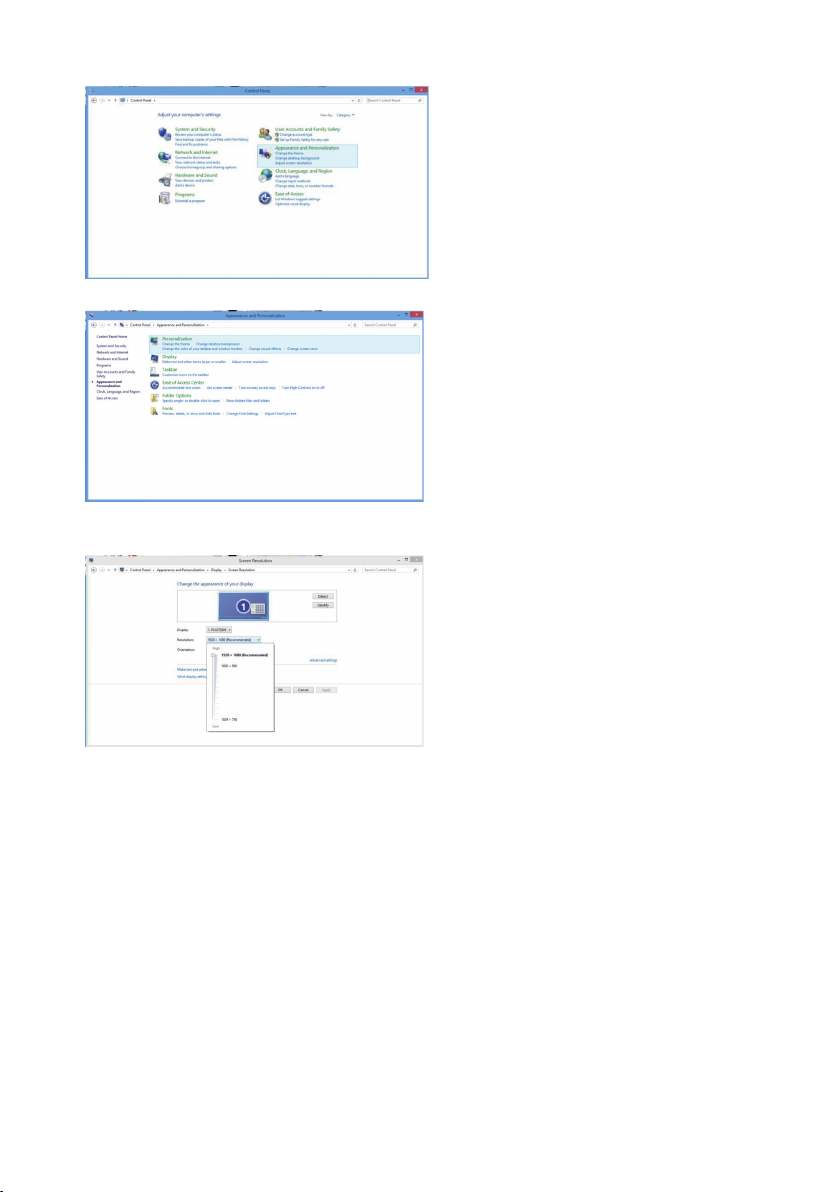

Windows 8 ............................................................................................................................. 13
Windows ME/2000 ............................................................................................................... 14
OPERATING INSTRUCTIONS....................................................................................... 15

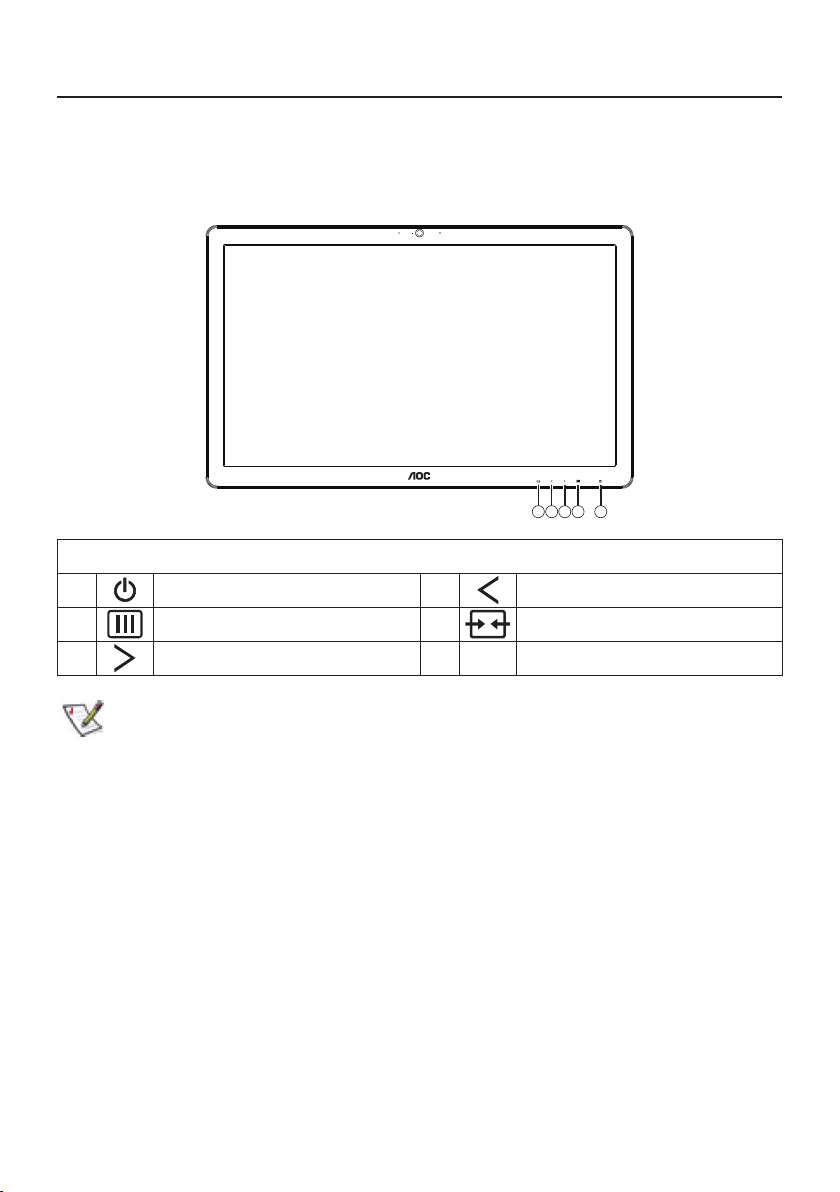

Hotkeys.......................................................................................................................................... 15
OSD Setting.................................................................................................................................. 16

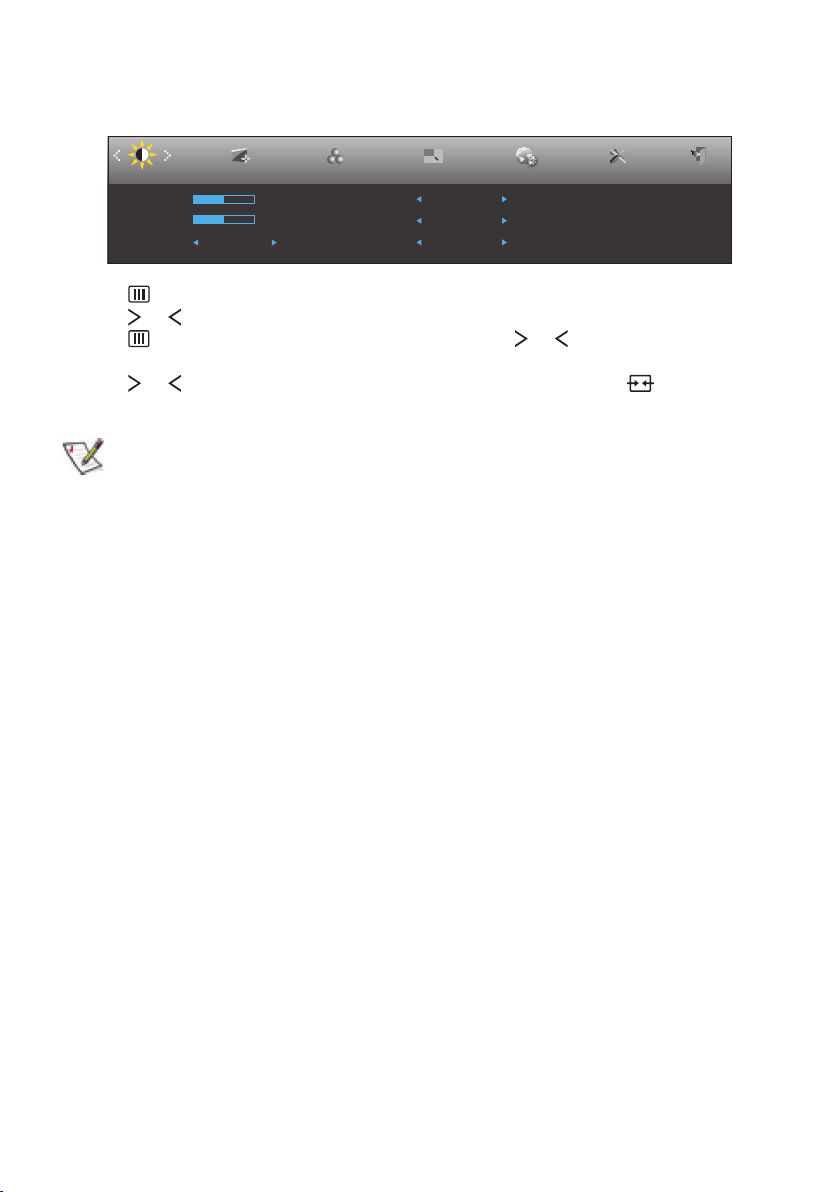

Luminance............................................................................................................................... 17
Image Setup ............................................................................................................................ 18

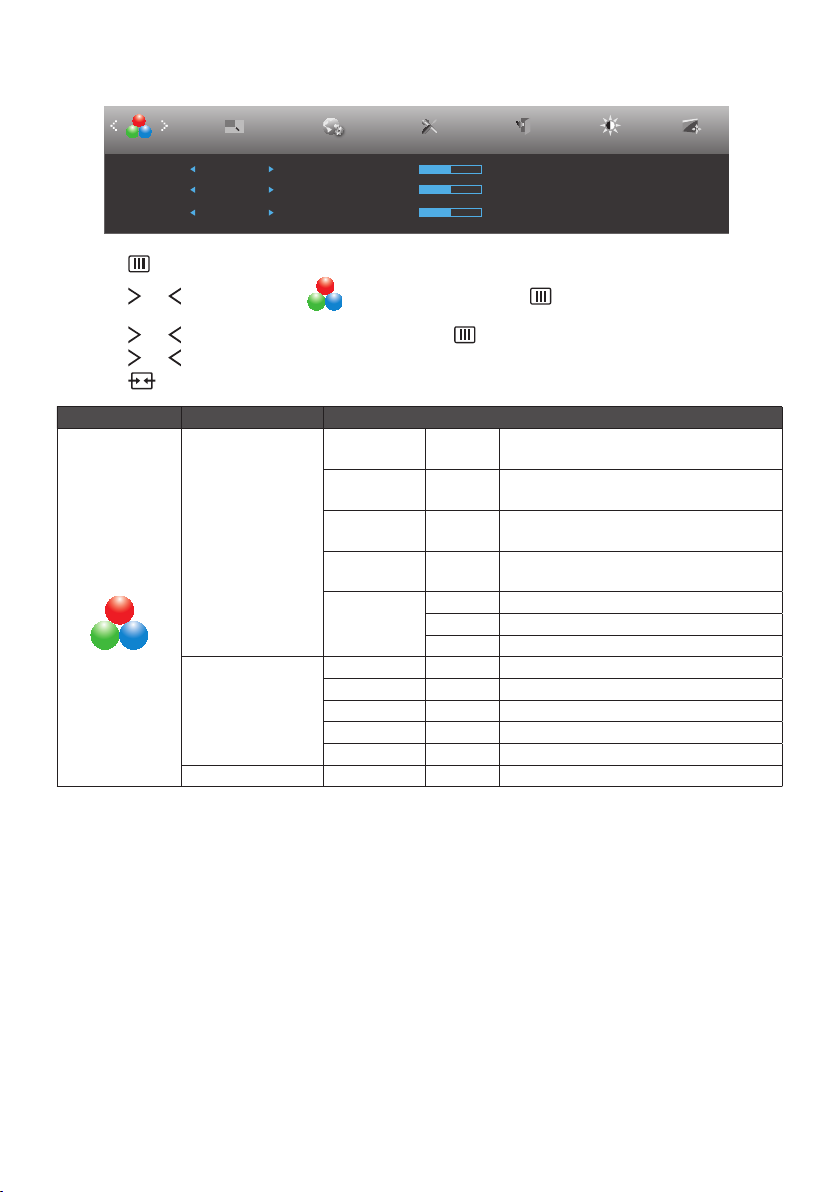

Color Setup............................................................................................................................ 19

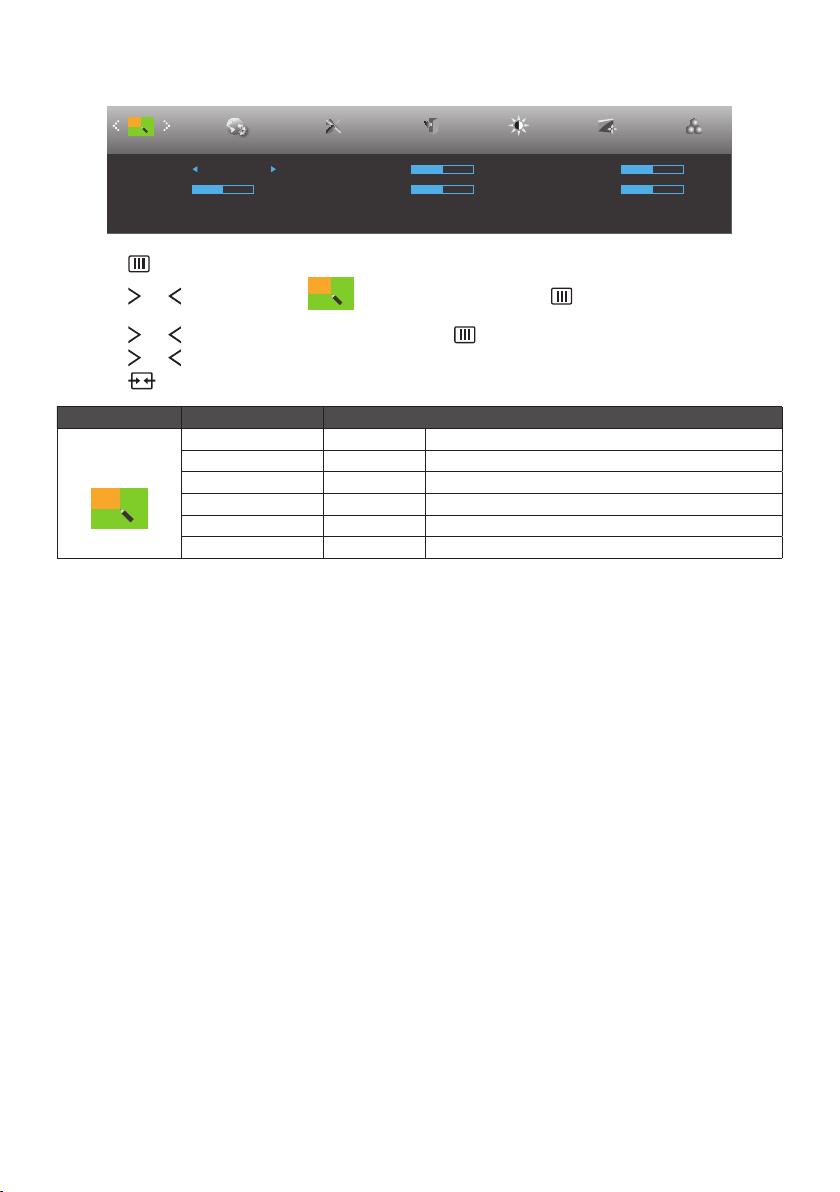

Picture Boost ......................................................................................................................... 20
OSD Setup.............................................................................................................................. 21
Extra......................................................................................................................................... 22
Exit............................................................................................................................................ 23
LED Indicator ............................................................................................................................... 23
STARTING WITH ANDROID.......................................................................................... 24
Customizing your Home Screen.............................................................................................. 25
Viewing the Apps Gallery........................................................................................................... 25
Browsing the Internet................................................................................................................. 25
Using the On-screen Keyboard................................................................................................ 26
Connecting to Network ............................................................................................................ 26
Adjusting the Settings for Android .......................................................................................... 27
Android Software Update ......................................................................................................... 29
Local update ........................................................................................................................... 29
DRIVER ................................................................................................................................. 30

3
Monitor Driver ............................................................................................................................ 30
Windows 8 ............................................................................................................................. 30
Windows 7 ............................................................................................................................. 35
Windows Vista ....................................................................................................................... 39
Windows 2000 ...................................................................................................................... 41
Windows ME.......................................................................................................................... 41
i-Menu ............................................................................................................................................ 42
e-Saver............................................................................................................................................ 43
Screen+.......................................................................................................................................... 44
TECHNICAL SUPPORT (FAQ)....................................................................................... 45
Troubleshoot ................................................................................................................................ 45
Error Message & Possible Solution.......................................................................................... 46
No Signal................................................................................................................................. 46
Input Not Support ................................................................................................................ 46
APPENDIX ........................................................................................................................... 47
Plug And Play................................................................................................................................. 47
Keyboard And Mouse ................................................................................................................. 47
Specifications ................................................................................................................................ 49
Preset Display Modes ................................................................................................................. 52
For HDMI................................................................................................................................ 54
Pin Assignments............................................................................................................................ 55
REGULATION..................................................................................................................... 56
EUROPE......................................................................................................................................... 56
TAIWAN........................................................................................................................................ 57
USA................................................................................................................................................. 57
CANADA...................................................................................................................................... 58
MEXICO........................................................................................................................................ 59
BRAZIL .......................................................................................................................................... 59
KOREAN ....................................................................................................................................... 59
FCC Notice .................................................................................................................................. 60
WEEE Declaration....................................................................................................................... 60
WEEE Declaration for India...................................................................................................... 61
SERVICE ................................................................................................................................ 62
Warranty Statement for Europe.............................................................................................. 62
Warranty Statement for North & South America (excluding Brazil) .............................. 64
Ease Programe.............................................................................................................................. 67

4
SAFETY
NATIONAL CONVENTIONS
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in
italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE:
A NOTE indicates important information that helps you make better use of your monitor..
CAUTION:
A CAUTION indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
WARNING:
A WARNING indicates the potential for bodily harm and tells you how to avoid the
problem. Some warnings may appear in alternate formats and may be unaccompanied by
an icon. In such cases, the specific presentation of the warning is mandated by regulatory
authority.

5
POWER
The monitor should be operated only from the type of power source indicated on the
label. If you are not sure of the type of power supplied to your home, consult your dealer
or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding)
pin.This plug will fit only into a grounded power outlet as a safety feature. If your outlet
does not accommodate the three-wire plug, have an electrician install the correct outlet,
or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the
grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of
time.This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or
electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which
have appropriate configured receptacles marked between 19V, 3.42A
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter (Output 19VDC) which have UL, CSA listed
license (Only for monitors with power adapter).
Manufacturers:
1) TPV ELECTRONICS(FUJIAN) CO., LTD model:ADPC1965
2) SHENZHEN HONOR ELECTRONICS CO., LTD. / model:ADS-65LSI-19-1 19065G

6
INSTALLATION
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the
monitor falls, it can injure a person and cause serious damage to this product. Use only
a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with
this product. Follow the manufacturer’s instructions when installing the product and use
mounting accessories recommended by the manufacturer.A product and cart combination
should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts
causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the
manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be
inadequate hence overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed
on the wall or with the stand:
Installed on the wall
4 inches
10cm
4 inches
10cm
4 inches
10cm
11 7/8 inches
30cm
Leave at least this space
around the set.
Installed with stand
4 inches
10cm
4 inches
10cm
11 7/8 inches
30cm
Leave at least this space
around the set.
4 inches
10cm

7
CLEANING
Clean the cabinet regularly with cloth.You can use soft-detergent to wipe out the stain,
instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product.The cleaning cloth
should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.

8
OTHER
If the product is emitting a strange smell, sound or smoke, disconnect the power plug
IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during
operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the
bezel may cause disturbing reflections from surrounding light and bright surfaces.

9
SETUP
CONTENTS OF THE BOX
1. LCD Monitor
2. CD Manual
3. Power Cord
4. Power Adapter
5. D-SUB Cable
6. Audio Cable
7. USB Cable (upstream)
8. HDMI Cable
9. USB Keyboard
10. USB Mouse
• Not all signal cables (D-SUB,Audio, USB , HDMI cables) and Keyboard , Mouse will be provided
for all countries and regions. Please check with the local dealer or AOC branch office for
confirmation.

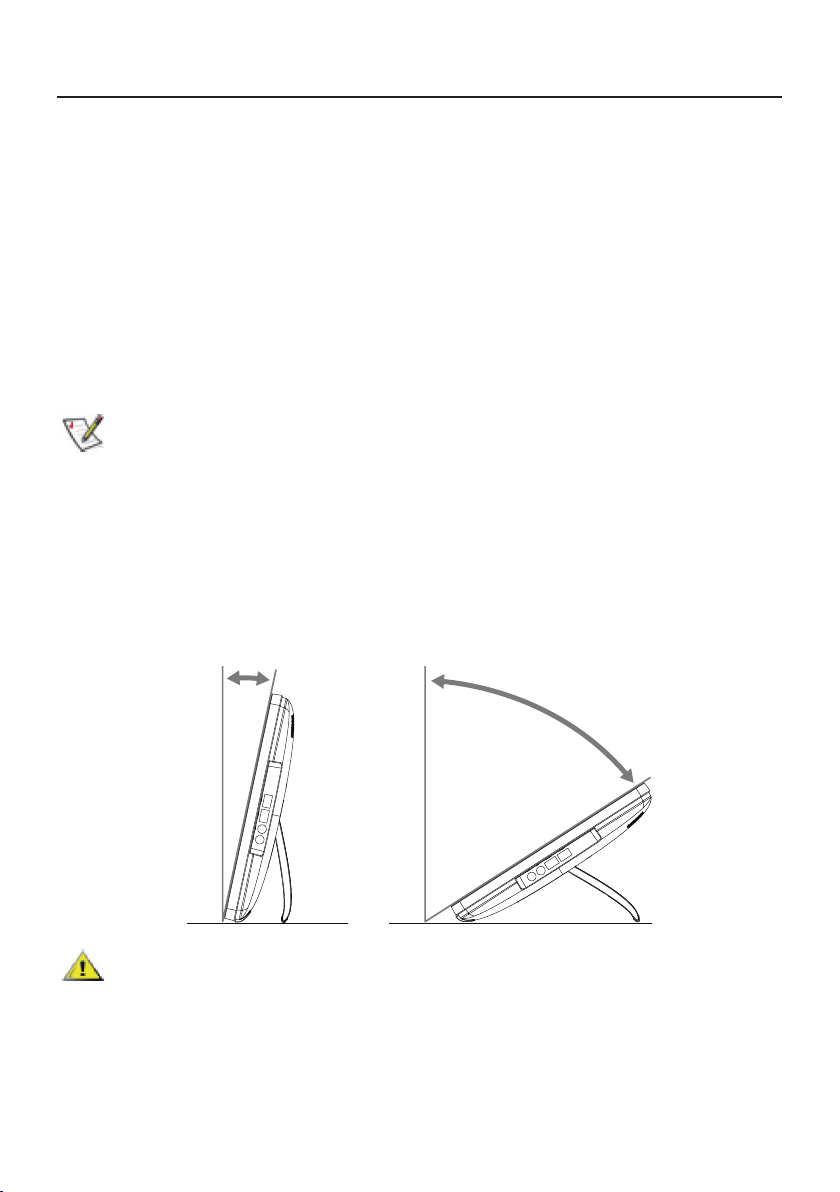

ADJUSTING VIEWING ANGLE
• For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust
the monitor’s angle to your own preference.
• Hold the stand so you will not topple the monitor when you change the monitor’s angle.
• You are able to adjust the tilted angle to 15°or 57°.
15° 57°
• Do not touch the LCD screen when you change the angle. It may cause damage or break the
LCD screen.
• It is recommended to stabilize with a fixed point in order to lock the stand if the tilted angle is
equal to or over 20°.
• Do not adjust the tilted angle less than 20°.The monitor may fall caused by instability.
• Pay attention not to bounce back the stand while adjusting the tilted angle.

10
CONNECTING THE MONITOR

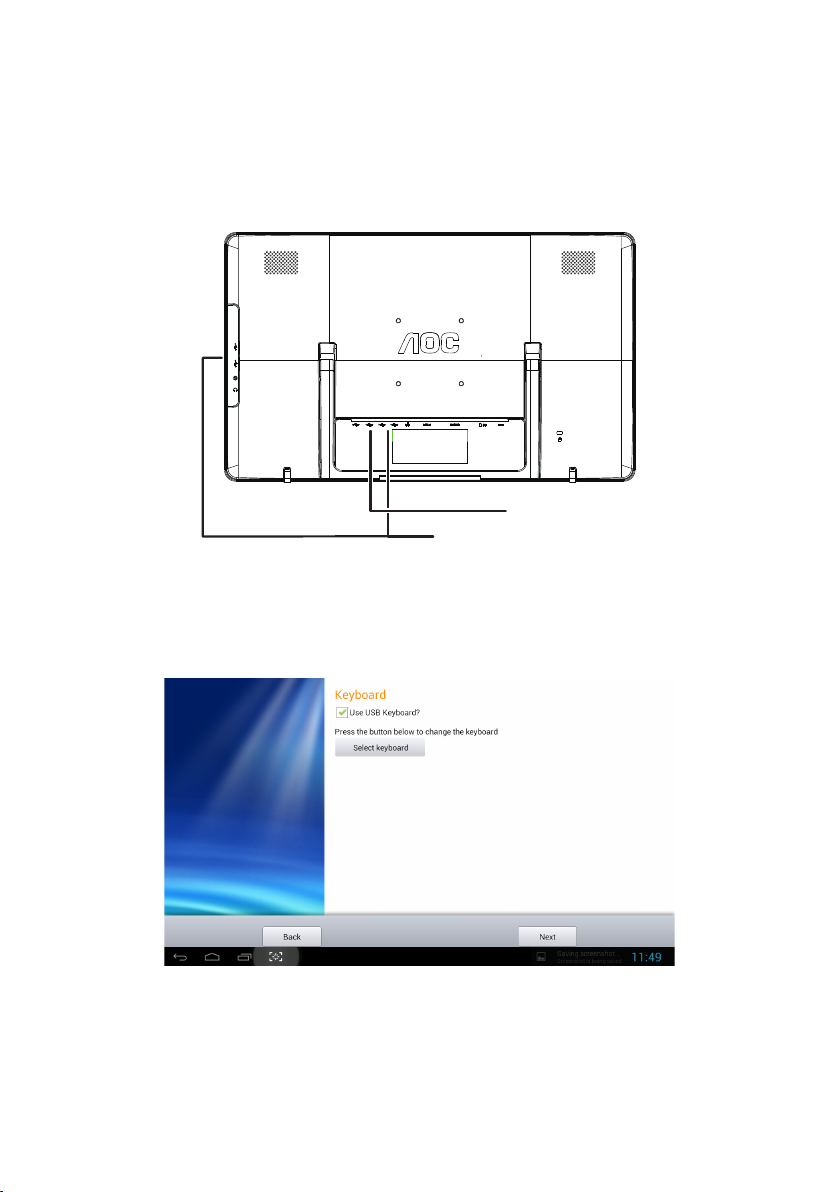

Cable connections at the back of monitor:
1
2
3
4
8
9
12
10
11
7
6
5
1. Power Input 7. USB Port
2. SD Card Slot (SD/SDHC/SDXC/
MMC/MS/MS-Pro) 8. USB Port (Micro USB)
3. D-SUB Signal Input 9. USB Port
4. HDMI Signal Input 10. Audio In
5. RJ45 (10/100Mbps) 11. Earphone Out
6. USB Port 12. Kensington Lock
To protect equipment, always turn off the PC and monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other
end to the computer’s D-Sub port.
3. Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to
the back of the monitor and connect the other end to the computer’s HDMI port.
4. Turn on your monitor and computer.
5. Video content supporting resolution:VGA / HDMI: 1600 x 900/60Hz (A2072PWH);1920 x
1080/60Hz(A2272PWH/A2472PWH).
If your monitor displays an image, installation is complete. If it does not display an image, please
refer Troubleshooting on page 45.
