1Introduction
CONGRATULATIONS! By purchasing a n AOS High Speed Camera high-speed digital imaging
system, you have acquired a versatile, future oriented, self -contained digital camera system.
AOS Technologies AG has combined advan ced camera features with easy to use software to
create a solution for your high -speed recording needs. The intent of this manual is to provide
the information required for a smooth operation of AOS High Speed Camera
General description of AOS High Speed C amera
AOS High Speed Camera is a high-speed camera capable of record and store data in its built-in
camera memory. The rechargeable battery allows operation of up to 15 minutes autonomous
time and up to 30 mins stand-by time.
Unpacking / Check of completeness
Unpack your camera from its transport box and check if all accessories are complete
Standard scope of delivery is:
Qty
Description
1
AOS High Speed Camera
1
Power/Trigger cable 0.5m (AOS# 2200121)
1
Power Supply
1
1
CAT6 Data cable 5.0m
ChillBox AOS #2100001 (not part of delivery for L -VIT 1000)
Standard scope of delivery may vary from model, territory and distributor.

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 6 of 34
2Connecting the camera to a PC
Prior the first use of your new AOS high speed camera, certain steps need to be followed for a
successful start.
2.1.1 Visual inspection
Unpack the camera and visual inspection. Check for any visible damages.
2.1.2 Battery charging (optional)
The basic versions of L-VIT and M-VIT do not include a built in battery for operation and/or
camera memory backup. It is therefore the sole responsibility of the user to take care of
storing of the recorded image data.
In case you have acquired the camera with built in re -chargeable battery note the following:
Prior its first use, as well as prior of any recording session when battery backup is imminent,
makes sure the battery is fully charged. This is also recommended if you have your high-speed
camera always connected to power as the built -in battery will protect the image memory
against power failures and power losses.
Connect your AOS high speed camera to power following these steps:
-switch off your camera
-connect the Power/Trigger cable (included with each camera) to the cameras I/O
connector at the rear
-connect the 2-pin LEMO connector of the Power/Trigger cable to the DC -Adapter
(included with each camera)
-Connect the DC-Adapter to mains (110…230VAC)
-Check if the cameras “Charge” LED lights up in green
-Charging time is approx. 4 hours (if battery is fully discharged)
The input range of AOS High Speed Camera is 10 to 36VDC. If applying
more than 36VDC serious damages of the camera results. Such damages
are not covered by the warranty.
External trigger signal
(closing switch / TTL low)
External power supply.
Also used to charge battery

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 7 of 34
Considerations for rechargeable Batteries used in AOS products
Before conducting any tests where battery operation of the camera or
backup of the memory in case of power fail is required make sure that the
capacity of the battery is sufficient and the battery is charged. AOS
Techno log ies is unde r no circu m stanc es resp onsible for an y loss of data
in case batte ries fail for what e ve r reas ons .
Batteries have a limited life time that heavily depends on the use of the
camera. The batteries are NO T covered by the AOS general warranty. AOS
warrants that at time of shipment the batteries have its nominal capacity.
Replacement of batteries by authorized and trained AOS personnel only.
Any kind of warranty is immediately void if batteries are replaced by non -
authorized personnel.
The batteries used in the AOS cameras are of NiMH type (Nickel metal
hydride). When disposing the camera make sure to follow proper
environmental handling and guidelines.

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 8 of 34
2.1.3 Switching-on and -off procedure
1- Switching on (standard) when camera is switched off
•press “Power” push button shortly
•wait until startup sequence has been completed
(“System” LED comes to a rest)
2- Switching off (standard) when camera is switched on
•press “Power” push button shortly
•“Power / Reset” LED will indicate the shutdown sequence
2.1.4 Reset to Factory Preset
When it is required to go back to factory presets (e.g. IP add ress unknown) the following
procedure applies
•Power off the camera.
•press and hold “Power” push button for more than 4 seconds
•once LED starts flashing release button and wait until startup sequence has been
completed
Note: The factory pre-set IP address is in the range of 10.0.0.115 to
10.0.0.130

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 9 of 34
2.1.5 Force camera shut-down
Sometimes, due to external events such as heavy EMI discharge on camera or DC voltage
electrical noise the camera “hangs up”. To abort any camera operation and enforce switch off
camera the following procedure applies:
•press “Power” push button for more than 4 seconds
•Camera shuts down without the normal p rocedure. This is only necessary and
recommended if the camera does not react on the standard switching off procedure
(see par. 3) or is in a “freak” position (i.e. all LED’s blinking)
Note that in case you switch off any C-series camera it is imminent to have
the camera unpowered for min 30 sec. before switch on again. When
switching on the camera within 30 sec after power down some setting may
not be deleted due to camera internal power management reasons.
Note: When it is necessary to reset the camera, hold the reset button
pressed for a minimum of 1 sec. Otherwise faulty settings may be loaded.
2.1.6 Connecting the camera to a PC
Your AOS camera does not need a special or dedicated control device, often called “camera
controller” or similar. With its standard Gigabit Ethernet data interface, your camera can be
simply connected to any standard PC (Laptop or Desktop) or Ethernet -based LAN data
network.
Follow the following steps to connect the camera to your PC
-install the camera control SW (AOS Imaging Studio V4 -> cloud.aos.ch/aisV4 / pw:ais)
-switch your camera on (see 0)
-connect the included CAT6 data cable to the came ra and to the appropriate port on
your PC

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 10 of 34
2.1.7 Ethernet Port
L-/M-VIT offers a lockable Ethernet connection link to PC is desired in e.g. High -G crash tests.
Alternatively, a standard Ethernet cable with RJ45 connectors are of CAT6 type can be used.

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 11 of 34
3Installation of the Control Software and Camera drivers
Please refer to the “ AOS Imaging Studio V4 Manual” and “Installation guide”, also to be found
on the included CD
4Operation of the High-Speed Camera
The operation is primarily done by using the included AOS Imaging Studio camera control
software. Therefore, all functions and instructions how to op erate the camera can be found in
the “AOS Imaging Studio Manual” (to be found as a pdf file on the included CD).
Please follow the manual carefully to execute all operations.
In case of uncertainties or questions, please do not hesitate to contact your A OS distributor
or our support engineers.
4.1.1 The Camera Rear Panel
L
Status LED’s
Data IF connector RJ45
Power switch
Reset switch
Data IF LED’s
I/O Connector
L-M-VIT rear panel

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 12 of 34
4.1.2 The Camera Front Panel
The “Power / Reset”, “Charge / low Batt” and “Sync” status LED duplicates the same LED on
the camera back panel (see 5.1.1 for explanation)

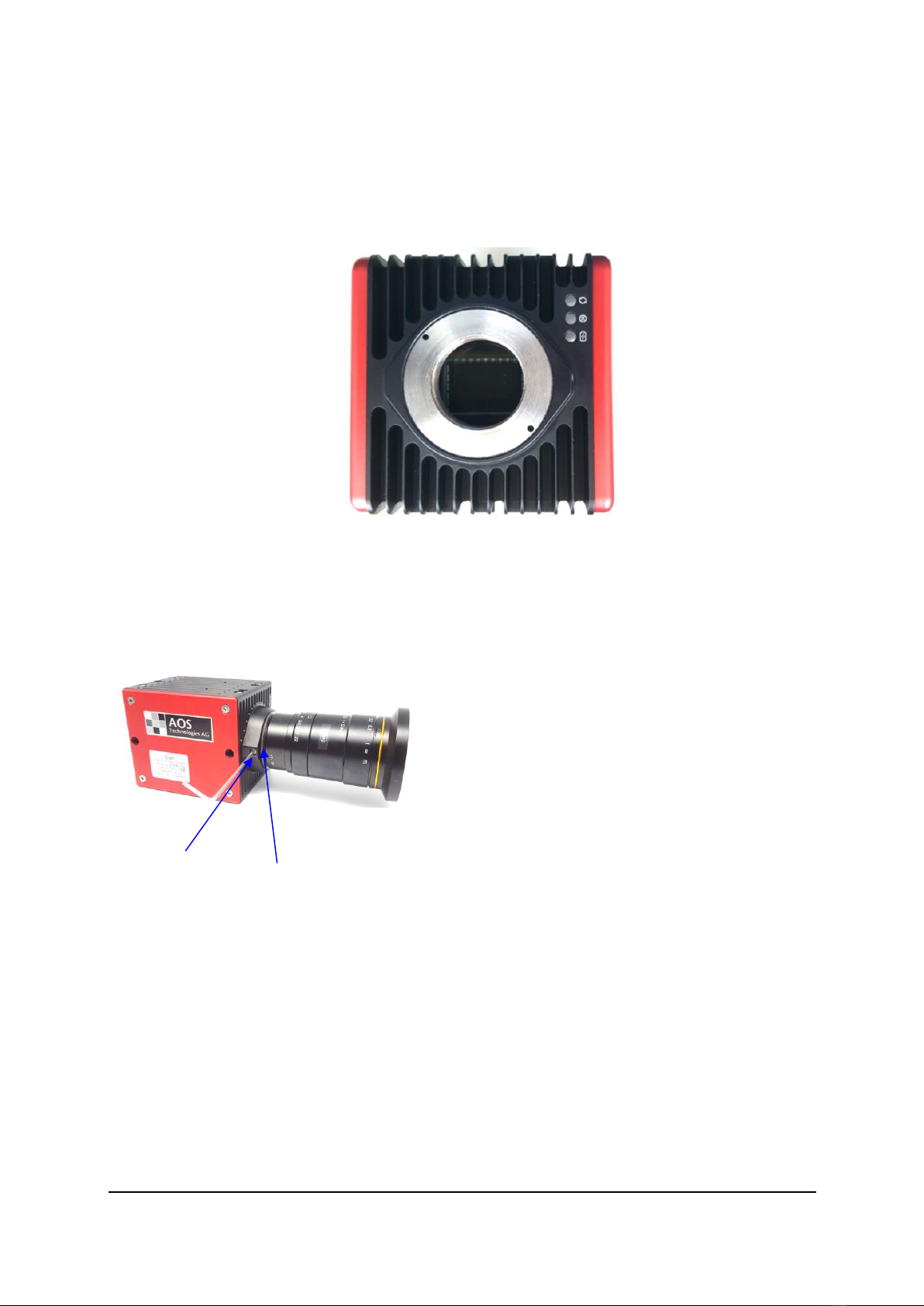

Your high-speed camera has been carefully adjusted for accurate back focus alignment to
make sure your lenses can be precisely focused all the way between close up and infinity.
However, if you use special (close up) optics or any non -standard lens, it might be necessar y
to re-adjust the back focus by following these steps:
Adjusting the back focus:
-loosen Allen screws to free focus ring on
both sides of the camera
-set lens to infinity and its iris to
maximum (lowest f-stop number, i.e.
1.4)
-aim at an object near the horizon
(infinite setting)
-adjust focus ring until distant object is
in focus
-set lens to 2m
-aim at an object in exactly 2m distance
(newspaper on a wall)
-adjust focus ring until object is in focus
-repeat steps until close and distant
objects can be focus ed correctly
2mm Allen
screw
Back Focus ring

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 13 of 34

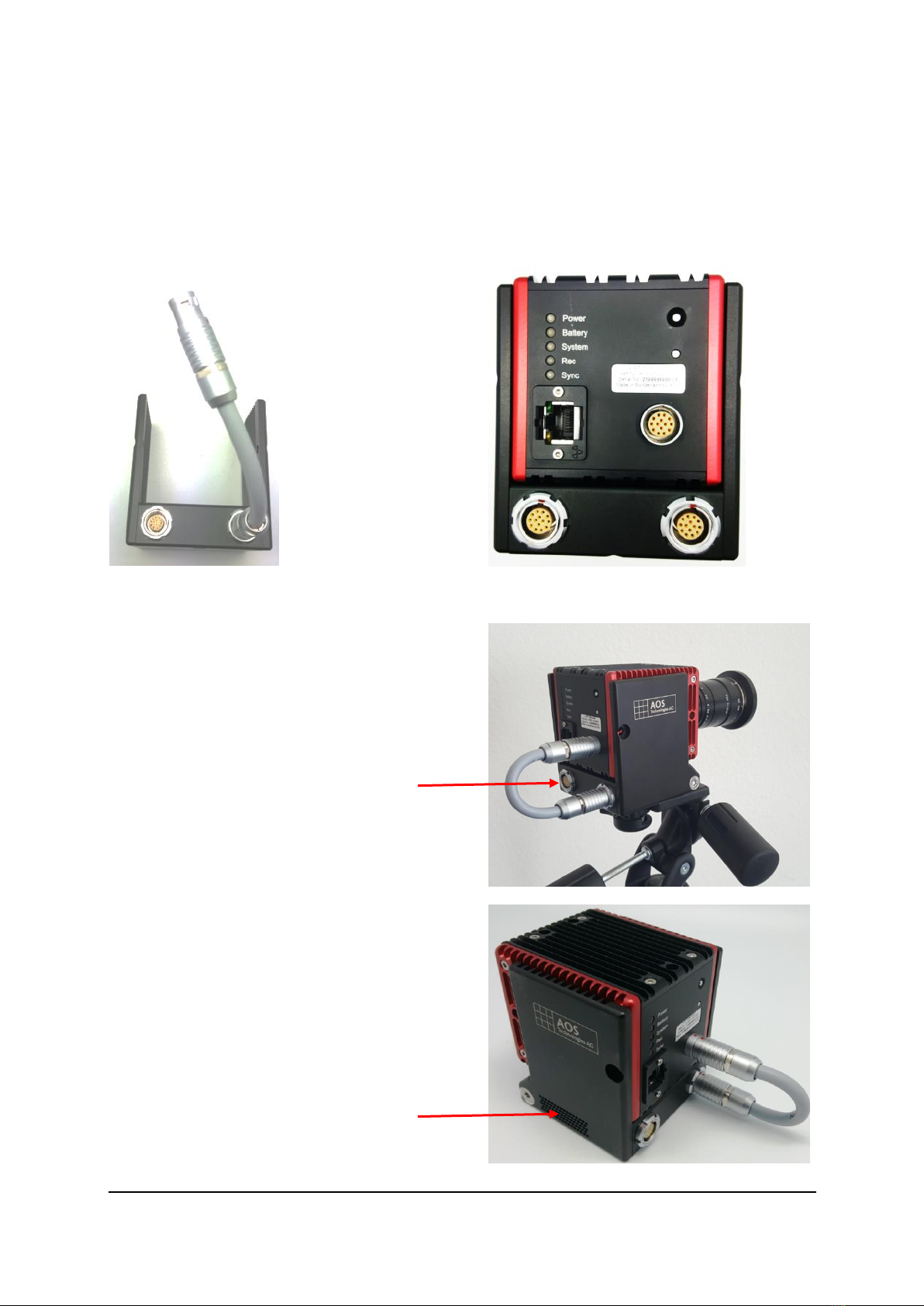

4.1.3 Camera mounted in ChillBox
The L-series and M-Series cameras are designed to mount onboard on a solid metal structure
that serves as heat sink. When the camera is used off board the units should be mounted in
the ChillBox. This Box provides additional cooling by air ventilation.
The mounting is easy, safe in operation and extends the life time of the cameras
The ChillBox is equipped with standard tripod mount on the bottom.
Empty ChillBox with adapter cable
Camera mounted in ChillBox
ChillBox mounted on tripod.
The adapter cable provides power from
ChillBox to the camera.
Connect your Power Trigger adapter (AOS#
2200121) or Pigtail Cables (AOS 2200116 /
2200117) with power supply here
Note: it does not matte r which co n necto r is
used for con nectin g t h e camer a .
Do not block the air flow by covering the
holes

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 14 of 34
5LED
5.1.1 Status LED’s
Your high-speed camera has a number of Status LED’s on its back panel to indicate operation
modes and error codes. The LED’s indicate
-operation mode
-battery status
-power status
-data transfer information
-error codes
Explanation
LED off
LED permanently green
LED permanently red
LED blinking green
LED blinking red
LED blinking green and red (alternate colors)
Power / Reset LED
Remarks
Camera switched off
Camera on
(normal mode)
Camera has been switched on normally by the
power push button
Camera on
(Factory reset mode)
Power push button has been pressed for 4 secs.
Camera starts in the Factory Reset Mode and
resets all parameters to Factory Default values
before camera switches off
Camera on battery and
switch on LED is blinking 3
times
Battery has low charge; the camera must be
connected to power first.
Camera is switching off
(Power off mode)
Camera has been switched off by the power push
button. Camera operating system shuts down.
Camera reset
(Reset mode)
Camera has been reset. Operating system starts.
Image data remain unchanged. When the reset
mode is completed, camera changes to normal
mode

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 15 of 34
Charge / Low Batt LED
Remarks
Battery is fully charged
Battery is charging
Low battery capacity
Battery needs to be charged immediately or when
power is connected battery charge is too low for
autonomous operation
Unknown Battery Status
(slow blinking frequency)
Battery charge status is unknown, connected
power and charge full
Battery not detected (fast
blinking frequency)
Battery is not detected or defective. Connect
power and charge for approx. 10mins. If status
remains unchanged contact your distributor or
[e-mail]
System Error LED
Remarks
Booting error
Switch off camera (power switch) or
reset camera (reset switch).
If camera does not start, contact your AOS
partner
Start up sequence
Camera will be in normal mode within seconds
Start up sequence
completed
(normal mode)
Camera error
Switch off camera (power switch) or
reset camera (reset switch).
If camera does not start, contact your AOS
partner
Note: When it is necessary to reset the camera, hold the reset button
pressed for a minimum of 1 sec. Otherwise faulty settings may be loaded.

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 16 of 34
Ready / Data LED
Remarks
Normal mode
Camera ready
Camera is ready to record
Pre-trigger buffer gets filled
with image data
Camera records and fills image data in ring buffer
Camera in pre-trigger mode
Camera is waiting to receive the trigger signal to
start recording
Camera triggered
Camera continues recording until image memory
is full
Image data download
Image data is being downloaded to PC or internal
CF memory
Download completed
Download of image data completed .
Next recording can be started
Sync LED
Remarks
No external sync
External sync signal received
External sync signal controls the image clock
Sync error
Sync error: actual frame rate is lower than the
external clock. Check camera settings

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 17 of 34
5.1.2 Data Interface LED (part of Ethernet Connector)
Upper LED
Remarks
No link
Link established
Transferring data
Lower LED
Remarks
Transfer speed:
10/100 Mbits/sec
Transfer speed:
1000 Mbits/sec
Upper LED
Lower LED

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 18 of 34
„armed“
6Operation Modes
AOS High Speed Camera basically has 5 operation modes that allow an efficient power
management. Understanding the functionality of the camera is essential for best operation of
the camera.
6.1.1 Power safe mode
In the power safe mode the camera internally shuts down all tasks not required for data
security, communication and battery charging. Recording in the camera buffer are retained
and may be accessed again. Lowest power consumption assures data security in the RAM
buffers for up to 30mins. By receiving a command, the camera goes automatically back into
READY mode.
The duration of how long data are retained in RAM memory of the camera
is depending on the capacity of the built-in battery. The a full charged
battery assures 10mins up to 30mins of data security under standard
conditions (depending on battery capacity in the respective model) .
Battery time is affected by temperature, age of battery and humidity that
can result in a substantial reduction of the time which da ta can be
retained in the RAM.
6.1.2 Recording a sequence
The camera is equipped with a memory that can be split into a circular buffer.
A circular buffer means that the user can place the camera in a loop record mode.
6.1.2.1 PRE-TRIGGERED
The user selects the desired portion of the memory to be stored before the trigger arrives
(PRE-TRIGGERED) and the portion in the recording section (post -trigger). This means that
the camera will continue to record over itself until it eventually receives a t rigger (manually
from operator or by external signal on TRIGER IN).
By clicking on the Set ready the camera goes into PRE-TRIGGERED mode. Once in PRE-
TRIGGERED mode the amber and red light on the back of the camera start flashing.
When you put the camera into PRE-TRIGGERED mode via the PC, be sure
you have not disconnected the Ethernet link. The Ethernet link may be
disconnected after the camera is in PRE-TRIGGERED mode.
Mode:
Output signals:
Preview /
Idle
Pretiggered
Recording
Set ready
Trigger
„triggered“
Input signals /
commands:

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 19 of 34
6.1.2.2 Recording mode
In this mode the camera finishes the ongoing recording and then awaits access (reconnection
of the Ethernet link). The camera automatically goes into a power save mode after the
recording.
As long as unsaved data is in the camera (no access via Ethernet after a
recording) the red “Data” LED is constantly on. After accessing the camera
via Ethernet this LED goes out.

AOS High Speed Cameras Version 1.1.3
Copyright ©AOS T ec h no logies AG Page 20 of 34
7System setup
Your AOS highspeed camera with its standard Gigabit Ethernet Data interface can be used in
many different configurations, depending on the application you have.
7.1.1 Scope of supply
Your AOS high speed camera is delivered with the follo wing:
-high speed camera
-Power / Trigger Adapter cable 0.5m
-Ethernet data cable
-power supply 110-230VDC/24VDC
-ChillBox (except L-VIT 1000, order separately AOS# 2100007)
Add-Ons
Add-ons are extension modules especially designed for your AOS high speed camera and will
extend the functionality of your camera for your specific applications.
Some add-ons have to be purchased with the camera (i.e. the CF ast interface), others may be
purchased at any time (i.e. Firm - and Software add-ons). Please contact your distributor for
more information.
