Introduction
CONGRATULATIONS! By purchasing a AOS High Speed Camera high-speed digital imaging system, you
have acquired a versatile, future oriented, self-contained digital camera system. AOS Technologies AG
has combined advanced camera features with an easy to use software to create a solution for your
high-speed recording needs. The intent of this manual is to provide the information required for a
smooth operation of AOS High Speed Camera
General description of AOS High Speed Camera
AOS High Speed Camera is a high-speed camera capable of record and store data in it’s built in
camera memory. The rechargeable battery allows operation of up to 30 minutes in recording mode
and allows data buffering of up to 6h.
Unpacking / Check of completeness
Unpack your camera from its transport box and check if all accessories are complete
Standard scope of delivery is:
Qty Description
1 AOS High Speed Camera
1 Power/Trigger cable 0.3m
1 Power Supply 12VDC / 2A incl. Power cable for EU- and US-mains plugs
1 CAT6 Data cable 5.0m
1 CD with AOS High Speed Camera operation Software and Camera manual
(pdf file)
Standard scope of delivery may vary from model, territory and distributor.

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 6 of 31
1Connecting the camera to a PC
Prior the first use of your new AOS high speed camera, certain steps need to be followed for a
successful start.
1.1.1 Visual inspection
Unpack the camera and visual inspection. Check for any visible damages.
1.1.2 Battery charging
Your AOS highspeed camera features a built-in, re-chargeable battery. Prior its first use, as well as
prior any recording session, make sure the battery is fully charged. This is also recommended if you
have your high speed camera always connected to power as the built-in battery will protect the image
memory against power failures and power losses.
Connect your AOS high speed camera to power following these steps:
-switch off your camera
-connect the Power/Trigger cable (included with each camera) to the cameras I/O connector at
the rear
-connect the Low Voltage connector of the Power/Trigger cable to the DC-Adapter (included
with each camera)
-Connect the DC-Adapter to mains (100…240VAC)
-Check if the cameras “Charge” LED lights up in green
-Charging time is approx. 4 hours (if battery is fully discharged)
-Details about battery charging can be found in chapter nn
The input range of AOS High Speed Camera is 8 to 16VDC. If applying more than
16VDC to the camera serious damages of the camera results. Such damages are
not covered by the warranty.
External trigger signal
(closing switch / TTL
low)
12VDC (ext. power supply).
Also used to charge battery

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 7 of 31
1.1.3 Switching-on and – off procedure
1- Switching on (standard) when camera is switched off
•press “Power” push button shortly
•wait until startup sequence has been completed (Status LED’s come to a rest)
2- Switching on (overwriting changed setup, start with factory presets)
•press “Power” push button for more then 4 sec
•wait until startup sequence has been completed (Status LED’s come to a rest)
3- Switching off (standard) when camera is switched on
•press “Power” push button shortly
•Status LED “power / reset” will indicate the shutdown sequence
4- Switching off (enforced shutdown) when camera is switched on
press “Power” push button for more then 4 sec
Camera shuts down without the normal procedure. This is only necessary and recommended if the
camera does not react on the standard switching off procedure (see par. 3) or is in a “freak” position
(i.e. all LED’s blinking)
1.1.4 Connecting the camera to a PC
Your AOS camera does not need a special or dedicated control device, often called “camera
controller” or similar. With its standard Gigabit Ethernet data interface, your camera can be simply
connected to any standard PC (Laptop or Desktop) or Ethernet-based LAN data network.
Follow the following steps to connect the camera to your PC
-install the included camera control SW (AOS Imaging Studio)
-Switch your camera on (green “Power LED” on its back panel goes on)
-connect the included CAT6 data cable to the camera and to the appropriate port on your PC

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 8 of 31
These rugged high speed cameras offer a special
data connector to securely lock the data cable to
the camera. Although standard CAT6 cables can
be used too, a secure cable lock is achieved by
using the included data cable with its cable lock.
This non-ruggedized high speed cameras offers a
standard data connector to accept standard CAT5
or CAT6 Ethernet data cables.
X-MOTION / X-PRI
X-VIT / X-EMA

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 9 of 31
2Installation of the Control Software and Camera drivers
Please refer to the “AOS Imaging Studio Manual” and “Installation guide”, also to be found on the
included CD
3Operation of the High Speed Camera
The operation is primarily done by using the included AOS Imaging Studio camera control software.
Therefore all functions and instructions how to operate the camera can be found in the “AOS Imaging
Studio Manual” (to be found as a pdf file on the included CD).
Please follow the manual carefully to execute all operations.
In case of uncertainties or questions, please do not hesitate to contact your AOS distributor or our
support engineers.
3.1.1 The camera back plate
Status LED’s
Data IF connector RJ45
Power switch
Reset switch
Data IF LED’s
I/O Connector

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 10 of 31
3.1.2 The camera front panel
Your high speed camera has been carefully adjusted for accurate back focus alignment to make sure
your lenses can be precisely focused all the way between close up and infinity.
The “ready / data” status LED duplicates the same LED on the camera back panel (see next page for
explanation)
However, if you use special (close up) optics or any non-standard lens, it might be necessary to re-
adjust the backfocus by following these steps:
A
djusting the backfocus:
- loose Allen screws to free focus ring
on both sides of the camera
- set lens to infinity and its iris to
maximum (lowest f-stop number,
i.e. 1.4)
- aim at an object near the horizon
- adjust focus ring until distant object
is in focus
- set lens to 2m
- aim at an object in exactly 2m
distance (newspaper on a wall)
- adjust focus ring until object is in
focus
- repeat steps 1 and 2 until close and
distant objects can be focused
correctly
2mm Allen
screw Focus ring
Ready / data LED

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 11 of 31
3.1.3 Status LED’s
Your high speed camera has a number of Status LED’s on its back panel to indicate operation modes
and error codes. The LED’s indicate
-operation mode
-battery status
-power status
-data transfer information
-error codes
Explanation
LED off
LED permanently green
LED permanently red
LED flickering green
LED flickering red
LED flickering green and red
Power / Reset LED Remarks
Camera switched off
Camera on
(normal mode)
Camera has been switched on normally by the power
push button
Camera on
(Factory reset mode)
Power push button has been pressed for 4 secs.
Camera starts in the Factory Reset Mode and resets
all parameters to Factory Default values before
camera switches off
Camera is switching off
(Power off mode)
Camera has been switched off by the power push
button. Camera operating system shuts down.
Camera reset
(Reset mode)
Camera has been reset. Operating system starts.
Image data remain unchanged. When the reset mode
is completed, camera changes to normal mode

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 12 of 31
Charge / Low Batt LED Remarks
Battery is fully charged
Battery is charging
Low battery capacity Battery needs to be charged immediately
System Error LED Remarks
Booting error Switch off camera (power switch) or
reset camera (reset switch).
If camera does not start, contact your AOS partner
Start up sequence Camera will be in normal mode within seconds
Start up sequence completed
(normal mode)
Camera error Switch off camera (power switch) or
reset camera (reset switch).
If camera does not start, contact your AOS partner

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 13 of 31
Ready / Data LED Remarks
Normal mode
Camera ready Camera is ready to record
Pre-trigger buffer gets filled
with image data
Camera records and fills image data in ring buffer
Camera in pre-trigger mode Camera is waiting to receive the trigger signal to start
recording
Camera triggered
Camera continues to record until image memory is
full
Image data download
Image data is being downloaded to PC or internal CF
memory
Download completed Download of image data completed
Next recording can be started
Sync LED Remarks
No external sync
External sync signal received External sync signal controls the image clock
Sync error Sync error: actual frame rate is lower then the
external clock. Check camera settings

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 14 of 31
3.1.4 Data Interface LED (part of Ethernet Connector)
Upper LED:
Sync LED Remarks
No link established
Link established
Data are transferred
Lower LED:
Sync LED Remarks
Transfer speed:
10/100 Mbits/sec
Transfer speed:
1000 Mbits/sec
Upper LED
Lower LED

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 15 of 31
4Operation Modes
AOS High Speed Camera basically has 5 operation modes that allow an efficient power management.
Understanding the functionality of the camera is essential for best operation of the camera.
4.1.1 Sleep mode
In the sleep mode the camera internally shuts down all tasks not required for data security,
communication and battery charging. Recording in the camera buffer are retained and may be
accessed again. Lowest power consumption assures data security in the RAM buffers for 6 hours. By
receiving a command the camera goes automatically into READY mode.
The duration of how long data are retained in RAM memory of the camera is
depending on the capacity of the built in battery. The battery assures 6 hours of
data security under standard conditions. Battery time is affected by temperature,
age of battery and humidity that can result in a substantial reduction of the time
which data can be retained in the RAM.
4.1.2 Ready mode
In this mode the camera runs at full speed but having the sensor only active for preview modes. In
this mode the camera is being parameterized and setting of the scene is performed. By clicking the
green button the camera goes into the READY mode. If in the option “Skip T1” is selected the camera
goes directly into the record mode as selected. A message will appear to acknowledge the overwriting
of the buffer.
Mode:
Output signals:
Preview /
idle Ready Pre- triggered Recording
Set ready Set-to-rec Trigger
„armed“
„triggered“
Input signals
/ commands:

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 16 of 31
4.1.3 Pre-triggering mode
When a pre-trigger time is selected the camera may go from READY mode into PRE-TRIGGERING mode
by either clicking on the white button icon on the screen or by using the external connector to supply
an PRE-TRIGGERING mode signal from an external source. Once in PRE-TRIGGERING mode the amber
and red light on the back of the camera start flashing.
When you put the camera into PRE-TRIGGERING mode via the PC, be sure you
have not disconnected the Ethernet link. The Ethernet link may be disconnected
after the camera is in PRE-TRIGGERING mode.
4.1.4 Armed mode – Skip „SET-TO-REC“
If in the camera control software under option “Skip SET-TO-REC” is selected the camera goes directly
into the RECORDING mode as selected. For data security a message will appear to acknowledge the
overwriting of the buffer.
4.1.5 Recording mode
In this mode the camera has finished the ongoing recording and then awaits access (reconnection of
the Ethernet link). The camera automatically goes into a power save mode after the recording.
As long as unsaved data are in the camera (no access via FireWire after a
recording) the red LED is constantly on. After accessing the camera via FireWire
this LED goes out.

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 17 of 31
5System setup
Your AOS highspeed camera with its standard Gigabit Ethernet Data interface can be used in many
different configurations, depending on the application you have.
5.1.1 Scope of supply
Your AOS high speed camera is delivered with the following:
-high speed camera (1)
-power supply 12VDC (not shown)
-Power / Trigger Adapter cable 0.3m (2)
-Ethernet data cable (3)
Add-On’s
Add-on’s are extension modules especially designed for your AOS high speed camera and will extend
the functionality of your camera for your specific applications.
Some add-on’s have to be purchased with the camera (i.e. the CF+ interface), others may be
purchased at any time (i.e. Firm- and Software add-on’s). Please contact your distributor for more
information.
1
2
3
External trigger signal
(closing switch / TTL low)
12VDC (ext. power supply).
Also used to charge battery

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 18 of 31
5.1.2 CF+ interface
Similar to other PC-based interfaces (like PCMCIA, PCI and others), CF+ offers access to many
extension devices made by 3rd party companies. Among the most popular, there are
-Compact Flash Memory cards
-Wireless Data Interfaces (“WLAN”)
-I/O cards (analogue and digital)
-Time Stamping cards (GPS, others)
-Others
As the CF+ interface is a relatively new standard, there will be many more products available in
future.
Compact Flash Memory cards
These widely used non-volatile memory cards – as used in digicams and other products – offer a most
convenient way to have your image data downloaded from the camera memory. Instead of
downloading the image data via the Gigabit Ethernet data interface to your PC’s harddisk, the image
data gets downloaded to the CF+ memory card inserted into your camera.
Wireless Data Interface (WLAN)
If the camera needs to be operated without a physical connection to your PC (i.e. inside a machine,
behind a door, on a high pole), the Wireless Data Interface offers a convenient and often the only way
to control the camera (for setup purposes) and to download the image data from the camera memory
to the PCs harddisk.
Due to existing bandwidth limitations, the bitrate is often limited, making a
download from the image memory quite slow. A careful selection of the
downloadable part of the image sequence makes sure that only the essential part
is transmitted in reasonable time.

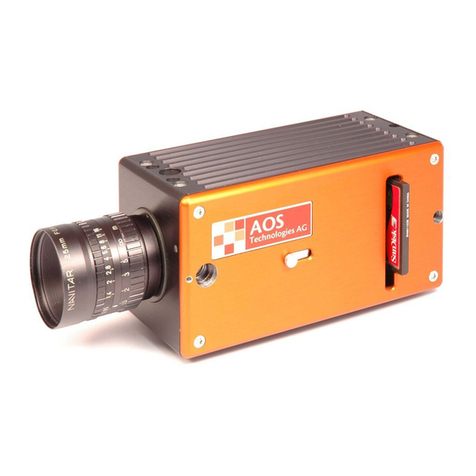

As the CF+ interface includes also hardware inside the camera (easily to be
identified by the “slot” on the left camera side plate), this add-on has to be
either ordered together with the camera, or your camera has to be returned to
AOS for a factory modification.

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 19 of 31
5.1.3 I/O Channels
Each AOS High Speed Camera (X-MOTION, X-VIT, X-EMA) features 4 digital I/O-Channels to either
accept external signals (i.e. positioning switch) or to provide a digital output signal (i.e. “trigger
out”).
The AOS High Speed Camera X-PRI offers 1 digital I/O-channel as a standard.
With “option 4”, 3 additional channels can be added (making a total of 4
channels).
This feature will be available with the next SW release of AOS Imaging Studio
6Multi camera setups
The GigE data interface of the AOS high speed cameras, together with the AOS Imaging Studio
software, allows to connect and use more then one high speed camera to one control PC.
Camera model X-PRI is by definition a “one-camera-system”, meaning one
camera runs on one PC. With “option 5”, any X-PRI can be upgraded to a multi-
camera system, similar to X-MOTION, X-VIT and X-EMA.
6.1.1 Multi camera systems without frame synchronization
If cameras have to, or can, be operated independently (without frame synchronization), the cameras
can simply be connected using their GigE data interface and CAT6 cables. To bridge longer distances,
commercially available GigE network components like Bridges, Hubs and Routers can be used.
The trigger signal has to be provided to each individual camera using 2-wire trigger cables and / or
AOS trigger cables.

AOS High Speed Cameras Version 2.0
Copyright ©AOS Technologies AG Page 20 of 31
6.1.2 Frame synchronisation
For accurate motion analysis, cameras have to be synchronized to make sure each frame starts at the
very same time to avoid time slip:
Time slip due to failing synchronization
Phase lock frame synchronization
Cam 1:
Clock 999.998Hz
Cam 2:
Clock 1‘000.002Hz
Frame Frame FrameFrame Frame
Frame Frame FrameFrameFrame
Tri
gg
er T0
Cam 1:
Clock 1‘000.000Hz
Cam 2:
Clock 1‘000.000Hz
Frame Frame FrameFrame Frame
Tri
gg
er T0
Frame Frame FrameFrame Frame
