aoyue 950 User manual

950/ 950+
Instruction Manual
Thank you for purchasing Aoyue 950 / 950+
temperature controlled soldering station.
Please read the manual before using the unit.
Keep manual in accessible place for future reference.
SMD HOT TWEEZERS

2

3
TABLE OF CONTENTS
Package Contents and Specifications……………….. 4
Care and Safety Precautions ………….………..…….. 5
Assembly Instructions ……………………………….... 6
Operating Instructions ………...……….…..…..…….. 7
Soldering Tip Care and Maintenance ……………….. 8
Tip Temperature
Cleaning
When not in use
Hand piece Assembly …………. ………………….….… 9
Testing the heating element ……...…………………. 10
Troubleshooting Connections ….……..………..……. 11
Replacing soldering iron cord / Fuse ....………… 12
Basic Troubleshooting Guidelines ……………… 13-14
Replacement Soldering Tips …………………………. 15

4
PACKAGE CONTENTS/ SPECIFICATIONS
Please check if the listed parts below are included in the package:
Aoyue 950
950 Main Station . . . . . . . . 1 unit
SMD Hot Tweezers . . . . . . . . . 1 pc.
2660 Soldering Iron Stand
(including Sponge) . . . . . . . . . 1 pc.
Instruction Manual . . . . . . . . . 1 pc.
Solder Iron Stan Assembly guide . . . . . . . . . 1 pc.
Power Cord . . . . . . . . . 1 pc.
Aoyue 950+
Same as the 950 with an additional:
Soldering Iron . . . . . . . . . 1 pc.
950
Power Consumption 45W
Fuse 1A
Output Voltage 24V
Temperature Range 200—480 °C / 392—896°F
Station Dimension 110(w)×93(l)×168(h) mm
Tip to Ground Resistance Less than 2 Ohm
Tweezer Heating Element Ceramic Heating Element 60W
950+ Only
Solder Iron Heating Element Ceramic Heating Element 35W
*Design and specification might change without prior notice.

5
●Temperature may reach a high of 480°C when turned on.
- Do not use near inflammable/flammable materials.
- Do not touch heated parts, can cause severe burns.
- Do not touch metallic parts near the Tip.
●Handle with Care
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if unit is dropped.
●Disconnect plug when not to be used for a long period of time.
- Turn off power during breaks.
●Use only genuine replacement parts.
- Turn-off power and let unit cool before replacing parts.
●Soldering process produces smoke, make sure work area is well venti-
lated.
●Do not modify unit
●Never touch the element or tip of the soldering iron. They are very hot
(about 400°C) and will give you a nasty burn.
●Take great care to avoid touching the mains flex with the tip of the
iron. The iron should have a heatproof flex for extra protection. An
ordinary plastic flex will melt immediately if touched by a hot iron and
there is a serious risk of burns and electric shock.
●Always return the soldering iron to its stand when not in use.
●Work in a well-ventilated area. The smoke formed as you melt solder
is mostly from the flux and is quite irritating. Avoid breathing it by
keeping your head on the side and not directly above of your work.
●Wash your hands after using solder. Solder may contain lead which is
a poisonous metal.
CAUTION: Misuse may cause injury and physical damage.
For your own safety, be sure to comply with the following precaution.
CARE and SAFETY PRECAUTIONS

6

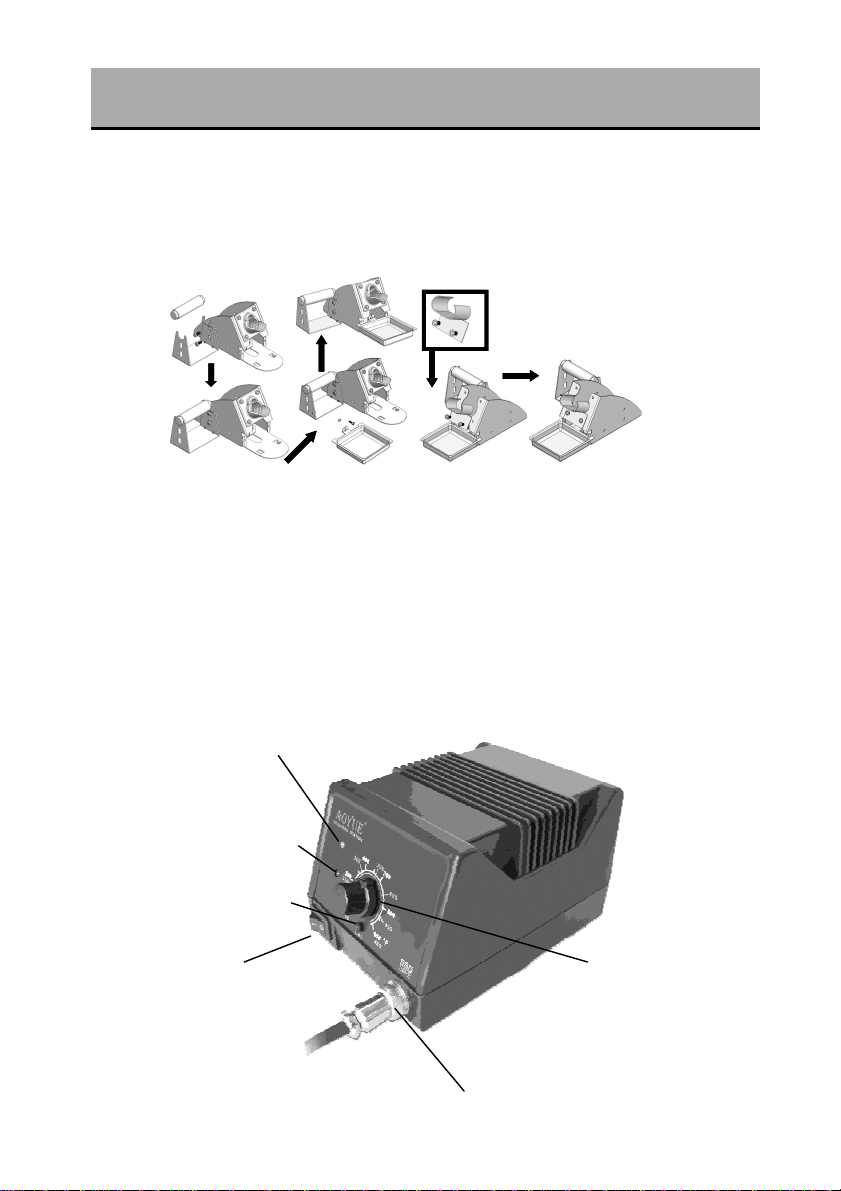

I. SOLDERING IRON HOLDER
1. Dampen the cleaning sponge with water, squeeze it dry and
place it in its base.
II. SOLDERING IRON STAND
III. SOLDERING IRON / TWEEZERS
1. Attach the soldering iron or tweezers to the receptacle connector
at the bottom right area of the main unit.
2. Place soldering iron or tweezers to the soldering iron stand.
IV. MAIN UNIT CONTROLS
1. Plug the power cord into a receptacle with ground.
ASSEMBLY INSTRUCTIONS
Heater
Calibration Point
Main
power
switch
Tempera-
ture adjust-
ment knob
Hand piece
receptacle
Power indicator LED
+

7
OPERATING INSTRUCTIONS
1. Follow procedures shown in the “Assembly Instructions”.
2. Turn on the unit.
3. Turning the control knob clockwise increases the desired (SET)
temperature settings, while turning the knob counter-clockwise
decreases the desired (SET) temperature settings.
4. When the heater lamp blinks on and off then it means that the tip
temperature has reached the set temperature and is ready for use.
Tweezers Handle
Tweezers Handle
Tweezers Tip
Tweezers Tip
Tightening screw

8
Tip Temperature
If the tip temperature is too high, it decreases the life of the tip. So
we suggest you to use the lowest *possible* tip temperature when sol-
dering. This not only prolong life of the tip, it also quickens heat recov-
ery and decreases harm to sensitive components.
Cleaning
The soldering iron tip should be cleaned after use by wiping it on
the damp sponge found in the soldering iron stand, this is to get rid of
burnt solder or fluxes that causes oxidation on the tip. If the tip has oxi-
dation, apply solder and wipe using the damp sponge, repeat these
steps until oxidation is removed.
Regular cleaning is also needed when tips are used for prolonged
period of time (remove tip from soldering iron and clean it once a
week). The solder tips are chrome electroplated on the surface and
should be bright silver with no flux residue or solder on it. If the tip
shows disfiguration or has rust on it. Change the tip.
When Not in Use
If a soldering iron does not have a thin consistent layer or solder
over the entire surface, the tip has not been properly tinned. When you
are not using your iron, make sure you leave a large lump of solder on
the tip. This maintains the tinning on the tip, and the tip will last much
longer. Many technicians mistakenly clean the tip before they put the
iron into the holder. Leave the solder on the tip to protect it.
SOLDER TIP CARE and MAINTENANCE
Remember to tin the tip after cleaning in preparation for the next use.

9
HAND PIECE ASSEMBLY
The hand piece may be disassembled for troubleshooting and
repair:
1. Turn off main station and unplug from power source.
2. Detach the Soldering Iron Receptacle (“15” ) from the main unit.
3. Turn the Copper Nut, (“1” ) counter clockwise to loosen it.
4. Pull out the Tip Enclosure (“2” ), the Solder Tip (“3” as ) , and the
Tip Lock (“4” ).
5. Turn the Plastic Nut (“5” ) counter clockwise to release it from the
main body.
6. Push out the Heating Element (“6” ) via the wire Cord (“14” ).
Follow these steps to reassemble the hand piece:
1. Slide in hand piece PCB into the main handle. Be sure to secure the PCB
in the notch at the mouth of the main handle.
2. Attach the front module “5” to the main handle.
3. Slide in the Tip holder “4”. Make sure the smaller end is inserted first as
seen in the illustration below.
4. Insert the soldering iron tip “3” as seen below.
5. Secure the tip by inserting the tip enclosure “2” and nut ”1” securely.
6. Reattach the hand piece plug “15” to the receptacle at the main station.
7. Recalibrate the soldering iron, see guide on tip care and maintenance
section of this manual.

10
TESTING THE HEATING ELEMENT
To test if the heating element is in working condition:
Cool down assembly to room temperature before continuing the tests
below:
1. Follow “disassembling the hand piece” guide.
2. Do the following tests on the hand piece PCB board:
◆Resistance value of heating element 18 — 23 Ω
◆Resistance value of sensor 2.3 — 3.5 Ω
◆After testing check results with the following:
◆If the resistance value is not as stated above replace the heating
element.
◆If a 0 Ω or infinite resistances are measured check for shorts or
open circuits.
◆Itermittent readings can also be caused by cold solder double
check solder points if the heating element has recently been
replaced.
Heating element
Sensor
Heating element
Test the resistances of the following configurations at the 5 pin socket:
Pins 1 & 2 18 to 23 Ω
Pins 4 & 5 2.3 to 3.5 Ω
Pin 3 & solder tip Below 2 Ω5 Pin Socket

11
TROUBLESHOOTING CONNECTIONS
The 5 pin socket can be tested to detect faults in the hand piece:
Before plugging in the hand piece conduct the conti-
nuity test as shown:
If any of the combination registers a short re-
view the steps in “replacing the heating element” to
ensure proper connections.
Pins 4 & 2 ∞
Pins 4 & 1 ∞
Pins 5 & 1 ∞
Pins 5 & 2 ∞
Warning: Ensure none of the above mentioned conditionsare pre-
sent before plugging in the hand piece. Failure to do socan dam-
age the internal circuitry of the unit.
Follow the following direction to test for hand piece cord
faults:
Test 1: Rendering physical strain to the cord
1. Turn on the unit.
2. Set temperature to 480 °C.
3. Bend and straiten the entire length of the cord bit by bit. The
heater lamp should always be lit while doing so. If the heater
lamp becomes intermittent the cord is faulty and should be re-
placed.
Test 2: Resistance test
1. Follow the steps in disassembling the hand piece .
2. Test for continuity between the pins and colored wires at the hand
piece PCB, all matching contacts at the PCB and wires should reg-
ister 0 to 2 Ω.
Note: the Heater lamp will blink if the temperature of the soldering iron tip has
reached the set temperature i.e. 480°C. this is not an indication of a faulty cord.

12
REPLACING SOLDERING IRON CORD /FUSE
When cord is proven to be faulty follow the steps to replace the cord:
1. Follow the steps in disassembling the hand piece.
2. Make a brief illustration of wire configuration in the PCB.
3. Unsolder the wires connecting the hand piece PCB and cord to-
gether.
4. Unattached the grounding cord and grounding spring together.
5. Detach the PCB from the cord by releasing the metal grips located
at the bottom of the PCB .
6. Slide out the main handle , soft grip pad and tail end of the hand
piece.
7. Insert the tail end and soft grip pad into the new cord.
8. Insert the new cord thought the main handle.
9. Solder the wires back into the PCB.
10. Reattach grounding spring to the new cord.
11. Bend the metal on the end of the PCB to grip the cord firmly.
12. Follow Reassembly of hand piece steps to complete the process.

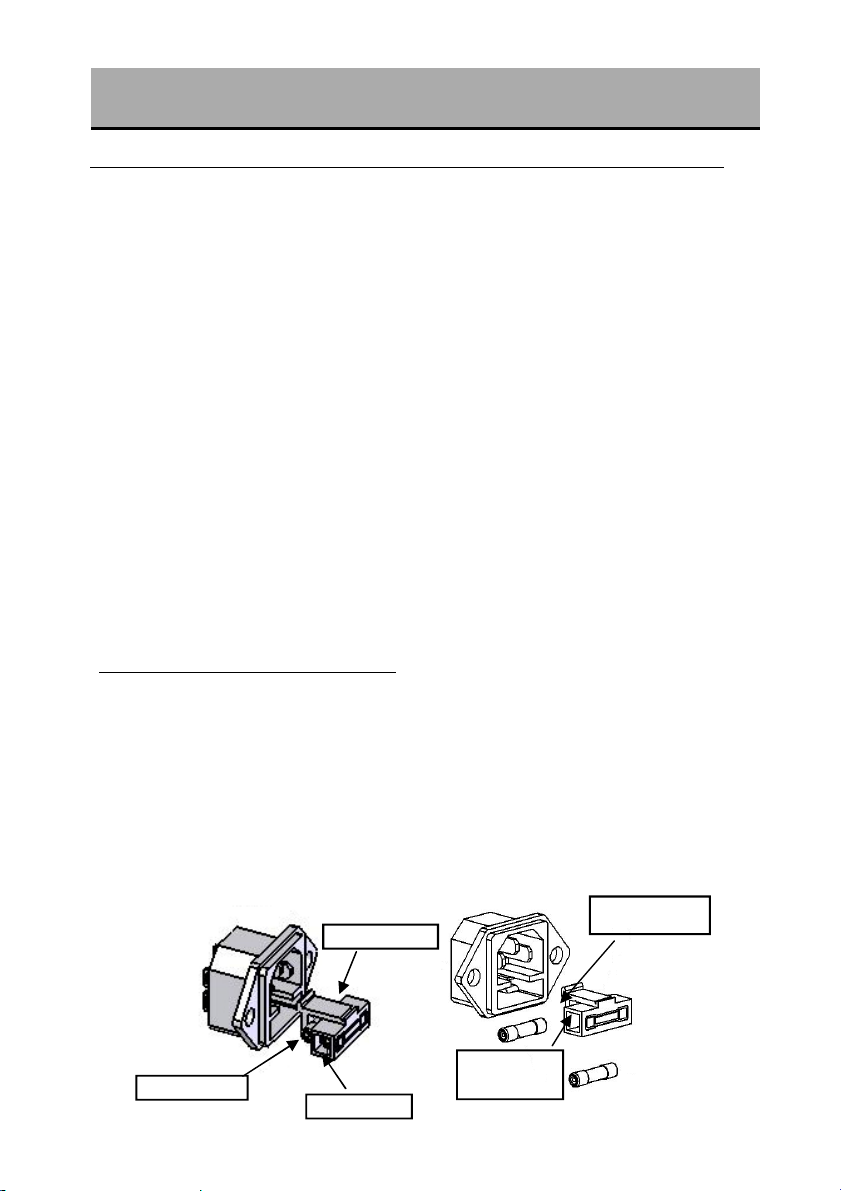

Active fuse Spare fuse
Fuse Holder
Spare fuse
holder
Active fuse
Checking/ Changing the fuse:
The Fuse can be found at the back of the unit, it is incorporated into
the AC power receptacle. If fuse is blown replace with same type fuse
only.
1. Use a screw driver to pop open the fuse holder, slide the fuse
holder out
2. Check if the fuse in use is blown. If blown/damaged, detach the
spare fuse and attach to the active fuse holder. ）
3. Reattach the fuse holder.

13
BASIC TROUBLESHOOTING GUIDE
WARNING: To avoid personal injury or equipment damage,
disconnect power cords before making any servicing to the
equipment, or unless instructed otherwise in the trouble-
shooting procedures.
PROBLEM 1: THE UNIT HAS NO POWER /MAIN POWER LED DOES NOT
LIGHT UP
1. Check if the unit is switched ON.
2. Check the fuse. Replace with the same type of fuse if blown.
3. Check the power cord and make sure there are no disconnections.
4. Verify that the unit is properly connected to the power source.
Additional precautions :
◆Check internal circuitry for shorts that may cause the blown fuse. See
“Troubleshooting Connections” on page 13-15.
◆Check for tangles of wires in the heating element causing it to short.
See “Troubleshooting Connections” on page 13-15.
PROBLEM 2: SOLDERING IRON DOES NOT RISE IN TEMPERATURE
Description: Main power LED lights up and so does the heater LED but sol-
dering iron temperature is relative low and is not heating up.
SOLUTION:
Soldering iron cord may be damaged and needs to be replaced or re-
paired. See “Troubleshooting Connections” on page 13-15 of this manual.
Heating element may be damaged and needs to be replaced see “Testing
the Heating Element” on page 11 and “Replacing the Heating Element” on page
12 on this manual.

14
BASIC TROUBLESHOOTING GUIDE
PROBLEM 3: SOLDERING IRON TEMPERATURE IS INTERMITTENT
Description: Main power LED lights up and so does the heater LED but sol-
dering iron temperature rises and falls uncontrollably.
SOLUTION:
◆Soldering iron plug may be loose from the receptacle unplug the
soldering iron and reattach.
◆Soldering iron cord may be damaged or loose and needs to be r e -
placed or repaired. See trouble shooting soldering iron cords section of
this manual.
PROBLEM 4: SOLDER WOULD NOT STICK TO THE SOLDERING TIP
Description: Soldering iron is able to quickly melt solder but cannot cause the
solder to attach to the tip.
SOLUTION:
◆Soldering iron tip may already be too dirty or oxidized . Please see
our solder tip maintenance guide on how to clean soldering tips.
◆Temperature could be set too high causing solder to quickly burn
away, Please adjust to a more suitable lower temperature range.
PROBLEM 5: SOLDERING IRON DOES NOT PRODUCE ENOUGH HEAT
Description: Soldering iron cannot melt solder fast enough, or actual tem-
perature does not reach the desired set temperature.
SOLUTION:
◆The system may need to be recalibrated please
◆Soldering iron tip may already be too dirty or oxidized . Please see
our solder tip maintenance guide on how to clean soldering tips.

15
REPLACEMENT SOLDERING TIPS

16
Manufacturer:
AOYUE INTERNATIONAL LIMITED
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue.co
