APART PCR3000RMKII User manual

PCR3000RMKII
Instruction manual

Instruction manualPCR3000RMKII
3
PCR3000RMKII Manual

4
MEDIA PLAYER
Features

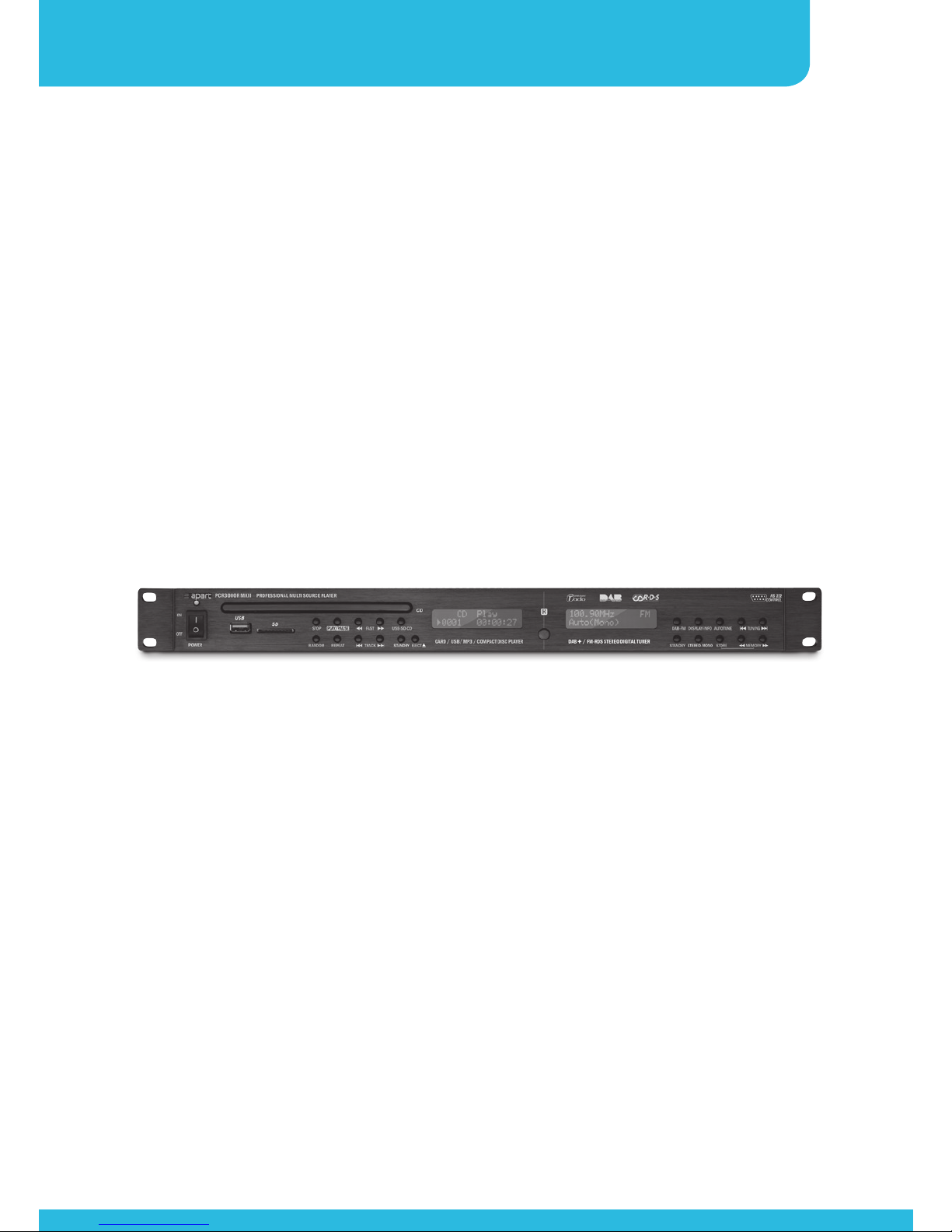

The Apart PCR3000RMKII is a professional multisource CD/USB/
SD card music player with integrated FM RDS and DAB+ tuner,
equipped with multiple independent analog outputs, coaxial and
optical digital output for the CD/USB/SD player and a RS232 port
for use in automated systems.
The maximum analog output level can be preset at the back to
match the output level of other audio sources. Additionally there is
a combi output available. This output will play the music from the
CD/USB/SD player by default. When there is no media playing from
the CD/USB/SD player, the output will automatically switch to the
tuner (FM or DAB+) output after a few seconds, provided that the
tuner is not in standby mode.
The unit can be controlled by the front panel controls, infrared
remote (included) or RS232 commands. A list with the available
RS232 commands is included in this manual. If you wish to control
the unit using a third party infrared remote control unit, use the
learn function on your third party remote to transfer the commands
from the included remote. Read the manual of your third party
remote for more details.
The CD/USB/SD player has an additional digital volume control,
which can be operated via the infrared remote or via serial control.

Instruction manualPCR3000RMKII
5

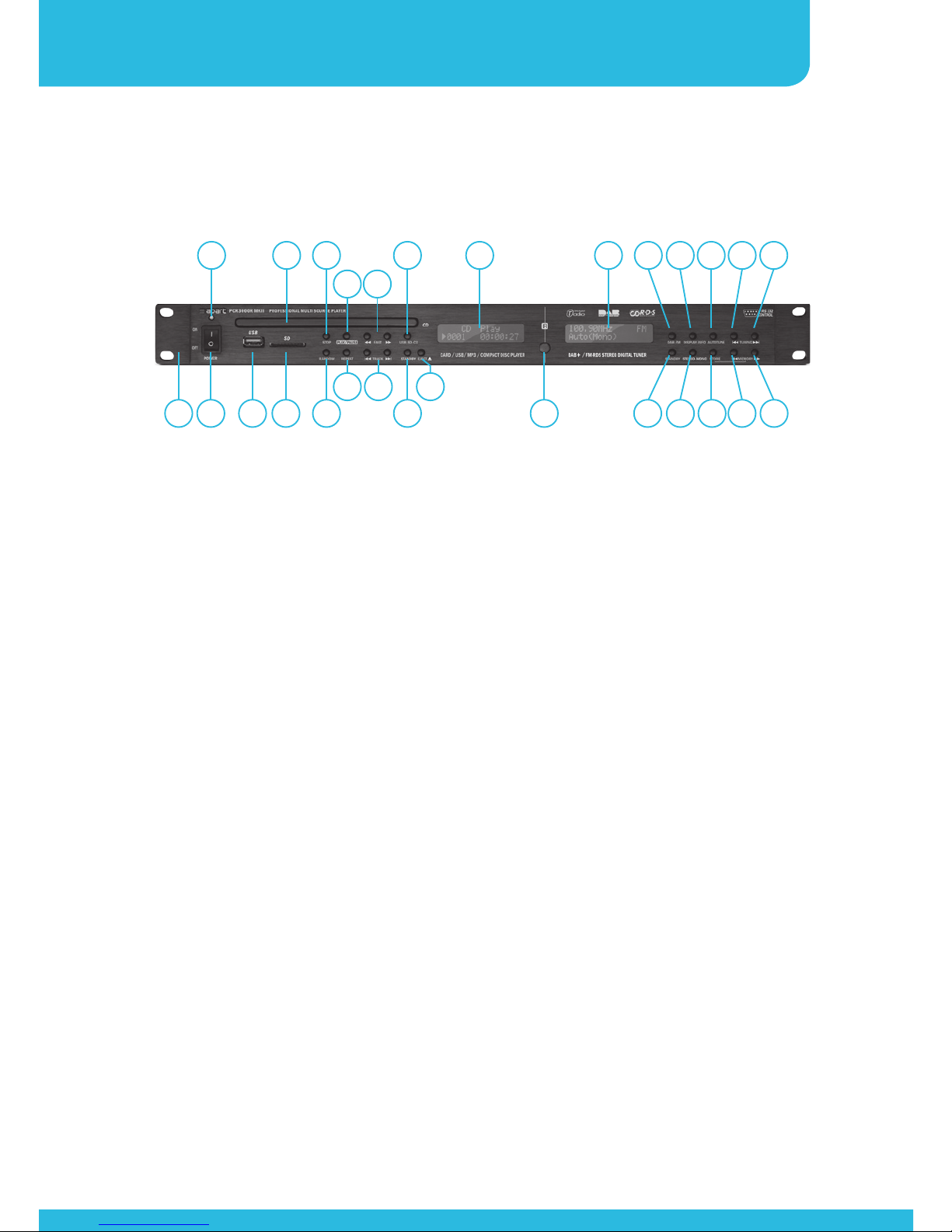

Front panel
1. Power led: lights up blue when powered on, lights up red when
in standby mode.
2. CD tray.
3. CD/USB/SD player display: displays track number and playback
time and status.
4. Tuner display: displays tuner info such as station name, tuner
frequency, RDS information…
5. DAB-FM button: push button to switch between DAB and FM
tuner mode.
6. Display-info button: push to switch between different display
options, such as RDS information, station name, program type,
mono/stereo (auto) and time information. Default setting is to
display mono/stereo.
7. Autotune button: push to perform a quick scan in DAB mode,
hold for a full scan. in FM mode, pushing the autotune button
will search for the next station on the FM band. Hold to search
for a station backward.
1 2 3 4 5 6 7 8 9
28 27 26 25 21
22
17
24
20
23
19
18
16
15 14 13 12 11 10

6
MEDIA PLAYER
8. Tuning back button: tune one step back (FM mode). In DAB mode
the tuner will tune to the previous station.
9. Tuning forward button: tune one step up (FM mode). In DAB
mode the tuner will tune to the next station.
10. Memory up button: tune to the next station stored in memory.
There is a maximum of 10 memory locations available in FM mode
and also 10 memory locations in DAB mode. If there is no station
programmed on a certain memory location, the display will show
“Preset xx free”.
11. Memory down button: tune to the previous station stored in
memory. There is a maximum of 10 memory locations available in
FM mode and also 10 memory locations in DAB mode. If there is
no station programmed on a certain memory location, the display
will show “Preset xx free”.
12. Store button: press to store a station into memory. First select an
empty memory location or a location you wish to overwrite. Then
tune to the desired station and press store to store the station on
the previously selected memory location.
13. Stereo/mono button: push to switch between mono or stereo
operation (FM mode only).
14. Standby button: push to switch the tuner to standby mode or to
wake up from standby mode.
15. Infrared receiver eye.
16. Eject button: push to open or close the CD tray.
17. Standby button: push to switch to standby mode or to wake up
from standby mode.

Instruction manualPCR3000RMKII
7
18. Fast forward button, Fast backward: push once to search
forward or backward. Push again to resume normal play.
19. Track down button: push to go one track back,Track up: pushto
skip to the next track.
20. Repeat button: push to switch between the repeat modes:
repeat one, repeat all, off
21. Random button: push to switch on random playback mode.
Push again to switch this mode off. Default = random off.
22. Stop button: push to stop the playback.
23. Play button: push to start play or pause a playing song.
24. USB-SD-CD button: push this button to switch between the
media drives, USB, SD or CD.
25. SD card slot.
26. USB connector: accepts memory sticks only, capacity up to 32
GB.
27. Power button: Push to power on or off. This button powers off
the unit entirely in the off position. The power led will not light
up when in the off position.
28. Removable rack ears.

8
MEDIA PLAYER

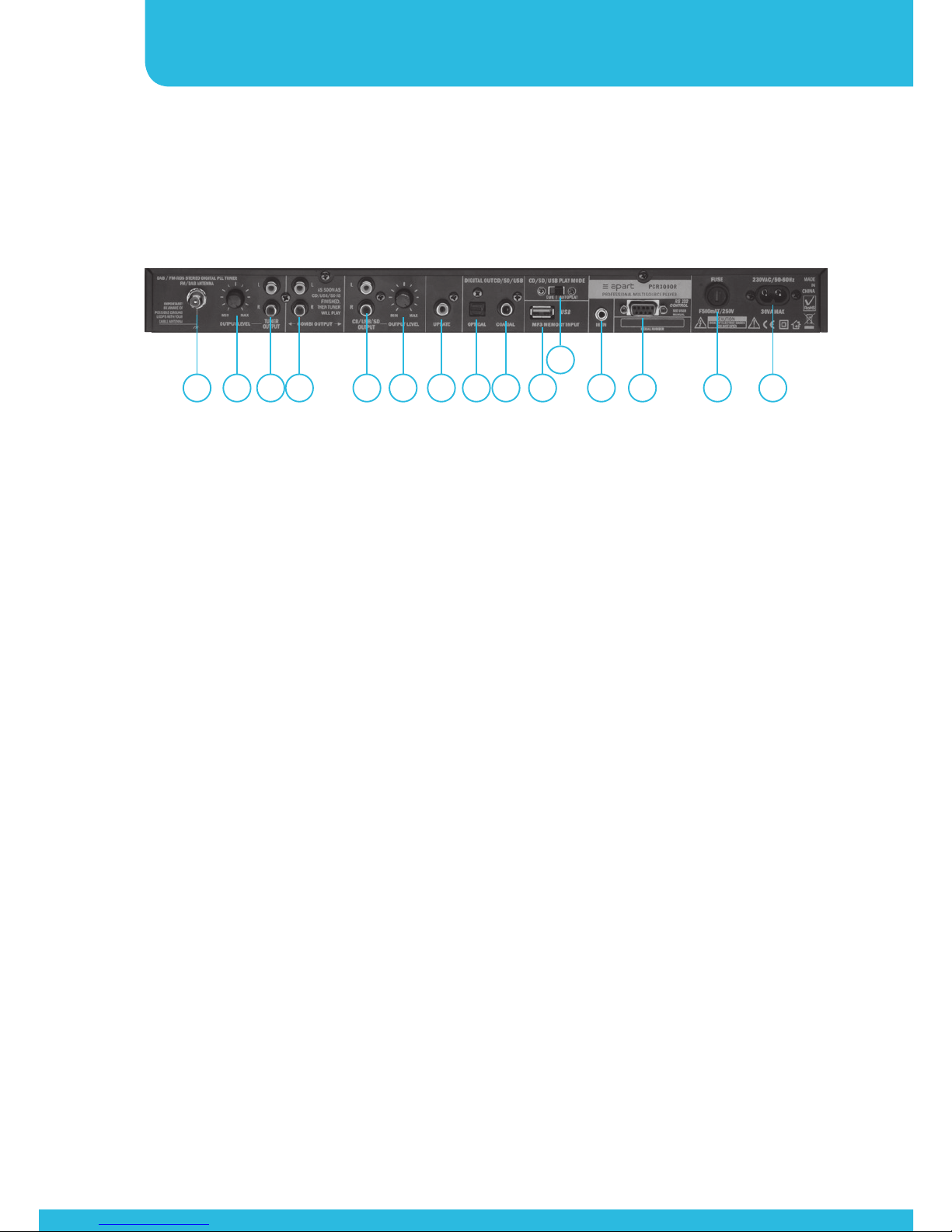

Rear panel
1. Antenna connector: connect the antenna supplied here. Do not
connect this to a cable distribution network, unless you use an
isolation transformer. Connecting the unit to a cable network
may cause interference to the DAB reception. This depends on
the signal present on the cable network. Check availability of
DAB signals with the cable network supplier first!
2. Tuner output level: turn the output level control to match the
tuner output to the output from other music sources.
3. Tuner output: adjustable line level output on RCA connectors.
4. Combi output: as soon as CD/USB/SD player has finished
playing, the tuner output will be present on this combi output.
Output levels from both tuner as well as CD/USB/SD player are
adjustable.
5. CD/USB/SD output: adjustable line level output on RCA
connectors.
6. CD/USB/SD output level: turn the output level control to match
the CD/USB/SD output to the output from other music sources.
7. Update: unused connector.
8. Optical output: digital optical output on Toslink ® connector.
1 2 3 4 5 6 7 8 9 1210
11
13 14 15

Instruction manualPCR3000RMKII
9
This connector carries the SPDIF digital output from the CD/
USB/SD player in 16 bits/44.1 kHz PCM format.
9. Coaxial digital output: digital output on RCA connector. This
connector carries the SPDIF digital output from the CD/USB/SD
player in 16 bits/44.1 kHz PCM format.
10. Rear USB slot: this is a copy of the front USB connector, use the
front OR the rear USB connector, not both simultaneously.
11. Operating mode switch: Autoplay: the unit will start playing
back at power up. Cue: the unit will wait for a play command
after power up, or when in stop or pause. This function allows
a track to be selected without playing it back automatically.
12. IR jack: connect a suitable infrared eye here. Connecting an IR
receiver here will automatically bypass the front IR eye.
13. RS232 port for external control on SUB D9 connector.
For control purposes only. The radio or CD/USB/SD media
information is not available on the serial port.
14. Fuse holder: contains a standard 20 x 5 mm fuse. Value
500mA/250V/slow blow. Replace only with a fuse of the same
value. If the fuse breaks regularly, contact your dealer.
15. Mains cable connector.
Note: the output level can also be adjusted during playback via the
infrared remote or serial control commands. This volume control is
located before the master output level knob (4) on the rear of the
unit. After waking up from standby or after power up, the volume
level is automatically reset to the maximum as set by the rear
volume knob.

10
MEDIA PLAYER
*Please note: the unit may respond slowly when you change the
input source. This depends on the memory capacity and reading
speed of the memory stick/card and the number of files present on
the media. When inserting a CD, the unit will first read the table of
content to determine the type of media present on the disc. This
may take a few seconds. During this time, the unit will not respond
to any command.
The unit will automatically recognize the serial commands for CD/
USB/SD and tuner part. When the tuner or the CD/USB/SD is in
standby mode, sending a command will cause no reply from the
unit or action taken by the unit. This is valid for all commands
except for the CD ON and DAB ON commands. Note: the output
level can also be adjusted during playback via the infrared remote
or serial control commands. This volume control is located before
the master output level knob (4) on the rear of the unit. After
waking up from standby or after power up, the volume level is
automatically reset to the maximum as set by the rear volume knob.
Important notice: always allow the unit to acclimatize during at
least one hour. E.g when the unit has been transported in cold
weather conditions, the electronics and optical devices inside the
unit might condensate, causing malfunction or even permanent
damage to the unit!
Please note that the unit may respond slowly when you change the
input source. This depends on the size and number of files present.
