APE MP3450L User manual

MP3450L（Laptops Type）
Application : N.B / Netbook / MID / Micro-projector / Mobile phone / iphone / ipod .
I. Operation panel
II. Function introduction
USB power On/Off or Auto/Manual
selected switch
Capacity extension port
DC IN port
DC OUT port
USB port
Auto &Manual indicated LED
Voltage scale/capacity indication LED
Charging LED indicator
Capacity display( Blue LED light )
/Voltage ( LED no light ) push button
with indicated LED

◆Adopt MCU intelligent control design.
◆Light weight( 0.4kg ) , fashion appearance.
◆Wide charging input voltage range: 8~24V
◆Charging time: 3~4 hours
◆Three charging method: by a. Power adapter b. Car charger c. Solar panel charger
◆Charging LED display:Orange: on charging; Green: fully charged
◆Two operation modes of selecting suitable voltage for your laptops: 1,Auto mode 2,Manual mode
◆Auto mode : MP3450L will automatically scan and setting the proper voltage(between 10V and 19V) for your device.
◆Manual mode : 6 scales output voltage ( 10V/12V/14V/16V/18V/19V )can be adjustable.
◆Output current: 4 ~ 4.5A
◆USB output voltage/current: 5.25~5.4V / 1.5A
◆Voltage/capacity display: 6pcs blue LEDs indiate the relate voltage scale and remaining capacity in different state .
◆Output capacity: 10V/4.9Ahr, 12V/4.08Ahr, 14V/3.5Ahr,16V/3.06Ahr,18V/2.71Ahr,19V/2.57Ahr
◆Automatic lock voltage scale function: It will auto lock output voltage when loading current is over 0.5A in the auto mode;The output voltage scale
will be auto locked when connected the loading current is over 300~500mA in the manual mode. At this moment, the voltage is non-adjustable
to avoid damage the device from error operation on line.The push button will light blue to indicate in the capacity display state.
◆With extended capacity function : It can extend the battery capacity by extended battery pack MP3460 from 50W to 100W.

◆With pass through charging function : It can offer power to your device in the meantime,and will charge your device's internal battery fully in priori
t
and after also it can be charge the MP3450L from AC power adapter .
◆With uninterrupted power system function:MP3450L will power your device in time if the AC power shut down to avoid your device from shutting
d
◆With multi-protection function:Over charge /over discharge/over current/over voltage/short circuit/over temperature protection.
◆Low self-discharge ,can be store 1 Years Without Using
◆Cycle life:300~500 cycles
◆Safety Certification: CE,3C,RoHS
III. Electric specification
NO. Item Rated performance Remark
1 Battery cell Li-Polymer
2 Battery pack power / Capacity 51Wh(13,600~14,000mAh）
12~19V ( Auto setting ) in Auto mode
10V，12V，14V，16V，18V，19V(Adjustable) in Manual mode
4 Ripple voltage ≤100mV
5 Output DC/DC transfer efficiency 94~97%
6 DC OUT port's Power 49Wh
DC OUT output voltage3

7 DC OUT port's output current 4A(Constant),4.5A(Max.)
8 DC OUT over-current protection 5~7A
9 USB port's output voltage 5.25~5.4V
10 USB port's output current 1.5A（Constant），2.0 A（Max.)
11 USB port's over-current
protection 2.2~3.0 A
12 Self-discharging current a,＜120uA(Power OFF）b,＜70mA(Power ON）
13 DC IN port's charging voltage 9~24V
14 DC IN port's charging current 800~1200mA
15 Charging time 3~4 Hours
16 Charging indicator Orange：charging ，Green：fully charged
17 DC IN port's JACK dimension 5.5~6*2.0~2.1*10.5（inside "+",outside "-"）
18 AC Power adapter voltage/curre
n
Same as the original AC power adapter of the connected Lapto
p
Not contained in the package
12~20V/ ＞2000mA the DC input jack be plug by solar panel
output ;it can't work on pass through
charging state .

28~35V/ 50~ 2000mA charged by solar panel plug into the Capacity extend port ;it can work on
pass through charging state .
12~24V/ 50~ 2000mA
The Sun-booster adapter is optional for
charged by the solar panel ;the output
side (3pin plug )connected to the
Capacity extend port. it can work on
pass through charging state .
20 Car charger input voltage/curren
t
9~15V/2.5A
1.Car charger optional accessory
2. It only for charging by car charger, it
can't work on pass through charging
state
21 Capacity indiation by the voltage
/ capacity push button Push button light blue(except item 1)，6pcs green LEDs
indication capacity.
1. power off or 2. in auto mode or
3. in manual mode after auto lock or
4. charging state
The push button’s indicator LED will
light
Blue color except item 1 as above state
22 Adjust voltage by the voltage /
capacity push button 6pcs green LEDs indicate 6scales voltage in Manual mode when disconnected with
loading by power output cord , The
indicator LED will no light
Auto mode:≥500mA The output voltage scale will auto lock
while connected loading
’
s current over
Solar panel charger input
voltage/current
19
23
Automatic locked the voltage
scale while load current over

Manual mode: ≥300~500mA
24 Pass through charging function Firstly offer power to Laptops working and charging Laptop’s internal battery . Secondly charging MP3450L battery after
Laptop’s internal battery charged fully .
25 Power interrupted timing for
loading 0ms (when loading current ≤2.0A)；20ms (when loading
current＞2.0A）
When working on pass through
charging state
26 The Capacity extend port functio
n
1. connected with MP3460 for battery capacity extend to double
or 2.connected with 3-pin cable connecter or sun-booster
adapter for solar panel charged .
27 Over-charge protection voltage 4.35V±0.05V /cell, 26.1V±0.3V/pack
28 Over-discharge protection voltag
e
3.1V±0.05V/cell,18.6V±0.3V/pack
29 Temperature protection 130℃
30 Typical weight 420±20g
31 Operation temperature Charging：0~40℃，Discharging：-10~50℃
32 Storage temperature 1.-20~20℃(one year）2. -20~45℃(three months）3.-20~60℃
(one month）
IV. Operation guide –There are two situations:
while
connected
loading s
current
over
this limited
23
scale
while
load
current
over
the limited

1）. Indoor Application —— working for Pass through charging
MP3450L

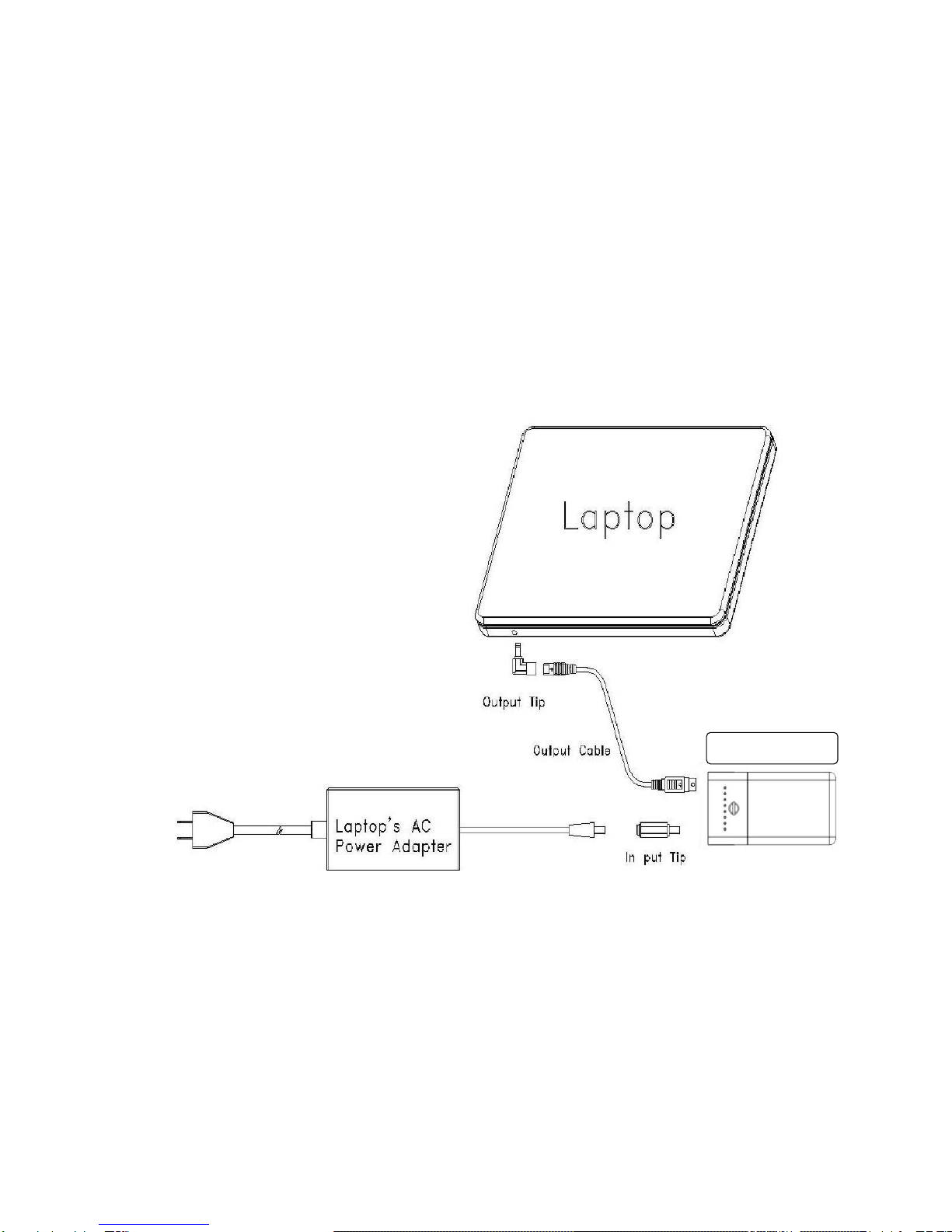

1. The output of loading’s original AC power adapter plug in MP3450L’s DC IN jack ;or select suitable input adapter tip to transform; and the DC OUT
port of MP3450L connected with Laptop’s DC IN jack by the power output cable .The connect method as above connection diagram.
2. It can charge and power your device in the meantime, and will charge your device internal battery fully in priority, then charge the MP3450L from
AC power adapter after .So it can keep the MP3450L is fully charged for urgently using of outdoor.
3. The voltage of DC OUT port is same as charging input voltage of DC IN charging port when work on pass through charging state . It doesn’t matter
work on which mode( auto/manual ) or setting which voltage scale. The voltage scale green LED will according to the output voltage to indicate
related voltage scale LED. Therefore, please use the original AC power adapter of Laptops to charge it. Or use the same specification of
AC power adapter as the original one.
2). Outdoor application ————Back-up power for your device

Please check if the maximum current ; it’s marked on the AC power adapter label of connected laptops is more than 4.5A before connect with the DC OU
T
port of MP3450L. It will shut down if demand loading current over MP3450L maximum output current 4.5A.
1. in the Manual mode : The output voltage scale is adjustable by pressing the push button when you select the Manual mode, and the related LED will turn light
indicate the output voltage scale according to the specification marked on the label of original AC power adapter. You also can set the lower one
scale voltage than standard specification to power the Laptop and not charge for the Laptop’s internal battery ,thus advice can save the loss of
MP3450L

energy conversation.
2. in the Auto mode : The output voltage is non-adjustable, the output voltage will auto detected and setting for the notebook working voltage and then to auto l
o
The green LED will according to the output voltage to display related scale indicated LED. To press the capacity/voltage push button that only dis
p
battery capacity and can’t adjust the output voltage when work on Auto mode.
V. Charging ways
Charging main body battery capacity by 3 way :
a. Charging by AC Power Adapter
The standard package is without AC Power Adapter. Please must connected with the original AC Power Adapter of Laptops. The output plug
of original AC Power Adapter of loading device is connected to DC IN port for Charging. The push button’s indicated LED will light blue color
at the same time.
AC Power Adapter’s specification: Must as same with Laptop’s original one .
b. Charging by Car Charger
The output connecter of Car charger plug into DC IN port for charging.The push button’s indicated LED will light blue color at same time.
The car charger is optional accessory.
Car charger’s specification:
The output is directly connected to input of car charger.

a. The input voltage/current of car charger : 9 ~14V / 2.5A
b. The output voltage will follow up input voltage.
c. It only can charging MP3450L by car charger. But can’t apply to the pass through charging state.
C. Charging by Solar panel Charger
Due to the output’s specification of Solar panel charger is different. There is 3 ways to charge by different cable & adapter plug into different po
Please check Solar panel charger specification firstly. There are 3 ways to charge as below:
Way1 : suitable for : a. The output current of solar panel : > 2A
b. The OCV voltage of solar panel : 12V ~20 V
The output connecter of solar panel charger directly plug into DC IN port
Way2 : suitable for : a. The OCV voltage of solar panel : 26V ~ 35V
b. The output current of solar panel : > 50mA
The output connecter of solar panel charger plug into the DC IN of 3-pin cable; the output of 3-pin cable plug into

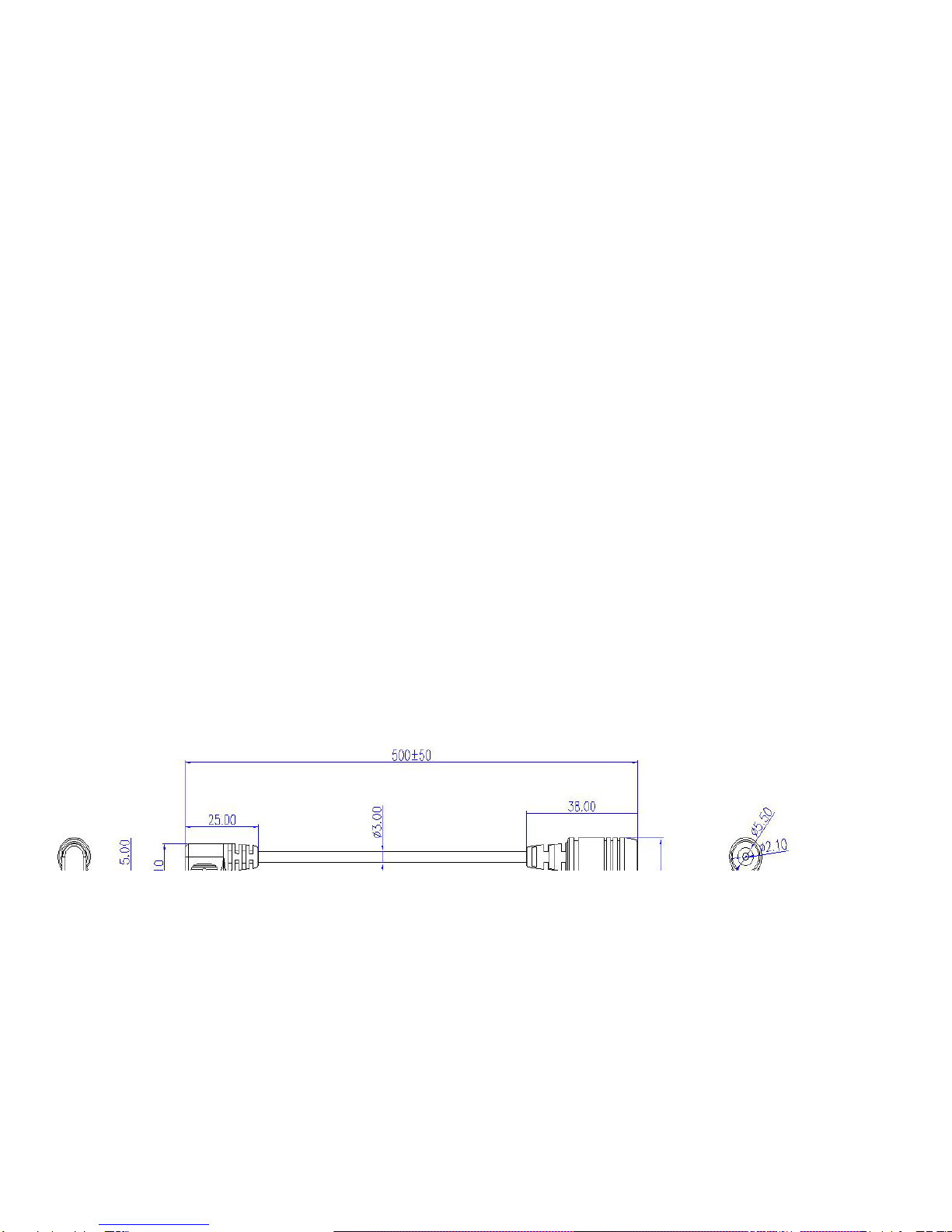

the Capacity extend port of MP3450L. The 3-pin cable ( optional accessory ) diagram as below :

Way3 : suitable for : a. The OCV voltage of solar panel : 9V ~ 25V
b. The output current of solar panel : >100mA

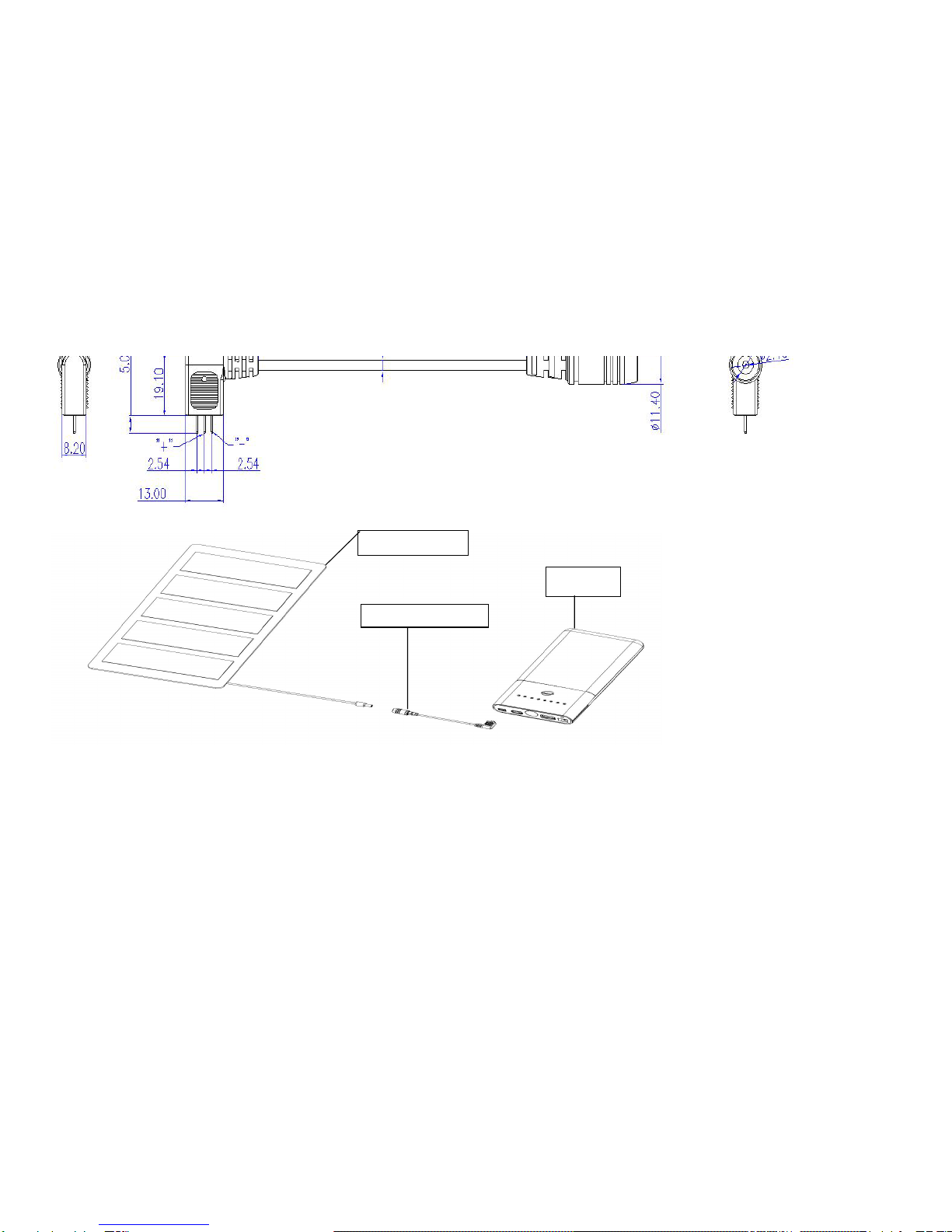

The output connecter of solar panel charger plug into the DC IN Jack of 3-pin sun-booster adapter; the output of 3-pin sun-Booster
Solar panel
3PIN connector
MP3450L

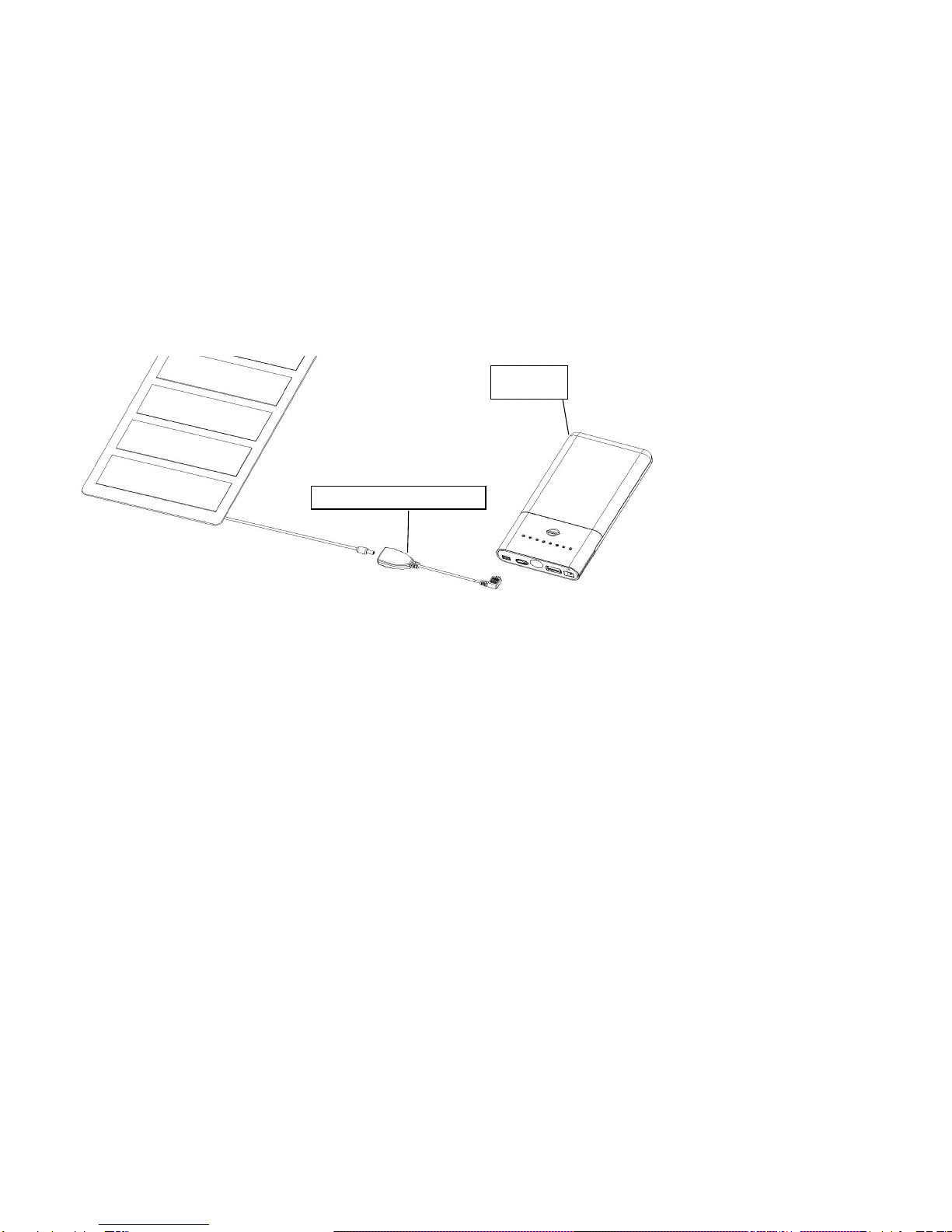

adapter plug into the Capacity extend port of MP3450L. The 3-pin sun-booster adapter( optional accessory )diagram as below :
solor panel
MP3450L

IV. Battery capacity expansion method
MP3450L can extend the battery capacity from 50/60W to 100/120W by connecting with the extra battery pack MP3460.
1. Place MP3450L on top of with both flat silver ends facing the same derection.
2. Connect the bracket with the 3-pin plugs inside to the silver ends of the devices. The 3-pin plugs will mate with the battery port on each of
device, and the controls on the end of MP3450L will show through the bracket opening.
3. Connect the second bracket on the opposite end of the devices to hold the units together securely.
4. Use MP3450L as you would normally.

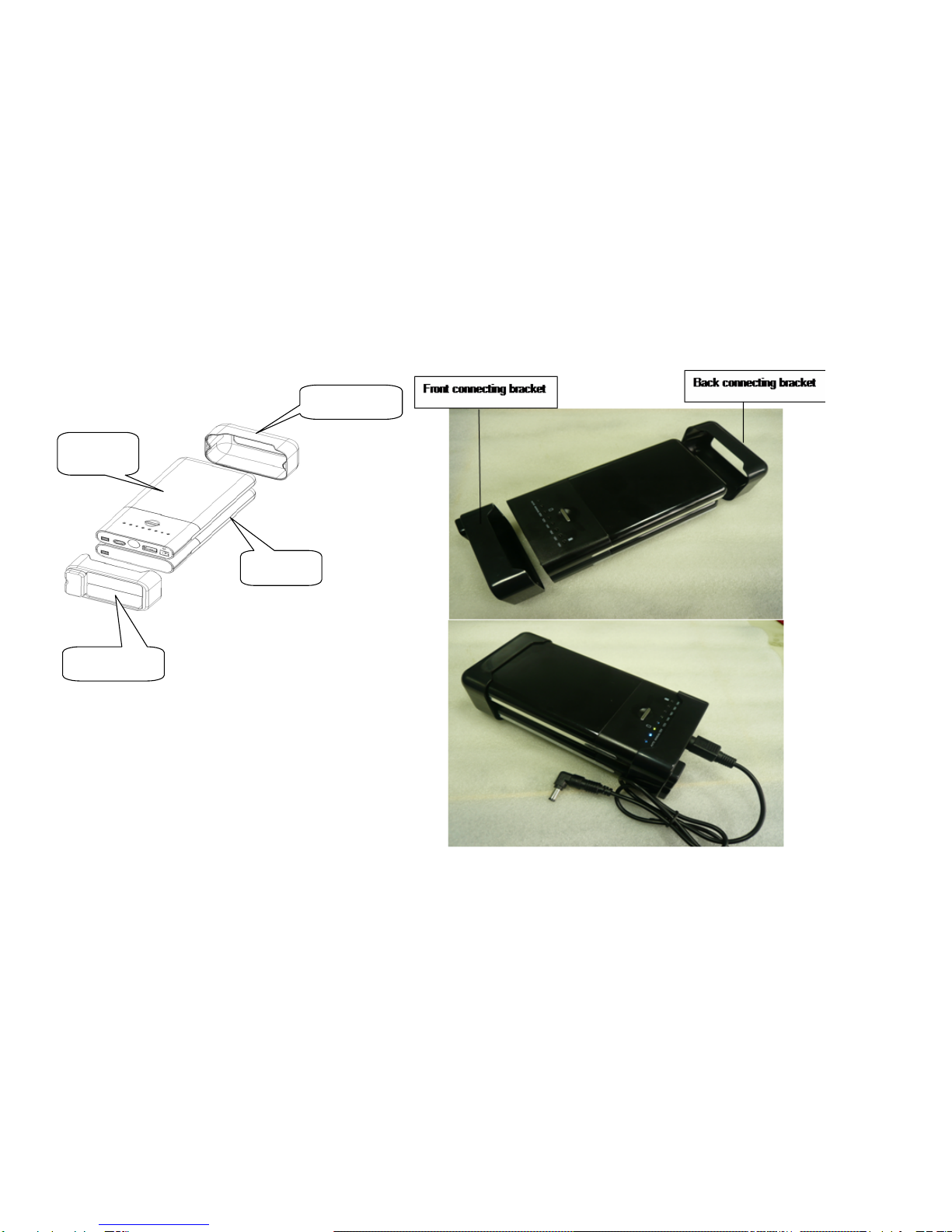

MP3450L with MP3460 assemble diagram as below:
sun-booster adapter
MP3450L

MP3450L
Back bracket
MP3460
Front bracket

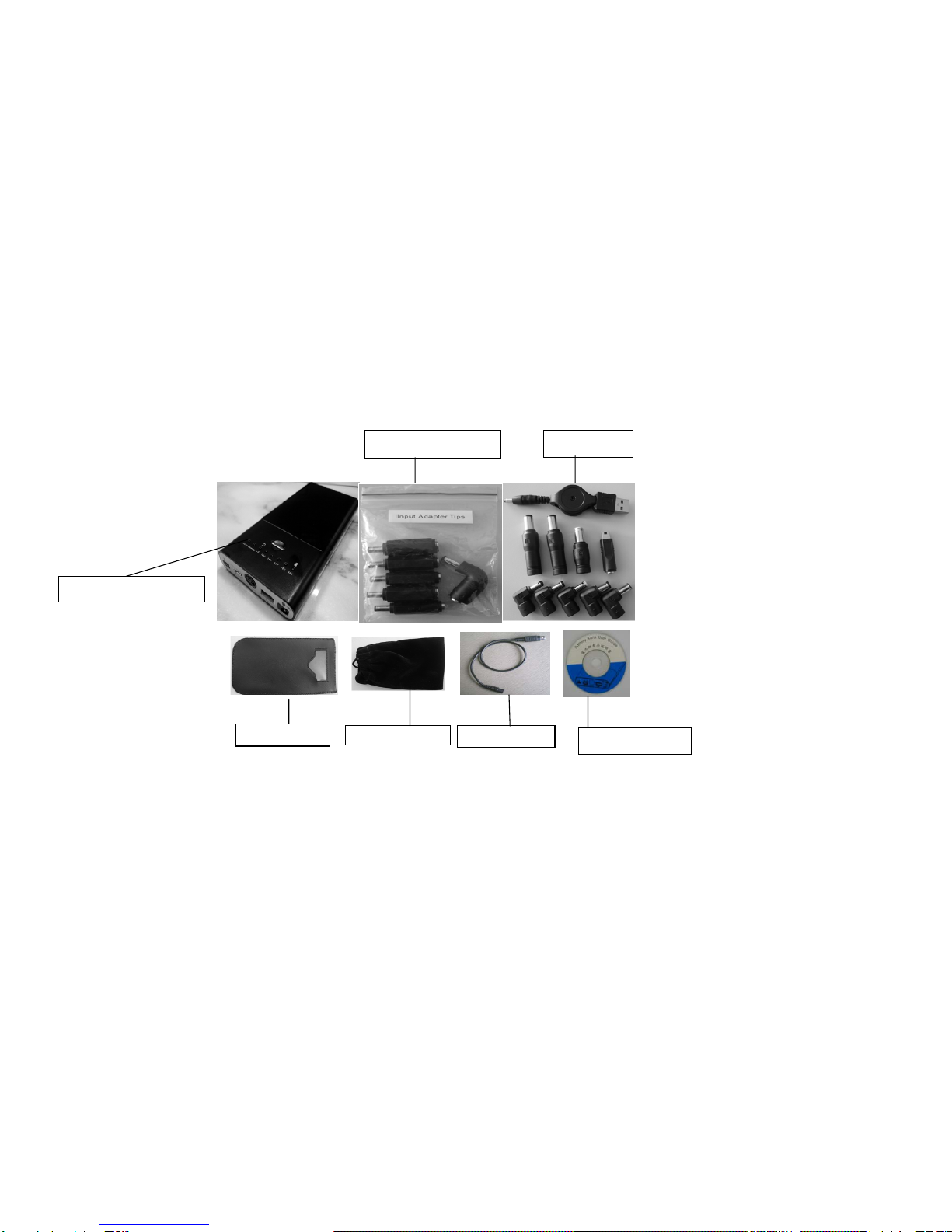

V. Product package list
MP3450L main body
Leather case
Input adapter tips Output tips
Punching bag Output cable Disc user guide
