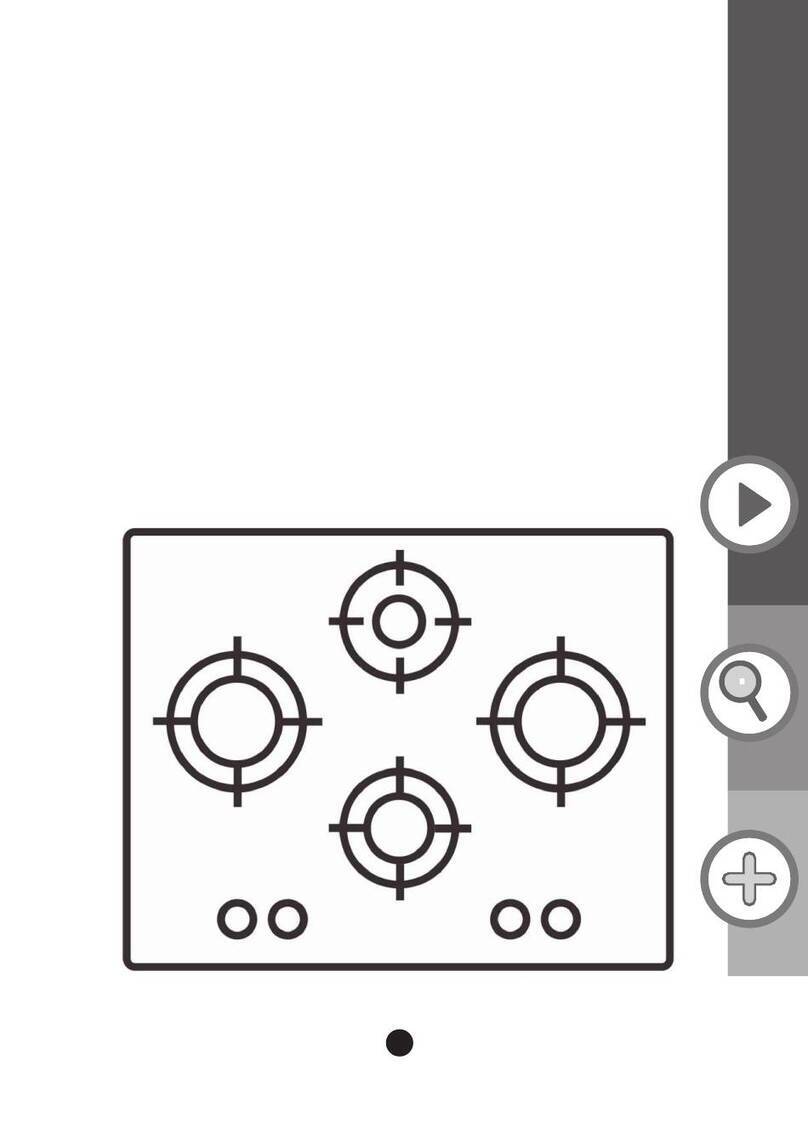

Apelson UBGHJ611 User manual

GB
UBGHJ611
UBGJ612W
UBGHJ614

[02] x 1
[03] x 1
[01] x 1 [04] x 1
[06]x 1 set
[07]x 1
[08]x 4
1 : 1
[09]x 4
[10]x 4
[11]x 1
[12]x 1set
[05]x 1

Built-in Gas Hob
Installation
GB
24
UBGHJ611
UBGJ612W
UBGHJ614
3

GB
Let's
get started...
Getting started... 05
Before you start 06
Safety 07
In more detail... 11
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
12
15
17
17
18
Appendix
Installation
13
23
4

Getting
Started...
Getting started...
GB
Before you start
Safety
06
07
5

Getting started...
GB Before you start
Tools required
Before you start
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
or handling to prevent personal injury or damage to the
product.
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
SILICONE
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. please keep this
instruction booklet for future reference and pass it on to any
future owners. after unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance but
contact Customer Services on 0344 800 1128 (UK),
014475261 (Ireland)
6

Safety
Safety
These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for future
reference.
5WARNING:
The connection of the hob to the gas network or gas cylinder
must be made by means of a rigid copper or steel pipe with
ttings complying with local regulations. These ttings are NOT
supplied. THIS OPERATION MUST BE MADE BY A QUALIFIED
GAS INSTALLER.
5This appliance complies with all current European safety
legislation, however must emphasise that this compliance does
not prevent the surfaces of the appliance from heating up during
use and remaining hot during its operation.
5Accessible parts may become hot during use. Young children
should be kept away.
5Care should be taken to avoid touching the appliance when it is hot.
5The Manufacturer highly recommends that this appliance be kept
out of the reach of babies and small children.
5This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
7

Safety
5Children shall not play with the appliance.
5Cleaning and user maintenance shall not be made by children
unless they are older than 8 years and supervised.
5Keep the appliance and its cord out of reach of children less than
8 years.
5Means for isolating the appliance must be incorporated in the
xed wiring in accordance with the current wiring regulations. An
omnipolar circuit breaker having a contact separation of at least
3 mm in all poles should be connected in the xed wiring.
5If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
5Make sure that the power cord is not caught under or in the
appliance and avoid damage to the power cable.
5Do not allow the electric cables to touch the hot parts of
the appliance.
5Do not install the appliance outdoors, in any damp place or in an
area which may be prone to water leaks such as under or near
a sink unit. In the event of a water leak allow the machine to dry
naturally.
5Please dispose of the packing material carefully.
5Do not use ammable sprays in close vicinity to the appliance.
5We also recommend that great care be taken during use and
cleaning. Read the cleaning and maintenance sections for this
appliance carefully.
5A steam cleaner is not to be used.
5The appliance is not intended to be operated by means of external
timer or separated remote-control system.
5The appliance is for domestic use only.
5When a cooking zone has been on for a long time, the surface
remains hot for some time afterwards so do not touch the
metal surface.
8

5WARNING! Unattended cooking on a hob with fat or oil can be
dangerous and may result in re.
5Never try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or a re blanket.
5WARNING! Risk of re! Do not store items on the cooking
surfaces.
5Prior toinstallation, ensure that thelocal distribution conditions
(nature of the gas and gas pressure) and the adjustment of the
appliance are compatible.
5The adjustment conditions for this appliance are stated on the
label (or data plate).
5This appliance is not connected to a combustion products
evacuation device.
5It shall be installed and connected in accordance with current
installation regulations. Particular attention shall begiven tothe
relevant requirements regarding ventilation.
5CAUTION: This appliance is for cooking purposes only. It must
not be used for other purposes, for example room heating.
5Don’t put cooking vessels on the hotplate that overlap its edges.
5CAUTION: The use of a gas cooking appliance results in the
production of heat, moisture and products of combustion in the
room in which it is installed.
5Ensure that the kitchen is well ventilated especially when the
appliance is in use: keep natural ventilation holes open or install a
mechanical ventilation device (mechanical extractor hood).
5Always use at-bottomed cookware during cooking.
5Do not store detergents or ammable materials beneath the hob
5Do not leave hot oils or fats unattended as they may catch light.
5The Manufacturer declines all liability for personal or material
damage as a result of misuse or incorrect installation of
this appliance.
Safety
9

5Never use cookware with a diameter larger then the diameter of
the cooking zone.
5This appliance shall be installed in accordance with the
regulations in force and only used in a well ventilated space.
5Read the instructions before installing or using this appliance.
5CAUTION: The use of a hob guard is not permitted with this
appliance. Do not attempt to t or use a hob guard as this can
cause accidents.
5CAUTION: Accessible parts may be hot when the grill is in
use. Young children should be kept way.
5The minimum distance between this separation and the
underneath of the worktop shall be stated and this minimum
distance declared shall not exceed 150mm.
Safety
10

In more detail...
In more
detail...
GB
Product functions
Operation 11
Care and maintenance
Troubleshooting 15
Recycling and disposal
Technical and legal information 16
10
13
15
11

GB
IE
In more detail...
GB
Product functions
Control elements
Caution: This diagram may be slightly different from the layout of the appliance.
Operation
• 4 x Burners: Four zones of cooking.
• Flame safety device (FSD): Stops the gas supply to the gas hob when
the flame goes out
• auto - ignition
• LPG conversion kit supplied.
Reference Description Qty Reference Description Qty
ASemi-rapid burner 1 D Panel 1
BAuxiliary burner 1 E Burner Cap
5
C Rapid burner 1 FPan Support
4
A
B
F
G
G Triple burner 1
3
HE
HBurner divider
4
12
C
D
E
F

In more detail...
GB
Operation
Caution
• If there is no electric current you can light the burners with
piezo electric spark gas ignitor.
• The burners can only be lit with safety thermocouples when
the knob is on MAXIMUM.
Operation
Use of the burners
>Automatic electric “ON” switch for burners with safety device
(thermocouples)
•
counter-clockwise direction so that the knob is at MAXIMUM.
•
Once the burner is lit, keep the knob pressed in for about 10 seconds
goes out when the knob is let go, repeat the operation.
On the control panel (fig.4) to the left of every knob there is a diagram t
indicate the burner to which the knob in question refers. The burners can
be switched on in several ways, according to the type of appliance and its
individual features.
13

GB
IE
In more detail...
GB Operation
NOTE:
>
Burner Minimum Diameter Maximum Diameter
180mm 240mm
Medium (semi-rapid) 140mm 180mm
Small (auxiliary) 120mm 140mm
WARNING
If you use a saucepan that is smaller than the recommended diameter
the flame will spread beyond the bottom of the vessel, causing the
handle to overheat.
Never leave empty pot or pans over a lit burner.
Do not use tools for gill cooking on gas on glass hobs.
The use of a gas cooking appliance produces heat and humidity in the
place where it is installed.
Therefore, you need to ensure the place is well ventilated, keeping the
natural ventilation openings clear and using a mechanical ventilation
device/ flue or electric fan
Intensive or prolonged use of the appliance may require additional
ventilation, such as opening a nearby window or increased ventilation
effiency obtained by increasing the power of the mechanical ventilators
where applicable.
Advice for the best use of the burner:
When boiling point is reached, turn the knob to MINIMUM.
Always use pans with a lid .
>
>
>
>
Large (rapid)
14

In more detail...
GB
Care and maintenance
Appliance cleanliness
>
>
>
:
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
Caution
• Use soapy water and a cloth for cleaning. Never
use abrasive powders.
• Avoid banging pots and pans down on the hob.
• Do not leave any empty pan on the heating zone.
FUSE
OFF
>
Cleaning the hob panel.
Regularly wipe over the hob top with a soft cloth well rung out in warm water
to which a little washing up liquid has been added. Avoid use of the following:
1) Household detergent and bleaches. 2) Soap impregnated scouring pads.
3) Steel wool. 4) Bath/sink stain removers.
Cleaning the pan supports.
If washing them by hand, take care when drying them as the enameling and
dieing process occasionally leaves rough edges. If necessary remove
stuborn stains using a paste cleaner.
Cleaning the burners.
The burner caps and crowns can be renoved for cleaning. Wash the burn-
er caps and crowns using hot soapy water and remove marks using a mild
paste cleaner.
A well moistened soap impregnated steel sool pad can be used with caution
if the marks are particularly difficult to remove. After cleaning make sure to
dry using a soft cloth.
Note: It is very important to keep the thermocouples and the ignition candles
in a clean condition to prevent problems lighting and maintaining a flame on
the burners.
The appliance should be cleaned after use.
Wipe the inner and outer surface of the appliance and its accessories
with wet cloth.
Any liquid overflowing from the pan must always be removed wit
a cloth.
The surface of the hob may be easily cleaned as follows
15

GB
IE
In more detail...
GB
Replacement of parts
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
Care and maintenance
FUSE
OFF
16

In more detail...
GB
Troubleshooting
The following circumstances may not be a problem. Do not contact the
If your appliance is still not functioning properly after making the above
checks, please contact customer services.
1. Check that the mains supply has not been switched off.
2. Check that the fuse in the spur has not blown.
3. Ensure that the burner components are not excessively soiled as
this can lead to ignition problems.
Do not take the appliance apart yourself, as you may damage the hob.
Before calling After Sales Service, please do the following:
1. Check that the appliance is correctly connected.
2. Read the failure text above. If you are still unable to solve the
problem, switch off the appliance, do not try to take it apart
and call customer services.
Troubleshooting
Recyling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to
avoid possible negative consequences for the environment and public
health, which could occur if this product is not handled correctly. To receive
more detailed information about recycling this product, contact your local
government, domestic waste disposal services or the outlet where the
product was bought.
17

GB
IE
In more detail...
GB Technical and legal
information
Technical data
Power Supply V/Hz 220-240 Vac 50/60Hz
Gas Pressure mbar G20-20mbar
G30-28~30/37mbar
External Dimensions HxDxW mm 110x510x640
Overall Dimensions:
Width: 640mm Depth: 510mm
Cut-out Dimensions
Width: 555mm Depth: 475mm
NG (G20 20mbar)
Injector Dia. (mm) and kW
LPG(G30 28~30/37mbar)
Injector Dia. (mm) and kW
Gas Category Dia kW Dia kW
Triple Burner 1.27 3.5 0.96 3.5
Rapid burner 1.24 3.0 0.88 3.0
Semi rapid burner 0.98 1.75 0.69 1.75
Auxiliary burner 0.74 1.0 0.511.0
Injector Table
Destination: GB
Gas Category: II2H3+(G20 20mbar, G30 28-30/37mbar)
18

In more detail...
GB
Technical and legal
information
All installation work must be carried out by a
Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on
the rating plate inside the cooker hood.
Warning: THIS APPLIANCE MUST
BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct
Connection
Direct Connection
If the appliance is being connected directly to the mains an
omnipolar circuit-breaker must be installed with a minimum
opening of 3mm between contacts.
If the cable is damaged or to be replaced, the operation must be
avoid any accidents.
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
FUSE ON
19

GB
IE
In more detail...
GB
Electrical Requirements
Any permanent electrical installation must comply with the latest
I.E.E. Regulations and local electricity company regulations. For
roll of the National Inspection Council for Electrical Installation
Contracting (NICEIC) should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate inside
the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and must be
connected to the electricity supply via a double pole switch having
a 3mm minimum contact gap on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is
recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the
following code:
Brown = L - Live
Blue = N - Neutral
Green/Yellow = - Earth
The connection point must be placed in a position adjacent to the
appliance so as to be readily accessible for an engineer in the
event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.
Technical and legal
information
20
