RST-5003 Control Module
Installation Guide
Web Enabled Series
R
APG
Automation Products Group, Inc.
1025 W 1700 N Logan, UT 84321
www.apgsensors.com | phone: [phone] | email: [email protected]
Thank You
Thanks for purchasing a RST-5003 control module from us! We appreciate your business and
your trust. Please take a moment to familiarize yourself with the product and this manual before
installation. If you have any questions, at any time, don’t hesitate to call us at 888-525-7300.
APG warrants its products to be free from defects of material and workmanship and will, without
charge, replace or repair any equipment found defective upon inspection at its factory, provided
the equipment has been returned, transportation prepaid, within 24 months from date of shipment
from factory.
THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT
EXPRESSLY SET FORTH HEREIN, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR
OTHERWISE INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
No representation or warranty, express or implied, made by any sales representative, distributor,
or other agent or representative of APG which is not specically set forth herein shall be binding
upon APG. APG shall not be liable for any incidental or consequential damages, losses or expenses
directly or indirectly arising from the sale, handling, improper application or use of the goods or
from any other cause relating thereto and APG’s liability hereunder, in any case, is expressly limited
to the repair or replacement (at APG’s option) of goods.
Warranty is specically at the factory. Any on site service will be provided at the sole expense of the
Purchaser at standard eld service rates.
All associated equipment must be protected by properly rated electronic/electrical protection
devices. APG shall not be liable for any damage due to improper engineering or installation by the
Purchaser or third parties. Proper installation, operation and maintenance of the product becomes
the responsibility of the user upon receipt of the product.
Returns and allowances must be authorized by APG in advance. APG will assign a Return Material
Authorization (RMA) number which must appear on all related papers and the outside of the
shipping carton. All returns are subject to the nal review by APG. Returns are subject to restocking
charges as determined by APG’s “Credit Return Policy”.
1.Description
2. How To Read Your Label
3. Warranty
4. Installation Procedure
5. Dimensions
6. Power Supply Wiring
Diagrams
7. Modbus System Wiring
Diagrams
8. Embedded Webpage
9. General Care
10. Repair Information
11. Removal Instructions
Table of Contents
4Installation Procedure
Installing your RST-5003 is easy if you follow a few simple steps:
• Connect any 4-20 mA sensor, relays, or switched inputs rst.
• Connect RST to Ethernet/network
• Connect independant 12-28 VDC supply if not using POE.
• Connect and set up one Modbus sensor at a time.
Please keep the following limitations in mind:
• Up to 10 Modbus sensors can be connected to the RST-5003 in any combination.
• Only one 4-20 mA sensor can be connected to the RST-5003.

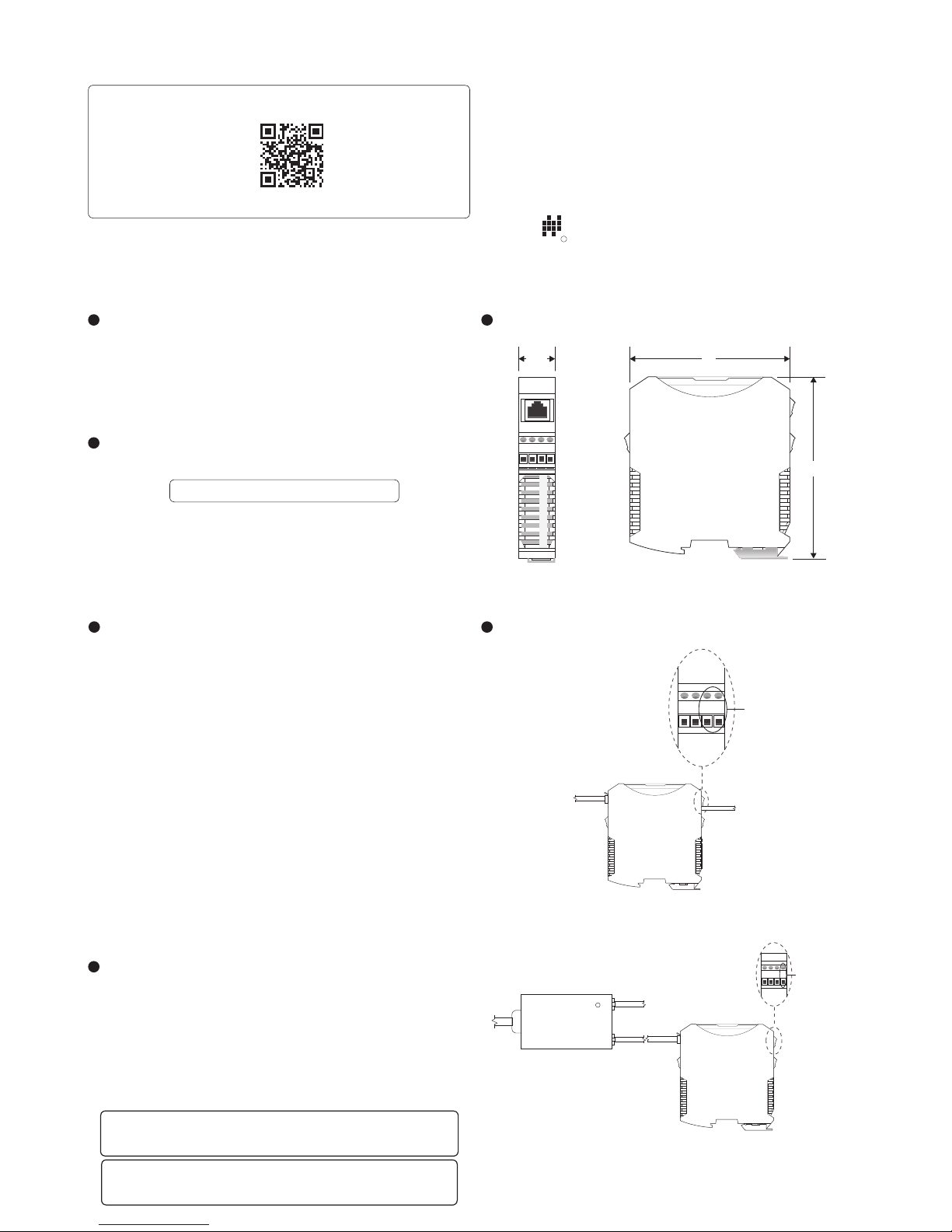

5Dimensions
NOTE: Scan the QR code to the below to visit www.apgsensors.com/support.
APG Support Website
Part # 122950-0012
Doc #9004245 Rev A
Each label comes with a full model number, a part number, and a serial number. The model
number for the RST-5003 will look something like this:
The model number correlates with all the congurable options and tells you exactly what you have.
Compare the model number to the options on the datasheet to identify your exact conguration.
You can also call us with the model, part, or the serial number and we can help you.
SAMPLE: RST-5013
The RST-5003 Web Enabled Control Module oers a wide degree of integrated and exible remote
and local control and monitoring for your system. The RST-5003 can control up to ten APG Modbus
sensors--any combination of level, pressure, magnetostrictive and ultrasonic--along with one
4-20 mA sensor, and two input or out relay terminals. All readings are available for control and
monitoring via TCP/IP for local or remote network access. The RST-5003 also had exible power
options: it can use either POE or an independent 12-28 VDC power source.
1Description
2How To Read Your Label
3Warranty
2
4
V
BG
N
D
A
7/8” 4”
4 1/2”
IMPORTANT: Each Modbus sensor must be added to the network individually and
assigned a unique Sensor Number before the next sensor can be added.
NOTE: If you can control power to each Modbus sensor individually, you can connect
them all simultaneously, and power them on individually.
6Power Supply Wiring Diagrams
To Network
Connection
Input for supply
voltage when
using a non-POE
power source
To 12-28 VDC
Power Source
2
4
V
4
2
0
G
N
D
G
N
D
RST-5003
External 12-28VDC Power Supply Wiring
POWER
LAN + DC LAN
To Network Connection
To AC
power POE
Power
Injector
Provides 24 VDC
to supply a 4-20 mA
device when the RST
is powered via POE.
2
4
V
4
2
0
G
N
D
G
N
D
RST-5003
NOTE: A POE-enabled
Ethernet switch eliminates
the need for a POE Power
Injector.
POE (Power Over Ethernet) Wiring

IMPORTANT: See your RST-5003 User Manual for complete Modbus programming
instructions and tropubleshooting tips..
9General Care
Your RST-5003 is very low maintenance and will need little care as long as it was installed correctly.
However, in general, you should:
• Avoid applications for which the control module was not designed, such as extreme
temperatures, contact with incompatible corrosive chemicals and fumes, or other damaging
environments.
10 Repair Information
If your RST-5003 control module needs repair, contact us via email, phone, or on-line chat on our
website. We will issue you an RMA number with instructions.
• Phone: [phone]
• Email: [email protected]
• Online chat at www.apgsensors.com
11 Removal Instructions
• Disconnect power source to control module.
• Disconnect sensors and network cable to control module.
• Remove the control module and store it in a dry place, at a temperature between -40° F and
180° F.
Network / Internet Connection
Computer
on
Local
Network
Computer
on
Internet
MNU Ultrasonic Sensors MP Magnetostrictive Float Level Sensors
4-20 mA Input
(2) Solid State Relays
Modbus
Input
Connection
to
Internet
Server Hosting
Website and
Logged Data
4-20 mA Type Level Sensor
RST-5003
7Modbus System Wiring Diagrams
NOTE: Refer to each sensor’s user manual for sensor specic wiring instructions. User
Manuals for all APG sensors and equipment are available at www.apgsensors.com.
2
4
V
BG
N
D
A
(Ethernet Port)
270 Ω
terminating
resistor at
last sensor
Sensor 3
V+
A
B
GND
Trunk Line
Sensor 1
V+
A
B
GND
Sensor 2
V+
A
B
GND
Use shielded cable
Sensor Line Drops
Equivalent 270 Ω
terminating resistor
internal to RST-5003
Note: Terminating resistor size recommended
based on input resistance of RST-5003. Length
of cable and overall impedence of network may
necessitate a different size resistor.
Modbus Daisy Chain Wiring
Modbus System & Network Diagram
Figure 8.1
Figure 8.2
8Accessing the RST-5003’s Embedded Webpage
Each Modbus sensor attached to your RST-5003 must be congured via the RST-5003’s embedded
webpage before the next sensor can be added. The easiest way to access access the embedded
webpage is to type rst_xxx into a web browser on a computer connected to the same local network
as the RST-5003. xxx represents the numeric portion of the RST-5003’s serial number. See Figures
8.1 and 8.2.
