Aposen A200 User manual

Instruction Manual
Model:A200
ROBOT VACUUM CLEANER

Instruction Manual
1. Safety Regulations
2. Product Instruction
3. Parameter
4. Attention
5. Maintenance
6. Lighting Effects And Alarm Tips
7. FAQ
8. Customer Service
01
03
06
07
11
14
15
15

01
1. Safety Regulations
Please read the manual carefully before using the product and keep this instruction for reference.
Products cannot be used by children under 8 years of age or people with mental disabilities. If you need to use it, please do so under the
supervision of the guardian. Please do not let children ride on the product or play the product as a toy. Do not use the product in a room where
infants sleep.
Problems that may arise in cleaning products should be eliminated as early as possible. Clean the power cords and small items on the floor to
prevent the product from being blocked during the cleaning process. Fold the edge of the carpet to the underside of the carpet,and keep the
hanging curtains, tablecloths, etc from touching the ground.
If there is a suspended environment such as a staircase, test the product first to see if it can detect the edge of the suspended area without
falling. Protective barriers should be installed at the edge of the suspended area to prevent falling products. Make sure that the protective
equipment does not cause personal injury.
Please follow the manual in the instructions to use the product. Use only accessories recommended or sold by the manufacturer.
Ensure that the power supply voltage meets the voltage indicated on the cradle.
Used only in indoor home environments. Do not use in outdoor, commercial or industrial locations.
Use only original rechargeable batteries and charging docks that are unique to the manufacturer. Do not use non-rechargeable batteries. For
battery specifications, please refer to " Technical Data”.
Ensure that dust boxes and filter materials are installed before using products.
Use of the product in an environment with open flames or fragile items is prohibited. Do not use the product in extreme heat (above 104 F)
or very cold (below-41 F).
It is forbidden to close the body’s hair, clothes, fingers and other parts close to the opening and operating parts of the product.
Do not use the product on wet or watery ground.
It is forbidden to absorb any items such as follows:
- stones, waste paper.
- flammable materials such as toner, toner or toner for printers or copies.
。
。

02
Before discard of the product, remove the product from the charge stand, turn off the product power switch, and remove the battery. Even if the
product has been severely damaged, it is forbidden to incinerate the product, and the product battery may cause an explosion. Please dispose of
used batteries in accordance with local laws and regulations.
If you do not use the product for a long time, please turn off the product.
FCC Statement
1.This device complies with Part 15 of the FCC Rules.Operation is subject to the following:
（1）This device may not cause harmful interference.
（2）This device must accept any interference received,including interference that may cause undesired operation.
-cigarettes, matches, ash, or other items that may cause a fire.
Do not take any product that is burning, such as Do not place items at the suction outlet. Do not use products when suction is blocked. Clean
dust, cotton wool, hair, etc. at the suction port to ensure smooth air circulation at the suction port.
Use the power cord carefully to avoid damage. Do not use the power cord to drag or pull the product and the product charging stand. Do not
use the power cord as a handle. Do not clamp the power cord into the door seam. Do not pull the power cord at sharp corners and corners.
Do not use the product if the power cord, power outlet or charging stand are damaged. Do not use the product when it is not working properly
due to dropping, damage, outdoor use or water ingress. To avoid injury, the product should be repaired by the manufacturer or its after-sales
service.
Turn off the product switch before cleaning and maintaining the product.

2. Product Instruction
2.1. What’s in the box
1. Robot Vacuum
2. Charging Base
3. Power Adapter
4. Side Brushes X 2
5. HEPA X 1
6. Clean Brush
7. Instruction Manual
1
45 6 7
2 3
03
Model:A200
ROBOT VACUUM CLEANER

2.2. Assembly Name
Master
04
Start/Pause Button
Dustbin
Top cover
Top View
Bottom View
Driving Wheels
Anti-drop Sensors
Anti-drop Sensors
Suction assembly
Universal Wheel
Side Brushes
Charging Contacts
Anti-drop Sensors
Driving Wheels
Charging Contacts

Dust box
05
Bumper strip
Anti-collision Sensor
Top cover
Power switch
High Efficiency
Filter (HEPA)
Dustbin Cover
Dustbin
HEPA Cover
Filter Net

Changing Stand Assembly
06
3. Parameter
Product Model
Input
Power
Battery Capacity
Dust Box Capacity
Cleaning Time
Charging Time
A200
100-240V/50-60Hz
12W
Li-ion 1800mAh
0.6L
90 mins
3.5H
Input
Output
100-240V/50-60Hz
19V / 0.6A
Cleaning Tool
Charging Dock Pins
Power Indicator Light
Power Adapter
Power Adapter Port

4. Attention
4.1 Considerations
Please refer to the following guidelines to check the cleaning area before the cleaner works.
07
1. Power lines and other
debris scattered on the
ground may trip up
product must be
removed.
2. Please roll the
carpet tassels or
work on short-hair
rugs.
3. A gap of less than 8 cm on
the bottom of the furniture
may catch the product.
If you need to clean it,
please remove the
furniture.
4. A guardrail should be
placed at the edge of
the duplex toensure
safe operation of the
product.

08
4.2 Rapid Operation
4.2.1 Install The Side Brushes
Please install the brush into the bottom mouting port of the machine and ensure that the brush is in place.
08

2. Turn On The Master
Turn on the side power switch, “I” is the turn, “O” is the turn off.
After the master finishes working, it is recommended not to shut down; keep the master
in a state of charge so that it can perform its next job better.
4.2.2 Charging Operation
1. Connect the adapter to the charging stand.
Place the charging stand flat against the wall. Do not place objects in the left and right 1M and the front 2M,and do not have objects with strong
reflection surfaces such as mirrors.
09

4.2.3 Start/Stop Cleaning
1. Start or stop by pressing the master's key .
Note: Before starting the mode, make sure that the outer ring of the
key is blue and the master is in the state of being awakened. If the master
does not wake up, short press the master to wake it up.
The master enters the sleep state after 10 minutes of standby, and the
key light is off.
2. Double press the master's to make it return for charging.
Place the master in the charging stand and pay attention to the charging pole piece.
Turn on the power switch, the robot will enter standby mode.
3.Master Charge
Red light flashes indicates that the battery need to be charged.
Blue light breathing light flashes indicate charging.
For the first use, please charge continuously for more than 6 hours.
Note: Please match the charging pole piece.
When the blue light is off means charging is completed.
10

5. Maintance
11
Open the middle cover to take out the dustbin, open the dustbin cover and empty the garbage.

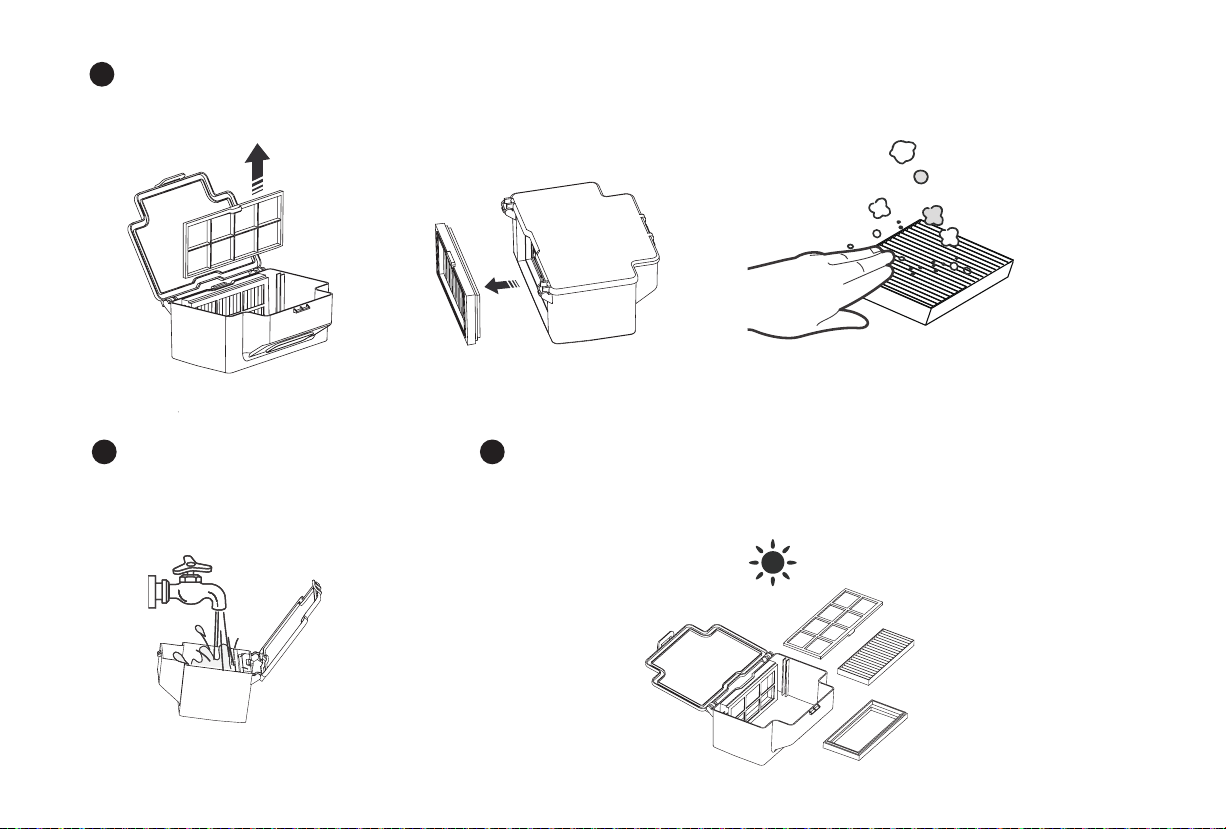

5.1Dust Bin and Filters
Remove the dustbin, open the dustbin cover,and empty the Dust Bin.
1

12
Remove dust filter. HEPA is not recommended for washing.Pat the High Efficiency Filter clean.
Flush the Dustbin and the filter net. Dry the Sponge filter, Dust Bin and Filter Net completely before reinstalling.
2
3 4

5.2 Side Brush
5.3 Other Assembly
Cleaning Side Brush
Pull out the side brush and wipe it with a clean rag.
Cleaning the universal wheel to reduce hair entangle.
Clear down the sensor to ensure the sensitivity of the sensor.
To clean the charging pole pieces, use a dry rag to clean the charging poles on the bottom of the master or the charging stand.
If you will not use the product for a long time, please remove the battery and keep it in a safe place. If the battery leaks, remove the battery and wipe
the battery compartment clean.
This product uses a high-life battery and does not require frequent replacement. If you need to replace, you can contact our company for after-sales
service replacement.
13

14
6. Lighting effect and alarm
Cleaner Status AUTO Display Status
Charging
Finished Charging
When the Robot Fails
Low Battery
Cleaning Mode
Pink light/blue light breathing
Blue lights goes off
Red light flashes or Glows a continuous RED
Glows a continuous RED
Glows a continuous BLUE
6.1 Indicator Light
6.2 Alarm tips
When the robot fails, the robot indicator flashes red and a beeping sound of varying lengths is emitted. Refer to the following table to query the
cause of the failure:
Nr Cause of issue
Motor fan abnormal
Side brush abnormal
Driven wheel abnormal
3
2
1
Beeps Error prompts and solutions
Red Light Glows a continuous RED
1 beep 3times
2 beep 3times
3 beep 3times The motor fan is abnormal. Please clean the garbage and air duct in the dust box.
The side brush is abnormal, please check if the side brush is entangled, and clean the side brush
The driving wheel is abnormal. Please check whether the driving wheel is entangled and clean the driving wheel.
4
5
3
2
1
Charging voltage is abnormal, please replace the adapter
Battery is too low,
Get out of trouble failure, please move to an open area.
The robot is floating, please move to the ground
2 beep 3times
3 beep 3times
4 beep 3times
5 beep 3times
6 beep 3times Charging is abnormal, please check if the switch is on
Red light flashes
Power Adaptor
Low Battery
Out of trouble alarm
Anti-fall detection alarm
Charging abnormal

7. FAQ
Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and
ensure that the two side brushes are in place.
8. Customer Service
CUSTOMER CARE
1. The 1-Year Limited Warranty is valid for products purchased from our APOSEN only, starting from the date of original retail purchase against
defects in quality and materials under normal, non-commercial use.
2. According to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.
Q : What should I do when it can not work on the carpet ?
A : We don’t suggest you make it clean the carpet. It’s better for you to set the barrier around the carpet on the app.
Q : What if the strength of vacuuming is weak?
A : First of all, check whether the dust bin is full and the robot is full charged. If it does,you can try to switch it to the higher mode. For litter which is
difficult to collector, try to clean it with Spot Cleaning Mode.
Q: What if my charger has difficulties charging the robot?
A : 1. Please make sure you turn on the charging stand before charging and check if the electrical sheet is connected to the charging stand( Put it
back manually or press the Power button when the robot is 1 meter in front of the charging stand.)
2. You can also charge the master by the adapter directly.
Q : What if the robot can not find the charging stand?
A : The charging stand should be placed against the wall with at least 1 meter clearance each side and 2 meters in front .Sometimes you can just put
it back manually.
Q: Why does the master return to charging after cleaning?
A: The working time of the master varies depending on the complexity of the room, the amount of garbage and the cleaning mode.
15

WHAT IS COVERED
1. The repair or replacement of your APOSEN appliance if your APOSEN appliance is found to be defective due to faulty materials, workmanship or
function within 1 years of purchase or delivery (if any part is no longer available or out of manufacture, APOSEN will replace it with a functional
replacement part).
2. This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your machine is in proper operating condition during the
warranty period.
WARRANTY SERVICE
1. If you have a query about your APOSEN appliance, please contact the APOSEN customer service
email : [email protected]
2. Please inform us your model name/number, purchase date, order number, machine problem and your requirement.
3. Your model number can be found on rating plate. For information on your rating plate see the inside front cover.
4. Please keep your purchase receipt in a safe place to ensure you have this information.
5.Service under this warranty will not extend the period of this warranty.
WHAT IS NOT COVERED
1. Under your APOSEN guarantee, APOSEN shall not be liable for costs of repair or replacement of a product incurred as a result of:
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the APOSEN appliance which is
not in accordance with this APOSEN Operating Manual;
2. Machines purchased from an unauthorized dealer;
3. Use of parts and accessories other than those produced or recommended by APOSEN;
4. Repairs or alterations carried out by unauthorized parties or agents;
5. Use of the machine other than for normal domestic purposes within the United States, eg. for commercial or rental purposes;
6. Reduction in battery discharge time due to battery age or use.
