Aposen A550 User manual

Instruction Manual

Model:A550

ROBOT VACUUM CLEANER

Instruction Manual

1. Safety Regulations

2. Product Instruction

3. Parameter

4. Attention

5. Maintenance

6. Alarm Tips

7. FAQ

8. Customer Service

9. WiFi Connection

1. Safety Regulations

Please read the manual carefully before using the product and keep this instruction for reference.

Products cannot be used by children under 8 years of age or people with mental disabilities. If you need to use it, please do so under the

supervision of the guardian. Please do not let children ride on the product or play the product as a toy. Do not use the product in a room where

infants sleep.

Problems that may arise in cleaning products should be eliminated as early as possible. Clean the power cords and small items on the floor to

prevent the product from being blocked during the cleaning process. Fold the edge of the carpet to the underside of the carpet,and keep the

hanging curtains, tablecloths, etc from touching the ground.

If there is a suspended environment such as a staircase, test the product first to see if it can detect the edge of the suspended area without

falling. Protective barriers should be installed at the edge of the suspended area to prevent falling products. Make sure that the protective

equipment does not cause personal injury.

Please follow the manual in the instructions to use the product. Use only accessories recommended or sold by the manufacturer.

Ensure that the power supply voltage meets the voltage indicated on the cradle.

Used only in indoor home environments. Do not use in outdoor, commercial or industrial locations.

Use only original rechargeable batteries and charging docks that are unique to the manufacturer. Do not use non-rechargeable batteries. For

battery specifications, please refer to " Technical Data”.

Ensure that dust boxes and filter materials are installed before using products.

Use of the product in an environment with open flames or fragile items is prohibited. Do not use the product in extreme heat (above 104 F)

or very cold (below-41 F).

It is forbidden to close the body’s hair, clothes, fingers and other parts close to the opening and operating parts of the product.

Do not use the product on wet or watery ground.

It is forbidden to absorb any items such as follows:

- stones, waste paper.

- flammable materials such as toner, toner or toner for printers or copies. 。。

Before discard of the product, remove the product from the charge stand, turn off the product power switch, and remove the battery. Even if the

product has been severely damaged, it is forbidden to incinerate the product, and the product battery may cause an explosion. Please dispose of

used batteries in accordance with local laws and regulations.

If you do not use the product for a long time, please turn off the product.

-cigarettes, matches, ash, or other items that may cause a fire.

Do not take any product that is burning, such as Do not place items at the suction outlet. Do not use products when suction is blocked. Clean

dust, cotton wool, hair, etc. at the suction port to ensure smooth air circulation at the suction port.

Use the power cord carefully to avoid damage. Do not use the power cord to drag or pull the product and the product charging stand. Do not

use the power cord as a handle. Do not clamp the power cord into the door seam. Do not pull the power cord at sharp corners and corners.

Do not use the product if the power cord, power outlet or charging stand are damaged. Do not use the product when it is not working properly

due to dropping, damage, outdoor use or water ingress. To avoid injury, the product should be repaired by the manufacturer or its after-sales

service.

Turn off the product switch before cleaning and maintaining the product.

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following：(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

2. Product Instruction

2.1. What’s in the box

1. Robot Vacuum

2. Charging Base

3. Remote Control

4. Power Adapter

5. Side Brushes X4

6. HEPA X 1

7. Clean Brush

8. Instruction Manual

5 6 7 8

2 3 4

Instruction Manual

Model:A550

ROBOT VACUUM CLEANER

2.2. Assembly Name

Master

Wifi Indicator Light

Key (Start or Pause)

Top View

Lower Vision Sensor

Charging Pole Piece

Left Brush

Roller Brush Assembly

Unversial Wheel

Right Brush

Drive Wheels

Dust Box

Bottom View

Dust Box

Switch

Infrared Buffer Bumper

Dust box

Primary Filter

Dustbin Key

Dust Box Lower Cover

Dust Box Upper Cover

High Efficiency Filter (HEPA)

Filter Sponge

Changing Stand Assembly

Charging Pole Piece

Cleaning Tools

Power Adapter Slots

Power Adapter

Indicator Light

Remote Control

Forward

Power

Left

Turbo Wall following

Spot cleaning

Stop/Start

Backward

Right

Return home

3. Parameter

Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity

direction as marked in the battery compartment.

Product Model

Input

Power

Battery Capacity

Dust Box Capacity

Cleaning Time

Charging Time

Battery

Remote Control Method

Emitting and Receiving Distance

A550

100-240V/50-60Hz

30W

Li-ion 2500mAh

0.6L

110 mins

DC 3V(AAA)

Infrared

≤5M

Input

Output

100-240V/50-60Hz

19V / 0.6A

4. Attention

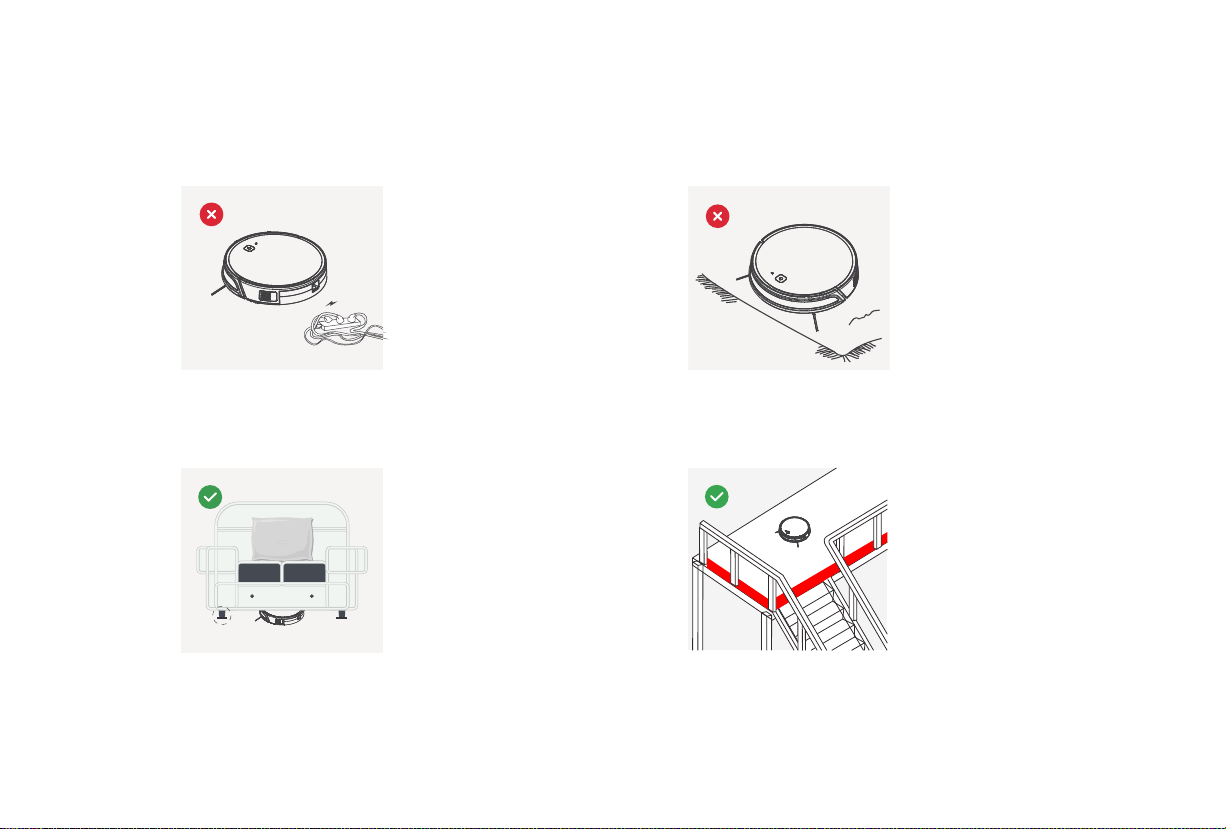

4.1 Considerations

1. Power lines and other debris scattered on the

ground may trip up product must be removed.

2. Please roll the carpet tassels or work on

short-hair rugs.

3. A gap of less than 8 cm on the bottom of the furniture

may catch the product.

If you need to clean it, please remove the furniture.

4. A guardrail should be placed at the edge of the duplex to

ensure safe operation of the product.

Please refer to the following guidelines to check the cleaning area before the cleaner works.

4.2.2 Charging Operation

1. Connect the adapter to the charging stand

Place the charging stand flat against the wall. Do not place objects in the left and right 1M and the front 2M,and do not have objects with strong

reflection surfaces such as mirrors.

4.2 Rapid Operation

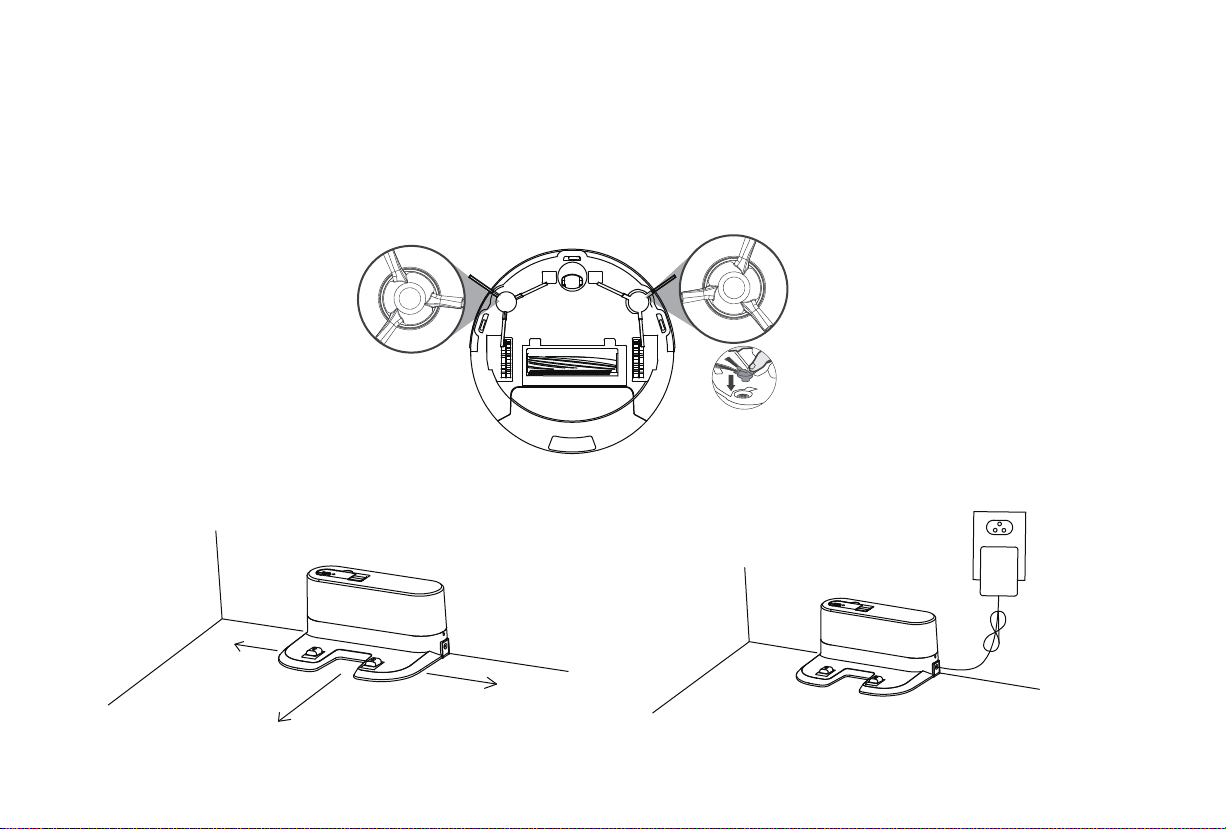

4.2.1 Install The Side Brushes

Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and

ensure that the two side brushes are in place.

R L

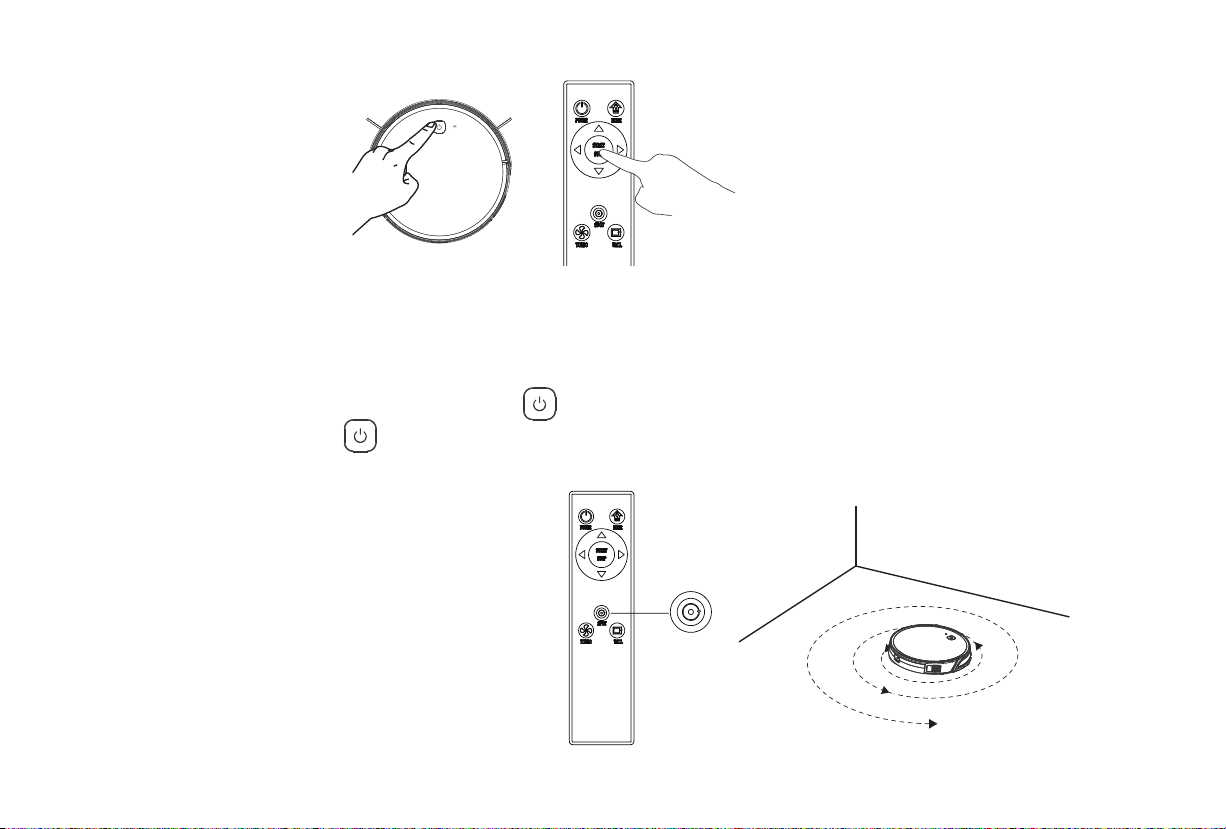

4.2.3 Start/Stop Cleaning

1. Start or stop by pressing the master's key or the remote control's / key.

Note: Before starting the mode, make sure that the outer ring of the key is blue and the master is in the state of being awakened. If the master

does not wake up, short press the master to wake it up.

The master enters the sleep state after 10 minutes of standby, and the key light is off.

2. If you need to select another mode, please refer to the(Mode Selection)section.

2. Turn On The Master

Turn on the side power switch, “I” is the turn, “O” is the turn off.

After the master finishes working, it is recommended not to shut

down; keep the master in a state of charge so that it can perform its

next job better.

Place the master in the charging stand and pay attention to the charging pole piece.

Turn on the power switch, the robot will enter standby mode.

3.Master Charge

Red light flashes indicates that the battery need to be charged.

Blue light breathing light flashes indicate charging.

For the first use, please charge continuously for more than 6 hours.

Note: Please match the charging pole piece.

When the blue light is off means charging is completed.

4.2.4 Mode Selection

In order to adapt to different ground conditions and achieve deep cleaning, this product has a variety of cleaning modes, which can be selected by

remote control as needed.

The remote control can switch any mode directly.

Before starting the mode, make sure that the outer ring of the key is blue and the master is in the state of being awakened. If the master does

not wake up, short press the master to wake it up.

Fixed-point Mode

It is suitable for the ground environment where

the garbage is concentrated. The master

centralized cleaning in the designated area,

and master centralized cleaning with the

"spiral"route.

Edge Mode

It is suitable for cleaning at the corners of the room.

The master is cleaned around the periphery of a

fixed object (such as a wall) and cleaned back to the

charging stand.

Return Charging Mode

During the cleaning process, the master can sense

that its power is insufficient, and automatically find

the charging stand for charging.

You can press the “home” button or press the

“power” button twice to make the master return to

the charging stand for charging.

Suction Power Setting

Press the “Turbo” button on the remote control.

With three modes of suction power(Max/Standard/Low). Standard

mode can be used for daily cleaning while the Max mode would

increase the suction and Low mode would lower the noise.

4.2.5 Roller Brush Assembly and Cleaning

Remove the roller brush brush cover plate, remove the roller brush, cut off the hair wound on it and then use the cleaning brush to clean it.

Set roller brush assembly: take out sucking assembly first, set the roller brush, cover the board and press it to lock.

5.1 Dust Box and Filter

5. Maintenance

When cleaning and maintaining the master and its accessories, turn off the master and unplug the charging stand.

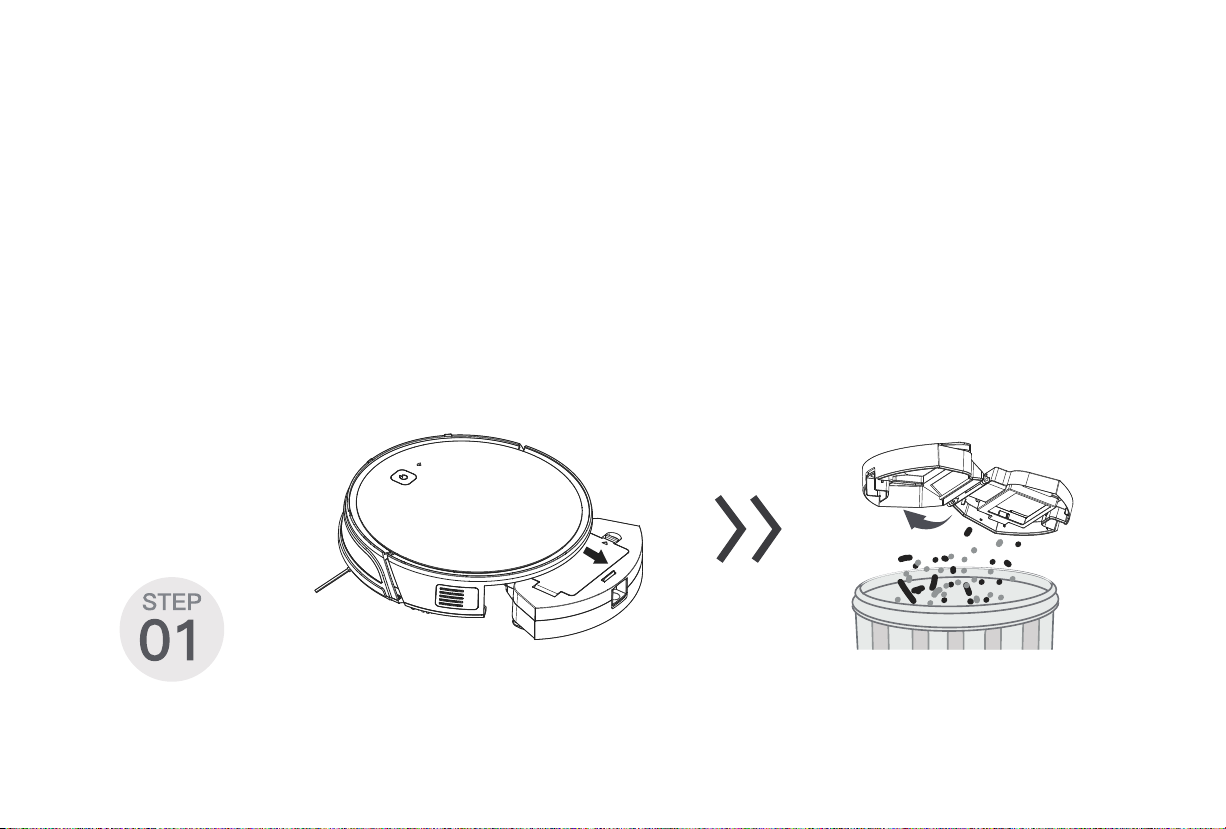

1. Remove the dust box, open the dust box cover, and clean the garbage.

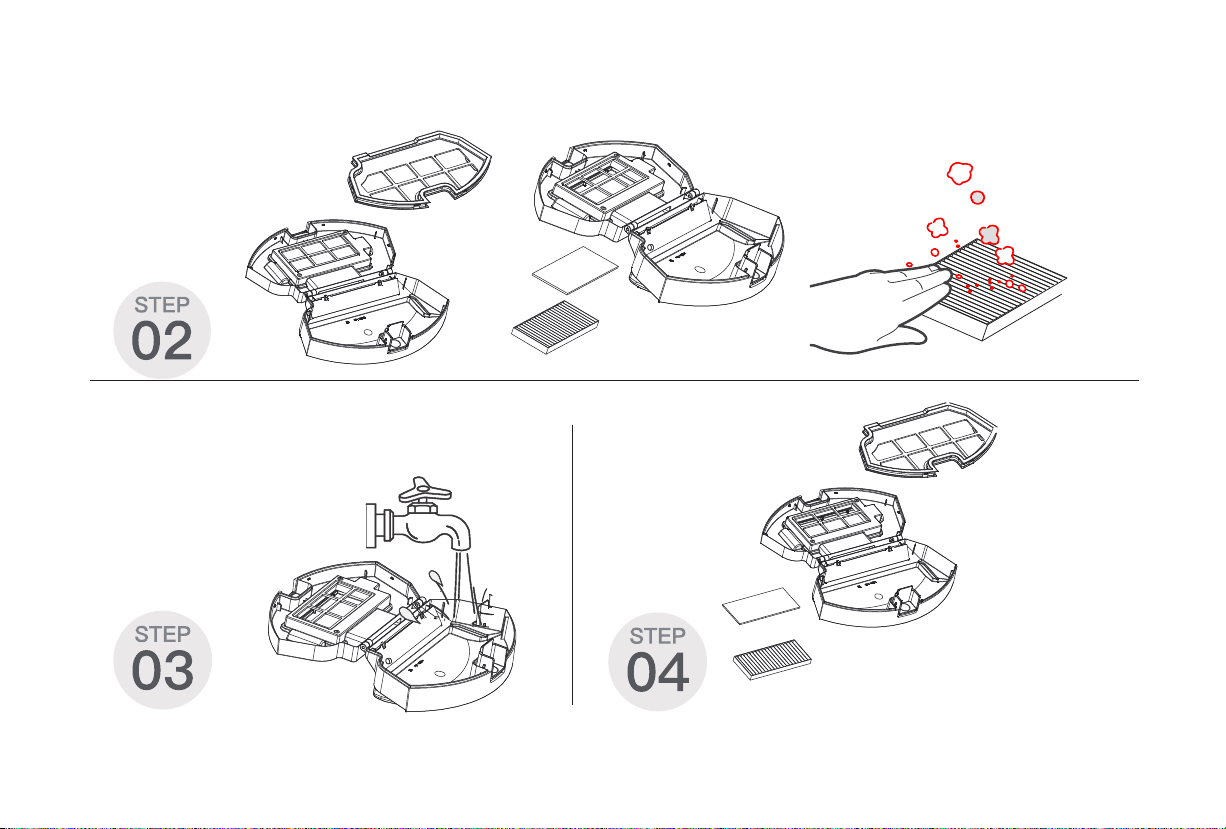

2. Remove dust filter. HEPA is not recommended for washing. Please pat and remove ash.

3. Flush the dust box and the primary filter.

4. Dry the dust box and the dust filter assembly and keep it dry to ensure its service life.

Please let these parts dry naturally for

more than 24 hours.

5.2 Side Brushes

5.3 Other Assembly

Cleaning Side Brushes

Pull out the side brush and wipe it with a clean rag.

Cleaning the universal wheel to reduce hair entangle.

Clear down the sensor to ensure the sensitivity of the sensor.

To clean the charging pole pieces, use a dry rag to clean the charging poles on the bottom of the master or the charging stand.

If you will not use the product for a long time, please remove the battery and keep it in a safe place. If the battery leaks, remove the battery and wipe

the battery compartment clean.
