Aprilaire 8535 User manual

ELECTRONICTHERMOSTAT
®
Owner’sManual
MODELS
8535, 8536 & 8537
Digital Heat Pump Thermostats
110-965B 7/12/01 9:12 AM Page 1

OWNER’S MANUAL – TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting Familiar With The Aprilaire®Thermostat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Temperature Settings – Day/Night Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Fan Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
• Outdoor Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting Up The Aprilaire Thermostat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating The Aprilaire Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Changing The Current Temperature Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Optional Feature – Locking The Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting High And Low Balance Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
In Case Of Power Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
© Research Products Corporation 2001
110-965B 7/12/01 9:12 AM Page 2

– 1 –
IMPORTANT: READ ALL INSTRUCTIONS THOROUGHLY
Introduction
Thank you for your recent Aprilaire®Electronic Thermostat purchase. We sincerely
appreciate your business and are pleased to add your name to our growing list of customers.
With this purchase, you have invested in the highest quality equipment currently available.
Please be assured that in addition to product quality, we are committed to total product
performance and complete customer satisfaction.
Now, please take a few minutes to familiarize yourself with your new Aprilaire Thermostat.
In order to take advantage of all the benefits of your new thermostat, it is important that you
understand how to operate it.
110-965B 7/12/01 9:12 AM Page 3

Fan
Mode
Day/Night
Outdoor
Press to raise and lower set point. Press both at the
same time to switch between ˚F and ˚C.Press and
release to view current set point.
Press to display
outdoor temperature
(w/optional Model 8041
Remote Outdoor
Sensor only).
Press to select Heat/
Emergency Heat/Cool/
Auto/Off. (Emergency
Heat Models 8536
& 8537 only)
Press for continuous
fan. Press again to
resume to auto fan.
Aprilaire
Digital Heat Pump Thermostat
Fan icon displays during
continuous fan only.
Heat and Cool Mode
icons.Both displayed
during Auto Mode.
Flame flickers during
heat call and Snowflake
flashes during cool call.
Set-point icon displays
the active set point
(full sun = Day set
point, partial moon
= Night set point).
Press to change
set point to either
the Day or Night
preset value.
Temperature ˚F or ˚C.
Room temp. normally
displayed. Press
Outdoor button to
display outdoor temp.
(Model 8041 required).
Displays mode when
changing (Heat, Cool,
Emergency Heat, Off,
and Auto).(Emergency
Heat Models 8536 &
8537 only)
Center LED illuminates
when back-up heat
source is being used.
(Models 8536 & 8537
only)
– 2 –
Figure 1 - Display and Button Description
110-965B 7/12/01 9:12 AM Page 4

– 3 –
Getting Familiar with the AprilaireThermostat
(refer to Figure 1)
The LCD (Liquid Crystal Display) normally shows: the room temperature, the current mode of operation, if
the Day or Night temperature setting is being used, and if the system fan is set for continuous operation.
Temperature Display
Room temperature can be displayed in either degrees Fahrenheit or degrees Celsius. If the displayed
temperature seems abnormally high or low (example: 70˚F is equal to 21˚C), press the DECREASE
button and INCREASE button simultaneously to switch between ˚F and ˚C.
Mode Button
Four modes of operation are available for all the DSL heat pump thermostat models: Heat, Cool, Auto,
and Off. Additionally, with the Models 8536 and 8537, Emergency Heat mode is available. The mode of
operation indicates how you want your heating and cooling equipment to operate. Press the MODE
button until the desired mode of operation shows on the display.
Temperature Settings - Day/Night Button
The thermostat stores four temperature settings in its memory, two for heating (Emergency Heat uses the
same set points as the Heat mode) and two for cooling. The two temperatures for each mode are called
110-965B 7/12/01 9:12 AM Page 5

the Day setting ” “ (a sun icon appears on the display) and the Night setting “ “ (a moon icon
appears on the display). The Day setting is intended to be an occupied or comfort setting and the Night
setting is intended to be an unoccupied or energy savings setting. For example the four settings stored
in the memory of the thermostat might be as shown in Table 1. Pressing the DAY/NIGHT button allows
you to instantly change to a more economical setting when leaving the house or going to bed, and to
a comfort setting when returning home or waking up. This
thermostat is equipped with accessory inputs which can be used
to automatically switch between day and night set points; contact
your installing contractor for more details.
Fan Button
The system fan will operate automatically during a heating or cooling cycle. If it is desired to run the fan
continuously, press the FAN button, and a Fan “ “ icon will appear on the display.
Outdoor Button
This button will be made functional when the optional Aprilaire Model 8041 Remote Outdoor Sensor has
been installed. It can then be used to find out the outdoor temperature from indoors. If the Model 8041
Remote Outdoor Sensor has not been installed, two dashes “– –” will appear on the display when this
button is pushed. – 4 –
MODE DAY NIGHT
Heat 68˚F 60˚F
Cool 78˚F 85˚F
Table 1 – Typical Set Point Values
110-965B 7/12/01 9:12 AM Page 6

Setting Up The Aprilaire Thermostat
To ensure accurate temperature control, observe the following simple guidelines:
•When the thermostat is operating, close the cover to allow proper air circulation over the
temperature sensor.
•Do not place anything which can give off warm or cool air, such as candles or portable humidifiers,
near the thermostat.
1. Adjusting the Heat Temperature Settings. There are
two settings, the Day setting “ “ (a sun icon
appears on the display) and the Night setting “ “
(a partial moon icon appears on the display).
See Figure 2.
a. Press the MODE button repeatedly until HEAt
appears on the display.
b. Press the DAY/NIGHT button until the “ “ icon
(Day setting) appears on the display.
c. Use the DECREASE button and INCREASE
button to adjust the setting. – 5 –
DAY NIGHT
DAY NIGHT
Figure 2 - Adjust Heat Settings
110-965B 7/12/01 9:12 AM Page 7

– 6 –
d. Press the DAY/NIGHT button until the “ “ icon (Night setting) appears on the display.
e. Use the DECREASE button and INCREASE button to adjust the setting.

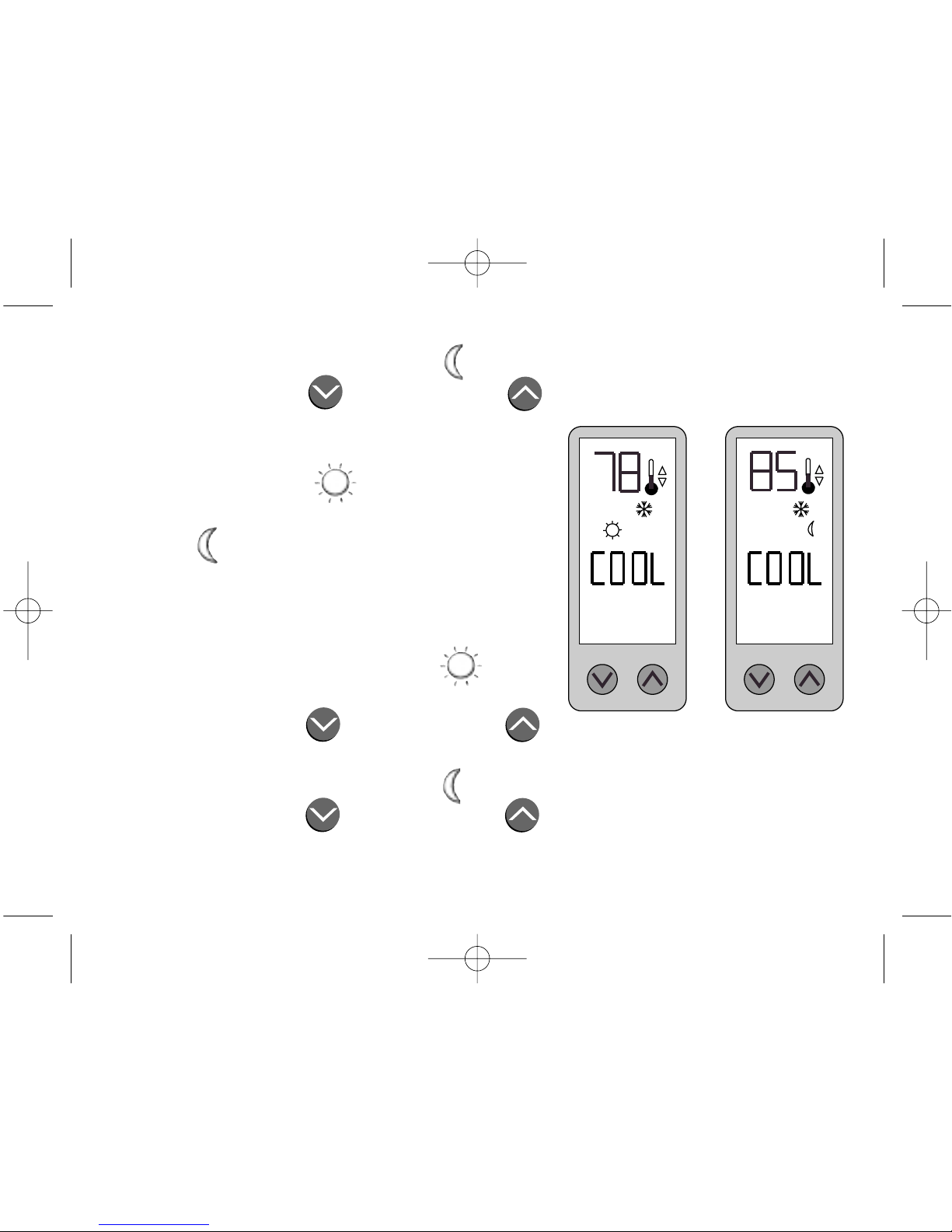

2. Adjusting the Cool Temperature Settings. There are two
settings, the Day setting “ “ (a sun icon appears on
the display when this setting is being used) and the Night
setting “ “ (a partial moon icon appears on the display
when this setting is being used). See Figure 3.
a. Press the MODE button repeatedly until COOL
appears on the display.
b. Press the DAY/NIGHT button until the “ “ icon
(Day setting) appears on the display.
c. Use the DECREASE button and INCREASE
button to adjust the setting.
d. Press the DAY/NIGHT button until the “ “ icon (Night setting) appears on the display.
e. Use the DECREASE button and INCREASE button to adjust the setting.
DAY NIGHT
DAY NIGHT
Figure 3 - Adjust Cool Settings
110-965B 7/12/01 9:12 AM Page 8

Operating The Aprilaire Thermostat
1. Select the mode of operation by repeatedly pressing the MODE button until the desired mode
appears on the display (“E ht” = Emergency Heat – Models 8536 and 8537 only). The heating and
cooling system may be turned off by selecting the “OFF” mode. Do not set to the “OFF” mode
during periods when freezing temperatures may occur.
• COOL: In the “COOL” mode a Snowflake “ “ icon appears on the display, which flashes
when the heat pump is running.
• HEAT: In the “HEAt” mode a Flame “ “ icon appears on the display, which flickers when the
heat pump is running.
• EMERGENCY HEAT (Models 8536 and 8537 only): In the Emergency Heat mode, “E ht” appears on
the display and only the back-up heat source (other than the heat pump) will be used to maintain
temperature. The center LED (located at the top of the thermostat) will light when the back-up
heat source is running.
• AUTO: In the “AUtO” mode, the heat pump will operate in either the “HEAt” or “COOL” mode
depending on which current setting the room temperature is closest to. Note that both the
Snowflake “ “ and Flame “ “ icons appear on the display.
– 7 –
110-965B 7/12/01 9:12 AM Page 9

– 8 –
2. Select the temperature setting to be used by pressing the DAY/NIGHT button until the
desired previously stored temperature setting (Day or Night) appears on the display. Use the
DECREASE button and INCREASE button to change the temperature if desired (NOTE
that if changed, the new set point will be permanently stored in memory - see CHANGING THE
CURRENT TEMPERATURE SETTING).
3. After approximately 5 seconds the thermostat will return to the normal display.
Note: This thermostat utilizes time delays to protect the heating and cooling equipment. If the
equipment does not shut off or turn on immediately when the temperature setting has been
changed, it may be due to the built-in time delays (4 minutes max.).
4. Press the Fan button, if it is desired, to run the fan continuously. A Fan “ “ icon will appear
on the display when the fan is set to operate continuously.
110-965B 7/12/01 9:12 AM Page 10

Changing The Current Temperature Setting
1. Press and release either the DECREASE button or INCREASE button to see the current
temperature setting. The setting, a Thermometer icon and a Double Arrowhead icon will appear
(see Figures 2 and 3 on pages 5 and 6).
2. Change the temperature setting:
OPTION 1 – Use the DECREASE button or INCREASE button. Press and hold the
DECREASE button or INCREASE button to change the current temperature setting. The
thermostat remembers the most recent temperature settings. For example, if the Day, Cool
temperature shown in Figure 3 were changed from 78˚F to 76˚F, the 76˚F setting would remain in
memory as the Day, Cool setting.
Note: The Cool temperature setting must remain 2˚F higher than the Heat temperature setting for
both the Day and Night sets. The thermostat will automatically update the setting not being
changed. In the example above, if the Day, Heat setting was 75˚F, the thermostat would have
automatically changed the setting to 74˚F when the Cool setting was changed to 76˚F.
OPTION 2 – Use the DAY/NIGHT button. Press the DAY/NIGHT button to instantly change the
temperature setting to one of the two settings stored in memory.
– 9 –
110-965B 7/12/01 9:12 AM Page 11

– 10 –
Optional Feature – Locking The Keypad
If tampering with the thermostat is expected and unwanted, the keypad can be locked by changing the
position of the Keypad Lock DIP switch (switch no.4) from the factory set OFF position to ON.
The DIP switches are located inside the thermostat on the circuit board. To access the DIP switches,
refer to the Installation Instructions that came with the thermostat, or consult your contractor.
In the locked position, only the following functions can be done:
• The outdoor temperature button will display the outdoor temperature.
• The thermostat will default to the Day setting.
• The DECREASE button and INCREASE button will temporarily change the Day setting
a maximum of ±6°F (±3°C) for a period of 3 hours before the thermostat automatically returns to
the Day setting.
If the thermostat does not respond when a button is pushed, it may be because the keypad has been
locked. A Lock “ “ icon will appear when a button other than Outdoor is pushed if the keypad has
been locked.
110-965B 7/12/01 9:12 AM Page 12

– 11 –
Setting High And Low Balance Points
(Models 8536 & 8537 only)
High and low balance points can only be accessed if the Aprilaire Model 8041 Remote Outdoor Sensor
has been installed. To check if this optional accessory has been installed, press the Outdoor button. If a
temperature appears, the Model 8041 Remote Outdoor Sensor has been installed.
During heating, heat pumps operate by extracting energy out of the outdoor air and transferring it to
the indoor air. This process is efficient over a wide range of temperatures. However, at low outdoor
temperatures there is a point at which it becomes more economical to operate the back-up heat without
the heat pump. This is called the Low Balance Point,“Lo bP”. Conversely, the use of back-up heat with
the heat pump during mild weather could use more energy than is required to heat the home. At
outdoor temperatures exceeding the High Balance Point,“Hi bP”, use of the back-up heat is limited
to Emergency Heat operation only.
To review the set points, press and hold the Outdoor button and press the Fan button. “Hi bP” and its
temperature value will appear on the display. Next, press the Outdoor button again and “Lo bP” and
its temperature value will appear on the display. After approximately 15 seconds the display will return
to normal.
110-965B 7/12/01 9:12 AM Page 13

– 12 –
After accessing a balance point, it can be changed by pressing the DECREASE button or
INCREASE button. This should only be done after consulting with a qualified contractor. Improperly
set balance points can result in increased energy expenses and possible equipment damage.
In Case Of Power Failure
This thermostat does not require a battery. If the power goes out, the display is blank. During the
period that the power is off, the heating/cooling system will not operate. When the power is restored,
the thermostat will default to the Day setting and the current mode of operation at the time of the
power outage.
This thermostat is equipped with a continuous memory feature which does not require any battery.
The thermostat will never lose the four programmed temperature settings regardless of the length of
the power outage.
Cleaning
If the surface of the thermostat becomes dirty it can be cleaned with plain water or many non-abrasive
household cleaners, such as glass cleaner. When using any cleaner be careful not to get any into the
interior of the thermostat. Do not spray any cleaner directly onto the thermostat. Spray the cleaner onto
a soft cloth and wipe the surface of the thermostat.
110-965B 7/12/01 9:12 AM Page 14

– 13 –
Limited Warranty
Your Research Products Corporation Aprilaire®Thermostat unit is expressly warranted for two (2) years from date of
installation to be free from defects in materials and workmanship.
Research Products Corporation’s exclusive obligation under this warranty shall be to supply, without charge, a
replacementforanythermostatwhichisfoundtobedefectivewithinatwo(2)yearperiodandwhichisreturned,together
with the date of installation, no later than thirty (30) days after said two (2) year period by you to either your original
supplier or to Research Products Corporation, Madison, Wisconsin 53701.
THISWARRANTYSHALL NOT OBLIGATE RESEARCH PRODUCTS CORPORATIONFORANYLABORCOSTS AND SHALL
NOT APPLY TO DEFECTS IN WORKMANSHIP OR MATERIALS FURNISHED BY YOUR INSTALLER AS CONTRASTED TO
DEFECTS IN THE THERMOSTAT ITSELF.
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL
BE LIMITED IN DURATION TO THE AFORESAID TWO YEAR PERIOD. RESEARCH PRODUCTS CORPORATION’S
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, OTHER THAN DAMAGES FOR PERSONAL INJURIES,
RESULTING FROM ANY BREACH OF THE AFORESAID IMPLIED WARRANTIES OR THE ABOVE LIMITED WARRANTY IS
EXPRESSLY EXCLUDED. THIS LIMITED WARRANTY IS VOID IF DEFECT(S) RESULT FROM FAILURE TO HAVE THIS
THERMOSTAT INSTALLED BY A QUALIFIED HEATING AND AIR CONDITIONING CONTRACTOR. IF THE LIMITED
WARRANTY IS VOID DUE TO FAILURE TO USE A QUALIFIED CONTRACTOR, ALL DISCLAIMERS OF IMPLIED
WARRANTIES SHALL BE EFFECTIVE UPON INSTALLATION.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above exclusion or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
110-965B 7/12/01 9:12 AM Page 15

B2202210 REV. 04/01 110-965B
P.O. BOX 1467 •MADISON, WI 53701-1467
Products For Better Indoor Air Quality™
The Aprilaire®Total Indoor Air Comfort System is an integrated group of air quality enhancement
products designed to work with your heating and cooling system to make your home more comfortable.
For the best in indoor air quality, ask your heating and cooling contractor about these fine
Aprilaire products, or visit us at www.aprilaire.com for your Indoor Air Solutions.
Automatic Humidifier
The Best Cure For Dryness
®
The world’s first computer-equipped,
completely automatic humidifier.
High Efficiency Air Cleaner
Nobody Makes Clean Air Easier®
The economical, trouble-free, high
efficiency air cleaner for your home.
Fresh Air Exchanger
OnlyTheFreshestHomesHaveAprilAir™
Your best value for a constant, controlled
supply of fresh air with energy-recovery.
Zone Control System
Custom Comfort Throughout Your Home®
The most reliable way to achieve temperature
control in every area of your home.
Electronic Thermostat
Energy Efficiency Never Looked So Good™
Ultra-thin, easy-to-use programmable or digital
controls featuring pinpoint accuracy.
110-965B 7/12/01 9:12 AM Page 16
