Aqua Comfort Vintage Classic Series User manual

1
OWNER’S MANUAL
Vintage Classic HEAT COOL models
Manufacturing High Quality, High Efficiency
Heat Pump Pool Heaters
TABLE OF CONTENTS
SAFETY CONSIDERATIONS 2
INSPECTION 2
GENERAL INFORMATION 2
INSTALLATION 2
WATER FLOW & CONNECTIONS 2-3
ELECTRICAL CONNECTIONS 4
MODES OF OPERATION 5
WIRING DIAGRAMS 6
ELECTRONIC CONTROL PANEL 7-8
CHEMICAL USE 9
START-UP 1 -11
MAINTENANCE 12
TROUBLESHOOTING CHECKLIST 12-13
CALLING FOR SERVICE 14
WARRANTY 15
WARRANTY REGISTRATION 16
Proudly Made in the USA
support@aquacomfort com
www aquacomfort com/service-and-support
888
-
475
-
7443
MODEL:
HEAT & COOL
INSTALLATION,
OPERATION,
MAINTENANCE
& SERVICE

2
SAFETY CONSIDERATIONS
• Qualified personnel should perform installation, maintenance and service
• Make sure all field wiring conforms to the heater specifications and all national and local
codes
• Disconnect all power sources before performing any maintenance or service to the heater
INSPECTION
Immediately upon receipt, inspect cartons and their contents for damage due to transit
Damage, if found, should be noted on delivery papers and a claim filed with the carrier Also,
check unit data plate to make sure you have the proper model, before installing
GENERAL INFORMATION
The information in this manual was prepared to assist in the proper installation, operation,
maintenance and service of your new heat pump pool heater Please read the entire manual
and follow all instructions Improper installation and use can result in damage to the heater,
unsatisfactory operation, and may void the warranty Retain this manual for quick reference
INSTALLATION
When selecting a location consider the following:
• Heater must be located outdoors
• Minimum of 24” of clearance on access / service side of heater
• Minimum of 18” of clearance on all three air intake sides of heater
• Minimum of 48” of clearance for air discharge (top of unit)
• The heater should sit on a solid level surface sufficient above grade to prevent water from
entering it, and allowing condensate to drain from base
• The length of water piping and electric should be kept to a minimum to avoid capacity loss
and decreased efficiency
WATER FLOW & CONNECTIONS
Water connections are made at the rear of the heater Both water in and out are labeled at the
water connections LEFT REAR = WATER IN and RIGHT REAR = WATER OUT
2” unions are supplied and are made to accept 2” rigid PVC pipe NOTE: unions can be used
for quick drainage of your heater and winterizing
• Heater must be piped downstream from filter in the pool return line
• Inline chlorinators must be piped downstream from heater A check valve should be
installed between the heater and chlorinator to prevent drain back of the chlorine when
the pump is off A chemical trap may also be piped at least six (6) inches above the
height of the chlorinator

3
• When all the plumbing connections are complete, and ample drying time is allowed, run the
filter pump and check the entire system for water leaks
• Make sure filter is clean and there are no obstructions in the filtering system
• Proper water flow is essential to the performance of your heater The minimum flow rate is 20 GPM
TYPICAL WATER FLOW CONNECTIONS

4
ELECTRICAL CONNECTIONS
Field connections must comply with national and local codes
The work must be done by a qualified electrician
Heater must be permanently rounded and bonded.
Bonding will drastically reduce the chances of electrolysis, “Electrical Corrosion ”
Use copper conductors only
Disconnect all power sources before performing any work on unit
Standard Power Supply: 208/230 - 60 – 1
See unit data plate for specific ampacity
Wirin Main Power Supply
1 Remove the screws from lower left and right side of front cover (service panel)
2 Remove the screws on left side of hinged electrical enclosure
3 Route weather tight flexible conduit through opening at base of unit Connect conduit to
the bottom of the electrical enclosure using a weather tight fitting A knockout is provided to
accept the weather tight fitting Mounting conduit directly to the electrical
enclosure will ensure a moisture tight seal, extending the life of the heater
4 Attach grounding conductor to the ground lug provided inside the electrical enclosure (labeled)
5 Install L1 and L2 input conductors to the line side of the main contactor (See wiring diagrams )
6 Connect bond wire (at least #8 solid copper wire) from bond lug on right side of coil header
panel to pool pump bonding terminal or other suitable location
Install Heat/Cool Switch
The switch to change from Heating to Cooling is removed from the electrical enclosure after testing at the
factory to prevent damage during shipping It must be reinstalled in the field at time of installation
REMOTE THERMOSTATS AND CONTROLLERS: see page 6, SET UP MODE.

5

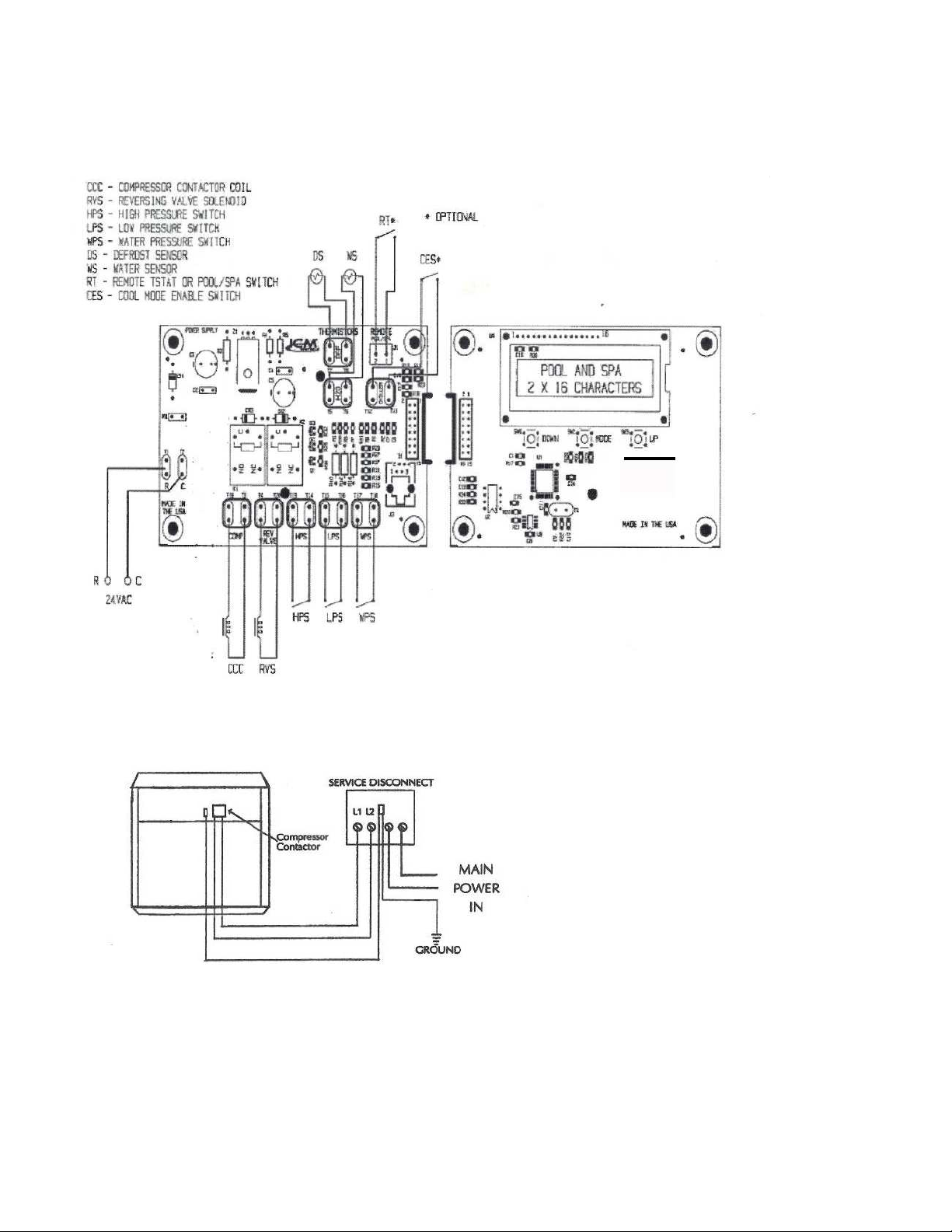

WIRING DIAGRAM
FIELD WIRING DIAGRAM
NOTES
1 USE COPPER CONDUCTORS ONLY.
2 CONNECT FIELD WIRING IN GROUNDED WEATHER TIGHT CONDUIT, PER RATING PLATE.
3 CONNECT BOND WIRE TO POOL STEEL USING #8 SOLID COPPER WIRE OR LARGER.
4 ALL WIRING MUST CONFORM TO NATIONAL (N.E.C.) AND LOCAL ELECTICAL CODES.

6
SET UP MODE
WARNING: THE SET UP MODE IS DESIGNED AS AN ADVANCED USER’S AND INSTALLATION
MENU; THE DIRECTIONS IN THIS SECTION MUST BE FOLLOWED CAREFULLY AN ERROR IN
PROGRAMMING MAY EFFECT THE OPERATION AND PERFORMANCE OF THE HEATER AND
MAY RESULT IN UNNECESSARY OR ERRONEOUS SERVICE CALLS
Enter the set up mode by pressing both the UP and DOWN buttons for 5 seconds Once in the set up mode,
you can advance from one screen to another by pressing the SELECT button The setting within the screen
can be adjusted by pressing the UP or DOWN button To exit the set up mode press both UP and DOWN
buttons at the same time for 5 seconds
The following are screens in the SET UP mode:
POOL/SPA REMOTE
With this setting you can enable or disable the remote capability of switching from pool to spa mode
automatically The use of an external water pressure switch in the spa piping is necessary A two wire circuit
must be connected from the water pressure switch to the terminals marked REMOTE POOL/SPA on the
electronic control board When enabled and the external water pressure switch is closed the control will
operate in spa mode, when the switch is opened the heater will operate in pool mode The default setting is
“DISABLED”
REMOTE THERMOSTAT
With this setting you may enable or disable the remote capability In the POOL MODE, you will have the
capability to call for heating or cooling depending in which mode the Heat/Cool switch on the heat pump is
set in In SPA MODE you will have the capability to turn the heating on and off Enabling the remote
thermostat and closing the “external switch” will call for heating or cooling regardless of the temperature set
point In the case of a remote thermostat where the temperature will be regulated externally, set the SPA
temperature to 104 degrees F (40 C) and leave the heat pump controller in the SPA MODE The heat pump
will run only when the remote calls for heating or cooling The default setting is “DISABLED ”
TIME DELAY
With this setting you can adjust the time delay for compressor turn on When set to “0” the control is in test
mode Test mode will exit automatically after 10 minutes or if power is turned off Note: control will flash
“Delay” when ever the time delay applies. The default setting is “5 ”
SPA TIMER
With this setting you can adjust the time you spend in the spa in which heat is provided The spa timer can
be set Continuous, Off, or for a time interval between 15 minutes and 20 hours in increments of 15 minutes
Default setting is “CONTINUOUS ”

7
TEMPERATURE SCALE
With this setting you have the choice of the displayed temperature in Fahrenheit or Celsius
Default setting is “F ”
DEFROST SELECTION
With this setting you can select whether defrosting shall be done in with air flow or by energizing the
reversing valve By pressing either up or down you can toggle between “AIR DEFROSTING” or
“REVERSE CYCLE” Default setting is “AIR DEFROSTING ”
WATER SENSOR CALIBRATION
With this setting you can calibrate the water temperature reading The calibration range is +/- 10 degrees F
or +/- 5 degrees Celsius
Default setting is “0”
EVAPORATOR SENSOR CALIBRATION
With this setting you can calibrate the evaporator temperature reading The calibration range is+/- 10
degrees Fahrenheit or +/- 5 degrees Celsius Default setting is “0”

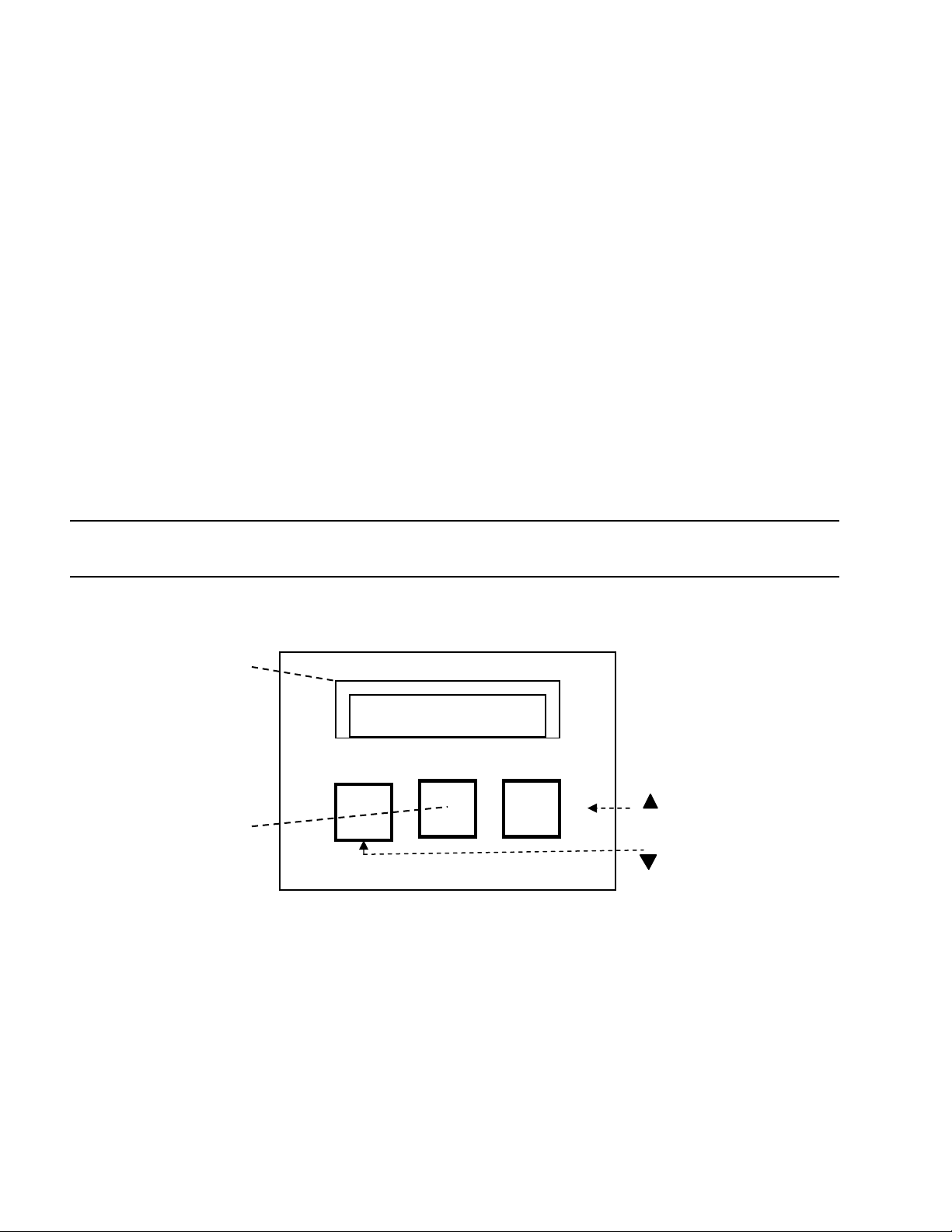

ELECTRONIC CONTROL PANEL
MODE SELECTION
NORMAL MODE
• When power is applied, the heater will turn on in the last mode in which it was used
• User adjustable temperature range will be 50 to 95 degrees in Pool mode and 50 to 104
degrees in Spa mode
▼
▲
LCD DISPLAY
Displays the actual pool/spa
temperature. In select mode
displays other parameters.
SELECT/SERVICE KEY
Used to select mode of
operation and enter service
mode.
INCREASE KEY
DECREASE KEY
POOL – HEAT
85◦

8
• When user lowers the set point below 50 degrees F in one of these modes, that mode will be
turned OFF
NOTE: AN EXTERNAL SWITCH LOCATED ON FRONT OF THE CONTROL PANEL IS
USED TO TOGGLE BETWEEN HEAT AND COOL.
POOL MODE – HEATING
When operating in pool heat mode display will show POOL – HEAT on the top line and the actual
pool water temperature on the bottom line FOR EXAMPLE:
POOL – HEAT
95º
• To adjust the temperature set point user will press either the Up or DOWN button once The
Display will show “POOL TEMPERATURE” on the top line and the current set point
temperature on the bottom line for 5 seconds (for example: SETPOINT 95F) Adjust the set
point by pressing either UP or DOWN until the new set point is reached for heating
• The display will revert to “POOL – HEAT” after 5 seconds of inactivity and the new set
point will be stored in memory
• When the water temperature falls 1 degree below the set point, the control will energize
heating mode (compressor) after the time delay has expired The time delay is necessary to
ensure proper water pressure within the pool filter system and to avoid short-cycling the
compressor.
• During heating once the water temperature reaches the set point, compressor is turned off
POOL MODE – COOLING
When operating in pool cool mode the display will show POOL – COOL on the top line and the
actual pool water temperature on the second line FOR EXAMPLE:
POOL – COOL
70º
• An external switched located on the front of the control panel is used to toggle between heat
and cool Control will switch to cool mode by closing the switch in which case display will
show POOL – COOL on the top line and the current temperature on the bottom line
• To adjust the temperature point user will press either the UP or DOWN button once The
display will show “POOL TEMPERATURE” on the top line and the current set point
temperature on the bottom line for 5 seconds Adjust the set point by pressing either UP or
DOWN until the new set point is reached for cooling
• The display will revert to “POOL – COOL” after 5 seconds of inactivity and the new set
point will be stored in memory
• When the temperature becomes 1 degree greater than the set point, the control will energize
cooling mode (compressor and reversing valve)) after the time delay has expired
• During cooling once the water temperature reaches the set point, the compressor is turned
off

9
SPA MODE – HEATING
When operating in spa mode display will show SPA – HEAT on the top line and the actual spa water
temperature on the second line EXAMPLE:
SPA – 104º
• To operate in SPA mode user will press the POOL/SPA button (center hand button) once
After pressing the POOL/Spa button, the display will show “SPA TEMPERATURE” on the
top line and the current temperature set point on the bottom line for 5 seconds Adjust the set
point by pressing either UP or DOWN until the new set point is reached for spa heating
• The display will revert back to “SPA – HEAT” and the current spa temperature after 5
seconds of inactivity and the new set point will be stored
• When the spa water temperature falls 1º F below the set point, the control will energize spa
heating mode (compressor) after the time delay has expired
• During heating once the water temperature reaches the set point, the compressor turns off
CHEMICAL USE
Water quality must be checked regularly and maintained within recommended limits at all times
Failure to maintain the proper water quality will greatly reduce the life of your heater
• Never add chemicals directly into skimmer
• Automatic chlorinators must be piped downstream from the heater A check valve must be installed
between the chlorinator and heater to prevent raw chlorine from draining back into the heater A chemical
trap may be piped at least six (6) inches above the chlorinator See piping diagram B
Always maintain the followin water quality requirements:
PH LEVEL 7.4 to 7.8
CHLORINE CONCENTRATION 1 to 5 PPM
TOTAL AL YALINITY 100 to 200 PPM
CALCIUM HARDNESS 100 to 300 PPM

10
START-UP
Before proceeding with this section make certain all plumbing connections are airtight and leak free
Flow rates should not exceed 70 GPM maximum Use of an external bypass is necessary at 70 GPM
and above Minimum flow rate is 20 GPM
• Turn filter pump time clock to the ON position and set filter pump hours For initial heating, the pool
heater and filter pump may need to run continuously until your desired temperature is reached After
initial heating is achieved, the heater will run only to maintain your desired temperature
• Turn power supply to heater ON
• The control panel will light up and display either POOL – HEAT OFF or the actual pool water
temperature
• Select POOL TEPERATURE SETPOINT or SPA TEMPERATURE SETPOINT and set your desired
water temperature by scrolling either up or down
• If your programmed water temperature is above the actual water temperature and the 5 minute time delay
is satisfied the compressor will start
NOTE: Each time the compressor turns off; it is protected by a 5 minute anti-cyclin delay.
INITIAL HEATING
Initial heating may require you to run your heater and filter pump continuously for at least 24 hours, or
more, depending on the following factors:
• Temperature difference between actual water temperature and desired water temperature
• Size of pool
• Ambient air temperature, the cooler the air temperature the longer the heating time
• Heat loss (evaporative, convective, radiative and conductive)
• A pool cover / solar blanket may reduce initial heating time by up to 50 percent
Reducin Heat Loss - Pool Cover / Solar Blanket
We highly recommend the use of a pool cover / solar blanket Covering your pool is the single most cost
effective means of reducing heat costs from 50 to 70 percent Heating a pool without a cover is like heating
a house without a roof They also reduce the amount of maintenance costs By reducing evaporation,
covers reduce the quantity of chemicals needed

11
Because evaporation accounts for about 70 percent of pool heat loss, the beneficial effect of using a pool
cover /solar blanket can be dramatic
Wind Speed Reduction
Reducing wind velocity at the water surface reduces convective and evaporative losses Fences, trees, hills,
or tall hedges close to the pool perimeter are effective windbreaks Locate these obstructions to take
maximum advantage of their effectiveness as windbreaks, without shading the pool surface from the sun
Defrost Cycle
The heat pump pool heater has automatic defrost When the outdoor temperature drops below 40 °F, frost
may start to form on the evaporator coil Frost buildup will be heaviest on humid days when the
temperature is between 35-40° During the defrost cycle, the display will show “DEFROSTING” to
indicate that the unit is defrosting During this time the fan is running and the compressor is inactive
Internal Protection Analyzers
The heater is equipped with internal devices to monitor and protect the integrity of the unit Should an
abnormal condition occur, these devices will interrupt the operation of the unit and may display the
appropriate code on the control panel
• LOW WATER FLOW: Indicated by “FLO”, “HIGH REFRIGERANT PRESSURE”, or “3 HPS
STRIKES LOCKOUT” on the control panel The heater is designed to run efficiently above twenty
(20) GPM If there is insufficient water flow, the unit will shut down, protecting the compressor
The usual causes for these conditions are a dirty pool water filter, a restriction in the return line
(i e skimmer), or improper valve positioning
• NO WATER FLOW: Indicated by “LOW FLOW” on the control panel When the filter pump is off,
or if the water flow to the heater is interrupted during the heating mode, the internal water pressure switch
will shut down the unit When normal water flow resumes, the heater will automatically restart itself
• Other analyzer codes include: “FL3”, “LP3”, “LP”, “dPO”, “PO”, “dPC”, “Pc”, “PLE”, “CSE” and
“SPi”
The TROUBLESHOOTING CHECKLIST on page 11 goes into detail on these analyzers codes

12
MAINTENANCE
WARNING: DISCONNECT ELECTRICAL POWER TO UNIT BEFORE STARTING ANY
MAINTENANCE TO PREVENT SERIOUS INJURY FROM SHOCK.
Protectin your Heater
• Keep your pool filter system clean and free of restrictions to ensure proper water flow
• Check water chemistry regularly Misuse of chemicals will cause permanent damage to
your heater and other pool equipment Manufacturers can void warranties for damage as a
result of poor water quality
• Free airflow is essential Keep the evaporator coil clean and free of weeds, leaves, glass
clippings, dirt and other debris that will decrease the airflow Keep fences and shrubs away
from air inlets (sides and back of heater)
• Frequent rinsing of the evaporator with fresh water will remove build up from its surface
Always spray the coil gently with a regular garden hose being careful not to bend aluminum
fins
• Regular cleaning of the cabinet will improve its appearance and extend the life of the
finish
Winterizin
When the heater is exposed to freezing temperatures, it is essential that all water within the
unit be properly drained When water freezes, it expands, damaging piping
• Turn thermostat settings to OFF Turn filter pump to OFF
• Turn power to unit OFF (i e pull disconnect or turn circuit breaker OFF)
• Disconnect water inlet and outlet unions at the back of the unit Be careful not to lose
rubber o-rings
• Flush the heater piping out with fresh water to remove any residual chemicals
• Use low-pressure air or vacuum to remove water that has accumulated inside the piping of
the heater
TROUBLESHOOTING CHEC LIST
• Check to see that the electrical power is on Reset breakers, or replace fuses if necessary
• Check to be sure the electric control panel is set properly The desired temperature must be
set above
the actual pool or spa temperature for the heater to run
• Check to make sure the evaporator coil has enough clearance and that there are no
restrictions to its airflow
• Certain ambient air conditions may cause the heater to go into defrost mode, displayed on
the control panel as “AIR DEFROSTING” or “REVERSE CYCLE.”

13
NOTE: IT IS NORMAL FOR WATER TO DRIP FROM THE DRAINHOLES AT THE BASE OF
THE HEATER. THE UNIT PRODUCES CONDENSATE WHEN IT OPERATES.
Analyzer Codes
FAILURE LOCK-OUT: This feature is for the protection of the heater If the same failure
occurs three (3) times within an hour, the control will not allow the unit to restart, and shall
display the appropriate code (i e “”, “3 LPS STRIKES LOCKOUT”, or “3 HPS
STRIKES LOCKOUT”) The reset to normal conditions can be accomplished by pressing
any button on the control touch pad
“LOW FLOW” (Little or No Water Flow)
• The pump is not running
• The filter is dirty or clogged
• Shortage of water to pump - air leak
• Undersized pump
• Valves not in correct position
• Filter in backwash mode
• Water pressure switch needs adjustment, or is defective
“HIGH REFRIGERANT PRESSURE” (Compressor High Pressure)
• Low water flow to heater
• Defective high-pressure switch
“LOW REFRIGERANT PRESSURE” (Compressor Low Pressure)
• Evaporator coil dirty
• Fan motor not running
• Low refrigerant pressure
• Defective low-pressure switch
“EVAPORATOR SENSOR MALFUNCTION” Evaporator temperature sensor
connection opened or shorted Check for cut or loose sensor wiring or defective sensor
“WATER SENSOR MALFUNCTION” Water temperature sensor connection open or
shorted Check for a short in sensor wiring or defective sensor
“DEFROSTING” or “REVERSE CYCLE” Heat pump in defrost cycle

14
CALLING FOR SERVICE
• Please eliminate any water flow problems before calling for service
• If you are unable to contact the installing agent, please go to
www aquacomfort com/service-and-support/ to contact AQUA COMFORT
TECHNOLOGIES LLC A factory representative will assist you or your serviceman over
the phone
SERVICE PERFORMED WITHIN THE WARRANTY PERIOD MUST BE APPROVED BY AQUA COMFORT
TECHNOLOGIES, LLC. PRIOR TO SERVICE BEING PERFORMED AND ONLY BY A AQUA COMFORT
TECHNOLOGIES AUTHORIZED TECHNICIAN. SEE WARRANTY FOR DETAILS.
Please have the following ready before calling:
MODEL #:
SERIAL #:
DATE OF INSTALLATION:
NAME OF OWNER:
ADDRESS:
CONTACT #:
NATURE OF PROBLEM:
