Aquarii Zino User manual
P/N: 30-00302
ZINO Slope Recessed
Installation Manual
DO NOT DISCARD THIS MANUAL
(Rev_20200915)
Contents
Preface 1
Details of this Manual 1
Questions about this Manual? 1
Cleaning and Maintenance 1
Fixture Safety Warnings 1
Aquarii Warranty 1
Schedule “A” 3
Aquarii Product Return Policy 3
Mounting Option 4
Slope Recessed 4
Wiring Connections 5
Secure Power Connections 5
Communication Connections 6
Secure DMX/RDM Connection 6
DMX Addressing Information 7
DMX over CAT5e/6 7
Secure 0-10V Connection 8
0-10V Information 9
Troubleshooting/Corrective Actions 9
1
PREFACE
Details of this Manual
This manual contains the installation and operation instructions for the Aquarii Zino (pronounced: Zee-No) to be performed by a
qualified and trained installer. The Mounting Option detailed in this manual is:
• Slope Recessed Mount
Be sure to read this entire manual before beginning the installation procedures. DO NOT DISCARD THIS MANUAL.
Questions about this Manual?
The present material is subject to change without notice. If you have any questions or concerns regarding your Aquarii Product
you can contact us at:
Aquarii Inc
17 Genesee Street
Camillus, NY, 13031
315-672-8807
aquariitech.com
CLEANING AND MAINTENANCE
All Cleaning and Maintenance procedures must be performed by a qualified individual (Electrician/Technician) or Aquarii
Personnel. The following precautions and actions must be taken to ensure personal and product safety during all Cleaning and
Maintenance Procedures:
• The sites power supply is disconnected/shut-off
• Wear the required Protective Eye Wear
• DO NOT TOUCH the LED Array or Optical Lenses
• The fixture is not altered or does not receive any non-authorized services. Doing so will void the Aquarii Warranty.
Fixture Safety Warnings
The following MUST BE read and adhered to before beginning any installation or mounting procedures.
• Do not connect the fixture to an electrical system that does not provide grounding equipment.
• Do not connect the fixture to a power source with a Voltage/AC level outside the fixture parameters.
• The fixture cannot be hung with supply wires or wire connectors.
• Wiring MUST NOT come into contact with any surfaces that have sharp edges to ensure personal/product safety.
• The fixture power supply MUST BE disconnected from the sites power input until instructed otherwise.
• All installation procedures must be performed by a properly trained/certified electrician.
AQUARII WARRANTY
This limited warranty is provided by Aquarii, Inc. indicated as Seller on the invoice provided to the original purchaser of the LED
lighting Product. Seller warrants that the Product will be free of defects in material and workmanship which cause the Product
to fail to operate in accordance with the performance specifications set forth in the documentation published for or provided
with the Product (the “Specifications”). The determination of whether the Product is defective shall be made by Seller in its sole
discretion with consideration given to the overall performance of the Product. A Product shall not be considered defective
NOTE
The information in this manual may not be copied or distributed without the
written consent of Aquarii, Inc. The goal of this manual is to provide basic
information regarding the material herein. Any other use is prohibited.
2
solely as a result of the failure of individual LED components to emit light if the number of inoperable components is less than
10% of the total number of LED components in the Product.
If any Product covered by this warranty is returned by Purchaser within the Warranty Period referred to below in accordance
with Seller’s Product Return Policy (noted in Schedule “A”), and Seller determines to its satisfaction that such Product failed to
satisfy this warranty, Seller will, at its option, repair or replace the Product or the defective part, or reimburse Purchaser for the
purchase price, subject to the limited warranty terms and conditions set forth in attached Schedule “A”. For the purpose of
clarity, “repair or replacement of the Product or the defective part thereof” does not include any removal or reinstallation costs
or expense, including without limitation labor costs or expenses. If Seller chooses to replace the Product and is not able to do
so because it has been discontinued or is not available, Seller may replace it with a comparable product.
This warranty shall become effective only upon satisfaction of the conditions set forth on Schedule “A”. The warranty shall be in
effect for a period (the “Warranty Period”) of 5 years from the Product ship date.
This warranty only applies when the product has been properly handled, stored, transported, wired, installed, and operated
within the electrical values, operating range and environmental conditions provided in the Specifications. Seller will not be
responsible under this warranty for any failure of the Product that results from external causes such as: acts of nature; physical
damage; exposure to adverse or hazardous chemical or other substances; use of reactive cleaning agents and/or harsh
chemicals to clean the Product; environmental conditions; vandalism; fire; power failure, improper power supply, power surges
or dips and/or excessive switching; induced vibration; animal or insect activity; fault or negligence of purchaser, any end user of
the Product and/or any third party not an authorized representative of Seller; improper or unauthorized use, installation,
handling, storage, alteration, maintenance or service, including failure to abide by any product classifications or certifications,
or failure to comply with any applicable standards, codes, recommendations, product specification sheets or instructions of
Seller; use of the Product with products, processes or materials supplied by any end user or third party; or any other
occurrences beyond Seller’s reasonable control.
This warranty shall become void in the event (a) any repairs, modifications, or alterations not specifically authorized by Seller are
made to the Product by any person, (b) the Product has been serviced by personnel not authorized by Seller, (c) the Product is
not used for the purpose for which it is designed, (d) the Product is exposed to operating conditions or environments other
than those mentioned in the Specifications, product brochures, or user manuals, or (e) the serial numbers on the Products
have been altered, defaced or rendered illegible.
The provisions of this warranty are exclusive and are given and accepted in lieu or any and all other warranties, whether
expressed or implied, including without limitation any warranty against infringement and any implied warranties of
merchantability or fitness for particular purpose, all of which are expressly disclaimed. No person, agent, distributor, dealer or
company is authorized to change, modify or extend the terms of this warranty in any matter whatsoever. Under no
circumstances shall Seller’s aggregate liability arising out of or in connection with a defective Product, in contract, tort or
otherwise, exceed the purchase price of the Product to which such liability relates. In no event shall Seller be liable for special,
incidental, consequential, indirect or compensatory damages, including, without limitation, damages resulting from loss of use,
profits, business or goodwill.
Seller reserves the right to modify this warranty from time to time and any modifications shall be effective for all orders placed
on or after the effective date of such revised warranty.
This warranty may not be transferred or assigned by the original end user and product must be purchased directly from Seller
or an authorized distributor or representative of Seller.
3
Schedule “A”
The following conditions must be met in order for the Aquarii Warranty to become effective.
1. All invoices related to the Product under warranty must be paid in full.
2. Purchaser must notify Seller in writing within 30 days of discovering a defect in the product.
Aquarii Product Return Policy
1. Before returning any product to Aquarii, please contact customer service to receive a RMA Number for your return.
Product(s) returned without a RMA will delay or may void any return credit.
2. Clearly note the RMA Number on the shipping container and packing slip.
3. Please return all product(s) as “freight prepaid” unless instructed otherwise by customer service.
4. Include all paperwork provided by Aquarii, such as the Warranty Claim.
5. Ship all returns to the following address:
Aquarii Inc
Attn: Returns
3195 Vickery Road
Syracuse, NY, 13212
315-672-8807
aquariitech.com
Proceed to the Mounting Option section on Page 4 of this manual.
4
MOUNTING OPTION
Slope Recessed (Mounting #8)
The parts of the Slope Recessed Mount are labeled as:
• A - Top Cover
• B - Junction Box Cover
• C - Junction Box
• D - Box Assembly
• E - Adjustment Bolts
• F - Extension Rails
• G - Communication Board
• H - Trim Ring
The fixture and mounting option are designed for non-IC (Insulation
Contact) Environments. Ensure insulation is kept away from the
fixture installation location.
Follow the steps below to secure the mount/fixture to the local site.
1. Loosen the four Bolts on the Left/Right Extension Rails and
extend them to the required mounting length, then tighten
the Bolts to secure the Rails in place.
2. Secure the Extension Rails to the sites building structure
using eight screws. See the table below for the
recommended screw parameters based on the present
building material.
3. Loosen the Adjustment Nuts to adjust the orientation of the fixture inside the Box Assembly, then tighten the
Adjustment Nuts to secure the fixture in the desired orientation.
4. If a Trim Ring is required proceed to Step 5, if not, then Proceed to the Wiring Connections section of this manual.
5. Obtain the Trim Ring Springs from the separate packaging accompanying the fixture.
6. Secure the first end of the Trim Ring Springs to the Brackets
inside the Box Assembly.
7. Align the holes on Trim Ring so the Springs are completely
vertical.
8. Secure the Springs to the Trim Ring Holes and gently position
the ring against the sites ceiling surface.
9. See the image below for a Rheos installed in a Slope Recessed
Mount.
10. Proceed to the Wiring Connections section on Page 5 of this
manual.
WOOD CONCRETE
No. 12 x 2” Zinc-Plated Steel
Screws (3/16” pilot hole)
3/16” Dia. X 2 1/4” Blue-
Coated Steel Screws (5/32”
pilot hole)
"
#
$
%
&
&
'
'
'
'
(
)
5
WIRING CONNECTIONS
Secure Power Connections
The information below also details the procedure required to secure the Constant Controls Connection for the Zino as shown in

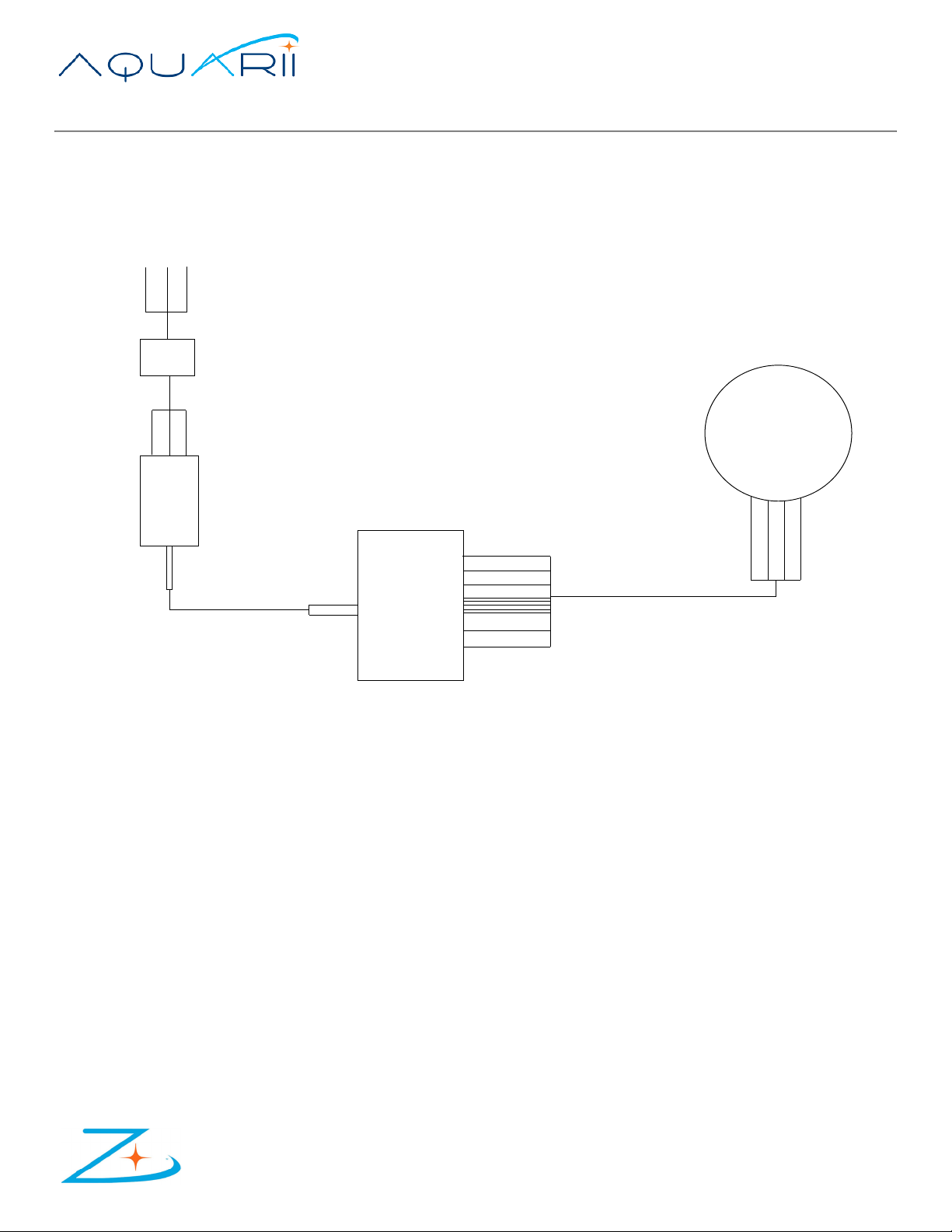

the Wiring Diagram below:
Follow the steps below to secure the sites Power Connections to the mounted fixture.
1. Remove the Slope Recessed Junction Box Cover to expose the Wagos inside.
2. Fully insert the ends of the Power Cable in the Wagos connected to the Ground Strap and Power Supply Wire
Connections:
• Site Ground Wire > Ground Strap in Junction Box
• Site Neutral Wire > Blue Lead of Power Supply Wire Connection
• Site Line Voltage Wire > Brown Lead of Power Supply Wire Connection.
3. Reinstall the Junction Box Cover.
4. If additional Communication Wiring is required proceed to the corresponding section starting on Page 6 of this manual,
if not, then test the fixture to ensure proper function.
"$108&3'30.#6*-%*/(
7"$
);
#-"$,
8)*5&
(3&&/
+6/$5*0/#09
#-6&
#308/
(3&&/
108&34611-:
9-(
#-"$,
3&%
%$8*3&)"3/&44
$0/530--&3
#-"$,
3&%
#-,"
#-,"
#-,35
#-,35
-&%"33":
8*3&)"3/&44
#-,"
#-,"
#-,35
#-,35
-&%"33":
6
COMMUNICATION CONNECTIONS
Secure DMX/RDM Connection

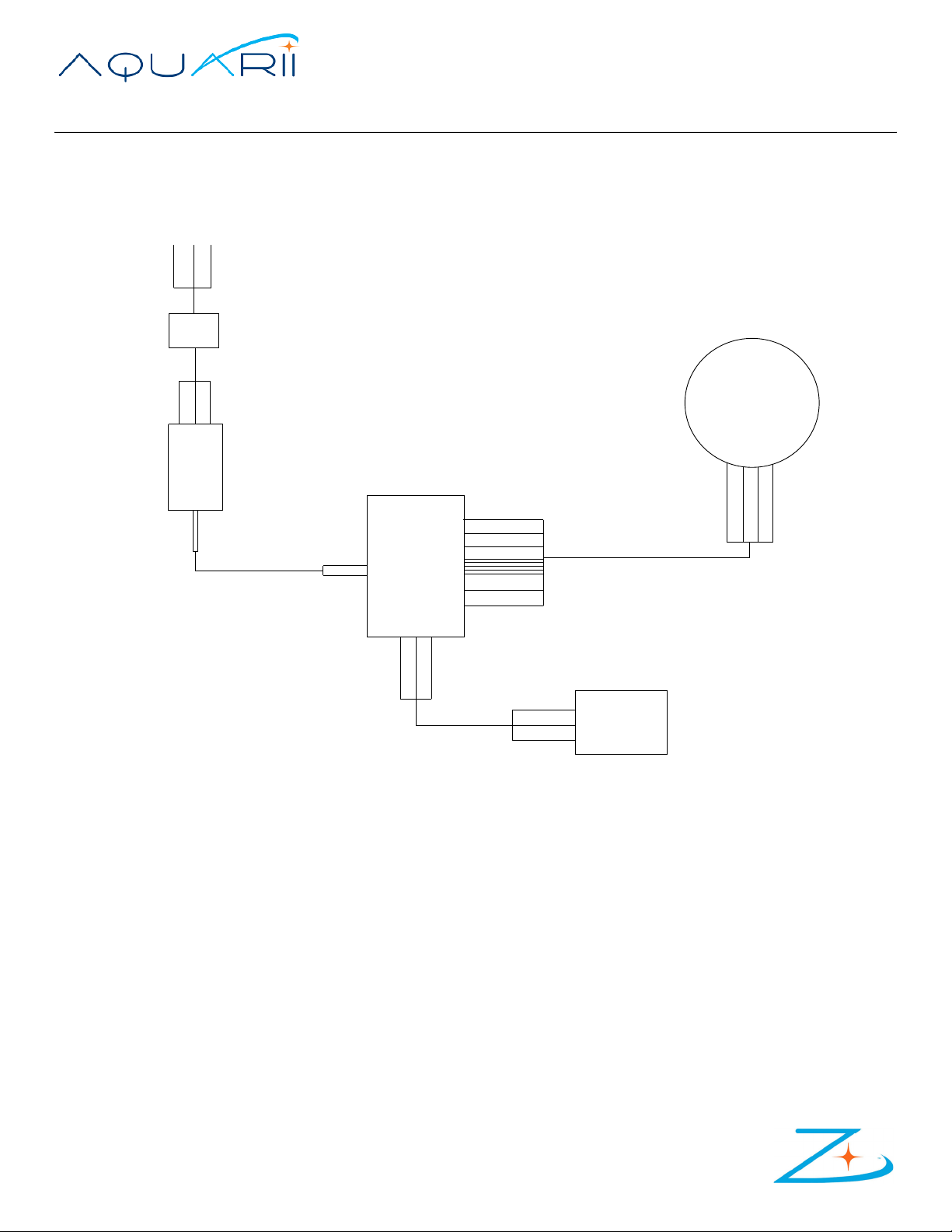

See the DMX Wiring for a Zino LED Fixture in the diagram below:
Follow the steps below to secure the DMX/RDM Connections to the fixture.
1. Determine the present Communication Board, then secure the DMX Communication Wiring to the board based on the
local sites wiring options. The four possible options are:
• XLR - 5 Pin (P/N: 17-00005)
• RJ-45 (P/N: 17-00004)
• Insulation Displacement Connector (IDC) (P/N: 17-00003)
• Screw Terminal (P/N: 17-00002)
2. Ensure the DMX Wire Harness connection from the Controller to Communication Board has not been disrupted.
3. Set the fixtures DMX Address as needed.
NOTE:
All DMX Wiring should be compatible with Telecommunications Industry Association TIA/EIA-485 (RS-485). See the table on
Page 7 of this manual for the required DMX over CAT5e/6 Information.
"$108&3'30.#6*-%*/(
7"$
);
#-"$,
8)*5&
(3&&/
+6/$5*0/#09
#-6&
#308/
(3&&/
108&34611-:
9-(
#-"$,
3&%
%$8*3&)"3/&44
$0/530--&3
#-"$,
3&%
#-"$,
#-,8)5
(3":
%.98*3&
)"3/&44
%.93%.$0..6/*$"5*0/#0"3%
#-"$,
#-,8)5
(3":
#-,"
#-,"
#-,35
#-,35
-&%"33":
8*3&)"3/&44
-&%"33":
#-,"
#-,"
#-,35
#-,35
7
DMX over CAT5e/6
Be sure to read the Notes/Warnings below:
NOTES:
1. Pin numbering and colors are in accordance with ANSI/TIA/EIA-568 scheme T568B.
2. Pin 8 should wired as signal common even if pins 3 and 6 are NOT wired so that both conductors 7 and 8 are at equal
potential.
WARNING:
Accidental connection to non-DMX512 equipment likely to be encountered (e.g., an Ethernet Hub at a patch bay) may
result in damage to equipment. Pins 4 and 5 may carry voltages outside the EIA-485 range in telecom applications (e.g.,
telephone ringing). Pins 4 and 7 may carry voltages outside the EIA-485 range in other applications (e.g., some manufac-
turers whose distributed DMX512 buffering products require low voltage DC power may use these wires for this purpose).
Because of these various uses, mis-plugging unlike systems could cause serious damage.
DMX Addressing Information
The Zino LED Fixture requires one DMX Channel in a universe. See the example below for how to address the fixture.
• Channel 1: Intensity (0-255)
An intensity value of 0 will cause the fixture to not illuminate, while a value of 255 is the highest intensity.
See the table below for the Zino DMX Protocol:
WIRE COLOR FUNCTION
IEC 60603-7
8-position Modular
Connector (RJ-45)
Pin Number
XLR PIN
NUMBER
Brown Pair 2 - Signal common / ground / shield (0V) 8 1
White / Brown Pair 1 - Signal common / ground / shield (0V) 7 1
Orange Pair 1 - Data negative (D-) 2 2
White / Orange Pair 1 - Data positive (D+) 1 3
Green Pair 2 - Data negative (D-) 6 4
White / Green Pair 2 - Data positive (D+) 3 5
Blue Unassigned 4
White / Blue Unassigned 5
PERSONALITY CHANNEL FUNCTION VALUE
1 1 Intensity
DECIMAL % HEX
0 - 255 0 - 100 00 - FF
8
Secure 0-10V Connection
See the 0-10V Wiring Diagram for a Zino LED Fixture below:
NOTE:
All 0-10V Analog Wiring should be run as Class 2 per National Electric Code (NEC) Article 725. See the 0-10V Information
section of this manual for more information.
Follow the steps below to secure the sites 0-10V Communication Wiring to the fixture.
1. Ensure the local sites power supply is shut-off for personal safety.
2. Determine the type of circuit present at the local site.
3. Secure the Screw Terminal Plug-in Connection from the local site to the 0-10V Communication Board.
4. Confirm the Polarity for 0-10V Communication Wiring.
5. Test the fixture to ensure proper function.
"$108&3'30.#6*-%*/(
7"$
);
#-"$,
8)*5&
(3&&/
+6/$5*0/#09
#-6&
#308/
(3&&/
108&34611-:
9-(
#-"$,
3&%
%$8*3&)"3/&44
$0/530--&3
#-"$,
3&%
#-,"
#-,"
#-,35
#-,35
#-"$,
3&%
7
8*3&)"3/&44
#-"$,
3&%
7$0..6/*$"5*0/#0"3%
-&%"33":
8*3&)"3/&44
-&%"33":
#-,"
#-,"
#-,35
#-,35
9
0-10V Information
Please read and understand the following information about 0-10V Wiring:
• Local site wiring must utilize properly rated insulation so no spacing or separation is required regardless of circuit
conductor voltage.
• The local site must utilize power limited/circuit wiring that has the required insulation rating for the maximum voltage in
any of the circuits if the power limit/branch circuit wiring comes in contact with other wiring.
• Class 2 0-10V Wiring follows NEC Requirement 725.136 (D). Meaning electric light, power, and Class 1 circuits must
have a 6 mm separation from the Class 2 Wiring.
• Conductors that operate at 150V, or less, to Ground must comply with the following:
The Class 2 circuits are installed using Type CL3, CL3R, or CL3P or permitted substitute cables provided these Class
3 cable conductors extending beyond the jacket are separated by a minimum of 6 mm (0.25 in.) or by a non-
conductive sleeve or non-conductive barrier from all other conductors.
• There must be a minimum of 0.25 in. between line voltage and bus terminals for Class 2 installations.
TROUBLESHOOTING/CORRECTIVE ACTIONS
Troubleshooting/Corrective Action Assessments can only be performed by qualified/trained personnel. Failure to do so will void
any Aquarii Product Warranties.
If the Zino is still not functioning as required after the Troubleshooting/Corrective Actions have been performed, please contact
Aquarii Customer Service for further assistance.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
No light output
Power is off Check if power supply is on
Poor wire connection Check wiring connections
Faulty supply switch Test or replace supply switch
Shorted dim lines Verify no shorts in dim lines
Fuse blown or Circuit Breaker trips Crossed wire(s) or a supply
wire has grounded out Check wiring connections
Red LED diode illuminated on
Controller Faulty Communication Verify Correct Communication
Protocol
Red + Green LED diode illuminated
on Controller Faulty Controller Replace the Controller
Green LED diode not illuminated on
Power Supply
Faulty Power Supply Replace Power Supply
Local Site Power issue Verify local site Power Supply is
on/running
This manual suits for next models
1
Table of contents
