Important Information
Congratulations on your purchase of an Aquatic AV AD500.4 4/3/2 Channel
Amplier. It has been designed, engineered and manufactured to bring you the
highest level of performance and quality. Thank you for making Aquatic AV
your choice for marine audio equipment!
1.1 Using Your Amplier
Working Safely With Your Battery
Disconnect the negative battery terminal before doing any electrical work. Al-
ways disconnect the negative (-) battery post rst, followed by the positive (+).
When it’s time go back together, connect the positive (+) post rst, followed by
the negative (-). This can minimize the chance of sparks and voltage spikes.
Grounding
Always use the shortest length of ground wire possible between chassis
ground and the amplier. Never use a ground wire longer than the one we
provide.
The ground wire and power wire are equally important; if either one of them is
compromised, the amplier’s performance will degrade or cease to function.
Fuses
Always install a master fuse within 12” of the battery for any additional equip-
ment added to your installation’s electrical system. The mini-fuse installed
on the main amplier only protects the internal circuitry, not the wiring. In the
event of a short, failure to install a fuse near the battery can cause damage to
your electrical system or the possibilty of re.
Speaker Polarity
The way speaker wires are marked for polarity (+/-) varies from brand to brand.
Some manufacturers use the stripe as positive (+), while others use the stripe
as negative (-). Be sure to check the documentation of each component you’re
dealing with before making connections.
Cutting Cables
Always route wires and cables safely, avoid sharp edges and burrs along the
way. Use wire loom when possible. Check for proper length to both termination
points, knowing where each component mounts, before you cut anything.
Mounting
Mount the amplier away from water/mud at all times and in a good ventilated
area with good air ow. Do not mount in engine compartment. Mount amplier
securely. Be careful not to drill into fuel line, electrical or mechanical areas
when mounting. Do not run wires under the vehicle or vessel, this could be very
dangerous with severe damage.
1

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Front Plate
A. Speaker output cable
B. Power input cable
C. Front Gain Control
D. Rear Gain Control
E. Variable Frequency Control (40 ~ 400Hz)
F. Crossover Switch
HPF: High Pass Filter; LPF: Low Pass Filter;
FULL: Full Range
G. Power/Protect LED
Blue color means working status; Red color means
protect status
1.2 Front Plate
2

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
1.3 Shockwave Technology
Aquatic AV’s Shockwave Technology brings together outstanding sound quali-
ty, high performance characteristics and unprecedented reliability into a single
amplier.
Protected against water and dust with an Ingress Protection rating of IP67
means you can literally hose down our Shockwave Technology ampliers
thanks to a number of unique features exclusive to Aquatic AV.
Conformal coated circuit boards protect the smallest components from any
humidity or atmospheric moisture. Custom molded grommets around cable ex-
trusions and gaskets between all meeting points eliminate any chance of water
or dust intrusion. Aluminium and stainless steel are used in chassis construc-
tion eliminating any risk of rust or corrosion.
Designed to support the widest variety of applications, Shockwave Technology
ampliers operates both 4ohm and 2ohm speaker congurations.
Shockwave Technology incorporates Digita IC’s with specially designed low-
noise circuitry to produce high-quality, true sound reproduction from any
source. This technology also reduces unwanted EMI (Electromagnetic Interfer-
ence), which can cause noise in your audio system.
Using gold plated RCA’s and high quality connectors ensures the best possible
listening experience. There is also a speaker level input for those that do not
provide RCA’s. To use our amplier with the Harley-Davidson Factory Radio, you
will need to use the Molex connector with the speaker wires, provided in the kit.
Digital ampliers are much more ecient than traditional ampliers; produc-
ing less heat, lowering power consumption, reducing strain on batteries and
charging systems.
Shockwave Technology ampliers combine all these features into a single,
compact unit and when compared with the competition, still make consider-
able reductions in both size and weight!
Aquatic AV’s Shockwave Technology is the sensible amplier solution for wet,
dusty or harsh environments.
Shockwave Technology
14 Grey + (Right)
15 Grey Black -- (Right)
12 White + (Left)
13 White Black -- (Left)
16 Purple + (Right)
17 Purple Black -- (Right)
18 Green + (Left)
19 Green Black -- (Left)
Rear Speaker Adapter
3
14 Grey + (Right)
15 Grey Black -- (Right)
12 White + (Left)
13 White Black -- (Left)
16 Purple + (Right)
17 Purple Black -- (Right)
18 Green + (Left)
19 Green Black -- (Left)
Front Speaker Adapter

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Getting Started
2.1 Contents
When rst unpacking your new amplier, please check rst that the package
contains all the items below. If something is missing, contact the store where
you purchased the product.
4 -channel amplier
Two (2) Output cable with connector
Four (4) stainless steel mounting screws
Four (4) mounting brackets with hardware included
Two (2) Cables for RCA input
Two (2) Cables for the Speaker Level
Owner’s Manual
2.2 Key Features
Maximum Power: 4 x 150W (2 Ohms) or 4 x 100W (4 Ohms)
Bridged Power 2 x 300W (4 Ohms)
Power and Protection LED
Line Inputs
Bridgeable/Trimode Operation
Variable Gain Controls (200mV to 10V)
Variable Low Pass Crossover & Fixed High Pass Crossover
Up to +18dB Variable Bass Boot
PCB with Conformal Coating
Waterproof IP67
Hardwired Input/Output and Speaker Cables
Signal-to-Noise Ratio: 90dB
Aquatic AV understands that ampliers are placed in many different kinds
of installations, so we have included an input sensitivity control to help you
integrate the amplier into your system regardless of the nature of your input
source and features both high pass and low pass crossovers.
Aquatic AV marine ampliers are constructed using a special corrosion re-
sistant coating on the printed circuit board to prevent damage from the high
humidity.
In order to prevent the intrusion of water into the amplier enclosure, we have
provided the connections at the end of the waterproof wires/cables, and tightly
grommeted the wires as they pass through the end panels. An additional
important and unique component is the rubber pad which seals all control
openings.
4

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Troubleshooting
Problem Cause Solution
It doesn’t sound right
Speaker connected to the
wrong output
Refer to page 7-9 of this owner
manual
Control panel settings are
wrong
Refer to page 7-9 of this owner
manual
Amplier doesn’t turn on
Controller/head unit wasn’t
turned ON
Did you remember to press
and hold the controller’s power
button for 3-5 seconds?
Poor connection integrity
Check “+12V” and “Ground”
leads for pinched wires;
ensure tight connections.
Balance Reversed Speaker Wire L & R Reversed Correct Speaker Wire
Orientation
Output Distorted
NR/Audio player Volume Set
Too High
Lower NR /Audio player
Volume
Amplier Gain set too High Lower Amplier Gain (SENS)
Whining or ticking noise while
the engine is ON
The amplier is picking up
alternator or radiated noise
Move the audio cables away
from the power wires
Turn Down input gain (SENS)
Check the alternator and/
or voltage regulator. Test for
weak battery or add water to
the battery.
2.3 Troubleshooting
5

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
3.1 Installation Precautions
Before you drill or cut any holes, investigate your ATV or boat layout very
carefully. Take special care when you work near the gas tank, fuel lines, hydrau-
lic lines and electrical wiring. Aquatic AV suggests you have a professional
install the amplier. Never operate the amplier when it is unmounted. Attach
all audio system components securely within the amplier to prevent damage
especially in an accident.
Do not mount this amplier in a way in which the wire connections are unpro-
tected, in a pinched condition, in contact with any metal surfaces or likely to be
damaged by nearby objects.
Before making or breaking power connections in your system, disconnect the
battery. Conrm that your head unit or other equipment is turned off while con-
necting the input jacks and speaker terminals.
If you need to replace the power fuse, replace it only with a fuse identical to
that supplied with the amplier. Using a fuse of a different type or rating may
result in damage to your audio system or your amplier which is not covered by
the manufacturer’s warranty.
Installation
NOTE: For an easier installation process when you purchase an amplier for Harley Davidson®
motorcycles, we suggest also buying one of Aquatic AV’s Amplier Mounting Kits. These kits
are available in the following models:
Road Glide Amplier Mounting Bracket Kit (1998-2013)
Batwing Amplier Mounting Bracket Kit (1998-2013)
Road Glide Amplier Mounting Bracket Kit 2015+
Batwing Amplier Mounting Bracket Kit 2014+
6

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Input Wiring
4.1 Head Unit with RCA Outputs
The AD500.4 amplier requires all four RCA inputs to be connected to provide
correct operation. When the amplier is used in conjuction with a stereo source
where only two RCA outputs are available, please use RCA ‘Y-connectors’ to
allow all four inputs to be connected. Always use high-quality RCA cables for
best audio performance.
1 3
1 2
STEREO
1 3
1 2
STEREO
Stereo with 4 x RCA Outputs (Front & Rear) Stereo with 2 x RCA Outputs (Left & Right)
12
12 FRONT Left RCA White Input
13 FRONT Right RCA Red Input
14 REAR Left RCA White Input
15 REAR Right RCA Red Input
13 14 15
12 13 14 15
7

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Input Wiring
4.2 Speaker Wiring
This will be used if the customer will use our amplier with the Stock Harley
Radio or with the head unit which does not have RCA outputs.
1 3
1 2
STEREO
1 3
1 2
STEREO
8
1 3
1 2
STEREO
1 3
1 2
STEREO

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
1GND 8 AWG BLACK
2+12V 8 AWG RED
3TRIGGER 16 AWG BLUE
12 FRONT LEFT(POS) WHITE
13 FRONT LEFT (NEG) WHITE/BLACK
14 FRONT RIGHT (POS) GREY
15 FRONT RIGHT (NEG) GREY/BLACK
16 REAR RIGHT (POS) PURPLE
17 REAR RIGHT(NEG) PURPLE/BLACK
18 REAR LEFT(POS) GREEN
19 REAR LEFT(NEG) GREEN BLACK
4FRONT RIGHT (NEG)16 AWG GREY/BLACK
5FRONT RIGHT (POS)16 AWG GREY
6FRONT LEFT (POS)16 AWG WHITE
7FRONT LEFT(NEG) 16AWG WHITE/BLACK
8REAR RIGHT(NEG) 16AWG PURPLE/BLACK
9REAR RIGHT(POS) 16AWG PURPLE
10 REAR LEFT(POS) 16AWG GREEN
11 REAR LEFT(NEG) 16AWG GREEN/BLACK
POWER
SPEAKER OUTPUT
SPEAKER HIGH LEVEL INPUT
14 Grey + (Right)
15 Grey Black -- (Right)
12 White + (Left)
13 White Black -- (Left)
16 Purple + (Right)
17 Purple Black -- (Right)
18 Green + (Left)
19 Green Black -- (Left)
Inputs
Input Wiring
9
Outputs
FRONT
REAR
14 Grey + (Right)
15 Grey Black -- (Right)
12 White + (Left)
13 White Black -- (Left)
16 Purple + (Right)
17 Purple Black -- (Right)
18 Green + (Left)
19 Green Black -- (Left)

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
5.1 Input Settings
4 Channel Mode
Adjust both gain controls. Turn the stereo to 75%, then adjust the 0.2V gains
frequency upward when the music gets loud and turn it down when the music
is not clear. This will keep your system working well and protect your equip-
ment.
1 3
1 2
NOTE: Make sure the polarity to each speaker is correct! If not your speakers will
be out of phase and the output will have a loss of bass and the sound will not be
good.
10

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
3 Channel/Bridge Mode
3 Channel/Bridge Mode operation allows you to connect this amplier to one
pair of main speakers on channels 1 & 2, plus a subwoofer on output channels
3 & 4. The main speakers will operate in STEREO while the subwoofer simulta-
neously operates in MONO.
To set the amplier to run in this mode, put the crossover switch in the FULL
position.
PURPLE / BLACK
GREEN
GREEN/
BLACK
PURPLE
SPEAKER
IMPEDANCE
4 OHMS
SPEAKER
IMPEDANCE
4 OHMS
GREY
GREY/BLACK
WHITE
WHITE / BLACK
CH 1
Speaker
SPEAKER
IMPEDANCE
4 OHMS
CH 2
Speaker
SUBWOOFER

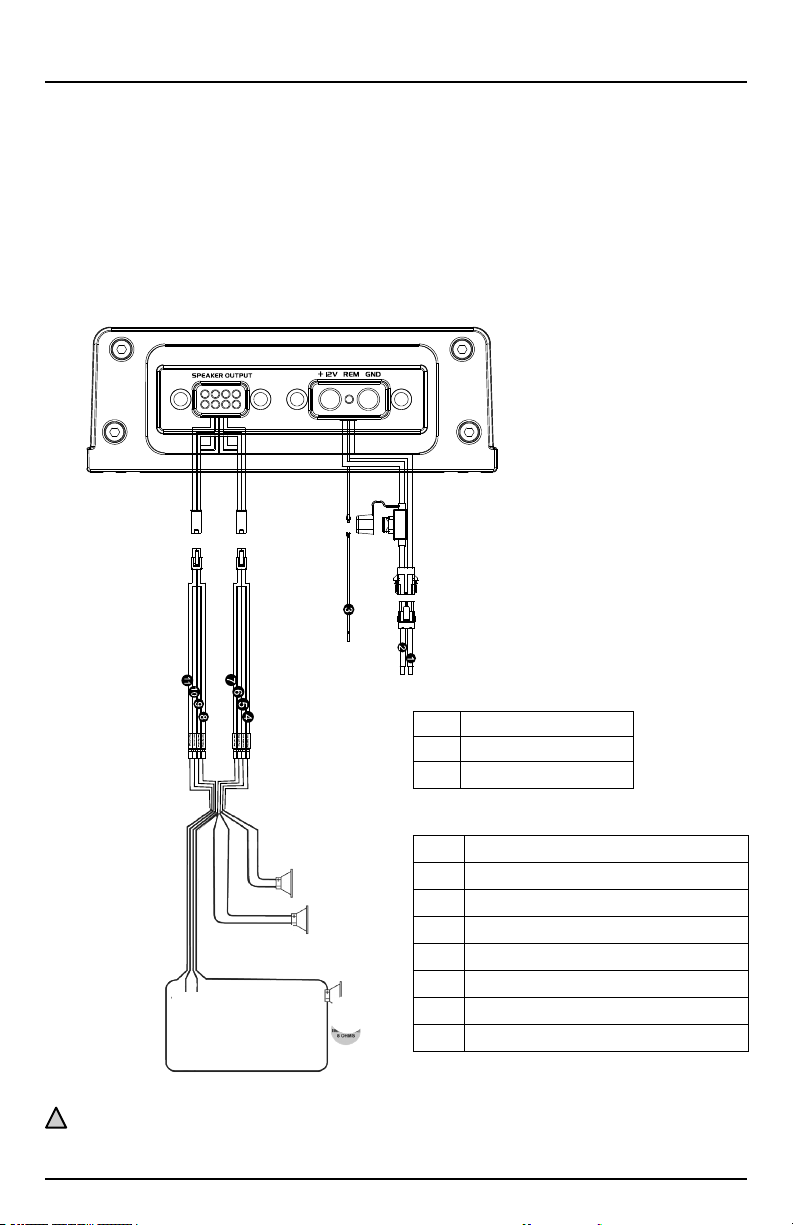

6.1 Power & Speaker Wiring
NOTE: Green, black and purple wires will not be connected.
WARNING: Always insulate the wire when not in use. Otherwise, it can cause a
short circuit. Also do not use the speaker wires or RCA cable near power wires to
avoid interference.
!
1GND 8 AWG BLACK
2+12V 8 AWG RED
3TRIGGER 16 AWG BLUE
4FRONT RIGHT (NEG)16 AWG GREY/BLACK
5FRONT RIGHT (POS)16 AWG GREY
6FRONT LEFT (POS)16 AWG WHITE
7FRONT LEFT(NEG) 16AWG WHITE/BLACK
8REAR RIGHT(NEG) 16AWG PURPLE/BLACK
9REAR RIGHT(POS) 16AWG PURPLE
10 REAR LEFT(POS) 16AWG GREEN
11 REAR LEFT(NEG) 16AWG GREEN/BLACK
POWER
SPEAKER OUTPUT
11

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
7.1 Specications
Specications & Dimensions
7.2 Dimensions
12
Type: ........................................................
Dimensions (l x w x h): ...........................
Waterproof: .............................................
Overload Protection: ...............................
Input Channels: .......................................
Output Channels: ...................................
Output Impedence (nominal): ...............
Power Output (RMS) @ 2 Ohms: ............
Power Output (RMS) @ 4 Ohms: ............
THD @ 4 Ohms, 100W: ..........................
THD @ 4 Ohms, 50W: ............................
THD (Bridged), 300W: ............................
Frequency Response: .............................
High Pass/Low Pass Cross-Over
Frequency: ...............................................
Input Sensitivity .......................................
Operating Voltage ...................................
Additional Features .................................
4-channel amplier
8.9 x 4.5 x 1.6” (227.5 x 113.4 x 42 mm)
IP67
Yes
4xRCA, 4 speaker level input
4/3/2
4 Ohms / 2 Ohms
600W (4 x150W)
400W (4 x100W)
1%
0.05%
1%
20Hz ~ 20kHz
40Hz ~ 400Hz
0.2 - 10V
9V - 16V DC
Shockwave Technology
AD500.4
8.9" (227.5 mm)
8.3" (211 mm)
3.1" (80 mm)
4.5" (113.4 mm)
AD500.4
1.6" (42 mm)

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Output Settings
8.1 Gain Controls
These are very important to the quality of the sound you recieve from your
stereo input. Stereos or source units range with different outputs. We want to
match the output to your amplier as close as possible so you can achieve the
ultimate sound performance.
Your amplier can adjust from 0.2V to 10V input. Place your gain controls down
to 0.2V to start.
First turn your source (stereo) up to about 75% of the maximum volume. Then
play some music you are familiar with. The sound at rst may be very low.
Then start rotating the gain control for the front and rear channels up toward
10V slowly you will get to a point where the music should sound very good to
your ear. After that point the music can still get louder but you do not want it to
get too loud and distort the sound. This can also damage your equipment and
speakers.
When the music starts distorting, please lower the volume level. You might be
overdriving the speakers and it may damage them. Aquatic AV suggests you
get the music as loud as you need without distortion and reduce the gain by
10% to keep your system safe.
8.2 Crossovers
Adjust the crossover points to the current setting needed. By doing this you
send the right information to each speaker so they can perform well. This also
protects the speaker from damage or abuse.
HP - High Pass Filter is set for high frequencies and cuts out low frequen-
cies such as bass
LP - Low Pass Filter is set for low frequencies and eliminates high frequen-
cies such as cymbals.
Full - Full Range gives you all the frequencies.
There are two frequency settings that you can adjust for the front and rear
channels. These are adjusted after you set the crossover settings.
If you are not familiar with these settings consult a local dealer. By having
the setting set at the correct point you will extend the life of your system and
achieve ultimate performance.
8.3 Power/Protect LED
When the PWR/PRT LED is blue the amplier is working properly. If the LED
turns red the amplier goes into protection mode. If the LED is red you have to
trouble shoot your system to see if there are any damaged wires, speakers or
short circuit. Make sure your Ohm load is not below 2 Ohms.
13

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
Warranty
Aquatic AV offers a limited warranty of our products on the following terms:
Length of warranty
2 years on audio systems, electronics, speakers, and accessories (receipt
required). Register your device through the Aquatic AV app. Available to down-
load on the App Store and Google Play Store.
Coverage
This warranty covers only the original purchaser of an Aquatic AV product
purchased from an authorized Aquatic AV dealer. In order to receive service,
the purchaser must provide Aquatic AV with a copy of the receipt stating the
customer name, dealer name, product purchased and date of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Aquatic AV’s discretion.
What is not covered
Damage caused by accident, abuse, improper operations or theft.
Any cost or expense related to the removal or reinstallation of product.
Service performed by anyone other than an authorized Aquatic AV service
center.
Any product with the serial number or tamper labels defaced, altered, or
removed.
Subsequent damage to other components.
Any product not purchased from an authorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of tness for use and merchantabi-
lity are limited in duration to the period of the express warranty set forth above.
Some states do not allow limitations on the length of an implied warranty, so
this limitation may not apply. No person is authorized to assume for Aquatic AV
any other liability in connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any
product to Aquatic AV. You are responsible for shipping charges of returned
products to Aquatic AV.
Please record the model and serial number[s] of your equipment in the space
provided below as your permanent record and will assist us with your factory
warranty coverage. These numbers can be found on the rear of the speaker.
14

AD500.4 - 4/3/2 CHANNEL AMPLIFIER
www.aquaticav.com
This page is intentionally left blank.
15
This manual suits for next models
1
Table of contents
Other Aquatic Amplifier manuals
